Sun Storage J4200 Array Power
Supply Replacement Guide
Part No. 820-3227-11
April 2008, Revision A

Please
Recycle
Copyright 2008 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved.
Sun Microsystems, Inc. has intellectual property rights relating to technology that is described in this document. In particular, and without
limitation, these intellectual property rights may include one or more of the U.S. patents listed at http://www.sun.com/patents and one or
more additional patents or pending patent applications in the U.S. and in other countries.
This document and the product to which it pertains are distributed under licenses restricting their use, copying, distribution, and
decompilation. No part of the product or of this document may be reproduced in any form by any means without prior written authorization of
Sun and its licensors, if any.
Third-party software, including font technology, is copyrighted and licensed from Sun suppliers.
Parts of the product may be derived from Berkeley BSD systems, licensed from the University of California. UNIX is a registered trademark in
the U.S. and in other countries, exclusively licensed through X/Open Company, Ltd.
Sun, Sun Microsystems, the Sun logo, AnswerBook2, docs.sun.com, and Solaris are trademarks or registered trademarks of Sun Microsystems,
Inc. in the U.S. and in other countries.
All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and in other
countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc.
The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sun acknowledges
the pioneering efforts of Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry. Sun
holds a non-exclusive license from Xerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN
LOOK GUIs and otherwise comply with Sun’s written license agreements.
U.S. Government Rights—Commercial use. Government users are subject to the Sun Microsystems, Inc. standard license agreement and
applicable provisions of the FAR and its supplements.
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT,
ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright 2008 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, Californie 95054, Etats-Unis. Tous droits réservés.
Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie qui est décrit dans ce document. En particulier, et sans la
limitation, ces droits de propriété intellectuels peuvent inclure un ou plus des brevets américains énumérés à http://www.sun.com/patents et
un ou les brevets plus supplémentaires ou les applications de brevet en attente dans les Etats-Unis et dans les autres pays.
Ce produit ou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie, la distribution, et la
décompilation. Aucune partie de ce produit ou document ne peut être reproduite sous aucune forme, par quelque moyen que ce soit, sans
l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a.
Le logiciel détenu par des tiers, et qui comprend la technologie relative aux polices de caractères, est protégé par un copyright et licencié par des
fournisseurs de Sun.
Des parties de ce produit pourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque
déposée aux Etats-Unis et dans d’autres pays et licenciée exclusivement par X/Open Company, Ltd.
Sun, Sun Microsystems, le logo Sun, AnswerBook2, docs.sun.com, et Solaris sont des marques de fabrique ou des marques déposées de Sun
Microsystems, Inc. aux Etats-Unis et dans d’autres pays.
Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc.
aux Etats-Unis et dans d’autres pays. Les produits portant les marques SPARC sont basés sur une architecture développée par Sun
Microsystems, Inc.
L’interface d’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems, Inc. pour ses utilisateurs et licenciés. Sun
reconnaît les efforts de pionniers de Xerox pour la recherche et le développement du concept des interfaces d’utilisation visuelle ou graphique
pour l’industrie de l’informatique. Sun détient une license non exclusive de Xerox sur l’interface d’utilisation graphique Xerox, cette licence
couvrant également les licenciées de Sun qui mettent en place l’interface d ’utilisation graphique OPEN LOOK et qui en outre se conforment
aux licences écrites de Sun.
LA DOCUMENTATION EST FOURNIE "EN L’ÉTAT" ET TOUTES AUTRES CONDITIONS, DECLARATIONS ET GARANTIES EXPRESSES
OU TACITES SONT FORMELLEMENT EXCLUES, DANS LA MESURE AUTORISEE PAR LA LOI APPLICABLE, Y COMPRIS NOTAMMENT
TOUTE GARANTIE IMPLICITE RELATIVE A LA QUALITE MARCHANDE, A L’APTITUDE A UNE UTILISATION PARTICULIERE OU A
L’ABSENCE DE CONTREFAÇON.

Contents i
Contents
Removing and Replacing a Power Supply 1
ESD Precautions 1
Power Supply Components 2
Removing and Replacing a Power Supply 4
▼Removing a Power Supply 4
▼Replacing a Power Supply 5
▼Verify and Complete the Power Supply Replacement 6
Related Documentation 7
Service Contact Information 8

ii Sun Storage J4200 Array Power Supply Replacement Guide • April 2008

Removing and Replacing a Power Supply 1
Removing and Replacing a Power
Supply
This document describes replacement procedures for the power supply customer
replaceable unit (CRU) installed in the Sun Storage J4200 array disk tray. This
document assumes you have:
■Identified the tray containing the failed power supply.
■Received the replacement power supply.
This product is intended for restricted access whereby access is controlled through
the use of a means of security (e.g., key, lock, tool, badge access), and personnel
authorized for access have been instructed on the reasons for the restrictions and any
precautions that need to be taken.
ESD Precautions
When performing this service action, observe the following electrostatic discharge
(ESD) precautions:
■Remove all plastic, vinyl, and foam material from the work area.
■Wear an antistatic wrist strip at all times when handling any CRU.
■Before handling any CRU, discharge any static electricity by touching a grounded
surface.
■Do not remove a CRU from its antistatic protective bag until you are ready to
install it.
■After removing a CRU from the cabinet, immediately place it in an antistatic bag
or antistatic packaging.
■Handle any card CRU only by its edges and avoid touching the components or
circuitry.

2Sun Storage J4200 Array Power Supply Replacement Guide • April 2008
■Do not slide a CRU over any surface.
■Limit body movement (which builds up static electricity) during the removal and
replacement of a CRU.
Power Supply Components
Each tray contains two hot-swappable, redundant power supplies. If one power
supply is turned off or malfunctions, the other power supply maintains electrical
power to the tray.
Caution – Only trained service personnel should remove the covers on this
equipment.
FIGURE 1 shows the location of power supply 0 (left) and 1 (right).
FIGURE 1 Location of Power Supply 0 and 1 (Back View)
0 1

Removing and Replacing a Power Supply 3
FIGURE 2 Power Supply LEDs and Components (Back View)
Removing and Replacing a Power
Supply
This section describes how to remove and replace a power supply.
Caution – Potential loss of data access - Never remove a power supply unless the
Power fault LED is amber. (See FIGURE 2.)
Figure Legend
1AC/DC power status LED
2Power fault LED
3Power cord connector
4Handle latch tab
5Power cord latch
6Power supply handle
12
3546

4Sun Storage J4200 Array Power Supply Replacement Guide • April 2008
Caution – The power supplies in this equipment can produce high energy hazards.
Only personnel with authorized access to this equipment should remove and replace
modules in the system.
▼Removing a Power Supply
1. Locate the failed power supply. The Power fault LED is amber. (See FIGURE 2.)
2. Pull the power cord latch up and over the power cord.
3. Unplug the power cord from the power supply.
4. Pull the power supply handle out and lift it up to disconnect the power supply
from the tray.(See FIGURE 3.)
FIGURE 3 Removing a Power Supply
5. Slide the power supply out of the tray.
Caution – For products with multiple power cords, all power cords must be
disconnected to completely remove power from the system.

Removing and Replacing a Power Supply 5
▼Replacing a Power Supply
Caution – Follow all ESD precautions (see “ESD Precautions” on page 1) and use
care when handling either the new or failed power supply.
1. Unpack the new power supply and do one of the following:
■Place the failed power supply in the packing materials so that you can return it
to Sun for proper disposal.
■Properly dispose of the failed power supply.
2. Insert a new power supply by holding its handle up and aligning it with the
open slot. (See FIGURE 4.)
3. Slide the power supply into the tray.
4. Push the handle down to seat the power supply in the tray.

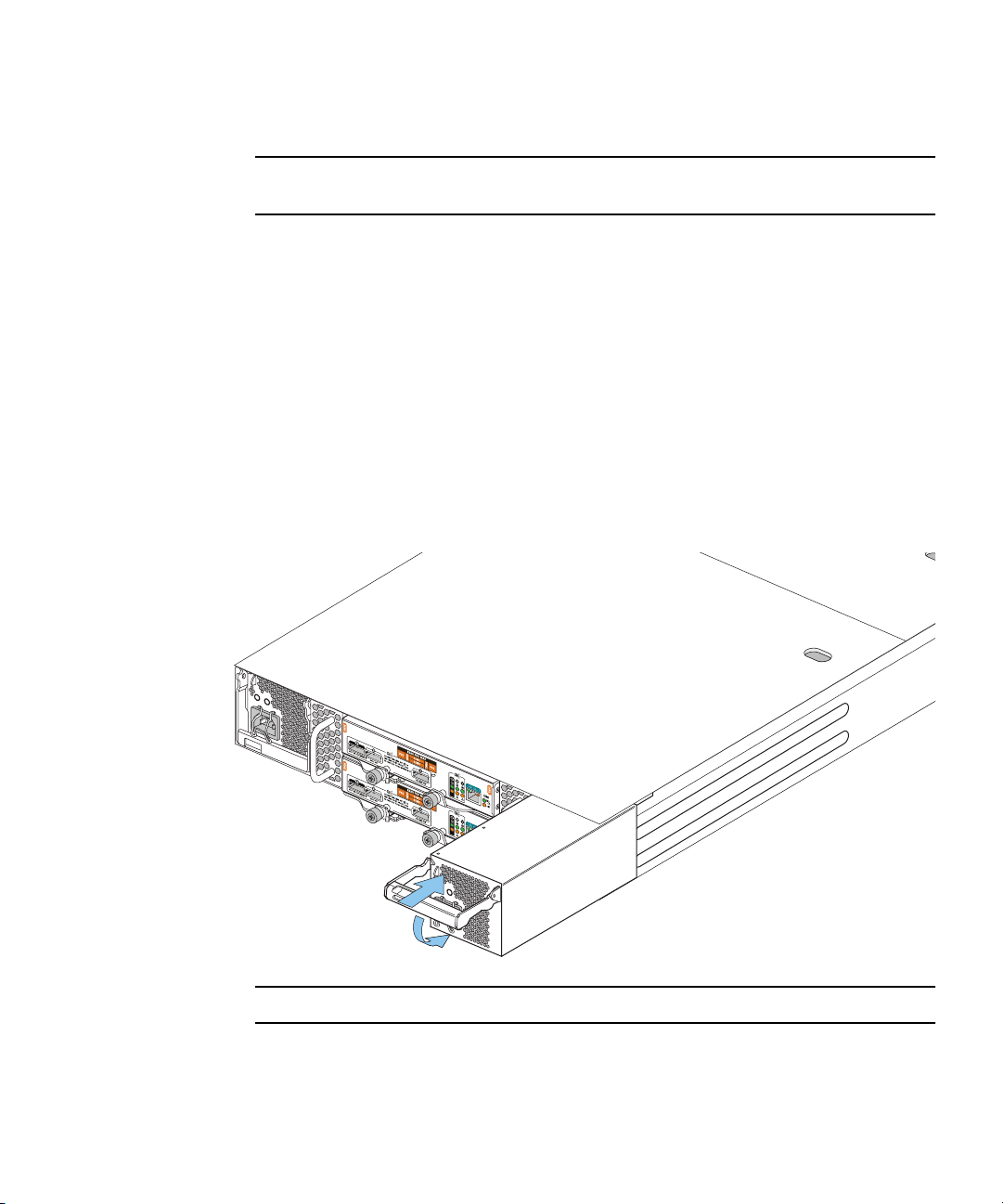

FIGURE 4 Replacing a Power Supply
Note – The latch tab holds the handle in place.
5. Plug the power cord into the new power supply.

6Sun Storage J4200 Array Power Supply Replacement Guide • April 2008
6. Replace the power cord latch.
▼Verify and Complete the Power Supply
Replacement
●Verify the Power status LED is steady green and the Power fault LED is off
(see FIGURE 2).
Related Documentation
For additional information about the Sun Storage J4200 array disk tray, see the
following product documentation:
Application Title Part Number
Regulatory and safety
information
Sun StorageTek Regulatory and Safety
Compliance Manual
96272, Revision A
Multilanguage safety
information
Important Safety Information for Sun
Hardware Systems
816-7190-nn
Site planning information Sun Storage J4200/J4400 Array Site
Preparation Guide
820-3219-nn
Installation at a glance Sun Storage J4200 Array Setup and
Installation Poster
820-3221-nn
Late-breaking information
not included in the
information set
Sun Storage J4200/J4400 Array Release
Notes
820-2222-nn
Installation and use of the
management software using
a GUI
Sun StorageTek J4000 Array Family
Management Software Guide, Graphical
User Interface
820-3765-nn
Installation and use of the
management software using
a CLI
Sun StorageTek J4000 Array Family
Management Software Guide, Command
Line Interface
820-4419-nn
General operation and
troubleshooting
Sun Storage J4200/J4400 Array Overview 820-3223-nn
Disk drive replacement
procedures
Sun Storage J4200/J4400 Array Disk Drive
Replacement Guide
820-3225-nn
SIM board replacement
procedures
Sun Storage J4200 Array SIM Board
Replacement Guide
820-3226-nn

Removing and Replacing a Power Supply 7
Service Contact Information
If you need help installing or using this product in the United States, call
1-800-USA-4SUN(872-4786), or go to:
http://www.sun.com/service/contacting/index.xml
Power supply replacement
procedures
Sun Storage J4200 Array Power Supply
Replacement Guide
820-3227-nn
Fan replacement procedures Sun Storage J4200 Array Fan Replacement
Guide
820-3229-nn
Chassis replacement
procedures
Sun Storage J4200 Chassis Replacement
Guide
820-4413-nn
Rail kit installation
procedures
Sun Storage J4200/J4400 Array Rail Kit
Installation Guide
820-3764-nn
Application Title Part Number

8Sun Storage J4200 Array Power Supply Replacement Guide • April 2008
