Sunbeam EM0450 User manual

Conical Burr
Conical Burr Coffee Grinder
Instruction Booklet
EM0450
Please read these instructions carefully
and retain for future reference.

Important instructions – retain for
future use.
Contents
Sunbeam’s Safety Precautions 1
Features of your Conical Burr Coffee Grinder 2
Operating your Conical Burr Coffee Grinder 4
Adjusting the Grind Setting 6
Care and Cleaning 7

1
Sunbeam’s Safety Precautions
SAFETY PRECAUSTIONS FOR YOUR
SUNBEAM COFFEE GRINDER
• Checkthegrindingbowlforthepresenceof
foreignobjectsbeforeusing.
• Alwaysoperatethegrinderwiththeground
coffeecontainerproperlyinsertedinthe
grinder.
• Donotplaceyourhandinorneartheburrs
whilethegrinderisinoperation.
• Alwaysplacetheunitonaflat,levelsurface.
• Switchoffandunplugatpowerpointbefore
cleaning.
• Donotattempttore-grindgroundcoffee.
Sunbeam is very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:
• Readcarefullyandsavealltheinstructions
providedwithanappliance.
• Alwaysturnthepoweroffatthepoweroutlet
beforeyouinsertorremoveaplug.Remove
bygraspingtheplug-donotpullonthecord.
• Turnthepoweroffandremovetheplug
whentheapplianceisnotinuseand
beforecleaning.
• Donotuseyourappliancewithanextension
cordunlessthiscordhasbeenchecked
andtestedbyaqualifiedtechnicianor
serviceperson.
• Alwaysuseyourappliancefromapower
outletofthevoltage(A.C.only)marked
ontheappliance.
• Thisapplianceisnotintendedforuseby
persons(includingchildren)withreduced
physical,sensoryormentalcapabilities,or
lackofexperienceandknowledge,unlessthey
havebeengivensupervisionorinstruction
concerninguseoftheappliancebyaperson
responsiblefortheirsafety.
• Childrenshouldbesupervisedtoensurethat
theydonotplaywiththeappliance.
• Thetemperatureofaccessiblesurfacesmaybe
highwhentheapplianceisoperating.
• Neverleaveanapplianceunattendedwhile
inuse.
• Donotuseanapplianceforanypurpose
otherthanitsintendeduse.
• Donotplaceanapplianceonornearahotgas
flame,electricelementoronaheatedoven.
• Donotplaceontopofanyotherappliance.
• Donotletthepowercordofanappliancehang
overtheedgeofatableorbenchtoportouch
anyhotsurface.
• Donotoperateanyelectricalappliancewith
adamagedcordoraftertheappliancehas
beendamagedinanymanner.Ifdamageis
suspected,returntheappliancetothenearest
SunbeamAppointedServiceCentre
forexamination,repairoradjustment.
• Foradditionalprotection,Sunbeam
recommendtheuseofaresidualcurrent
device(RCD)withatrippingcurrentnot
exceeding30mAintheelectricalcircuit
supplyingpowertoyourappliances.
• Donotimmersetheapplianceinwater
oranyotherliquidunlessrecommended.
•Appliancesarenotintendedtobeoperated
bymeansofanexternaltimerorseparate
remotecontrolsystem.
•Thisapplianceisintendedtobeusedin
householdandsimilarapplicationssuch
as:staffkitchenareasinshops,officesand
otherworkingenvironments;farmhouses;by
clientsinhotels,motelsandotherresidential
typeenvironments;bedandbreakfasttype
environments.
 Ifyouhaveanyconcernsregardingtheperformanceanduseofyourappliance,
pleasevisitwww.sunbeam.com.auorcontacttheSunbeamConsumerServiceLine.

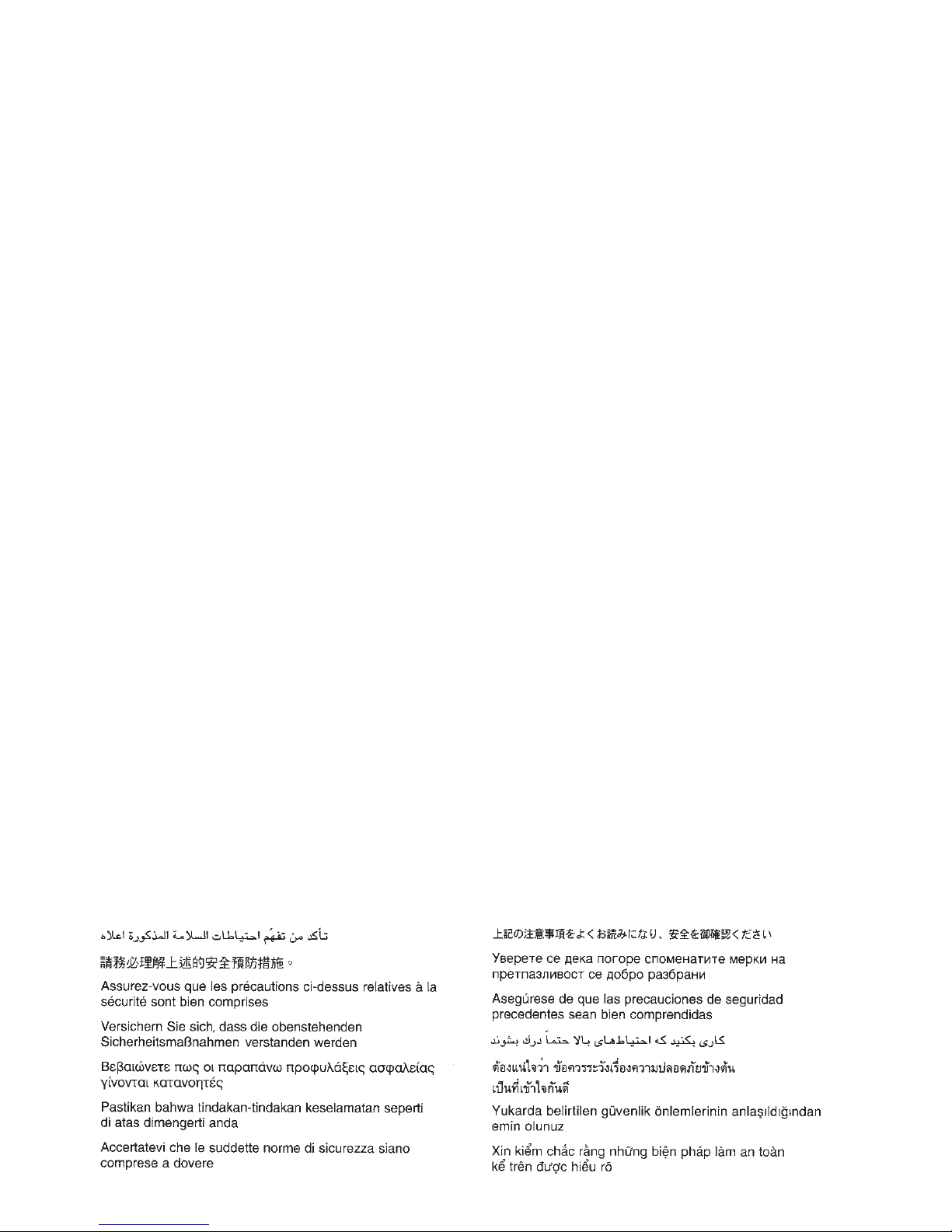

 Ensuretheabovesafetyprecautionsareunderstood.

2
Features of your Conical Burr
Coffee Grinder
250g Bean hopper
The250gcapacitybeanhopperhasashutter
releasemechanismforeasyremovaland
preventingaccidentalspills.Itallowstheuserto
transferanyun-usedbeanstoanidealstorage
unittopreservefreshness.
Grind adjustment collar
Largeandeasytouse,thecollarhasawide-
rangeof25grindsettings.Thecoffeemakercan
selectafinegrindtosuitcommercialespressoor
adjustthesettingforotherbrewingstyles–from
Turkishtoplunger.Withsuchprecisesettingsthe
usercontrolstheparticlesizeandultimatelythe
qualityofthebrew.
Grind on demand button
Positionthegrouphandleintothegrouphandle
locator,pushagainstthebuttonandfreshly
groundcoffeewillflowdirectlyintothebasket,
pullthehandleawayandgrindingwillstop.
Preparation mat
Positionedunderthegrindingspoutthe
preparationmatisidealforcatchingloosecoffee
grindswhilefillingdirectlyintothegrouphandle.
Rubber feet
Thenon-sliprubberfeetensurethegrinder
remainsstableandpreventsslippingonthe
benchtopduringuse.

3
Burr shield
Italian conical burrs
Italiandesignedandmanufactured,themetal
conicalburrdesignachievesexcellentgrind
consistencyandminimisesheattransferto
thecoffeeduetotheslowlyrotatingburrs.
Group handle locator
Cord stuff
Hidesawayunwantedcordtokeepbench
topclean.
Burr cleaning brush
Strongbristleshelpsweepoutgrindsfrom
theburrs.
Silicon spout cover
Simplyslidethespoutcoverontothegrinder
spout.Thisminimisesthedropofcoffeefrom
thegrinderspouttothecoffeefilter,thus
reducingcoffeewaste.
Commercial size
group handle locator
Domestic size
group handle locator

4
HeadingOperating your Conical Burr Coffee
Grinder
Beforeusingthecoffeegrinder,wipethe
baseexteriorwithadampcloth.Washthe
beanhopper,hopperlidandgroundcoffee
containerinwarmsoapywater,thenrinse
anddry.
Note:Donotimmersetheburrsinwateror
anyotherliquid.
Note: Donotplaceanypartsofthecoffee
grinderinthedishwasher.
1.Placethecoffeegrinderonadry,level
surface.
2.Toattachthebeanhopper,positionbean
hopperontothetopofthemotorbase,
pushdownandturnclockwise.
Seefigure1.
3.Fillthebeanhopperwithcoffeebeans.
Tip:Remembertokeepthehopperfullat
alltimes.Havinganevenweightbearing
downontheburrsisimportanttoensurea
consistentgrind.
Note:Thiscoffeegrinderisintendedtogrind
wholecoffeebeansonly.
4.Placethehopperlidontothebeanhopper.
5.Plugthepowercordintoa230-240VAC
poweroutletandswitchthepoweron.
6.Selectthegrindbyturningthegrind
adjustmentcollartothedesiredsetting,
seefigure2.
Refertothegrindsettingtableonpage6to
assistyouinselectingthecorrectgrindlevel
forthedesiredbrewingmethod.
7. Positionthegrouphandleintothegroup
handlelocator,seefigure3.
Note:Therearetwogrouphandlelocators
providedasmallersizetofitdomestic
handlesandalargersizeforcommercial
handles.

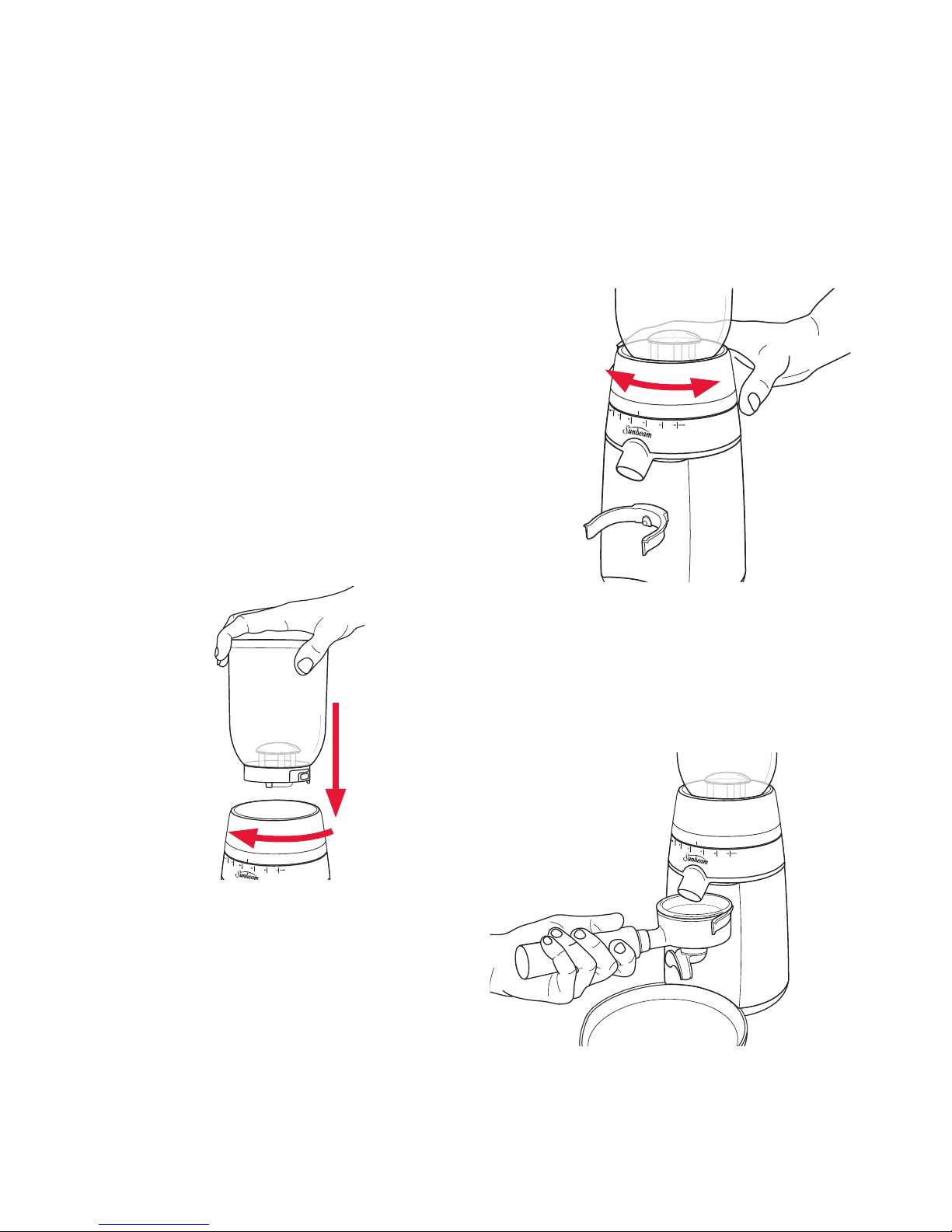

Figure 1
Figure 2
Figure 3

5
Heading
Operating your Conical Burr Coffee Grinder (continued)
8. Togrindcoffee,pressthegrouphandle
againstthebuttonlocatedinthecentre
ofthegrouphandlelocator,seefigure4.
9. Whenthebasketisfull,pullthegroup
handleoffthebutton.Collapsethecoffee
inthebasketbytappingitonthebench
andrepeatuntilthedesiredamountof
coffeehasbeenground.
Note: Foreignobjectslikestonesortwigs
cansometimesbefoundinwholebean
coffeeandcancausethecoffeegrinderto
jam.ShouldthisoccurrefertotheCareand
Cleaningsectiononpage7astheseobjects
needtoberemovedimmediately.
Figure 4

6
Heading
A starting point for gring settings:
SETTING BREWING METHOD
2–6 Turkish
 12–16 Espresso
 12–16 StoveTop
 20–23 DripFilter
 20–23 Plunger
Note:Thesettingsnotedinthetableaboveare
astartingguideonly.Forexamplethesetting
forespressowillvarydependingonthequality
androastdegreeofthebeansandthetypeof
espressoextractiondesired.
Thewide-rangeof25grindsettingsallows
forprecisionadjustment.Thecoffeemaker
hascompletecontroloftheparticlesizeand
ultimatelythequalityoftheresultingbrew.
Somethingstorememberwhenusingthecoffee
grinder;
• Thesmallertheparticlesizethelongeritwill
taketogrind.
• Whenusingthefinersettingsthecoffeemay
becomestuck,werecommendtappingonthe
lidofthebeanhoppertodislodgeanyclumps
ofcoffeeblockingtheflow.
• Afterlongperiodsofusingthefinersettings
werecommendremovingtheupperburrand
sweepingawayanyresidualcoffeetoavoid
clogging.SeetheCareandCleaningsection
onpage7formoredetails.
Tips
1.Selectthecorrectgrindforthebrewing
methodyouareusing.25grindsettingsare
availabletoensureprecisionadjustment.
Setting1producesthefinestgrind,12to16
aremediumgrindsappropriateforespresso
coffeemakers,and25isthecoarsestgrind
youcanachieve.Experimentwiththegrind
settingstoachievetheidealbrewthatbest
suitsyourtastes.
2.Fordripfiltercoffeemachines,agood
startingpointistouse8grams(1scoop)
ofcoffeeforevery4cupsofbrewwater
asmeasuredwiththecarafe.Finergrinds
usuallyrequirelesscoffee,butusingtoofine
agrindwillresultinabrewthatisbitterin
flavour.
3.Forthosethatpreferweakercoffee,continue
tousetherecommendedamountofground
coffeeandthendilutetheresultingbrew
withfreshhotwater.Doingthiswillmaximise
flavourandminimisebitterness.
4.Coffeethatisgroundtoofineforaparticular
brewingprocesswillresultinover-extraction
andthecoffeewilltastebitter.Ontheother
hand,coffeethatistoocoarseforaparticular
brewingmethodwillresultinunder-extraction
andthecoffeewillbethinandpoorin
flavour.
5.Oncecoffeeisgrounditquicklylosesits
flavourandaroma.Forthebestresultswe
recommendyougrindbeansimmediately
priortobrewing.
6.Buyfreshwholecoffeebeansweekly.
7.Toretainfreshness,storewholecoffeebeans
inanairtightcontainerinacool,dark,dry
place.Itisnotrecommendedthatyoustore
beansinthegrinder’sbeanhopperfora
prolongedperiod.
8.Toensurethebestresultsfromthecoffee
grindercleanthebeanhopperandconical
burrsregularly.
Always Remember
PROBLEM DESCRIPTION RESULT
OVER-
ExTRACTION
Overdevelopment
offlavourparticles
(sugarsetc.)
Sharp,
burnt,
bitter
UNDER-
ExTRACTION
Underdevelopment
offlavourparticles
Thin,
watery,
weak
Adjusting the Grind Setting

7
Important Notes:
• Spotsandmarksonthesurfaceofthe
burrsarepartofthehardeningprocess.
Thesemarksdonotaffecttheperformance
ofthegrinderorthetasteofthecoffee.
• Ensurethecoffeegrinderisswitchedoff
andunpluggedfromthepoweroutletprior
tocleaning.
• Donotimmersethemotorbaseofthe
coffeegrinderinwater.
• Donotimmerseanypartoftheburr
assemblyinwateroranyotherliquid.
• Donotplaceanypartsofthecoffeegrinder
inthedishwasher.
• Donotuseabrasivecleansersorscouring
pads.
Cleaning the motor base, bean hopper and
coffee container

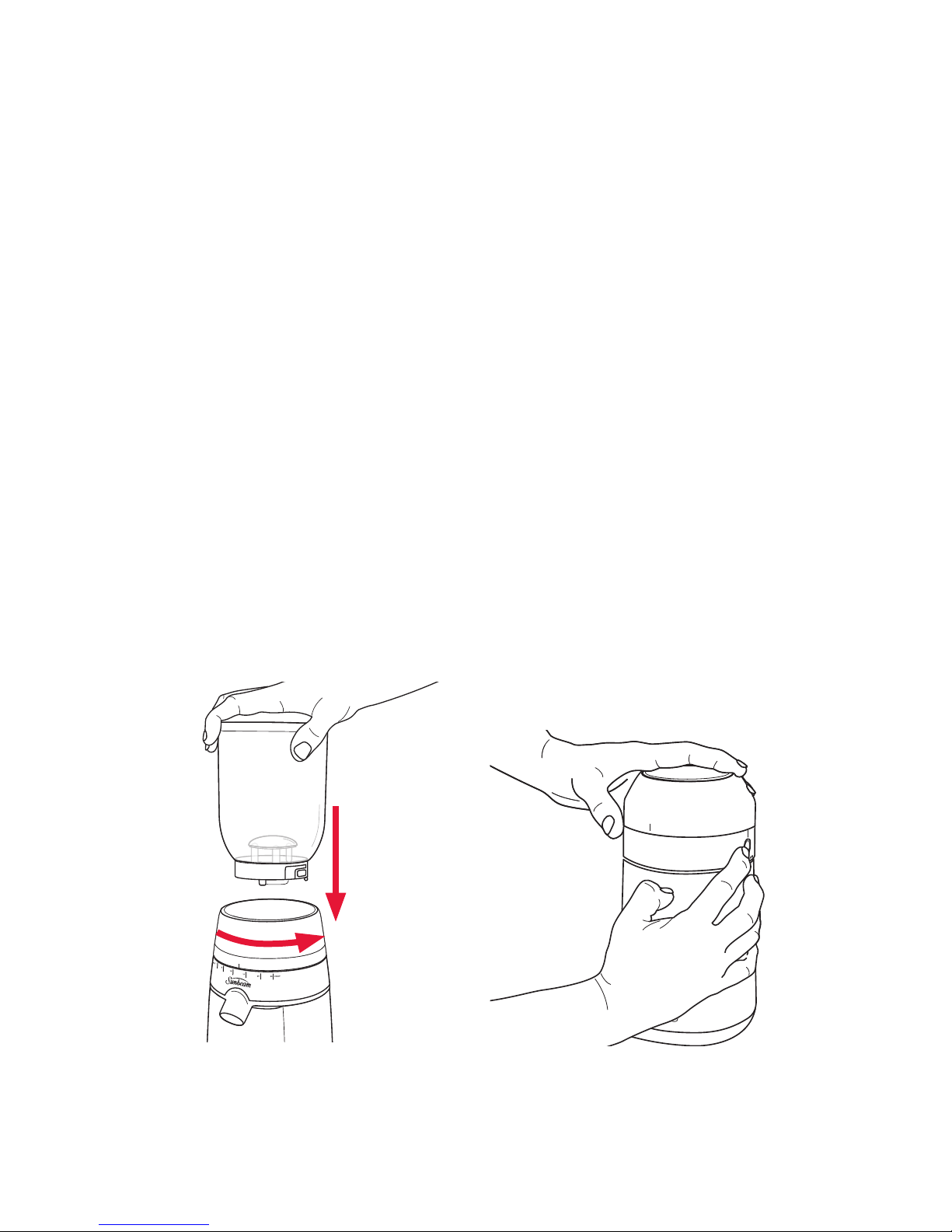

1.Removethebeanhopperfromthemotor
baseandstoreunusedbeansinanairtight
containertopreservetheirfreshness,see
figure5.
2.Cleanthemotorbaseexteriorusinga
dampsoftspongewithmilddetergent
andwipedry.
3.Washthebeanhopperandcoffeecontainer
inwarmsoapywater,thenrinseanddry.
Cleaning the burrs
Ifthecoffeegrinderisusedfrequently(every
day),theburrsneedtobecleanedevery
threeweekstoensurebestperformanceof
thecoffeegrinder.Regularcleaninghelps
theburrsachieveconsistentgrindingresults,
whichisespeciallyimportantwhengrinding
coffeeforespresso.
1.Ensurethecoffeegrinderisswitchedoff
andunpluggedfromthepoweroutlet.
Removethebeanhopperfromthemotor
base,pushdownandturnanti-clockwise.
Seefigure5.
2.Toremovethetopburrturnthegrind
adjustmentcollarinananti-clockwise
directionuntilitstops,seefigure6.
Care and Cleaning
Figure 5
Figure 6

8
Care and Cleaning (continued)

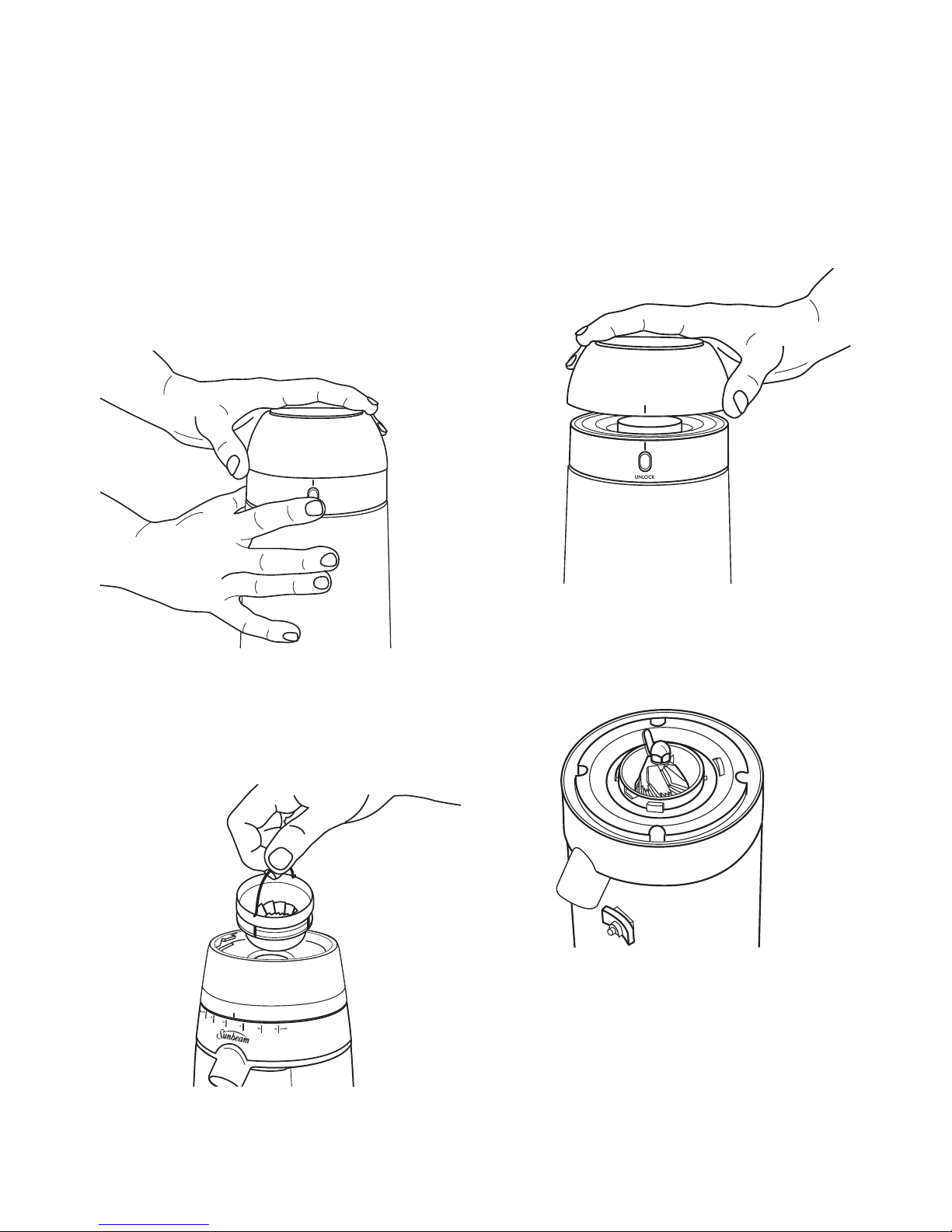

3.Pressandholddownthe‘UNLOCK’button
attherearofthemotorbaseandwith
theotherhandturnthegrindadjustment
collaranti-clockwiseuntilitstopsandthe
graphiclineonthecollarisalignedwith
thelineonthemotorbase,seefigure7.
4.Liftoutthetopburrfromthegrind
adjustmentcollarusingthehandle,see
figure8.Cleanusingtheburr-cleaning
brush.
5.Liftthegrindadjustmentcollarawayfrom
themotorbaseandcleanwiththebrush,
seefigure9.
6.Cleanthebottomburrusingtheburr-
cleaningbrush,seefigure10.
7.Oncebothburrsarecleaned,returnthe
grindadjustmentcollartoitspositionin
themotorbase.
8.Withthegrindadjustmentcollarinhand
alignthegraphiclineonthecollarwiththe
lineontherearofthemotorbase,press
down.
Figure 7
Figure 10
Figure 8
Figure 9

9
Care and Cleaning (continued)
9.Replacethetopburrbackintoposition
inthegrindadjustmentcollar.Ensurethe
markeronthetopburrisalignedwiththe
markerinsidethegrindadjustmentcollar
andpushfirmlyintoplace.
Turnclockwisetothedesiredgrindsetting.
Adjusting the burrs for wear
Theconicalburrsaremadeoftool
hardenedsteelforextralonglife.However
afterprolongedusetheburrswillrequire
adjustmenttocompensateforwear.Asignof
thisiswhenthegrindsarenotasfineasthey
usedtobe,checkbyrubbingsomeofthe
grindsbetweentwofingersorforespressothe
extractionwillalsoshowsignsthatthegrind
needsadjusting.
Replacing the burrs
Toinquireabouthavingtheburrsreplaced
contacttheSunbeamConsumerHotlineon
Australia
1300881861
New Zealand
0800786232

Notes

Notes

Notes

Shouldyouexperienceanydifficultieswith
yourappliance,pleasephoneourcustomer
servicelineforadviceon1300881861in
Australia,or0800786232inNewZealand.
Alternatively,youcansendawrittenclaim
toSunbeamattheaddresslistedbelow.
Onreceiptofyourclaim,Sunbeamwill
seektoresolveyourdifficultiesor,ifthe
applianceisdefective,adviseyouonhow
toobtainareplacementorrefund.
YourSunbeam12MonthReplacement
Guaranteenaturallydoesnotcovermisuse
ornegligenthandlingandnormalwearand
tear.
Similarlyyour12MonthReplacement
Guaranteedoesnotcoverfreightoranyother
costsincurredinmakingaclaim.Please
retainyourreceiptasproofofpurchase.
Thebenefitsgiventoyoubythisguarantee
areinadditiontoyourotherrightsand
remediesunderanylawswhichrelatetothe
appliance.
Ourgoodscomewithguaranteesthatcannot
beexcludedundertheAustralianConsumer
LawandundertheNewZealandConsumer
GuaranteesAct.
InAustraliayouareentitledtoa
replacementorrefundforamajorfailureand
forcompensationforanyotherreasonably
foreseeablelossordamage.Youarealso
entitledtohavethegoodsrepairedor
replacedifthegoodsfailtobeofacceptable
qualityandthefailuredoesnotamountto
amajorfailure.
Shouldyourappliancerequirerepairor
serviceaftertheguaranteeperiod,contact
yournearestSunbeamservicecentre.
ForacompletelistofSunbeam’sauthorised
servicecentresvisitourwebsiteorcall:
Australia
www.sunbeam.com.au
1300881861
Units5&6,13LordStreet
BotanyNSW2019Australia
New Zealand
www.sunbeam.co.nz
0800786232
26VesteyDrive,MtWellington
Auckland,NewZealand
In the unlikely event that this appliance develops any malfunction
within 12 months of purchase (3 months commercial use) due to
faulty materials or manufacture, we will replace it for you
free of charge.
12 Month Replacement Guarantee

is a registered trademark.
Need help with your appliance?
Contactourcustomerserviceteamorvisit
ourwebsiteforinformationandtipson
gettingthemostfromyourappliance.
In Australia
Visit www.sunbeam.com.au
Or call 1300 881 861
In New Zealand
Visit www.sunbeam.co.nz
Or call 0800 786 232
‘Conical Burr’ is a trademark of Sunbeam Corporation.
Made in China.
Due to minor changes in design or otherwise,
the product may differ from the one shown in this leaflet.
© Copyright. Sunbeam Corporation Limited 2006.
ABN 45 000 006 771
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Unit 3, Building D
26 Vestey Drive
Mt Wellington Auckland
New Zealand
Sunbeam Corporation is a division of GUD Holdings Ltd. 8/11
