Sunbeam FS7800 User manual

Please read these instructions carefully
and retain for future reference.

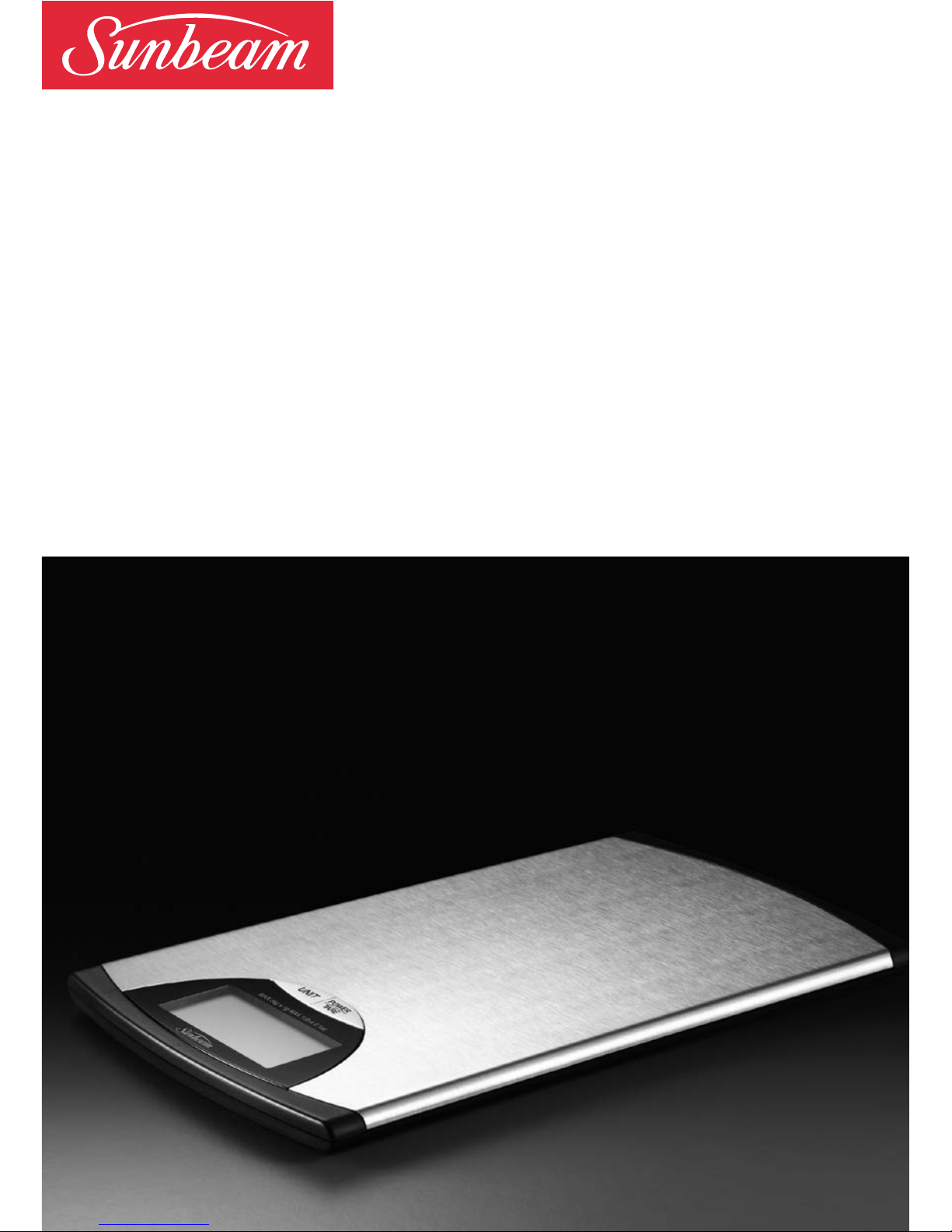

Stainless Food Scales
Ultra slim electronic kitchen scales
with 5kg capacity
Instruction Booklet
FS7800

Sunbeam’s Safety Precautions 1
Features of your Stainless Food Scales 2
Using your Stainless Food Scales 4
Care and Cleaning 5
Contents
Important instructions – retain for
future use.

1
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM FOOD SCALES.
• Always lift your kitchen scales from the base.
• Always operate on a flat level surface.
• Do not place objects on top of the scales when
not in use or in storage.
• Remove the battery if the scales are not being
used for a prolonged period.
• Do not immerse in water to wash the food
scales.
Sunbeam is very safety conscious when designing
and manufacturing consumer products, but it is
essential that the product user also exercise care
when using an electrical appliance. Listed below are
precautions which are essential for the safe use of
an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the
appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord
unless this cord has been checked and tested by
a qualified technician or service person.
• Always use your appliance from a power outlet of
the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance.
• The temperature of accessible surfaces may be
high when the appliance is operating.
• Never leave an appliance unattended while
in use.
• Do not use an appliance for any purpose other
than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch any
hot surface.
• Do not operate any electrical appliance with a
damaged cord or after the appliance has been
damaged in any manner. If damage is suspected,
return the appliance to the nearest Sunbeam
Appointed Service Centre for examination, repair
or adjustment.
• For additional protection, Sunbeam recommend
the use of a residual current device (RCD)
with a tripping current not exceeding 30mA in
the electrical circuit supplying power to your
appliances.
• Do not immerse the appliance in water or any
other liquid unless recommended.
• Appliances are not intended to be operated by
means of an external timer or separate remote
control system.
• This appliance is intended to be used in
household and similar applications such as: staff
kitchen areas in shops, offices and other working
environments; farm houses; by clients in hotels,
motels and other residential type environments;
bed and breakfast type environments.
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.

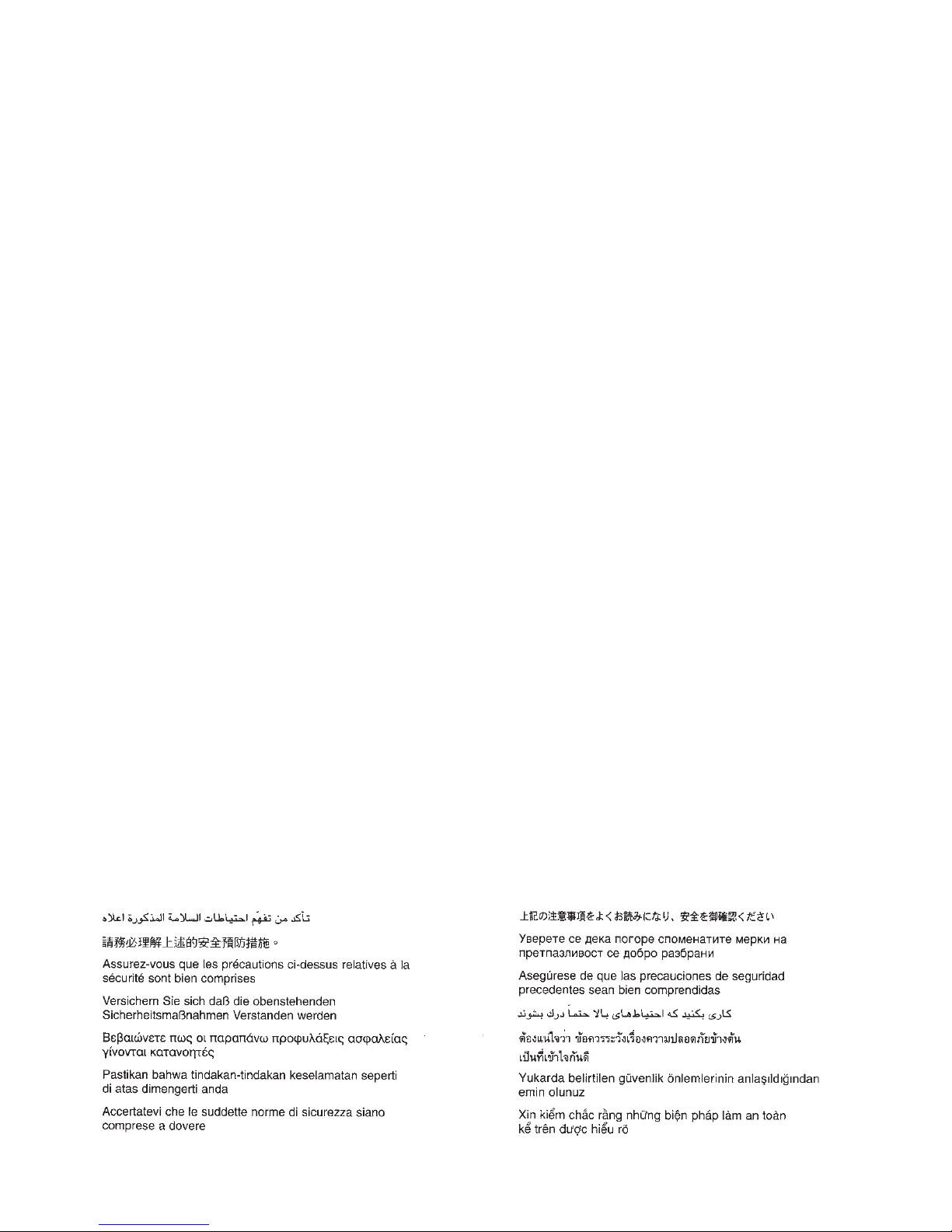

Ensure the above safety precautions are understood.

2
Features of your Stainless
Food Scales
High Precision Sensors
The food scales are equipped with four high
precision sensors to ensure ingredients are
weighed accurately regardless of where its
positioned on the platform.
Unit measurements
The large LCD display will display
either gram or ounce measurements
for use with metric or imperial recipes.
Fluid ounces and millilitres can also be used
when measuring liquid quantities, ie water.
Large LCD display
The large LCD display makes
it easy to see weights and
warnings.
2.0
fl.oz.
lb oz gml
TARE
2.0
fl.oz.
lb oz gml
TARE

Tare / Add & weigh function.
‘Tare’ function allows you to zero the weight
of any type of container to which consecutive
ingredients can be added, yet weighed
individually.
Automatic power on/off function
Press to turn scales on/off. The food scales
will automatically switch off after 3 minutes.
Low Battery Indicator
When the life of the battery is low
the LCD display will show ‘Lo’.
3
2.0
fl.oz.
lb oz gml
TARE
2.0
fl.oz.
lb oz gml
TARE

1. Turn food scales over and remove plastic
battery tab.
Place scales upright on a flat, level and
dry surface.
2. If using the bowl or any other container,
place container on platform before
turning on the scale.
3. Turn on the Food Scales by pressing the
‘POWER’ button. The LCD will display.
4. The Food scales weighs in grams or
ounces.
To select your preference, simply press
'unit' until the desired weight is selected.
5. Place ingredients either in a container
or directly onto the weighing platform.
The weight will be displayed on the LCD
display. As more ingredients are added
the weight displayed on the LCD will
automatically increase.
Note: It is recommended that only water can
be weighed when using the millilitres/fluid
ounces function. Water is the only liquid that
is equal in grams and millilitres and ounces/
fluid ounces.
Add & Weigh / Zero function
Your Food Scales allow you to add
consecutive items to the container, whilst
weighing each item individually.
1. Follow steps 1 - 5 in using your
electronic Food Scales.
2. Press the ‘Tare’ button and add your
next ingredient to the bowl. The LCD will
display the weight only of the last item
added.
3. Repeat step 2 for weighing any additional
ingredients.
Overloading function - Max Capacity 5kg
When the electronic Food Scale is
overloaded, the LCD will display: EEEE
Remove the weight immediately, as the
excess weight may damage the scales.
Low battery indicator
When the battery is running low, the LCD will
display: ‘Lo’.
Replace with 1 x CR2032 Lithium battery.
Note: The food scales will automatically
switch off after 3 minutes of non-use.
Replacing your battery
1. To replace your battery, remove the
battery cover on the underside of the
scales.
2. Place the new Lithium battery on to the
battery plug and press firmly into place.
3. Replace the battery cover.
Note: Remove the battery whenever the
scales will be stored for a prolonged period
of time.
4
Using your Stainless Food Scales

5
Turn the Food Scales off when not in use and
remove the battery if storing for prolonged
periods.
Note: Never store with anything on top of
your food scales, as the excess weight may
damage them.
Wipe the weighing platform with a soft,
slightly damp cloth and wipe dry.
For stubborn dirt, wipe with a damp cloth
and mild detergent and wipe dry.
Do not use abrasive cleaning agents on the food
scales surface. This may cause corosion.
Do not place the food scales in the dishwasher.
Note: Never immerse the food scales in water.
Care and Cleaning

Notes

Notes

Notes

Should you experience any difficulties with
your appliance, please phone our customer
service line for advice on 1300 881 861 in
Australia, or 0800 786 232 in New Zealand.
Alternatively, you can send a written claim
to Sunbeam at the address listed below.
On receipt of your claim, Sunbeam will
seek to resolve your difficulties or, if the
appliance is defective, advise you on how
to obtain a replacement or refund.
Your Sunbeam 12 Month Replacement
Guarantee naturally does not cover misuse
or negligent handling and normal wear and
tear.
Similarly your 12 Month Replacement
Guarantee does not cover freight or any other
costs incurred in making a claim. Please
retain your receipt as proof of purchase.
The benefits given to you by this guarantee
are in addition to your other rights and
remedies under any laws which relate to the
appliance.
Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law and under the New Zealand Consumer
Guarantees Act.
In Australia you are entitled to a
replacement or refund for a major failure and
for compensation for any other reasonably
foreseeable loss or damage. You are also
entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to
a major failure.
Should your appliance require repair or
service after the guarantee period, contact
your nearest Sunbeam service centre.
For a complete list of Sunbeam’s authorised
service centres visit our website or call:
Australia
www.sunbeam.com.au
1300 881 861
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
New Zealand
www.sunbeam.co.nz
0800 786 232
26 Vestey Drive, Mt Wellington
Auckland, New Zealand
In the unlikely event that this appliance develops any malfunction
within 12 months of purchase (3 months commercial use) due to
faulty materials or manufacture, we will replace it for you
free of charge.
12 Month Replacement Guarantee

is a registered trademark.
Need help with your appliance?
Contact our customer service team or visit
our website for information and tips on
getting the most from your appliance.
In Australia
Visit www.sunbeam.com.au
Or call 1300 881 861
In New Zealand
Visit www.sunbeam.co.nz
Or call 0800 786 232
Made in China.
Due to minor changes in design or otherwise,
the product may differ from the one shown in this leaflet.
© Copyright. Sunbeam Corporation Limited 2011.
ABN 45 000 006 771
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Unit 3, Building D
26 Vestey Drive
Mt Wellington Auckland
New Zealand
Sunbeam Corporation is a division of GUD Holdings Ltd. 9/11
