Sunco 24 X-Power User manual

WARNING
Wear protective eyewear.
Failure to may result in severe burns or longterm injury to the eyes.
DANGER
Shock hazard.
Disconnect power before servicing or removing any protec-
tive covers.
Do not operate this device near water or while you are wet.
DANGER
Some medications may increase your sensitivity to ultraviolet light. It
is recommended that you consult a physician before using this
sunbed if taking any medication or if you suspect that your skin might
be especially sensitive to sunlight.
CAUTION
Use of a voltage source above 230V AC may prevent proper operation
of the sunbed and could cause damage and void the warranty.
Air from the room is used to cool the sunbed. Maximum ambient room
temperature should be 80°F. Place your sunbed no closer than 6” from
any wall. Make sure nothing obstructs the airflow into the sunbed’s
endcaps or out of the fan openings. A poorly ventilated room may
cause the unit to become hot and cause discomfort to the user.
Electrical Requirements
Your sunbed operates from a 220V AC source. The 24 X-Power requires
a NEMA 6-20R electrical outlet (below) on a dedicated circuit capable
of providing 20 Amp service, installed in the room in which you will
use the unit. We recommend installation by a professional electrician.
The outlet must be earth grounded.
20 AMP NEMA #6-20R
RECEPTACLE
26713-01A - Page 1
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with
natural sunlight, overexposure can cause eye and skin injury and
allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer.
WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR
LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity
to the ultraviolet radiation. Consult physician before using sunlamp if you are using medications
or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do
not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or
fair skinned people who always burn easily and either never tan or tan minimally should not use
this equipment.
To use, lie down on bench and pull canopy down as far as adjustment will allow. Do not use
without clear plastic panels in place. Untanned persons should not tan on consecutive days dur-
ing their first week of tanning. Never tan more than once a day. Tanning normally appears after
the first few sessions and maximizes after approximately four weeks. Tan once or twice per week
thereafter to maintain appearance. Persons already having a base tan may begin at advanced
levels corresponding to the extent of their base tan.
Skin Type:
ISensitive Skin (Burns easily and severely and does not tan.)
II Light Skin (Burns easily and severely and tans minimally.)
III Normal Skin (Burns moderately and tans average.)
IV Dark Skin (Burns minimally, tans easily and above average.)
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of
operation. Recommended tanning times should therefore be reduced by approximately 10%
during that period.
WARNING:• Read these instructions before using this sunlamp product. • All persons in the
room should wear protective eyewear when lamps are on. Recommended eyewear: provided
eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types of eyewear
may not provide adequate protection. Failure to use protective eyewear may result in severe
burns or other eye injury. If discomfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 24 X-Power:
X-Power Wolff® Model XP71-T12-100W BI PIN
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp
products under 21 CFR PART 1040.20 and ANSI/UL Standard 482.
88465
DISCONNECT POWER CORD BEFORE ATTEMPTING TO CLEAN, RELAMP,
OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
DANGER
RECOMMENDED EXPOSURE TIMES IN MINUTES
Level 1/Week 1 Level2Level3Level4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
I Sensitive NOT RECOMMENDED FOR TANNING
II Light 3 6 9 12 15
III Normal 4 7 11 15 15
IV Dark 5 9 13 15 15
MAXIMUM EXPOSURE TIME IS 15 MINUTES

Assembly Procedures
(ELECTRICAL CONNECTOR
INDICATES BACK OF BENCH)
Lay the bench upside down on the
floor. Locate the two stand legs.
1Remove the six 5/16” x 1” bolts and
5/16” washers installed in the bench.
Attach the stand legs with the skirt
mounting holes toward the back of the
bench as shown. Install center bolt first.
You may have to gently push the sides of
the legs in to align holes. Tighten with
the Allen wrench.
2
SKIRT MOUNTING HOLES
Unpacking and Inspection
Your sunbed comes in two cardboard cartons. Pull back the plastic
sheet and, with a helper, grasp the bench and pull it from the carton
bottom, leaving the plastic wrap and the carton packaging. Do not try
to lift the unit with the plastic still on as it may slip. Do the same with
the canopy.
The canopy box contains the canopy and a pair of gas springs. The
bench box contains the bench, assembly hardware and stand legs.
Inspect the items and make sure they are free from any visible damage.
Report the extent of any damage to the transportation company.
In addition to the hex wrench supplied in the hardware kit, you will
need a #2 Phillips screwdriver.
Allen-head Bolt 5/16” x 1”
Quantity 2
5/16” Metal Washer
Quantity 2
Bushing
Quantity 2
Allen-head Bolt 5/16” x 1 1/2”
Quantity 2
Nylon Washer
Quantity 2
Hinge Brackets
(1) left, (1) right
Hex (Allen) Wrench
Quantity 1
Safety Goggles
Quantity 1
Hardware Inventory (These items and a small pillow)
Page 2 - 26713-01A
Position the side skirts at either end of
the base. Install two #8 x 1/2” screws
through the pre-drilled holes of the side
skirt into the back of the leg support.
Repeat for the other side skirt.
3
Install screws here
SHORT BOLT
Turn bench over. Install hinge brackets to ends of
bench such that the short boss engages the stud
above the bolt hole, and the long boss engages the
hole below the bolt hole. Secure using 5/16” x 1”
Allen-head bolts and 5/16” metal washers. Tighten
bolt snug, then an additional half turn.
5
STUD
Turn the bed around and put the
front skirt in place, making sure the
ends wrap over the side skirts.
Velcro® pads at each end secure the
front skirt.
4

CAUTION
Failure to engage locking clips may
result in the ball joints working loose,
allowing the canopy to fall, which may
result in damage to the unit and injury.
Lift and lower canopy a few
times to lubricate gas springs
for optimum performance.
11
THREADED
LOCKING RING
RECEPTACLE
ON BENCH
CANOPY TO BENCH
POWER CORD
Connect the canopy to
bench power cord to the
bench receptacle. Align the
terminals and firmly push
on until seated then tighten
the threaded locking ring.
12
Plug the power cord into a dedicated
outlet (see Electrical Requirements).
14
The unit is shipped with a Remote
Control Bypass Plug installed. Your
sunbed will not operate without either
the bypass plug or a remote system
connected. If remote operation is
desired, see Remote Connections.
13
Place the bushings
into hinge brackets.
6
26713-01A - Page 3
Lift the canopy and hold it
between the hinge brackets.
7
Insert 5/16” x 1 1/2” bolts with
nylon washers into both hinge
brackets. Tighten bolts into the
endcap threaded inserts until snug,
then an additional half turn. Do
not overtighten to avoid damaging
threaded inserts.
8
PIVOT STUD
LOCKING
CLIP
SCREW-
DRIVER
Use a screwdriver to
pry back the locking
clips on the gas springs
as they are installed.
9
With a helper holding the canopy open,
align ends of gas spring ball joints with
pivot studs and push into place. Be sure
rod end is down as shown. DO NOT lower
canopy until both gas springs are engaged!
10

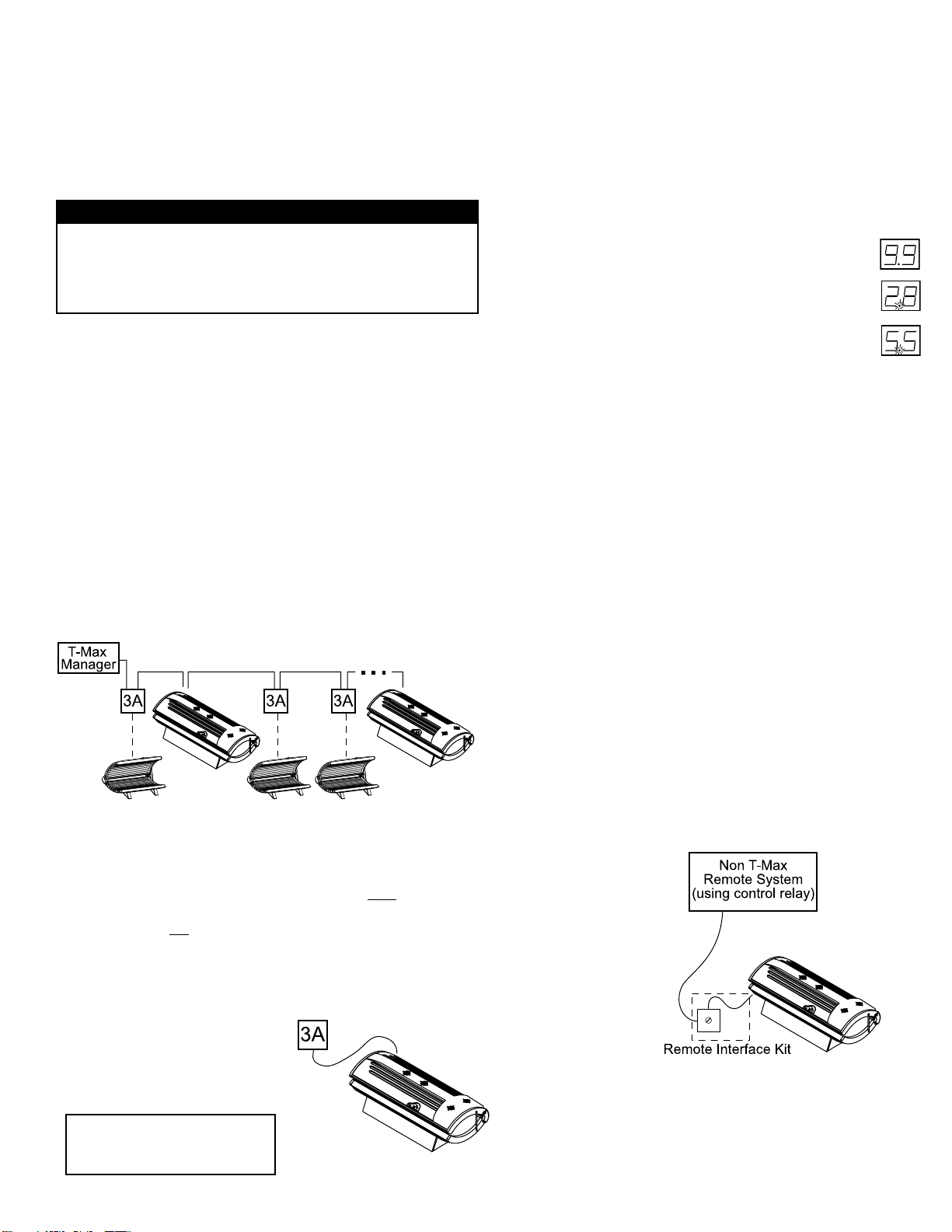

T-Max® 1A and 3A Remote Systems
In single sunbed installations, the T-Max® 1A and 3A can offer the
same control as the T-Max® Manager, eliminating the need for a
Manager. If you’re using a 1A in this manner, it must have a chip
labelled “master” installed on its circuit board. The remote control
bypass plug must not be used in this configuration. The 3A may be
used as a “master” with no modification.
After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to
your T-Max® user’s guide) and the sunbed’s address to “1” (see right),
simply connect the RJ-22 modular
cables, described in the T-Max® user’s
guide, directly into either port located
on the back of the sunbed and either
port on the back of the T-Max® 1A or
3A. See figure 2.
Setting the address manually
Before connecting your sunbed to the T-Max® Manager or T-Max® 1A
or 3A, the address of your sunbed must first be set. Set the address man-
ually as described below.

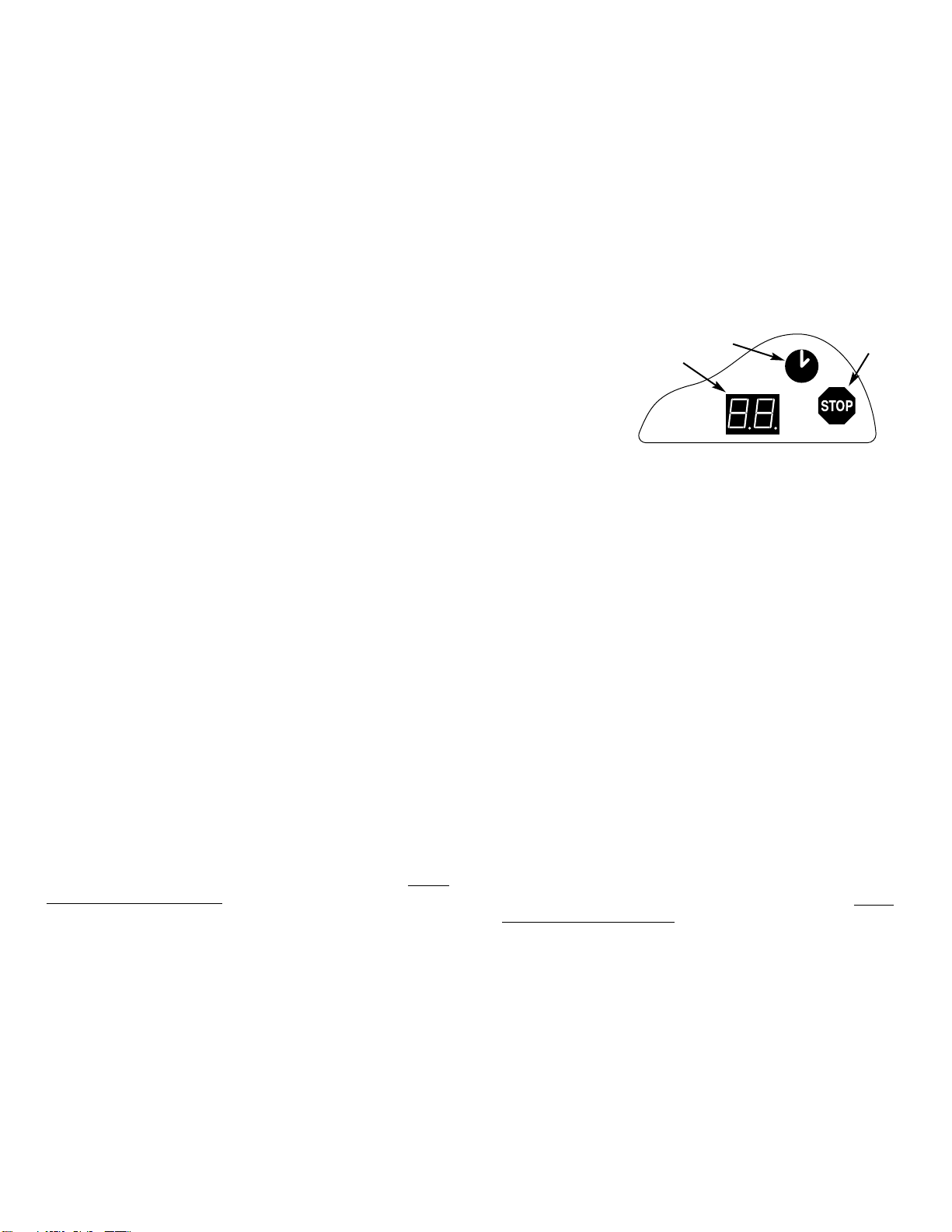

Setting the Address
1. Make sure the sunbed display is showing “0”.
2. Press the red stop button and, without releasing it, press the
green timer button and hold both for three seconds. The display
should indicate an address number from “1” to “255”.
3. If you are using a T-Max® 1A or 3A as a “master” remote, the
address of the sunbed must be set to “1”. If you are using a T-
Max® Manager each sunbed must be assigned a different
address. To adjust the address, press the green timer button to
count up until the desired number (from 1 to 128) is achieved.
Addresses 252 to 255 are not normally used.
4. Press the red stop button to return to the normal display mode.
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A in figure 2.
1-99
100-128
(blinking dot)
252-255
(blinking dot)
figure 2
figure 3
Remote systems using a Control Relay
Most non-T-Max® remote systems control the sunbed by the use of a
relay. The relay operates the sunbed by connecting and disconnect-
ing a pair of wires leading from the sunbed. Refer to the user’s man-
ual provided with your remote system to determine if it operates in this
way. To connect your sunbed to this type of system a remote interface
kit is required. Contact your place of purchase to obtain the kit. Figure
3details a typical connection. Follow the instructions provided with
the kit and from the remote’s manual to make the necessary connec-
tions.
Remote Connections
Your sunbed incorporates advanced circuitry allowing it to connect
and communicate with most remote control systems. If a remote sys-
tem is to be used, first determine whether the remote system is a T-
Max® System or a standard remote system operating with a control
relay. Follow the appropriate instructions for your system type.
T-Max® Products
The T-Max® remote systems offer the ultimate in sunbed control, while
allowing the tanner easy straightforward operation. Your sunbed is con-
figured to directly connect to this system. The circuitry inside your
sunbed eliminates the need for the T-Max® 1A or 3A when connecting
to the T-Max® Manager series. Your sunbed supports the auto address-
ing feature of the latest T-Max® Manager models and the following
parameters: 5, 6, 7, 8, 9, and 15. See your T-Max® manual for descrip-
tions of these parameters and how they function.
T-Max® Manager Remote System
This system is ideal for multiple sunbed installations. Simply connect
the RJ-22 modular cable(s), described in the T-Max® Manager manu-
al, into the remote port(s) located on the back of your sunbed and fol-
low the instructions that came with your remote system, noting figure
1. If you have an older T-Max® Manager that doesn’t support auto
addressing, set the address of each sunbed manually as described in
Setting the address manually. You can place your sunbed at any loca-
tion in the series.
The remote connection is not designed to supply or accept high
voltage, nor can it provide power to an external timer. The
sunbed’s remote interface circuitry operates on 5 volts, attempting
to connect it to any higher voltages will damage the sunbed as
well as void your warranty.
CAUTION
Go straight to the source with all your T-Max® brand remote
questions: [phone]
figure 1
Page 4 - 26713-01A

Using Your Sunbed
Before using your sunbed, please note the following important pre-
cautions.
• Your skin should be free of cosmetics, tanning oils, or other body
lotions prior to tanning except for those specifically made for use
with tanning devices. However, do not remove natural body oils by
bathing or showering immediately before tanning.
• Your hair should be free of gels, mousses, sprays, or other hair prod-
ucts prior to tanning. These products can cause damage to the
sunbed acrylic. As an alternative, a shower cap or towel can be
worn to keep treated hair away from the sunbed surfaces.
• Your sunbed is designed for individual use. Always wear the safety
goggles supplied with your sunbed or another approved pair of gog-
gles, as defined under 21 CFR 1040.20. Regular sunglasses do not
provide adequate protection from ultraviolet light.
Exposure Times
Follow the guidelines for skin type and exposure times as shown in the
table on reverse. Untanned persons should not tan on consecutive days
during their first week of tanning. Never tan more than once a day.
Tanning normally appears after the first few sessions and maximizes
after approximately four weeks. Tan once or twice per week thereafter
to maintain appearance. Persons already having a base tan may begin
at advanced levels corresponding to the extent of their base tan.
Operation
(When connected to the T-Max® Manager or T-Max® 1A or 3A.)
1If the remote system has been set to allow a pre-tanning delay time,
the timer display (A) will repeatedly flash the delay symbol “dL” and
then the remaining delay time. Press the timer button (B) or wait
until the delay time has expired to begin the tanning session. The
lamps will turn on and the timer will begin to count down. If a tan-
ning time less than the displayed time is desired repeatedly press
the timer button (B) to decrease the remaining time.
2Lift the canopy, lie down on the bench (face up) and lower the
canopy as close to your body as possible.
3When the timer reaches “0” the lamps turn off. If you want to stop
your session before time expires, press the stop button (C).
4Raise the canopy by using the outer edge of the canopy, do not
push up on the acrylic shield as it may crack. The cooling fans run
for three minutes after the lamps shut off to aid in cooling the
sunbed. The timer will indicate “..” as a reminder to clean the
sunbed. After the sunbed is cleaned press the timer button and the
display will return to “0”.
26713-01A - Page 5
Operation
(When used without remote or when connected to a remote system
using a control relay)
1Press the timer button (B) to begin the tanning session. The timer dis-
play (A) displays the remaining time. The lamps will turn on and the
timer will begin to count down from the maximum tanning session
time. If a tanning time less than the displayed time is desired repeat-
edly press the timer button (B) to decrease the remaining time.
2Lift the canopy, lie down on the bench (face up) and lower the
canopy as close to your body as possible.
3When the timer reaches “0” the lamps turn off. If you want to stop
your session before time expires, press the stop button (C).
4Raise the canopy by using the outer edge of the canopy, do not
push up on the acrylic shield as it may crack. The cooling fans run
for three minutes after the lamps shut off to aid in cooling the
sunbed.
A Timer display - Displays remaining time.
B Timer button - Turns bed on. Timer display shows remaining time.
If a lesser time is desired, press timer button until desired time
is displayed.
C Stop button - Interrupts tanning session.
A
BC

Care and Maintenance
Cleaning After Use
Clean and disinfect your tanning bed’s bench and canopy after each
use. Use a non-abrasive disinfectant cleaner that does not contain
ammonia or ammonia derivatives. Ammonia may damage the acrylic
shield. Spray the acrylic lightly with disinfectant and wipe dry with a
clean soft cloth.
Thorough Periodic Cleaning
The cooling fans draw air through the bed and will cause a dust
buildup on the lamps and reflectors. When a dust buildup is observed,
it is necessary to thoroughly clean the inside of the bench and canopy.
1Remove the acrylic shields and lamps.
2With a soft cloth, wipe the entire length of each lamp.
3Clean both sides of the acrylic shields with a non-ammonia dis-
infectant cleaner.
4Wipe the reflectors with a clean damp cloth.
5Re-install the lamps and acrylic shields.
Mechanical Inspection
Inspect the unit’s mechanical integrity every 400-500 hours of use.
• Inspect the unit’s fasteners verifying that all are firmly in place.
Pay particular attention to the hinge bolts.
• Inspect gas springs for signs of wear. Replace gas springs that will
not hold the canopy in the full open position when raised.
• Inspect the AC power cord and its connections.
• Inspect the acrylic. Replace if broken, cracked or badly scratched.
Hour Counter
This sunbed incorporates an ingenious hour counter function into the
timing circuitry. It allows the operator of the unit to monitor the hours
of use of the lamps, making it easy to determine when to change them.
You may also decide to use this function to monitor other time based
maintenance tasks.
To determine how many hours the unit has been in service (since the
last reset of the hour counter memory), first make sure the timer dis-
play shows “0”. Then simply hold the stop button for three seconds.
The display will show two pairs of numbers which indicate the num-
ber of hours of service, then return to “0”. (example: Display shows 08
then 54. This equals 854 hours.) NOTE: If the unit is connected to a T-
Max® remote device, it may briefly lose communication with the
remote. This is normal.
To erase the indicated hours disconnect power from the sunbed. Press
and hold the green timer button as you reconnect power. Release the
button after a few seconds.
Removing/Replacing Lamps
1. Grasp a lamp at one end and at the middle, then turn the lamp a
quarter turn. The lamp may then be gently removed from its holder.
2. To reinstall lamp, insert pins on the ends of the lamp into the slots
on top of the lamp holder and turn the lamp a quarter turn.
Page 6 - 26713-01A
Replacing Lamps
To be assured of maximum tanning effectiveness, change lamps after
approximately 800-1000 hours of use. Tanning will continue after this
time but at a slower rate. To ensure trouble-free operation of your
sunbed, replace the lamp starters whenever the lamps are replaced.
We recommend using the lamps specified in the Safety Information.
Use of uncertified lamps is a violation of Federal regulations and will
void your warranty.

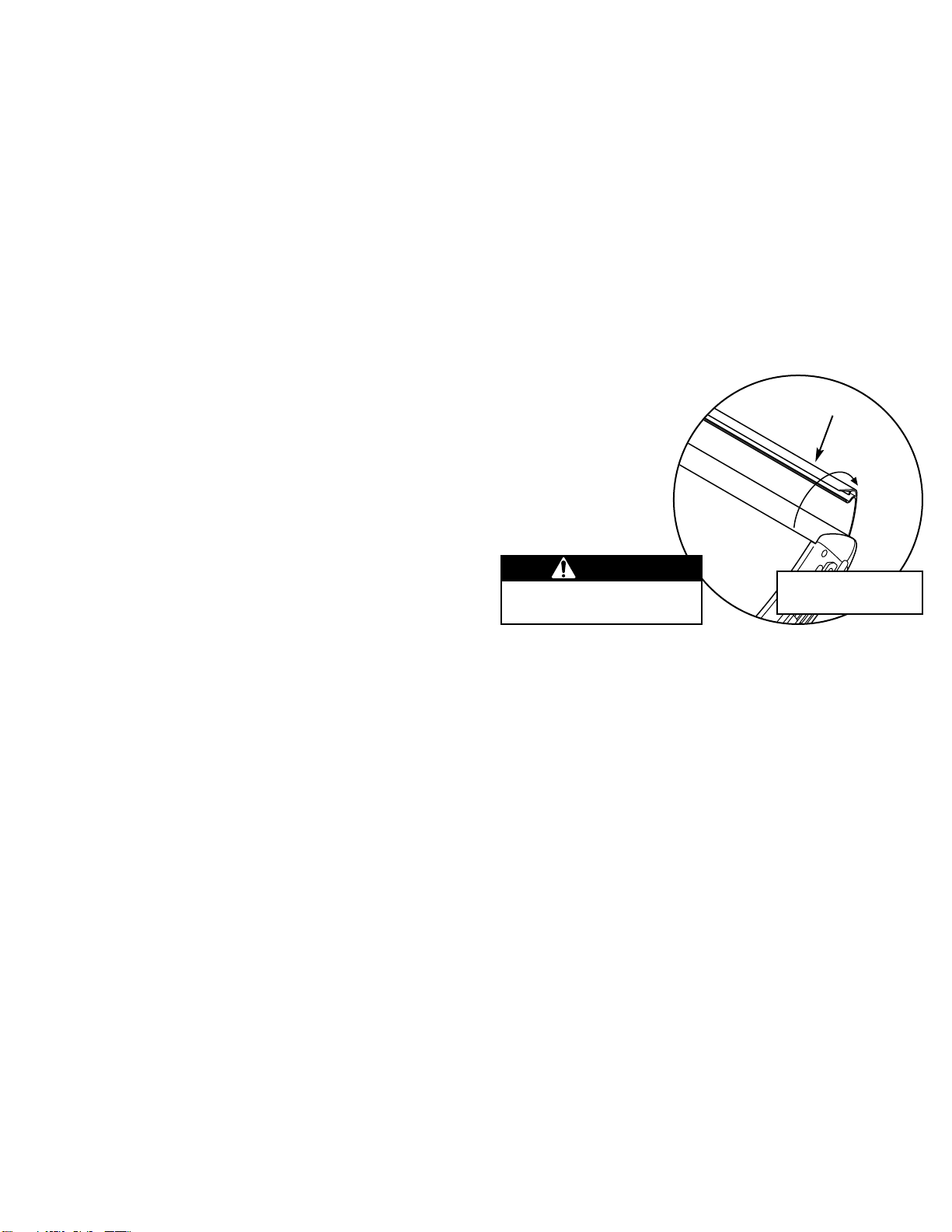

Removing/Replacing Acrylic Shields
The acrylic shields are secured in place by hinged profiles which run
the length of the bed, both front and back. Simply pry up on the inside
edge of the profile until it releases its latching action (see figure
below). Continue to pry up the profile across its entire length until it
swings back freely. Repeat for the other profile. The long edges of the
acrylic shield are now exposed. Standing in front of the sunbed, grasp
the long exposed edge of the acrylic and carefully slide it toward you
until it is removed.
After changing the lamps, replace
the acrylic shields by reversing
the above directions. Close
the hinged profile by push-
ing it back into place until it
snaps tight.
PROFILE
CAUTION
Be careful. The edges of the
acrylic shield may be sharp.
Start pulling from the
middle of the profile!

Problem Troubleshooting
Solution
Sunbed not tanning
1. Clean sunbed, see Thorough Periodic Cleaning.
2. Ensure supply voltage is between 208 and 230V AC.
3. Replace lamps if lamp hours are greater than 800hrs.
4. Replace acrylic.
Lamps fail to light and timer display is blank
1. Make sure the unit is connected to a power source.
2. Check source of AC power. Reset circuit breaker or replace
fuse.
Timer display changes to indicate a tanning time after the timer but-
ton is pressed but lamps do not come on
1. Bypass plug is not installed, see Electrical Connections.
2. A non-Perfect Sun™ bypass has been used.
3. If remote is being used, other than T-Max® Manager, the
external timer may not be activated.
4. Remote wiring is incorrect, see the instructions provided
with the remote interface kit.
Timer display continues to show a 0 after the timer button is pressed
1. T-Max® Manager remote system has not yet been set.
2. Sunbed address is not set correctly, see Remote
Connections.
One or more lamps fail to light
1. Check that lamp is installed correctly.
2. Switch unlit lamp with a lamp that lights, if new lamp lights
and old lamp still does not, replace old lamp.
The canopy will not stay up
NOTE: Gas springs are manufactured to hold the canopy in its
fully open position as well as allow it to rest fully closed. If
left open for an extended period of time some creep down
may occur. This is considered normal. Keep the unit closed
when not in use. If the canopy will not stay fully open when
raised...
1. Raise and lower the canopy a few times to lubricate gas
spring internal seals.
2. Replace gas springs.
Problem Troubleshooting
Solution
My bed won’t work with the T-Max® Manager remote system
1. The sunbed must first be set to a unique address, see
Remote Connections.
2. The bypass plug may be installed in the series in an inap-
propriate location. Remove bypass plugs when using T-
Max® products.
When auto-addressing the first bed does not register an address
When using the auto address feature of the T-Max®
Manager you must wait 10 seconds from the time you start
the auto address function before addressing the first bed.
I forgot what address I set my sunbed to
By pressing the stop button and then the timer button, and
holding both for 3 seconds, the timer display will show the
sunbed’s address number. Press the stop button to exit
address mode.
My bed is connected to the T-Max® Manager remote system and
when the delay time has expired the timer display starts counting
down but the bed lights do not come on
The auto start feature of the remote system is disabled, see
the instructions provided with your remote system.
My bed, connected to a T-Max® Manager, did not display “dL” but
does indicate:
“0”
1. Remote device has not been set.
2. The sunbed has not been connected to the remote system,
see Remote Connections.
a tanning time and the lamps have come on
1. Delay time of T-Max® Manager has not been set.
2. Delay time has expired and session has begun.
a tanning time but the lamps have not come on
Auto start function of T-Max® Manager has been turned off.
Press the timer button to turn on lamps.
26713-01A - Page 7

Record this information for ease of service:
Date of purchase:
Bench serial number:
Canopy serial number:
Page 8 - 26713-01A
Limited Lifetime Warranty
Your tanning unit is warranted to be free of structural defects in its material and workman-
ship, under normal use, for its lifetime. It will be repaired or replaced, at the discretion of
the manufacturer, if any defect to the structure which affects the performance of the unit is
found.
For 6 months from the date of purchase, replacements for parts that prove to be defective in
material or workmanship will be provided. Acrylic shields, fluorescent lamps, and lamp
starters are excluded from this warranty. Labor will be covered for 30 days from purchase
date. Normal wear, damage from misuse or abuse, damage incurred in transit, or damage
done by unauthorized repairs or modifications are not covered by this warranty.
SUN-CO, Inc. disclaims any implied warranty of merchantability or fitness for any period
beyond the expressed warranty. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitations may not apply to you.
No one has authority to change or modify this Limited Lifetime Warranty in any respect. To
obtain service under the Limited Lifetime Warranty, contact SUN-CO, Inc. at 1-800-382-8932.
SUN-CO, Inc. shall not be liable for loss of use, loss of time , inconvenience, rental or sub-
stitute products, loss of business, loss of income, or any other incidental or consequential
damages. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may
vary from state to state.
All warranty service must be performed by an authorized service person. If your tanning
unit must be returned for service, all freight charges must be at your expense. Contact your
place of purchase for the address of the service center nearest you. Proof of purchase is
required to obtain warranty service.
This warranty covers the original purchaser only. This warranty is void if the unit is modi-
fied in any manner from its original design.
