Heartland SUNDAZZLER 2M User manual

US
C
Owner & Assembly Manual
America’s Best Tan
™
Owner & Assembly Manual
™
Owner & Assembly Manual
2M and Sundazzler
™
Owner & Assembly Manual
™
Owner & Assembly Manual
2M and Sundazzler™ 2M and Sundazzler
Les Spécifications Françaises Enclos
4251 N.E. Port Drive • Lee’s Summit, MO 64064 • 800-554-8268
www.heartlandtan.com
Part #94052 11/05

2
www.heartlandtan.com 12/05
2
www.heartlandtan.com 12/05
2
Table of Contents
3
. . . . . . . . . . .
Welcome
4 - 6
. . . . . . . .
2m™
Specifications/Exposure Schedule
7 - 9
. . . . . . . .
Sundazzler™
Specifications/Exposure Schedule
10
. . . . . . . . . .
Warnings and Cautions
11
. . . . . . . . . .
Care and Cleaning
12 - 19
. . . . . .
Timer System
20 - 23
. . . . . .
Assembly Instructions
24 - 29
. . . . . .
Wiring Diagrams
30 - 34
. . . . . .
30 - 34 . . . . . . 30 - 34
Changing Room Assembly Instructions
35
. . . . . . . . . .
Limited Warranty

3
www.heartlandtan.com 12/05
3
www.heartlandtan.com 12/05
3
Welcome
Dear Valued Customer:
Congratulations! You have just purchased one of the finest pieces of tanning equipment available to
the indoor tanning industry. We at Heartland Tanning, Inc. sincerely appreciate your business.
The 2M, Sundazzler
™
tanning booths are manufactured right here in the heart of our country. Our
tanning booths are constructed of 12
GAUGE
solid steel and is designed to hold up under heavy
use. We have confidence in our manufactured products and that is why our equipment is backed
by Heartland’s unprecedented 5 year limited warranty. Designed to be user friendly, the 2M and
Sundazzler
™
by Heartland’s unprecedented 5 year limited warranty. Designed to be user friendly, the 2M and
™
by Heartland’s unprecedented 5 year limited warranty. Designed to be user friendly, the 2M and
are easy to assemble and maintain.
Please read your owner & assembly manual thoroughtly prior to the first use of your new tanning
booth.
Heartland Tanning, Inc.
4251 N.E. Port Drive
Lee’s Summit, MO 64064
1-800-554-8268
NOTICE: Any misuse, abuse, modifications, alteration, improper installation, etc. of this product or
its intended use will subject said party to direct responsibility for any and all consequences result-
ing from such action. Furthermore, such actions will void all warranties and may relieve Heartland
Tanning, Inc. of any liabilities relating to said product.

4
www.heartlandtan.com 12/05
4
www.heartlandtan.com 12/05
4
SPECIFICATIONS
2M BOOTH
50 Lamp Heartland Rave 200 watt system - 9 minute session
50 Heartland Rave 180 APR lamps
T-Max timer on board (T-Max wireless compatible)
1200 CFM fan on top for body cooling
(2) 550 CFM fans driving the air-fl ow fl oor system for the body
*70 AMP rated single phase, 220 – 240 volt with ground required
(for optimum performance, running voltage should be 220 – 240)
*51 AMPS initial start up, 52 AMPS running @ 220 VAC
2.0 KVA Buck/Booster transformer required if outside 220 – 240 VAC
7’ X 7’ minimum room size required without dressing room
2 Ton (24,000 BTU) minimum A/C dedicated to room
Without dressing room:
Shipping Weight: 1316lbs
Dimensions: 62”W X 68”D X 95”H
Optional: With dressing room
Shipping weight: 1689lbs
Dimensions: 70”W X 95”D X (allow 20” for complete door swing)
*NOTE:
Amperage will vary depending on voltage.
DANGER – ULTRAVIOLET RADIATION
. Follow instructions. Avoid overexposure. As with natural sunlight, overexpo-
sure can cause eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin
and skin cancer.
Wear protective eyewear: failure to may result in severe burns or long-term injury to eyes.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before
using sunlamp if you are using medications or have a history of skin problems or believe yourself especially
sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product.
This system is intended to be used only with
Rave 180 APR #1842 180W
lamps.
Follow recommended exposure schedule for the skin type.
RECOMMENDED EXPOSURE SCHEDULE
Week 1 Week 2 Week 3 Week 4 Weekly
1st - 3rd 4th - 6th 7th - 10th 11th - 15th Subsequent
Skin Type Treatments Treatments Treatments Treatments Treatments
II - Fair 2
MINUTES
3
MINUTES
5
MINUTES
7
MINUTES
7
MINUTES
III - A
verage 2
MINUTES
3
MINUTES
5
MINUTES
7
MINUTES
7
MINUTES
IV - B
rown 2
MINUTES
5
MINUTES
7
MINUTES
9
MINUTES
9
MINUTES
V - D
ark Brown 2
MINUTES
5
MINUTES
7
MINUTES
9
MINUTES
9
MINUTES
T
his unit utilizes UVA lamps. Replace only with
Rave 180 APR #1842 180W
lamps.
To obtain the recommended expo-
sure position of 6” (15.2 CM) measured with a standard ruler, stand in the center of the unit.
Caution: The use of any
other position may result in overexposure.
Read the instruction booklet before using this devise.
Tanning can begin on a regular basis. An appearance of tanning normally appears after a few exposures and maximizes after four
(4) weeks of exposure.
Use protective eyewea
r whenever equipment is energized. Read the instruction booklet before using.
INSTRUCTIONS ACCOMPANYING THIS PRODUCT SHOULD ALWAYS BE FOLLOWED TO AVOID
OR MINIMIZE
POTENTIAL INJURY.
“This product is in conformity with performance standards for sunlamp products under CFR part 1040”

5
www.heartlandtan.com 12/05
5
www.heartlandtan.com 12/05
5
EXPOSURE TIME AND FREQUENCIES
MELANIN - The brownish pigment produced by special cells in the base layer of the skin determines the
individual’s tan. As the skin is exposed to the ultraviolet light, the melanin is activated and combines with
protein cells that rise to the skin’s surface, thus producing a tan. The amount of melanin in your body
determines how quickly and dark you tan. The more melanin produced and exposure time an individual
has, the faster and deeper the individual will tan.
NOTE:
The tan produced by the 2M tanning booth is a deep, rich “COSMETIC” tan. However, regardless of how
dark an individual may tan on this system, it will not provide adequate protections against overexposure
to natural sunlight or UVB tanning systems.
SKIN TYPE II -
This is the individual that usually burns easily and severely, tans minimally or lightly and peels
SKIN TYPE III -
Often referred to as “AVERAGE” complexion, burns moderately and tans about average
SKIN TYPE IV - This individual burns minimally, tans easily and above average with each exposure
SKIN TYPE V - This individual’s system rarely burns, tans easily and substantially
RECOMMENDED EXPOSURE SCHEDULE
Week 1 Week 2 Week 3 Week 4 Weekly
1st - 3rd 4th - 6th 7th - 10th 11th - 15th Subsequent
Skin Type Treatments Treatments Treatments Treatments Treatments
II - Fair 2
MINUTES
3
MINUTES
5
MINUTES
7
MINUTES
7
MINUTES
III - A
verage 2
MINUTES
3
MINUTES
5
MINUTES
7
MINUTES
7
MINUTES
IV - B
rown 2
MINUTES
5
MINUTES
7
MINUTES
9
MINUTES
9
MINUTES
V - D
ark Brown 2
MINUTES
5
MINUTES
7
MINUTES
9
MINUTES
9
MINUTES
MAXIMUM EXPOSURE TIME IS 9 MINUTES
No two individuals skin tones are the same. A tan to one person may be different to another and treat-
ment length may vary.
IMPORTANT NOTE:
Customers that wear contact lenses, should be made aware that the heat and ventilation wind may dry
out their contacts and should be removed prior to the session.
It is recommended that you do not use any creams, oils or lotions (particularly suntan lotions) that are
not recommended by Heartland Tanning, Inc. Equally important – many facial makeups have oil bases
and should be removed prior to a session.
It is recommended that following a tanning session, a skin moisturizer be applied. This promotes a
smoother, more even looking tan.

6
www.heartlandtan.com 12/05
6
www.heartlandtan.com 12/05
6
Caractéristiques
2M BOOTH
longueur : 60 pouces de largeur par 54 pouces de profondeur
hauteur : 95 pouces
poids d’expédition : 1316 livres
nombre de lampes : 50
Voltage Recommande:
230 - 240
aspiration électrique : 52 ampères à 220 volts*
circuit requis : 220 volts, 2 poteau, briseur de
de 60 ampères
*NOTE: Amperage will vary depending on voltage.
DANGER – RAYONNEMENT ULTRAVIOLET.
Suivez les instructions. Évitez la surexposition. Comme
avec les rayons naturels du soleil, la surexposition peut causer dommage aux yeux et à la peau et des
réactions allergiques. L’exposition répétée peut causer le vieillissement prématuré de la peau et du
cancer de la peau.
Portez des lunettes protectrices; le non-respect de cette consigne peut entraî-
ter de graves brûlures ou des lésions oculaires à long terme.
Les médicaments ou les produits de beauté peuvent augmenter votre sensibilité au rayonnement ultra-
violet. Consultez un médecin avant d’utiliser la lampe solaire si vous utilisez des médicaments ou avez
une histoire des problèmes de peau ou croyez-vous particulièrement sensibles aux rayons du soleil. Si
vous ne bronzez pas au soleil, il est peu probable que vous bronzerez avec l’utilisation de ce produit.
Questions au sujet des ventes ou de service : Heartland Tanning, Inc. • Lee’s Summit, MO – 1-800-554-8268
Suivez le programme recommandé d’exposition pour le type de peau.
Cette appareil utilise des lampes de l’ultra-violet A. Remplacez seulement avec les lampes de marque
Rave 180 APR #1842 180W
.
La position minimum d’exposition est à 0,5 pouces 1,27 cm) de la sur-
face de la lampe (instituez par le manufacturier). Lisez le livret d’instruction avant d’utiliser ce dis-
positif. Pour utiliser, couchez-vous sous l’écran et abaissez dans la mesure où le réglage laissera.
ATTENTION : L’UTILISATION DE N’IMPORTE QUELLE AUTRE POSITION PEUT AVOIR COMME
CONSÉQUENCE LA SUREXPOSITION.
Le bronzage peut commencer de façon régulière. Un aspect de bronzage normalement apparaît après quelques
expositions et atteint son niveau maximal après quatre (4) semaines d’exposition.
Utilisez des lunettes protec-
Horaire d’exposition recommandé
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
V – Très foncé
2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
LE TEMPS MAXIMUM D’EXPOSITION EST DE 9 MINUTES
Ce produit est conforme aux normes de rendement pour des produits de lampe
de soleil tel que stipule la partie 1040 du document CFR 21.
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 7 MINUTES 7 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 9 MINUTES 9 MINUTES

7
www.heartlandtan.com 12/05
7
www.heartlandtan.com 12/05
7
SPECIFICATIONS
SUNDAZZLER 46
46 Lamp Heartland Rave system - 11minute session
46 Heartland Rave 160 APR 160 watt lamps

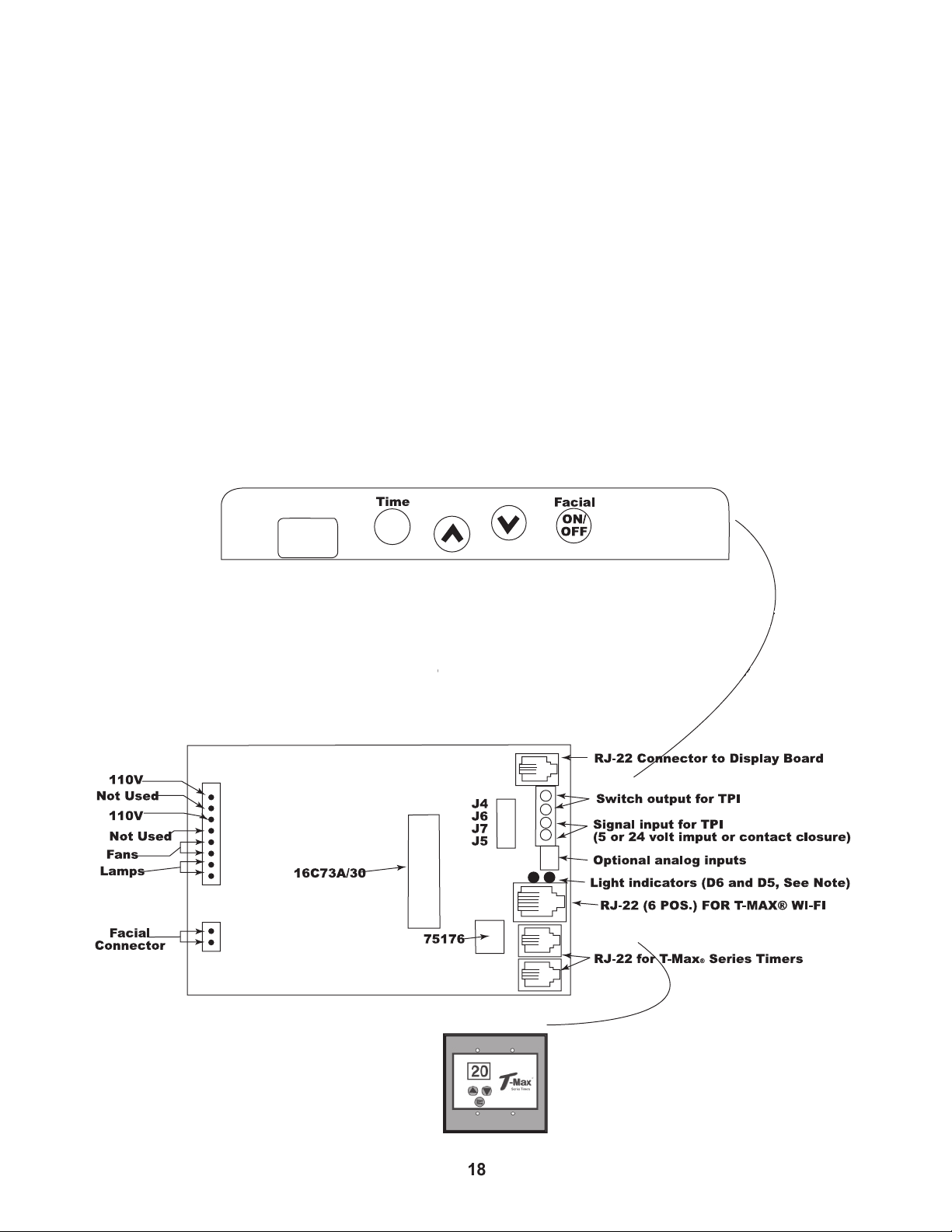

T-Max Timer on board (T-Max wireless compatible)
1200 CFM fan on top for body cooling
(2) 550 CFM fans driving the air-fl ow fl oor system for the body
*60 AMP rated single phase, 220 – 240 volt with ground required
(for optimum performance, running voltage should be 230 – 240)
*38 AMPS initial start up, 38 AMPS running @ 220 VAC
1.5 KVA Buck/Boost transformer required if outside 220 – 240 VAC
7’ X 7’ minimum room size required without dressing room
11/2 Ton (18,000 BTU) minimum A/C dedicated into room
Without dressing room:
Shipping weight: 1166lbs
Dimensions: 62”W X 64”D X 92”H
Optional dressing room:
Shipping Weight: 1509lbs
Dimensions: 70”W X 91”D (allow 20” for complete door swing)
*NOTE: Amperage will vary depending on voltage.
DANGER – ULTRAVIOLET RADIATION.
Follow instructions. Avoid overexposure. As with natural sunlight, overexposure
can cause eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer.
Wear protective eyewear: failure to may result in severe burns or long-term injury to eyes.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sun-
lamp if you are using medications or have a history of skin problems or believe yourself especially sensitive to sunlight.
If you do not tan in the sun, you are unlikely to tan from the use of this product.
This system is intended to be used only with Rave 160 APR #1841 160W lamps.
Follow recommended exposure schedule for the skin type.
RECOMMENDED EXPOSURE SCHEDULE
Week 1 Week 2 Week 3 Week 4 Weekly
1st - 3rd 4th - 6th 7th - 10th 11th - 15th Subsequent
Skin Type Treatments Treatments Treatments Treatments Treatments
II - Fair 2
MINUTES
3
MINUTES
5
MINUTES
9
MINUTES
11
MINUTES
III - A
verage 2
MINUTES
3
MINUTES
5
MINUTES
9
MINUTES
11
MINUTES
IV - B
rown 2
MINUTES
5
MINUTES
7
MINUTES
11
MINUTES
11
MINUTES
V - D
ark Brown 2
MINUTES
5
MINUTES
7
MINUTES
11
MINUTES
11
MINUTES
T
his unit utilizes UVA lamps. Replace only with
Rave 160 APR #1841 160W
lamps
. To obtain the recommended expo-
sure position of 6” (15.2 CM) measured with a standard ruler, stand in the center of the unit.
Caution: The use of any
other position may result in overexposure.
Read the instruction booklet before using this devise.
Tanning can begin on a regular basis. An appearance of tanning normally appears after a few exposures and maximiz-
es after four (4) weeks of exposure.
Use protective eyewear
whenever equipment is energized. Read the instruction booklet before using.
Use protective eyewear
whenever equipment is energized. Read the instruction booklet before using.Use protective eyewear
INSTRUCTIONS ACCOMPANYING THIS PRODUCT SHOULD ALWAYS BE FOLLOWED TO AVOID OR MINIMIZE
POTENTIAL INJURY.
“This product is in conformity with performance standards for sunlamp products under CFR part 1040”

8
www.heartlandtan.com 12/05
8
www.heartlandtan.com 12/05
8
EXPOSURE TIME AND FREQUENCIES
MELANIN - The brownish pigment produced by special cells in the base layer of the skin determines the individ-
ual’s tan. As the skin is exposed to the ultraviolet light, the melanin is activated and combines with protein cells
that rise to the skin’s surface, thus producing a tan. The amount of melanin in your body determines how quickly
and dark you tan. The more melanin produced and exposure time an individual has, the faster and deeper the
individual will tan.
NOTE:
The tan produced by the Sundazzler
™
46
is a deep, rich “COSMETIC” tan. However, regardless of how dark an
individual may tan on this system, it will not provide adequate protections against overexposure to natural sunlight
or UVB tanning systems.
SKIN TYPE II - This is the individual that usually burns easily and severely, tans minimally or lightly and peels
SKIN TYPE III - Often referred to as “AVERAGE” complexion, burns moderately and tans about average
SKIN TYPE IV - This individual burns minimally, tans easily and above average with each exposure
SKIN TYPE V - This individual’s system rarely burns, tans easily and substantially
RECOMMENDED EXPOSURE SCHEDULE
Week 1 Week 2 Week 3 Week 4 Weekly
1st - 3rd 4th - 6th 7th - 10th 11th - 15th Subsequent
Skin Type Treatments Treatments Treatments Treatments Treatments
II - Fair 2
MINUTES
3
MINUTES
5
MINUTES
9
MINUTES
11
MINUTES
III - A
verage 2
MINUTES
3
MINUTES
5
MINUTES
9
MINUTES
11
MINUTES
IV - B
rown 2
MINUTES
5
MINUTES
7
MINUTES
11
MINUTES
11
MINUTES
V - D
ark Brown 2
MINUTES
5
MINUTES
7
MINUTES
11
MINUTES
11
MINUTES
MAXIMUM EXPOSURE TIME IS 11 MINUTES
No two individuals skin tones are the same. A tan to one person may be different to another and treatment length
may vary.
IMPORTANT NOTE:
Customers that wear contact lenses, should be made aware that the heat and ventilation wind may dry out their
contacts and should be removed prior to the session.
It is recommended that you do not use any creams, oils or lotions (particularly suntan lotions) that are not rec-
ommended by Heartland Tanning, Inc. Equally important – many facial makeups have oil bases and should be
removed prior to a session.
It is recommended that following a tanning session, a skin moisturizer be applied. This promotes a smoother,
more even looking tan.

9
www.heartlandtan.com 12/05
9
www.heartlandtan.com 12/05
9
Caractéristiques
SUNDAZZLER 46
longueur : 60 pouces de largeur par 54 pouces de profondeur
hauteur : 92 pouces
poids d’expédition : 1166 livres
nombre de lampes : 46
Voltage Recommande:
230 - 240
aspiration électrique : 38 ampères à 220 volts*
circuit requis : 220 volts, 2 poteau, briseur de
de 50 ampères
*NOTE: Amperage will vary depending on voltage.
DANGER – RAYONNEMENT ULTRAVIOLET.
Suivez les instructions. Évitez la surexposition. Comme
avec les rayons naturels du soleil, la surexposition peut causer dommage aux yeux et à la peau et des
réactions allergiques. L’exposition répétée peut causer le vieillissement prématuré de la peau et du
cancer de la peau.
Portez des lunettes protectrices; le non-respect de cette consigne peut entraî-
ter de graves brûlures ou des lésions oculaires à long terme.
Les médicaments ou les produits de beauté peuvent augmenter votre sensibilité au rayonnement ultra-
violet. Consultez un médecin avant d’utiliser la lampe solaire si vous utilisez des médicaments ou avez
une histoire des problèmes de peau ou croyez-vous particulièrement sensibles aux rayons du soleil. Si
vous ne bronzez pas au soleil, il est peu probable que vous bronzerez avec l’utilisation de ce produit.
Questions au sujet des ventes ou de service : Heartland Tanning, Inc. • Lee’s Summit, MO – 1-800-554-8268
Suivez le programme recommandé d’exposition pour le type de peau.
Cette appareil utilise des lampes de l’ultra-violet A. Remplacez seulement avec les lampes de marque
Rave
160 APR #1841 160W
.
La position minimum d’exposition est à 0,5 pouces 1,27 cm) de la surface de la lampe
(instituez par le manufacturier). Lisez le livret d’instruction avant d’utiliser ce dispositif. Pour utiliser, cou-
chez-vous sous l’écran et abaissez dans la mesure où le réglage laissera.
ATTENTION : L’UTILISATION DE
N’IMPORTE QUELLE AUTRE POSITION PEUT AVOIR COMME CONSÉQUENCE LA SUREXPOSITION.
Le bronzage peut commencer de façon régulière. Un aspect de bronzage normale-
ment apparaît après quelques expositions et atteint son niveau maximal après quatre
(4) semaines d’exposition.
Utilisez des lunettes protectrice à chaque fois que l’appareil
est active.
Lisez le livret d’instructions avant l’utilisation.
Horaire d’exposition recommandé
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
V – Très foncé
2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
LE TEMPS MAXIMUM D’EXPOSITION EST DE 11 MINUTES
Ce produit est conforme aux normes de rendement pour des produits de lampe
de soleil tel que stipule la partie 1040 du document CFR 21.
Traitements Traitements Traitements Traitements subséquents
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
Semaine 1 Semaine 2 Semaine 3 Semaine 4 Bihebdomadaire
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
Type de peau 1er – 3e 4e – 6e 7e – 10e 11e – 15e Traitements
Traitements Traitements Traitements Traitements subséquents
II – Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES
IV – Foncé 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 11 MINUTES
Traitements Traitements Traitements Traitements subséquents
III – Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 11 MINUTES

10
www.heartlandtan.com 12/05
10
www.heartlandtan.com 12/05
10
WARNINGS AND CAUTIONS
Certain drugs – particularly those designed to produce photosensitivity – may cause individuals under
the influence of this type drug to experience adverse effects and those people should avoid exposure to
UV sources of all kinds. Doctors will advise persons taking these drugs of possible adverse effects.
It is recommended that only one (1) person at a time should use the tanning system while in use, and
advise using protective eyewear while taking a tanning session. Two (2) pair of goggles are provided
with each
2M,
SUNDAZZLER
™
advise using protective eyewear while taking a tanning session. Two (2) pair of goggles are provided
™
advise using protective eyewear while taking a tanning session. Two (2) pair of goggles are provided
46
.
WARNING
If you have been diagnosed by physician as being allergic to the sun or are currently taking photosensi-
tive medications, consult your physician before using the tanning unit.
CAUTION
While there is no immediate clinical evidence regarding UVA exposure and its effects upon expectant
mothers,
it is strongly advised that expectant mothers be discouraged from using the tanning unit.
MANDATORY READING
ALWAYS FOLLOW INSTRUCTIONS FOR PROPER USAGE PRIOR TO USING ANY TANNING
SYSTEM
REMEMBER
1. Follow the exposure schedule in accordance with your skin type. Failure to do so may result in over-
exposure.
2.
You can not vary the strength of the lamps in your unit.
Should you have any question regarding the proper use of your tanning system, contact
Heartland Tanning, Inc. at:
1-800-554-8268
8:00
AM
to
5:00PM (CST)

11
www.heartlandtan.com 12/05
11
www.heartlandtan.com 12/05
11
CARE AND CLEANING OF YOUR
2M AND SUNDAZZLER
™
46
After each session is completed, spray the booth floor with Acrylic Cleaner, a specially formulated UVT (ultra-
violet transmitting) Acrylic Cleaner. Spray and clean the acrylic. Wipe the floor and acrylic with a clean cloth. The
acrylic should never be wiped with a dry cloth because this will generate a slight static charge which will attract
dust. A mild liquid detergent and water solution can be used temporarily in place of Acrylic Cleaner.
For maximum efficiency of your 2M, SUNDAZZLER
™
46
periodic cleaning of lamps is required. Refer to relamp-
ing instructions for acrylic removal.
CAUTION: Do not use excessive amounts of water, any abrasive cleaners, or any spray cleaner that carry label
warnings regarding reactions to contact with skin!
DO NOT USE ALCOHOL
ELECTRICAL SAFETY: The tanning unit should be disconnected from the power supply before cleaning or any
repairs are made! Avoid water or solution entering the lamp compartment.
RELAMPING INSTRUCTIONS
2M, SD-46,
1. Disconnect power from unit.
2. Remove acrylic strips and slide acrylic out of the unit.
3. Turn the bi-pin lamp and remove from lampholder.
4. Align the bi-pin lamp and slide the top and bottom into the lampholder. REMEMBER: The lamps are
REFLECTOR LAMPS, make sure the lamp is turned so the reflector is facing the back of the unit. To ensure
the reflector is facing the back always have the label on the lamp facing the user.
5. Clean and replace acrylic. (Refer: Care and cleaning instructions.)
6. Reconnect unit to power.
LAMP GUIDE
SD46 - Replacement lamps must comply with CFR 21 1040.20
1. Replace only with
Rave 160 APR #1841 160W
2. W
hen ordering lamps, include model number and serial number.
2M - Replacement lamps must comply with CFR 21 1040.20
1. Replace only with
Rave 180 APR #1842 180W
2. W
hen ordering lamps, include model number and serial number.

12
www.heartlandtan.com 12/05
12
www.heartlandtan.com 12/05
12
USE AND GUIDE TO TIMER SYSTEM
The information in this manual is believed to be correct. However, Applied Digital, Inc. assumes no responsibility
for any errors herein. This information is subject to change without notice, and should not be construed as a com-
mitment by
Applied Digital
, Inc. A factory 3 second delay between all functions is standard on all Ovation
™
beds.
TIMER WARRANTY
This product is warranted against defective materials and workmanship for a period of one year form date of pur-
chase. In the event the product fails to perform, it may be returned; Shipping Paid, to the factory to be serviced
or replaced at the factory’s discretion.
Applied Digital
, Inc. will pay to ship the repaired or replaced product by the
shipping means of our choosing. Returns will not be accepted without a Return Authorization Number assigned by
the factory. It is a Condition of Sale that the user of
Applied Digital
, Inc.’s products assumes all risk and responsibil-
ity of use and indemnifies
Applied Digital
, Inc. against all damages.
Applied Digital
Inc. is not liable for loss of prof-
its, loss savings, special, incidental, consequential, indirect or other similar damages arising form breach of warran-
ty, breach of contract, negligence, or other legal action even if
Applied Digital
, Inc. or its agent has been advised of
the possibility of such damages, or for any claim brought against you by another party. This warranty allocates risks
of product failure between the Purchaser and
Applied Digital
, Inc.
Applied Digital
, Inc.’s hardware pricing reflects
this allocation of risk and the limitations of liability contained in this warranty. it is a violation of the stated warranty
to cut or modify the provided modular cables supplied with the T-Max Series Timers. Connection the T-Max Series
to third party timers not approved by
Applied Digital
, Inc. also violates the stated warranty. Contact your dealer or
Applied Digital
, Inc. if you are not sure if the timer that you are connection is an approved timer.
T-Max/004 OEM Installation and User’s Guide
OVERVIEW
Congratulations on your purchase of
Applied Digital
, Inc.’s T-Max Series of tanning bed timers. The T-
Max Series is designed for complete automation and control of your tanning equipment.
A Heartland Timer is an OEM board that can be installed in a tanning bed or tanning booth. Each Heartland Timer
A Heartland Timer is an OEM board that can be installed in a tanning bed or tanning booth. Each Heartland Timer
can individually control a tanning bed, can be connected back-to-back with a T-Max 1A or T-Max 3A for remote front
desk control or be connected with many Heartland Timers and a T-Max Manager or Manager/Plus to control many
beds from a remote location. Operation is accomplished via front panel controls. This manual should be used by
the licensed electrician installing your T-Max timing system. Check for compliance with local building codes.
CONFIGURATION
Setting Parameters
Note:
If you are using a T-Max Manager or T-Max Manager/Plus and multiple Heartland Timers, remove power form
the T-Max Manager or T-Max Manager/Plus and keep the power removed until all parameter changes are com-
plete.
1. Press and hold the Start/Stop and the Up buttons simultaneously on the Heartland Timer. As soon as you see a
“.1” on the display release the buttons. This should take about 5-6 seconds. This is an indication that you are in
the parameter mode. The numbers currently displayed represents the parameter number that you can observe or
change.
2. Press the Up or Down buttons until the parameter number that you want to observe or change is displayed.

13
www.heartlandtan.com 12/05
13
www.heartlandtan.com 12/05
13
3 Press the Start/Stop button. The current value for that parameter will be displayed and flashing.
The Heartland Timer will show a number with a period illuminated in the lower center of the display.
The number shown is the current value for that parameter.
For Lamp, Session Counts, etc. the value displayed can be as high as 9999. To display this value,
the Heartland Timer will flash tow numbers-three times, then two numbers-three times, pause, two
numbers-three times, two numbers-three times, pause, etc. For example, if you are checking lamp
hours (Parameter 6) and the display flashes the numbers 53 three times, then 14 three times, pauses
then repeats, then the total lamp hours stored in that Heartland Timer is 5314.
4. Press the Up or Down buttons to change the parameter to the desired value.
If you want to clear the value for that parameter, press the Up and Down buttons at the same
time until
the display shows 0.0.
5. Press the Start/Stop button.
The display will show the parameter number you just change and a solid period in the lower cen-
ter of the display. You may now change another parameter by pressing the Up and Down but-
tons until the parameter that you want to change is displayed. Repeat Steps 2-4 for each param-
eter you want to change.
6. To exit the Parameter mode and make the Heartland Timer available for the next session, press and
hold the both Up and Down buttons until the display shows a 0 with no periods displayed.

14
www.heartlandtan.com 12/05
14
www.heartlandtan.com 12/05
14
Setting The Address
Note: If you are using the Heartland Timer as an independent timer, you don’t need to set the address on the Heartland Timer.
1. Press and hold the Start/Stop buttons simultaneously on the Heartland Timer until a .1 appears on the display.
Release the buttons. This should take about 5-6 seconds.
2.
Press and release the Start/Stop button. A number will appear on the display and be flashing. A period will be illu
mi-
nated in the center of the display. Pressing and holding the Up button will cause the display to count up. Once the
count reaches 100, the center period will flash rapidly. This is an indication that you are over 99. For example, if the
display shows a 0.2 with the period flashing, this is address 102. The highest the display will count up is 254.
3. Press the Up or Down buttons until the desired address is displayed. When setting the address,
remember 3 rules:
A) Set each Heartland Timer to a unique address. B) Do not set any address to 0.
C) Do not set any address over 100.
4. Press the Start/Stop button. The “.1” will appear on the display. The 1 will not be flashing.
5.
To exit, press and hold both Up and Down buttons until the display shows a 0 with no periods displayed.
Table 1 - Parameter numbers for observing and changing parameters.
14
www.heartlandtan.com 12/05
14
www.heartlandtan.com 12/05
14
Param.# Description Max # Default Notes
Param.# Description Max # Default Notes
Salon Level
Salon Level
1 Address 128 1 Set this number to the room number you want the timer to be
1 Address 128 1 Set this number to the room number you want the timer to be
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
5 Session 65535 0 Total Session counts for Heartland Timer Counts
5 Session 65535 0 Total Session counts for Heartland Timer Counts
6 Lamp Hours 65535 0 Bulb hours for each bed
6 Lamp Hours 65535 0 Bulb hours for each bed
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
Counts while in Stand Alone Mode
Counts while in Stand Alone Mode
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
13 Cool Down Mode 10 3
13 Cool Down Mode 10 3
0 = Disabled, 1-10 = Enabled. Time delay in minutes allowing bed
to
to
cool. The fans will remain running while the Heartland
Timer is in cool down mode.
Timer is in cool down mode.
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
seconds every 5 minutes
seconds every 5 minutes
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
®
3A. This
® 3A. This ®
value
value
cannot be changed at all. Used as point of reference.
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
the T-Max
the T-Max
®
1A will close for 1-2 seconds then open.
® 1A will close for 1-2 seconds then open. ®
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
clean room. 1 = Press and release the Set button to instantly
clean room. 1 = Press and release the Set button to instantly
clear the clean room.
clear the clean room.
18 Redisplay 2 0
18 Redisplay 2 0
0 = After a session ends and the clean room is cleared, the
Heartland Timer will show a 0. 1 = After session ends and the
Heartland Timer will show a 0. 1 = After session ends and the
clean room is cleared,m the Heartland Timer will show the last
clean room is cleared,m the Heartland Timer will show the last
session time entered. 2 = After the session ends and the clean
session time entered. 2 = After the session ends and the clean
room is cleared, the max. time will show on the Heartland Timer.
room is cleared, the max. time will show on the Heartland Timer.
19*
19*
Third Part Interface
1 0
When set to a 1, voltage must be applied be an outside source to
the TPI input on the back of the Heartland Timer. Used is the
the TPI input on the back of the Heartland Timer. Used is the
timer is being controlled by either a FST
timer is being controlled by either a FST
®
or Database
® or Database ®
®
Series
® Series ®
Timer. See Section for JPI settings
Timer. See Section for JPI settings
Salon Level
Salon Level
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
7 Bed Hours 65535 0 How may hours a bed is on
seconds every 5 minutes
seconds every 5 minutes
seconds every 5 minutes
seconds every 5 minutes
seconds every 5 minutes
Param.# Description Max # Default Notes
1 Address 128 1 Set this number to the room number you want the timer to be
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
5 Session 65535 0 Total Session counts for Heartland Timer Counts
6 Lamp Hours 65535 0 Bulb hours for each bed
7 Bed Hours 65535 0 How may hours a bed is on
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
Counts while in Stand Alone Mode
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
13 Cool Down Mode 10 3
to
Timer is in cool down mode.
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
seconds every 5 minutes
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
7 Bed Hours 65535 0 How may hours a bed is on
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
value
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
the T-Max
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
clean room. 1 = Press and release the Set button to instantly
clear the clean room.
18 Redisplay 2 0
Heartland Timer will show a 0. 1 = After session ends and the
clean room is cleared,m the Heartland Timer will show the last
session time entered. 2 = After the session ends and the clean
room is cleared, the max. time will show on the Heartland Timer.
seconds every 5 minutes
www.heartlandtan.com 12/05
the TPI input on the back of the Heartland Timer. Used is the
timer is being controlled by either a FST
Timer. See Section for JPI settings
Param.# Description Max # Default Notes
1 Address 128 1 Set this number to the room number you want the timer to be
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
5 Session 65535 0 Total Session counts for Heartland Timer Counts
6 Lamp Hours 65535 0 Bulb hours for each bed
7 Bed Hours 65535 0 How may hours a bed is on
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
Counts while in Stand Alone Mode
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
13 Cool Down Mode 10 3
to
Timer is in cool down mode.
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
seconds every 5 minutes
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
7 Bed Hours 65535 0 How may hours a bed is on
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
value
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
the T-Max
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
clean room. 1 = Press and release the Set button to instantly
clear the clean room.
18 Redisplay 2 0
Heartland Timer will show a 0. 1 = After session ends and the
clean room is cleared,m the Heartland Timer will show the last
session time entered. 2 = After the session ends and the clean
room is cleared, the max. time will show on the Heartland Timer.
1 0
the TPI input on the back of the Heartland Timer. Used is the
timer is being controlled by either a FST
Timer. See Section for JPI settings
seconds every 5 minutes
Param.# Description Max # Default Notes
1 Address 128 1 Set this number to the room number you want the timer to be
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
5 Session 65535 0 Total Session counts for Heartland Timer Counts
6 Lamp Hours 65535 0 Bulb hours for each bed
7 Bed Hours 65535 0 How may hours a bed is on
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
Counts while in Stand Alone Mode
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
13 Cool Down Mode 10 3
to
Timer is in cool down mode.
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
seconds every 5 minutes
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
7 Bed Hours 65535 0 How may hours a bed is on
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
value
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
the T-Max
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
clean room. 1 = Press and release the Set button to instantly
clear the clean room.
18 Redisplay 2 0
Heartland Timer will show a 0. 1 = After session ends and the
clean room is cleared,m the Heartland Timer will show the last
session time entered. 2 = After the session ends and the clean
room is cleared, the max. time will show on the Heartland Timer.
1 0
the TPI input on the back of the Heartland Timer. Used is the
timer is being controlled by either a FST
Timer. See Section for JPI settings
seconds every 5 minutes
Param.# Description Max # Default Notes
1 Address 128 1 Set this number to the room number you want the timer to be
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
5 Session 65535 0 Total Session counts for Heartland Timer Counts
6 Lamp Hours 65535 0 Bulb hours for each bed
7 Bed Hours 65535 0 How may hours a bed is on
8 Manual Session 65535 0 Counts the # of sessions the Heartland Timer Session has run
Counts while in Stand Alone Mode
9 Clean Room 1 1 0 = Clean Room Disabled. 1 = Enabled
10 Manual Lockout* 1 0 0 = Stand Alone Enabled. 1 = Disabled
to
Timer is in cool down mode.
14 5 Min. Beep 1 0 0 = Disabled, 1 = Enabled. Heartland Timer will beep for 10
seconds every 5 minutes
2 Beep Mode 1 0 Used for High Power beds. 0=Alarm Only, 1=Alarm and Flip
3 Delay Time 10 3 Delay in minutes stored in the Heartland Timer
7 Bed Hours 65535 0 How may hours a bed is on
15 Fixed Session 65535 0 Counts number of sessions ran through the TMax
value
16 Pulse Mode 1 0 0 = Disabled, 1 = Enabled. When session starts, the relay on
the T-Max
17 Clean Clear 1 0 0 = Press and hold the Set button for 3-4 seconds to clear the
clean room. 1 = Press and release the Set button to instantly
clear the clean room.
Heartland Timer will show a 0. 1 = After session ends and the
clean room is cleared,m the Heartland Timer will show the last
session time entered. 2 = After the session ends and the clean
room is cleared, the max. time will show on the Heartland Timer.
the TPI input on the back of the Heartland Timer. Used is the
timer is being controlled by either a FST
Timer. See Section for JPI settings
seconds every 5 minutes

15
www.heartlandtan.com 12/05
15
www.heartlandtan.com 12/05
15
Setting Delay Time
If the Heartland Timer is being controlled by a T-Max 1A, T-Max 3A, T-Max Manager or T-Max Manager/Plus, the
delay does not need to be set on the Heartland Timer. The delay is controlled by the controlling device.
1. Press and hold the Start/Stop and Up buttons simultaneously the Heartland Timer until a “.1”
appears on the display. Release the buttons. This should take about 5-6 seconds.
2. Press the Up or Down button until a “.3” is displayed.
3. Press and release the Start/Stop button. A number will appear on the display and be flashing. A
period will be illuminated in the center of the display. This is the current delay time.
4.
Press the Up or Down button until the desired delay time is displayed. The highest delay time that can
be set on the Heartland Timer is 10 minutes. If you want no delay time, set the display to 0. If you set
the delay time to 0, the session time will start immediately after the Start/Stop button is pressed.
5. Press the Start/Stop button. The “.3” will appear on the display. The 3 will not be flashing.
6.
To exit, press and hold both the Up and Down buttons until the display shows a “0” with no periods displayed.
IN-ROOM SINGLE BED CONTROL
Starting A Session
1. Press the Up or Down button on the Heartland Timer until the desired session time is displayed. If
the display shows a 0, and you want to count down from the maximum time, press the down button.
2. Press and release the Start/Stop button to start the session. If a delay other that 0 is entered, the
delay will count down. A period on the lower right corner of the display will flash rapidly. When the
session starts, the period will flash at a once per second rate. If the delay is set to 0, the session will
start immediately.
Pausing A Session
T
o pause the session press the Start/Stop button. The flashing period on the lower right corner of the
display will stop flashing and stay illuminated. To restart, press the Start/Stop button on the Heartland
Timer. The period on the lower right corner of the display will resume flashing.
NOTE:
The session time will continue to count down. The display will continue to update and reflect the
remaining session time.
Canceling A Session
To cancel a session. press the Start/Stop button to pause the session then press the Up button.
The display will show a solitary 0.
REMOTE SINGLE BED CONTROL
Remote Single Bed Control is the ability to control a single tanning bed from a remote location. T-Max 3A
at the remote location is required for this configuration.

16
www.heartlandtan.com 12/05
16
www.heartlandtan.com 12/05
16
Wiring
Wire the Heartland Timer to the tanning bed. Apply power to the T-Max 3A as described in their respective
User’s Guides.
Run the provided modular cable from the tanning room to the remote T-Max 3A or T-Max 1A. Connect the
modular cable to one of the RJ-22 ports on the Heartland Timer and T-Max 1A or T-Max 3A (see RJ-22 ports for
T-Max Series timers on page 16, figure B).
Configuration
Set the address on the Heartland Timer in the tanning room to 1. Set the address on the T-Max 3A to 0.0. For
setting the delay refer to the T-Max 3A user’s guide.
Note:
When setting the address on the Heartland Timer in the tanning room, the power to the front desk T-
Max 1A or 3A must be off.
Session Control
Starting a session
1. Press the Up and Down button on the T-Max 3A or the Set button on the T-Max 1A at the front desk until the
session time is displayed. Time cannot be set from the Heartland Timer in the room.
2. Press the Start/Stop button on the front desk T-Max 1A or T-Max 3A to start the session.
If a delay other than 0 is set, the delay will count down. A period on the lower right corner of the display will
flash rapidly. When the session starts, the period will flash at once per second rate. If a 0 delay is entered,
the session will start immediately.
Pause during the Session
To pause the session press the Start/Stop button on the Heartland Timer in the tanning room. The flashing peri-
od on the lower right corner of the display will stop flashing and stay illuminated. To restart the session, press
the Start/Stop button on the Heartland Timer in the tanning room. The period will continue flashing.
Note:
The session time will continue to count down. The display will continue to update and reflect the remain-
ing session time.
Canceling a session
To cancel a session, press both the Start/Stop band Up button on the T-Max 3A at the front desk simultaneous-
ly. If you are using a T-Max 1A, press the Start/Stop and the Set buttons simultaneously. The session cannot
be canceled from the Heartland Timer.
USING THE HEARTLAND TIMER WITH A T-MAX MANAGER OR T-MAX MANAGER/PLUS/PRO
If you are using Heartland Timers with a T-Max Manager or T-Max Manager/Plus, follow these
instructions for proper operation:
If you need to set the address on the Heartland Timer manually, be sure to set each Heartland Timer
to a different address. No Heartland Timer should be set to address 00.
Connect each Heartland Timer together using a modular cable that conforms to the pinouts shown on Figure B.
Connect T-Max Manager or T-Max Manager/Plus to the closest Heartland Timer in the line (refer to Figure C).
Note:
Delay is controlled by the T-Max Manager, the T-Max Manager/Plus or the software you are using if you
are using a computer. It is not necessary to set the delay on the Heartland Timer. Refer to the T-Max Manager
or T-Max Manager/Plus User’s Guide for operation.

17
www.heartlandtan.com 12/05
17
www.heartlandtan.com 12/05
17
OTHER FEATURES
Clean Room
Once a session time has elapsed, the display will show two solid periods only. This is an indication that the room
needs to be cleaned. To clear the clean room indication, press and hold the Up button on the Heartland Timer in
the tanning room until the two period disappear and a “0” appears. To disable the clean room feature, set param-
eter 9 to a 0.
Lamp Hours
To check and change Lamp Hours (or any other parameter).
TPI ( Third Party Input) Mode
If you are using a FST or Database Series timers, you will need to place the Heartland Timer in the TPI mode.
Connecting the TPI Input
1. Set Parameter 19 to a 1.
2. Connect the two actuator wires from the FST or Database timer to the TPI input in the back of the Heartland
timer. When a session is started the FST timer will place 5v on these two wires. If you are using a database
Series timer, 24 volts will be applied.
Connecting the TPI output
FST:
Connecting the TPI output
FST:
Connecting the TPI output
1. There are three wires coming from the FST series timer. Two are the actuator wires connected to the
signal input. Connect the third wire to one of the switch terminals. Make sure J6 and J7 are on and J4
and J5 are off.
2. Run a jumper from the black actuator wire connected to the other switch screw terminal.
Database:
There are four wires coming from the database series timer. Two are the actuator wires connected to the
signal input. Connect the two other wires to the TPI relay output terminal J1. Make sure J6, J4 and J5
are off and J7 is on. Contact closure
If your external timer is simply a relay contact closure, make sure J4, J6, and J5 are on and J7 is off.
Important: J4, J5, and J7 should never be on at the same time!!!
Operation
When a session is started, voltage will be applied to the TPI input. The display on the Heartland Timer will show
the maximum time
and count down. When the session ends, the voltage will be removed from the TPI input and the bed will turn off.
Any remaining
session time showing on the Heartland Timer will be eclipsed.
Note:
The Heartland timer can not be used as a stand alone time in the TPI mode.
If the FST or Database Series timers are in delay the Heartland Timer will show a 0. However , pressing the
Start/Stop button on the Heartland Timer will eclipse the delay time and start the session. Pressing the Start/Stop
button on the Heartland timer will also clear
the clean room indication on the FST and Database timers.

18
www.heartlandtan.com 12/05
18
www.heartlandtan.com 12/05
18
Cool down mode
Cool down mode is the time the bed needs to cool down after a session has ended.
The Factory default setting is 3 minutes.
1. Connect the wires that control the fans to the headers on the back of the Heartland timer.
2. Set parameter 13 to the desired cool down time.
After a session has ended the display will show a single period in the middle of the display.
The period will remain until the
cool down time has elapsed. The display will then show a 0.
Note:
If both cool down time and clean room are enabled, the clean room will be displayed.
If the clean room indication is cleared before the cool down time has expired, the cool
down indication will be displayed. If the cool down time has elapsed
before the clean room indication has been cleared , the clean room indication will remain
until it is cleared.
Figure A - Front View Of The Heartland Timer
Display Board Front View
Note: D6
- Run and communications indication lights. Will flash at a once per second rate
when operating a stand alone mode. When flashing
rapidly the communications are active (either with a T-Max
®
Manager or Master T-Max
®
3A). Will stay on solid if timer is in TPI mode.
® 3A). Will stay on solid if timer is in TPI mode. ®
D5
- Power indication.
Figure B - Power Board Location
- Run and communications indication lights. Will flash at a once per second rate
3A). Will stay on solid if timer is in TPI mode.
Note: For timer loca-
tion see speci-
fications - wir-
ing diagram
ballast box for
your model.
12' modular
cable to
power
board
T-Max Remote
or T-Max
Manager/
Plus/Pro

19
www.heartlandtan.com 12/05
19
www.heartlandtan.com 12/05
19
FIGURE C - Connecting the Heartland Timer to a T-Max
®
®
Series
It does not matter in which order the rooms are connected. The only requirement is that there
is a continuous connection from the T-Max
®
It does not matter in which order the rooms are connected. The only requirement is that there
®
It does not matter in which order the rooms are connected. The only requirement is that there
Manager through each room in the T-Max
® Manager through each room in the T-Max ®
®
It does not matter in which order the rooms are connected. The only requirement is that there
®
It does not matter in which order the rooms are connected. The only requirement is that there
Series
® Series ®
daisy-chain.

20
www.heartlandtan.com 12/05
20
www.heartlandtan.com 12/05
20
ASSEMBLY INSTRUCTIONS
UNIT
1/2" BOLTS 1/2" BOLTS
LOWER LOUVERED
PANEL LOWER LOUVERED
PANEL
ALIGNMENT HOLE
ALIGNMENT PIN
BASE
STEP 2
STEP 1
STEP 2
STEP 1
STEP 2
STEP 1
