Sune Technology SE-MB15 Product information sheet

Mercedes-Benz Parking Assistant System Easy Operation Manual
——————————————————————————————————————————————————————————
Mercedes-Benz
Multimedia GPS system
with Capacitive touchpad
Easy Operation Manual
SUNE TECHNOLOGY ELECTRONIC CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City
70849,TAIWAN
TEL:[phone] FAX:[phone]
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99
Model: SE-MB15(A/B/CLA/GLA/C/V/GLC/GLE-Class)
For ALL NTG5-Entry
NTG5-HU
NTG5S1
CarNavi-Tech

1、Products
This section describes the appearance of the company's products, physical picture, as well as our products
more special.
Thank you for using our SUNE TECHNOLOGY products, after you get the product, please carefully
check the open standard accessories listed below are complete
1.1.Accessory list
Sequence No. . Name Picture Amount
1
SE-MB15
Multimedia GPS
system
1
2
Original
Plug&Play
car power
adapter cable
1
3 video input cable 1
4 7inch Capacitive
touchpad
1
5 1
6 LVDS video input 1
7 GPS Antenna 1
Touchpad
ribbon cable
1.2.Features and Performance
products Model :SE-MB15 Multimedia GPS system for C-Class,B-class,CLA-class,A-Class,GLA-Class,
GLC-class ,GLE-class,V-class with NTG5 audio20 with 7inch system.
All features of this product is switched by the original car audio buttons or by touch
Mercedes-Benz Multimedia GPS System with capacitive touchpad .
1 x Rear camera input,1 x Front camera input and 2 x Video input
360 panorama function
Special harness Plug & Play 。
Smart parking system when you put "R" will show Rear camera,put"D" will show front camera
,More than 10KM speed reversing exit
PS:Capacitive touchpad with 2 models,please make sure
your screen model than order right touchpad!!
CarNavi-Tech

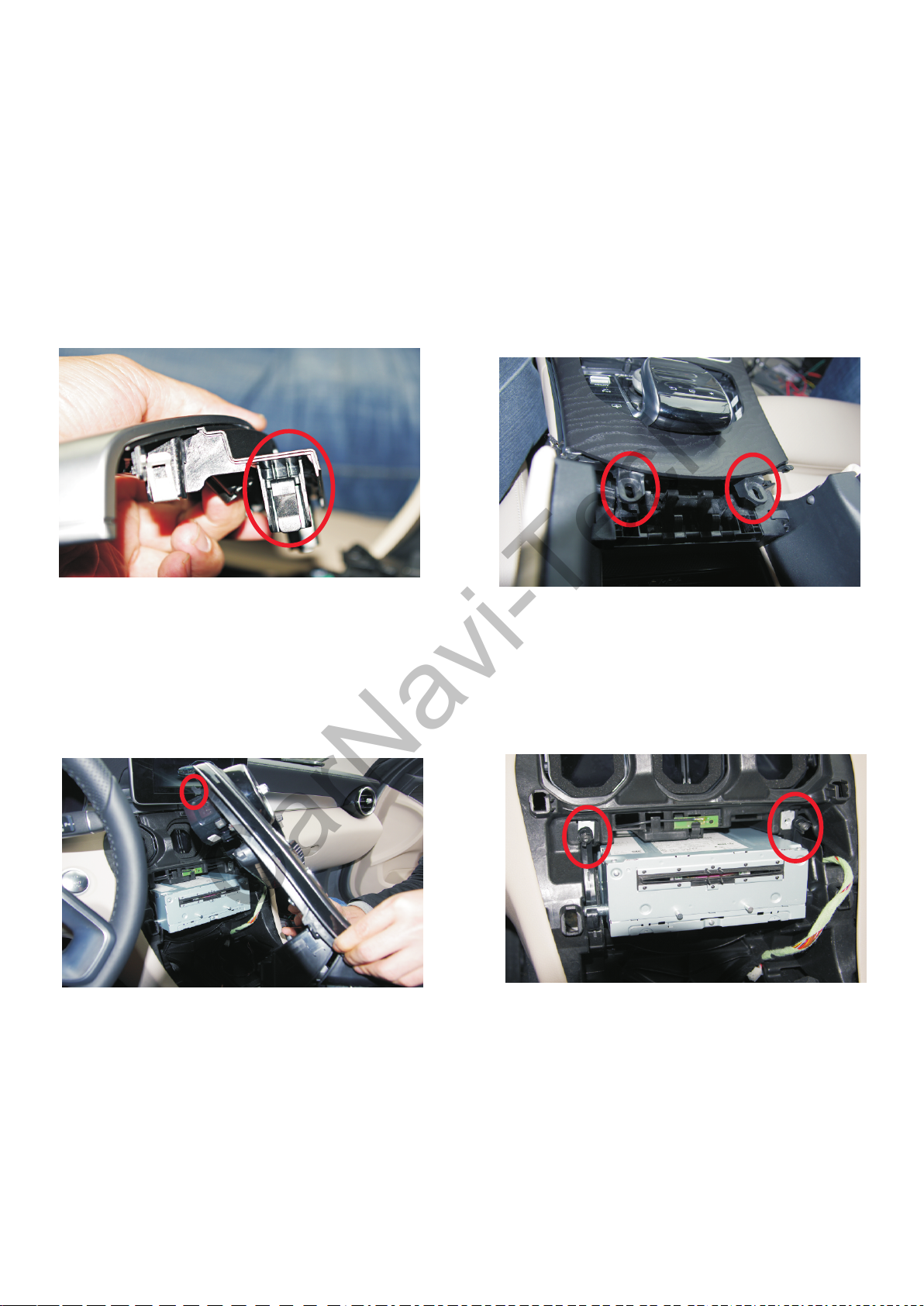

Installation(For W205/GLC/447)
1.The center armrest side silver plaque with the
tools to remove, the two sides each a dark
button as shown above
2.Remove two screws apart and trim,
The whole panel can be removed, as
shown above
3.The entire panel is dark fasten.Removed from
the handrail to the comand system,Note that the
bottom of the screen with two reverse snaps
4.Remove two screws on the top of
comand,than can be removed
1.How to remove Headunit
CarNavi-Tech

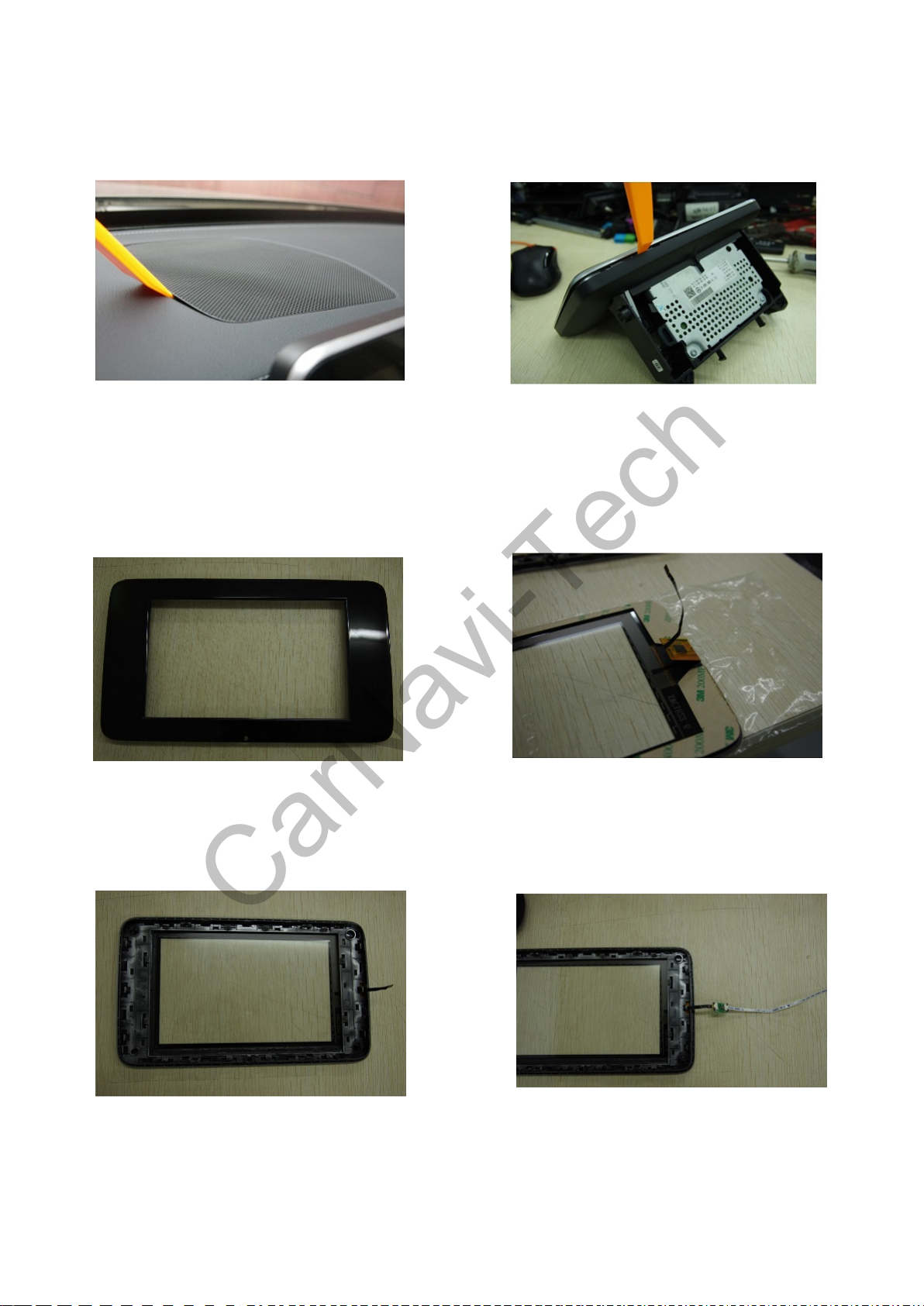

2.How to remove screen and install capacitive touchpad
1.Use special tool,remove speaker
cover than remove 2 of screws you
will take out monitor
2.Carefully remove Chrome frame
than you can remove black frame
on chrome frame
3.Remove black front frame like this. 4.The cable folded like photo
5.Carefully past capacitive on chrome
frame and make sure ribbon cable
direction
6.connection ting-long ribbon cable
CarNavi-Tech

7.Insert into ting-long ribbon cable
from front to back of screen 8.The small plate into the gap
9.Mounted on the front frame make
sure ribbon cable was back of screen
10.Fixed small plate
11.Finished back side 12.Front side
CarNavi-Tech

Installation(For A/B/CLA/GLA/GLE)
1.Use tool remove Left and Right Air-
conditioning vent
2.Remove parts
3.Remove screws(Left and Right) than you can remove Audio system
1.How to remove Headunit
CarNavi-Tech

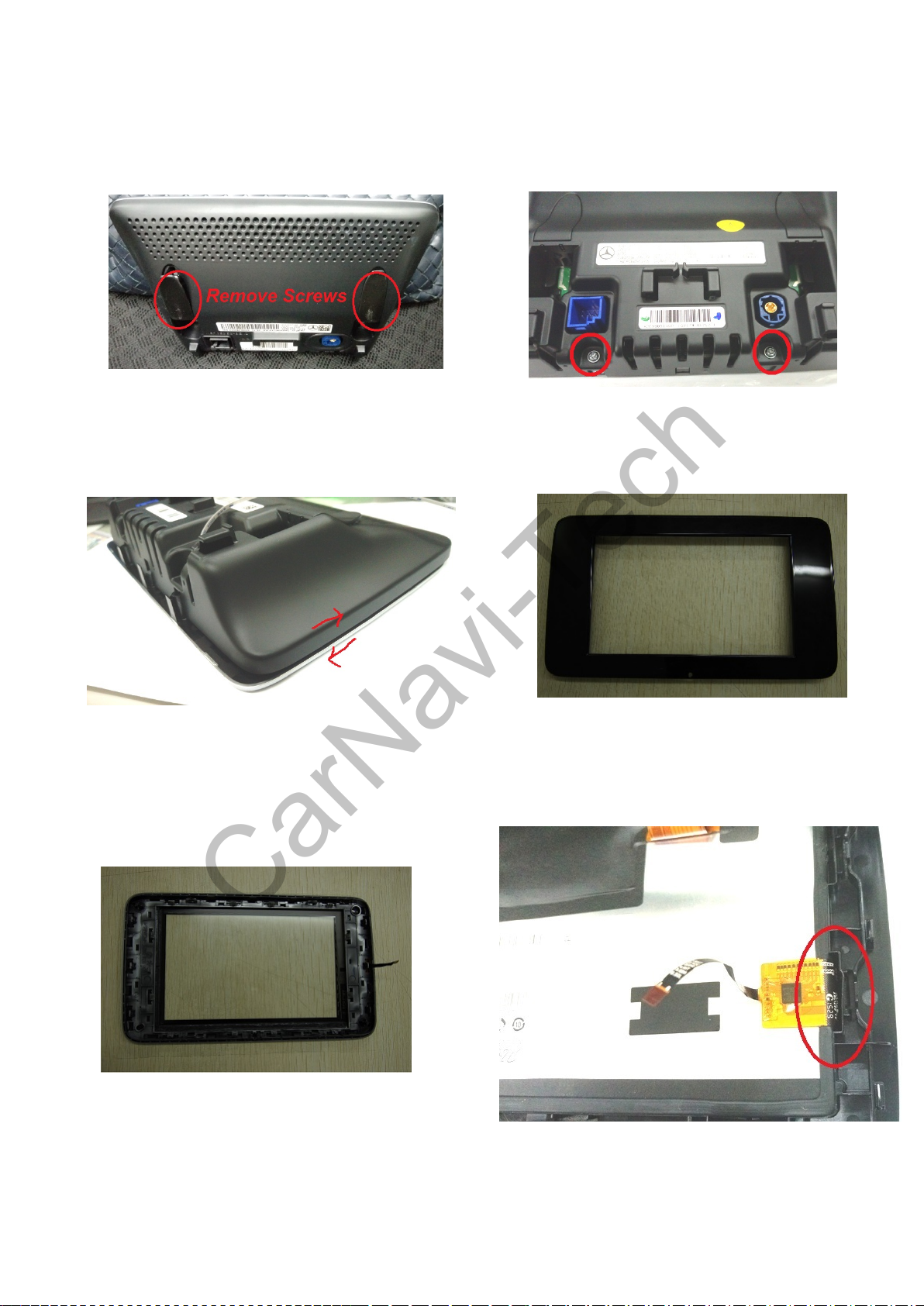

2.How to remove screen and install capacitive touchpad
1.Remove 2 of screws back of screen than
take out monitor 2.Remove buttom of 2 screws
3.Remove front chrome frame,push it
different size than you can remove it
see red arrow
4.Remove black front frame like this.
5.Carefully past capacitive on chrome
frame and make sure ribbon cable
direction
6.Carefully make sure brown ribbon cable From
the front through to the back
CarNavi-Tech

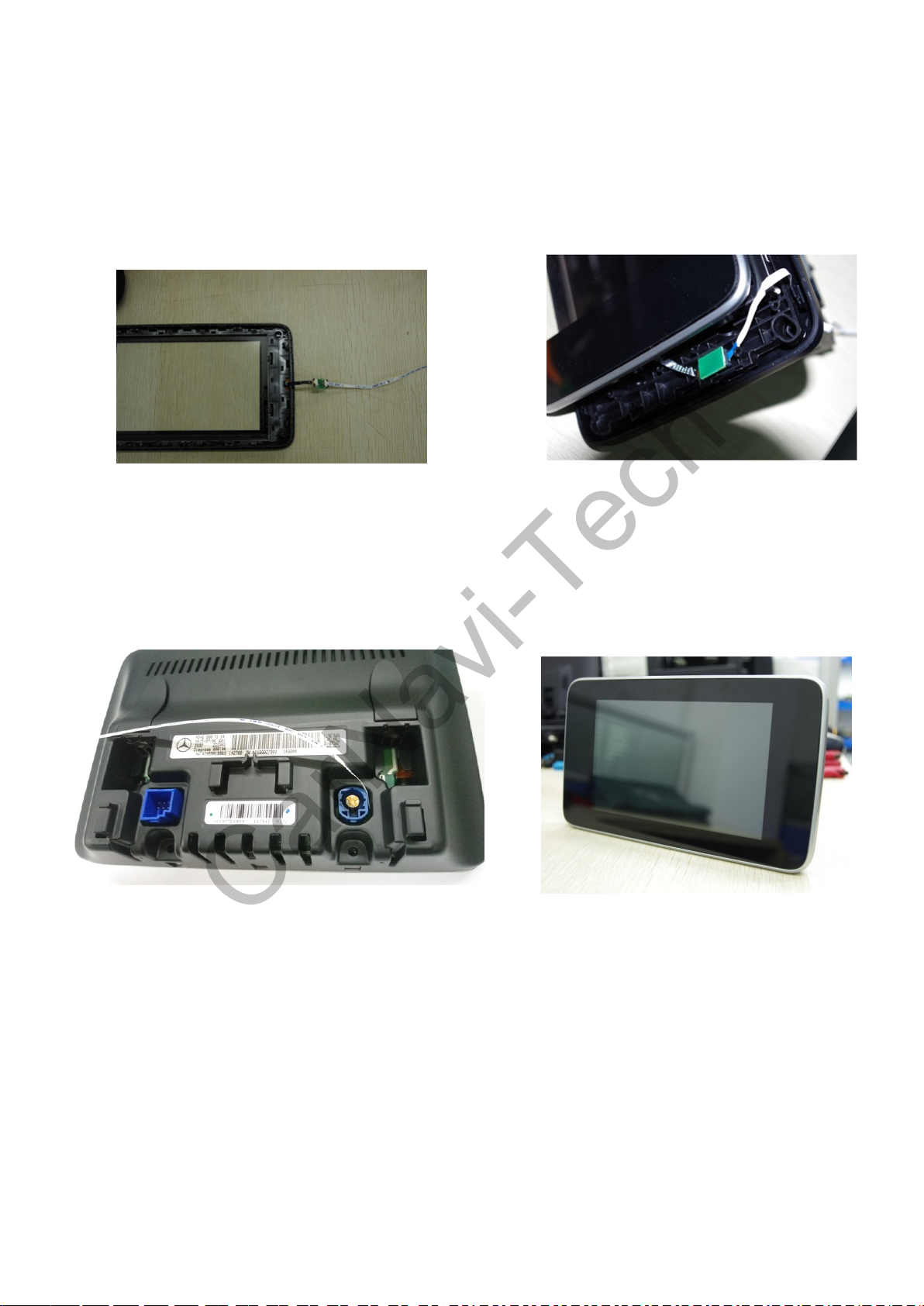

7.connection ting-long ribbon cable 8.The small plate into the gap
9.ribbon cable to back size 10.Front side
CarNavi-Tech

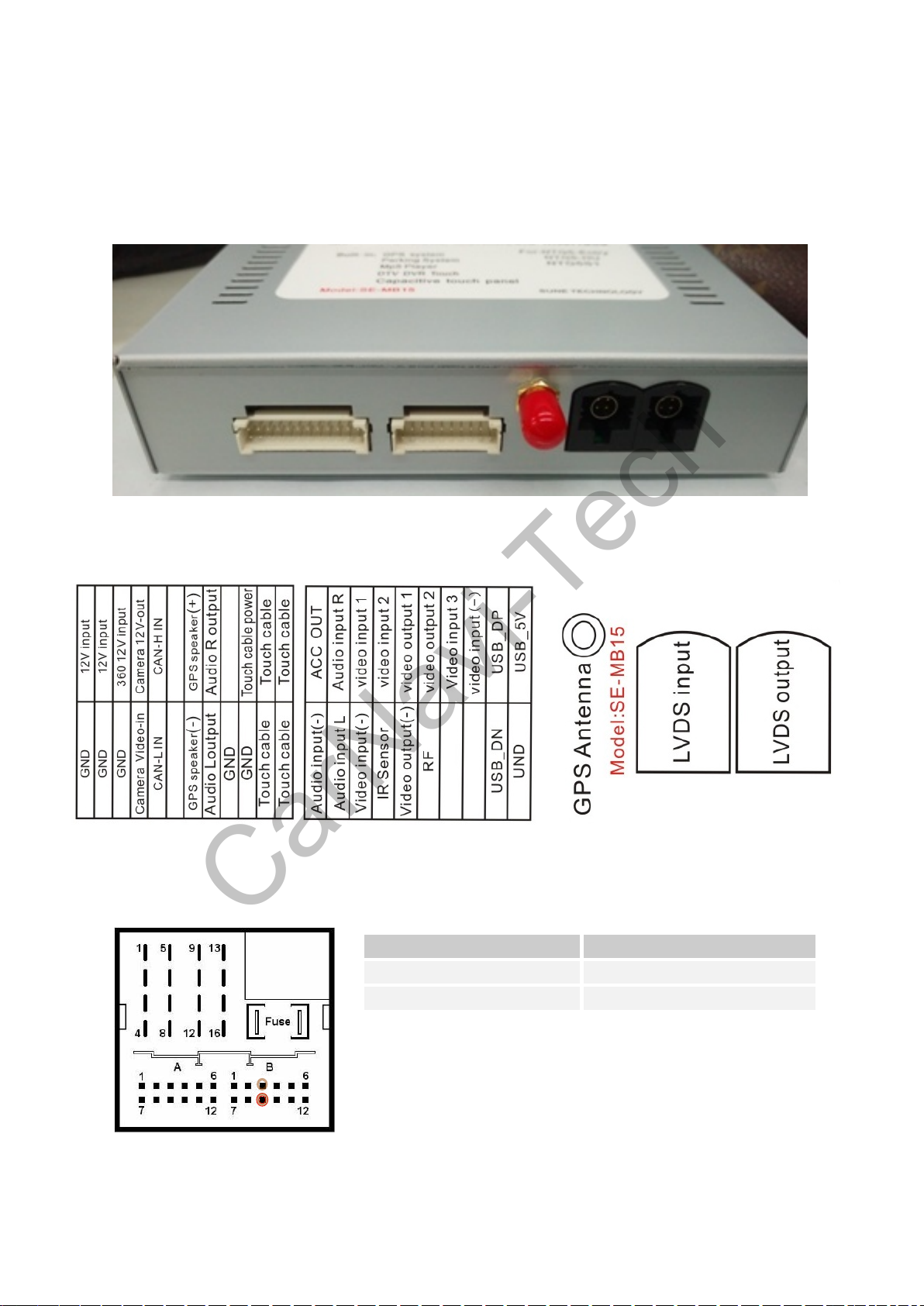

5.Please take away black connector than
plug into module Female connector than
module black male connector in original
connector
6.Remove original blue LVDS than plug
into module LVDS-out connector,module
LVDS from module LVDS-in to comand
blue connector
GND Power 12V
7.you can connection module
power from front passenger
seat side door or headunit pin15
8.install module and camera than
check system working or not than
replace all accessories
Installation
CarNavi-Tech

No liability for vehicle wire colors and pin definition!
Possible changes by the vehicle manufacturer. The given
information must be verified by the installer.
Cable colour Assignment
●●Brown/Red CAN HIGH Pin 9
●Brown CAN LOW Pin 3
Diagram
CarNavi-Tech

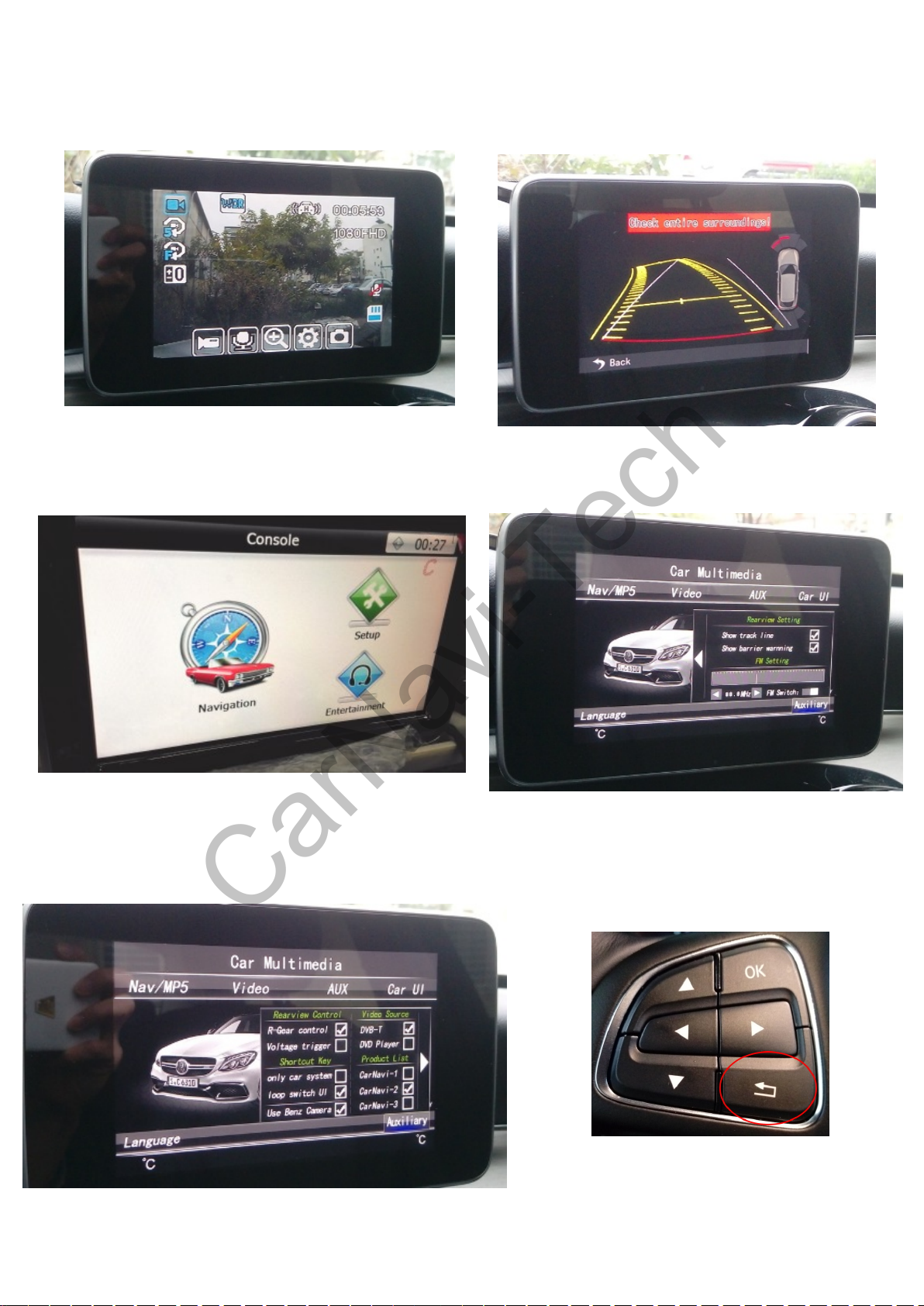

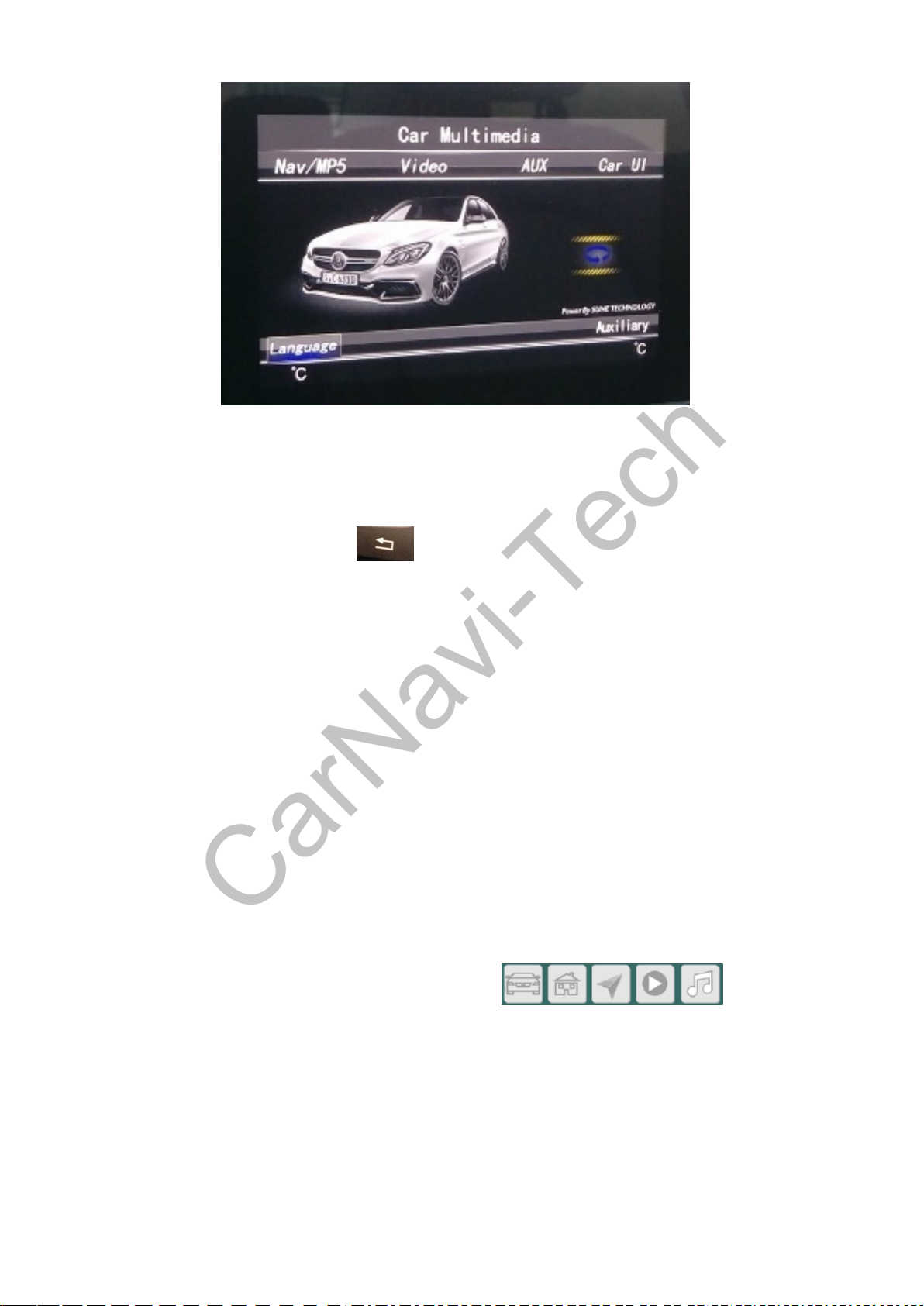

There are five menu button on GPS screen：
on the original single-finger tap the touch screen (about 2 seconds) change to car Multimedia interface.In the
GPS screen, the two finger tap the touch screen (1-2 seconds) to display the Main menu screen, Quick button
operation: Return button on the steering wheel (can be changed according to customer demand other button)
1. Short Press Return button ：
1) Click on the GPS / digital TV / video /OEM screen mutual Cycle or any circumstances return
the original picture (except reversing the screen)
2. Long press on the Return button (more than 2 seconds)：
1) Under the screen when not in reverse long press on the Return button will switch to the reverse
camera and Front camera image (radar and parking line are not displayed)，
3. 360 Reversing signal line(By voltage trigger to force open the camera screen function，Usually
connected to the reversing light)，In Auxiliary after select (Voltage switch available )As long as
the input voltage is detected reversing screen will automatically switch(radar and parking line are
not displayed)
4. CAN reverse gear switch screens (R)，In Auxiliary after Disable(Use Benz camera ) When put
on "R",screen will change to aftermarket camera screen (radar and parking line will be
displayed),when put to "D" will show front camera(front camera option must enable),if
Enable(Use Benz camera ) screen will goto original camera.
(When you on Rear camera status the screen will Automatic withdrawal when Speed up to
10KM)
5. The product support 7 inches Capacitive Touchpad for all Ntg5 system, you can choose it.
6.
Buttons respectively：Goto OEM screen、Goto main screen、Into the Gps、Video
player、Audio player，GPS program on the SD solt IGO TOMTOM ROUTE66
Play 720P video file format support：
MP4、3GP、MOV、AVI、DIVX、XVID、WMV、MPG、RM、
RMVB、FLV、MKV
Play MP3 music file format support：MP3、WMA、WAV
navigation and MP5 / MP3 sound independent,do not worry about quality issues
7. This product supports digital TV / Recorder / DVD player of IR (analog remote control) operation, you
can choose to set the in the Media (We support DVBT DVBT2 ISDBT and DVR.other country please
contact us)
Function
CarNavi-Tech

DTV,DVD Model selection
Factory IR touch code default : DTV type(option)
DVD DVR type(option)
DVD input For touch code(option) DTV input For touch code(option)
DTV input
All function you can touch on
touch screen to control function
We can support DVBT,DVBT2 and ISDBT
CarNavi-Tech

DVR input touch control
with multi language Rear View camera
GPS system Parking setting,FM Setting(built-in wirless
transfer can send DVD,DTV audio to car
system)
Switch mode button(shortcut button)
CarNavi-Tech

Mercedes-Benz Parking Assistant System Installation Operating Instructions
——————————————————————————————————————————————————————————
4、DIP Switch and Diagram Description
Note: Customers can function DIP switch status to select according to their
actual needs.
4
comand system Monitor
Original LCD cable
LVDS IN
Multimedia GPS system
SE-MB15
TO
LVDS OUT
Offered LCD cable
power
If your Mercedes-Benz car without parking sensor or with Manual transmission,it will
not auto change to camera video.
you must setting to follow:
1.turn Dip2 down off
2.Blue wire connection 360 signal to back light(12V)
3.Auxiliary "Voltage trigger" must enable
