Sungale CYBERUS ID1010WTA User manual

Cyberus -- Tablet PC
Model: ID1010WTA
User manual

CONTENTS
Safety Precautions
Product Overview
Functions of Button and Port
Battery Charge and Replacement
Getting Started
Application Introduction
Status Icon Briefing
Touch Screen Operation
Home Screen Management
Use of
Connectivity
Insert Micro SD Card
Connect to PC
Setting
Wi-Fi Setting
Language Setting
Screen Rotation
Clear Data History
Web
Browser
Facebook
YouTube
Market
Email
Tools
Camera, Sound Recorder and Camcorder
Troubleshooting
Warranty
Keyboard
1
2
4
8
10
12
14
16
18

Safety Precautions
Please read the safety precautions and user manual carefully before
using your device to ensure proper use.
Images and screenshots used in this user manual may differ in
appearance from the actual product.
Content in this user manual may differ from the product, or from
software provided by service providers or carriers, and is subject to
change without prior notice.
Keep your device dry.
Do not use or store your device in dusty, dirty areas.
Do not place your device on slopes. If your device falls, it can be
damaged.
Do not place your device in too hot or too cold areas.
Do not place your device with metal objects such as keys and
necklaces.
Do not place your device near magnetic fields.
Do not place your device near or in heaters, microwaves, hot cooking
equipment, or high pressure containers.
Simply put, do not drop, throw, or sit on your device, for obvious
reasons.
Do not use your device near other electronic devices.
Please do not use your device in thundery days.
Keep your device away from liquid substance.
For advanced operations such as Dev tools, it is suggested to be
operated by professional engineers.
1

Product Overview
This section is to tell you functions of each button and port, battery
charge and replacement.
Functions of Button and Port
1. Menu
2. Power button. Press and hold on for more than 3 seconds
to turn on or turn off the unit. One quick press to lock the
screen when the unit has been turned on.
3. Home Screen
4. Micro SD Slot
5. USB Port
6. Earphone Port
7. USB Port
8. DC Port
9. Power switch
10. Camera
1
2
3
4 5 6 7 8 9
10
2

Power Adapter USB Cable Quick Stark Guide
Battery Charge and Replacement
Product Overview
Use the power adapter to charge the battery of your Cyberus. The
indicator light will show flickering red light when charging and still red
light when charging finished.
Accessories are listed as following:
3

Getting Started
This section is to introduce general application of main menu, touch
screen, keyboard,etc.
Turn on the Power Swith. Then press and hold the power button for
more than 3 seconds to boot up.
Touch M at the right bottom to unlock and go to home screen.
Touch for more applications.
4

Application Introduction
Getting Started
Photo:
Music:
E-book:
Browser:
Google Maps:
YouTube:
Facebook:
Market:
VideoPlayer:
Notepad:
Wifi Setting:
Library:
Internet:
Game and Kids:
Application:
Multimedia:
Document:
Tools:
Disply your favorite pictures.
Meditate in your beloved songs.
Read ebooks in various formats.
Browse websites on the internet, search content you
want to know.
Search for maps.
Watch YouTube videos updated everyday, register or log
in to YouTube.
Share your photos and other information with your friends
Android market for you to download thousands of
applications.
Play your favorite videos.
Arrange your schedule and events.
Configur the wifi network and connect to Wifi.
A collection of popular reading tools like FBReader,
IReader, RepliGo Reader, Kobo, Borders, Amazon
Kindle, Wattpad, Ebook，etc.
A gallery of internet applications like Skype, Email,
Weather, Google Talk, Face book, Gmail, App Store etc.
Enjoy yourself.
Sound Recorder, Camera, Camcorder.
Play pictures, music and video.
View and edit WORD, EXCEL, SLIDESHOW and PDF
files.
Calendar, Alarm Clock to help you organise your time,
Settings for your personal preferences
5

Getting Started
Status Icon Briefing
Airplane Mode, under this mode, you can not access the internet,
but non-wireless features are available.
Shows that the EDGE network is active, and you can connect to
the internet through Wi-Fi.
Means that the router is available and shows the signal intensity.
Means that your battery is being charged.
Shows that you are downloading some applications or files.
Means that your device is connecting with computers.
Means no Micro SD card.
Vibration Mode
Silent Mode
Means application update available.
Touch Screen Operation
For better performance of the touch screen, please remove the
protective film first.
Select: Tap an icon to select and run an application.
Slide: Use your finger or stylus to gently slide on the screen to up or
down, right or left horizontally to move items on the screen. If you
enter an item by mistake while sliding on the screen, just tap the
to go back to last interface.
Drag: Touch and hold the icon for about 2 seconds and move your finger
or stylus to the destination.
Lock: Press power button once to lock the screen.
6

Use of keyboard
Getting Started
Home Screen Management
1. Touch and hold any application icon to create shortcut icon on home
screen.
2. Touch and hold the shortcut icon until the icon at the right edge
of your screen turns to a trash can, drag the application shortcut icon
to the trash can and it will be deleted from your home screen.
Note: You can only create shortcut icon of an application but not a folder
contains more than one application.
3. You can create 3 home screens at most. If you want to go to another
home screen, just tap the blank area of the screen and slide left or
right.
Tap to switch between lowercase letters and capital letters.
Tap to switch to numbers and symbols. Tap “ALT” (which is fomer
) for more symbols.Tap to delete data.
7

This section is to tell you about connecting with external device such as
Micro SD card and computer.

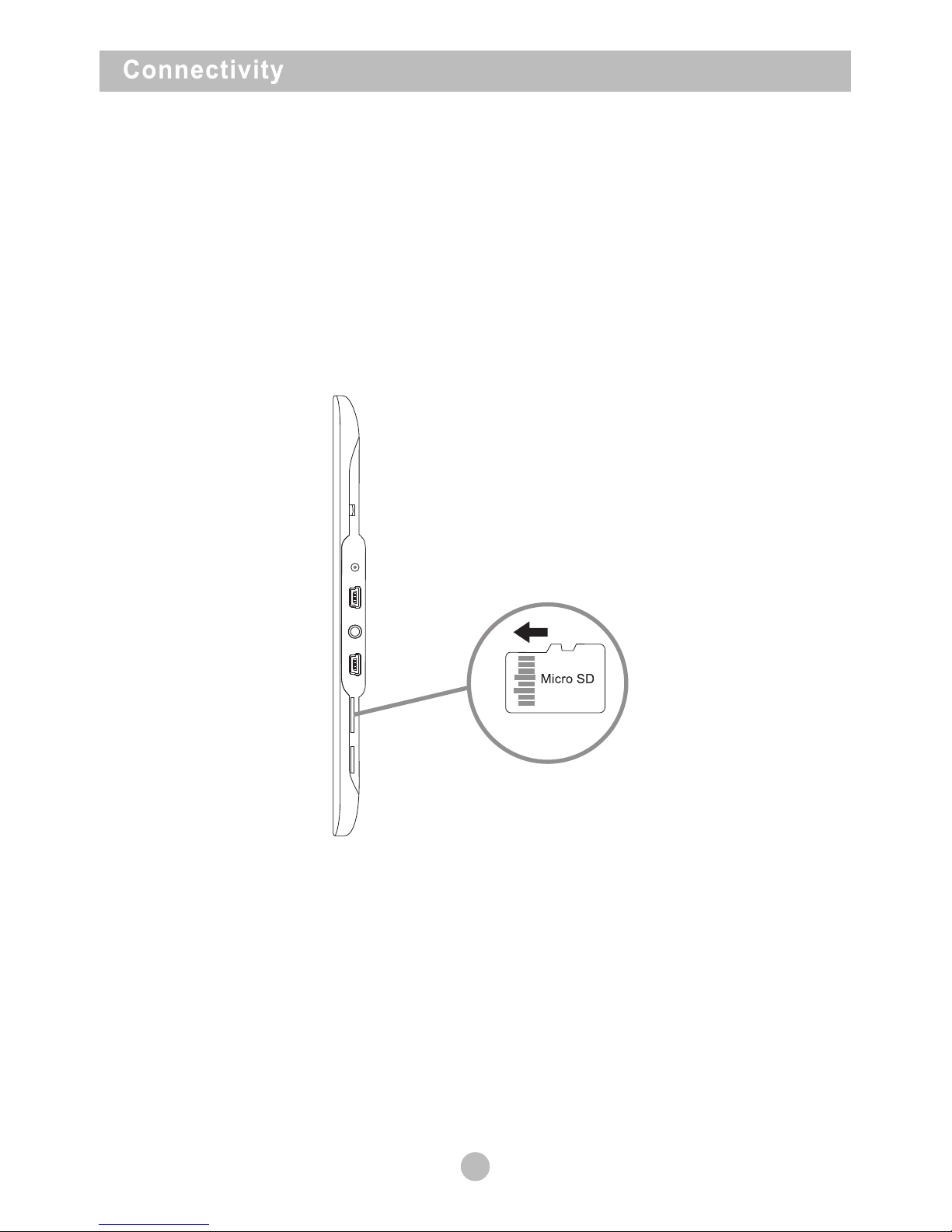

Insert Micro SD Card
Insert a Micro SD Card into the card slot with the label side face up,
push the card until it locks into place, and “preparing SD card” will
appear on the upper left corner of the screen.
When you want to remove the Micro SD card, press the card in the slot
and it will pop up, take it out gently.
Note: This device supports Micro SD Card up to 32GB.
8

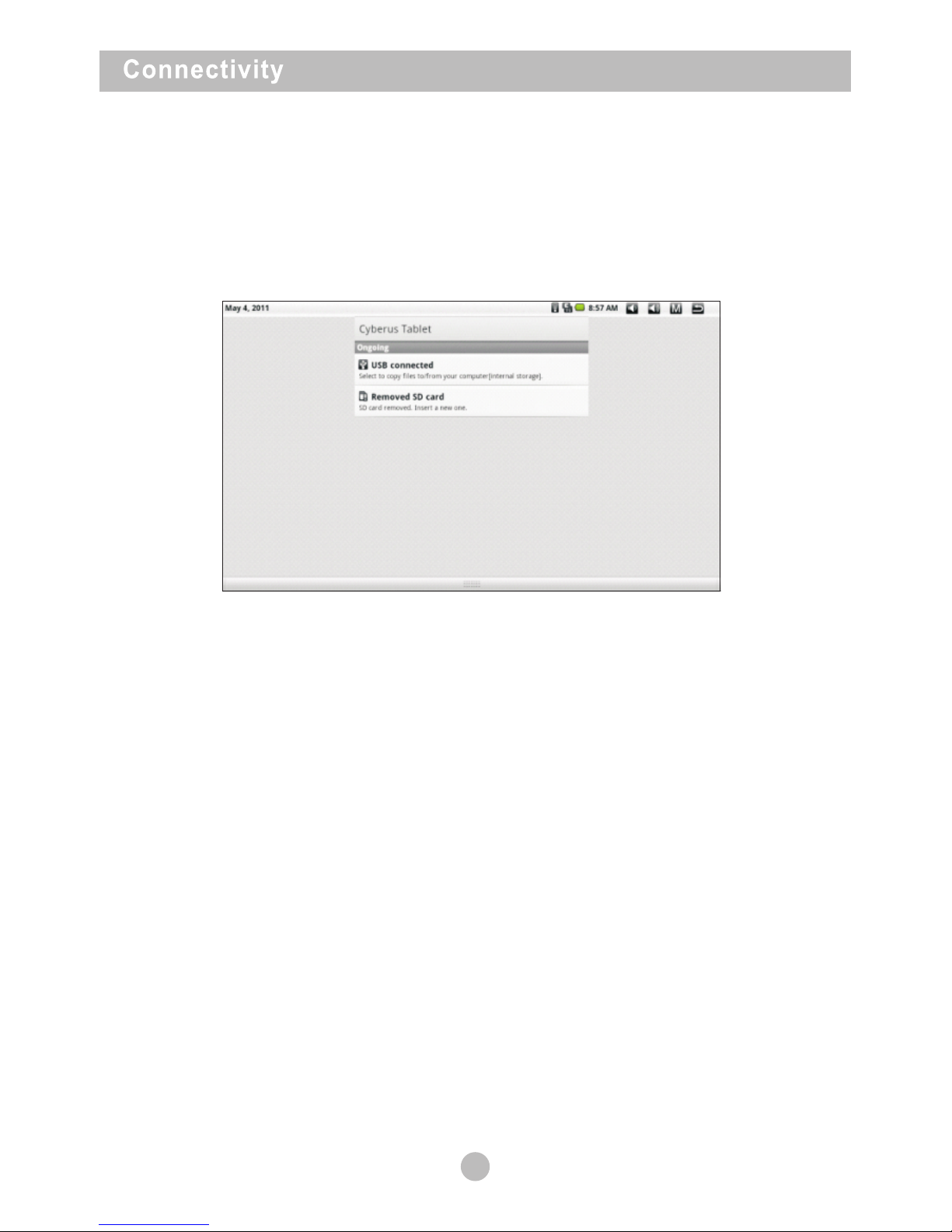

Connect to PC
After booting up, connect the device to computer with the USB cable,
tap the white blank status area at the top of the screen and slide it
downwards as following:
Tap “Select to copy files to/from your computer [Internal storage].” and
then “Mount’’ to manage files between your computer and internal
memory.
If you have inserted a Micro SD card, you can tap “Select to copy files
to/from your computer” and then “Mount” to manage files between your
computer and Micro SD card.
Note: For the first time you connect this device to your computer, you
might be asked to install driver of your device so that it can be
recognized by your computer. Please follow the installation guide or
contact your computer service provider for help.
Please safely remove your device from computer after file management
to prevent data lose.
9

Setting
This section is to tell you settings like Wi-Fi, language, screen rotation,
and how to clear data history.
Wi-Fi Setting
In the home screen with main menu, tap “Tools”→ tap “Settings”→ tap
“Wireless controls” tap “Wi-Fi settings” and it will search available
routers nearby and then show routers list after that.
Tap a router’s name and input the password if needed. It will automatically
link to your router and Wi-Fi. And there will be a Wi-Fi icon appear on
the upper right corner of the screen. Now you have successfully linked to
internet. Tap to return or to home screen directly.
Language Setting
In the home screen, tap “Tools” → tap “Settings” → slide and tap “Locale
& text” in the eighth row→tap “Select locale”→slide downwards or
upwards to find the language that you want and tap the language.
Tap to return after setting.
10

Setting
Screen Rotation
This device has built-in motion sensor to automatically adjust screen
display between portrait and landscape.
If you want to defaut this function, please set as following:
In the home screen, tap “Tools”→ tap “Settings”→ tap “Sound and display”
→ tap “Orientation” to turn the green tick to grey.
You may also find “Screen timeout” in the “Sound and display” to set
screen backlight time.
Clear Data History
If you want to clear data that have been made on your Cyberus Tablet,
go to “Tools” → “Settings” → “Applications” → “Manage applications” → tap
the application whose data that you want to clear → tap “Clear data” and
“OK” and the related data will be deleted from your device.
If you want to clear all operation data, go to “Tools” → “Settings” → “SD
card & device storage”→ “Factory data reset”→ “Reset device”→ “Erase
everything” and your device will be reset。
11

Web
This section is to tell you some operation about Browser, Facebook,
YouTube, Market and App store, etc. Please note that all these
applications need Wi-Fi connection, for how to link to Wi-Fi, please refer
to “Setting→Wi-Fi Setting” section.
Browser
When you have opened a web page, tap “M” touch key to find menus
like “Bookmarks,New Window, Refresh, Forward and More”.
Tap “More” to find more functions like “Find on page , Select text, etc”.
Facebook
Tap “Facebook” and login or sign up if you don’t have an account.
Tap “M” touch key to find some information about your facebook.
If you want to clear your facebook data, please refer to content in
“Setting→Clear Data History” section.
YouTube
Tap “YouTube” to view videos, and tap “M” touch key to find more
operations like “Upload, My account, Categories, etc”.
12

Web
Market
In the home screen, tap “Market” → tap “Next” to set up your google
account.
Sign in your google account or creat a google account and then sign in.
After a few minutes, it will enter into interface of “Android Market Terms
of Service”. Tap “Accept” after reading and your accept the terms to
enter Market. There will be three options listed: Apps, Games and
Downloads.
Tap “Apps” to download and install apps from the Market.
Tap “Games” to download and install games from the Market
Tap “Downloads” to find the apps that have been downloaded to your
device.
13

Email
Set up your email accounts. You will need to contact your email server
supplier for your email’s POP3 and SMTP server related information,
some of which can be found on the internet. Take gmail as a sample,
search content “gmail pop3 smtp server” on internet, you will find gmail’s
pop3 server is “pop.gmail.com”, related port is 995. Need “SSL” security.
SMTP server is “smtp.gmail.com”, related port is 465 if use SSL security.
If choose TLS security, related port will be 587.

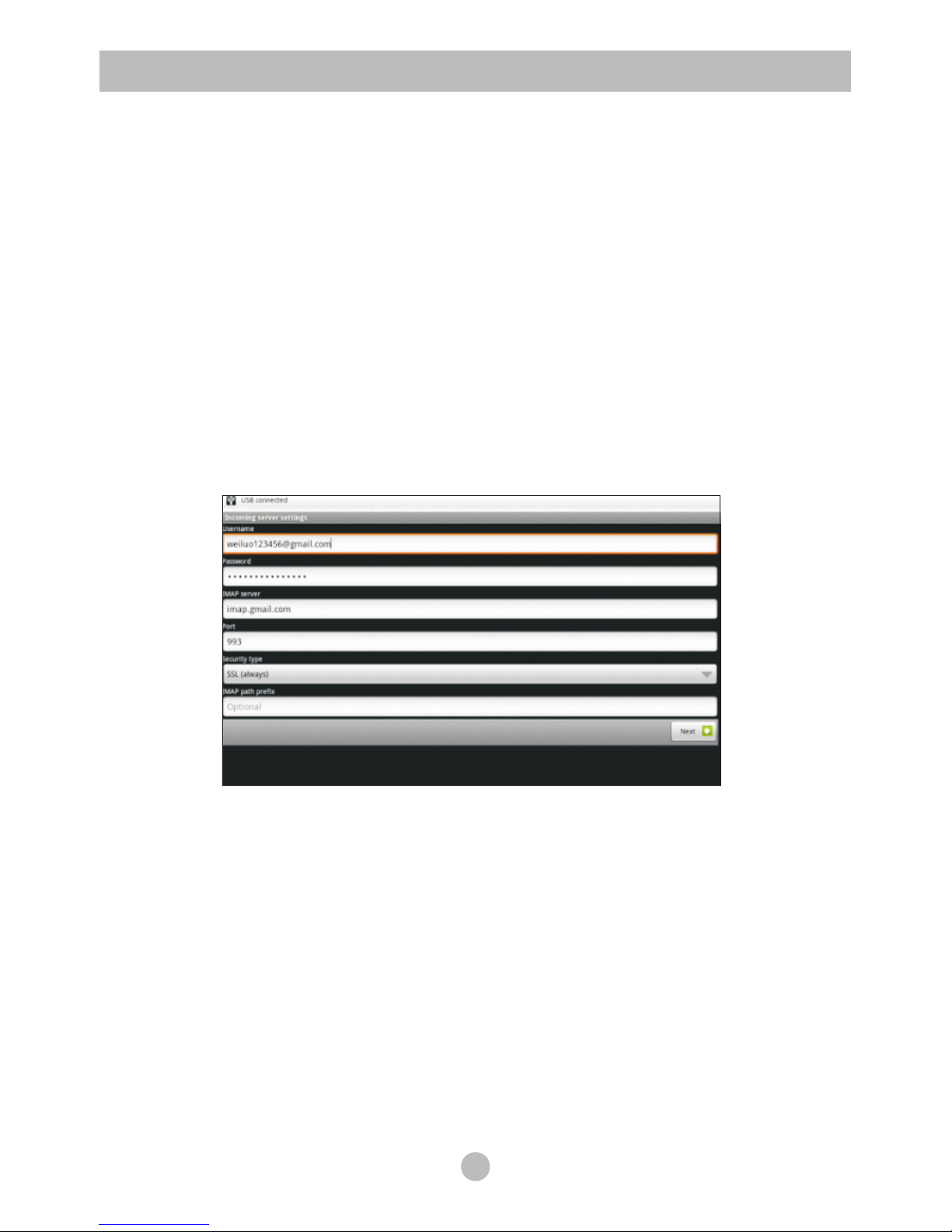

In the main menu, tap “Mail”→tap “Next”→Input your Gmail account and
pass word→Tap “Manual setup”→tap “POP3 account” and you will enter
into an interface similar with the following picture.
Check your username to see if it has been filled completely with
“@gmail.com”. If not, please add “@gmail.com” after your gmail account.
Tap “gmail.com” under POP3 server item to change it to “pop.gmail.com”.
And then change port to “995”, tap item “Security type” to choose “SSL if
available” and tap “Next” to set up SMTP server. The interface is similar
with the following picture.
14

Email
Change “SMTP server” to “smtp.gmail.com” and “port” to “465” or “587”,
choose security type to “SSL(if available)” or “TLS(if available)”
respectively.
Then tap “Next” to finish setting. It will enter into your email account after
a few minutes. Then you will need to give this account a name and input
the name which will appear on the email that have been sent out by you.
Tap “M” touch key to find more operations like composing a message.
When writing a message, tap “M” touch key to get more operations like
“Add Cc/Bcc”,etc.
If you want to clear your email account and related data, please refer to
“Clear data history” in “Setting” section.
15

Tools
This section is to tell you how to operate Camera, Sound Recorder and
Camcorder.
Camera : All the 3 functions need Micro SD card. Please insert a Micro
SD card into your device first. For how to insert Micro SD card, please
refer to content of “Insert Micro SD Card” in “Connectivity” section.

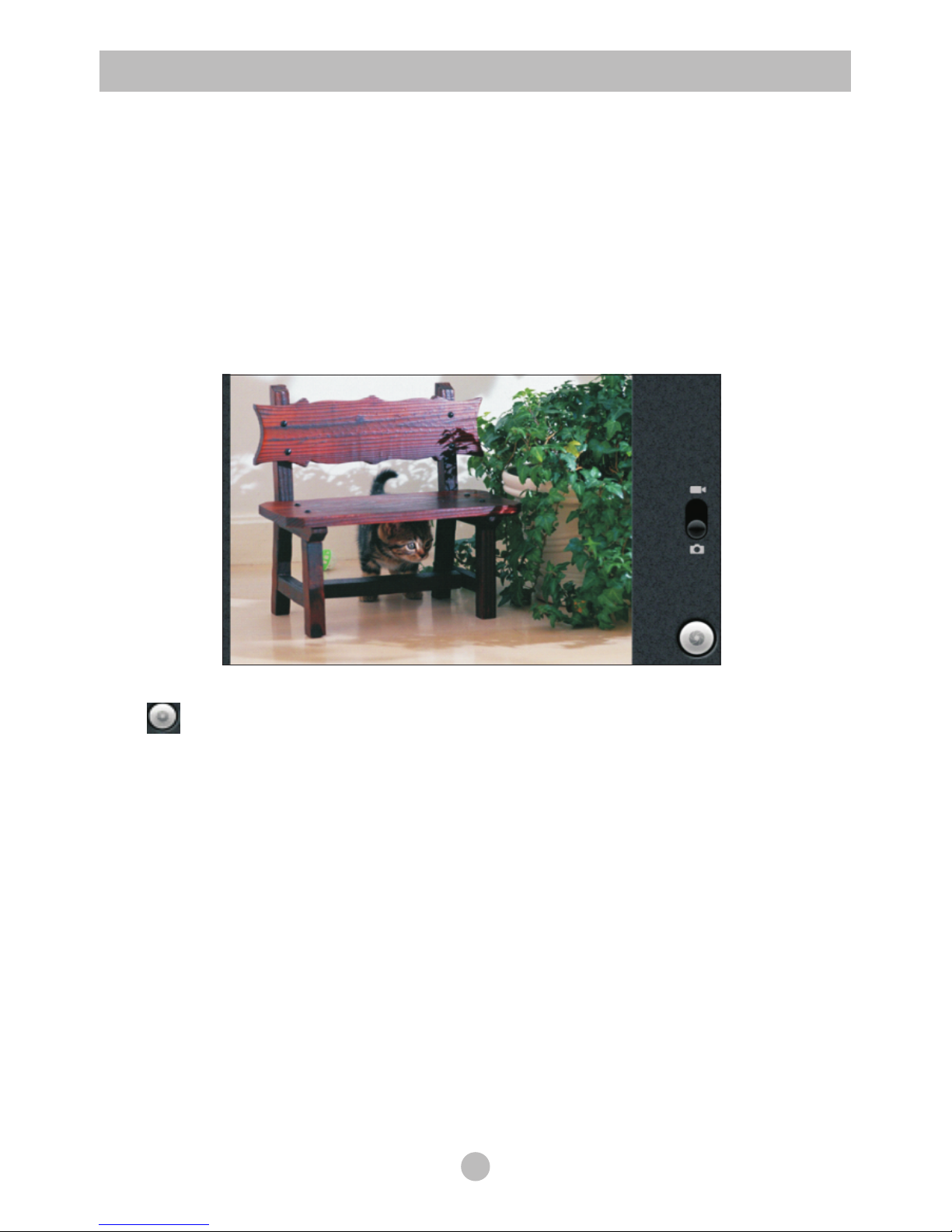

In the home screen, tap “Application” and find “Camera”. Tap “Camera”
to enter the interface as following:
Tap to take pictures, then tap “M” touch key to get 3 submenus:
“Switch to video, Gallery, Settings”.
Tap “Switch to Video” to turn to Camcorders.
Tap “Gallery” and the folder without name (not the folder named
“Pictures” to view pictures that have been taken. Tap the picture, you
will find more operations like “Set as wallpaper”, “Share the picture
through Facebook, Gmail, Picasa and Twidroid” and “Delete the picture”,
etc.
Tap “M” touch key to find more operations like slideshow, rotate and more.
You can also find the pictures in “Multimedia”→ “Pictures”
16

Sound Recorder: In the home screen, tap “ Applications” and find “Sound
Recorder” → tap “Sound Recorder” to enter, and tap to start
recording.
Tap to stop recording. Tap “Use this recording” and the record will
automatically be stored. Go to Multimedia in the home screen, tap “Music
player” to find the records.
Tools
Camcorder: In the home screen, tap “ Applications” and find “Camcorder”.
Tap “Camcorder” to enter camcorder and tap to begin taking video.
Tap to stop.
Tap “M” touch key to find 3 submenus: Switch to camera, Gallery, Settings.
Tap “Gallery” and then the folder without name (not “Pictures” ) to view
the videos.
When playing the videos, tap “M” touch key to find more operations like
share the video through Gmail, Twidroid, YouTube, etc. You can also
delete the videos.
Go to “Settings” to set up video record time, video quality, etc.
17

Trouble shooting
FAQs:
Q 1 : Why can’t I link to Wi-Fi?
A: Please check if you have turned on Wi-Fi. Go to “Tools”→ “Setting”→
“Wireless controls” → tap “Wi-Fi” to turn it on.
Please check if you have input the right password.
For more Wi-Fi related questions, please go to www.sungale.com and
find Support→Wi-Fi related FAQ.
Q2 : Why can’t I install applications downloaded from the Market?
A: Please check your settings. Go to “Tools”→ “Setting”→
“Applications”. Check if there’s a green tick after Unknown sources. If
there’s not, tap “Unknown sources” to turn the tick green.
Q3: How to find more operations when running an application?
A: Tap “M” touch key.
Support:
1. Visit the support site.
For manual download and FAQs: www.sungale.com
More supports about WIFI: www.sungalewifi.com
2.Contact Sungale Support team
Toll Free Call in the USA: 800-473-5156
Service email: [email protected]
18
