Sungale ID733WTA User manual

MID
User Manual
Model Name: ID733WTA
Brand Name: SUNGALE
FCC ID: XBI8101019

Safety Precautions
Product Overview
Functions of Button and Port
Accessories
Connectivity
Insert Micro SD Card
Connect to PC
Setting
Limited Warranty
Battery Charge
Getting Started
Application Introduction
Status Icon Briefing
Touch Screen Operation
Home Screen Management
Keyboard User Guide
Wi-Fi Setting
Language Setting
Screen Rotation
Sleep Mode
Web
Browser
Managing Application
Troubleshooting
2
3
CONTENTS
5
10
12
15
19
20

Safety Precautions
2
For advanced operations such as Dev tools, it is suggested to be operated by
professional engineers.
Images and screenshots used in this user manual may differ in appearance from
the actual product.
Content in this user manual may differ from the product, or from software provided
by service providers or carriers, and is subject to change without prior notice.
Keep your device dry.
Do not use or store your device in dusty, dirty areas.
Do not place your device on slopes. If your device falls, it can be damaged.
Do not place your device in too hot or too cold areas.
Do not place your device with metal objects such as keys and necklaces.
Do not place your device near magnetic fields.
Simply put, do not drop, throw, or sit on your device, for obvious reasons.
Do not use your device near other electronic devices.
Please do not use your device in thundery days.
Keep your device away from liquid substance.
Do not place your device near or in heaters, microwaves, hot cooking equipment,
or high pressure containers.

3
Functions of Button and Port
Product Overview
This section is to tell you functions of each button and port, battery charge.
1 2 3
5
6
7
8
10 11 12 13 14
15
9
4
Indicator light
Menu
Main menu Return
Camera
Power on/off
Volume down
Volume up
MIC
Earphone
Reset HDMI slot
USB
DC IN
TF card
1. Go to Menu Options
2. Go to Home Screen
3. Press to return to the previous screen.
4. Indicator Light
5. Front-facing camera
6. Press to increase the volume level
7. Press to decrease the Volume level
8. Press and hold on for more than 3 seconds to turn on or turn off the unit. One
quick press to turn the screen on and off.
9. Microphone
10. Audio output connection for headphones.
11. Press to reset the tablet if it freezes or otherwise behaves abnormally. Use an
ultra thin stick or a paperclip to gently press this key.
12. Connect to a TV or other display.
13. USB Slot, connect to a PC or other external devices to transfer data..
14. Charge and power the tablet with the included power adapter.
15. Load external Micro SD card here.

Product Overview
Battery Charge
Use the power adapter or USB cable to charge the battery of your Cyberus. The
indicator light will show blue light when charging and light off when charging finished.
Accessories are listed as following:
4
Accessories

Getting Started
This section is to introduce general application of main menu, touch screen,
keyboard, etc.
1. Press and hold the power button for more than 3 seconds to boot up. The
Android booting image will appear on the screen, booting needs about 45
seconds. After booting finished, below screen will appear.
2. Slide the Lock icon to unlock the screen,
5
3. Then you will obtain the main menu as below:

Getting Started
4. Now, you can touch on the icons to enjoy your photos, music, video, ebooks,
games..., Touch the icon ( ) listing on the top right screen, you can enjoy
more APPs.
Application Introduction
Photo: Display your favorite pictures.
Music: Meditate in your beloved songs.
Kindle: Read ebooks in various formats.
Browser: Browse websites on the internet, search content you want to know.
YouTube: Watch YouTube videos updated everyday, register or log in to YouTube.
Market: Android market for you to download thousands of applications.
Super-HD Player: Play your favorite videos.
Setting: Configure the unit.
Documents to got: View and edit WORD, EXCEL, SLIDESHOW and PDF files.
File Manager: Manage the files in the memory or SD card.
TuneIn Radio: Listen to the internet radio.
6
Status Icon Briefing
Means that the router is available and shows the signal intensity.
Means that your battery is being charged.
Shows that you are downloading some applications or files.
Means that your device is connecting with computers.

Getting Started
Touch Screen Operation
Touch: Simply touch an icon to select and run an item.
Touch and hold: Touch and hold some items to show an alternate action.
Slide: Use your finger or stylus to gently slide on the screen to up or down, right
or left horizontally to change the view on some screens. To slide, touch the
screen and quickly move your finger across the screen without lifting your
finger. Do not pause on the screen with your finger or you may accidentally
enter an item by mistake. In that case, just tap the Return button to go back
to last interface.
Drag: Touch and hold the icon for about 2 seconds and move your finger or stylus
to the destination.
Lock: Press power button once to lock the screen, and press the power bottom
again to unlock it.
Home Screen Management
1. Create a shortcut icon: Touch and hold an application icon, and drag it to the
home screen to create a shortcut icon on home screen.
2. Delete a shortcut icon: Touch and hold the shortcut icon until there is an
“X Remove” icon appearing on the top edge of the screen, drag the application
shortcut icon to the “X Remove” icon and the application will be deleted from
your home screen.
Note: You can only create shortcut icon of an application but not a
folder contains more than one application.
3. You can create 5 home screens at most. If you want to go to another home
screen, just touch the blank area of the screen and slide left or right.
7

Getting Started
8
123
4567
8
1
2
3
4
5
6
7
8
9Widgets: You can use these small Apps directly from the home
screen.
Notification bar: Show notification icons such as time, network
signal strength, and battery level, touch a icon to display more
detail, and touch the bar to open the full notification screen.
Icons: Touch an icon to open an Apps or folder.
Google Search: Touch to search with Google browser.
Sound recorder: Touch to turn on the sound recorder.
All Apps: Touch to view the list of all Apps and Widgets installed
on the tablet.
Return: Touch to return to the previous screen.
Home screen: Touch to return to the home scree.
Recent Apps: Touch to display the list of Apps that you have
worked recently.
4. Home screen overview:
9

Getting Started
9
Keyboard User Guide
Tap ( ) to switch between lowercase letters and capital letters.
Tap ( ) to switch to numbers and symbols.
Tap ( ) to delete data.
?123

10
Connectivity
This section is to tell you about connecting with external device such as Micro SD
card and computer.
Insert Micro SD Card
Insert a Micro SD Card into the card slot with the label side face down, push the
card until it locks into place, and “SD card is mounted” will appear on the left bottom
corner of the screen, then an SD card icon will appear in the Notification bar.
When you want to remove the Micro SD card, touch the SD Card icon in the
Notification bar, and select and touch “sdcard is mounted”, then press the card
in the slot and it will pop up, take it out gently.
Note: This device supports Micro SD Card up to 32GB.

11
Connectivity

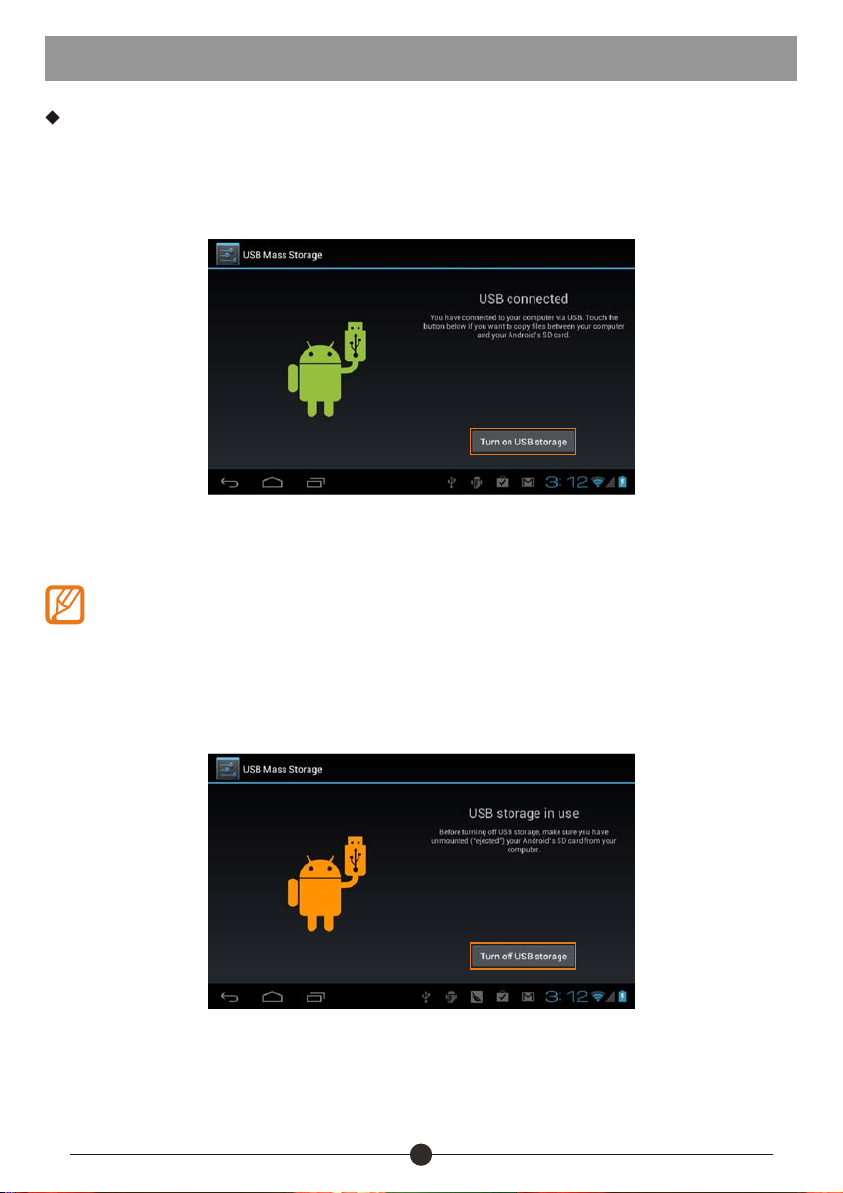

Connect to PC
After booting up, connect the device to computer with the USB cable. When your
tablet is connected, a USB icon will appear in the Notification bar. Then a dialogue
box appears as following:
Touch “Turn on USB storage” and then you can copy files to/from your PC or other
external devices.
Note: For the first time you connect this device to your computer, you
might be asked to install driver of your device so that it can be recognized
by your computer. Please follow the installation guide or contact your
computer service provider for help.
Touch “Turn off USB storage” and then safely remove your device from computer
after file management to prevent data lose.

12
Setting
This section is to tell you settings like Wi-Fi, language, screen rotation, and
sleep mode.
Wi-Fi Setting
For networked functions, such as Browser, Map, Email, YouTube, Market Place…,
you need to link to internet firstly. Please operate as follow steps to
setup your networks,
Starting from the main menu, touch “settings”,
Turn on the wifi by slide the OFF icon to right side,
Your tablet will search wireless routers in your surrounding, and your router will
appear on the screen, touch on “Your Router”.

13

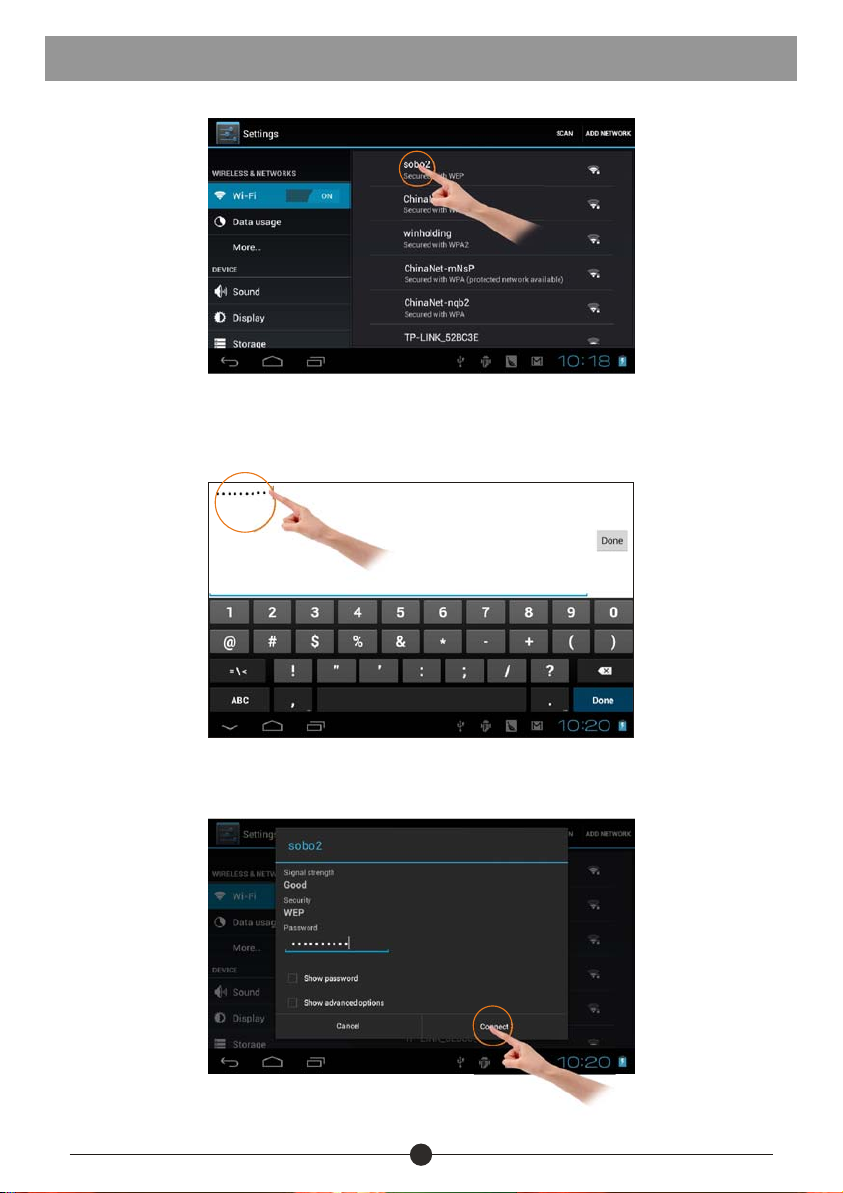

Setting
If you did not set a password for your router, the tablet will link to internet automatically.
If you have set a password for your router, the below square will appear on screen,
touch on the Password bar,
Soft Keyboard will appear on screen, input the password you set for your router,
then, touch “Connect”.

14
Setting
Now, you can see your router has been connected, which means your tablet has
been linked to internet.
Now, you can enjoy all networked functions.
Language setting
In the App list page, touch “Settings” slide and touch “Language & input” touch
“Language” slide downwards or upwards to find the language that you want and
touch the language.
Tap to return after setting.
Screen Rotation
This device has built-in motion sensor to automatically adjust screen display between
portrait and landscape.
If you want to default this function, please set as following:
In the App list page, touch “Settings” touch “Display” touch “Auto-rotate screen”
to remove the blue mark.
Sleep Mode
In the App list page, touch “Settings” touch “Display” touch “Sleep”, and then
select and touch the spacing interval that you want the unit enter into the Sleep Mode
once inactivity.

15
Browser
Touch the Browser icon on the Home screen to open browser.
To go to a webpage, touch the Address bar at the top of the Browser screen. The
keyboard will open automatically. If the Address bar is not visible, slide the page
down to return to the top of the page.
Hold and touch the web address for 3s, there are a series of edit menu appearing,
such as CUT, COPY, PASTE, SHARE. You can edit the web address if you need.
Touch Done once finish the edition.
Touch Go key in the keyboard to open the webpage.
Browser menu
Touch Menu ( ) touch key to show menus as below:
Web
This section is to tell you some operation about Browser, Market and App store, etc.
Please note that all these applications need Wi-Fi connection, for how to link to Wi-Fi,
please refer to “Setting Wi-Fi Setting” section.

16
Save to bookmarks: To bookmark your favorite webpages in order to visit them
quickly without entering a URL. (You can modify the name of the bookmark or its
URL address. Otherwise, touch OK to finish adding the bookmark.)
Share Page: Use Email to send the webpage URL.
Find on Page: Search for content on the current page.
Request desktop site: Set a webpage as the desktop site.
Save for offline reading: Save the page onto the internal memory, then you can
read it when the internet connection is disable.
Setting: Customize the Browser.
To enter into a thumbnail mode
Touch ( ) to enter into thumbnail mode.
Slide left and right, and touch to select the webpage you want to go.
Touch ( ) to open a new web page.
Touch ( ) to add a new bookmark.
Refresh: Refresh the current webpage.
Forward: Go to the next webpage.
Bookmarks: Show bookmark list.
Web

17
Managing Bookmark
Once open browser, press Menu ( ) touch key to show menu, touch “Bookmark”
to go to the bookmark list:
Touch a bookmark tile to open it.
To delete a bookmark, hold and touch a bookmark tile for 3s to open an option menu:
Touch “Delete bookmark” and touch “OK” to confirm.
Web
Managing Application
Download and Install Applications
In the home screen, tap “Market” tap “Next” to set up your google account.
Sign in your Google account or create a google account and then sign in.
After a few minutes, it will enter into the interface of “Android Market Terms of
Service”. Touch “Accept” after reading if you accept the terms to enter Market.
Then you can select to download the Apps which you want to install in your tablet.
Note: As the storage of the tablet is limited, pls insert an SD card to
the tablet when you want to download and install more Apps.

18
Web
To Uninstall an Application
Go to “Settings” “Apps”, touch the application that you want to uninstall, the
application info screen will open:
Touch “Uninstall” icon, then touch “OK” to confirm.
To Clear App History Date
To clear App history data that have been made on your Tablet, go to “Settings”
“Apps”, touch the application whose data that you want to clear tap “Clear data”
and “OK” and the related data will be deleted from your device.
If you want to clear all operation data, go to “Settings” “Backup & reset”
“Factory data reset” “Reset device” “Erase everything” and your device will be
reset.

19
Trouble shooting
FAQs:
Q 1: Why can't I link to Wi-Fi?
2. Contact Sungale Support team
1. Visit the support site.
For manual download and FAQs: www.sungale.com
More supports about WIFI: www.sungalewifi.com
Toll Free Call in the USA: 800-473-5156
Service email: [email protected]
Support
A: Please check if you have turned on Wi-Fi. Go to “Setting” “Wireless &
Networks” Slide “off” to “on”.
Please check if you have input the right password of Wi-Fi router.
For more Wi-Fi related questions, please go to www.sungale.com and find Support
Wi-Fi related FAQ.
Q2: Why can’t I download applications from the Market?
A: Please check if you have registered a Google account; pls check if the storage
of tablet lack of space, in that case, you need to insert an SD card.
Q3: How to find more operations when running an application?
A: Tap Menu touch key.
