Owner’s Manual
Wine cabinet
SW-12 SW-15 SW-18 SW-24 SW-28 SW-30
SW-63 SW-38 SW-43 SW-40 SW-51 SW-44
SW-45 SW-66 SW-75 SW-126 SW-137
SW-180 SW-192 SW-125 SW-152 SW-215
SW-242
This appliance is intended to be used exclusively for the storage
of wine

2
Contents
1- Structure--------------------------------------------------------------4
2- Important safety instruction--------------------------------------5
3- Wine cabinet installation------------------------------------------5
4- Temperature setting-----------------------------------------------6
5- Loading and storage of wine bottle----------------------------7
6- Installation of Handle----------------------------------------------8
7- Maintenance--------------------------------------------------------8
8- Trouble Shooting ---------------------- ------------------------9

3
EXPLANATION
This Instruction Manual is the universal-purpose version for the
models of wine cabinet manufactured by our Co. The appearance of
the units that you purchase might be slightly different from the
Manual, but it does not affect your proper operations and usage.
Please read carefully the sections corresponding to the specific
model you choose, and keep the manual properly so as to facilitate
your reference at later time.
Warning:
1. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
2. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
3. WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.

4
5. WARNING: Do not damage the refrigerant circuit.
6. WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
7. Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
8. This appliance is intended to be used in household and
similar applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
9.
Correct disposal of this product
This symbol on the product, or in its packaging,
indicates that this product may not be treated as
household waste. Instead, it should be taken to
the appropriate waste collection point for the
recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly,

5
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by the
inappropriate waste handling of this product. For
more detailed information about the recycling of
this product, please contact your local council,
your household waste disposal service, or the
shop where you purchased the product.
10.Refrigerant and foaming material is flammable. Pls take
care when Maintenance, Installation, Handling and
processing. pls contact with specialized department for
wasted products, and do not discard freely.

6
1. Structure
(1) Up Hinge Cover (2) Door Sealing
(3) Door Frame (4) Door Handle
(5) Down Hinge (6) Foot
(7) HotAir Outlet (8)Air inlet
(9) Control Panel (Down) (10) ColdAir Outlet
(11) Rack (12) Sensor Cap
(13) Control Panel ( Up) (14) Casing

7
2. Important Safety Instructions
Basic precautions when using,
（1）Only use your wine cabinet for intended purposes, as described in this
guide.
（2）Never unplug thewine cabinet by pulling out thepower cord, grip the plug
firmly and pull straight out to remove from wall socket.
（3）Immediately repair or replace any worn or damaged cord, never use a
cord that is split or which shows signs of wear along its length or on its
ends.
（4）Do not allowchildren toclimb on，sit on or stand on thewinecabinet,nor
hang from its shelves. They could damage the cabinet.
（5）Do not use an extension cord.
（6）Do not place other appliance inside the cabinet.
3．Wine cabinet Installation:
（1）When you receivethecabinet, make sure when you unpack it thereis
no flaws in its external appearance (from shocks, deformation, etc.)
（2）Open the door and check all interior fittings and supplied items if are
all complete (shelves, instruction, control panel, etc.) Please install it
according to the following points if the shelves or shelf brackets fall
off during transit.
（3）After checking, if no problem, then, pls carry to the final place,which
should be care as follows:
A、Leaving space of minimum 5cm between your wine cabinet and
left & right wall; at least 8cm between back of cabinet and the wall.
B、Position the wine cabinet on a flat level surface, if not, adjust the
feet of wine cabinet to keep level.
（4）Away from sources of heat and high humidity areas (laundry room and

8
bathroom, etc).
（5）Do not tilt it at an angle of more than 45°when move the cabinet.
Allow a minimum 10-minute interval between transit and re-starting.
（6）Make sure the ventilation is free if you wish to install your cabinet into
a worktable, otherwise ,it will reduce the effect of usage.
（7）Pls check the plug and cable before you connect the power, then,
make sure correct voltage of 220V-240V/50Hz.
4．Temperature Setting
4.1The temperature setting of dual temperature wine cabinet
4.1.1 The item will be used under the room temperature ranging from 0 to 38℃
(32℉-101℉)
4.1.2Temperature setting range of cabinet is 3℃~22℃(37℉-72℉)
Customers can reset the temperature according to their actual demands.
Both the wine cabinet and the indicator will turn on until the desired
temperature is achieved.Single Temp. zone is the same operation.
4.2.3 Pushing the temperature key up and down for 5 seconds, then,
temperature display mode will be exchange between ℃and ℉.
4.2.4 When working both up and down zone, setting temperature of up zone
must lower than down zone

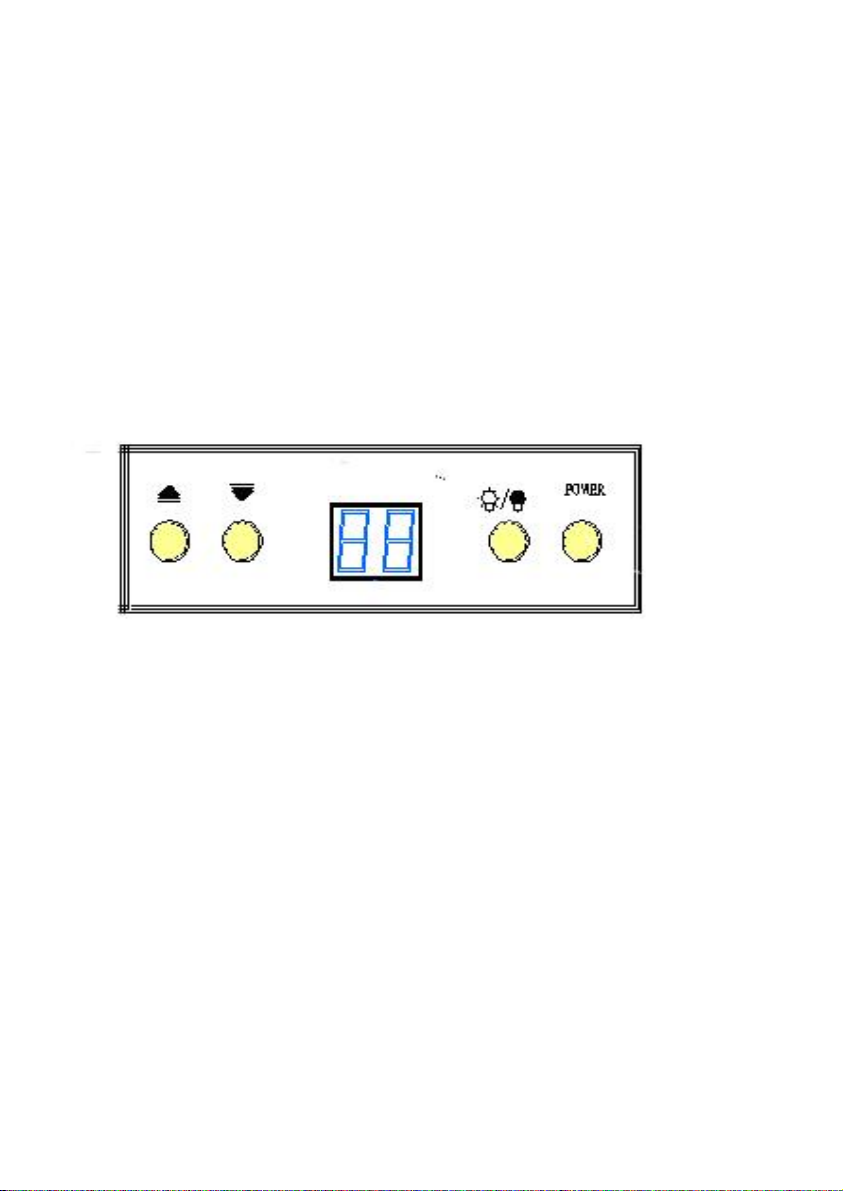

4.2.5 Control Panel for dual zone
Upper Control Panel
POWER ON/OFF of the whole system(including up and down zone).

9
Light ON/OFF of Inside Cabinet LED light
▲Temperature Up setting
▼Temperature Down Setting
Down Control Panel
POWER ON/OFF of the down zone system
Light ON/OFF of Inside Cabinet LED light
▲Temperature Up setting
▼Temperature Down Setting
5．Loading and Storage of Wine Bottle:

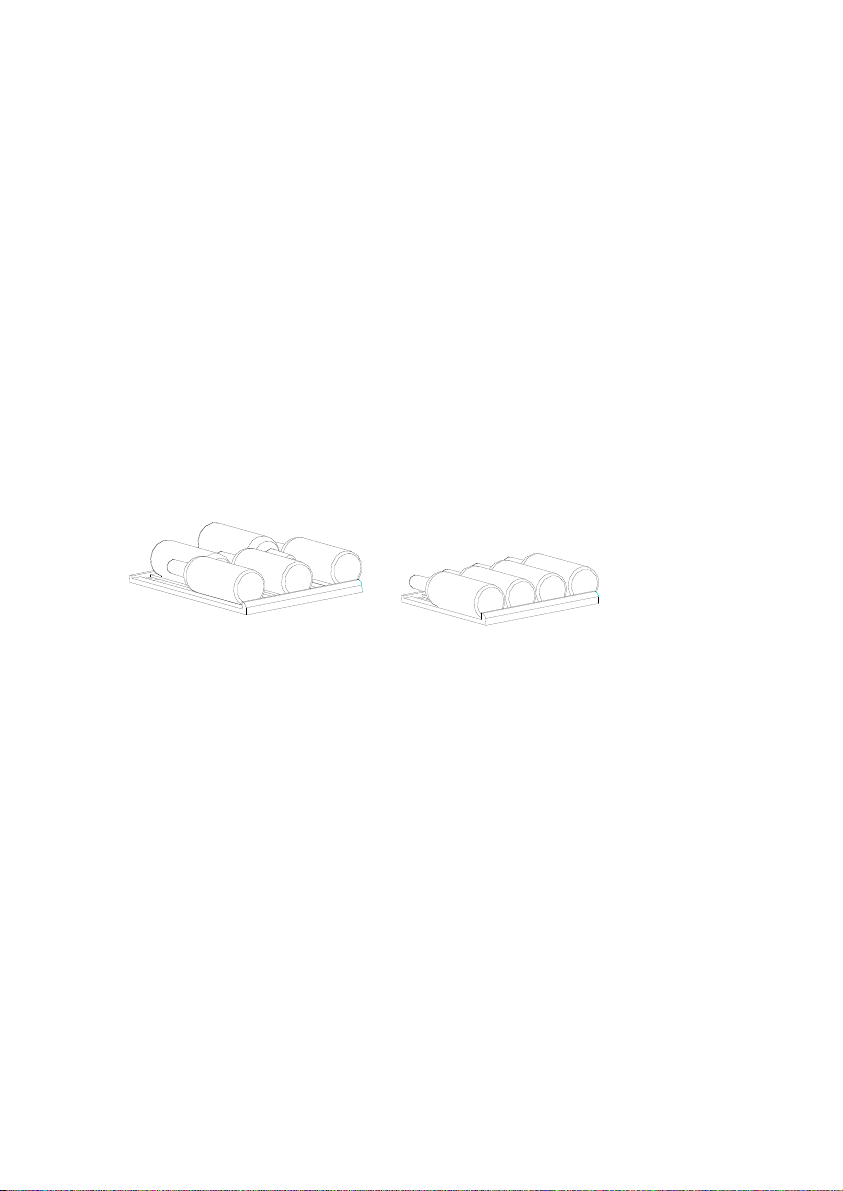

5.1 Bottle Loading Method:
Wooden shelf: capacity: 5 or 11 bottles / shelf
Half shelf capacity: 4 or 6 bottles / shelf
Maintain a minimum 20mm between bottle and back plate
5.2 Ensure bottle and shelf safety,pls check the following tips:
A、Spread your bottles out as evenly as possible over the shelves, so
weight is not concentrated in one point; and make sure your
bottles will not touch the back of the cabinet
B、Make sure bottles are not all grouped together at the top or bottom
of the cabinet.
C、Following loading instructions provided in section 6.1, according
to the type of storage fixtures with which your cabinet is equipped,
and never stack bottles on a sliding shelf.

10
6．Installing Your Handle
Install the handle according to the following four steps:
1. Move door seal out in the place of installing the handle
2. Take screws from Manual Bag & Put it in the appointed place
3. Fasten door handle by screwdriver
4. Refit the door seal to the relevant position
7．Maintenance
In order to ensure best performance & long-last reliable working item, pls follow
the simple maintenance and cleaning operations as below:
- Make sure the power cord is unplugged before cleaning the back of your
cabinet, or before moving it.
- Clean the inside of your cabinet thoroughly once a year, after unplugging and
unloading it (uses water and a mild cleaning item, then rinse carefully).
- To assure that your wine cabinet provides long-lasting reliable performance,
you should check it regularly and inform your dealer if anything unusual is
found.
