Sunny Scout VISION User manual

Microcontroller-controlled temperature difference controller for solar thermal systems
Operating manual
Sunny Scout VISION

2
Content
1 Application area / device features 3
1.1 Application area 3
1.2 Device features 3
2 Safety instructions 3
3 Mounting the device 4
3.1 Opening the device 4
3.2 Wall mounting 4
3.3 Connections 5
3.4 Temperature sensor connection 5
4 Short descriptions and device operation 5
4.1 Display layout 5
4.2 Operating the device 6
5 Menu structure 6
5.1 "Info" menu 6
5.2 "Programming" menu 7
5.3 "Manual operation" menu 8
5.4 "Basic Setup" menu 8

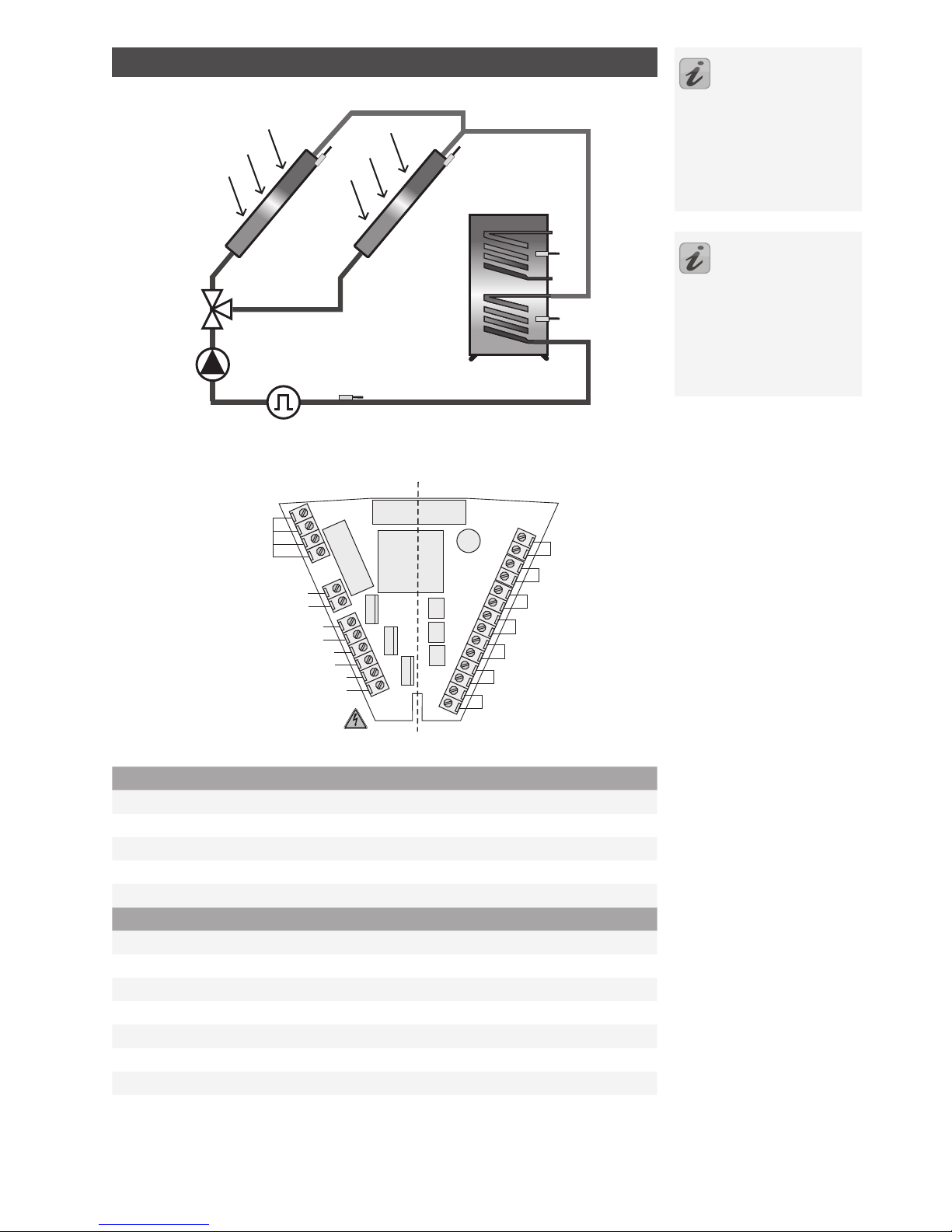

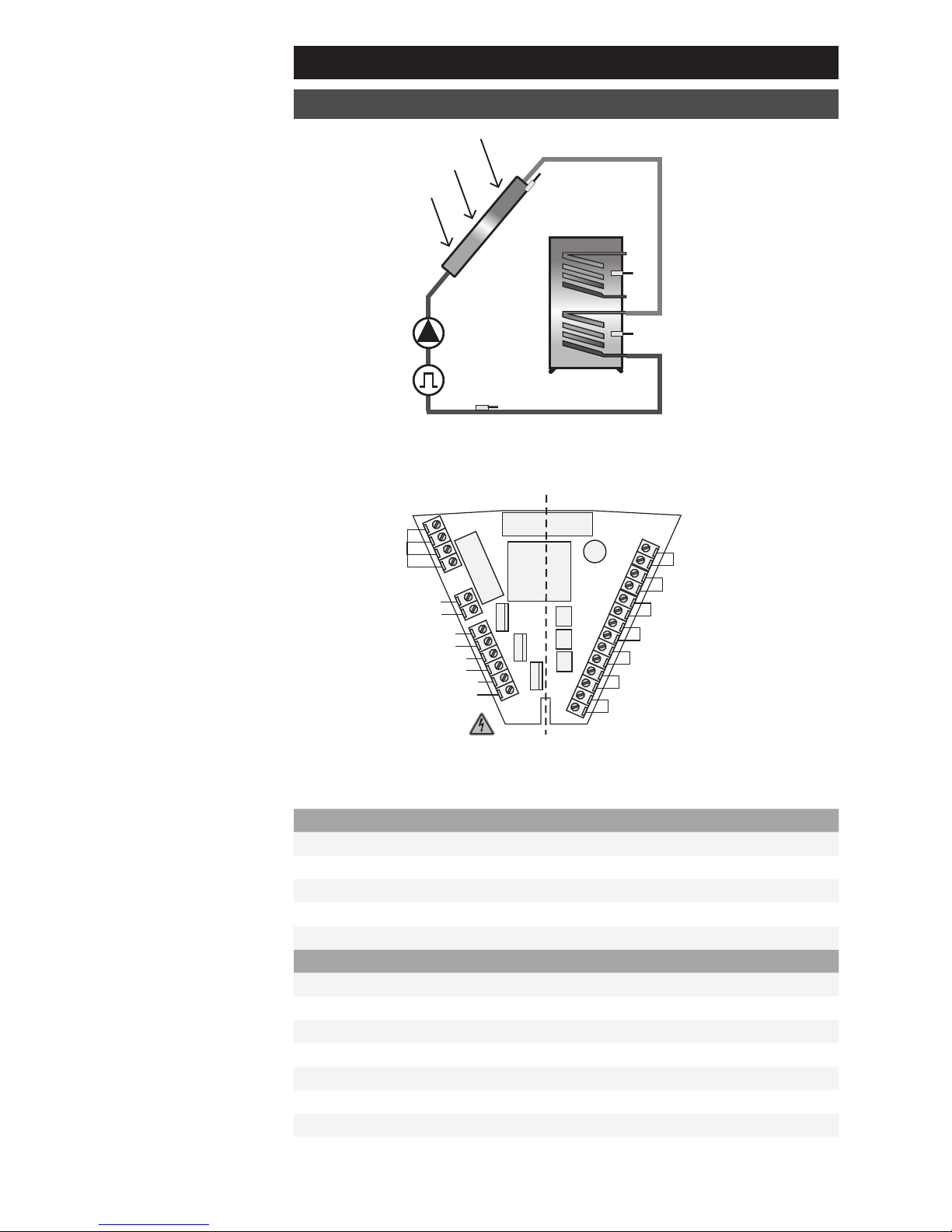

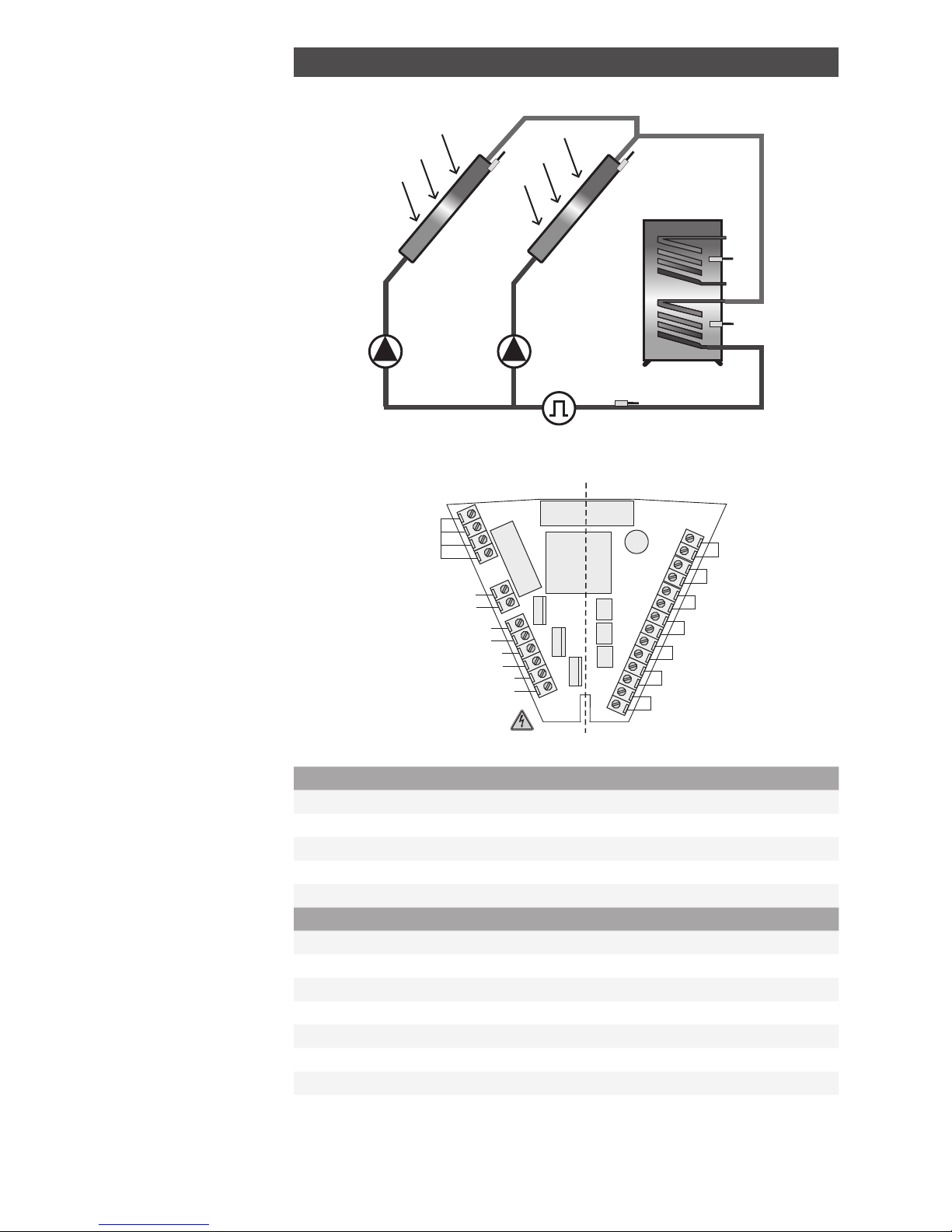

6 System diagrams 10
7 Controller functions 15
7.1 General controller functions 15
7.1.1 Dual storage tank systems (diagram 1 and 2) 15
7.1.2 RPM control 15
7.1.3 Independent controller 16
7.1.4 Tube collector or start function 18
7.2 Protective functions 18
7.2.1 Collector protection 18
7.2.2 Recooling (Holiday function) 18
7.2.3 System protection 19
7.2.4 Anti-freeze protection 19
7.3 Additional function 19
7.3.1 Energy yield measurement 19
8 System monitoring 20
8.1 Sensor monitoring 20
8.2 Flow monitoring 20
9 Troubleshooting 21
9.1 Faults with error messages 21
9.2 Faults without error messages 22
10 Specications 23
11 Resistance table PT1000 23
12 Warranty conditions 24
13 Declaration of conformity 24
Explanation of the
graphic symbols
Attention!
Symbol indicates
possible dangers
and errors
Attention 230V~
voltage!
Symbol indicates
risks posed by
lethally high volt-
ages.
List
Please note!
Information for
handling / special
features
Implementation /
procedure
Test /
check

3
1 Application area / device features
1.1 Application area
VISION controllers are high-performance microprocessor-controlled units for
controlling the functions of solar thermal systems. The VISION perfectly controls
solar power systems equipped with up to two collectors or two storage tanks and
can be used for numerous system types. The controllers are designed for use in
dry rooms as well as residential, business and commercial applications. Prior to
commissioning the device, make sure to verify that the intended use complies
with the applicable regulations.
1.2 Device features
The controller is equipped with the following features:
Intuitive operating menu with graphic symbols and four operating buttons■
Illuminated display■
Adjustable control values■
Solar circuit pump RPM control or switching control■
Start function for systems equipped with tube collectors■
Integrated operating hours counter for storage tank charging■
Extensive functions for system monitoring that display symbols to indicate■
errors and faults
Integrated energy yield measurement■
(optional, only in conjunction with the yield measurement set)
Storage of all values even during a prolonged mains power supply outage■
Various protective functions, such as system protection, collector protection,■
recooling and anti-freeze protection
Individually operated independent controller■
Generous wiring space■
Available accessories:
Temperature sensor PT1000■
Yield measurement set (incl. tube sensor)■
Sensor connection box■
Immersion sleeves■
2 Safety instructions
Always completely disconnect the device from the operating voltage before■
performing installation or wiring work on the electrical equipment.
Never mix up the connections of the protective low voltage areas (sensor, ow
sensor) with the 230V connections. Otherwise, the device will be destroyed.
The device and the connected sensors may carry deadly voltages.
Solar power systems can reach high temperatures. Such temperatures pose a■
risk of burns! Exercise caution when installing the temperature sensors!
Mount the controller in a position where it will not be subjected to excessive■
operating temperatures (> 50°C) by any external heat sources.
For safety reasons, the system may only remain in manual operation for testing
purposes. In this operating mode, the system does not monitor for maximum
temperatures and sensor functions. If there is any recognisable damage to the
controller, cables or the connected pumps and valves, the system must not be
started.
All installation and
wiring work must only be
carried out on the controller
when the device is disconnected
from the power supply.
The controller must only be
connected and commissioned
by qualified personnel. In doing
so, the applicable safety regula-
tions must be observed.

4
3 Mounting the device
3.1 Opening the device
Prior to opening the device, make sure to disconnect the mains voltage and
ensure that it cannot be switched back on again! The upper part of the housing
is locked to the lower part using two latches. Pull the side pieces (cover plates) of
the upper part of the housing outwards (see picture) to unlatch it and upwards
until the cover plate is opened.
3.2 Wall mounting
The device is mounted on the marked points. A drilling template is provided with
the device. Insert the "Quick Info" card provided with the device into the pocket
provided on the back of the device. The "Quick Info" card provides the user with
an overview of the functions to facilitate rapid device operation.
The controller must only
be installed in dry and
non-explosive areas. Mounting
the controller on an inflammab-
le surface is prohibited
Prior to switching on or
commissioning the
device: make sure to close the
cover until both sides securely
lock into place!

5
3.3 Connections
The following points must be followed for the 230V connections:
■In case of a xed mains connection, there must be a switch installed outside
the controller that can disconnect the device from the mains power supply.
This switch is not required if the mains supply is connected using a cable and
an earthed mains plug.
The controllers are designed to operate using a 230V/50Hz mains supply. The■
pumps and valves to be connected must be designed for this voltage!
All protective conductors must be connected to terminals marked with PE.■
■The neutral conductor terminals (N) are electrically connected and are not
switched!
All switching outputs (A1/A2/A3) are electronic 230V� N/O contacts. If poten-All switching outputs (A1/A2/A3) are electronic 230V� N/O contacts. If poten-■
tial-free contacts are required, the appropriate corresponding accessories are
available
3.4 Temperature sensor connection
The VISION devices use PT1000 precision platinum temperature sensors. Depend-
ing on the system type and functional scope, 2 to 6 sensors are required.
Mounting / wiring the temperature sensors:
■Mount the sensors on the collector and the storage tank. Ensure proper heat
transfer and use heat-conducting paste if necessary.
Cross-sections for cable extensions (shielded):■
- up to 15m 2 x 0.5mm2,
- up to 50m 2 x 0.75mm2.
The shield is connected to the earth (PE).
Connect the temperature sensors according to the system diagram. The polar-Connect the temperature sensors according to the system diagram. The polar-■
ity of both conductors for the temperature sensors is irrelevant.
■Sensor cables must be laid separately from 230V wires.
Sensor connection boxes equipped with surge protection should be used for■
collector sensors and cable extensions.
4 Short descriptions and device operation
4.1 Display layout
During actual operation, these symbols are only displayed for selection once
depending on the menu position.
Active menu in the menu levels◂
Allocation of the current display◂
Current measured values, times or con-◂
troller states: here 59.6C°.
Measuring point◂
Controller state/messages◂
Display symbols
All possible display symbols are
shown below.
ok?
hPa
start
%
stopdTmin max
F

6
4.2 Operating the device
The VISION controller is convenient and easy to operate using four operating but-
tons. Using the operating buttons, you can:
Access display values■
Perform device settings■
The graphic display symbols allow you to easily navigate through the operating
structure.
The operating buttons have the following functions:
Operating
buttons Function Description
"Up"
"+"
Increase menu items■
Value change: increases the displayed
value by 1; when the button is held
longer, the value increases continuously
"Scroll left"
"Exit"
"Cancel"
Scroll left in the main menu■
Exit a menu■
Exit a menu item■
Cancel a value change without storing it■
"Access"
"Down"
"-"
Access a main menu,■
Decrease menu items
Change a value: decreases the displayed■
value by 1; when the button is held
longer, the value decreases continuously
"Scroll right"
"Select"
"Conrm"
Scroll right in the main menu■
Select a menu item■
Conrm a value change and store it■
5 Menu structure
5.1 "Info" menu
The following measured and yield values are displayed in the Info menu:
Display
e.g. Meaning Can be reset
75°C Displays current collector temperature (1/2) No
min
12°C
Displays minimum collector temperature
(1/2) can be reset to the current temperature
Yes
max
105°C
Displays maximum collector temperature
(1/2) can be reset to the current temperature
Yes
52°C Displays current storage tank temperature (1/2) No
min
40°C
Displays minimum storage tank temperature
(1/2) can be reset to the current temperature
Yes
max
67°C
Displays maximum storage tank temperature
(1/2) can be reset to the current temperature
Yes
60°C Displays current collector return tempera-
ture No
60°C
Heating, cooling, temperature dierence
controller heat source sensor (T5) No
The display illuminates
when any button is
pressed.
The number of displayed
values depends on the
activated additional functions.

7
Display
e.g. Meaning Can be reset
35°C
Temperature dierence controller for heat
consumer (T6)
No
25°C
Anti-freeze protection sensor.
General temperature measuring point (T6)
(hidden, if not connected)
No
1234 h Operating hours for charging storage tank
Can be reset to 0 h Yes
927 kWh Energy yield for storage tank
Can be reset to 0 kWh Yes
5.2 "Programming" menu
The operating parameters are displayed and can be changed, if necessary, in the
Programming menu. The preset values generally ensure fault-free system operation.
Display
e.g. Meaning Value range
Typical
setting
Current
setting
max
65°C
Storage tank 1/2:
Maximum permis-
sible temperature
15 – 95°C 65°C
dT max
7K
Storage tank 1/2:
Switch-on dier-
ence
3 – 40K 7K
dT min
3K
Storage tank 1/2:
Switch-o dier-
ence
2 – 35K 3K
min
100
12
Set the minimum
pump capacity
using the RPM
control 100% =
RPM control o
30% – 100% 100%
min
40°C
Switch-on tem-
perature for the
heating function
20 – 90°C 40°C
dT
10K
Hysteresis for the
heating function 1 – 30K 10K
max
65°C
Dierence con-
troller: maximum
temperature of
the heat consum-
ers Tmax
15 – 95°C 65°C
dT max
7K
Temperature dif-
ference controller:
Hysteresis dTmax
3 – 40K 7K
The number of displayed
values depends on the
activated additional functions.

8
5.3 "Manual operation" menu
Automatic operation is switched o during manual operation. The outputs can be
manually switched on and o for servicing and testing purposes.
Once the menu has been exited or after 8 hours, automatic operation is reactivated.
Display Meaning Value range
Manually switching on / o the switching
output A1 (pump 1)
0 = O
1 = On
Manually switching on / o the switching
output A2 (pump 2 / valve 1)
0 = O
1 = On
3
Manually switching on / o the switching
output A3 (cooling, thermostat or temper-
ature dierence controller function)
0 = O
1 = On
5.4 "Basic Setup" menu
The hydraulic diagrams and additional functions are displayed in the Basic Setup
menu. Settings must only be changed by a specialised technician. Settings
may only be adjusted in the menu within one minute after the device has been
switched on.
Display Meaning Value range Factory
setting
Current
setting
Line Value
0 0 Collector protection
function
0 = O
1 = On 0 = O
1120°C Collector protection
function 110 – 150°C 120°C
2 0
Recooling function
(only if the collector
protection is on)
0 = O
1 = On 0 = O
340°C Recooling storage tank
temperature 30 – 90°C 40°C
4 0 Tube collector function,
time-controlled
0 = O
1 = On 0 = O
5 0
Function
Energy yield measure-
ment
0 = O
1 = On 0 = O
6 0
Energy yield measure-
ment
Sets glycol type
0 – 10 0
750
Energy yield measure-
ment
Glycol mixture
0 – 100%
5% incre-
ments
50
81.0
Energy yield measure-
ment
Litre/pulse, ow sensor
0.5 – 25 l/I
0.5l incre-
ments
1.0
9 0 Anti-freeze function 0 = O
1 = On 0
10 3Anti-freeze function
Start temperature -20°C – +7°C 3
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power system.
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power system.

9
Display Meaning Value range Factory
setting
Current
setting
Line Value
11 0Independent controller
function
0 = O
1 = Cooling
2 = Heating
3 = Temp.
dier-
ence
control-
ler
0
12 0System diagram 0 – 4 0
Energy yield measurement (glycol type selection)
0 Anro 5 Ilexan P
1Ilexan E, Glythermin 6Tyfocor L5.5
2Antifrogen L 7Dowcal 10
3Antifrogen N 8Dowcal 20
4Ilexan E 9Dowcal N

10
6 System diagrams
6.1 Diagram 0: 1 collector, 1 storage tank
230V connections
L Mains phase
N Neutral conductor - mains and outputs
A1 Solar circuit pump (switching output 1)
A2 No function
A3 Independent controller (switching output 3)
Sensor connections
S1 Collector sensor
S2 Lower storage tank
S3 No function
S4 Collector return
S5 Optional: heating or temp. difference controller
S6 Option: independent controller; other temperature display
S7 Option: flow meter
S1
S2
S5
S4
S7
A1
PE
S1
L
N
N
A1
S2
S7
S3
S4
S5
S6
N
A2
N
A3

11
6.2 Diagram 1: 1 collector, 2 storage tanks, pump valve
230V connections
L Mains phase
N Neutral conductor - mains and outputs
A1 Solar circuit pump (switching output 1)
A2 Valve (switching output 2)
A3 Independent controller (switching output 3)
Sensor connections
S1 Collector sensor
S2 Lower storage tank 1
S3 Lower storage tank 2
S4 Collector return
S5 Optional: heating or temp. difference controller
S6 Option: independent controller; other temperature display
S7 Option: flow meter
Type 1: one collector,
two storage tanks
with a three-way valve:
A2 = O:■
The valve must es-
tablish the connection
between the collector
and storage tank 1.
Installation notes for
type 1 and type 3 with a
three-way valve:
The specified hydraulic dia-
grams are recommendations.
The following applies, regard-
less of the valve type display-
ed.
Alternative diagram:
S1
S7
S2
S3
A1
S4
A2
S1
S3
S5
S4
S7
A1
S2
A2
1 2
PE
S1
L
N
N
A1
S2
S7
S3
S4
S5
S6
N
A2
N
A3

12
6.3 Diagram 2: 1 collector, 2 storage tanks with 2 pumps
230V connections
L Mains phase
N Neutral conductor - mains and outputs
A1 Solar circuit pump (switching output 1)
A2 Pump (switching output 2)
A3 Independent controller (switching output 3)
Sensor connections
S1 Collector sensor
S2 Lower storage tank 1
S3 Lower storage tank 2
S4 Collector return
S5 Optional: heating or temp. difference controller
S6 Option: independent controller; other temperature display
S7 Option: flow meter
Alternative diagram:
S1
S7
S2
S3
A1
S4
A2
S1
S3
S5
S4
S7
A1
S2
1 2
A2
PE
S1
L
N
N
A1
S2
S7
S3
S4
S5
S6
N
A2
N
A3

13
6.2 Diagram 3: 2 collectors, 1 storage tank, pump valve
230V connections
L Mains phase
N Neutral conductor - mains and outputs
A1 Solar circuit pump (switching output 1)
A2 Valve (switching output 2)
A3 Independent controller (switching output 3)
Sensor connections
S1 Collector array 1
S2 Lower storage tank
S3 Collector array 2
S4 Collector return
S5 Optional: heating or temp. difference controller
S6 Option: independent controller; other temperature display
S7 Option: flow meter
Type 3: two collectors,
one storage tank with a
three-way valve:
The valve must es-■
tablish the connection
between collector 1
and the storage tank.
Installation notes for
type 1 and type 3 with a
three-way valve:
The specified hydraulic dia-
grams are recommendations.
The following applies, regard-
less of the valve type display-
ed.
S3
S2
S5
S4
S7
A1
A2
S1
PE
S1
L
N
N
A1
S2
S7
S3
S4
S5
S6
N
A2
N
A3

14
6.5 Diagram 4: 2 collectors, 1 storage tank with 2 pumps
230V connections
L Mains phase
N Neutral conductor - mains and outputs
A1 Solar circuit pump 1 (switching output 1)
A2 Solar circuit pump 2 (switching output 2)
A3 Independent controller (switching output 3)
Sensor connections
S1 Collector array 1
S2 Lower storage tank
S3 Collector array 2
S4 Collector return
S5 Optional: heating or temp. difference controller
S6 Option: independent controller; other temperature display
S7 Option: flow meter
S3
S2
S5
S4
S7
A1 A2
S1
PE
S1
L
N
N
A1
S2
S7
S3
S4
S5
S6
N
A2
N
A3

15
7 Controller functions
7.1 General controller functions
The controller compares the temperatures of the various measuring points and
optimally charges the storage tank. If the collector temperature exceeds the
storage tank temperature, the solar circuit pump is switched on. Monitoring and
protection functions ensure safe operation.
7.1.1 Dual storage tank systems (diagram 1 and 2)
Examples of dual storage tank systems:
two separate storage tanks■
one stratied storage tank■
one storage tank and a swimming pool, etc.■
The storage tank is being charged through the pump on output A1 (A2) up to
adjusted maximal temperature so long as the collector temperature becomes
higher by a certain amount than the storage tank temperature. Switching action
can be adjusted through dTmax (dTon) and dTmin (dTo), but dTon cannot get
lower than dTo + 1K.
7.1.2 RPM control
The A1 and A2 outputs can be operated using an RPM control.
"Programming" menu
Display Meaning Value range Typical set-
ting
min
100
12
Set the minimum pump capac-
ity using the RPM control
100% = RPM control o
30% – 100% 100%
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.

16
7.1.3 Independent controller
This function is reserved for output 3 and can be allocated the following functions:
Cooling■
Heating■
Dierence controller■
Cooling
To increase the energy productivity of solar system it may be useful to„by-
pass“the solar energy at reaching a certain storage tank temperature or to take it
from the storage tank. If the temperature of the storage tank (S2) goes over the
temperature barrier Tstmax – 5K (adjusted maximal storage tank temperature –
5K), the switch output A3 is switched on. Switching o takes place at lower devia-
tion of this temperature.
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
11 1
The cooling function, thermostat
function or the temperature dier-
ence controller function can also be
selected.
0 = O
1 = Cooling
2 = Heating
3 = Tem-
perature
dierence
controller
0
Heating
If the measured temperature (S5) is below the target value, output A3 is switched
on until the measured temperature reaches the target value hysteresis.
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
11 2
The cooling function, thermostat
function or the temperature dier-
ence controller function can also be
selected.
0 = O
1 = Cool-
ing
2 = Heat-
ing
3 = Tem-
perature
dierence
controller
0
"Programming" menu
Display Meaning Value range Typical set-
ting
min 40°C
Switch-on temperature of the
heating function 20 – 90°C 40°C
dT 10K
Heating function hysteresis 1 – 30K 10K
Temperature dierence
The temperature dierence regulation enables you, independently of all other
control functions, to control an output according to an adjustable temperature
dierence criterion. A maximum temperature limit can be set for the independ-
ent temperature dierence controller.
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.

17
If the dierence between the measuring points S5 and S6 exceeds the entered
hysteresis, A3 is switched on.
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
11 3
The cooling function, thermostat
function or the temperature dier-
ence controller function can also be
selected.
0 = O
1= Cooling
2 = Heat-
ing
3 = Tem-
perature
dierence
controller
0
"Programming" menu
Display Meaning Value range Typical set-
ting
max 65°C
Maximum temperature of the
heat sink
max in °C
15 – 95°C 65°C
dT max 7K
Hysteresis dT max in K 3 – 40K 7K
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.

18
7.1.4 Tube collector or start function
If the function is activated a circulation of heat carrying medium through the
collector takes place for 30 seconds every 30 minutes. It is necessary to be able to
measure a temperature change in the collector when no regulation-conditioned
circulation has taken place for a longer time.
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
41
Special function for the time-con-
trolled circulation when operating
tube collectors
0 = O
1 = On 0 = O
7.2 Protective functions
The controller is equipped with the following protective functions.
7.2.1 Collector protection
If the storage tank has reached the set maximum temperature and the collector
temperature exceeds the set collector protection temperature (line 1), the solar
circuit pump is switched on. The solar circuit pump is switched o once the col-
lector temperature is 10K below the maximum value.
In this case, the storage tank is charged up to 95°C regardless of the set maximum
temperature.
7.2.2 Recooling (Holiday function)
The collector protection function is only eective if the storage tank temperature
is below the temperature limit (95°). Therefore, during the holiday period, for
example, the storage tank is discharged at night to the set recooling temperature.
Make sure not to activate this function together with the backup heating!
"Basic Setup" menu
Display Meaning Value range Factory
setting
Line Value
0 0 Switches on or o the collector pro-
tection function
0 = O
1 = On 0 = O
1120°C Temperature at which the collector
protection function is activated 110 – 150°C 120°C
2 0
Switches on or o the recooling
function (only if the collector protec-
tion is on)
0 = O
1 = On 0 = O
340°C
Temperature to which the storage
tank is recooled once the collector
protection function is activated
30 – 90°C 40°C
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power system.
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power system.

19
7.2.3 System protection
If the collector temperature exceeds the collector protection temperature (see
7.2.2) by 10K, the solar circuit pump is switched o to protect the system compo-
nents.
If the collector temperature drops below the collector protection temperature,
the solar circuit pump is switched on.
The function is always activated.
7.2.4 Anti-freeze protection
This function must be activated if the water or glycol mixture can freeze.
If the temperature at the anti-freeze sensor (T6) drops below the set value, the so-
lar circuit pump is activated and heats the solar circuit using the heat exchanger
in the storage tank.
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
9 0 Switches on or o the anti-freeze
function
0 = O
1 = On 0
10 3Temperature at which the anti-freeze
function is activated -20°C – +7°C 3
7.3 Additional function
7.3.1 Energy yield measurement
The energy yield of the solar power system is calculated and displayed using the
temperature dierence between the collector and the collector return tempera-
ture and the measured ow rate.
Required accessories, energy yield set consists of:
Flow sensor
Tube sensor
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
5 0 Switches on or o the energy yield
measurement function
0 = O
1 = On 0 = O
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.
Settings and changes in
this menu must only be
carried out by a specialised
technician. Incorrect settings can
damage or adversely affect the
function of the solar power
system.

20
8 System monitoring
If an error occurs, the ashing symbol is generally displayed.
8.1 Sensor monitoring
The connected sensors and sensor cables are monitored for interruptions and
short-circuits. Errors are indicated by the symbol. You can nd the error source
by scrolling up or down the Info menu.
8.2 Flow monitoring
The controller is programmed to display a message if the ow is interrupted, e.g.
pump fault or if vapour is in the system. This message, however, does not switch
o the pump.
"Basic Setup" menu
Display Meaning
+No circulation in the solar circuit
