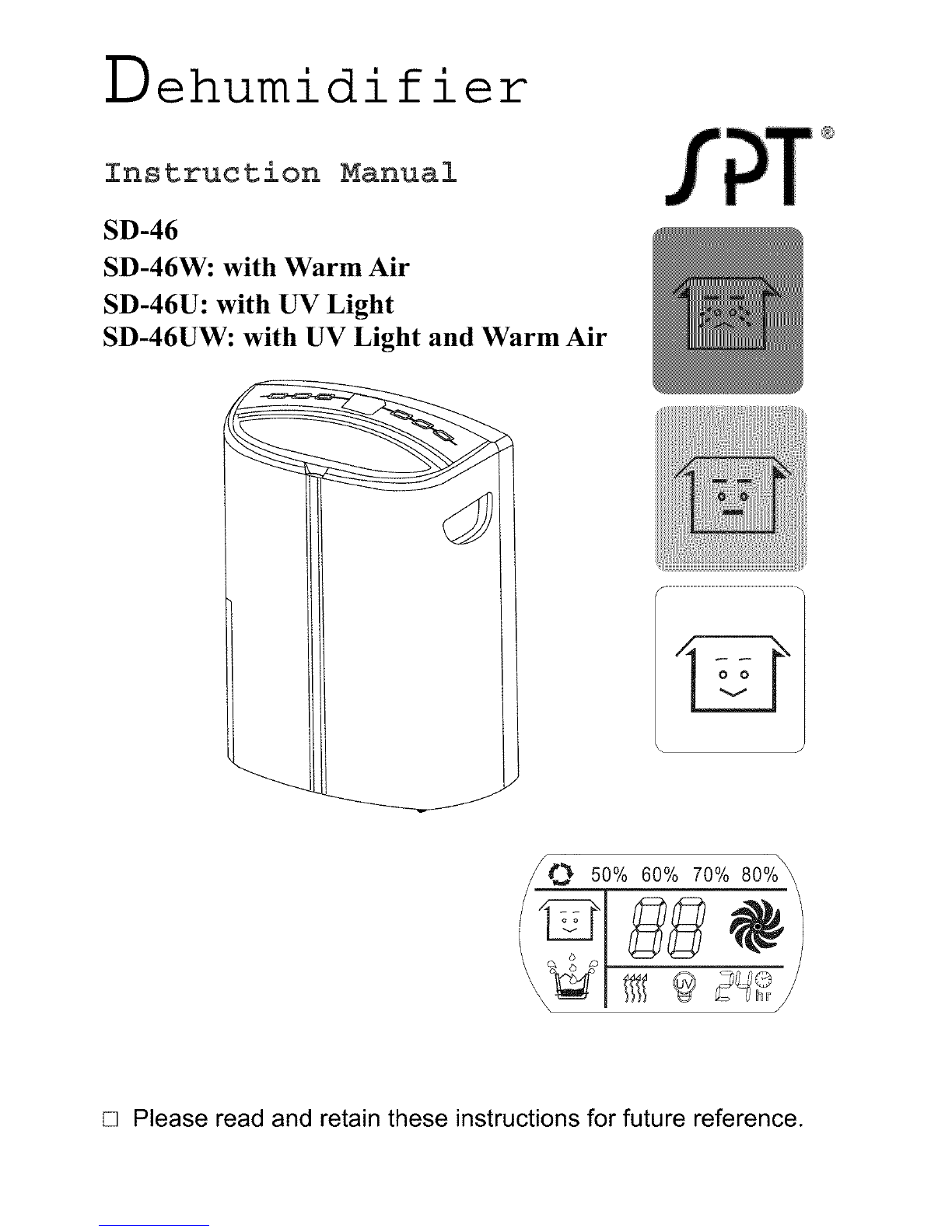

Sunpentown SD-46 User manual

Dehumidifier
Instruction
SD-46
SD-46W: with Warm Air
SD-46U: with UV Light
SD-46UW: with UV Light and Warm Air
®
____.,.,.%50% 60% 70% 80%__
[] Please read and retain these instructions for future reference.

Please take time to read this manual carefully before use and save it for
future reference.

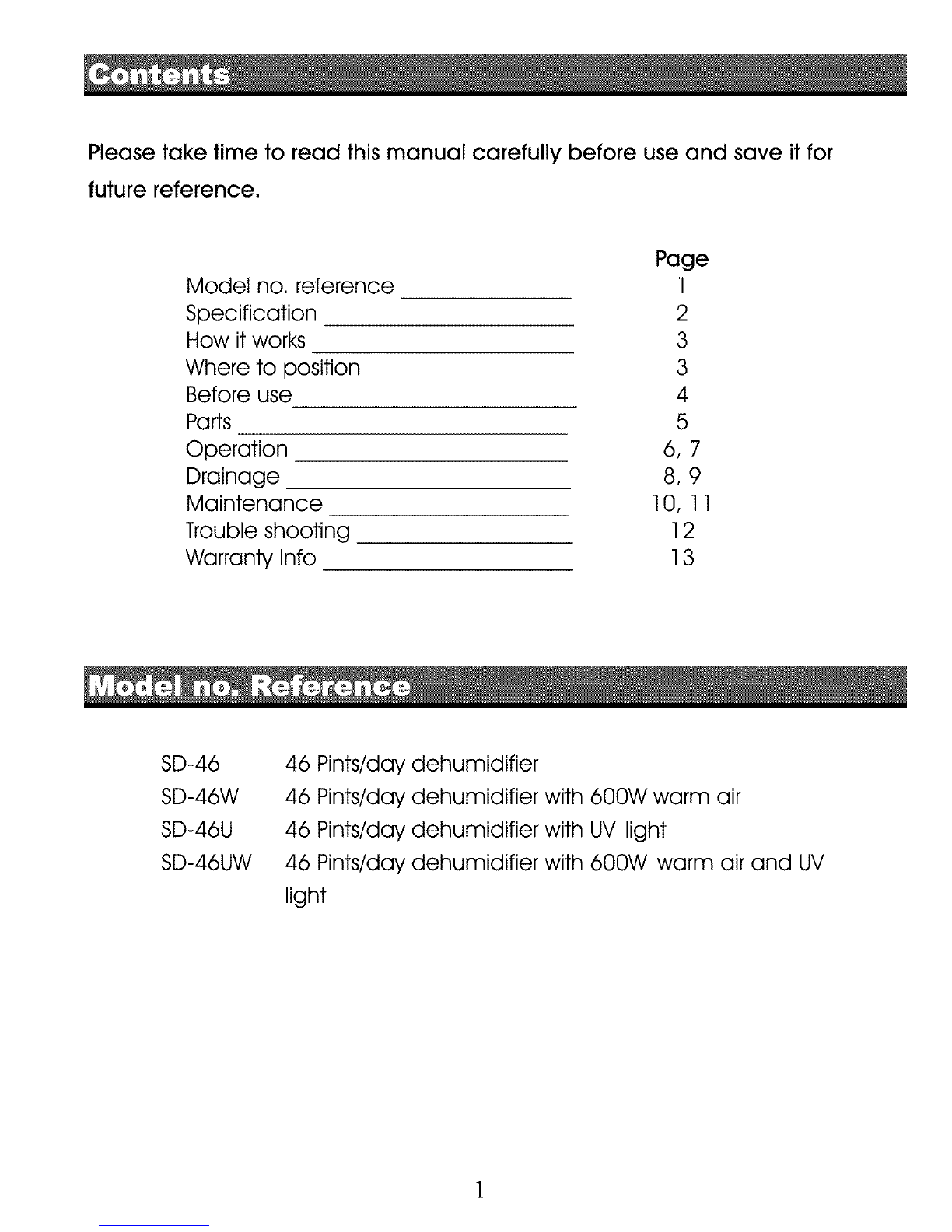

Page
Model no. reference 1
Specification 2
How it works 3
Where to position 3
Before use 4
Parts 5
Operation 6, 7
Drainage 8, 9
Maintenance 10, 11
Trouble shooting 12
Warranty Info 13
SD-46
SD-46W
SD-46U
SD-46UW
46 Pints/day dehumidifier
46 Pints/day dehumidifier with 600W warm air
46 Pints/day dehumidifier with UV light
46 Pints/day dehumidifier with 600W warm air and UV
light

Power supply
Moisture removal capacity
Heating capacity
Power/Amp consumption
115 V /60Hz
46 Pints/day
N/A 600 W N/A 600 W
440W /4A
Compressor Rotary
Refrigerant R134a
Working range 41 - 95°F
Water tank capacity 12.5 pint
Size [WxDxH] 16,14 x 8,27 x 21,46 inch
N.W. 27.5 Ibs
• Above is measured under RT 86°F [30°C], RH 80%.
• The data marked with * may vary for technical reasons. For greater
precision, please refer to the rating label placed on the product.

DRY WARMER AIR
FAN
MOTOR
MICRO:
WATER TANK
C( NDENSER
.EVAPORATER _- "-- :-
MOIST
SATURATED AIR Iii _ I
r-_. •
COMPRESSOR
Hu- Lij,j.llU
WATER TANK
Thisproduct isa dehumidifier, It controls relative humidity by passing the air
through the unit. forcing the excess moisture to condensate over the cooling
elements, Contact with this cold surface causes the moisture in the air to
condense, Thiscondensed water then drains safely into the water tank, The dried
air then passes through the condenser where it isslightly warmed and re-enters
the room at a slightly elevated temperature.
Excess moisture wilt travel
throughout your home, in
the same way that cooking
smells waft to every room in
the house. For this reason,
the dehumidifier should be
positioned, so that it can
draw this moist air towards it
from all over the home,
Alternatively, if you have a
serious problem in one
area, you can begin by
positioning the dehumidifier
close to this area and later
moving it to a more central
point,
When positioning the
dehumidifier, ensure that it
is placed on a level surface
and with a minimum of 10
cm [4"] of space on either
side of the unit to allow for
efficient airflow.
This dehumidifier is fitted
with castors for extra
mobility. Ifyou move the
unit, it should first be
switched off and the water
tank emptied.
We do not recommend the
use of an extension cord, so
please try to ensure that the
unit is sufficiently close to a
fixed main socket. If it is
necessary to use an
extension cord, please
ensure the diameter of the
extension cable isat least 1
mm. When the dehumidifier
is in operation, outside
doors and windows should
be closed for most efficient
use.

Caution!
•Always keep the unit in vertical position.
• Leave the unit to stand for at least an hour after transport or when it
has been tilted [e.g. during cleaning], before connecting to the main
supply.
•Keep all foreign objects away from the air intake or output openings.
• The main supply must conform to the specification shown on the
rating plate at the back of the unit.
• Ifthe supply cord is damaged, it must be replaced by an approved
service technician or one similarly qualified.
• Never use the plug to start or stop the unit, Always use the power
switch on the control panel.
•Before moving the unit, first switch off, unplug and empty the water
tank.
• Do not use bug sprays or other flammable cleaners on the unit.
•Never pour or spray water over the unit.
IMPORTANT!
Do not use this unit at ambient temperatures below 41 °F, to prevent the
possibility of evaporating coils from icing,

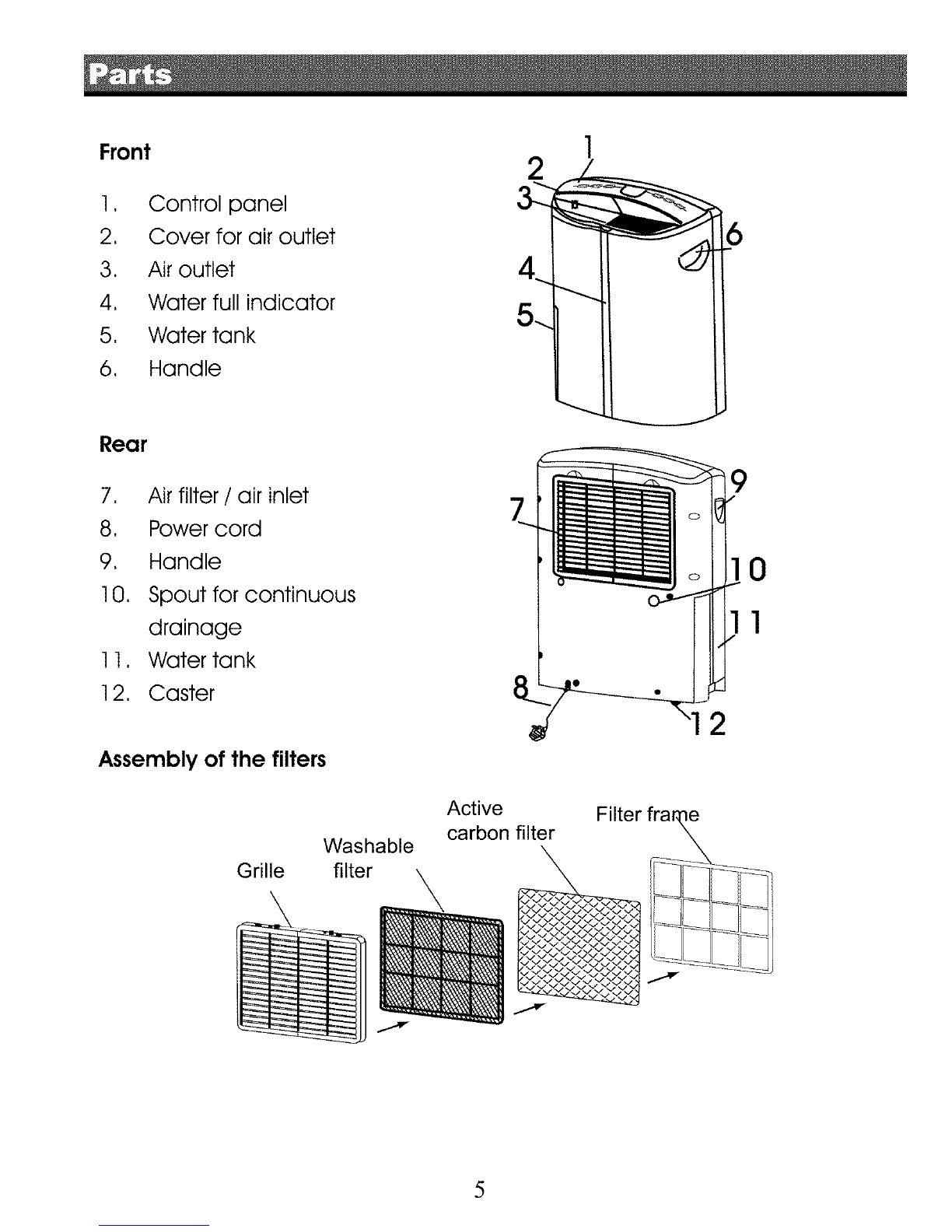

Front
1, Control panel
2, Cover for air outlet
3. Air outlet
4, Water full indicator
5. Water tank
6, Handle
Rear
7. Air filter /air inlet
8. Power cord
9, Handle
10. Spout for continuous
drainage
11. Water tank
12. Caster
Assembly of the filters
Washable
Grille filter
?
7
I0
Active
carbon filter Filter frar le

Control panel
TIMER
Ux/ ®
3 4
1. Warm air button (SD-46W and SD-46UW only)
2. UVlight button (SD-46Uand SD-46UWonly)
3. Timer
4. Display window
6
5. Speed [ventilation] button
6. Humidity selection button
7. ON/OFF button
Display window
I ,
I
_ 5o%6o%_7
3
\ . j
4 5 6
Humidity display: _ continuous de-humiditying, 50%, 60%, 70%, or 80%.
2, Ambient humidity condition: _good, _fair, _poor
• _[Good]: Ambient room humidity isbetween 50% to 70%,
• _(Fair]: Ambient room humidity is between 30% to 50% or 70% to 80%,
•_(Poor]: Ambient room humidity ishigher than 80%,

3. _ Compressorisinprogress,Whenunitisde-frosting,thewaterdropswill
flash.
_ Compressorisnotinprogress.
O4 _b
°_-- Water tank isfull.
4. WARM AIR indicator: indicates that the Warm Air function is in operation, When
WARM AIRfunction isselected, unit will run in high fan speed only. The output air
will be slightly warmer than ambient air. [Models SD-46W and SD-46UWonly]
NOTE:Warm Air will not operate if ambient temperature is higher than 77°F. The
PTCHeater isprotected by thermostat and thermal fuse for overheat
protection.
5. UV[ultraviolet] indicator: indicates that the UVlight function isin operation. UV
light killsbacteria and sanitizes the air. [Models SD-46U and SD-46UWonly]
6. TIMERindicator: sets timed operation from 1 to 24 hours.
7. HUMIDITYlevel indicator: displays the ambient room humidify level.
_ A
8. FANspeed indicator: _ high speed, "_ low speed.
Operation
1. Plug unit into a correct main socket. [Please refer to the rating label at rear of
the unit.]
2. PressON/OFF button to turn on the unit. The compressor will start to work in
continuous mode.
3. PressHUMIDITYbutton to set the desired room humidity: continuous
de-humidifying, 50%, 60%, 70% or 80%.
4. Pressthe SPEEDbutton to choose high or low fan.
5. To set timer, press the TIMERbutton until desired hours of operation isindicated
on display window. One press equals one hour.
6. To use warm air function, press WARM button, [SD-46W and SD-46UW only]
7. Toturn on UVlight, press the UVbutton [SD-46Uand SD-46UW only]
8. Toturn off the unit, press ON/OFF button again.
9. The direction of the air outlet can be adjusted
manually.

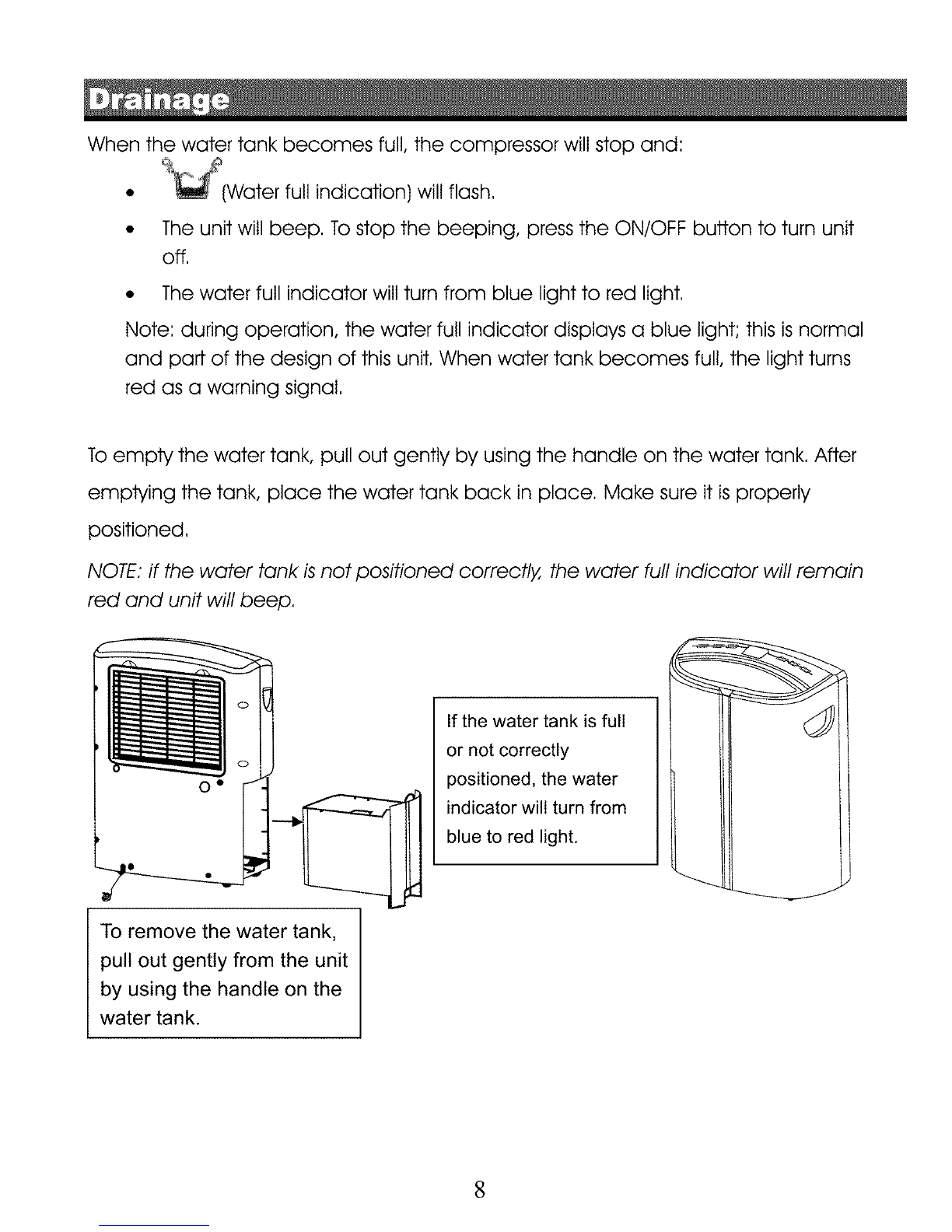

Whenthewatertankbecomesfull,thecompressorwillstopand:
_(Water_'_ fullindication]willflash.
Theunitwillbeep.Tostopthebeeping,presstheON/OFFbuttontoturnunit
off.
• Thewaterfullindicatorwillturnfrombluelighttoredlight.
Note:duringoperation,thewaterfullindicatordisplaysabluelight;thisisnormal
andpartofthedesignofthisunit.Whenwatertankbecomesfull,thelightturns
redasawarningsignal.
Toemptythewatertank,pulloutgentlybyusingthehandleonthewatertank.After
emptyingthetank,placethewatertankbackinplace.Makesureitisproperly
positioned.
NOTE: if the water tank isnot positioned correctly, the water full indicator will remain
red and unit will beep.
If the water tank is full
or not correctly
positioned, the water
indicator will turn from
blue to red light.
To remove the water tank,
pull out gently from the unit
by using the handle on the
water tank.

Continuous drainage
When the dehumidifier is operated in very high humidity climates, the water tank will
require more frequent drainage. In this situation, it may be more convenient to set
up the unit for continuous drainage by following these procedures:
1, Turnunit OFF and unplug power source.
2, Use a screwdriver and remove the round knockout at the back of the unit.
[FIG.1)
CAUTION
When the knockout isremoved, this will leave a hole in the housing, Do not
cover the opening with any type of plug. if the opening isblocked, water will
not be able to flow out and cause possible malfunction to the unit.
3, Connect the drain spout with a water tube of 12 mm. inner diameter. [FIG,2]
Note: water tube is not supplied with the unit.
4, Please make sure the tube issecurely connected with no sharp bends or
kinks.
Note: In very cold weather conditions, precautions should be taken to prevent
the water tube from freezing.
FIG. 1
FIG. 2
/
alter tube with inner diameter
2 mm. Note: the tube is
t supplied with the unit,

Always unplug the unit from the main power supply before cleaning
or maintaining the unit.
CLEANING THE BODY
Use soft cloth to wipe the unit clean.
Do not ever use volatile chemicals, gasoline, detergents, chemically treated
clothes, or other cleansing solutions, These all could possibly hurt the cabinet.
CLEANING THE FILTER
For washable filter - Tap the filter lightly or use a vacuum cleaner to remove
excess diff. If the filter is particularly dirty, wash with warm water and small
amount of gentle detergent. Allow to dry completely.
For active carbon filter - This filter is
not washable, Its life span isvariable
and depends on the ambient
conditions where the appliance is
used, The filter should be checked
periodically [about every 6 months]
and replaced if necessary, To order
carbon filters, please call
1-800-330-0388 or visit
www.spt-usa.com.
Washable
filter
Grille
Filter frame
Active
carbon filter
lO

STORAGE
If unit will not be used for an extended period of time, please:
• Turn unit off, unplug from power source and secure power cord,
• Empty water tank and allow to dry completely,
• Cover the unit and store in cool area, away from direct sunlight,
]]

THEUNITDOESNOTOPERATE:
•Is the unit plugged in?
• Is the house electricity on?
•Is the room temperature below 41 °F [5°C] or above 95°F (35°C]? If so,
then it is out of the working temperature range of the unit.
•Make sure the humidistat [or ON/OFF switch] isturned on.
• Check if water tank is positioned correctly and tank is not full.
• Make sure the air inlet and outlet are not obstructed.
THE UNIT SEEMSTO DO NOTHING:
• Is the filter dusty or contaminated?
• Is the air intake or outlet blocked?
•Is the room humidity already quite low?
THE UNIT SEEMSTO DO LrF[LE:
• Are too many windows or doors open?
• Is there something in the room producing lots of humidity?.
THE UNIT ISTOO NOISY:
• Check whether the unit is sitting on a leveled surface.
THE UNIT IS LEAKING:
• Make sure the unit is in good shape.
• Ifyou are using continuous drainage, make sure the tube is securely
connected.
12

SPT WARRANTY
Dehumidifier
Your Guarantee
If this product is found to be faulty as a result of faulty materials or workmanship within one
year from date of purchase, it will be repaired or replaced free of charge.
This guarantee is subject to the following terms:
• Sunpentown must be notified of the fault.
• Proof of purchase must be presented to Sunpentown's nominated representative.
• The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
• The warranty after repair will not be extended beyond the original one-year period.
•All replacement parts will be new or reconditioned.
• Parts, which are replaced, become the property of Sunpentown.
• The warranty applies for the use of the product in the USA only.
What is NOT COVERED:
• Warranty does not include freight charges.
• Incidental or consequential damage caused by possible defects with this product.
• Damage to product caused by improper power supply voltage, accident, fire, floods or acts of nature.
• Failure of product resulting from unauthorized modifications to the product.
•Improper installation or failure to perform the necessary maintenance.
This GUARANTEE is in addition to your Statutory Rights
SUNPENTOWN INTERNATIONAL INC.
21415 Baker Parkway, City of Industry, CA 91789-5236
Tel: [phone] /Fax: [phone]
service @su npentown.com
www.sunpentown.com
13
