SunStar HC Series User manual

MMMMEE--111100110033
USER ’’ S MANUAL
SSuunnSSttaarr CCOO..,, LLTTDD..
Dual Function
HC-Series

1. THIS IS AN INSTRUCTION FOR SAFE USE OF DUAL
FUNCTION AUTOMATIC EMBROIDERY MACHINES. READ
THOROUGHLY BEFORE USE.
2. CONTENTS OF THIS INSTRUCTION ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE FOR HIGHER QUALITY OF THE
MACHINES. FOR ANY INQUIRIES ON THE MACHINE OR THE
INSTRUCTION, CALL YOUR SWF DEALERSHIP.
3. MAKE SURE TO PASS THIS INSTRUCTION TO YOUR NEXT
WORKER.
4. FOR INFORMATION RELATED TO ELECTRICITY AND
ELECTRONIC PARTS (X-Y DRIVE, CONTROL BOX, OPERATION
BOX), PLEASE REFER TO “SWF DUAL FUNCTION ELECTRICITY
MANUAL.”
5. THIS IS DESIGNED AND MANUFACTURED AS AN INDUSTRIAL
MACHINE. IT SHOULD NOT BE USED FOR OTHER THAN
INDUSTRIAL PURPOSE.

TABLE OF CONTENTS
CHAPTER 1 SAFTEY RULES …………………………………………………………………… 1-1
1-1. MACHINE DELIVERY …………………………………………………………… 1-1
1-2. MACHINE INSTALLATION ……………………………………………………… 1-2
1-3. MACHINE OPERATION …………………………………………………………… 1-3
1-4. REPAIR ……………………………………………………………………………… 1-3
1-5. PLACEMENT OF WARNING STICKERS ………………………………………… 1-4
1-6. CONTENTS OF WARNING STICKERS ………………………………………… 1-5
CHAPTER 2 MACHINE INSTALLATION AND ASSEMBLY ………………………………… 2-1
2-1. INSTALLATION ENVIRONMENT ……………………………………………… 2-1
2-2. ELECTRICITY INSTALLATION ………………………………………………… 2-1
2-3. LEVELING THE MACHINE ……………………………………………………… 2-2
2-4. PERIPHERALS ASSEMBLY ……………………………………………………… 2-4
2-5. TABLE ASSEMBLY ……………………………………………………………… 2-5
2-6. FRAME ASSEMBLY (UH1506D-45) ……………………………………………… 2-7
2-6-1. TUBULAR FRAME ……………………………………………………… 2-7
2-6-2. BORDER FRAME ………………………………………………………… 2-8
2-7. FRAME ASSEMBLY (UH1504D-45, UH1208D-45, UH1512D-45) ……………… 2-9
2-7-1. TUBULAR FRAME ……………………………………………………… 2-9
2-7-2. BORDER FRAME ………………………………………………………… 2-10
CHAPTER 3 NAMES OF MACHINE PARTS …………………………………………………… 3-1
3-1. SWF/HC-UH1506D-45 ……………………………………………………………… 3-1
CHAPTER 4 FUNCTIONS FOR BASIC MACHINE OPERATION …………………………… 4-1
4-1. LAMP ON THREAD TENSION ADJUSTMENT BOARD ……………………… 4-1
4-2. NEEDLE STOP CLUTCH ………………………………………………………… 4-2
4-3. UPPER THREADING AND TENSION ADJUSTMENT ………………………… 4-3
4-4. LOWER (BOBBIN) THREADING AND TENSION ADJUSTMENT …………… 4-7
4-5. THREAD WINDING ……………………………………………………………… 4-8
4-6. FLOPPY DISKS AND PRECAUTIONS …………………………………………… 4-9
4-7. NEEDLE-HOOK TIMING CONTROL …………………………………………… 4-10
4-8. ASSEMBLY AND FUNCTIONS OF THREAD DETECTOR …………………… 4-15
CHAPTER 5 MAINTENANCE AND INSPECTION …………………………………………… 5-1
5-1. CHECK POINTS FOR REGULAR INSPECTION ………………………………… 5-1
5-2. CLEANING ………………………………………………………………………… 5-1
5-3. OIL SUPPLY ……………………………………………………………………… 5-3
5-4. DRIVE BELT TENSION …………………………………………………………… 5-7

CHAPTER 6 MAJOR MACHINE ADJUSTMENTS …………………………………………… 6-1
6-1. ADJUSTING THE TRIMMERS …………………………………………………… 6-1
6-1-1. ADJUSTING THE POSITION OF THE TRIMMING CAM
(INSERT ANGLE OF MOVABLE BLADE) …………………………… 6-1
6-1-2. ADJUSTING BLADE TENSION ………………………………………… 6-2
6-1-3. ADJUSING THE TRIMMER RETVRN SPRING………………………… 6-2
6-2. ADJUSTING UPPER THREAD HOLDING UNIT ………………………………… 6-3
6-3. PICKER ADJUSTMENT …………………………………………………………… 6-4
6-4. ADJUSTING UPPER THREAD HOLDER ………………………………………… 6-5
6-5. ADJUSTING LOW-NOISE PRESSER FOOT ……………………………………… 6-6
6-6. RELATIONSHIP BETWEEN PRESSER FOOT AND NEEDLE ………………… 6-7
6-7. CORRECT POSITION OF NEEDLE ……………………………………………… 6-8
6-8. ADJUSTING HALF-TURN FILM FOR COLOR CHANGE ……………………… 6-9
6-9. ENCODER ADJUSTMENT ………………………………………………………… 6-9
6-10. JUMP MOTOR ADJUSTMENT …………………………………………………… 6-10
6-11. ADJUSTING DRIVER BELT TENSION ………………………………………… 6-11
6-11-1. SPECIFICATIONS OF DRIVER BELT TENSION ADJUSTERS……… 6-11
6-11-2. Y-AXIS TIMING BELT ………………………………………………… 6-11
6-11-3. X-AXIS TIMING BELT ………………………………………………… 6-12
6-11-4. TIMING BELT ON MAIN SHAFT MOTOR …………………………… 6-13
6-12. LAMP (OPTIONAL) ……………………………………………………………… 6-13
6-12-1. ADJUSTING LAMP SOCKET ………………………………………… 6-13
CHAPTER 7 TROUBLE SHOOTING …………………………………………………………… 7-1

The following set of safety rules categorized as DANGER, WARNING, and CAUTION indicates possibilities of
physical or property damages if not fully observed.
ONLY TRAINED AND EXPERIENCED PERSONS, FAMILIAR WITH THE
RELEVANT SAFETY INSTRUCTIONS, SHOULD HANDLE THE
MACHINE. MAKE SURE TO FULLY OBSERVE THE FOLLOWING
INSTRUCTIONS.

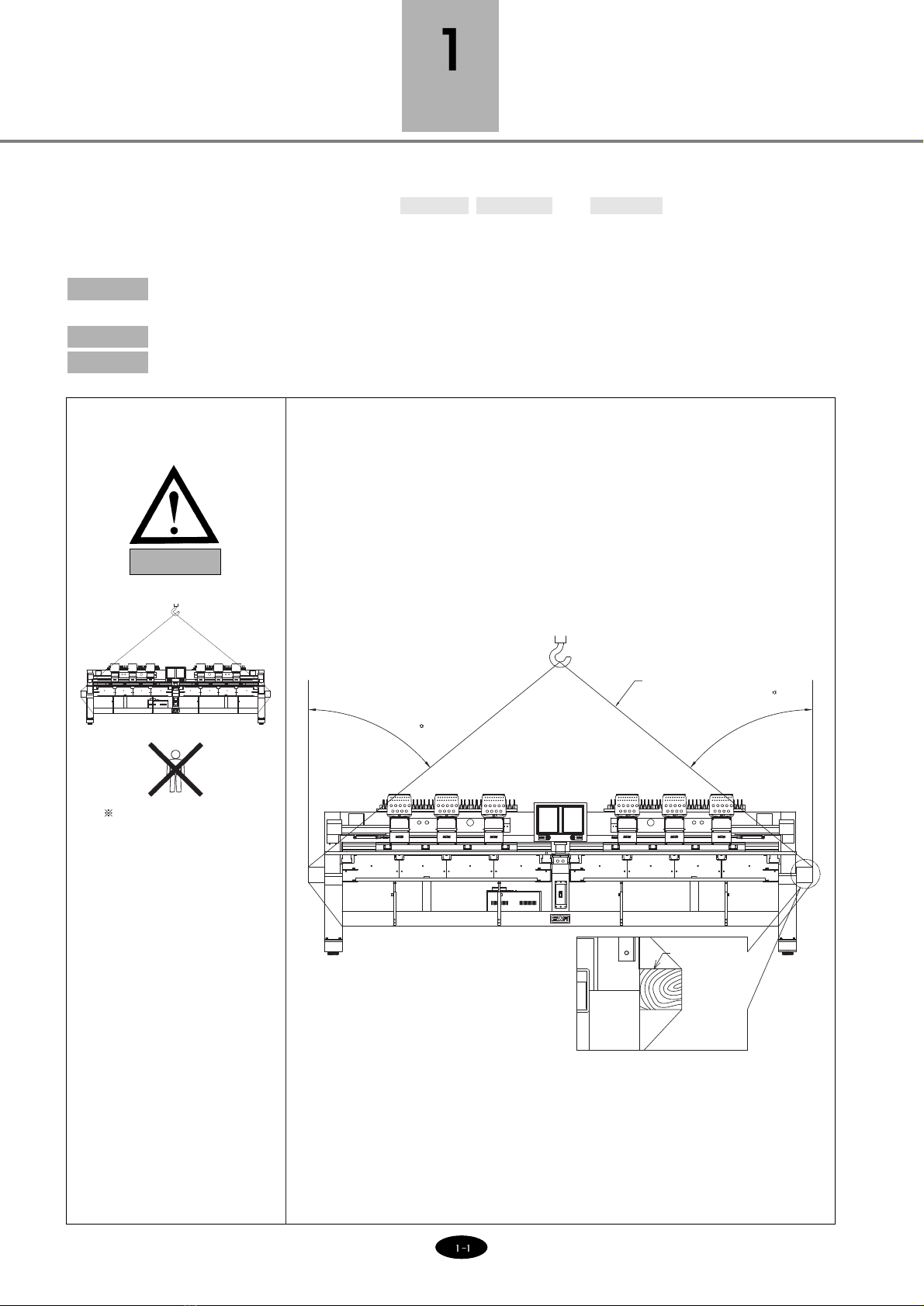

1) Using a crane
Make sure that the crane is large enough to hold the machine. Use a nylon
rope of sufficient strength. Place a wooden block at either side of the
machine before tying the rope. The angle should be 40。or less. Make sure
that the rope does not touch the table.
Make sure all persons
and obstacles are out of
the way of the moving
equipment.
[Fig.1-1]
1-1) MACHINE
DELIVERY
DANGER
SAFETY RULES
DANGER : These safety instructions MUST be observed to be safe from danger when installing, delivering, or
repairing the machine.
WARNING : These safety instructions MUST be observed to be safe from machine injuries.
CAUTION : These safety instructions MUST be observed to prevent predictable machine errors.
Wooden block
Nylon rope
Maximum 40
Maximum 40

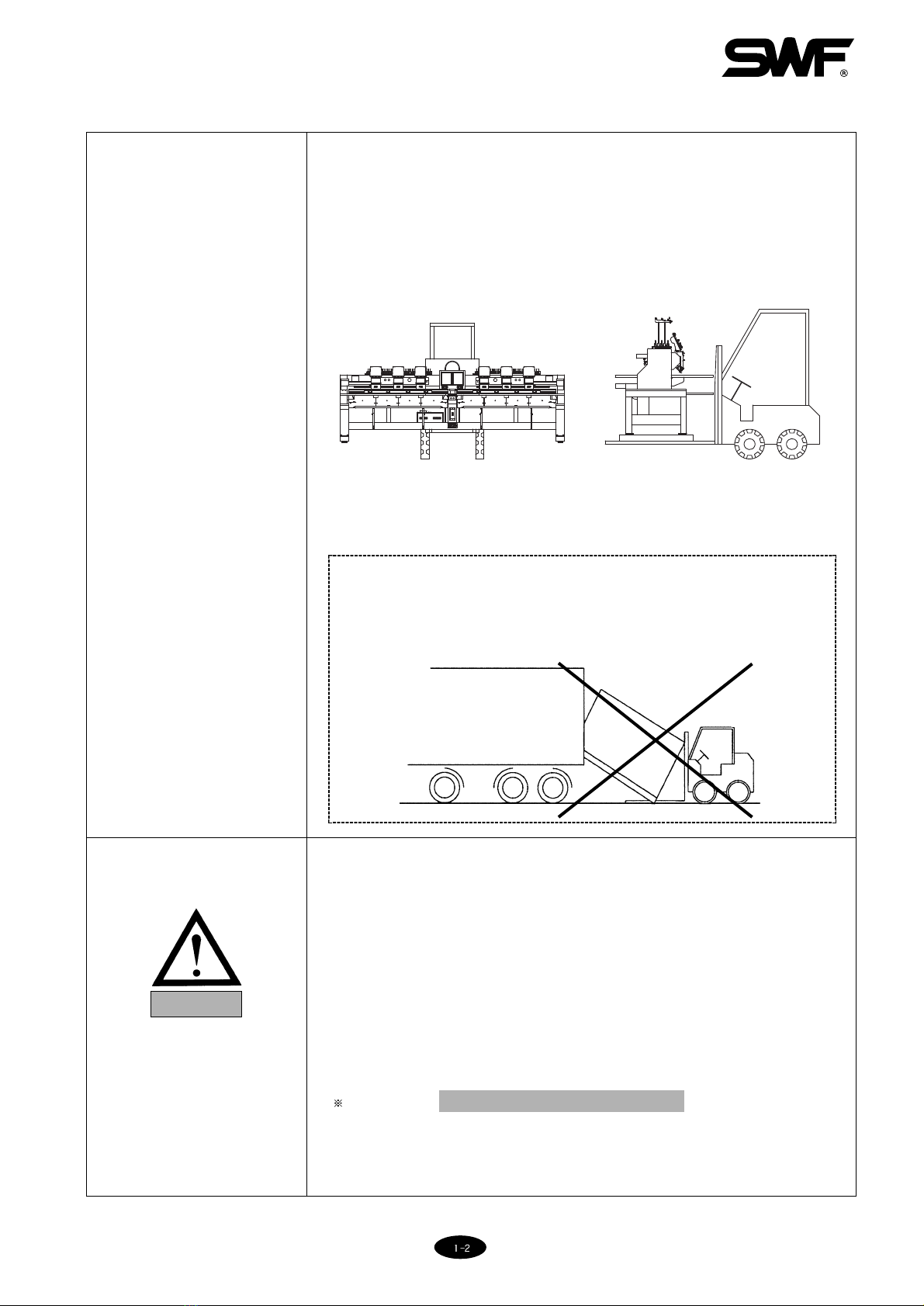

2) Using a Forklift
Make sure that size and weight of the forklift is sufficient to support the
machine. Use the pallet to place the machine so that its center is on the
forklift arm (see [Fig.1-2]). Lift the machine carefully so that the machine
does not tilt to either side.
[WARNING]
Make sure to maintain the weight balance in machine deliveries,
especially when unloading the machine from a forklift or crane, in order to
prevent injury or machine damages.
[Fig.1-2]
Installation environment may incur machine malfunction or breakdown.
Make sure to meet the following conditions.
1) The foundation under the machine, i.e. table or desk, must be strong enough
to support the weight of the machine (approximately 1 ton).
2) Air conditioning can eliminate dust and humidity that can cause pollution
and corrosion of the machine. Make sure your machine is regularly cleaned.
3) Long exposure to direct sunlight can cause the paint of the machine to fade
or change of the machine shape.
4) Allow at least 50cm (20 inches) of space on each side of the machine for
convenient maintenance.
Please refer to 2. Machine Installation and Assembly for installation details.
1-2) MACHINE
INSTALLATION
CAUTION

Only SWF-trained and selected repair engineers should do repair work.
1) Turn OFF the power before cleaning or repairing the machine. Wait for 4
minutes so the machine electricity is completely discharged.
2) Do not change the settings or any parts on the machine without confirmation
from SWF. Such change may cause safety accidents.
3) Use only SWF parts when repairing your machine.
4) Replace all safety covers when you are finished with your repair.
1-4) REPAIR
DANGER
The SWF Automatic Embroidery Machine is designed for applying
embroidery to fabric and other similar materials.
Pay careful attention to the WARNING and CAUTION stickers on certain
parts of the machine. Make sure to observe the following when operating
the machine:
1) Read thoroughly and fully understand the manual before operating the
machine.
2) Dress for safety. Long and unbound hair, jewelry such as necklaces,
bracelets, and wide sleeves can get caught in the machine. Wear shoes with
non-slip soles.
3) Clear all persons from the machine before turning on the power.
4) Keep your hands or head away from the moving parts of the machine such
as needle, hook, take-up lever, and pulley when the machine is in operation.
5) Do not remove the safety cover on the pulley or shaft when the machine is
in operation.
6) Be sure the main power is turned off and the power switch is set to OFF
before opening the cover of any electrical component or control box.
7) Be sure the main switch is OFF before manually turning the main shaft.
8) Turn the machine off when threading needles or inspecting the finished
embroidery.
9) Do not lean against the cradle or place your fingers near the guide grooves
of the frame.
10) The machine noise may exceed 85db when it is run at a maximum speed. It
is not higher than the standard level, but you may need earplugs or sound-
proof facilities for the operator and other workers.
1-3) MACHINE
OPERATION
[CAUTION]
It takes about 10 minutes after turning off the main switch before the
electricity is fully discharged from X/Y main shafts and the drive box.
WARNING

Fire or death may be caused by
high voltage electric shock.
Don’t open the cover except for
service man assigned by SWF.
When open the cover turn off
power and wait for 6 minutes.

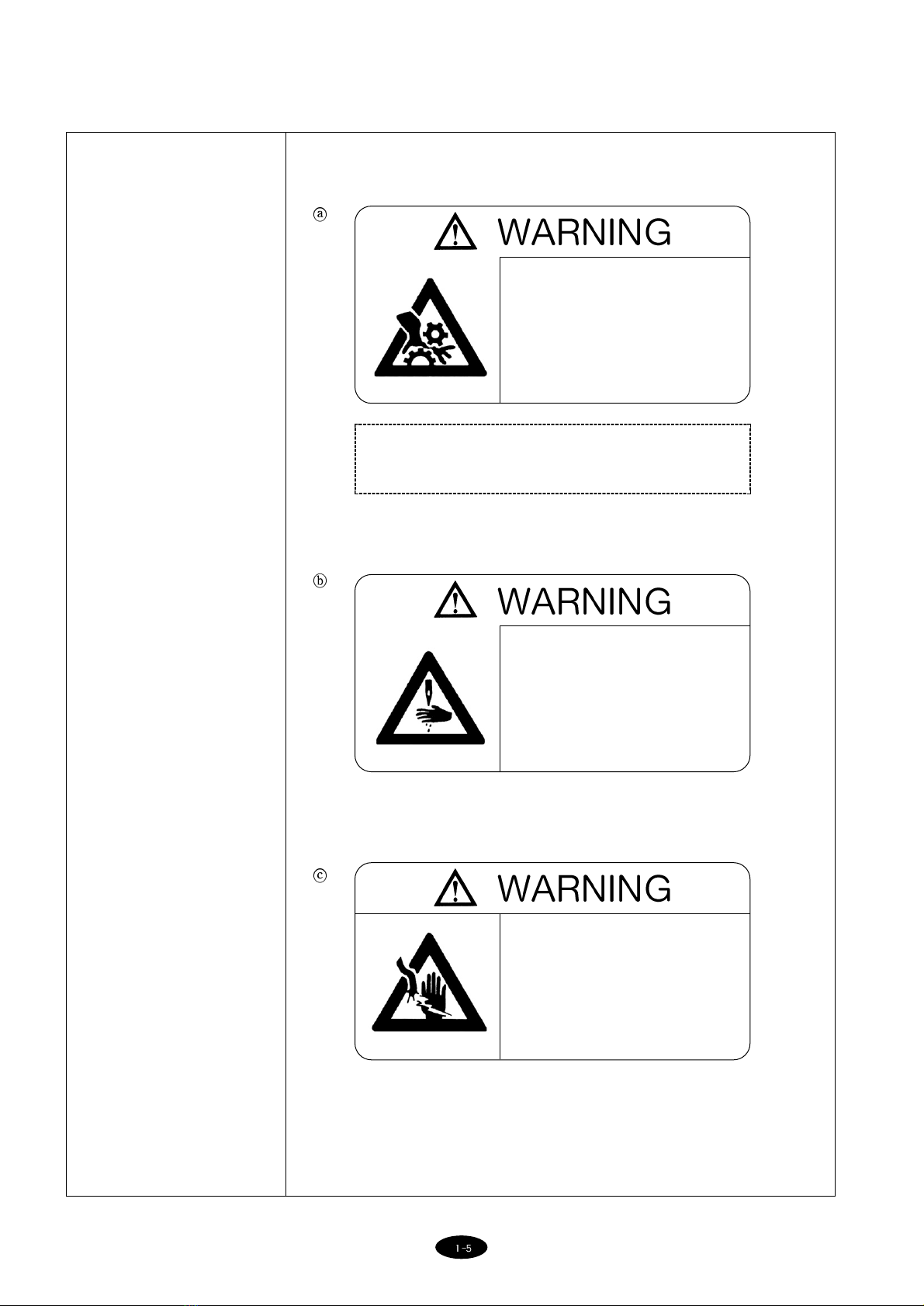

Observe the directions on ALL warning stickers placed on the machine as
reminders for your safety.
1) Location of Warning Stickers
1-5) Placement of
Warning Stickers
[Fig.1-4 From Top ]
Open the upper shaft cover of
each head and supply the
designated oil.
Injury may be caused by
winding.
Be sure to turn off the power
before cleaning, lubricating,
adjusting or repairing.
Physical damage may be
caused by winding.
Don’t put your hands near the
arrow while the main shaft is
rotating
Injury may be caused by moving
needle.
Ensure that the machine is in a
stop condition before changing,
threading or rethreading of
needies or changing of needles.
Turn off the main power before
rotating the main shaft by hand!
Do not remove covers during
operation!
Turn off the main power before
opening electricity-related boxes!
Physical damage may be caused
by interposition.
While embroidery frame is running
according to the direction of
embroidery frame may be injured
your hands by gap between fixed
body and embroidery frame.
Physical injury may be caused
by crevice.
Don t put your finger in a groove
on the table.
[Fig.1-3 Front]

1) Warning
1-6) Contents of
Warning Stickers
Injury may be caused by moving needle.
Ensure that the machine is in a stop
condition before changing, threading or
rethreading of needies or changing of
needles.
[CAUTION]
Safety cover refers to all covers near the operating parts
of the machine.
Injury may be caused by winding.
Be sure to turn off the power before
cleaning, lubricating, adjusting or
repairing.
Fire or death may be caused by high
voltage electric shock.
Don’t open the cover except for service
man assigned by SWF.
When open the cover turn off power
and wait for 6 minutes.

2-1) INSTALLATION ENVIRONMENT
1) Temperature: ①0~40℃(32~104℉) when the machine is in operation
②-25~55℃(-13~131℉) when the machine is not in operation
2) Humidity: 45~90% (relative)
3) Grounding: Ensure the electricity is properly grounded.
4) Close any doors and windows near the machine to prevent direct light, dust, and humidity.
5) Foundation under the machine must be a sufficiently strong and flat concrete to support the weight of the machine.
2-2) ELECTRICITY INSTALLATION
Check if the input voltage of the machine is in the right range of the voltage supply before installing or operating
the machine. The voltage required is as follows:
1) Input voltage (to be adjusted when installing): 100V, 110V, 120V, 200V, 220V, 240V
2) Allowed range of voltage: within 10% of the voltage set
3) Electric capacity and voltage consumption: 600VA 400W
4) Insulation resistance: over 10M ohms (measured with 500V insulation tester)
[CAUTION]
Do not let moisture drops on the machine.
Provide air conditioning to control humidity and to prevent dust and corrosion.
DANGER
WARNING
Properly ground the machine to avoid the possibility of electric shock. Use three-wire
grounding (grounding resistance below 100 ohms).
Check the voltage supply where the machine will be installed.
Install the cable away from the operator’s work space to prevent accident or injury.
MACHINE INSTALLATION AND ASSEMBLY
Install your machine in an appropriate environment and with adequate electrical supply. Failure to follow the
directions may result in machine malfunction.

2-3) LEVELING THE MACHINE
The machine must be accurately leveled (especially front and back) to prevent the needle from moving out of
position.
1) Use the adjusting bolts installed at the four stands to level the machine (front, rear, left, and right). Use a level
gauge.
①Check the voltage supply where the machine will be installed.
②Install the cable away from the operator’s work space to prevent accident or injury.
③If the difference in heights of the four bolts is over 10mm, place spacers beneath the lower supporting bolts
to make the heights even.
2) The machine must be horizontally balanced on all four sides - front, rear, right, and left.
[CAUTION]
The level gauge does not measure accurately on a square pipe or a table.
[Fig.2-2]

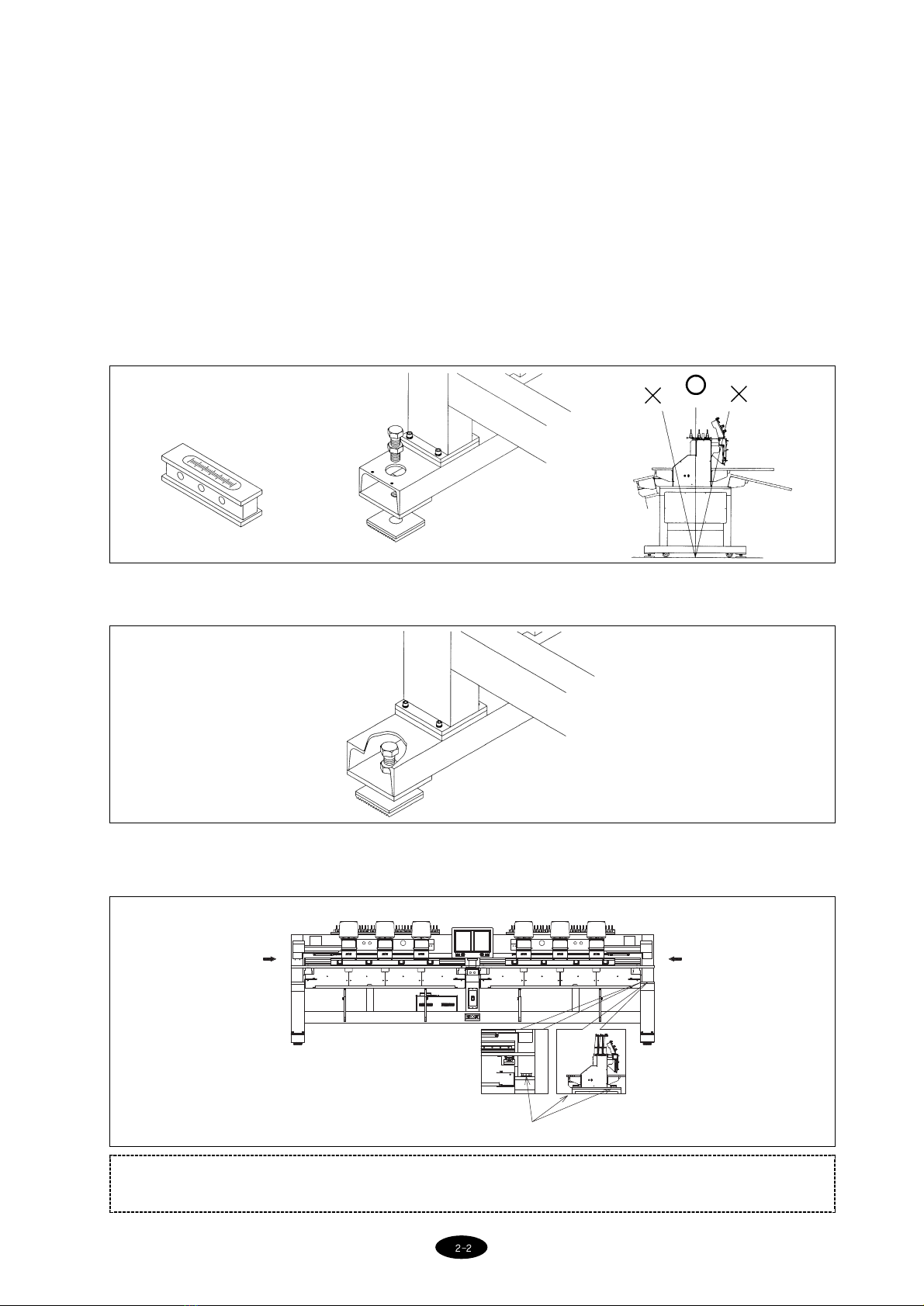

3) Using the level gauge
Use a nut to fully fasten the adjusting bolts when the machine is leveled.
[Fig.2-3]
[Fig.2-1]
Level gauge
Level gauge
Adjusting bolts
Level base

4) Using the body supporter [UH1506D-45]
Adjust the supporting bolt of the body supporter at the center of the machine after you are finished with
leveling. When adjusting the bolt, turn it until the bolt touches the level base and turn an additional quarter
round. Fasten the bolt with a nut.
[Fig.2-4]
Adjusting bolt
[CAUTION]
The supporter reduces the machine vibration.
Make sure not to adjust the bolt too high - it may lift the machine.
5) Using the auxiliary balance supporting bolt [UH1508-45, UH1512D-45]
Adjust the supporting bolt at the center of the machine after the balancing of the machine is finished. When
adjusting the supporting bolt, turn the bolt until it touches the level base and turn an additional quarter round.
Fasten the supporting bolt with a nut.
[Fig.2-5]
Adjusting bolt
[CAUTION]
The use of a supporting bolt for the auxiliary body supporter reduces the machine vibration and maintains
the balance of the machine.
Make sure not to adjust the bolt too high. It may lift the machine.

[Fig.2-6]
[Fig.2-7]
2-4) PERIPHERALS ASSEMBLY
1) Assembling Upper Thread Stand
2) Assembling Operation Box
Thread holder
Spool plate
Support
MC1 I/O Board To Joint Board 50P
MC2 I/O Board To Joint Board 50P
MC2 I/O Board To Joint Board 68P
MC1 I/O Board To Joint Board 68P

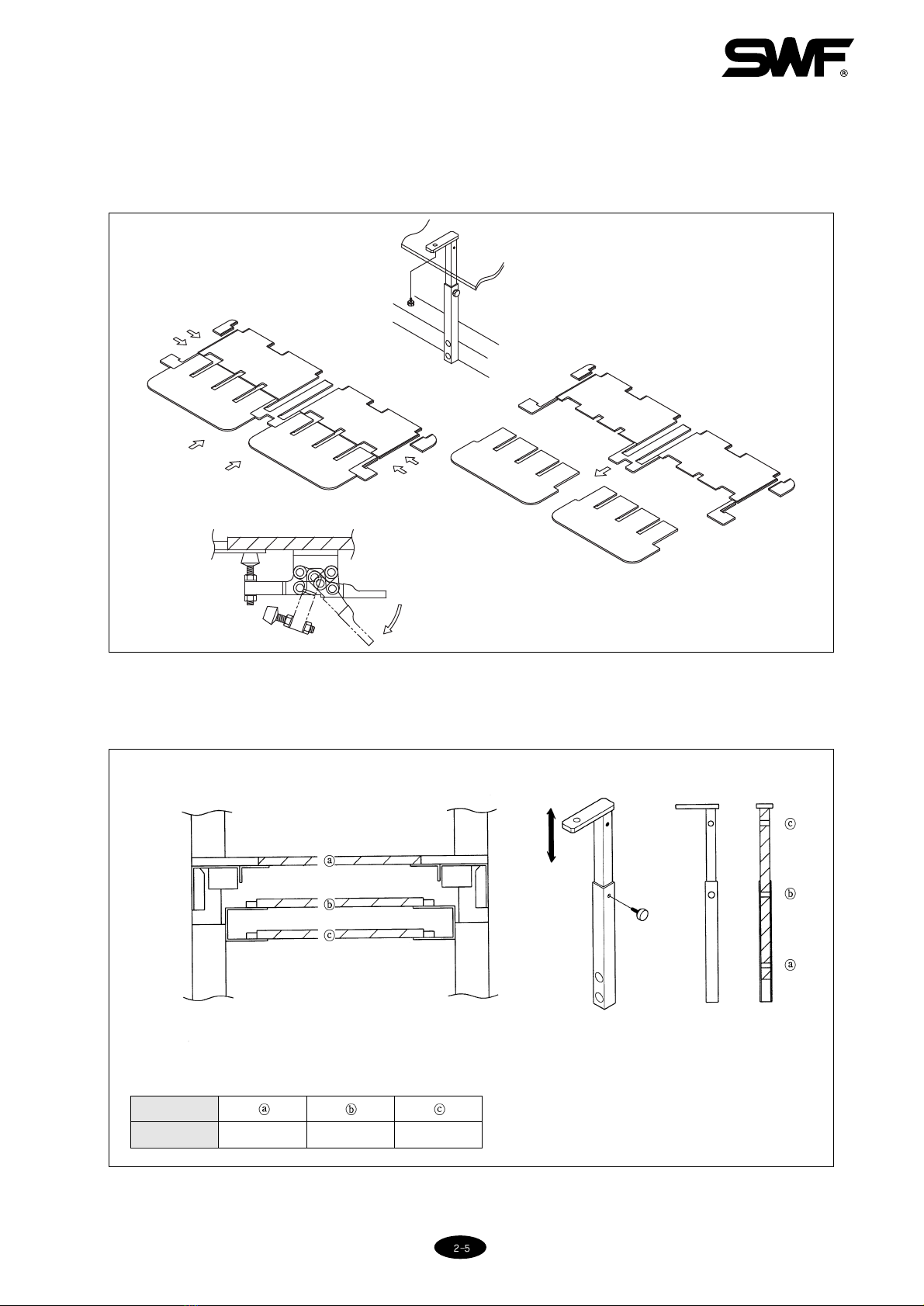

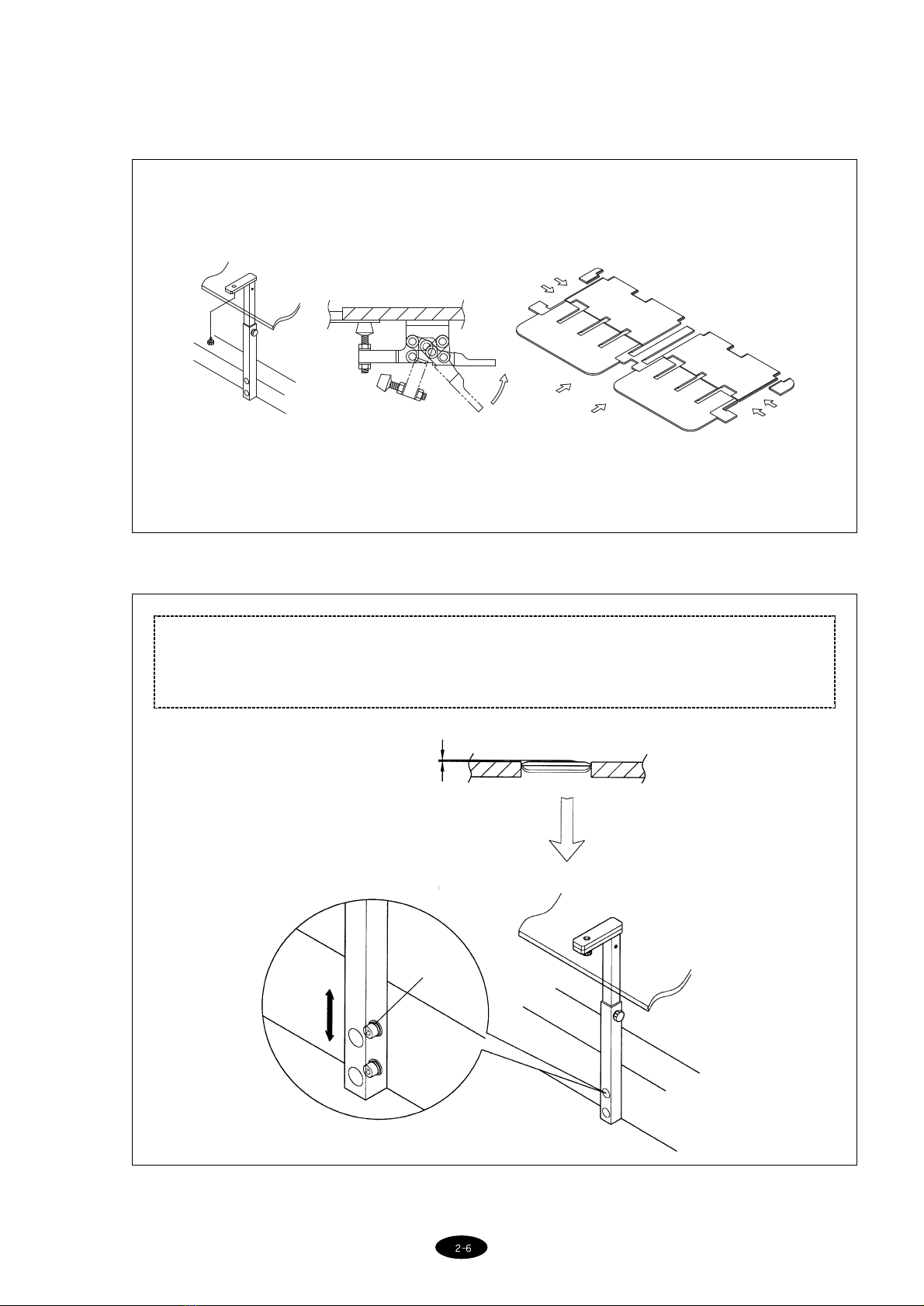

2-5) TABLE ASSEMBLY
1) Unscrew the eight clamps underneath the table and the bolts to disassemble the table.
2) Adjust the table support at an appropriate height and fasten the bolts.
[Fig.2-8]
[Fig.2-9]
Clamp
Clamp
Clamp
Table support
Table
Table support
bolts
Bolts
Table height
Work type Board Tubular Cap

3) Insert the table and fasten the bolts and the clamps.
[Fig.2-10]
[Fig.2-11]
[CAUTION]
The table should not be higher than the upper side of the needle plate by 0.5mm for board frame
work. If the height difference is over 0.5mm, unfasten the table support bolts, adjust the height, and
fasten the bolts back.
Clamp
Clamp
Clamp
Table support
Bolts
Height difference
If higher by 0.5mm
Table support
Bolts

2-6) FRAME ASSEMBLY (UH1506D-45)
2-6-1) Tubular Frame
1) Adjust the table height appropriate for tubular frame work (see 2-5 Table Assembly).
2) Unfasten the fixing bolt of the tubular frame. Align it on the fixing position on the X frame, insert the frame
fixing bolt, and fix.
[Fig.2-12]
Tubular frame
X frame
Fixing
bolts
[Fig.2-13]
Tubular round frame
3) In case using the tubular round frame
[CAUTION 1]
When inserting the frame onto the arm of the tubular frame, adjust the space between the two. To
adjust, use the screw on the tubular frame arm.

2-6-2) Border Frame
1) Unfasten screws on the tubular frame and remove the frame from the X frame.

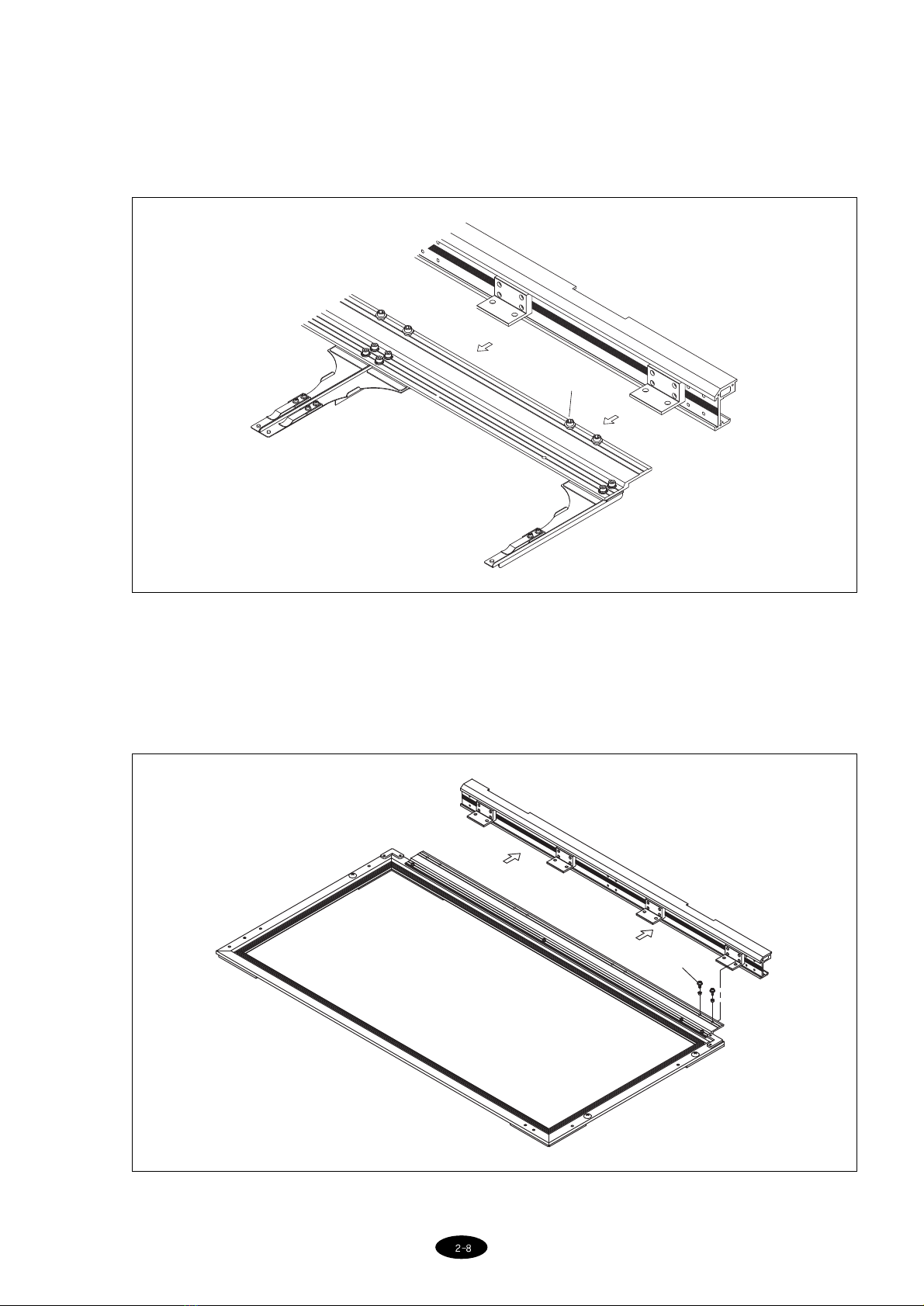

[Fig.2-14]
[Fig.2-15]
2) Adjust the table height appropriate for border frame work.
(See 2.5 Table Assembly)
3) Unfasten screws on the border frame and align the border frame in the fixing position on the X frame.
4) Fix the border frame onto the X frame with a fixing bolt.
Tubular frame
Fixing bolts
Fixing bolts

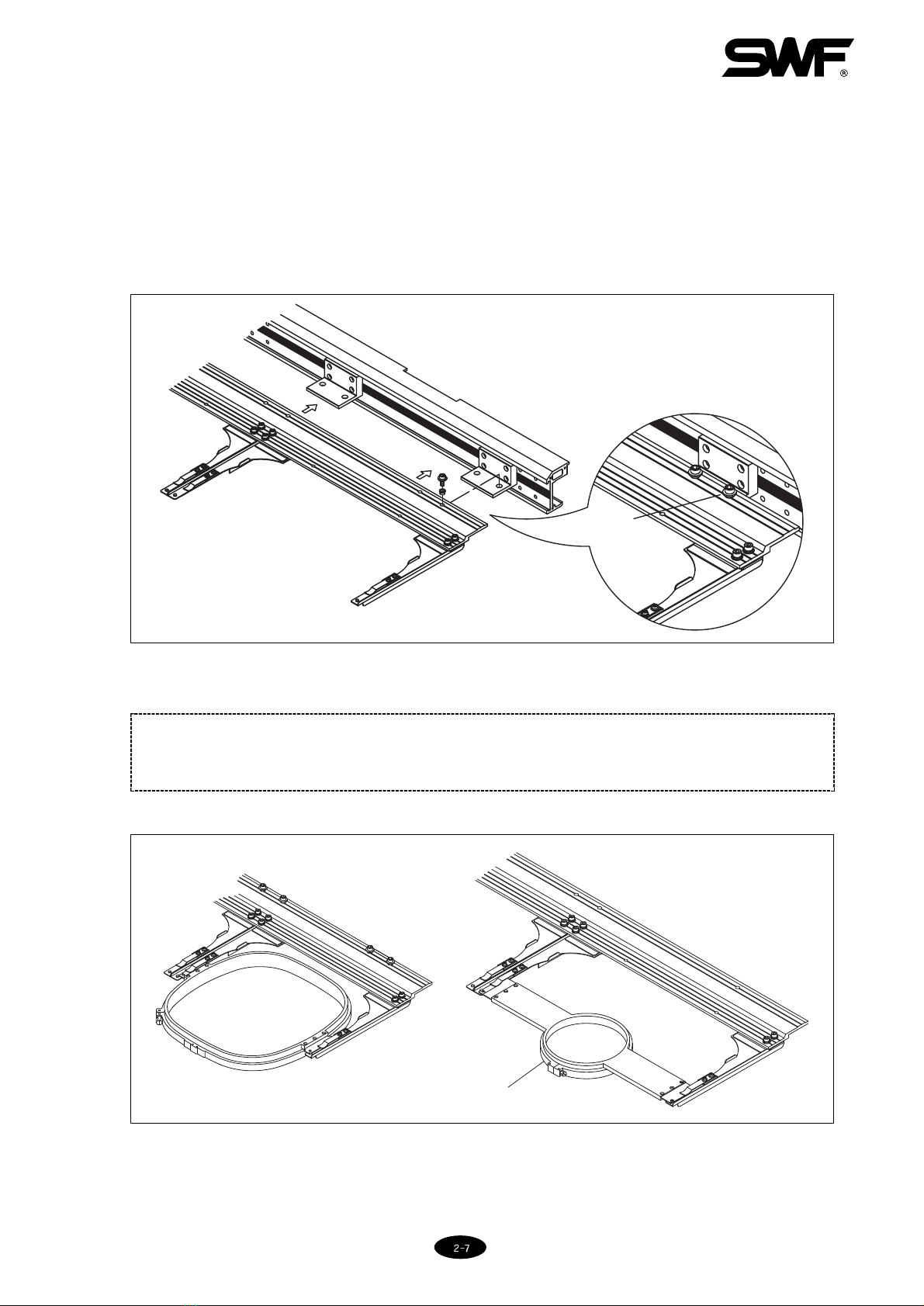

2-7) FRAME ASSEMBLY (UH1504D-45, UH1208D-45, UH1512D-45)
2-7-1) Tubular Frame
1) Unfasten screws on the tubular frame 2/3, install the tubular frame in the groove of the frame connection plate,
and fasten the bolt.
[CAUTION] Do not install the tubular frame too close from the X frame. Keep the space at around 2mm.
2) Insert the frame into the tubular frame. Use the screws to adjust the space.
[Fig.2-16]
Tubular frame
Frame connection plate
Fixing hole
Fixing bolt

[Fig.2-17]
[Fig.2-18]
Tubular frame
Fixing bolts
Screws
Fixing bolts

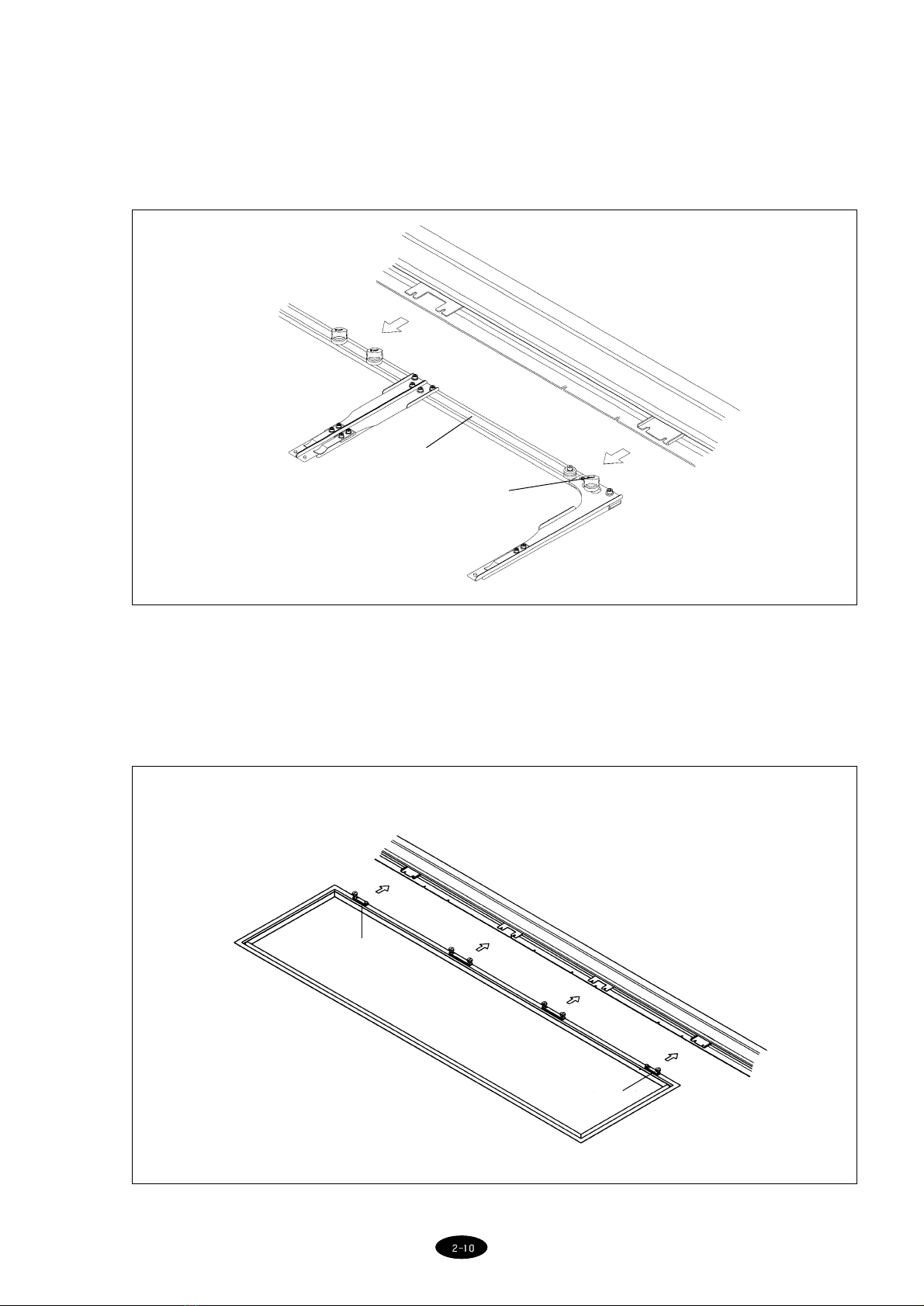

2-7-2) Border Frame
1) Unfasten screws on the tubular frame 2/3 and remove the frame.
2) Adjust the table height at an appropriate level for border frame work. (See 2.5) TABLE ASSEMBLY)
3) Unfasten screws on the border frame 2/3 and install the border frame in the groove of the X frame connection
plate. Fasten the bolt.

[Fig.3-1]
Machine Body
Table
Upper thread stand
Main shaft drive motor
Rotary hook base
Trimming cam box
Arm
Color Change
Upper thread holder
Head
Thread tension adjustment board
Sub-controller
X-axis driving system
Y-axis driving system
Emergency stop
S/B button
Tubular frame
Border frame
Controller box
Operation box
Encoder
Main power switch
Leveling base
Thread detector
Emergency power switch
NAMES OF MACHINE PARTS
3-1) SWF/HC-UH1506D-45
