SunSynk SUN-BATT-5.12 User manual

SUN-BATT-5.12
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.
171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
www.sunsynk.com / [email protected]
USER MANUAL
v.6 (11/05/22)
SUN-BATT-5.12/BYD 100Ah Wall Mounted

SUN-BATT-5.12 | User Manual2
Table of Contents
1. TECHNICAL DATA 3
2. PRODUCT OVERVIEW 5
2.1. Brief Introduction 5
2.2. Interface Introduction 5
2.2.1. Switch ON/OFF 6
2.2.2. LED Indicator Denition 6
2.2.3. CAN / RS485 Port 7
2.2.4. RS232 Port 7
3. INSTALLATION GUIDE 8
3.1. Checking Before Installation 8
3.1.1. Checking Outer Packing Materials 8
3.2. Checking Deliverables 8
3.3. Tools 10
3.4. Installation Requirements 10
3.4.1. Installation Environment Requirements 10
3.4.2. Installation Carrier Requirements 10
3.5. Installation Instructions 11

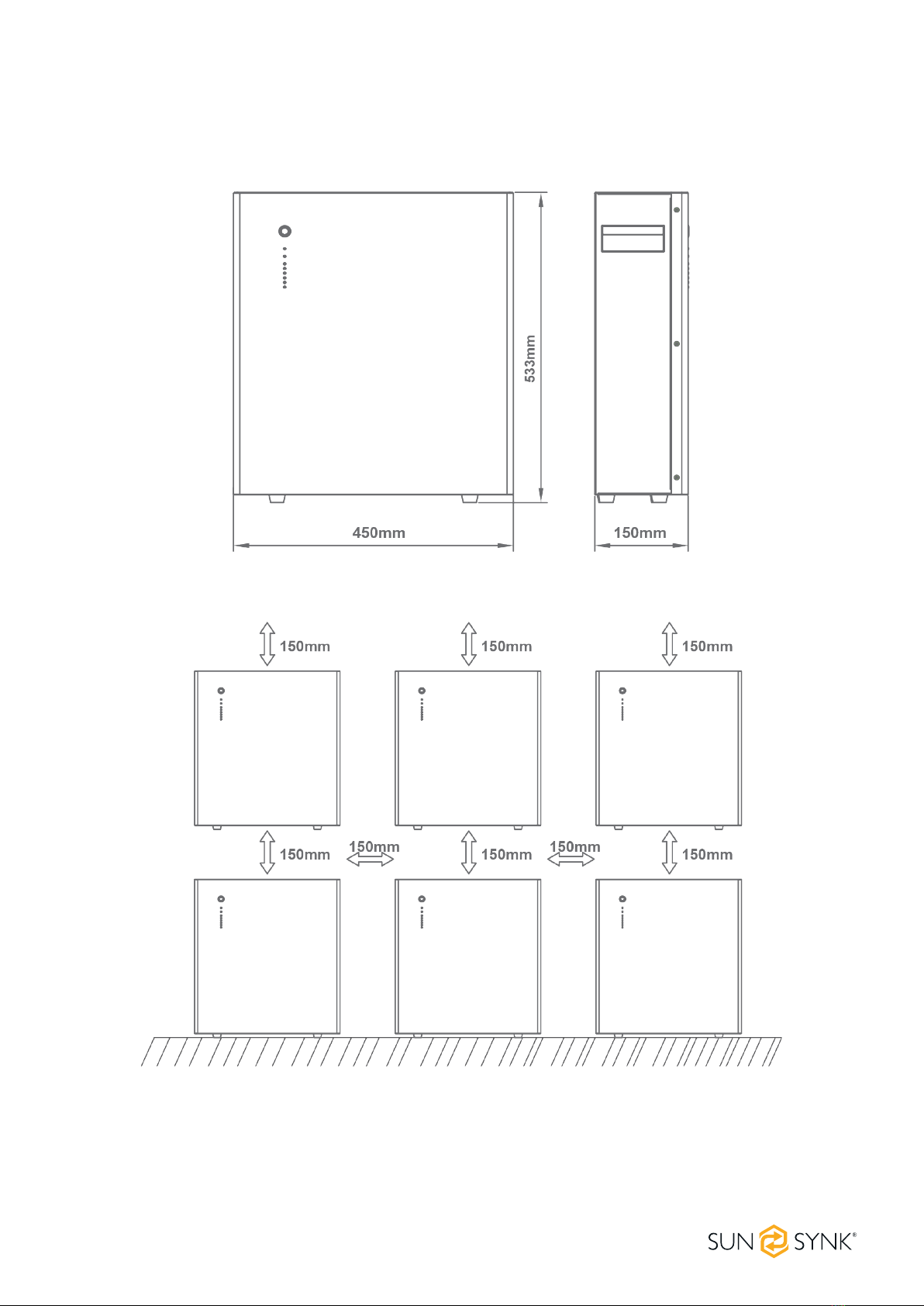

3.5.1. Dimensions 11
3.5.2. Installation Procedure 12

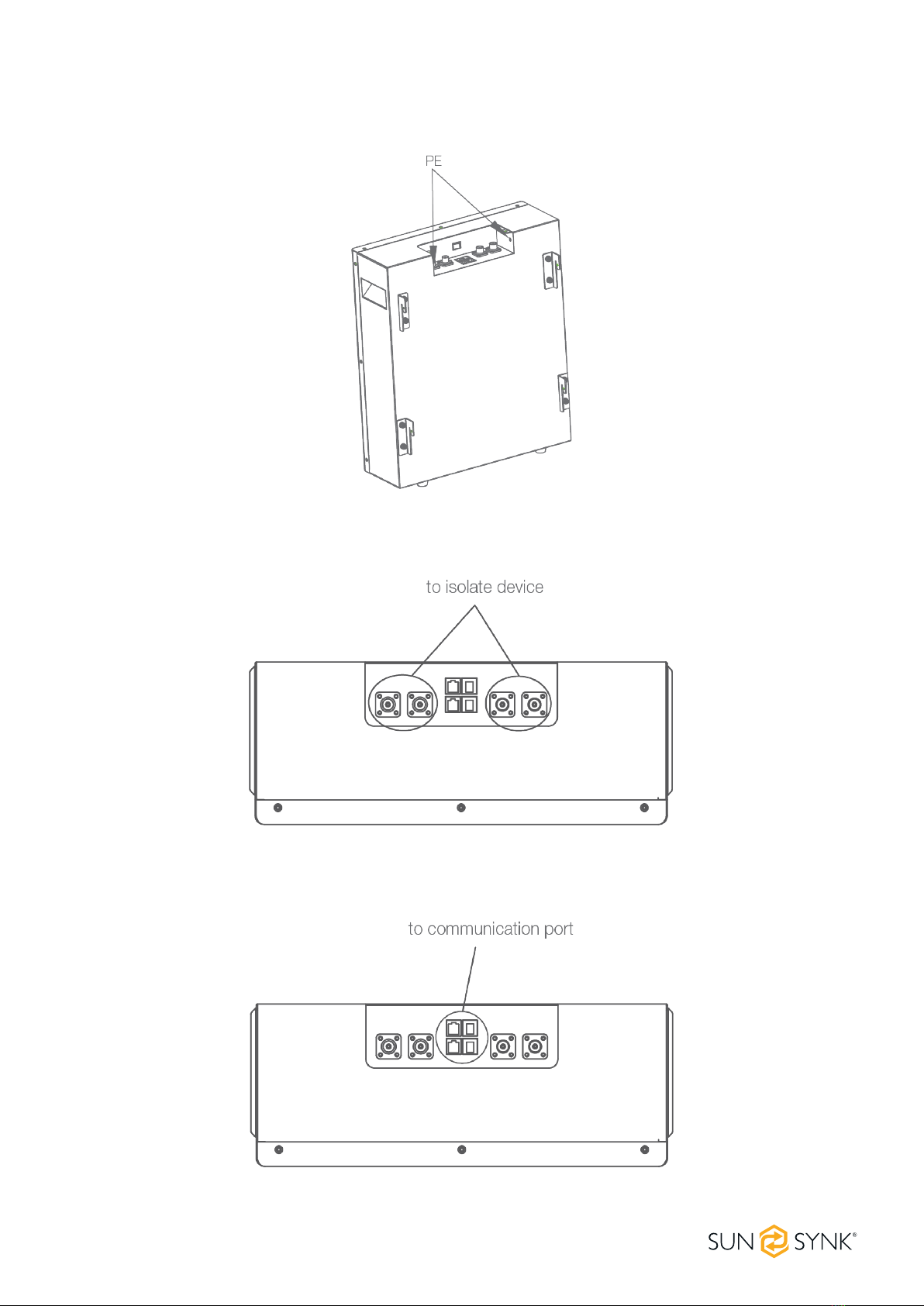

4. BATTERY POWER AND COMMUNICATION CONNECTIONS 15
4.1. Parallel Cascade Connection 15
4.1.1. Power Cable Wiring Instructions 15
4.1.2. Communication Cable Connections 16
4.2. Busbar Connection 16
5. MAINTENANCE 18
5.1. Recharge Requirements During Normal Storage 18
5.2. Recharge Requirements When Over Discharged 18

SUN-BATT-5.12 | User Manual3

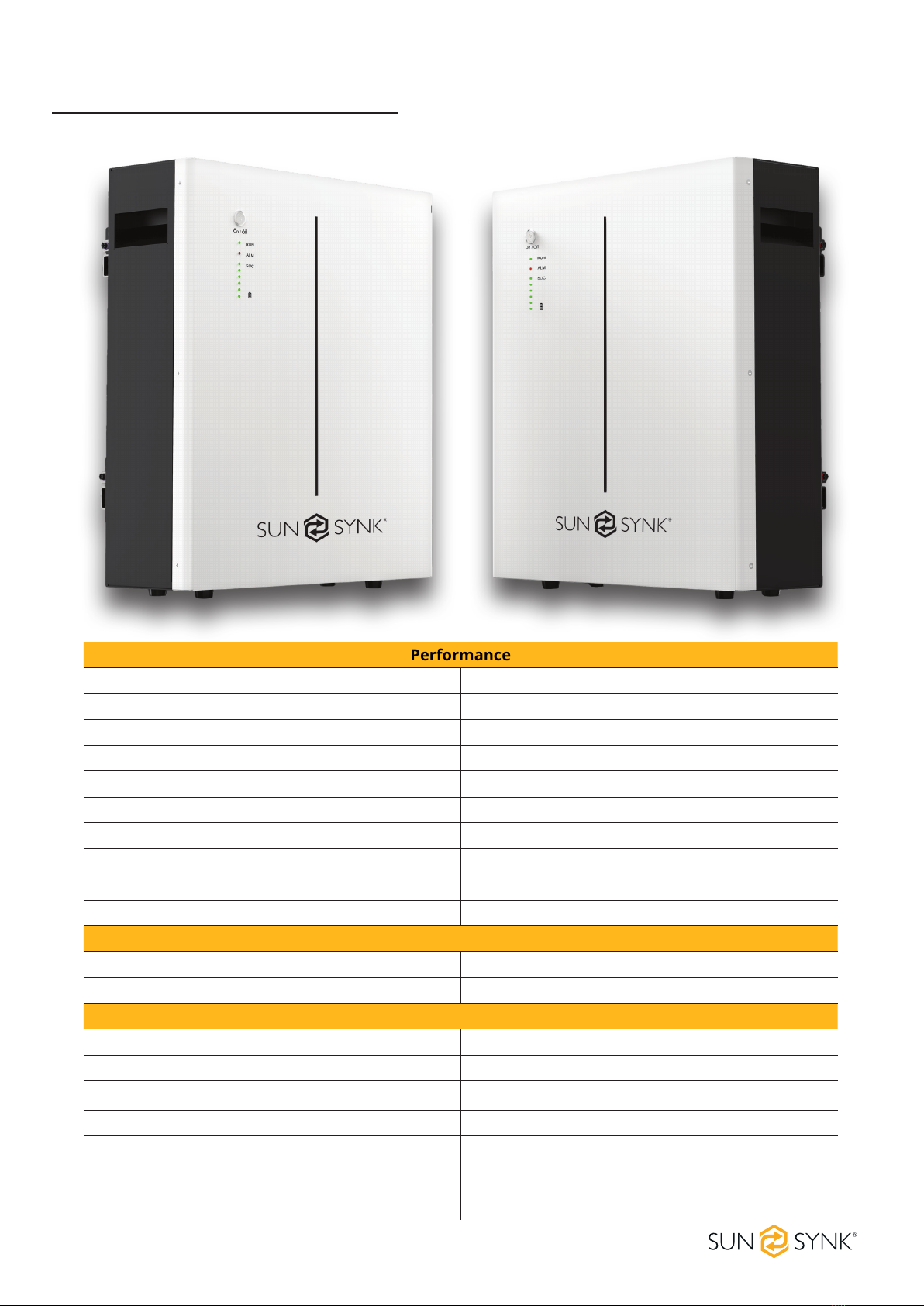

1. TECHNICAL DATA
Performance
Nominal Voltage 51.2 Vdc
Nominal Capacity 100Ah
Battery Energy1 5120 Wh
Charge Voltage 55.68~56.16Vdc
Discharge Voltage 45.6-56.16 Vdc
Nominal Charge/Discharge Current 50A
Nominal Charge/Discharge Power 2500W
Max Charge / Discharge Current 100A
Max Charge / Discharge Power 5000W
Short Circuit Current 350A
Communication
Display SOC status indicator, LED indicator
Communication RS232, RS485, CAN
General Specication
Dimension( W×D×H mm ) 450×150×533mm
Weight (Kg) 47kg
Installation Floor stand or Wall mounted
Working Temperature2 -20ºC ~ 60ºC
Storage Temperature
≤25ºC, 12 months
≤35ºC, 6 months
≤45ºC, 3 months

SUN-BATT-5.12 | User Manual4
PLEASE NOTE
Operating current derating according to cell voltage and battery temperature.
1. Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25ºC;
2. Charge/discharge derating occurs when the operating temperature from -10ºC to 5 ºC & 45ºC to
55ºC.
3. Condition apply. Refer to SUN-BATT-5.12 Warranty Letter
General Specication
Operating / Storage / humidity ≤ 95%RH
Max Operating Altitude ≤2000m
IP Rating IP20
Cell Technology LiFePO4, Lithium-ion Phosphate
Cycle life3 6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL
Scalability Max 8 batteries in parallel
Standard Compliance
Certication UN38.3, IEC62619, IEC62040-1 (more available
upon request)
Ordering and Deliverable Part
Product ordering part
SUN-BATT-5.12-BYD 100Ah Wall
SUN-BATT-5.12 parallel cable
SUN-BATT-5.12 to PCS cable

SUN-BATT-5.12 | User Manual5
2. PRODUCT OVERVIEW

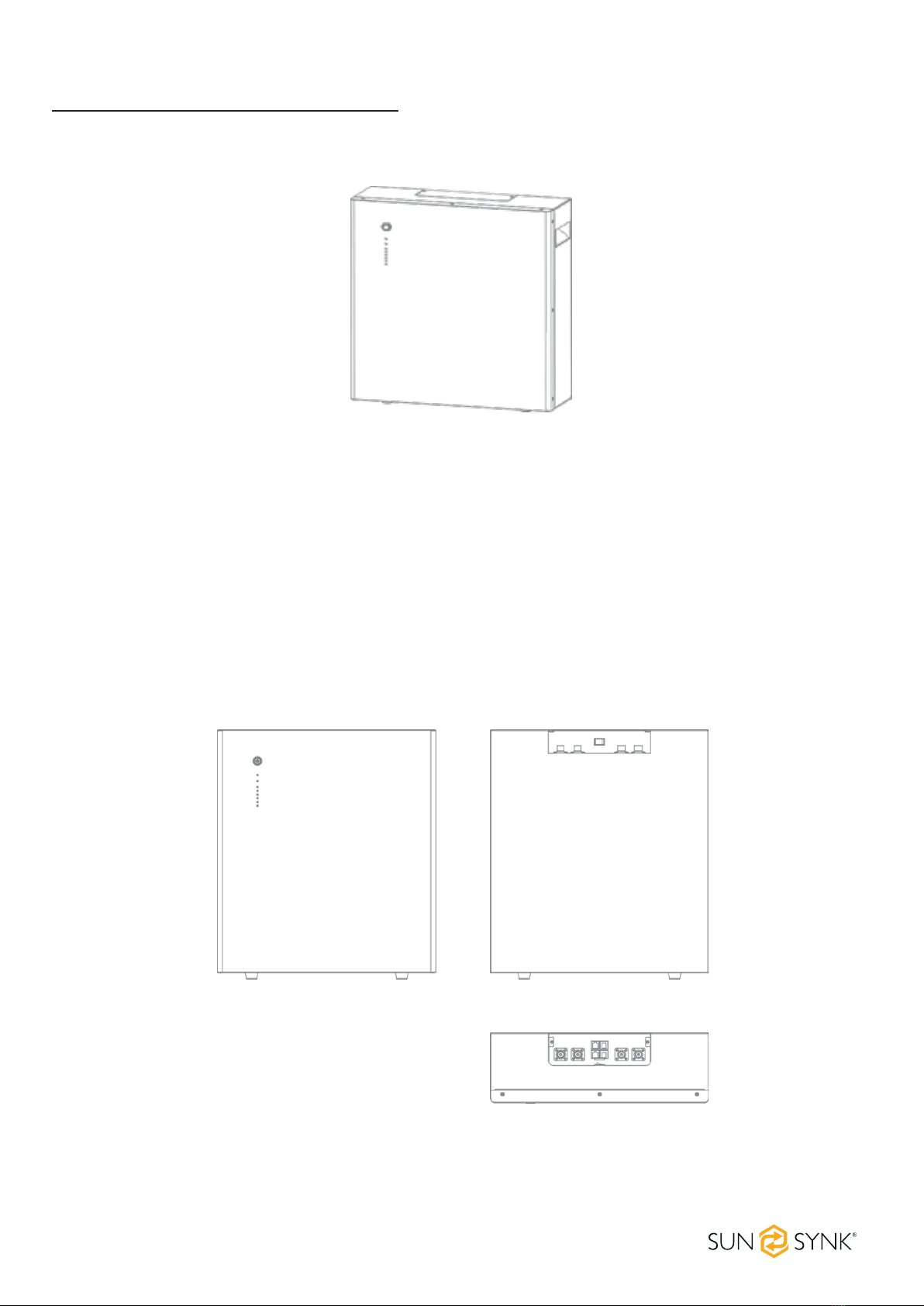

2.1. Brief Introduction
SUN-BATT-5.12 is a lithium battery with an operating voltage range between 45.6~56.16V. It is designed for
residential energy storage applications and works together with a 48v battery hybrid inverter. SUN-BATT-5.12
is not suitable for supporting life-sustaining medical devices.
SUN-BATT-5.12 has built-in BMS (Battery Management System), which can manage and monitor cells informa-
tion including voltage, current and temperature. Besides that, BMS can balance cells charging to extend cycle
life. BMS has protection functions including over-dis- charge, over-charge, over-current and high/low temper-
ature; the system can automatically manage charge state, discharge state and balance state.
Multiple SUN-BATT-5.12 can be connected in parallel to expand capacity and power, 8 SUN-BATT-5.12 can be
connected in parallel at most.
2.2. Interface Introduction

SUN-BATT-5.12 | User Manual6
Status
RUN ALM Battery Level Indicator
Discriptions
L8 L7 L6 L5 L4 L3 L2 L1
Shut down OFF OFF OFF OFF OFF OFF OFF OFF All OFF
Standby Flash 1 OFF According to the battery level Indicates Standby
Charging
Normal Light OFF According to the battery level
The highest capacity
indicator LED ashes
(ash 2),others lighting
Full
Charged Light OFF Light Light Light Light Light Light Turn to standby status when charger o
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop charging
Dis-
charge
Normal Flash 3 OFF According to the battery level
UVP OFF OFF OFF OFF OFF OFF OFF OFF Stop charging
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop discharge
Fault OFF Light OFF OFF OFF OFF OFF OFF Stop charging and
Discharge
2.2.1. Switch ON/OFF
Switch ON
For single SUN-BATT-5.12, switch ON rocker switch, then long press (more than 3 seconds) ON/OFF button on
front panel, LED will ash, then battery will operate normally. L1 to L6 shows battery SoC, L7/L8 shows battery
status.
For multiple SUN-BATT-5.12 in parallel, switch ON rocker switch on all batteries, long press (more than 3 sec-
onds) ON/OFF button of MASTER battery, LED will ash, battery system will automatically encode and assign ID
to each slave battery, then battery system will operate normally.
Switch OFF
Press start button of Master PACK more than 3s and then release the button, the master pack will shut down
after all slave packs shut down(Sleep mode) .
For single SUN-BATT-5.12, switch OFF rocker switch.
For multiple SUN-BATT-5.12 in parallel, switch OFF rocker switch on MASTER battery rst. Then switch OFF
rocker switch on all slave batteries
2.2.2. LED Indicator Denition
Note:
ash 1 - 0.25s light / 3.75s o
ash 2 - 0.5s light / 0.5s o
ash 3 - 0.5s light / 1.5s o

SUN-BATT-5.12 | User Manual7
2.2.3. CAN / RS485 Port
CAN / RS485 Communication Terminal (RJ45 port), connect to inverter, follow CAN / RS485 protocol.
PIN Denition
Pin 1, Pin 8 RS485-B ( to PCS, reserved )
Pin 2, Pin 7 RS485-A ( to PCS, reserved )
Pin 3 NC
Pin 4 CANH ( to PCS )
Pin 5 CANL ( to PCS )
Pin 6 GND
2.2.4. RS232 Port
RS232 Communication Terminal (RJ45 port) follow RS232 protocol, for manufacturer or professional engi-
neer to debug or service.
PIN Denition
Pin 1, Pin 8 GND
Pin 2, Pin 7 RS232_TX
Pin 3, Pin 6 RS232_RX
Pin 4, Pin 5 NC
Charging Battery Level Indicators Instructions:
Status Charging
Battery Level Indicator L8 L7 L6 L5 L4 L3 L2
L1
Battery Level
( %)
0 ~ 17%
Light OFF
OFF OFF OFF OFF OFF Flash 2
18 ~ 33% OFF OFF OFF OFF Flash 2 Light
34 ~ 50% OFF OFF OFF Flash 2 Light Light
51 ~ 66% OFF OFF Flash 2 Light Light Light
67 ~ 83% OFF Flash 2 Light Light Light Light
84 ~ 100% Flash 2 Light Light Light Light Light
Full
Charged Light Light Light Light Light
Light
Discharging Battery Level Indicators Instructions:
Status Discharge
Battery Level Indicator L8 L7 L6 L5 L4 L3 L2
L1
Battery Level
( %)
0 ~ 17%
Flash 3 OFF
OFF OFF OFF OFF OFF Light
18 ~ 33% OFF OFF OFF OFF Light Light
34 ~ 50% OFF OFF OFF Light Light Light
51 ~ 66% OFF OFF Light Light Light Light
67 ~ 83% OFF Light Light Light Light Light
84 ~ 100% Light Light Light Light Light Light

SUN-BATT-5.12 | User Manual8
3. INSTALLATION GUIDE
3.1. Checking Before Installation
3.1.1. Checking Outer Packing Materials
Packing materials and components may be damaged during transportation. Therefore, check the outer pack-
ing materials before installing the battery. Checking the surface of packing materials for damage, such as holes
and cracks. If any damage is found, do not unpack the battery and contact the dealer as soon as possible. You
are advised to remove the packing materials within 24 hours before installing the battery.
3.2. Checking Deliverables
After unpacking the battery, check whether deliverables are intact and complete. If any damage is found or any
component is missed, contact the dealer.
The below table shows the components and mechanical parts that should be delivered.

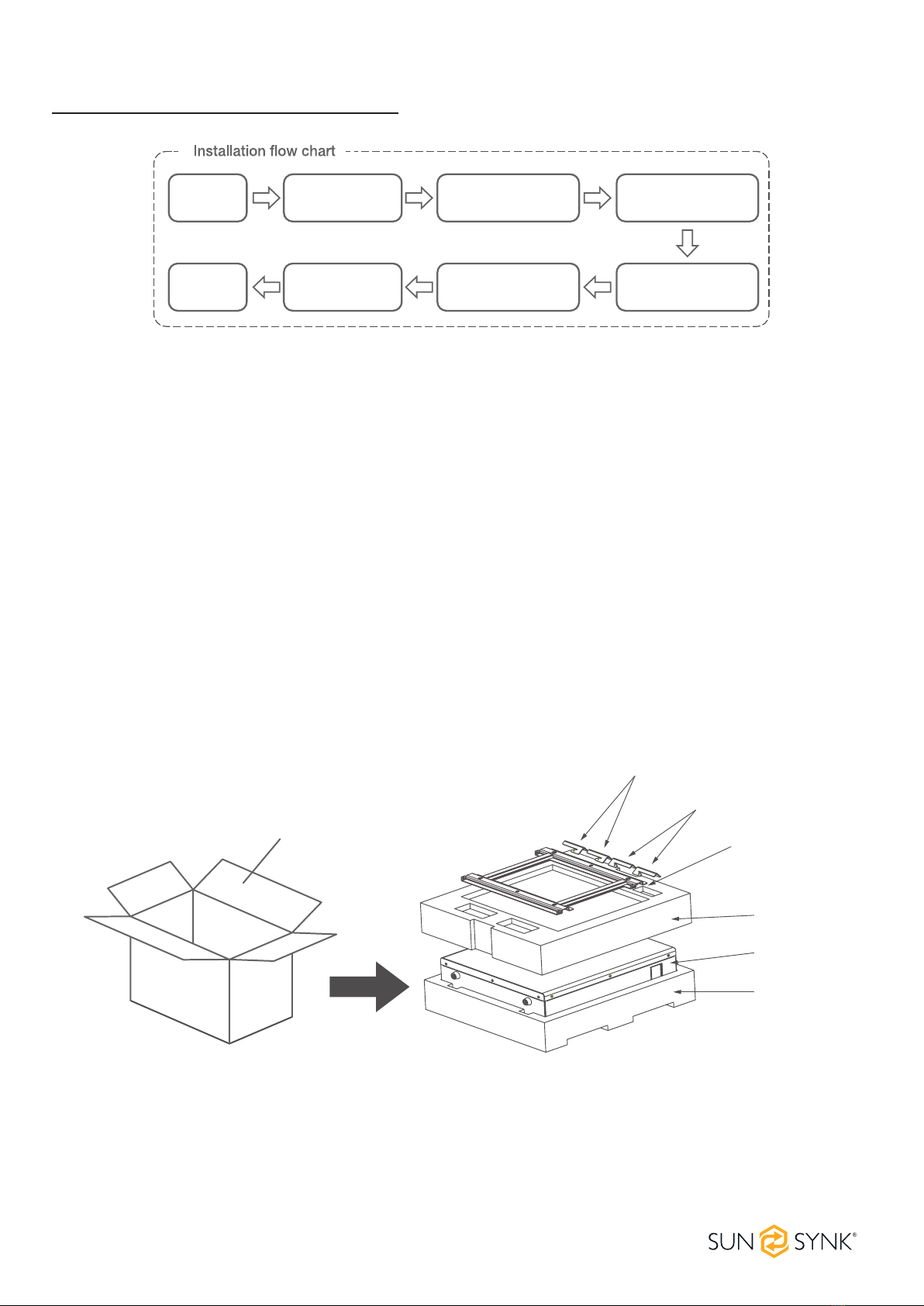

Start
END
Check Before
Installation
Prepare
Installation Tools
Determine The
Installation Position
Electrical
Connection
Install Wall
Bracket
Install Battery
Carton
Hanging bracket
1 Hanging bracket
2W all bracket
Pearl wool
Battery
Pearl wool

SUN-BATT-5.12 | User Manual9

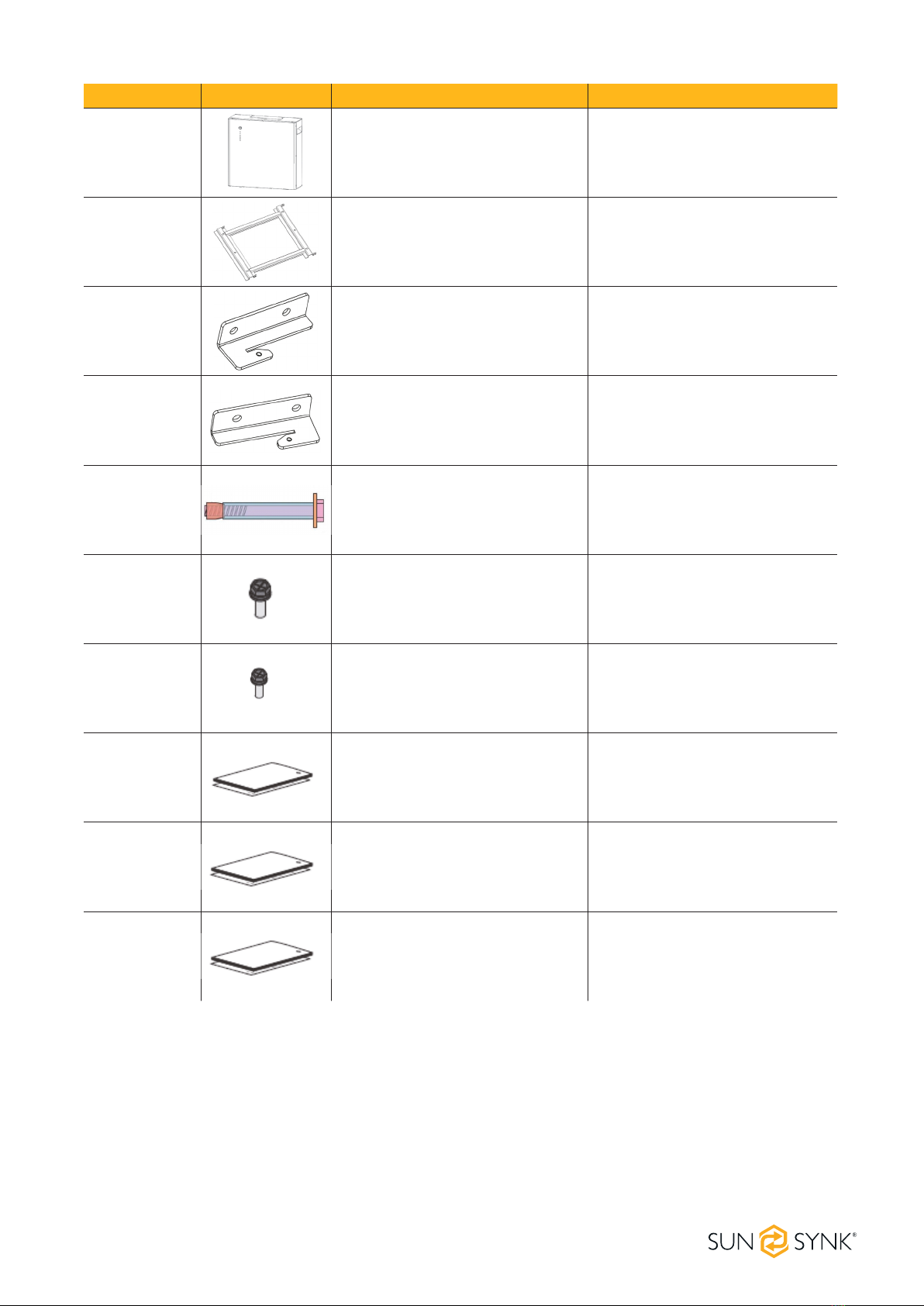

NO. Pictures Quantity Description
1 1PCS Battery
2 1PCS Wall bracket
3 2PCS Hanging bracket 1
4 2PCS Hanging bracket 2
5 6PCS M8*60
6 8PCS M6*16
7 4PCS M4*20
8 1PCS M4*20
91PCS Manual
10 1PCS Test report

SUN-BATT-5.12 | User Manual10

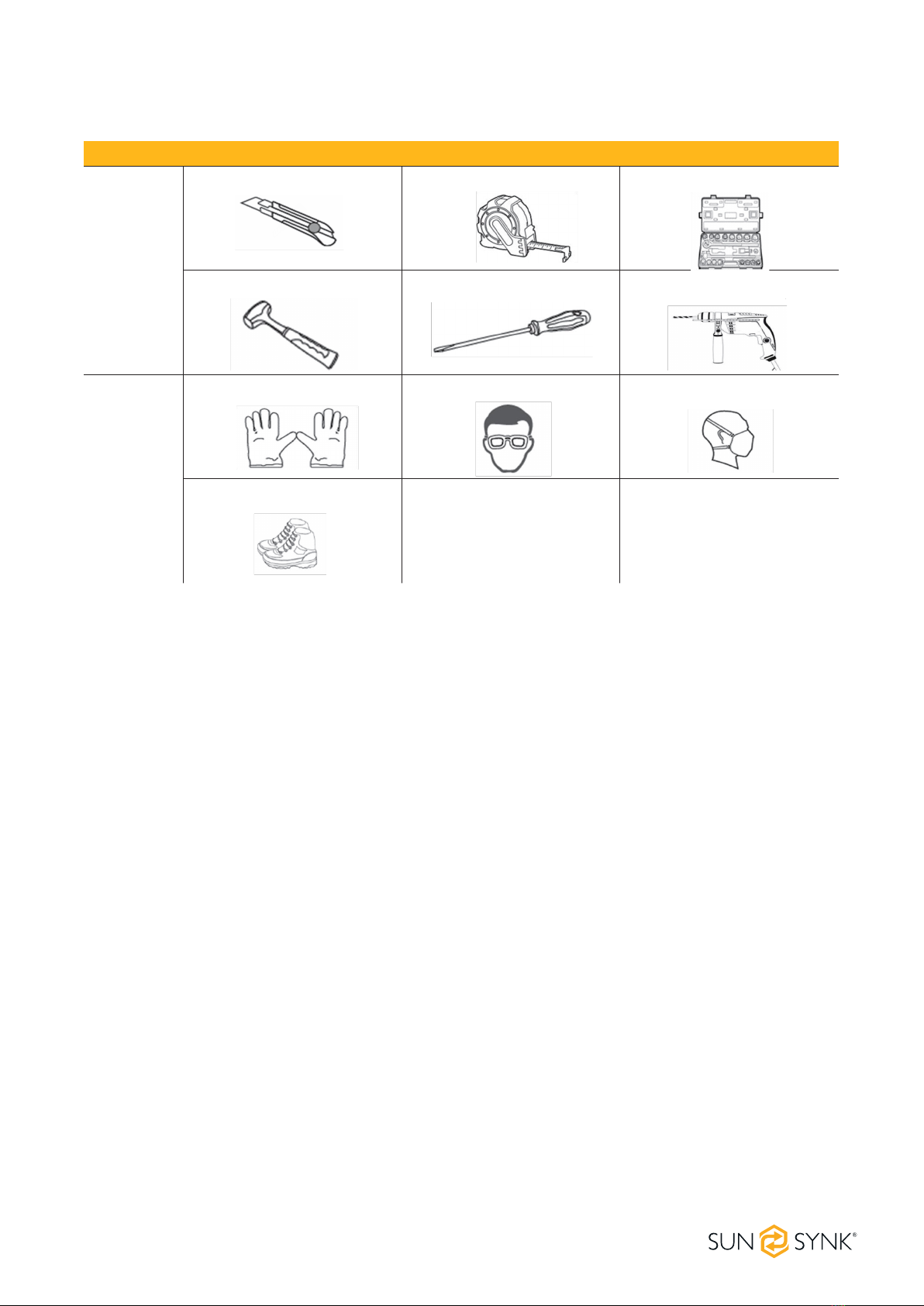

3.3. Tools
Tools
Installation
Knife Measuring tape Socket wrench (10/16mm)
Rubber mallet Cross Screwdriver Hammer drill (8mm)
Protection
ESD gloves Safety goggles Anti-dust respirator
Safety shoes
3.4. Installation Requirements
3.4.1. Installation Environment Requirements
Install the battery in the indoor environment.
Place battery in secure location away from children and animals.
Do not place the battery near any heat sources and avoid sparks.
Do not expose the battery to moisture or liquids.
Do not expose the battery to direct sunlight.
3.4.2. Installation Carrier Requirements
Only mount battery on re resistant building. Do not install batteries on ammable buildings.
Battery is quite heavy, make sure the wall/ground can meet the load bearing requirements.
