SunSynk SUN-BATT-5.32R User manual

SUN-BATT-5.32R
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.
171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
www.sunsynk.com / [email protected]
USER MANUAL
v.1 (01/27/23)
Rack Mounted

SUN-BATT-5.12R | User Manual2
Table of Contents
1. TECHNICAL DATA 4
1.1. Appearance 5
1.1.1. Rack Mounted SUN-BATT-5.32R 5
1.1.2. Wall Mounted SUN-BATT-5.32R 6
1.1.3. Cabinet Mounted SUN-BATT-5.32R 6
2. PRODUCT OVERVIEW 7
2.1. BriefIntroduction 7
2.2. InterfaceIntroduction 7
2.2.1. Switch ON/OFF 7
2.2.2. LED Indicator Denition 7
2.2.3. CAN / RS485 Port 9
2.2.4. RS232 Port 9
3. INSTALLATION GUIDE 10
3.1. CheckingBeforeInstallation 10
3.1.1. Checking Outer Packing Materials 10
3.2. CheckingDeliverables 10
3.2.1. Rack Mounted Accessory Deliverables 11
3.2.2. Wall Mounted Accessory Deliverables 11
3.3. Tools 12
3.4. InstallationRequirements 12
3.4.1. Installation Environment Requirements 12
3.4.2. Installation Carrier Requirements 12
3.5. InstallationInstructions 13
3.5.1. Dimensions 13
3.5.2. Installation Steps (Rack Mounted) 14
3.5.3. Installation Steps (Wall Mounted) 15
4. BATTERY POWER AND COMMUNICATION CONNECTIONS 17
4.1. WiringSteps 17
4.2. ParallelCascadeConnection 18
4.2.1. Power Cable Wiring Instructions 18
4.2.2. Communication Cable Connections 18
4.2.3. Wiring Diagram for Parallel Cascade Connection 19

SUN-BATT-5.12R | User Manual3
5. MAINTENANCE 20
5.1. RechargeRequirementsDuringNormalStorage 20
5.2. RechargeRequirementsWhenOverDischarged 20

SUN-BATT-5.12R | User Manual4
1. TECHNICAL DATA
Performance
Nominal Voltage 51.2 Vdc
Nominal Capacity 104Ah
Battery Energy1 5320 Wh
Charge Voltage 55.68~56.16Vdc
Discharge Voltage 45.6-56.16 Vdc
Nominal Charge/Discharge Current 50A
Nominal Charge/Discharge Power 2500W
Max Charge / Discharge Current 100A
Max Charge / Discharge Power 5000W
Short Circuit Current 350A
Communication
Display SOC status indicator, LED indicator
Communication RS232, RS485, CAN
GeneralSpecication
Dimension( W×D×H mm ) 440×550×130mm
Weight (Kg) 46kg
Installation Rack-Mounted, Wall-Mounted or
Cabinet-Mounted
Working Temperature2 -20ºC ~ 60ºC
Storage Temperature
≤25ºC, 12 months
≤35ºC, 6 months
≤45ºC, 3 months
Operating / Storage / humidity IP20
Max Operating Altitude ≤ 95%RH
IP Rating ≤ 2000m
Cell Technology LiFePO4, Lithium Iron Phosphate
Cycle life3 6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL
Scalability Max 8 batteries in parallel
StandardCompliance
Certication
PACK: UN38.3, IEC62619, IEC61000, CELL:
UN38.3, IEC62619, UL 1642, JET (more
available upon request)
OrderingandDeliverablePart
Product ordering part
SUN-BATT-5.32R Battery
SUN-BATT-5.32R Power cable
SUN-BATT-5.32R Parallel cable

SUN-BATT-5.12R | User Manual5
PLEASE NOTE
Operating current derating according to cell voltage and battery temperature.
1. Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25ºC;
2. Charge/discharge derating occurs when the operating temperature from -10ºC to 5 ºC & 45ºC to
55ºC.
3. Condition apply. Refer to SUN-BATT-5.32R Warranty Letter
1.1. Appearance

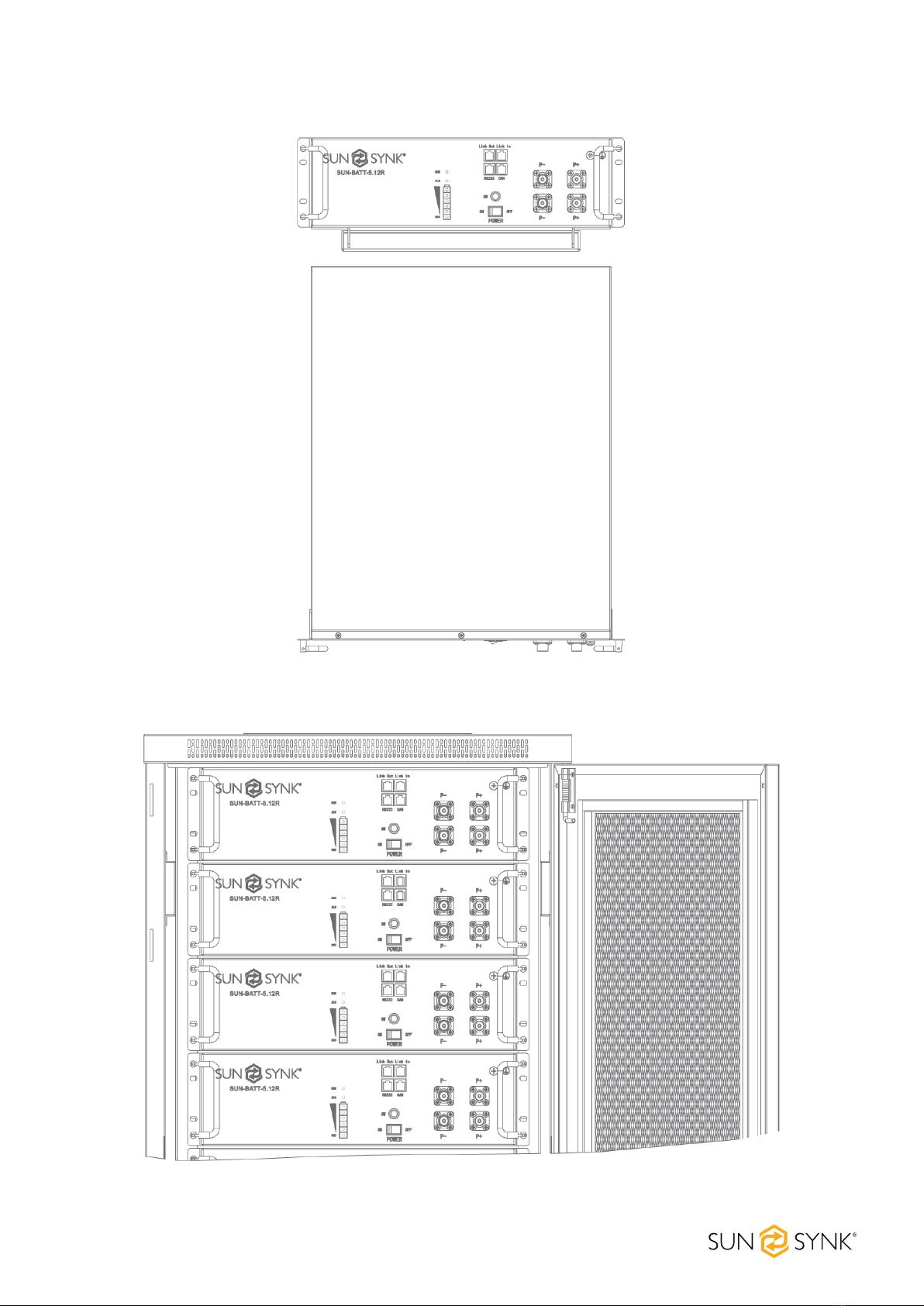

1.1.1. Rack Mounted SUN-BATT-5.32R

SUN-BATT-5.12R | User Manual6
1.1.2. Wall Mounted SUN-BATT-5.32R
1.1.3. Cabinet Mounted SUN-BATT-5.32R

SUN-BATT-5.12R | User Manual7
2. PRODUCT OVERVIEW
2.1. Brief Introduction
SUN-BATT-5.32R is a lithium battery with an operating voltage range between 45.6~56.16V. It is designed for
residential energy storage applications and works together with a 48v battery hybrid inverter. SUN-BATT-5.32R
is not suitable for supporting life-sustaining medical devices.
SUN-BATT-5.32R has built-in BMS (Battery Management System), which can manage and monitor cells infor-
mation including voltage, current and temperature. Besides that, BMS can balance cells charging to extend
cycle life. BMS has protection functions including over-dis- charge, over-charge, over-current and high/low
temperature; the system can automatically manage charge state, discharge state and balance state.
Multiple SUN-BATT-5.32R can be connected in parallel to expand capacity and power, 8 SUN-BATT-5.32R can
be connected in parallel at most.
2.2. Interface Introduction
2.2.1. Switch ON/OFF
Switch ON
For single SUN-BATT-5.32R, switch ON rocker switch, then long press (more than 3 seconds) ON/OFF button
on front panel, LED will ash, then battery will operate normally. L1 to L6 shows battery SoC, L7/L8 shows
battery status.
For multiple SUN-BATT-5.32R in parallel, switch ON rocker switch on all batteries, long press (more than 3 sec-
onds) ON/OFF button of MASTER battery, LED will ash, battery system will automatically encode and assign ID
to each slave battery, then battery system will operate normally.
Switch OFF
Press start button of Master PACK more than 3s and then release the button, the master pack will shut down
after all slave packs shut down(Sleep mode) .
For single SUN-BATT-5.32R, switch OFF rocker switch.
For multiple SUN-BATT-5.32R in parallel, switch OFF rocker switch on MASTER battery rst. Then switch OFF
rocker switch on all slave batteries
2.2.2. LED Indicator Denition
Note:
ash 1 - 0.25s light / 3.75s o
ash 2 - 0.5s light / 0.5s o
ash 3 - 0.5s light / 1.5s o

SUN-BATT-5.12R | User Manual8
Status
RUN ALM Battery Level Indicator
Discriptions
L8 L7 L6 L5 L4 L3 L2 L1
Shut down OFF OFF OFF OFF OFF OFF OFF OFF All OFF
Standby Flash 1 OFF According to the battery level Indicates Standby
Charging
Normal Light OFF According to the battery level
The highest capacity
indicator LED ashes
(ash 2),others lighting
Full
Charged Light OFF Light Light Light Light Light Light Turn to standby status when charger o
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop charging
Dis-
charge
Normal Flash 3 OFF According to the battery level
UVP OFF OFF OFF OFF OFF OFF OFF OFF Stop charging
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop discharge
Fault OFF Light OFF OFF OFF OFF OFF OFF Stop charging and
Discharge
Charging Battery Level Indicators Instructions:
Status Charging
Battery Level Indicator L8 L7 L6 L5 L4 L3 L2
L1
Battery Level
( %)
0 ~ 17%
Light OFF
OFF OFF OFF OFF OFF Flash 2
18 ~ 33% OFF OFF OFF OFF Flash 2 Light
34 ~ 50% OFF OFF OFF Flash 2 Light Light
51 ~ 66% OFF OFF Flash 2 Light Light Light
67 ~ 83% OFF Flash 2 Light Light Light Light
84 ~ 100% Flash 2 Light Light Light Light Light
Full
Charged Light Light Light Light Light
Light
Discharging Battery Level Indicators Instructions:
Status Discharge
Battery Level Indicator L8 L7 L6 L5 L4 L3 L2
L1
Battery Level
( %)
0 ~ 17%
Flash 3 OFF
OFF OFF OFF OFF OFF Light
18 ~ 33% OFF OFF OFF OFF Light Light
34 ~ 50% OFF OFF OFF Light Light Light
51 ~ 66% OFF OFF Light Light Light Light
67 ~ 83% OFF Light Light Light Light Light
84 ~ 100% Light Light Light Light Light Light

SUN-BATT-5.12R | User Manual9
2.2.3. CAN / RS485 Port
CAN / RS485 Communication Terminal (RJ45 port), connect to inverter, follow CAN / RS485 protocol.
PIN Denition
Pin 1, Pin 8 RS485-B ( to PCS, reserved )
Pin 2, Pin 7 RS485-A ( to PCS, reserved )
Pin 3 NC
Pin 4 CANH ( to PCS )
Pin 5 CANL ( to PCS )
Pin 6 GND
2.2.4. RS232 Port
RS232 Communication Terminal (RJ45 port) follow RS232 protocol, for manufacturer or professional engi-
neer to debug or service.
PIN Denition
Pin 1, Pin 8 GND
Pin 2, Pin 7 RS232_TX
Pin 3, Pin 6 RS232_RX
Pin 4, Pin 5 NC

SUN-BATT-5.12R | User Manual10
3. INSTALLATION GUIDE
3.1. Checking Before Installation
3.1.1. Checking Outer Packing Materials
Packing materials and components may be damaged during transportation. Therefore, check the outer pack-
ing materials before installing the battery. Checking the surface of packing materials for damage, such as holes
and cracks. If any damage is found, do not unpack the battery and contact the dealer as soon as possible. You
are advised to remove the packing materials within 24 hours before installing the battery.
3.2. Checking Deliverables
After unpacking the battery, check whether deliverables are intact and complete. If any damage is found or any
component is missed, contact the dealer.
The below table shows the components and mechanical parts that should be delivered.

SUN-BATT-5.12R | User Manual11

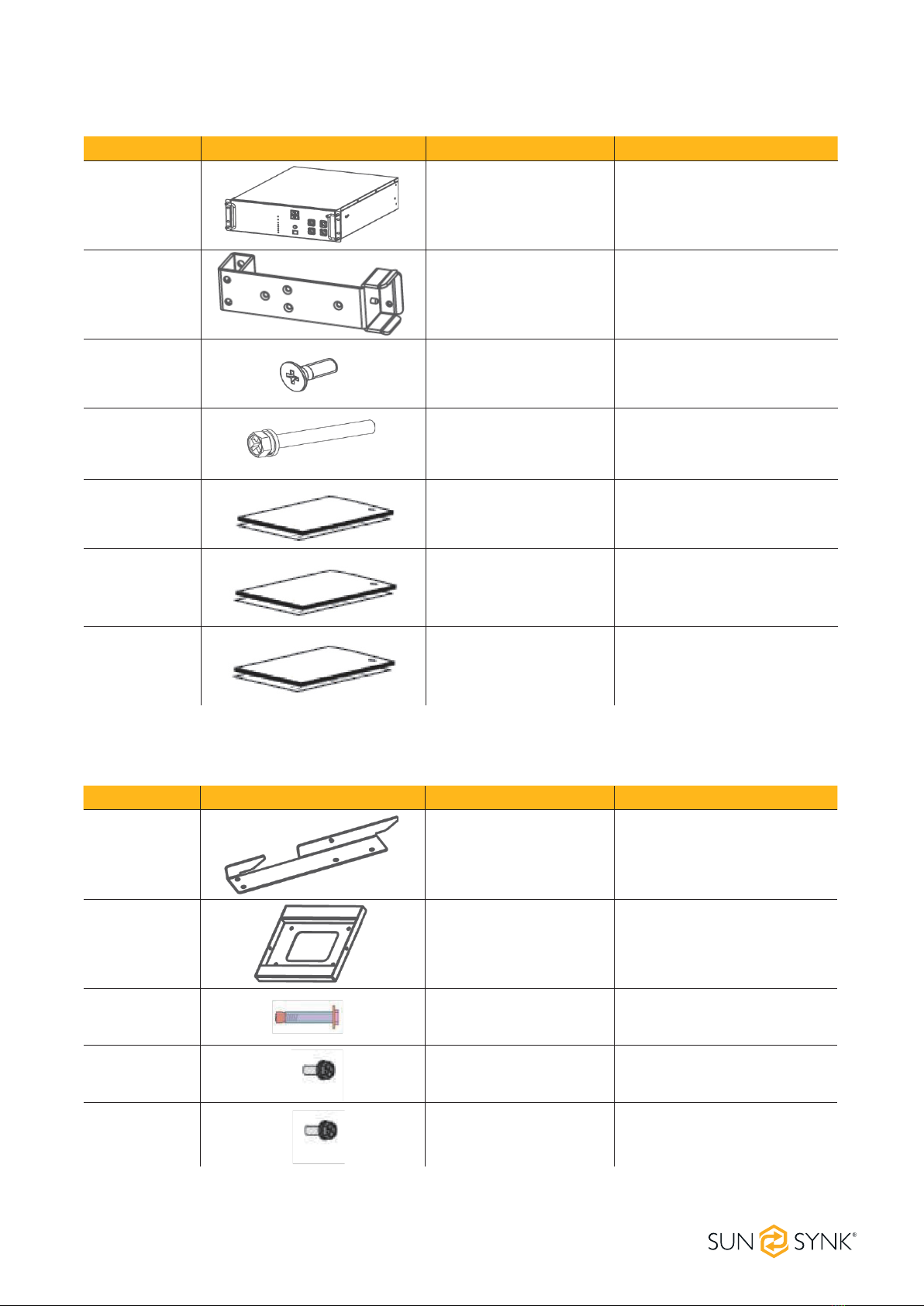

NO. Pictures Quantity Description
1 1PCS Battery
2 4PCS Support frame
3 12PCS M4*8
4 8PCS M6*50
5 1PCS Manual
6 1PCS Test report
7 1PCS Certicate
3.2.2. Wall Mounted Accessory Deliverables
NO. Pictures Quantity Description
1 2PCS Hanging bracket
2 1PCS Wall bracket
3 4PCS M8*60 Expansion bolts
4 2PCS M4*20
5 8PCS M6*16
3.2.1. Rack Mounted Accessory Deliverables

SUN-BATT-5.12R | User Manual12
3.3. Tools
Tools
Installation
Knife Measuring tape Socket wrench (10/16mm)
Rubber mallet Cross Screwdriver Hammer drill (8mm)
Protection
ESD gloves Safety goggles Anti-dust respirator
Safety shoes
3.4. Installation Requirements
3.4.1. Installation Environment Requirements
Install the battery in the indoor environment.
Place battery in secure location away from children and animals.
Do not place the battery near any heat sources and avoid sparks.
Do not expose the battery to moisture or liquids.
Do not expose the battery to direct sunlight.
3.4.2. Installation Carrier Requirements
Only mount battery on re resistant building. Do not install batteries on ammable buildings.
Battery is quite heavy, make sure the wall/ground can meet the load bearing requirements.

SUN-BATT-5.12R | User Manual13
3.5. Installation Instructions

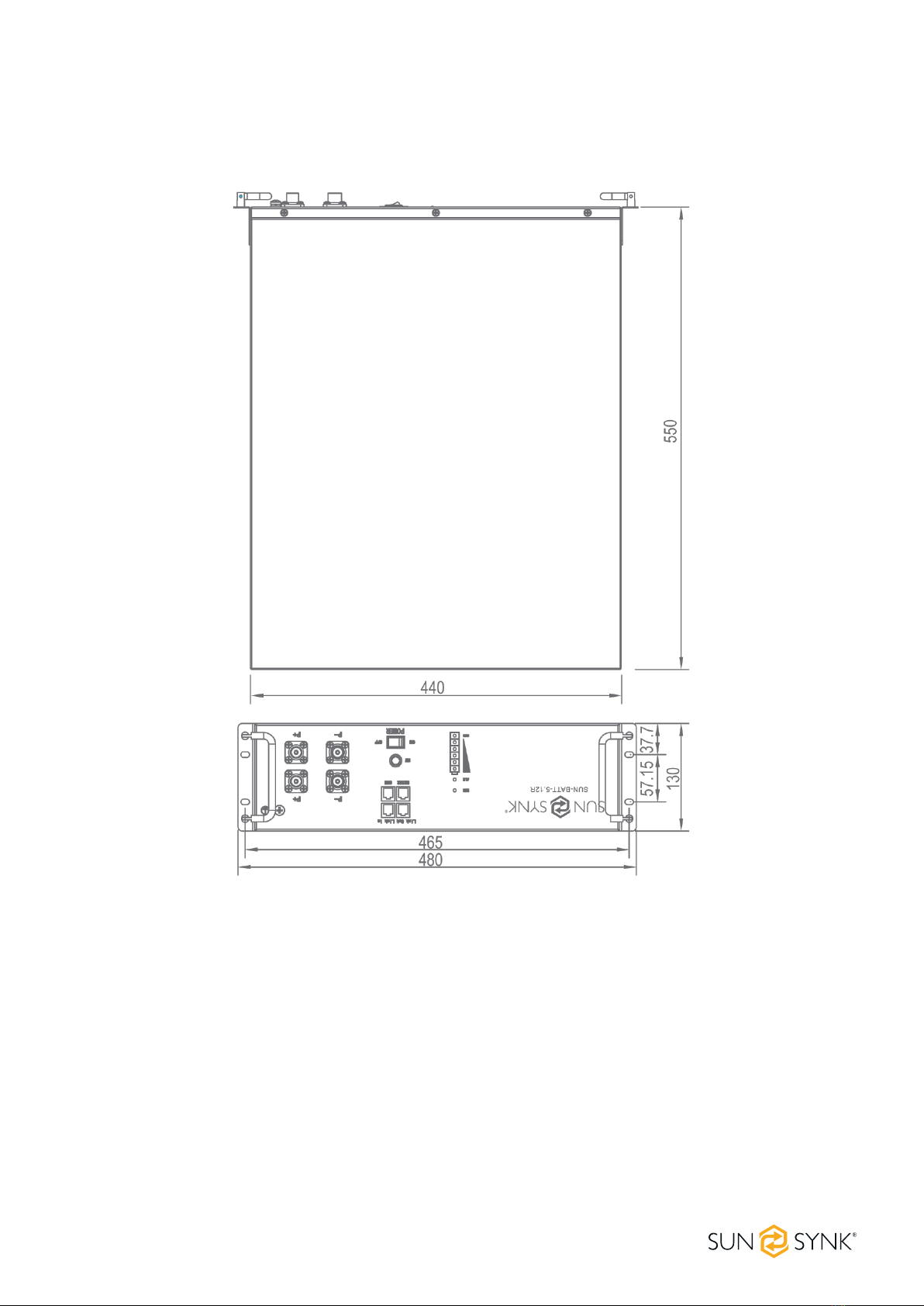

3.5.1. Dimensions

SUN-BATT-5.12R | User Manual14

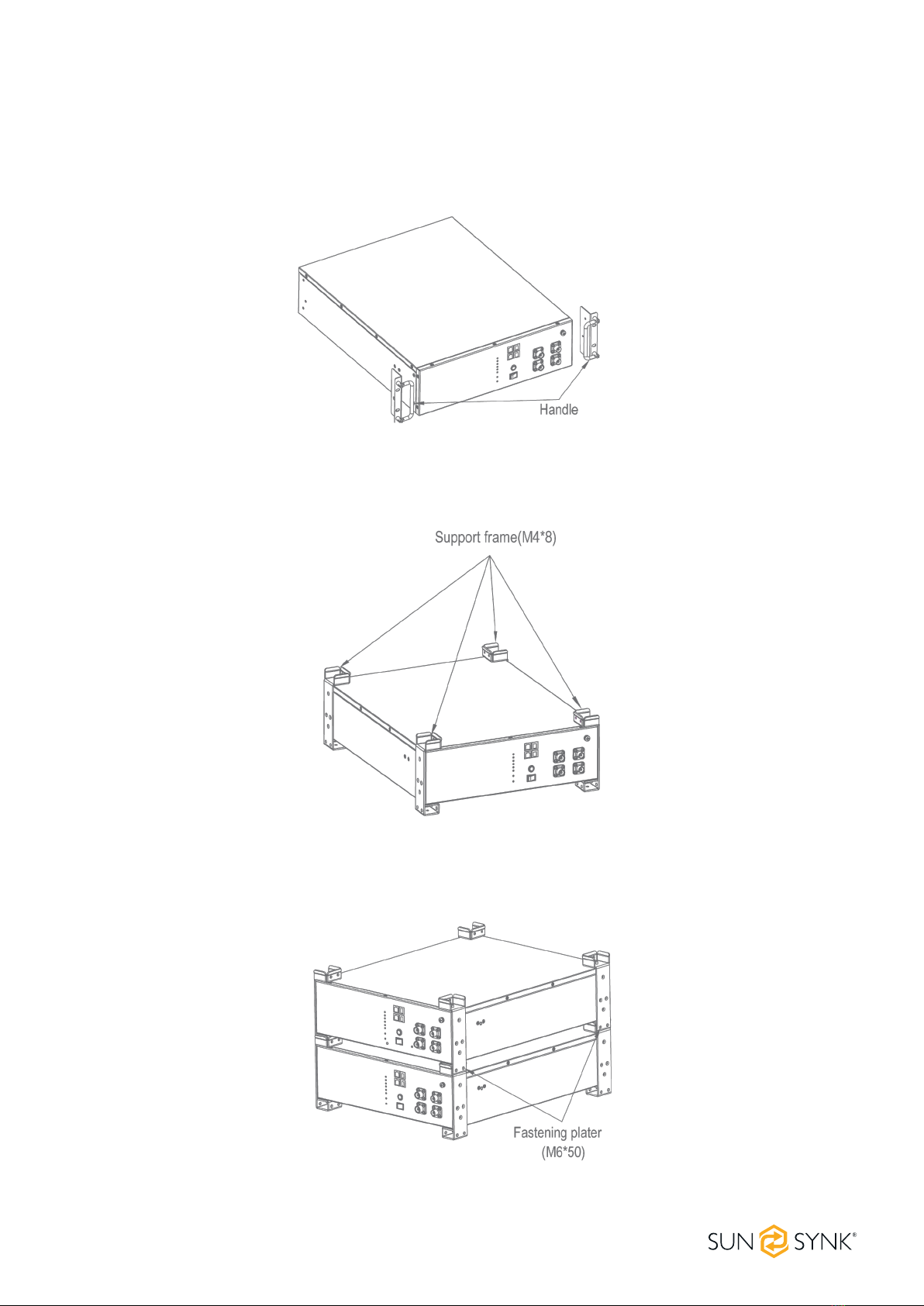

3.5.2. Installation Steps (Rack Mounted)
STEP 1
Remove the handle from the battery.
STEP 2
Install Support frames at the four corners of the battery.
STEP 3
The battery with the support frame is stacked up and down.

SUN-BATT-5.12R | User Manual15
3.5.3. Installation Steps (Wall Mounted)
Minimum mounting distance requirement (Wall Mounted):
STEP 1
Drill the hole with an 10mm drill bit as follows and x the wall bracket to the wall.

SUN-BATT-5.12R | User Manual16
STEP 2
Install the wall hanging bracket.
STEP 3
Hang the machine on the wall hanging back plate and tighten it.

SUN-BATT-5.12R | User Manual17
STEP 1
Connect the battery to ground.
STEP 2
Connect the battery power line.
STEP 3
Connect the communication lines.
4. BATTERY POWER AND COMMUNICATION CONNECTIONS
4.1. Wiring Steps

SUN-BATT-5.12R | User Manual18
Each SUN-BATT-5.32R has two pairs of power cable terminals, two P+, and two P-. The connec- tion terminals
of each pair have the same function.
Single Module
In a single module application, any of the terminals of each pair can be used.
Parallel System
Multiple batteries can be connected in parallel to expand the capacity and power. When using multiple bat-
teries in parallel, one will operate as a master and the others as slaves. One of the Master pack P+ terminals
should connect to the PCS, and the other should connect to another battery for capacity expansion.
One of the P- terminals of the last Slave pack should connect to PCS, and the other should connect to another
battery for capacity expansion.
For the other Slave packs, each P terminal should be connected to another battery's terminal.
4.2. Parallel Cascade Connection
4.2.1. Power Cable Wiring Instructions
The Master battery can automatically identify the Slaves batteries connected in parallel using its internal soft-
ware control. The communication terminals Port In and Port Out (RJ45 port) are integrated with the signal for
automatic coding function.
The following describes the connections of a system with four batteries packs, one Master, and three Slaves.
The CAN communication port of the Master pack should connect to PCS;
Port In from the Master pack should not be connected;
The Port Out from the master PACK should connect the Port In of the rst slave PACK using a parallel
communication wire;
The Port Out of the rst Slave pack should connect to the Port In of the second Slave PACK;
Following the same pattern, the Port Out of the second Slave pack should connect to the Port In of the
third Slave PACK;
The Port Out of the third and last slave PACK should not be connected.
4.2.2. Communication Cable Connections
PLEASE NOTE
The connection to the protection devices should use the P+ terminal from the Master pack
and the P- terminal from the last Slave pack.

SUN-BATT-5.12R | User Manual19
4.2.3. Wiring Diagram for Parallel Cascade Connection
When multiple batteries are connected in parallel, follow the following wiring mode.

SUN-BATT-5.12R | User Manual20
Battery should be stored in an environment with temperature range between -10°C ~ +45°C, and maintained
regularly according to following table with 0.5C (25A) current till 40% SoC after long storage time.
Recharge Conditions When In Storage
Storage Environment
Temperature
Relative Humidity of
Storage Environment Storage Time SOC
Below -10ºC / prohibit /
-10~25ºC 5%~70% ≤12 months 30%≤SOC≤60%
25~35ºC 5%~70% ≤6 months 30%≤SOC≤60%
35~45ºC 5%~70% ≤3 months 30%≤SOC≤60%
Above 45ºC / prohibit /
Over discharged (90% DoD) battery should be recharged according to following table, otherwise over dis-
charged battery will be damaged.
Recharge conditions when battery is over discharged
Storage Environment Temper-
ature Storage Time Note
-10~25ºC ≤15 days Battery Pack disconnected from PCS
25~35ºC ≤7 days
35~45ºC <12 hours Battery Pack connected to PCS
5. MAINTENANCE
5.1. Recharge Requirements During Normal Storage
5.2. Recharge Requirements When Over Discharged
