Suntronic GSU4600L1 User manual

USER’S MANUAL
GSU4600L1(110V)
All Weather Outdoor LCD/Video Wall Signage
Please read this Instruction book before using your LCD monitor. We wish you many
hours of pleasure from your new Outdoor LCD monitor.
CHANGES
Suntronic provides this manual ’as is’ without warranty of any kind, expressed or implied, including
but not limited to the implied warranties or merchantability and fitness for a particular purpose.
Suntronic may make improvements and/or changes to the product(s) and/or the program(s) described in
this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors.
Changes are periodically made to the information in this publication; these changes are incorporated
in new editions of this publication.
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not
otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent
of Suntronic.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights
of their respective holders. All brand and product names mentioned in this manual serve as comments
or examples and are not to be understood as advertising for the products or their manufactures.
www.SuntronicLCD.com
Version 4.5 Oct 2016

- 1 -
LIST
1. Important for customers ·········································2
2. Incoming Inspection & Product Handeling ···························3
3. SAFETY PRECAUTIONS & SERVICING ····································4
4. GS4600L Outline and intro ·········································8
5. GS4600L tilting degree ···········································9
6. Placement and Installation Guidelines····························11
7. A/D Board I/O Layout ············································12
8. Environment·····················································13
9. LED light Status and over heat solution ····························15
10.Alarm and LED CODE··············································16
11. Explanation and Troubleshooting of Alarm·························17
12. Instructions to Clean Air Filter ·····················18
13.How to use the eye bolts ·········································19
14. OSD Functions··················································20
15. Troubleshooting ···············································22
16. Specifications···················· ····························23
17. Appendix 1··················· ··································24
18. Appendix 2·····················································26
19. Appendix 3 ·····················································31
20. GS4600L Package and Accessories ·································33
21.Suntronic’s Limited Warranty Statement ··························34
22.Dimensions ···················································· 35

- 2 -
Notice for Users
For customers (AC220V)
IMPORTANT
During the first time installation to connect our LCD to the electric distribution network, installation person
must be cutting OFF all electricity supplied in advance: by switching down the fuse breaker inside
the host Power Utility Box (NOT TURNING OFF the power outlet switch). While live AC power grid is
always ready within your electric networks, we recommended there are no others transfer-switches
attached or improper devices installed within the same network; also the earth grounding procedure must
be employed to guaranty safety grounded connection to avoid electric-shock!!
The Open Wires Power Cord or type-G CEE 7/7 European Plug has been terminated in this mains
lead colored in accordance with the following code:
GREEN : Earth
BLUE : Neutral
BROWN : Live
As the colors of the open wires in the mains lead of this apparatus
may not correspond with the colored markings identifying the
terminals in your plug proceed as follows. The wire which is
colored GREEN must be connected to the terminal in the plug
which is marked by the letter E or by the safety earth or colored green or green-and-yellow.
The wire which is colored BLUE must be connected to the terminal which is marked with the
letter N. The wire which is colored BROWN must be connected to the terminal which is marked
with the letter L. Ensure that your equipment is connected correctly-if you are in any doubt
consult a qualified electrician locally.
"WARNING: THISAPPARATUS MUST BE EARTHED"
ELECTRIC SHOCK can kill.
•Do not touch live electrical parts.
•Use only grounded or double insulated equipment.
•Stop power on Outdoor LCD before making internal inspection or reconnection.
•Install and ground Outdoor LCD according to all applicable national, state, and local
codes.
•Connect equipment grounding terminal to a proper earth ground.
•Do not connect to any electrical distribution system normally supplied by utility power
unless a proper transfer switch and grounding procedure are employed.
•Have only qualified persons make electrical connections
•Use all code-required methods for shock and over current protection.

- 3 -
Incoming Inspection
Suntronic Outdoor LCDs are designed, built and packaged to withstand the shock and
vibration normally associated with shipment by common carriers. Occasionally improper
handling during shipping causes damage. Such handling could include unbanding of
palletized shipments, failing to respect "This Side Up" arrows, rough handling,
falling off conveyors, excessive vibration, crushing, etc. Therefore, a thorough
inspection should be done upon receipt of all shipments. Any carton tears, dents,
scratches, loose articles or evidence of oil are signs of damage and should be noted
on the Freight Bill. Cartons should be opened promptly and the units inspected for
CONCEALED DAMAGE. Suntronic Outdoor LCDs must be delivered in the proper mounting
position to assure that damage to the compressor has not occurred during shipping.
Any Suntronic Outdoor LCDs that is delivered removed from the banded pallet, lying
down or double stacked should be refused. An immediate claim MUST be filed with the
freight carrier and an inspection requested. Retain all packing materials. Suntronic
cannot assume responsibility for Consignee's failure to file a timely freight claim.
Product Handling
Before operating the Outdoor LCDs, to be certain that it is placed in its correct
mounting position. All Suntronic Outdoor LCDs containing an “L” as part of the
model number are designed to operate in a landscape position only. For “P” in
the model number are designed to operate in a portrait position only.
PROCEDURE FOR PROPER PACKING AND SHIPMENT OF SUNTRONIC OUTDOOR LCDS:
■Always Keep Outdoor LCDs in proper upright position indicated by arrow markers.
■Pack Outdoor LCDs in an appropriate carton (preferably original carton if possible),
with adequate internal protective packaging, making sure carton is marked and is
kept in correct upright position.
■Outdoor LCDs should be placed at the site where the qualified power supply and
clean and good ventilation are all provided.
■ For local, controlled transportation, strap carton to a secure part of truck to
prevent falling or sliding, minimize vibration, etc.
■ For common carrier shipment, band unit(s) securely to a pallet. Non-pallet shipment
risks severe damage which voids the warranty.

- 4 -
DISCHARGE PROCEDURE FOR IMPROPER HANDING AND MOUNTING OF SUNTRONIC OUTDOOR LCDS:
■Make sure the Out Door LCD is power-off.
■Settle down the Outdoor LCD in proper upright position indicated by arrow markers.
■Keep the Outdoor LCD in ground level for 36 hours (at least). The bevel between
Outdoor LCDs and ground shouldn’t less than 5°. This resettlement will help the
A/C compressor oil to drain back the right sump area.
Caution
CAUTION: Please read and retain for your safety. This unit has been engineered and manufactured
to assure your personal safety, but improper use can result in potential electric shock or fire
hazards. In order not to defeat the safeguards incorporated in this receiver observe the following
basic rules for its installation, use and servicing
Do not place your LCD monitor on an unstable stand, shelf or table. Serious injury to an individual
and damage to the LCD monitor may result if it should fall. Your sales person can recommend approved
wall mounting kit. A special wall mounting kit is available for this model.
This LCD monitor should be operated only from the type of power source indicated on the monitor
or as indicated in the Operating Instructions. If you are not sure of the type of power supply,
consult your sales person or your local power company. For added protection it is strongly recommended
that this LCD monitor is supplied via a RCCB.- safety unit.
Installation
Do not allow anything to rest on the power cord. Do not locate this LCD monitor
where the cord will be damaged by people walking on it. Do not overload wall outlets
and extension cords as this can result in fire or electric shock. Do not place
this LCD monitor near any heat sources such as radiators, heaters, stoves and other
heat-generating products (including amplifiers).
S
SA AF FE ET TY Y P PR RE EC CA AU UT TI IO ON NS S & & SERVICING

- 5 -
WARNING: To prevent injury LCD monitor must be securely attached to the wall in accordance with
the manufacturer’s installation instructions.
WARNING: Don’t touch the LCD and Enclosures when screen is exposed sunlight for long period of
time. The surface of the LCD and Enclosures might be hot.
WARNING: Suntronic Outdoor LCDs sold within USA and Canada are in 120V version
only. For 220V requirement sold in other countries, please contact the local sales for
further details about their regional requirement.
Master Rocker Switch (default is POWER-ON), MUST SWITCH OFF BEFORE ANY MAINTENANCE.
A security Master Power ON/OFF Switch designed to cutoff the AC Power for safety maintenance. A
Red light indicator helps the electricians to confirm the status about the electric connection
and distribution. Actuator down the FUSE BREAKER inside the UTILITY BOX; and setting off all
electricity out of the hosted power grid (supplying network) before initiate maintenance and
installation. The illuminated inside the Master Power ON/OFF Switch is representing the AC Line-In
status only. Please contact your electrician(s) if you are in doubt.
ELECTRIC SHOCK can kill.
•Do not touch live electrical parts.
•Use only grounded or double insulated equipment.
•Stop power on Outdoor LCD before making internal inspection or reconnection.
•Install and ground Outdoor LCD according to all applicable national, state, and
local codes.
•Connect equipment grounding terminal to a proper earth ground.
•Do not connect to any electrical distribution system normally supplied by utility
power unless a proper transfer switch and grounding procedure are employed.
•Have only qualified persons make electrical connections
•Use all code-required methods for shock and over current protection.

- 6 -
Open Wires Power Cord
CAUTION: All electricity must be taken off from the AC Power Grid before
any installations or service maintenances.
Open Wire Power Cord, is designed for easier installation, electricians have
to maintain well balance connections to prevent flapping. Tying those wiring
into the breaker box and to the outlets or switches is a job best left to a
qualified electrician.
The ground wire (Green color) be connected to the safety grounding to ensure the LCD
monitor are well grounded, also ensure all open wires, plugs and sockets will fit into
the power outlet. Do not try to defeat any safety feature. Should not be share or unable
to insert another electrical applications within the LCD monitor used power outlet, if
any open wire installations, please contact your electrician locally. It's imperative
that you contact your authorized service dealers and ask for its specific codes regarding
electrical wiring. There may be differences from national code. THE Power SOCKET/OUTLET
SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE
1.This End-User License is governed by the laws of the State of California.
The End-User and Suntronic agree that any action to enforce or interpret
the terms of this End-User License shall be brought only in the appropriate
state or federal court located in Alameda County, California. The End-User
and Suntronic hereby submit to the exclusive jurisdiction and venue of such
court.
2.The above terms and conditions supersede any prior agreement, oral or
written, between you and Suntronic relating to the Software.
This monitor is tested to IP65 standard rating and may be positioned in an outdoor environment
exposed to rain.
This monitor is not protected against temporary or continuous immersion in liquid.
Do not use immediately after moving the LCD monitor from a low temperature to a high temperature
environment, as this causes condensation, which may result in fire, electric shock, or other hazards.
Before cleaning, unplug the monitor from the wall socket.
Do not mount near an open flame source. Open flames must never be used near this LCD monitor.

- 7 -
This LCD monitor should have a minimum distance of 6inch away from the wall and the monitor
should have 6inch distance around the top and sides
Do not tilt the screen more than 10 degree in any direction
Do not turn landscape GS4600L into portrait model. And do not turn portrait GS4600P into Landscape
This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life
of the monitor.
Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth
for cleaning.
Always mount using recommended and substantial fixtures and fittings. The rear finned section around
the cabinet functions as an air conditioning, removing heat away from the monitor. The external
surface of the cabinet (finned area) must not be covered or the airflow restricted in anyway by
enclosing the LCD monitor
The operating temperature range of this monitor can be used at -40°F
~ 122°F. It is not recommended to install the screen in direct
sunlight without adequate shading, as this will cause the
temperature of the panel to rise above the maximum specified. Doing
so may cause a black shadow to appear on the screen, which will
disappear when the screen temperature returns to within the
specification. This “of course” does not produce any harmful effect
on the lifetime of the panel.
Filter is located on the back of the unit, inside the Intake Vent at the top of the LCD. In areas
where dust or salt air Prevalent, it is recommended that the Filter be cleaned regularly.
Servicing
Your LCD monitor is fully transistorized and does not contain any user serviceable components.
You must not remove the rear cover of the LCD monitor by yourself. The apparatus is working with
high voltages and could damage objects or even endanger people. Leave all required repair and service
jobs to an authorized service technician. He will exclusively use such spare parts that are complying
with the same safety standards as applicable to the original parts. The use of original spare parts
can prevent fire, shock and other hazards.
Unplug the LCD monitor from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
■If the power cord or plug is damaged.
■If the has been dropped or the cabinet has been damaged.
■If the LCD monitor exhibits a distinct change in performance.
■If the LCD monitor does not operate normally by following the operating instructions.
■Adjust only those controls that are covered in the operating instructions as improper
adjustment of other controls may result in damage. This will often require extensive work
by a qualified technician to restore the LCD monitor to normal operation

- 8 -
SAFETY INSTRUCTIONS
General safety instructions
•DO NOT install the SUNTRONIC display inside of Hazardous Areas and/or Explosives Areas.
•DO NOT leave the Suntronic display unattended while cover opened and connected to the mains
•Before operating your SUNTRONIC display, please read this manual thoroughly, and retain it for
future use.
•Installation and preliminary adjustments should be performed by qualified service personnel or
authorized service dealers.
•All warnings on the system parts and in the documentation manual should be adhered to.
•All instructions for operating and use of this equipment must be followed precisely.
•All local installation codes should be adhered to.
•Do not allow anything to rest on the power cord which may cause damage. Do not locate this product
where persons will walk on the cord.
•Always unplug appliance from electrical outlet before cleaning and servicing and when not in use
for an extended period. Never yank cord to pull plug from outlet.
•Grasp plug and pull to disconnect.
•Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged until
it has been examined by a qualified serviceman.
•Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
•If an extension cord is necessary, a cord with a current rating at least equal to that of the
appliance should be used. Cord rated for less amperage than the appliance may overheat.
•Let appliance cool completely before storing.
•Never push objects of any kind into the product through cabinet vents slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.
•Lightning - For added protection for this video product during a lightning storm, or when it is
left unattended or unused for long periods of time, unplug it from the wall outlet. This will prevent
damage due to lightning and AC power-line surges.
•Slots and openings in the cabinet and the back and bottom are provided for ventilation; to ensure
reliable operation of the product and to protect it from overheating, these openings must not be
blocked or covered. This product should never be placed near or over a radiator or heat register,
or in a built-in installation unless proper ventilation is provided.
Ratings & Grounding
These products should be operated from an AC power source. Check if the mains voltage and the load
match the product electrical ratings. A grounded three-core power cable has to be used. Connect
the power cord by inserting it in a grounded electrical outlet, making sure that the cord is properly
grounded. If you are unable to install the AC Requirements, contact your electrician. Do not defeat
the purpose of the grounding. Always connect this appliance to an electrically grounded outlet.
Never use a ground bypass (cheater) adapter.
Protection
Do not disassemble or modify the LCD module to avoid the possibility of electric shock, damage
of electronic components, scratch at display surface and invasion of foreign particles. In addition,
such activity may result in fire accident due to burning of electronic component. LCD modules
disassembled or modified by customer is out of warranty.
Be careful when handling a display with broken glass. When the display glass breaks, please pay
attention not to injure your fingers. The display surface has the plastic film attached, which
prevents dispersion of glass shards. However, touching the broken edges of shards will injure your
fingers. Also Lamp (Cold Cathode Fluorescent Lamp) is made of glass, therefore please pay attention
in the same way.
Please do not touch the fluid flown out of broken display glass. If the fluid should stick to hand
or clothes, wipe off with soap or alcohol immediately and then wash it with water. If the fluid
should get in eyes, wash eyes immediately with pure water for more than 15 minutes and then consult
the doctor.
Lamps inside the LCD contain mercury inside. Please follow regulations or rules regarding disposal
established by local authority for its disposal.
In case of opening of the Suntronic display, cover the front frame to prevent over-heating of the
TFT panel when exposed directly to the sun. A sheet or service tent will suffice.

- 9 -
Safety on Shipping
Save the original shipping packing material; they will come in handy if you ever have to ship one
of your installed modules. For maximum protection, repack your set as it was originally packed
at the factory.
AC Indicator inside the
Master ON/OFF Switch
(default is ON)
GS4600L
Rear
cove
r
Front
cover
Bracket
Glass
Handle
Top View
OSD location
Speaker location
Remote IR
Sensor at the
Bottom of the
screen
Door locks
handle at the
rear bottom
Left Speaker
Right Speaker
GS4600L Outline and intro:
3D Figure
View Drawing
Front View
Side View
Install
spare holes
Wall Bracket
Rings location

- 10 -
A:
Tilt no more than 10 degrees
No bracket back View
Lock location
Air Outlet
Air filter Inlet
Cable box location
Back View
GS4600L tilting degree using Wall mount bracket
GS4600L

- 11 -
Suntronic LCD are twice as bright as indoor LCD. The sun, however delivers more than 30 times
the brightness. Therefore, it is important that you do not place the TV where the screen faces
direct sunlight. This will cause the image on the screen to be washed out.
Intense direct sunlight falling on the screen over an extended period of time may cause dark spots
to form on the screen image. This is a characteristic of LCD technology and is a temporary condition
that will go away after the screen is pointed away from the sun.
For optimum viewing, Suntronic recommends the following placement and installation guidelines.
1. Ideal placement is in an area where is shaded by tress, landscape and/or structures, or under
a patio cover or gazebo.
2. Suntronic recommends mounting the LCD on Suntronic's articulating; tilt and swivel wall mount
so the LCD screen can be turned away from the location of the sun (see Figure 1).
The articulating wall mount also allows the TV to be rotated away and angled down from any highly
reflective surfaces such as water, white walls, concrete, etc
4. Important Note: In all instance, Suntronic must be installed at least 5 feet from water’s edge.
Placement and Installation Guidelines

- 12 -
Video and Power input

- 13 -

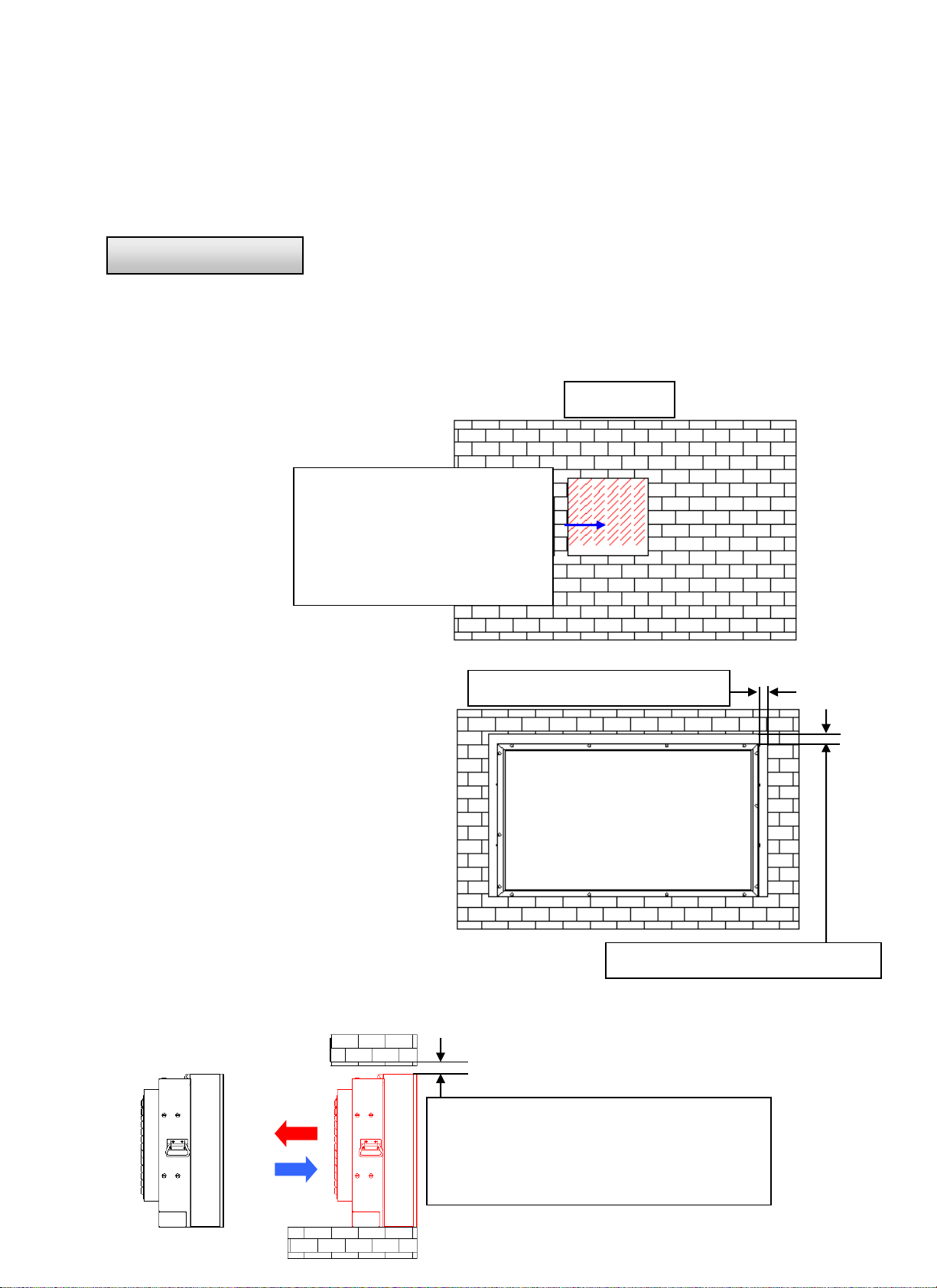

A: Installing in an enclosed area: It must expose exhaust rear AC grill to outside directly
without any blocking. The Rear side must be wide open with air circulation.
WARNING: Don’t put these GS4600L into a confined area to prevent overheat and void warranty
B: Installing in Rear Open area location:
Back View
Front View
Min. Distance: 4” (10cm)
Min. distance: 4” (10cm)
Min. distance: 4” (10cm) and
maintain 600FM of air circulation
the rear end.
Environment:
Suntronic Rear exhaust AC
Brill must be completely
facing out without any
blocking of air
circulation

- 14 -
C: Wall Mount installation:
D: Installing GS4600L units back to back, you will need to have min 14” apart from
each rear unit and if over heat, we strongly recommend to keep min. 600CFM for
air circulation.
If over heat, we recommend to Add top and bottom fans
(600CFM) for improving air flow
Keep more than 6” from the wall and must use
Suntronic’s Wall Mount bracket Model no.
GS-4600WML and maintain 600FM of air
circulation the rear end.

- 15 -
A. When power is on the light shows red color, means stand by;
B. When power is on the light shows green color, means LCD power on
C. When power is on the light shows red light flashing, means GS4600L under over heat protected
mode
*LCD LED light, it is located at the bottom
of enclosure see below for LED Status
LCD LED light Status and over heat solution
N/A
Master ON/OFF
Switch (covered)
Conduit Knockout
for Power and Data

- 16 -
Alarm and LED CODE
Definition
1. ThermalBrightness Control
LED Green Full Brightness per setting
LEDRed Overheating brightness cut down to 30%
2 A/D Board LEDCode:
LED Off A/D board is receiving no DC Power
LED Green A/D board has power and video signal input
LEDRed A/D board has power but no video signal input
3 GS EnvironmentalSeriesSiren/LEDAlarmCode
Alarm Description Flashing LED Code Siren
Liquid Sensor Alarm LED On On
LCD Temperature Alarm Flash 1 Times On
Back Cover Contact Flash 2 Times On
Critical Temperature Alarm Flash 5 Times On
1. Thermal Brightness Control
2. A/D Board LED; Green = video input; Red = powered
down or no video input
3. GS Environmental Series Siren/LEDAlarm Code
4. N/A
GS4600L Power consumption
List
Power
consumption
condition
495W
Single LCD and internal fans work

- 17 -
Suntronic Security Lock
•WarrantyVoided if opened
•CertifiedTechnicianRequiredtoOpen
•ContactSuntronicDealer forConfirmation
Main Power Switch Compartment (For Integrated PC Only)
1. MainPower Switch(Power Switchfor Display,Controlsall internal components)
2. PCPowerPushbutton(PowerButton forPC,Powers unitonandoff)
3. PCUSBPort(USBPortAccess)
Always Power PC Down Before Turning Off Main PowerSwitch

- 18 -
Main Power Switch Compartment
1. Main Power Switch(PowerSwitch forDisplay, Controlsallinternal components)
Accessory Bag
1. PlasticScrews (Included forwater protectionofunused screwholes)
2. EnclosureKeyandSecurityScrewTools(SecurityScrewtoolsforbackcoverandfrontbezel)
3. RemoteControl (Used to control screen function, not PC control)
4. Eye-bolts for Mounting ( Insert in top M12 screw holes to assist when mounting enclosure)

- 19 -
Accessory Bag for Integrated PC
1. RemoteControl (Usedtocontrolscreen function, noPC control)
2. PlasticScrews (Includedforwaterprotectionofunused screw holes)
3. PCDriverCD(DriversforPCperipherals)
4. Eye-bolts for Mounting (Insert in top M12 screw holes to assist when mounting enclosure)
5. EnclosureKeyandSecurityScrewTools(Securityscrewtoolsforbackcoverandfrontbezel)
6. WindowsRecoveryCD(IncludedincaseWindowsneedstobe reinstalled,opticaldriveneeded)
Remote Control Sensor Location
•Sensor locatedatbottomrearrecessofenclosure
•Lineofsight needed for remoteresponse
•Remotedoes not control any PC function
