OWNER’S MANUAL
MONITOR SIGNAGE
MONITOR SIGNAGE MODELS
LSM4200
www.lge.com
Please read this manual carefully before operating
your set and retain it for future reference.

1
First, check if the following parts are all present.
Stand (1)
Screws (6)
Parts
1. Take the parts for the stand out of the box and assemble them as shown in the
picture.
2. Place a soft cloth on the table and put the product with the screen facing
downward. Connect the stand as shown in the following picture.
cable management (1)
3. Use the screws to secure the stand on the rear side of the product as shown in the
diagram.
- Only on some models.
- Can be purchased separately if necessary.
Connecting
the stand

2
Connecting the Speakers
Mount the product onto the speaker by using a screw as shown in the following
connect the speaker cable.
- Only on some models.
- Can be purchased separately if necessary.
When the speaker is installed.
*Connect the input terminal with a proper
color match.
Type 1

3
Connecting the Speakers
Mount the product onto the speaker by using a screw as shown in the following
connect the speaker cable.
- Only on some models.
Type 2
When the speaker is installed.
*Connect the input terminal with a proper color
match.
* This feature is not available in all model.
Remove the paper.
Cable holder
After installing your speakers, use holders and cable ties to organize the speaker cables.
Cable tie
* This feature is not available in all model.

4
"When installing Portrait, rotate it clockwise based on its front."
To install Portrait

5
Using the Remote Control
Name of the Remote Control Buttons
1 2 3
4 5 6
7 8
0
9
*
• AV Button
• Sleep Button
When watching AV, RGB PC,HDMI/DVI
, Component1, Component2
The product will be automatically turned
off after a certain period of time.
Press this button repetitively to
select an appropriate time duration
•
PSM Button
- Toggles through preset video
settings.
• Menu Button
• Check Button
• Volume Button
Volume up and down
•
Mute button
There is not a function
which is supported
• UP and Down buttons
Bring up and down direction
adjustment.
• ARC button
Aspect Ratio Correction. Toggles
through aspect ratio options.
•
Auto Button
Automatic adjustment function
(Operational for the analog signal only)
• Exit Button
There is not a function
which is supported
There is not a function
which is supported
There is not a function
which is supported
• Power On/Off Button
• Input Select Button
(See next page)

6
Using the Remote Control
AV Component1
Component2 RGB PC
HDMI/DVI
• AV Button
Toggles through video
1 2 3
4 5 6
7 8
0
9
*
If you press the button once,
the following Input Signal
Window will appear. Select
the signal type you want
using the button.
• Input Select Button
1. Slide off the battery cover.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cover.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
AAA Type

7
Name and Function of the Parts
Rear View
Power Connector : Connect the power cord
RS-232C Serial Ports
RGB PC, HDMI/DVI Ports
- HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals.
PC Sound Jack
: Connect the audio cable to the *LINE OUT jack of the PC sound card.
Wired Remote Control Port
AV Ports
Speaker Ports
*LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that the
connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC sound
card has only Speaker Out, reduce the PC volume.
If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using
the card jumper of the program (Refer to the Sound Card Manual).
AV IN/OUT
* The product image in the user’s guide could be different from the actual image.

8
First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI to DVI signal input cable (not included).
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
Rear side of the product.
Connecting to External Devices
Connect the power cord.
B
A
B
A
PC
When Connecting to your PC
PC/ MAC
PC
Rear side of the product.
Rear side of the product.
PC
Rear side of the product.
Connect the Audio cable.
(not included)
* User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain
standard compliance for the product.

9
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
INPUT SET
•How to connect to two computers.
Connect the signal cables (HDMI to DVI and D-Sub) to each computer.
Press the INPUT button on the remote control to select the computer to use.
• Directly connect to a grounded power outlet or power strip (three prong connector.)
Note
Turn on power by pressing the power button on the product.
Turn on the PC.
ON/OFF
AUTO/SET
SOURCE
Power button
SOURCE AUTO/SET
When connecting with a D-Sub signal input cable.
•Select RGB PC : 15-pin
D-Sub analog signal.
When connecting with a HDMI to DVI signal input cable.
•Select HDMI/DVI : HDMI to DVI Digital signal.
B
A
Connecting to External Devices
2
1
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
Input
AV
Component1
Component2
RGB PC
HDMI/DVI

10
Use this function when displaying ANALOG RGB inputs of a PC to the other product.
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
Product 1
• To use different products connected to each other
Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT
connector of product 1 and connect the other end to the RGB IN connector of other
products.
Daisy Chain Monitors
PC
Product 2 Product 3 Product 4
15-pin D-Sub Signal Cable
Connecting to External Devices
•When multi-connecting in/out cascade format, no loss cables are recommended.
We recommend that you should use cable distributor.
Note
PC

11

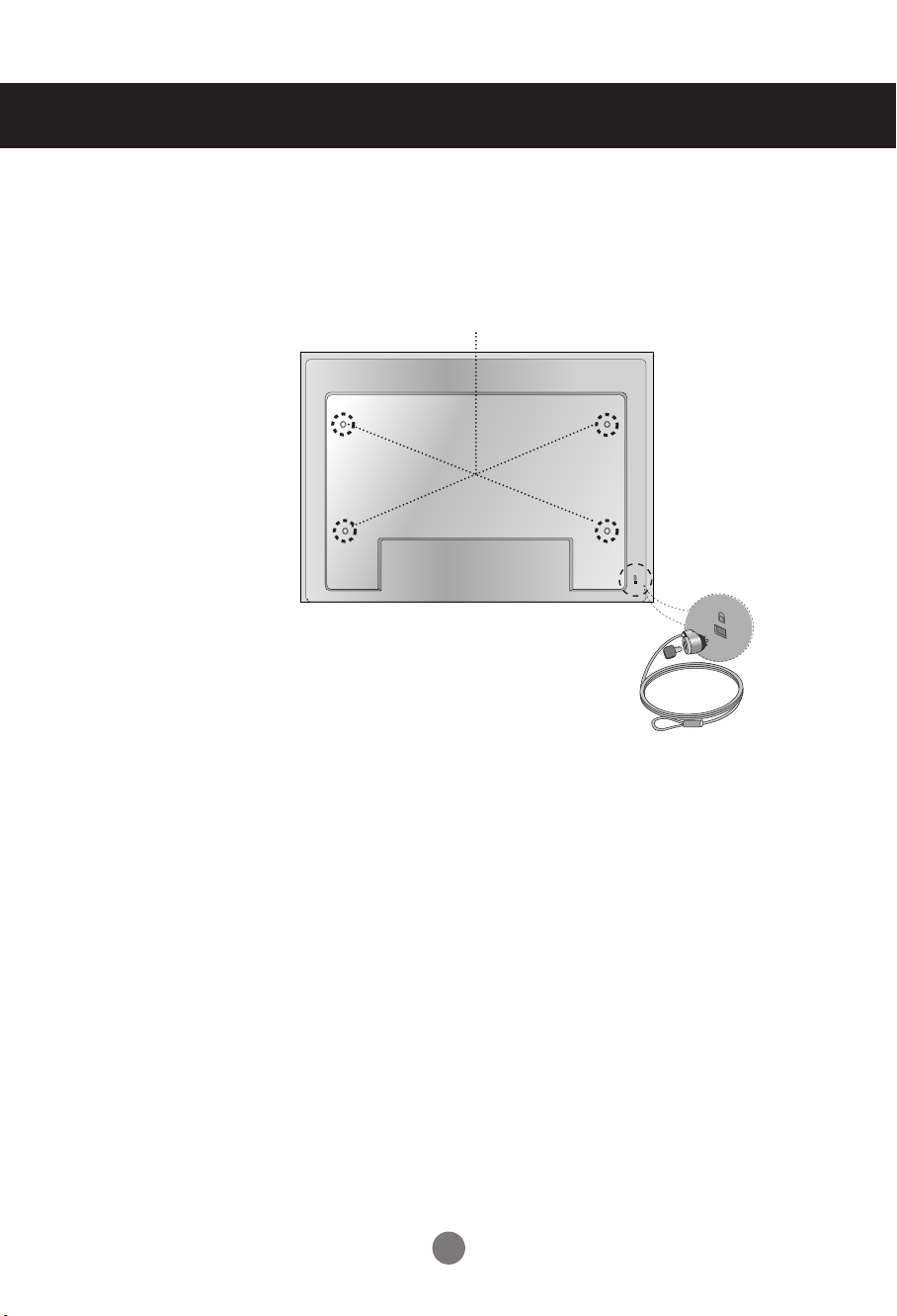

The Set is equipped with a kensington Securify
System connector on the back panel. The cable and lock
are available separate and are not sold by LG. For more
info, visit http://www.kensington.com, the internet home
page of the Kensington company.
VESA FDMI wall Mounting
This product supports a VESA FDMI compliant mounting interface. These mounts are purchaed
separately and not available from LG. Refer to the instructions included with hte mount for more
info.
Connecting to External Devices

12
Connecting to External Devices
When connecting with an BNC cable.
•
Select AV.
When connecting with an S-Video cable.
• Select AV.
B
A
IN
OUT
When connecting with a S-Video cable.
• Connect to the S-Video input terminal to
watch high image quality movies.
Connect the video cable as shown in the below figure and then connect the power
cord (See page 8)
B
When connecting with a BNC cable.
• Connect the input terminal with a
proper color match.
A
BNC Cable
(not included)
Product
VCR/DVD Receiver
Video Input
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
INPUT SET
SOURCE AUTO/SET
• When the BNC cable is connected simultaneously with S-Video cable, S-Video input has a priority.
Note
RCA Audio Cable
(not included)
IN
OUT
S-Video Cable
(not included)
RCA Audio Cable
(not included)
Product
VCR/DVD Receiver
Input
AV
Component1
Component2
RGB PC
HDMI/DVI

13
•
Select Component 1
•
Select Component 2
B
A
M
Connect the video/audio cable as shown in the below figure and then, connect the
power cord (See page 8).
• Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Component Input (480i/480p/576i/576p/720p/1080i/1080p)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
INPUT SET
SOURCE AUTO/SET
RCA Audio Cable
(not included)
M
Product
HDTV Receiver
B
A
BNC Cable
(not included)
RCA Audio Cable
(not included)
Connecting to External Devices
Note
- Some devices may require HDCP in order to display HD signals.
- Component doesn't support HDCP.
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
Input
AV
Component1
Component2
RGB PC
HDMI/DVI

14
Connect the video/audio cable as shown in the below figure and then connect the
power cord (See page 8).
RCA-PC
Audio Cable
(not included)
Product
VCR/DVD/Set-top Box
HDMI to DVI
Signal Cable
(not included)
HDMI Input (480p/576p/720p/1080i/1080p)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
INPUT SET
SOURCE AUTO/SET
HDMI Signal Cable
(not included)
Connecting to External Devices
When connecting with a HDMI to DVI signal input cable.
When connecting with a HDMI signal input cable.
• Select HDMI/DVI
- HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content Protection).
Some devices require HDCP in order to display HD signals.
Note : Dolby Digital is not supported.
Input
AV
Component1
Component2
RGB PC
HDMI/DVI

15
- When using AV input, you can connect the AV Out to other monitors.
IN
OUT
Video/TV
Watching AV Outputs
BNC Cable
(not included) Audio Cable
(not included)
BNC Cable
(not included)
Audio Cable
(not included)
Video/TV
Product
Connecting to External Devices
•When multi-connecting in/out cascade format, no loss cables are recommended.
We recommend that you should use cable distributor.
Note

16
Cable management
cable
management
1.
2.
Arrange the cables in the center as shown in the following picture.
Fit the cable guide to the back to help manage the cables.
Hold the Cable management with both
hands and pull it downward.
Warning
•Do not use the cable management as a handle for the Monitor.
Removing the cable guide.
- Only on some models.

ON/OFF
AUTO/SET
SOURCE
17
User Menus
ON/OFF
Screen Adjustment options
• Press this button to turn on the power. Press this button again to
turn it off.
• This Indicator lights up blue when the display operates normally(on
mode). If the display is in sleep (Energy Saving) mode, this indicator
color changes to amber.
Power Button
• Adjust the volume.
• Adjust the up and down.
• Use this button to show/hide the OSD (On Screen Display) menu
screen.
MENU Button
• Use this button to select an icon or adjust the setting in the OSD screen.
OSD Select /
Adjust Button
Power Indicator
Volume 35

18
• This is where the unit receives signals from the remote control.
Screen Adjustment options
[For PC Analog signal]
AUTO/SET Button
AV Composite Video, Separate Video
Component 1 HDTV, DVD
Component 2 HDTV, DVD
RGB PC 15-pin D-Sub analog signal
HDMI/DVI Digital signal
- Toggles between inputs
SOURCE Button
SOURCE AUTO/SET
IR Receiver
User Menus
[When XGA Mode is active and
1920 x1080 is selected]
Input
AV
Component1
Component2
RGB PC
HDMI/DVI

19
User Menus
OSD Menu
Icon Function Description
Audio
Adjusts the audio options.
Adjusts screen brightness, contrast and color that you prefer.
Note
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
Option
Adjusts the screen status according to the circumstances.
Time
Adjusts the timer options.
Information
Adjust Set ID and check Serial No. and SW version.
