SUNWARD SWE18UF User manual

I
SWE18UF
Crawler-type Hydraulic Excavator
Operation & Maintenance
Manual
2001#
Sunward Intelligent Equipment Co., Ltd.
April, 2021
© All rights reserved by Sunward Intelligent Equipment Co., Ltd.

OPERATION & MAINTENANCE MANUAL SWE18UF
II
Note for Service Request
Dear Customers:
Thank you sincerely for purchasing our products. We will provide you timely service of good quality, so as to
bring you more fortune with our equipment.
It’s essential to provide us enough clear failure information, thus, we can analyze that and offer you effective
service on time. If any support is requested from SUNWARD or our authorized agents, failure details should
be provided as much as possible, mainly including following items:
①A clear and full photo of the equipment nameplate, which locates on the right outside of the cab, as below
figure:
②A photo of equipment working hours.
③A photo of the entire machine, in which the whole equipment and its working condition should be clear
and complete.
④A photo of possible failure component, which can help us to analyze the accurate location of malfunction.
⑤A close-up photo of failure component, in which show the malfunction details or damage clearly.
If you estimate that the failure may be caused by valuable components, such as, engine, hydraulic pump, main
control valve, motor, hydraulic cylinder, controller, display screen, radiator and track chain, photos of these
component nameplate or stencile seal are also needed, which locates on the top or side. Please distinguish that
carefully.
Please send us service request by email or other method, thanks for your support.

OPERATION & MAINTENANCE MANUAL SWE18UF
III
EC Declaration of Conformity
The undersigned, representing the following:
Manufacturer and
the authorized representative established within the
European Economic Area:
Company name:
SUNWARD INTELLIGENT EQUIPMENT CO., LTD.
Address:
Sunward Intelligent Industrial Park, Xingsha,
Changsha , Hunan, China
SUNWARD EUROPE HEAVY INDUSTRY NV
Nijverheidspark 3, 3580 Beringen, Belgium
Business name: SUNWARD INTELLIGENT EQUIPMENT CO., LTD.
Name and address of person/Company authorized to compile the technical file established in the EU
Community:
SUNWARD EUROPE HEAVY INDUSTRY NV
Nijverheidspark 3, 3580 Beringen, Belgium
herewith declare that the following safety component/s:
Description of machine
Generic denomination: Hydraulic Excavator
Function: Widely used in projects like earth & stone construction, municipal construction, road
maintenance , layout of cables and pipes, garden cultivation, trenches clearance, and etc.
Model/s: SWE18UF
Series:
fulfil the relevant provisions of European Directive 2006/42/EC. The harmonized standards used in order
to obtain compliance to 2006/42/EC (MD) are the following:
EN 474-1: 2006+A4:2013/AC:2014 –Earth-moving machinery-Safety - Part 1. General
requirements;
EN 474-5: 2006+A3:2013 –Earth-moving machinery - Safety - Part 5: Requirements for hydraulic
excavators;
EN ISO 4413:2010 –Hydraulic fluid power - General rules and safety requirements for systems and
their components;
EN ISO 12100:2010 –Safety of machinery - General principles for design - Risk assessment and risk
reduction

OPERATION & MAINTENANCE MANUAL SWE18UF
IV
FOREWORD
It is particularly important that the operator should read these instructions carefully in order to
operate and maintain the excavator safely and correctly. Otherwise accidents or damage may
occur.
The manual supplies safety rules and labels which have been fixed on the machine so as to
provide the instructions of potential danger and the ways to avoid it. Please follow that strictly
during operating and maintenance. The forbidden usages or operations that mentioned in this
manual cannot be engaged in any circumstances.
SUNWARD cannot predict all kinds of potential danger may occur in the process of operation
and maintenance. Therefore, the related instructions in this manual and on the machine only
concern the basic safety rules. It is the operator’s duty to take necessary measures to protect
safety if there is no corresponding method recommended in this manual.
Sunward will provide customers who purchase this machine with warranty service within the
warranty period. The service details are showed in Maintenance Card supplied by distributor. In
order to receive the warranty service from Sunward, make sure genuine Sunward parts are used
and all instructions given in this manual is complied with strictly for operation and maintenance.
If any personal injury, death and property loss is caused by failure to obey above instructions,
Sunward will not take any responsibility for that, and has rights to refuse to provide and to
terminate warranty service in advance.
The excavator is designed according to the metric system, all the data presented are metric and
only metric parts and tools can be used.
The manual should be regarded as the permanent part of excavator and kept at the easy reading
place for consultation at any time. If it is damaged or lost, please contact SUNWARD or agents
for ordering. The manual should be attached when the excavator is transferred or sold.
Only trained, qualified and experienced operators can operate, check and maintain the machine.
The equipment covered by this manual meets the applicable technical specifications effective as
of its date of issue. The manufacturer SUNWARD reserves the right to make any modifications
from time to time without prior notices to any excavator components.
Sunward Intelligent Equipment Co., Ltd.

OPERATION & MAINTENANCE MANUAL SWE18UF
1
TABLE OF CONTENTS
1 SAFETY RULES......................................................................................................................................................1
1.1 SAFETY LABELS..............................................................................................................................................2
1.1.1 Location of Safety Labels............................................................................................................................. 2
1.1.2 Safety Labels Instructions............................................................................................................................2
1.2 GENERAL SAFETY RULES........................................................................................................................... 11
1.2.1 Observing Safety Rules..............................................................................................................................11
1.2.2 Meaning of Safety Label............................................................................................................................ 12
1.2.3 Emergency Protective Measures................................................................................................................ 12
1.2.4 Wearing Protective Devices.......................................................................................................................12
1.2.5 Safety Devices............................................................................................................................................ 13
1.2.6 Keeping Machine Clean.............................................................................................................................13
1.2.7 Checking before Start-up...........................................................................................................................13
1.2.8 Precautions of Entering Cab .....................................................................................................................13
1.2.9 Correct Entering/Leaving Machine........................................................................................................... 14
1.2.10 Adjustment of Operator’s Seat.................................................................................................................14
1.2.11 Fastening Seatbelt ...................................................................................................................................14
1.2.12 Ensuring Perfect Visibility.......................................................................................................................15
1.2.13 Leaving Operation Seat Safely.................................................................................................................15
1.2.14 No Passengers Allowed ...........................................................................................................................15
1.2.15 Worksite Safety ........................................................................................................................................ 15
1.2.16 Operation on Loosened Area...................................................................................................................15
1.2.17 Signals and Gestures from Flagman........................................................................................................ 16
1.2.18 Distance to High Voltage Cables............................................................................................................. 16
1.2.19 Preventing Scald......................................................................................................................................16
1.2.20 Keeping Away From Running Parts........................................................................................................ 17
1.2.21 Preventing Fire and Explosion................................................................................................................ 17
1.2.22 Measures for Fire Fighting...................................................................................................................... 17
1.2.23 Preventing Splashing or Falling Objects.................................................................................................17
1.2.24 Prevention of Flying-Out Parts ...............................................................................................................18
1.2.25 Preventing Asbestos Dust Inhalation....................................................................................................... 18
1.2.26 Preventing Inhalation of Smoke or Exhaust Gas.....................................................................................18
1.2.27 Be Cautious of High Pressure Liquids..................................................................................................... 19
1.2.28 Safe Disposal of Liquids.......................................................................................................................... 19
1.2.29 Safe Disposal of Chemicals .....................................................................................................................19
1.2.30Waste Material Disposal ..........................................................................................................................20
1.2.31 Prohibition of Unauthorized Modification on Machine...........................................................................20
1.2.32 Preventing Objects Falling From High Altitude...................................................................................... 20
1.3 SAFE OPERATION INSTRUCTIONS............................................................................................................20
1.3.1 Inspection before Starting Engine .............................................................................................................20

OPERATION & MAINTENANCE MANUAL SWE18UF
2
1.3.2 Correct Engine Start-up............................................................................................................................. 21
1.3.3 Starting Engine in Cold Weather...............................................................................................................21
1.3.4 Safe Operation...........................................................................................................................................21
1.3.5 Operation on Slopes ..................................................................................................................................22
1.3.6 Operation on Snowy Ground..................................................................................................................... 22
1.3.7 Avoid Tipping-Over...................................................................................................................................23
1.3.8 Preventing Accidents while Reversing or Swinging...................................................................................23
1.3.9 Avoiding Accidents Caused By Control Failures.......................................................................................24
1.3.10 Moving Machine Safely ........................................................................................................................... 25
1.3.11 Safety Rules During Traveling.................................................................................................................25
1.3.12 Traveling on Slopes ................................................................................................................................. 26
1.3.13 Safety Rules During Towing ....................................................................................................................26
1.3.14 Machine Transportation..........................................................................................................................27
1.3.15 Parking Machine Safely........................................................................................................................... 27
1.4 SAFETY MAINTENANCE INFORMATION.................................................................................................27
1.4.1 Using Warning Signs................................................................................................................................. 27
1.4.2 Parking Machine Prior to Maintenance....................................................................................................28
1.4.3 Safety Maintenance Rules..........................................................................................................................28
1.4.4 Tips for Using a Hammer .......................................................................................................................... 29
1.4.5 Precautions of Welding and Polishing ......................................................................................................29
1.4.6 Avoiding Heating Pipes Containing Flammable Liquids ..........................................................................30
1.4.7 Avoiding Heating near Pressure Oil Pipes................................................................................................30
1.4.8 Removing Paint Before Welding or Heating..............................................................................................30
1.4.9 Attachments................................................................................................................................................31
1.4.10 Maintenance Precaution of Track Tension Mechanism...........................................................................31
1.4.11 Safety Rules for High-pressure Oil..........................................................................................................31
1.4.12 Safety Operation for High-Pressure Hoses .............................................................................................32
1.4.13 Accumulator............................................................................................................................................. 32
1.4.14 Preventing Battery Explosion..................................................................................................................32
1.4.15 Waste Disposal ........................................................................................................................................ 33
2 TRANSPORT AND STORAGE...........................................................................................................................34
2.1 TRANSPORT ...................................................................................................................................................35
2.1.1 General Transport Instructions .................................................................................................................35
2.1.2 Transport Specification.............................................................................................................................. 35
2.1.3 Driving Onto or Off a Platform Trailer..................................................................................................... 36
2.1.4 Loading......................................................................................................................................................36
2.1.5 Tying Down the Machine........................................................................................................................... 37
2.1.6 Unloading.................................................................................................................................................. 38
2.1.7 Lifting Machine.......................................................................................................................................... 38
2.2 STORAGE........................................................................................................................................................ 39
2.2.1 Before Storage...........................................................................................................................................39
2.2.2 During Storage ..........................................................................................................................................40
2.2.3 After Storage..............................................................................................................................................40
3. ABOUT MACHINE..............................................................................................................................................41

OPERATION & MAINTENANCE MANUAL SWE18UF
3
3.1 POSITION OF MACHINE COMPONENTS....................................................................................................42
3.2 CAB ..................................................................................................................................................................43
3.3 MONITOR........................................................................................................................................................ 44
3.4 ROCKER CONTROL SWITCH.......................................................................................................................46
3.5 STARTING SWITCH....................................................................................................................................... 46
3.6 SEAT.................................................................................................................................................................47
3.7 PILOT SAFETY LEVER.................................................................................................................................. 48
3.8 ENGINE THROTTLE CONTROL LEVER .....................................................................................................48
3.9 PILOT CONTROL JOYSTICK........................................................................................................................49
3.10 COOLING FAN SHROUD &HOUSING COVERS......................................................................................50
3.11 DECALS.........................................................................................................................................................51
3.12 AUXILIARY CIRCUIT PIPELINES..............................................................................................................52
3.12 Hydraulic Quick Hitch................................................................................................................................ 54
3.13 Operation Procedure of Attachment Control..............................................................................................56
4. MACHINE OPERATION....................................................................................................................................57
4.1 MACHINE WORKING ENVIRONMENT...................................................................................................... 57
4.2 RUNNING-IN OPERATION ...........................................................................................................................57
4.2.1 Watching Engine Running Carefully......................................................................................................... 57
4.2.2 Every 8 Hours of Operation or Everyday.................................................................................................. 57
4.2.3 After First 50 Hours of Operation............................................................................................................. 58
4.2.4 After First 100 Hours of Operation........................................................................................................... 58
4.3 OPERATING ENGINE ....................................................................................................................................58
4.3.1 Daily Inspection.........................................................................................................................................58
4.3.2 Checking Diesel Engine............................................................................................................................. 59
4.3.3 Electrical Device .......................................................................................................................................59
4.3.4 Air Filter....................................................................................................................................................59
4.3.5 Oil Level in Hydraulic Oil Tank ................................................................................................................ 59
4.3.6 Before Starting Engine...............................................................................................................................60
4.3.7 Starting Engine..........................................................................................................................................60
4.3.8 Starting Engine in Cold Weather...............................................................................................................60
4.3.9 Adjustment of Engine Speed ......................................................................................................................61
4.3.10 Stopping Engine.......................................................................................................................................61
4.3.11 Using Auxiliary Battery........................................................................................................................... 61
4.4 TRAVEL CONTROL .......................................................................................................................................62
3.4.1 Travel with Foot Pedal.............................................................................................................................. 62
4.4.2 Travel with Control Levers........................................................................................................................63
4.4.3 Travel Speed ..............................................................................................................................................63
4.4.4 Travel Brake ..............................................................................................................................................63
4.4.5 Key Points of Travelling............................................................................................................................ 64
4.5 EXCAVATION ................................................................................................................................................66
4.5.1 Working Status...........................................................................................................................................66
4.5.2 Composite Movements of Excavator.......................................................................................................... 67
4.5.3 Upper-Structure Slewing Brake.................................................................................................................67
4.5.4 Excavation Keypoints ................................................................................................................................ 67

OPERATION & MAINTENANCE MANUAL SWE18UF
4
4.5.5 Excavator Parking.....................................................................................................................................68
4.5.6 Operation on Swampy Ground.................................................................................................................. 69
4.5.7 Lifting One Side of Crawler by Boom and Arm.........................................................................................69
4.5.8 Avoid Tilting.............................................................................................................................................. 69
4.5.9 Operation in Water or Mud....................................................................................................................... 70
4.5.10 Backhoe Operation.................................................................................................................................. 70
4.5.11 Leveling Operation.................................................................................................................................. 71
4.5.12 Preventing Ground Collapse ...................................................................................................................71
4.5.13 Operation Tips......................................................................................................................................... 71
4.5.14 Preventing Misuse of Machine.................................................................................................................72
4.5.15 Position of Dozer Blade........................................................................................................................... 72
4.5.16 Prevention Measurement for Dozer Blade...............................................................................................73
4.5.17 Be Careful when Retracting Front Work Attachment.............................................................................. 73
4.5.18 Don’t Allow Dozer Blade to Touch Roadblock........................................................................................ 73
4.6 HOISTING WORK........................................................................................................................................74
4.7 HYDRAULIC BREAKING OPERATION.......................................................................................................75
4.8 BOOM SWING................................................................................................................................................. 77
5 MAINTENANCE................................................................................................................................................... 78
5.1 CORRECT MAINTENANCE AND INSPECTION PROCEDURE.................................................................79
5.1.1 Periodic Maintenance................................................................................................................................ 79
5.1.2 Checking Hour Meter Frequently.............................................................................................................. 79
5.1.3 Using Fuel and Lubricant Correctly.......................................................................................................... 80
5.1.4 Preparation for Maintenance ....................................................................................................................80
5.1.5 Engine Maintenance.................................................................................................................................. 80
5.1.6 Periodic Replacement of Hydraulic Hose..................................................................................................80
5.2 MAINTENANCE GUIDE................................................................................................................................82
5.2.1 Adding Lubricant Grease...........................................................................................................................82
5.2.2 Engine Oil.................................................................................................................................................. 82
5.2.3 Gear Oil..................................................................................................................................................... 84
5.2.4 Fuel System................................................................................................................................................ 86
5.2.5 Hydraulic System.......................................................................................................................................89
5.2.6 Air Filter....................................................................................................................................................94
5.2.7 Cooling System ..........................................................................................................................................95
5.2.8 Others ........................................................................................................................................................98
5.2.9 Maintenance in Special Situation............................................................................................................ 104
5.2.10 Protection for Long-Term Storage......................................................................................................... 105
5.2.11 Attached Table.......................................................................................................................................106
6. TROUBLESHOOTING .....................................................................................................................................107
7. TECHNICAL PARAMETERS..........................................................................................................................110
7.1 PARAMETERS..............................................................................................................................................111
7.2 DIMENSION &WORK PARAMETERS ...................................................................................................... 113
8 APPENDIX...........................................................................................................................................................116

OPERATION & MAINTENANCE MANUAL SWE18UF
5
8.1 ELECTRICAL SCHEMATIC ........................................................................................................................116
8.2 ELECTRICAL COMPONENT....................................................................................................................... 117
8.3 HYDRAULIC SCHEMATIC ..........................................................................................................................118
8.4 HYDRAULIC COMPONENT........................................................................................................................ 120
9 OPERATION INSTRUCTION OF AUXILIARY CIRCUITS........................................................................121
9.1 SAFETY NOTE..............................................................................................................................................121
9.2 NOTE FOR ATTACHMENT ASSEMBLY ...................................................................................................121
9.3 HYDRAULIC HAMMER BREAKER...........................................................................................................122
9.3.1 Main Use of Hydraulic Hammer Breaker................................................................................................ 122
9.3.2 Control of Hydraulic Hammer Breaker...................................................................................................122
9.3.3 Operation Key Points of Hydraulic Breaker............................................................................................124
9.3.4 Safe Operation of Hydraulic Hammer Breaker....................................................................................... 125
9.3.5 Replacing Hydraulic Oil and Filter Element........................................................................................... 127
9.4 KEY POINTS FOR HYDRAULIC BREAKER.............................................................................................. 127
10 MANUFACTURER INFORMATION.............................................................................................................129

OPERATION & MAINTENANCE MANUAL SWE18UF
6

OPERATION & MAINTENANCE MANUAL SWE18UF
1
1 SAFETY RULES
Warning
Please thoroughly read and make sure that all precautions described in this manual or safety labels are
understood completely. Follow all instructions when operating or servicing this machine.

OPERATION & MAINTENANCE MANUAL SWE18UF
2
1.1 SAFETY LABELS
1.1.1 Location of Safety Labels
Fully understand the correct position and contents of safety labels in this machine.
To ensure that the content of labels can be read properly, be sure that they are in right place and
always keep them clean. When cleaning them, do not use solvents or gasoline. It may cause
labels to peel off.
There are also other labels in addition to warning labels. Handle these labels in the same way.
In case the labels are damaged, lost or not legible, replace them with new ones. For details of
the part number, refer to parts manual or actual label, and place an order with SUNWARD or
our authorized distributors.
1.1.2 Safety Labels Instructions
(1) Safety Operation Label
Please read all safety precautions carefully written in labels
and all information concerning safety, prior to operate
machine.
Maintenance frequently and replace safety label if required.
In case that safety labels or manual are damaged or lost,
you can place an order with our distributors. The procedure
of ordering them is identical with that of the other parts and
components. You must specify model of the machine when
ordering.
Use only trained and qualified personnel to operate this
machine. Follow all safety precautions and instructions in
this manual to keep your machine in good condition.
Do not alter or modify machine rashly, this may impair
function and effect service life or jeopardize personal
safety.
Caution: all safety information described in this manual
covers only basic safety information of this machine. It’s

OPERATION & MAINTENANCE MANUAL SWE18UF
3
not possible to predict every circumstance which might
involves potential hazards. So it’s necessary to ask for
instruction from your superior before attempting any
operation or maintenance procedure.
(2) Engine Operation Label
Diesel engine inspection
Stop machine on level ground, inspect engine oil level (stop
engine for longer than 15 minutes to allow engine oil to go
back to the bottom), inspect dipstick to make sure oil level
must be between the lines of “MIN” and “MAX”. For
engine maintenance procedures, please refer to the “diesel
engine maintenance manual” enclosed with the other
literature of the machine.
Pre-start inspection
Keep control lever of pilot valve in LOCK position, pilot
joystick and travel pull link are in normal position (neutral
position), operator sit over seat.
While switching the key to ON position, except engine
hour meter and LCD module, all indicators of test system
must light up. Buzzer must sound as well. Self-test is
finished in 2 seconds to indicate test system is or is not
properly functioning.
Start the engine
Keep control lever of pilot valve at LOCK position.
Switch key to ON position.
Honk the horn to alert the persons around.
Turn the key to the right; hold it in START position until
engine runs. Then release the key, switch will automatically.
Return to ON position.
Caution
Do not operate motor for longer than 5 seconds ever
time to avoid damage to machine. In case of failure
to start engine, switch the key back to OFF position,
wait 2 minutes before a new attempt. Incorrect start
may damage to starter.

OPERATION & MAINTENANCE MANUAL SWE18UF
4

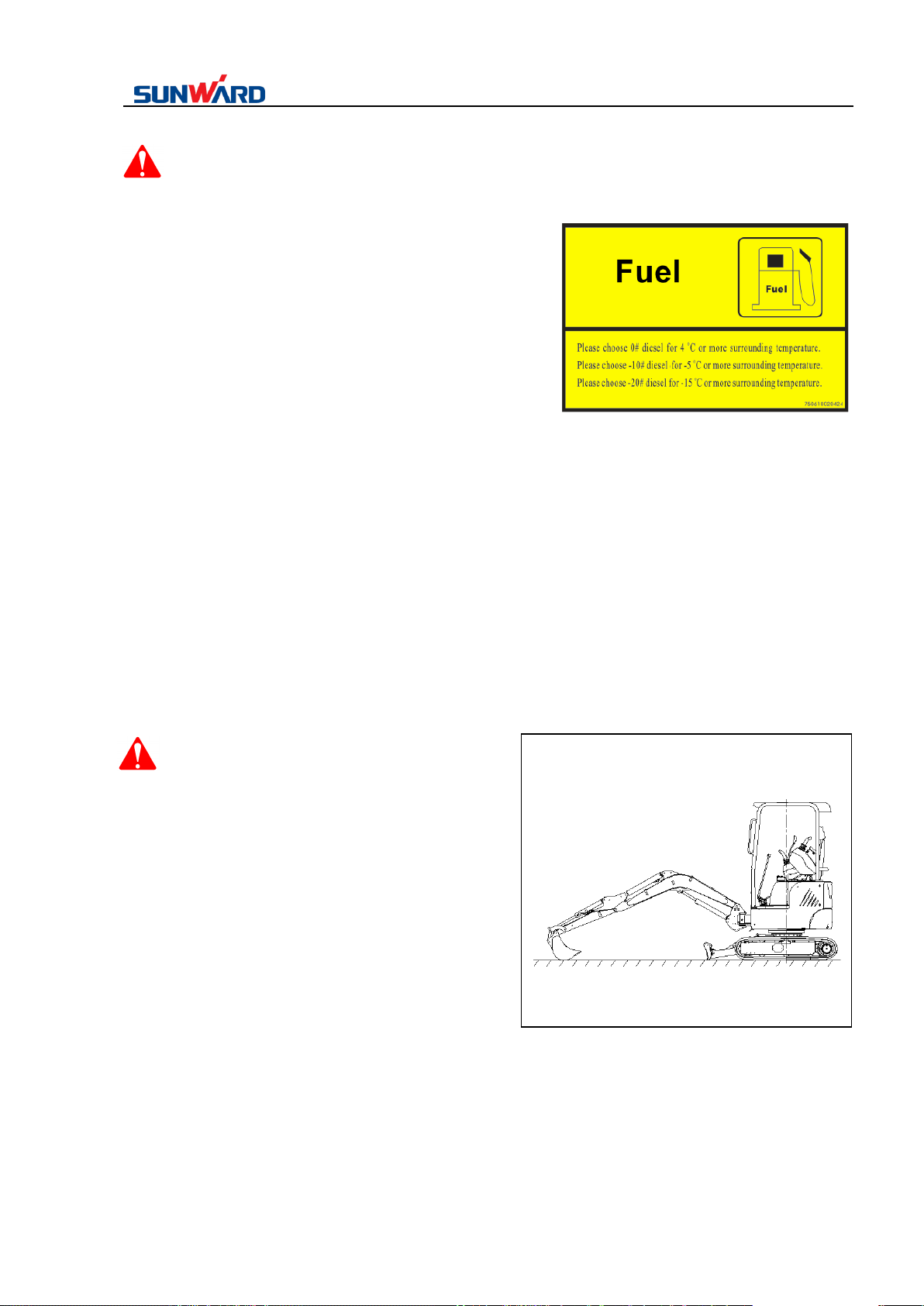

(3) Diesel Label
Caution
Refilling fuel with extra care. Stop engine
before refilling fuel. Do not smoke while refilling
to fuel tank or operating around fuel system.
Select proper fuel according to different ambient
temperature.
Refer to “stop engine” section for properly parking
machine and stopping engine.
Inspect fuel gauge on monitor, top up is required.
Prevent dirt, dust, water and other foreign matter from
entry into oil tank and fuel system.
While refilling at the end of daily work-shift, do not
spill, drip any fuel to machine or ground to avoid fuel
clotting.
After refilling fuel, fasten cap securely.
(4）Machine Posture Label
Caution
Do not start engine when hydraulic oil tank
runs out of oil.
Inspect hydraulic oil level……every day
Park machine on level ground.
Completely retract arm cylinder and extend bucket
cylinder to full length.
Lower bucket down to the ground.
Run engine at low speed for 5 minutes.
Shut down engine, remove the key.
Place pilot control lever to LOCK (up) position.
Open right side door to check oil level gauge. Located
Caution
Posture for Checking Hydraulic Oil Level
Caution

OPERATION & MAINTENANCE MANUAL SWE18UF
5
on hydraulic oil tank, oil level must be within level
marks. Drain oil if level is higher than MAX mark,
refill if level is below MIN mark.
Fill oil：
Remove upper breather screw cap by rotating
anticlockwise.
Refill oil through strainer. Recheck oil level gauge.
Fasten cap securely.
(5) Maintenance and Lubrication Label
Proper procedure of maintenance and inspection
Learn about how to properly service machine. Perform
proper maintenance and inspection procedure in accordance
with this manual. Inspect machine before starting machine.
Check monitor.
Check each liquid level.
Check hose and piping for leakage, twist, wear out or
damage.
Check surrounding the machine for any signs of noise,
heat etc.
Check parts for looseness and lost.
Caution
If any problems are detected, repair prior to
operation, or contact our authorized
distributor.
Use recommended fuel, hydraulic oil and lubricant.
Use only genuine SUNWARD components.
The warranty is not applicable for any damages arising
from failure to use SUNWARD recommended fuel,

OPERATION & MAINTENANCE MANUAL SWE18UF
6
lubricant, hydraulic oil and genuine SUNWARD
components.
Do not adjust engine speed limiter or safety valve of
hydraulic system.
Do not allow water or vapor to reach electrical
equipment.
Do not disassemble components such as engine pump
controller, sensor etc.
(7) Engine Hood Label
Warning
Shut down engine before opening engine hood.
Be cautious of scalding after opening engine hood.
(8) Work Device Label
Warning
Stay clear of working device.
(9) Swing Label
Warning
Keep clear of swing area.
(10) Tail Warning Label
Warning
Stay clear of machine while it is running.

OPERATION & MAINTENANCE MANUAL SWE18UF
7
(11) Lifting Direction Label
(12) Traction Hook
(13) Anti- scald Label
After running operation, engine oil, gear oil and
hydraulic oil is getting hot, so do engine, hoses,
pipelines or other components. Be cautious of
scalding.
Attempt inspection and maintenance procedure, after
machine components and oil cool down.
There is pressure in hydraulic oil tank. Relieve
pressure before opening cap to avoid oil spurt.
There is pressure which builds up in hydraulic piping.
Relieve pressure prior to repair or replacing.
（14）Be cautious with high pressure
Pressure should be released to avoid scalding by high temperature oil prior to opening the cap.
Release the pressure in hydraulic pipelines to avoid scalding by high temperature oil.
(15) Preventing Hands from Being Caught by Fan
Fan would run at high speed while engine is active.
Pay much attention to prevent hand, foot, hair and
clothing being caught in fan blade, when attempting
any inspection and maintenance procedures on
machine.

OPERATION & MAINTENANCE MANUAL SWE18UF
8
(16) Operation Label
This machine is equipped with two pilot control
handle and two travel control lever which control
working device motion, swing action of upper
structure, machine travel accordingly.

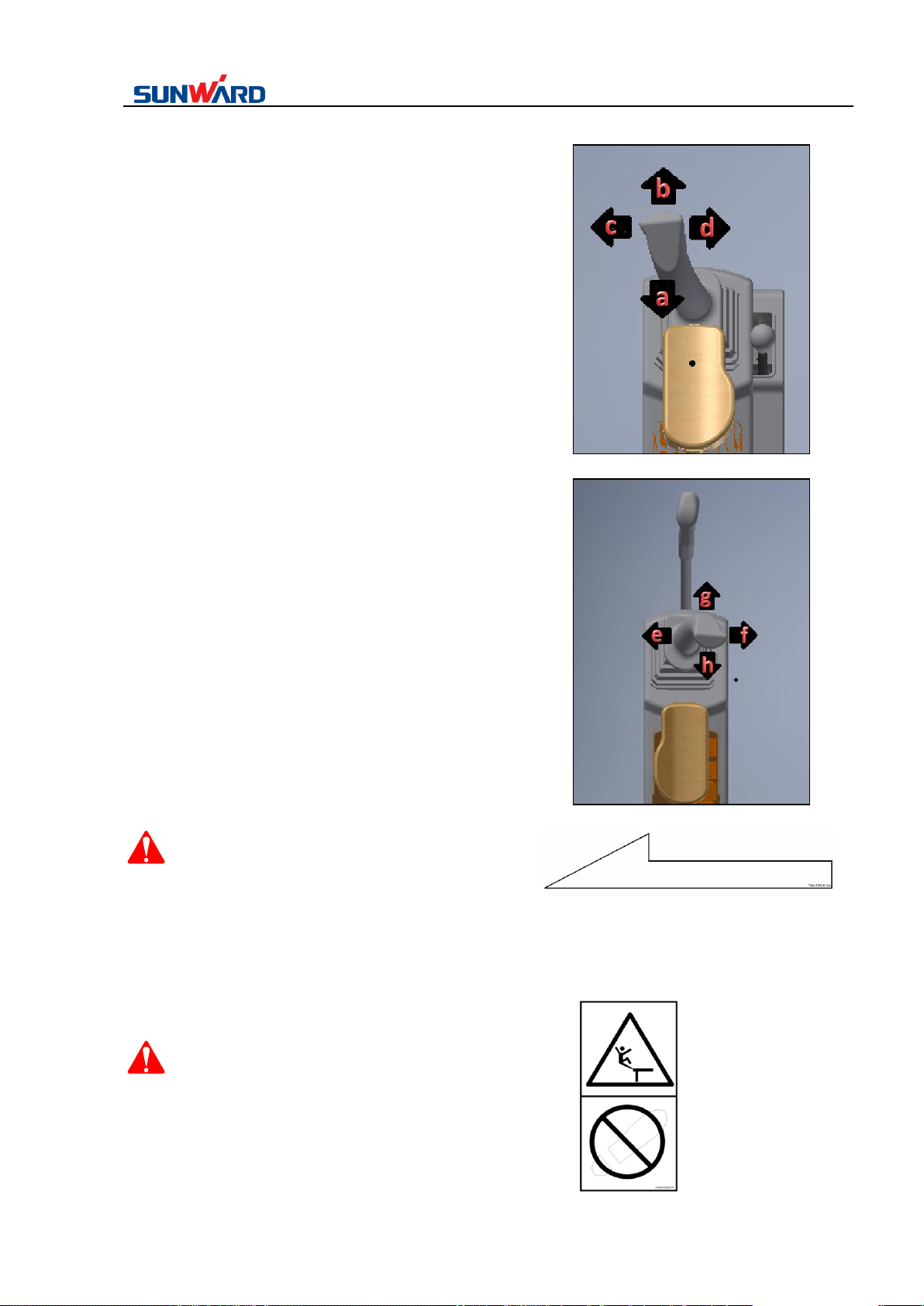

The right pilot joystick controls motions as below：
a. boom rise
b. boom fall
c. backhoe bucket load, or bucket in
d. backhoe bucket dump, or bucket out
Left pilot joystick controls motion as below：
e. upper-structure rotate anticlockwise
f. upper-structure rotate clockwise
g. arm out
h. arm in
Operation together with two pilot joysticks can also
take compound motion. In addition, horn switch
button is fixed on the handle.
Two travel control lever control forward motion,
reverse motion and steering of the machine.
（17）Direction Label
This label indicates travel direction of machine when
“travel control lever is pushed forward”.
Warning
In case that driving wheel is located at the back of cab,
machine will travel rearward when pushing “travel
control lever”forward. (On this occasion, symbol
indicates backward).
(18) No Stepping Label
Warning
Stay clear of operation area of working device.

OPERATION & MAINTENANCE MANUAL SWE18UF
9
(19) Pilot Safety Lock Label
(20) Fuel Label
Warning
Handle fuel with extra care because it’s highly
flammable. In case that fuel is ignited, this can
cause explosion or fire, and even death or injury
to person.
Always refilling fuel at outdoor. Before refilling, the
engine should be shut down.
Do not refill fuel while smoking or near fire or sparks.
All fuel and most of lubricants are flammable.
Flammable liquid should be stored at proper place far from fire.
Do not burn out or stab at pressurized container.
Do not store rags containing oil. This can cause self-ignition and can be lighted up.
Fasten cap of filling opening.

OPERATION & MAINTENANCE MANUAL SWE18UF
10

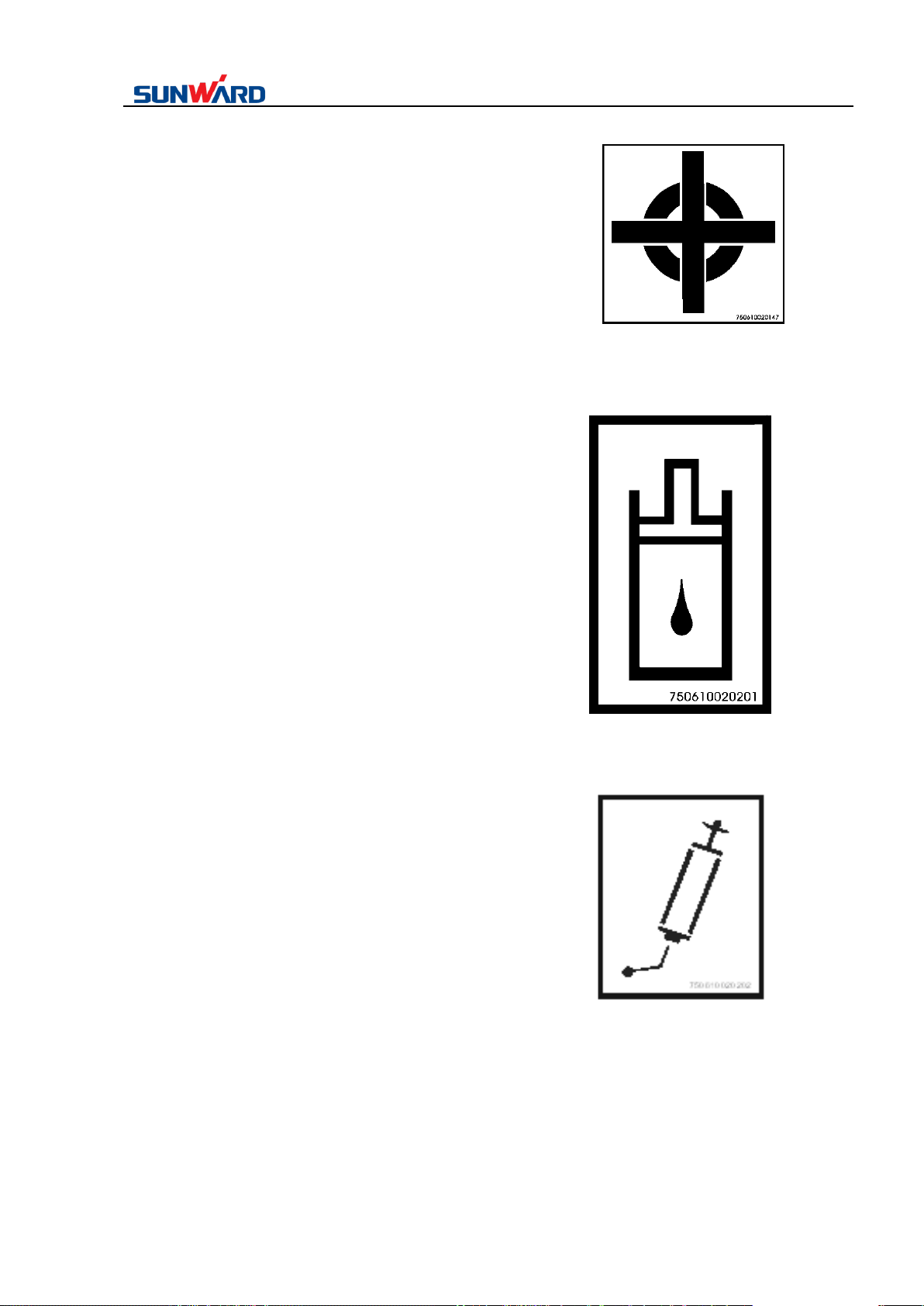

（21）Center of Gravity Label
（22）Hydraulic Oil Label
（23）Grease Label
