Super angel Juice Extractor User manual

Invented by Angel with 30 years of
experiences, SHGTM Technology to crush the
bers into ne particles for extracting the
nutrients hiding deep inside of ber cells.
Only way to get more juice from food is the
“Pressing”. Super Angel equipped MESTM
with LSCSTM technology, uses variant type
of pressing at multiple stage.
Fibers ground by SHGTM Technology
After grinding, you can easily check how the bers are nely ground. Simply put some pulps into the
cup of water and see the bers in the water.
As you see on above pictures,
(Photo # 1) SHGTM Technology of Super Angel Twin Gears can grind the bers evenly and break the ber
cells of produce, resulting the ne particles, extracting the nutrients hiding deep inside of ber cells.
(Photo # 2) Other brand twin gears are not capable to crush, break the ber cells of produces. No
nutrients extracted from the deep inside of ber cells.
(Photo # 3) Single auger juicer doesn't even grind the bers evenly. No nutrients extracted from the
deep inside of ber cells.
This test report was prepared by KAFRI(Korea
Advanced Food Research Institute) with a data of
nutrients extracted by each dierent type of
juicers. See the analysis report shown on the left
chart, the twin gears by Super Angel's SHGTM &
LSCSTM Technology can extract 82.8 mg/kg of
calcium and 15.0 mg/kg of magnesium from
Angelica(herb). From the same amount of
angelica, other twin gears extract only 11.9 mg/kg
of calcium and 5.5 mg/kg of magnesium. You can
simply compare on it, almost 3 to 7 times more
nourishing, nutritious juice and furthermore, about
20 to 30 percent more juice you can enjoy with the
Super Angel Juice Extractor. There is no alternative
to the Super Angel Juicer and you will denitely
count on it.
Comparison with other juice extractors

Ecient juice extraction: Stage one applies concentrated pressure to the fruits or vegetables.
Stage two and three grings and continuously processes the fruits or vegetables, producing very
dry pulp and more juice.
3-stage screen lters and maximizes juice production, yield resulting in two to three times the
amount of juice extracted compared to other juicers.

In addition to making juice, the Angel Juicer supports Soybean Juicing and the making Tofu,
Nut Butters and Frozen Fruit Sorbet
Six safety devices include: Automatic Heat Sensor, Dual Switch System, Internal Gear Protection,
Reinforcement of Switch Panel, Double Protection Sensor between the motor and the screen
housing, Electromagnetic Wave Protection.
Blockages from overload and jamming can easily be cleared with the reverse action switch.
Specially designed the motor cooling system helps prevent the motor from overheating and
helps keep the juicer as quiet as possible.

Juice Collector

The Super Angel is not a commercial juicer, strictly for house hold use. When using for
commercial purpose, the warranty is not provided and the warranty is automatically null and
void.
Note. 1. Please remember that the motor does not run when the extracting (screen)
housing is not assembled. In order to run the motor with the gear set, you
should assemble the screen housing and lock the clamps.
2. Please do not let the twin gears idle for extended periods of time without food
in the feeding chute. Rotating gears without food may cause irregular operation.
1. Connect the power cord into the power cord connector of motor base unit.
Plug the power cord into the electrical
wall outlet.
Place the Juice Collector under the
juice guide. Please be sure that the
round edge(mouth) of glass cup
should be placed between the juice
guide(slide panel) and the pulp drop
guide panel(vertical shape).

In order to avoid damaging the magnetic sensor located at the bottom of extracting
housing, please do not submerge the sensor area of extracting housing in water.
Important! Right after juicing, please clean the surrounding area(white bushing) of
motor shaft by gently spraying water. When spraying water to the surrounding area of
motor shaft, please lift the back of the juicer(bottom part) slightly so that water
doesn’t get into the inside of white bushing. Do not rub the white bushing of motor
shaft with either brush or towel. Just simply dry up the remained water on the white
bushing by gently tapping with soft towel.

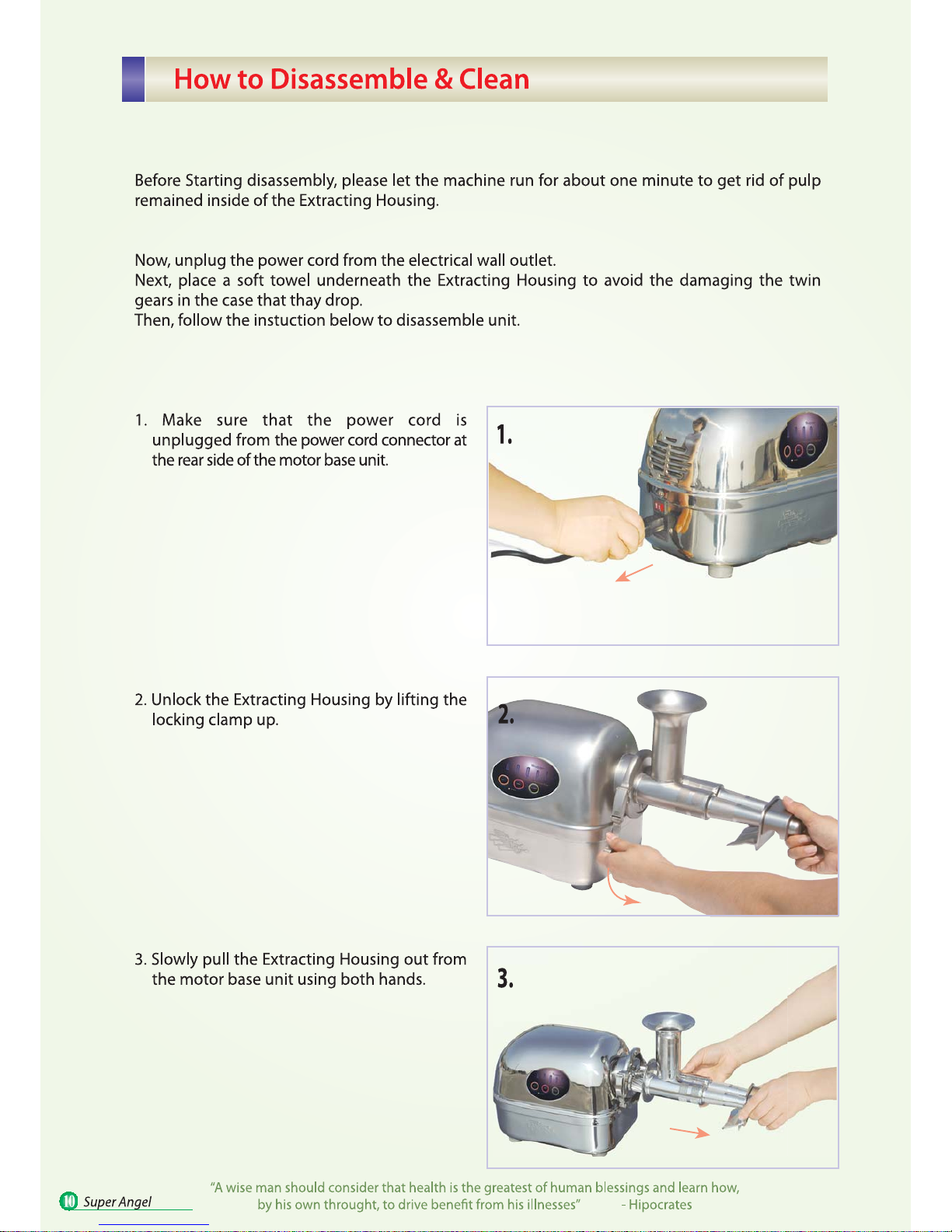

a) Slowly insert the cleaning brush into the
Extracting Housing under the running (warm)water.
b) Slowly pull the cleaning brush, while turning clockwise (under the running warm water). Repeat
this step two or three times.
c) Do not pull the cleaning brush out straight from the Extracting Housing. Otherwise, the brush
handle may break.
d) Press the start button to release the gears
from the screen housing. The rotating gears
will push the screen housing and the motor
will stop running within 5 - 6 seconds with
a beep sound.
6. Clean the Extracting Housing & twin grinding
gears with the Cleaning Brush.
In order to extend the life span of juice
extractor, you need to cleand all aprts
immediately right after use, before mineral
build-up.

Place the juice collector under the juice guide(slide
panel).

Please note the important thing !!
In order to get the best result on your juicing with the twin gear juicer, Do insert a small amount of
food into the feeding chute, never a bunch of food at a time, in any circumstances. When you insert a
small amount of food when juicing, the food can be crushed and ground more eciently by and
between two rotating gears. At the same time, those two rotating gears can crush cellulose bers,
breaking up cells in vegetables and fruits, extracting the nutrients locked inside such as minerals,
vitamins, enzymes, amino acids, complex carbohydrates. But, when you insert a lot of food into the
feeding chute at a time, you are not able to expect above result.
1. The Angel Juicer is the only juicer on the market that limits twin gear speeds to a low 82 revolutions per
minuts (RPM); the show RPM helps keep almost 100% of the enzymes and nutrients alive during the juicing
process. To maintain the juicer’s eectiveness, you should not overload the feeding chute. Doing so may
cause the gears to jam and limit enzyme and nutrient extraction.
2. Completely crush down food in the feeding chute with the wooden pusher and then feed additional
food. Don’t worry about depressing the wooden pusher till it touches the twin gears. It will not harm the
gears or plunger. The plunger is made from the same high quality wood ad those found in ne chopping
blocks. Any accidental particles of cellulose scrapped o from contact with the twin gears are natural and
non-toxic and will harmlessly pass though with the pulp.

Maintaining maximum cleanliness of your juicer is extremely important for both your health and the
peak performance of the machine.
We recommend cleaning the juicer immediately after use, which is the easiest way to remove food articles.
1. CALCIUM & MINERAL DEPOSITS / TWIN GEARS
After using the machine for some period of time, you may notice a calcium or mineral deposit on the
surface of the twin gears. This deposit can be removed by running soaked almonds through the
machine. Another excellent way to remove the deposit is : After juicing carrots, feed some of the carrot
pulp back into the feeding chute of your juicer and then add some granulated sugar (ratio : one
table-spoon of carrot pulp to two tea-spoons of granulated sugar). Alternate carrot pulp and granulated
sugar several times and then run the machine. Or, you can try this method to remove the deposit : Do
soak the twin gears in a pure vinegar bath overnight. This loosens the scaling and much of it can be
brushed o. The vinegar used for de-scaling can be stored for reuse. Please label the storage bottle
properly so that it is not accidentally used in food preparation.
To prevent mineral scales, thoroughly clean the twin gears with warm water immediately after juicing.
If delays on above cleaning, the mineral deposit starts to build up (It looks like a very thin lm on the
surface of twin gears).
2. STICKY RESIDUE:
Dried fruits and nuts can be very sticky on the inside surface of the juicer.
To remove the residue more easily, run a couple of stalks of celery through the machine before
disassemble the machine
3. MOTOR BASE UNIT:
Important ! Right after juicing, please clean the surrounding area(white bushing) of motor shaft by
gently spraying water. When spraying water to the surrounding area of motor shaft, please lift the
back of the juicer(bottom part) slightly so that water doesn’t get into the inside of white bushing. Do
not rub the white bushing of motor shaft with either brush or towel. Just simply dry up the remained
water on the white bushing by gently tapping with soft towel.
Wipe the exterior surfaces with a damp cloth and dry with a clean towel.
To keep the machine’s polish, clean the parts with the soft sponge rst and dry it with the soft
towel. After cleaning the juice extractor, let it dry thoroughly.
4. EXTRACTING (SCREEN) HOUSING
To protect the sensor(magnet) located at the bottom of extracting housing, please do not submerge the
sensor area of extracting housing in the water. It is no problem to submerge the screen portion of
extracting housing in the water and also you can wash the sensor area with water. For cleaning the
inside of extracting housing, please refer to the information on page 11.
5. CLEANING THE CLOGGED HOLES OF EXTRACTING (SCREEN) HOUSING
Do juice the lemon and leave the extracting housing for all day without cleaning of screen area. The acid
from lemon juice can remove the residue on the screen of extracting housing. Later, you can clean the
screen with cleaning brush under the running (warm/hot) water. You can repeat it for better result.
Or, you can try this method of cleaning,
Soak the screen area(only screen portion, not the sensor area of extraction housing) in the mixture of
baking soda and water (ratio - baking soda powder/water : 2 to 8) overnight. This loosens the scaling
and much of it can be brushed o by bristle. For better result, please spray extra baking soda powder
on the surface of screen while brushing by bristle. Please note that you should not soak the sensor
area of screen housing in the water in any circumstances.

1. Make sure to unplug the power cord from both the electrical wall outlet and the juicer.
Fuse In Use

Press the start button to release the gears from the screen housing. The
rotating gears will push the screen housing and the motor will stop
running within 5 - 6 seconds with a beep sound.

1. Contact the Customer Support Desk by email at [e-mail] or [email protected]
