Super Power SP3500WS User manual

1/22


GASOLINEGENERATINGSET



web:www.superpowergenerator.com

E‐mail：ver[email protected]

Owner’sManual

2/22
IMPORTANTSAFETYINFORMATION
SAVETHISMANUAL
Youwillneedthismanualforthesafetywarningsandprecautions,operating,
inspection,maintenanceandcleaningprocedures,partslistandassemblydiagram.
Keepyouinvoicewiththismanual.Writetheinvoicenumberontheinsideofthe
frontcover.Keepthismanualandinvoiceinasafeanddryplaceforfuturereference.
Thewarnings,cautionsandinstructionsdiscussedinthis
instructionmanualcannotcoverallpossibleconditionsand
situationsthatmayoccur.Itmustbeunderstoodbytheoperator
thatCOMMONSENSEANDCAUTIONAREFACTORSWHICH
CANNOTBEBUILTINTOTHISPRODUCT,BUTMUSTBESUPPLIED
BYTHEOPERATOR.
GENERALSAFETYRULESWORKAREA
1. Keepyourworkareacleanandwelllit.Clutteredbenchesanddarkareasinvite
accidents.
2. Donotoperategeneratorsinexplosiveatmospheres,suchasinthepresenceof
flammableliquids,gases,ordust.Generatorscreatesparks,whichmayignitethe
dustorfumes
3. Keepbystanders,children,andvisitorsawaywhileoperatingagenerator.Provide
barriersorshieldsasneeded.
4. Dressproperly.Donotwearlooseclothingorjewelry.Containlonghair.Keep
yourhair,clothing,andglovesawayfrommovingparts.Looseclothes,jewelry,
andlonghaircanbecaughtinmovingparts.
5. Generatingsetsareprohibitedtojoinpowersystemnetwork.
6. Generatingsetsshallnotbeusedinthesurroundingswithinflammableand
explosivearticles.
7. Standardandoperationstatusforgasolinegeneratorsets:Atmospherepressure:
1013mbar;Intaketemperature:20℃;Generatingsetsinstallationheightis
increasedbyevery1000ft,theoutputwillbedecreasedby3.5%;Theambient
temperatureisexceededbyeveryabovestandardtemperature,theoutputwill
bedecreasedby1%around.
IMPORTANTSAFETYINFORMATION
GENERATORSAFETY
1.Donotoverloadthegenerator.Usethecorrectgeneratorforyourapplication.
Thecorrectgeneratorwilldothejobbetterandsaferattherateforwhichitis
designed.
2.Donotexposetorainorwetconditions.Waterenteringageneratorwillincrease
theriskofelectricshock.
3.Stayalert.Watchwhatyouaredoing,andusecommonsensewhenoperatinga
generator.Donotuseageneratorwhiletiredorundertheinfluenceofdrugs,alcohol,
ormedication.Amomentofinattentionwhileoperatingthegeneratormayresultin

3/22
seriouspersonalinjury.
4.Whenoperatingapowertooloutside,useanoutdoorextensioncordmarked
"W‐A"or"W".Theseextensioncordsareratedforoutdooruse,andreducetherisk
ofelectricshock.
5.CAUTION!Neverrunthegeneratorinanenclosedgarageoranyothertypeof
enclosedstructurewithoutaproper,leak‐freeventilationshaft.CarbonMonoxide,
anodorless,colorlessdeadlygasmayaccumulateandcauseseriousinjuryordeath.
6.DonotusethegeneratorifthePowerSwitchdoesnotturnitonoroff.Any
generatorthatcannotbecontrolledwiththePowerSwitchisdangerousandmustbe
repaired.
7.MakesurethePowerSwitchisinits"OFF"positionanddisconnectthespark
plugwirebeforemakinganyadjustments,changingaccessories,orstoringthe
generator.Suchpreventivesafetymeasuresreducetheriskofstartingthegenerator
accidentally.
8.Maintaingeneratorswithcare.Donotuseadamagedgenerator.Tagdamaged
generators"Donotuse"untilrepaired.
9.Onlyqualifiedrepairpersonnelshouldperformgeneratorservice.Serviceor
maintenanceperformedbyunqualifiedpersonnelcouldresultininjury.
10.Usetherightgeneratorforthejob.Donotattempttoforceasmallgeneratorto
dotheworkofalargerindustrialgenerator.Therearecertainapplicationsforwhich
thisgeneratorwasdesigned.Itwilldothejobbetterandmoresafelyattheratefor
whichitwasintended.Donotmodifythisgenerator,anddonotusethisgenerator
forapurposeforwhichitwasnotintended.
INSTALLATIONPROCEDURES
1.WARNING!BeforeusingtheGenerator,readandunderstandtheEngine
manufacturer'sOperation,Maintenance,andPartsmanual.Also,readthesafety
precautionsinthismanual.Theseshouldalwaysbefollowedtoreducetheriskof
personalinjuryanddamagetoequipment.
2.Ensureinstallationmeetsallapplicablesafety,andlocalandnationalelectrical
codes.Haveinstallationperformedbyaqualified,licensedelectricianandbuilding
contractor.
3.Ifthegeneratorisinstalledindoors,exhaustfumesmustbepipedoutofthe
buildingusingleak‐free,heat‐resistantpiping.Pipesandsilencershouldnotbemade
ofanyflammablematerials,norshouldtheybeinstallednearanyflammable
materials.Generatorexhaustfumesmustbewithinlegallimits,includingalllocal
codesandordinances.
4.Ifthegeneratorisinstalledoutdoors,itmustbeweatherproofedandshouldbe
soundproofed.ItshouldnotberunoutdoorswithoutprotectiontotheGenerator
andwiringconduit.
5.NeverlifttheGeneratorusingtheengineoralternatorliftinglugs.Connectlifting
equipmenttotheFrameoftheGenerator.BeforeliftingtheGenerator,ensurethelift
riggingandsupportingstructureareingoodcondition,andareratedtoliftsucha
load.
6.Thesupportingfloor/groundsurfaceshouldbelevel,andstrongenoughtosafely

4/22
holdtheweightoftheGenerator.Ifthefloor/groundsurfaceisnotlevel,strongcross
membersshouldbeplacedunderthefulllengthoftheGeneratorFrameatitslow
side.
7.Fortrailerinstallation,theGeneratorshouldbemountedonthecenterpointof
thetrailer,overthewheels.
OPERATION
STARTINGTHEENGINE
1. Startingwithhand
TurntheEngineSwitchtotheONposition.
Theengineswitchenablesanddisablesthe
ignitionsystem.
OFF:Tostoptheengine.
ON:Toruntheengine.



Electricstart
Keyposition:
OFF:ToStoptheengine.Keycanbe
removed/inserted.
ON:Toruntheengineafterstarting.
START:Tostarttheenginebyturningthestarter
motor.

2. Thefuelvalveislocatedbetweenthefuel
tankandcarburetor.Whenthevalveleverto
theONposition,fuelisallowedtoflowfrom
thefueltanktothecarburetor.Besureto
returnthefuelvalvelevertotheOFFafter
stoppingtheengine.


3. Tostartacoldengine,movethechokeleverto
theCLOSEDposition.Torestartawarm
engine,leavethechokeleverintheOPEN
position.
Thechokeleveropensandclosethechoke
valveinthecarburetor.
TheCLOSEDpositionenrichesthefuel
mixtureforstartingacoldengine.
TheOPENpositionprovidesthecorrectfuel
mixtureforoperationafterstarting,andfor


5/22
restartingawarmengine.

4. OperatetheRECOILSTARTER:
Pullthestartergriplightlyuntilyoufeel
resistance,thenpullbriskly.Returnthe
startergripgently.
Pullingthestartergripoperatestherecoil
startertocranktheengine.



Electricstart
Keyposition:Keycanberemoved/inserted.
START:Tostarttheenginebyturningthestarter
motor.




ReturnthekeytotheONpositiononcetheenginehasstarted.Donotusethe
starterformorethan5secondsatatime.Iftheenginefailstostart,releasethe
switchandwait10secondsbeforeoperatingthestarteragain.

5. Ifthechokeleverhasbeenmovedtothe
CLOSEDpositiontostarttheengines,
graduallymoveittotheOPENpositionas
theenginewarmsup.






Carbonmonoxidegasistoxic.
Breathingitcancause
unconsciousnessandevenkill
you.Avoidanyareasor
actionsthatexposeyouto
carbonmonoxide.





6/22
STOPPINGTHEENGINE
1. Removeanyloadfromcircuitoutand
closecircuitbreaker.






2. TurntheengineswitchtoOFFposition.


3. TurnthefuelvalvelevertotheOFF
position.
Whentheengineisnotinuse,leavethe
fuelvalveleverintheOFFpositionto
preventcarburetorfloodingandtoreduce
thepossibilityoffuelleakage.











7/22
USAGEOFGENERATOR


1. GroundTerminal
Thegeneratorgroundterminalisconnectedtotheframeofthegenerator,the
metalnon‐currentcarryingpartsofthegenerator,andthegroundterminalsof
eachreceptacle.
Beforeusingthegroundterminal,consultaqualifiedelectrician,electrical
inspectororlocalagencyhavingjurisdictionforlocalcodesorordinancesthat
applytotheintendeduseofthegenerator.












2. CircuitBreaker
ThecircuitbreakerwillautomaticallyswitchOFFifthereisashortcircuitora
significantoverloadofthegeneratoratthereceptacle.Ifthecircuitbreakeris
switchedOFFautomatically,checkthattheapplianceisworkingproperlyand
doesnotexceedtheratedloadcapacityofthecircuitbeforeswitchingthecircuit
breakerONagain.
ThecircuitbreakermaybeusedtoswitchthegeneratorpowerONorOFF.













8/22
3. VoltMeter
Thevoltmaterdisplaysthevoltagethegeneratorisproducing.










4. ACOperation
1. Starttheengine.
2. SwitchONtheACcircuitbreaker.
3. Plugintheappliance.Mostmotorizedrequiremorethantheirratedwattage
forstartup.
4. Makesurethatthevoltmeterindicatesthespecifiedvoltage.










Donotexceedthecurrentlimitspecifiedforanyonereceptacle.Ifanoverloaded
circuitcausestheACcircuitbreakertoswitchOFF,reducetheelectricalloadon
thecircuit,waitafewminutesandthenresetcircuitbreaker.
5. Electricequipment,especiallyengineproducesstrongcurrentwhenbeing
started.Thetablebelowoffersreferencewhenyouconnectthose
installationtogenerator.











9/22
partwattModel
installation
Example
startin
g
rate
d
installationstartin
g
rated
Incandescen
tlamp
Heating
installation
×1×1
Incandescent
lamp
Incandescent
lamp
100VA
(W)
100V
A
(W)
Fluorescent
lamp
×2×
1.5
Fluorescent
lamp
40W
Fluorescent
lamp
80VA
(W)
60VA
(W)
Engine
starting
installation
×3‐5×2
Fridge

Fridge
150W

PRE‐OPERATIONCHECK
Engineoil
NOTICE
Engineoilisamajorfactoraffectingengineperformanceandservicelife.Non
detergentand2‐strokeengineoilswilldamagetheengineandarenot
recommended.
ChecktheoillevelBEFOREEACHUSEwiththe
generatoronalevelsurfaceandtheengine
stopped.
Use4‐strokemotoroilthatmeetsorexceeds
therequirementsforAPIserviceclassification
SJ.AlwayschecktheAPISERVICElabelonthe
oilcontainertobesureitincludestheletterSJ.
SAE10W‐30isrecommendedforgeneral,
all‐temperatureuse.Otherviscositiesshownin
thechartmaybeusedwhentheaverage

10/22
temperatureinyourareaiswithintheindicatedrange.
1.Removetheoilfillercapandwipethedipstickclean.
2.Checktheoillevelbyinsertingthedipstickintothefillerneckwithoutscrewingit
in.
3.Ifthelevelislow,filltothetopoftheoilfillerneckwiththerecommendedoil.












FuelRecommendation
1.Checkthefuellevelgauge.
2.Refillthetankifthefuellevelislow.Donotfillabovetheshoulderofthefuel
strainer.



● Gasolineisextremelyflammableandisexplosiveundercertainconditions.
● Refuelinawell‐ventilatedareawiththeenginestopped.Donotsmokeorallow
flamesorsparksintheareawheretheengineisrefueledorwheregasolineis
stored.
● Donotoverfillthefueltank(thereshouldbenofuelinthefillerneck).After
refueling,makesurethetankcapisclosedproperlyandsecurely.Becarefulnot
tospillfuelwhenrefueling.Spilledfuelorfuelvapormayignite.Ifanyfuelis
spilled,makesuretheareaisdrybeforestartingtheengine.
● Avoidrepeatedorprolongedcontactwithskinorbreathingofvapor.
● KEEPOUTOFREACHOFCHILDREN.
Fueltankcapacity:15.0L

11/22
Usegasolinewithapumpoctaneratingof86orhigher.
Werecommendunleadedgasolinebecauseitproducesfewerengineandsparkplug
depositsandextendsexhaustsystemlife.
Neverusestaleorcontaminatedgasolineoroil/gasolinemixture.Avoidgettingdirt
orwaterinthefueltank.
BatteryConnectionsforElectricStarter(applicabletypes)
Usea12‐voltbatterywithanampere‐hourratingofatleast18Ah.
Becarefulnottoconnectthebatteryinreversepolarity,asthiswillshortcircuitthe
batterychargingsystem.Alwaysconnectthepositive(+)batterycabletothebattery
terminalbeforeconnectingthenegative(‐)batterycable,soyourtoolscannot
causeashortcircuitiftheytouchagroundedpartwhiletighteningthepositive(+)
batterycableend.
Abatterycanexplodeifyoudonotfollowthecorrectprocedure,seriouslyinjuring
anyonenearby.
Keepallsparks,openflames,andsmokingmaterialsawayfromthebattery.
1) Connectthebatterypositive(+)cabletothestartersolenoidterminalasshown.
2) Connectthebatterynegative(‐)cabletoanenginemountingbolt,framebolt,or
othergoodenginegroundconnection.
3) Connectthebatterypositive(+)cabletothebatterypositive(+)terminalas
shown.
4) Connectthebatterynegative(‐)cabletothebatterynegative(‐)terminalas
shown.
5) Coattheterminalsandcableendswithgrease.
Powering12VoltDCtoolsandEquipment:
1. Priortopoweringtoolsandequipment,makesurethegenerator’sratedvoltage,
andamperagecapacity(12VDC)isadequatetosupplyallelectricalloadsthatthe
unitwillpower.Ifpoweringexceedsthegenerator’scapacity,itmaybe
necessarytogrouponeormoreofthetoolsand/orequipmentforconnectionto
aseparategenerator.

12/22
2. Connectthepowercordofa12VDCpoweredtoolorequipmenttotheDC
Terminals.
Makesuretoconnectthepositive(+)leadofthepowercordto
thepositive(+)terminalonthegenerator,andconnectthe
negative(‐)leadofthepowercordtothenegative(‐)terminal
onthegenerator.
3. Startandruntheengineasdescribedabove.
4. Whenfinishedusingthegenerator,turntheenginepowerswitchtoits“OFF”
position.Turnthefuelvalvetoits“OFF”position.
5. Disconnecttheelectricalpoweredtools’powercordfromthegenerator’sDC
terminals.
6. Aftertheengineandgeneratorhavecompletelycooled,storethegeneratorina
safe,clean,drylocation(ifnotalreadyinstalledinone).
NOTE:The12VDCisgenerallyusedforchargingbatteries.
MAINTENANCE
Periodicmaintenanceandadjustmentisnecessarytokeepthegeneratoringood
operatingcondition.Performtheserviceandinspectionattheintervalsshowninthe
maintenanceschedulebelow.



Exhaustgascontainspoisonouscarbonmonoxide.Shutofftheenginebefore
performinganymaintenance.Iftheenginemustberun,makesuretheareaiswell
ventilated.
NOTICE
UseonlygenuineTHpartsortheirequivalentformaintenanceorrepair.
Replacementpartswhicharenotofequivalentqualitymaydamagethegenerator.
MAINTENANCESCHEDULE
REGULARSERVICEPERIOD
Performedateveryindicated
monthoroperatinghourinterval,
whichevercomesfirst.
each
use
First
month
or
20Hrs.
(2)
Every
3
months
or
50Hrs.
(2)
Every
6
months
or
100Hrs
(2).
Every
year
or
300
Hrs.(2)
ITEM 
EngineoilChecklevel○ 
Change
○○
AircleanerCheck
Clean○○(1)
SedimentcupClean
○
SparkplugCheck‐clean   ○
SparkarresterClean
○
ValveclearanceCheck‐Adjust    ○
Fueltankand
strainerClean
○

13/22
Fuelline
Check
(Replaceif
necessary)
Every2years
(1)Servicemorefrequentlywhenusedindustyareas.
(2)Forprofessionalcommercialuse,loghoursofoperationtodetermineproper
maintenanceintervals.
Engineoilchange
Draintheoilwhiletheengineiswarmtoassurerapidandcompletedraining.
1. Removethedrainplugandsealingwasher,removetheoilfillercap,anddrain
theoil.
2. Reinstallthedrainplugandsealingwasher.Tightentheplugsecurely.
3. Refillwiththerecommendedoilandchecktheoillevel.
Oilcapacity:0.6L












Usedmotoroilmaycauseskincancerifrepeatedlyleftincontactwiththeskinfor
prolongedperiods.Althoughthisisunlikelyunlessyouhandsusedoilonadailybasis,
itisstilladvisabletothoroughlywashyourhandswithsoapandwaterassoonas
possibleafterhandingusedoil.
Pleasedisposeofusedmotoroilinamannerthatiscompatiblewiththe
environment.Wesuggestyoutakeitinasealedcontainertoyourlocalservice
stationorrecyclingcenterforreclamation.Donotthrowitinthetrash,pouriton
theground,ordownadrain.
Aircleanerservice
Adirtyaircleanerwillrestrictairflowtothecarburetor.Topreventcarburetor
malfunction,servicetheaircleanerregularly.Servicemorefrequentlywhen
operatingthegeneratorinextremelydustyareas.

Usinggasolineorflammablesolventtocleanthefitterelementcancauseafireor
explosion.Useonlysoapywaterornonflammablesolvent.

14/22

Neverrunthegeneratorwithouttheair
cleaner.Rapidenginewearwillresult.
1. Unsnaptheaircleanercoverclips,remove
theaircleanercover,andremovethe
element.
2. Washtheaircleanerelementinasolution
ofhouseholddetergentandwarmwater,
thenrinsethoroughly,orwashin
nonflammableorhighflashpointsolvent.
Allowtheaircleanerelementtodry
thoroughly.
3. Soaktheaircleanerelementinclean
engineoilandsqueezeouttheexcessoil.
Theenginewillsmokeduringinitialstartup
iftoomuchoilisleftintheaircleaner
element.
4. Reinstalltheaircleanerelementandthe
cover.
FuelSedimentCupCleaning
Thesedimentcuppreventsdirtorwaterwhichmaybeinthefueltankfromentering
thecarburetor.Iftheenginehasnotbeenrunforalongtime,thesedimentcup
shouldbecleaned.
1. TurnthefuelvalvelevertotheOFFposition.Removethesedimentcup,O‐ring,
andfilter.
2. Cleanthesedimentcup,O‐ring,andfilterinnonflammableorhighflashpoint
solvent.
3. Reinstallthefilter,O‐ring,andsedimentcup.
4. TurnthefuelvalveleverONandcheckforleaks.

15/22
Sparkplugservice
Recommendedsparkplugs: BPR6ES(NGK)
W20EPR‐U(NIPPONDENS0)
F7RTC(LD)
Toensureproperengineoperation,thesparkplugmustbeproperlygappedandfree
ofdeposits.
Iftheenginehasbeenrunning,themufflerwillbeveryhot.Becarefulnottotouch
themuffler.
1. Removethesparkplugcap.
2. Cleananydirtfromaroundthesparkplugbase.
3. Useasparkplugwrenchtoremovethesparkplug.












16/22
4. Visuallyinspectthesparkplug.Discarditifthe
insulatoriscracked,chippedorfouled.
5. Measurethepluggapwithafeelergauge.
Correctasnecessarybycarefullybendingthe
sideelectrode.
Thegapshouldbe:0.70‐0.80mm(0.028‐0.031in)
6. Check that the spark plug washer is in good condition, and thread the spark plug
in by hand to prevent cross-threading.
7. Check that the spark plug washer is in good condition, and thread the spark plug
in by hand to prevent cross-threading.
8. After the spark plug is seated, tighten with a spark plug wrench to compress the
washer.
If installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress
the washer. If reinstalling a used spark plug, tighten 1/8 1/4 turn after the spark plug
seats to compress the washer.
NOTICE
Thesparkplugmustbesecurelytightened.Animproperlytightenedsparkplugcan
becomeveryhotandcoulddamagetheengine.
Neverusesparkplugswhichhaveanimproperheatrange.Useonlythe
recommendedsparkplugsorequivalent.
TRANSPORTING/STORAGE
When transporting the generator, turn the engine switch and the fuel valve OFF. Keep
the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
Contactwithahotengineorexhaustsystemcancauseseriousburnsorfires.Letthe
enginecoolbeforetransportingorstoringthegenerator.
Takecarenottodroporstrikethegeneratorwhentransporting.Donotplaceheavy
objectsonthegenerator.
Beforestoringtheunitforanextendedperiod:
1.Besurethestorageareaisfreeofexcessivehumidityanddust.
2.Serviceaccordingtothetablebelow:
STORAGETIMERECOMMENDEDSERVICEPROCEDURETOPREVENTHARD
STARTING
Lessthan1monthNopreparationrequired
1to2monthsFillwithfreshgasolineandaddgasolineconditioner.
2monthsto1yearFillwithfreshgasolineandaddgasolineconditioner.

17/22
Drainthecarburetorfloatbowl.
Drainthefuelsedimentcup.
1yearormoreFillwithfreshgasolineandaddgasolineconditioner.
Drainthecarburetorfloatbowl.
Drainthefuelsedimentcup.
Removethesparkplug.Putatablespoonofengineoilinto
thecylinder.Turntheengineslowlywiththepullropeto
distributetheoil.
Reinstallthesparkplug.
Changetheengineoil.
Afterremovalfromstorage,drainthestoredgasolineinto
asuitablecontainer,andfillwithfreshgasolinebefore
starting.
Storage
DRAINSCREW
1. Drainthecarburetorbylooseningthedrainscrew.Drainthegasolineintoasuitable
container.



Gasolineisextremelyflammableandisexplosiveundercertainconditions.
Performthistaskinawell‐ventilatedareawiththeenginestopped.Donotsmoke
orallowflamesorsparksintheareaduringthisprocedure.











2. Changetheengineoil.
3. Removethesparkplug,andpouraboutatablespoonofcleanengineoilintothe
cylinder.Cranktheengineseveralrevolutionstodistributetheoil,thenreinstall
thesparkplug.

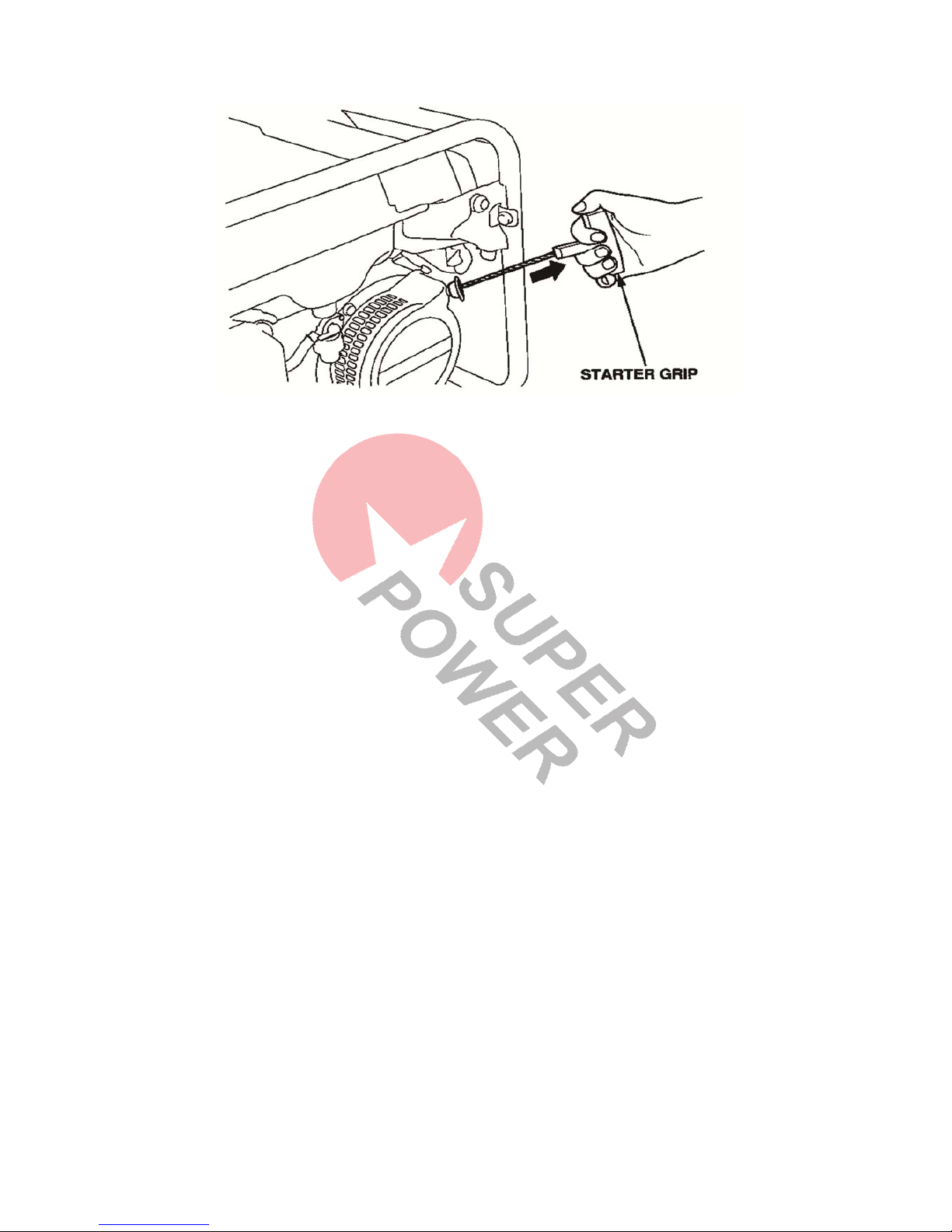

4. Slowlypullthestartergripuntilresistanceisfelt.Atthispoint,thepistonis
cominguponitscompressionstrokeandboththeintakeandexhaustvalvesare
closed.Storingtheengineinthispositionwillhelptoprotectitfrominternal
corrosion.

18/22





















19/22
TROUBLESHOOTING
Whentheenginewillnotstart:
Istherefuelinthe
tank?
NORefillthefueltank.
YES
Isthereenoughoil
intheengine?
NOAddtherecommended
oil.
(Theoilalertlampflasheswhen
crankingtheengine.)
 still
NO sparkNO


Tocheck
Besure1)Removethesparkplugcap
thereisnospilledfuel andcleananydirtfrom
aroundthesparkplug.aroundthesparkplug.
Spilledfuelmayignite.2)Removethesparkplug
andinstallthesparkplug
intheplugcap.
YES 3) Settheplugsideelectrode
onthecylinderhead.
4)Cranktheengine,sparks
shouldjumpacrossthegap.

NO

Tocheck
1)Turnofftheengineswitch
andloosenthedrainscrew.
2)Fuelshouldflowfromthe
drainwhentheengine
switchisturnedon.








Isthereasparkfrom
thesparkplug?
Replacethe
sparkplug
Take the generator to an
authorized generator
dealer.
Cleanthefuel
sedimentcup.
Isthefuelreaching
thecarburetor.
Iftheenginestill
doesnotstart,take
thegeneratortoan
authorized
generatordealer.

20/22
NoelectricityattheACreceptacles:

NO



YES


NODEFECTS







DEFECTS


























IstheACcircuitbreaker
ON
TurntheACcircuitbreakerON.
Checktheelectrical
applianceorequipment
foranydefects.
Takethegeneratortoan
authorizedgeneratordealer.

●Replacetheelectricalappliance
orequipment.
●Taketheelectricalapplianceor
equipmenttoanelectricalshop
forrepair.
