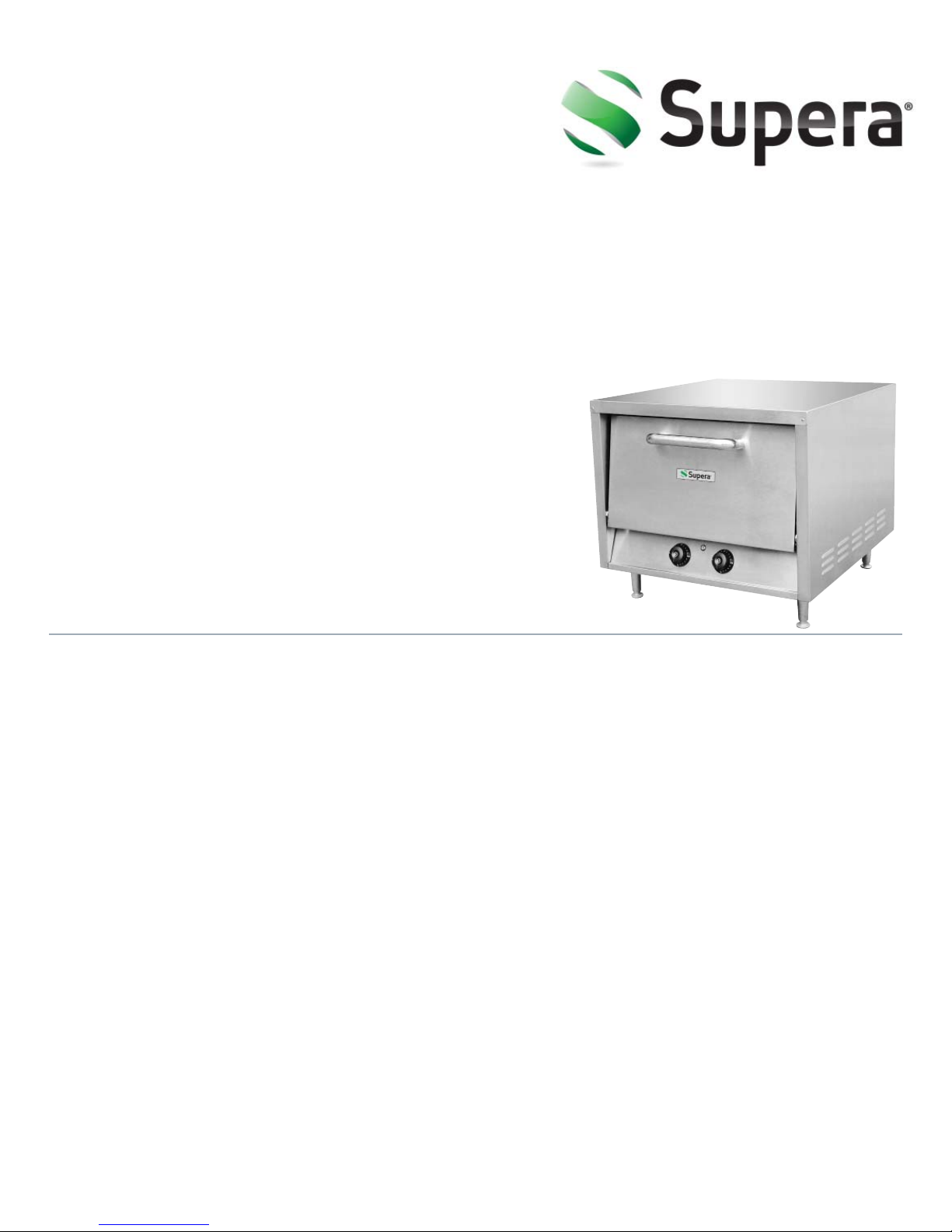

Supera Pzo-22-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,

operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.

PZO-18-1, PZO-22-1

PIZZA OVENS

INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

WARNINGS

• Do not touch any hot surfaces

• Do not immerse unit, cord or plug in liquid at any time

• Do not plug or unplug unit with wet hands

• Do not store items on top of appliance

• Use appropriate gloves, pizza peels etc.

• Unplug cord from outlet when not in use and before cleaning

• Plug only into a 3-hole grounded electrical outlet

• Do not operate unattended

• Do not use this unit for anything other than intended use

• Do not use outdoors

• Keep children and animals away from unit

• Always use on a ﬁrm, dry and level surface at least 12” from walls or any other obstruction

• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has

been damaged in any manner

• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to

property loss and injury. All repairs should be done by authorized professionals only

• Ensure that the designated power supply is adequate for continual usage and the voltage is

correct

TO USE

Perform the following steps before using the pizza oven:

1. Remove all packaging within the oven. Oven should be completely empty before initial use.

2. Unit will need approximately 2 to 3 hours to burn o. This could produce smoke or fumes and

should be done in a well-ventilated area.

3. It is recommended that the burn o should be done at 400°F for the ﬁrst hour with the oven

door open. Then at 500°F with the door closed for 90 minutes.

Operating the unit

1. Preheat to desired temperature. When the oven reaches the set temperature, the indicator light

will shut o and turn back on to maintain the temperature.

2. Make sure the baking decks are properly installed.

3. The only products that have contact with the pizza decks are PIZZA and BREAD. Place all

other foods in appropriate baking tins.

4. Make sure oven is in well-ventilated area and unplug when not in use.

CLEANING – NOTE: To maintain cleanliness and increase service life, the pizza oven should be

cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the electrical

compartment it may cause a short circuit or electrical shock.

• Before cleaning or attempting to move, allow oven to cool down completely then unplug from

outlet

• Do not immerse oven in water. Wipe outside of unit with a damp cloth then wipe dry

• Remove excess spillage. For tough areas, run the oven on the highest setting for 30 minutes.

Allow oven to cool completely then remove residue with a brush/scraper.

• To avoid damage, do not use abrasive cleaners or scouring pads

• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water

immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

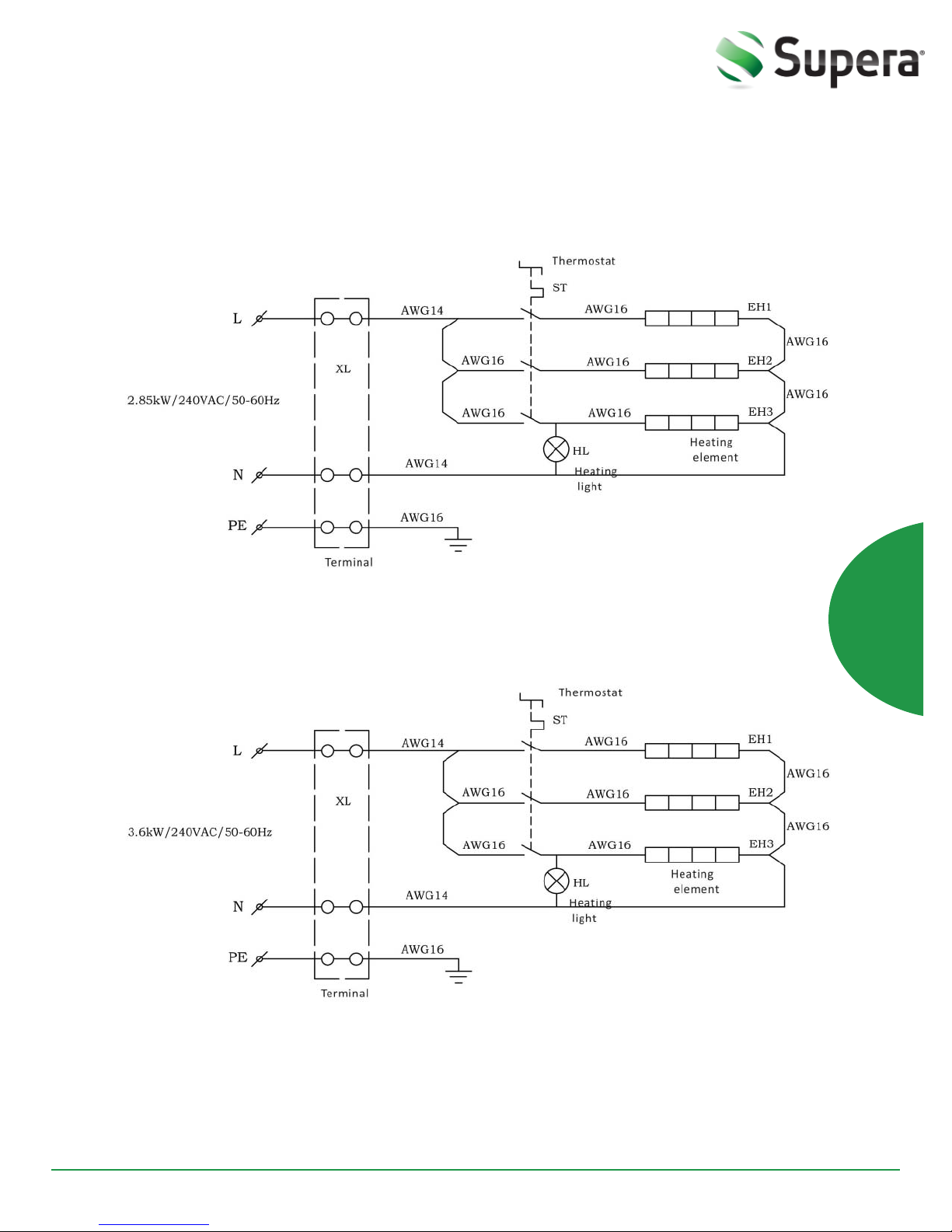

Wiring Diagrams for the Pizza Oven

PZO-18-1

PZO-22-1

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Parts Diagram and Replacement Parts for the Pizza Ovens

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Parts Diagram and Replacement Parts for the Pizza Oven

Reference

Number

PO-18 Part

Number

PO-22 Part

Number Description

1 PO1-1 PO2-1 Top and Middle Heating element

2 Top Heating Element Box

3 PO1-3 PO2-3 Ceramic Hearth Baking Shelf

4 PO1-4 PO2-4 Bottom Heating Element

5 PO1-5 PO2-5 Door

7 PO-7 PO-7 Temperature Indicator - Orange

8 PO-8 PO-8 Timer

9 PO-9 PO-9 EGO Thermostat

10 Control Panel

11 Screw- S/S

12 PO-12 PO-12 Timer Knob and Scale Plate

13 PO-13 PO-13 Thermostat Knob and Scale Plate

14 Screw- S/S

16 Thermostat Wire Support

17 Thermostat Probe Rack

19 Screw- Zinc Plated

20 Oven Body

21 Back Plate

23 PO-23 PO-23 Power Cord and Strain Releif

24 PO-24 PO-24 Terminal

25 PO-25 PO-25 Gasket

26 Screw- Zinc Plated

27 PO-27 PO-27 Steel Foot

PZO-22-1PZO-18-1

www.SuperaCo.com LIMITED WARRANTY

SUPERA COUNTERTOP COOKING EQUIPMENT MODELS:

Pizza Ovens: [PZO-18-1, PZO-22-1]

Claims: All claims for parts or labor must be made directly through SUPERA, LLC. All claims should include: model number of the unit,

the serial number of the unit, proof of purchase, date of installation, and all pertinent information supporting the alleged defect. Failure

to comply with warranty policies will result in voiding claims. Any service provided without authorization from Supera, LLC will not be

covered by Supera, LLC.

One-Year Parts & Labor Warranty: SUPERA, LLC warrants to the original purchaser of new equipment that said equipment, when

installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or

workmanship for one year. Warranty includes onsite service calls within 60 miles of an authorized service company. End user is

responsible for all extra travel and mileage at prevailing rates and for original call to Supera expressing need for warranty service. Any

service provided without authorization from Supera, LLC will not be covered by Supera, LLC.

EXCLUSIONS: Example of items not covered under warranty, but not limited to only these items:

1) Acts of God, fire, water damage, burglary, accident, theft

2) Freight damage

3) Improper installation or alteration of equipment

4) Use of generic or after market parts.

5) Repairs made by anyone other than a SUPERA designated servicer

6) Lubrication

7) Expendable wear parts, adjustable feet, blown fuses, lamps, etc

8) Cleaning of equipment

9) Misuse or abuse

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. SUPERA EXPRESSLY

DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A

PARTICULAR PURPOSE. SUPERA, LLC HAS FINAL DESCRETION ON ALL WARRANTY REQUESTS.

SUPERA’S OBLIGATIONS: SUPERA’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO

REPAIRING AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE

APPLICABLE WARRANTY PERIOD.

All repairs pursuant to this Warranty will be performed by an Authorized Designated SUPERA Service Location during normal working

hours. This warranty does not cover services performed at overtime or premium labor rates. End user is responsible for the difference

between normal service rates and premium service rates. This warranty does not cover any service technician errors. IN NO EVENT

SHALL SUPERA BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY,

INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER

ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES, WHETHER IN NEGLIGENCE, WARRANTY, STRICT

LIABILITY, OR OTHERWISE.

This warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees. Installation in a

residential application will void all warranties.

Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water, fire, normal

wear, improper set up and use. Periodic maintenance is not covered. Warranty does not cover service requests for free replacement

and/or recall parts.

THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN THE BUYER AND

SELLER. SUPERA NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TO ASSUME FOR IT ANY OTHER OBLIGATION OR

LIABILITY IN CONNECTION WITH SAID EQUIPMENT.

Not Covered Under This Warranty: SUPERA, LLCʼs sole obligation under this warranty is limited to either repair or replacement of parts, subject to

the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by

this warranty. Warranty does not cover service requests for free replacement and/or recall parts.

SUPERA, LLC HAS FINAL DESCRETION ON ALL WARRANTY REQUESTS. NO CONSEQUENTIAL DAMAGES. SUPERA, LLC IS NOT RESPONSIBLE FOR ECONOMIC

LOSS; PROFIT LOSS; OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES, SERVICE TECHNICAN ERRORS, OR

DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE REGARDLESS OF WHETHER OR NOT THEY RESULT FROM REFRIGERATION FAILURE. WARRANTY

IS NOT TRANSFERABLE, This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR

TRANSFER SHALL VOID THE WARRANNTIES HEREIN AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF

MERCHANTABILITY OR LABOR COVERAGE FOR COMPONENT FAILURE OR OTHER THE WARRANTY PACKET PROVIDED WITH THE UNIT. ALTERATION,

NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FOOD, ACTS OF GOD. SUPERA, LLC is not responsible for the repair
