Superb NOMIA 12V100Ah User manual

Manual
NOMIA 12V100Ah
Version
February 2021

2
User Manual Nomia 12V100Ah
Dear customer,
This manual contains all the necessary information to install, use and maintain the Nomia
12V100Ah Li-ion battery. We kindly ask you to read this manual carefully before using the
product. In this manual, the Nomia 12V100Ah Li-ion battery will be referred to as: the Li-ion
battery. This manual is meant for the installer and the user of the Li-ion battery. Only qualied,
certied personnel may install and perform maintenance on the Li-ion battery. Please consult
the index at the start of this manual to locate information relevant to you.
During the use of the product, user safety should always be ensured, so installers, users,
service personnel and third parties can safely use the Li-ion battery.
Copyright© Super B All rights reserved. Licensed software products are owned by Super B
or its subsidiaries or suppliers, and are protected by national copyright laws and international
treaty provisions. Super B products are covered by Dutch and foreign patents, issued and
pending. Information in this publication supersedes that in all previously published material.
Specications and price change privileges reserved. Super B is a registered trademark of
Super B.
For more information please contact:
Super B Lithium Power B.V.
Europalaan 202
7559 SC Hengelo (Ov), The Netherlands
Tel: [phone]
E-mail: [e-mail]
www: www.super-b.com

3
Be in charge. Super B.
Table of content
1. Safety guidelines and measures 5
1.1. General 5
1.2. Disposal 5
2. Introduction 6
2.1. Product description 6
2.2. Intended use 6
2.3. Glossary of Terminology 6
2.4. Used symbols 6
3. Product specifications 7
3.1. Product features 7
3.2. Technical specications 7
3.2.1. Electrical specications 7
3.2.2. Mechanical specications 7
3.2.3. Charge & discharge specications 8
3.2.4. Temperature specications 8
3.2.5. Compliance specications 8
3.2.6. General product specications 8
3.3. Environmental conditions 9
3.4. Scope of delivery 9
3.5. Connections, indicators and battery controls 10
3.5.1. Con 1 (Output for bistable relay) 10
3.5.2. Con 2 (I/O connection 7) 10
3.5.3. Con 3 (CANopen; 5-pin “micro” style connector) 11
3.6. Peripheral equipment 11
3.6.1. Obligatory 11
3.6.2. Optional Components 12
4. Installation 13
4.1. General information 13
4.2. Unpacking 13
4.3. Preparing the battery for use 13
4.3.1. Placement of the battery 13
4.3.2. Placement and removal of a fuse 14
4.4. Connection wires 15
4.5. Installing the mandatory external disconnect device 15
4.5.1. Connecting a bistable relay to the Li-ion battery 15
4.5.2. Connecting a normal relay as an external disconnect device 16
4.5.3. Using the SB BIB (Battery Interface Box) 17
4.5.4. Using the SB BCI-C1 (Battery Communication Interface) with a normal relay 17
4.6. Connecting the Li-ion battery to the load/charger 18

4
4.6.1. Connecting a single Li-ion battery to the load/charger with a bistable relay 18
4.6.2. Connecting a single Li-ion battery to the load/charger with a normal relay 19
4.7. Disconnecting the Li-ion battery 20
5. Connecting Li-ion batteries in series and parallel 21
5.1. Connecting Li-ion batteries in series. 21
5.2. Connecting Li-ion batteries in parallel 21
5.3. Connecting Li-ion batteries in series and parallel 22
5.4. CANopen interface 23
5.4.1. CAN Bus network topology 24
5.4.2. Termination Resistors 24
5.4.3. CAN bus power 24
5.4.4. CAN balancing 25
6. Battery use 26
6.1. General information 26
6.2. Charging 26
6.2.1. Battery balancing 26
6.2.2. Reading out the battery’s State of Charge (SoC) 26
6.3. Battery Monitoring Software 27
6.3.1. Battery History Recording 27
7. Inspection and cleaning 28
7.1. General information 28
7.2. Inspection 28
7.3. Cleaning 28
8. Storage 29
9. Transportation 29
10. Disposal and recycling 29
11. Troubleshooting 30
12. Warranty and liability 31

5
Be in charge. Super B.
1. Safety guidelines and measures
1.1. General
• Do not short-circuit the Li-ion battery.
• Treat the Li-ion battery as described in this manual.
• Do not dismantle, crush, puncture, open or shred the Li-ion battery.
• Do not expose Li-ion battery to heat or re. Avoid exposure to direct sunlight.
• Do not remove the Li-ion battery from its original packaging until required for use.
• In the event of electrolyte leaking, do not allow the liquid to come in contact with the skin or
eyes. If contact has been made, wash the affected area with water and seek medical advice.
• Always use a class 2 charger which is specically provided for use with a Lithium Iron
Phosphate battery (LiFePO4)
• Observe the plus (+) and minus (–) marks on the Li-ion battery and equipment and ensure
correct use.
• Do not mix batteries of different manufacture, capacity, size or type.
• Keep the Li-ion battery clean and dry.
• Secondary batteries need to be charged before use. Always use the correct charger and
refer this manual for proper charging instructions.
• Do not leave the Li-ion battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the Li-ion
battery several times to obtain maximum performance.
• Retain the original product documentation for future reference.
• Disconnect the Li-ion battery from the equipment when not in use.
• Do not charge the Li-ion battery below 0°C
!
Warning! Keep the Li-ion battery away from water, dust and contamination. Place the Li-ion
battery in well ventilated areas.
1.2. Disposal
Dispose the Li-ion battery in accordance with local, state and federal laws
and regulations.
Batteries may be returned to the manufacturer.
Do not mix with other (industrial) waste.
Li-ion
WARNING:
Must be disposed of properly.
May explode if damaged or disposed
of in re. Do not short circuit.

6
2. Introduction
2.1. Product description
The Nomia 12V100Ah is a Lithium Iron Phosphate rechargeable battery. The unique
combination of state-of-the art technology and smart software makes this Li-ion battery a
robust, safe and easy to use energy storage solution.
The Li-ion battery uses safe Lithium Iron phosphate (LiFePO4) technology. With its integrated
battery management system the Li-ion battery is protected from deep discharging,
overcharging and overheating.
!
Caution! External disconnect device is required!
2.2. Intended use
The Nomia 12V100Ah Li-ion battery serves as a energy source of 12V in power systems
for recreational vehicles, commercial vehicles, leisure boats, commercial vessels and
stationary applications. Potential applications of this Li-ion battery include: off grid power
supply, marine power supply, medium for (renewable) energy storage and (traction) battery
for vehicles.Use as a starter battery is not possible. Up to 4 batteries can be connected in
series or in parallel to increase the total capacity up to 400Ah. For more batteries in series or
parallel always consult with Super B.
2.3. Glossary of Terminology
BMS Battery Managent System
Charge cycle A period of use from fully charged, to fully discharged, and fully recharged
again.
Endurance Life-cycle The products maximum lifespan, achieved by following the guidelines
presented in this manual.
BCI Battery Communication Interface
BIB Battery Interface Box
LiFeP04 Lithium Iron Phosphate
SoC State of charge
CCCV Constant Current - Constant Voltage
DoD Depth of Discharge
Table 1. Glossary of Terminology
2.4. Used symbols
The following icons will be used throughout the manual:
!
Warning! A warning indicates severe damage to the user and/or product may occur when a

7
Be in charge. Super B.
procedure is not carried out as described.
!
Caution! A caution sign indicates problems may occur if a procedure is not carried out as
described. It may also serve as a reminder to the user.
3. Product specications
3.1. Product features
• Traction battery
• Lithium Iron Phosphate (LiFePO4): Safe Li-ion technology
• Integrated BMS (Battery Management System), external disconnect device needed
• Glass ber reinforced plastic (GRFP) Casing, Aluminum / PE sandwich side panels
• Terminals for 2 x M8 bolts
• Integrated fuse, 32V / 500A
• Maximum continuous discharge 300A
• Wired communication interface: CANopen
• Battery monitoring / History Storage
• Adaptive cell balancing
• Congurable in serial or parallel connection
• Output for bistable relay / latching relay
3.2. Technical specications
3.2.1. Electrical specications
Nominal capacity 100Ah
Energy 1280Wh
Nominal voltage 12.8V
Open circuit voltage 13.2V
Self discharge <3% per month
Table 2. Electrical specications
3.2.2. Mechanical specications
Dimensions (LxWxH) 417 x 227 x 314 mm / 16.4” x 8.9” x 12.4”
Weight 18.5 kg / 40.8 lbs
Case material GFRP (Glass Fiber Reinforced Plastic)
Ingress protection IP50
Cell type / chemistry Prismatic - LiFePO4
Table 3. Mechanical specications

8
3.2.3. Charge & discharge specications
Charge method CCCV
Charge voltage 14.3V - 14.6V
Max charge current 100A
End of discharge voltage 8V
Discharge current continous 300A
Discharge pulse current (10 sec) 500A
Table 4. Charge and discharge specications
3.2.4. Temperature specications
Charge temperature 0°C to 45°C / 32°F to 113°F1
Discharge temperature -10°C to 55°C / 14°F to 131°F
Storage temperature short term (<1 month) -20°C to 45°C / -4°F to 113°F
Storage temperature long term (>1 month) -10°C to 20°C / 14°F to 68°F
Relative humidity 10-90%
Table 5. Temperature specications
1Do not charge the Li-ion battery below 0°C / 32°F
3.2.5. Compliance specications
Certications CE, FCC, UN 38.3, UN ECE R10.05, EN/IEC 62620
Shipping classication UN 3480
Table 6. Compliance specications
3.2.6. General product specications
Battery designation IFpP/68/143/217/[4S]M/-20 +55/90
Cycle life >2000 (1C charge/discharge, DoD 100%)2
Table 7. General product specications
2The cycle life value given above is an indication at 23°C. The Li-ion battery cycle life depends strongly on temperature
and the applied charging and discharging loads.

9
Be in charge. Super B.
3.3. Environmental conditions
!
Warning! The Li-ion battery may only be used in conditions specied in this manual. Exposing
the Li-ion battery to conditions outside the specied boundaries may lead to serious damage
to the product and/or the user.
Use the Li-ion battery in a dry, clean, dust free, well ventilated space. Do not expose the
Li-ion battery to re, water, solvents or excessive heat.
3.4. Scope of delivery
2 3 4 5 6 7 8 10 119
1

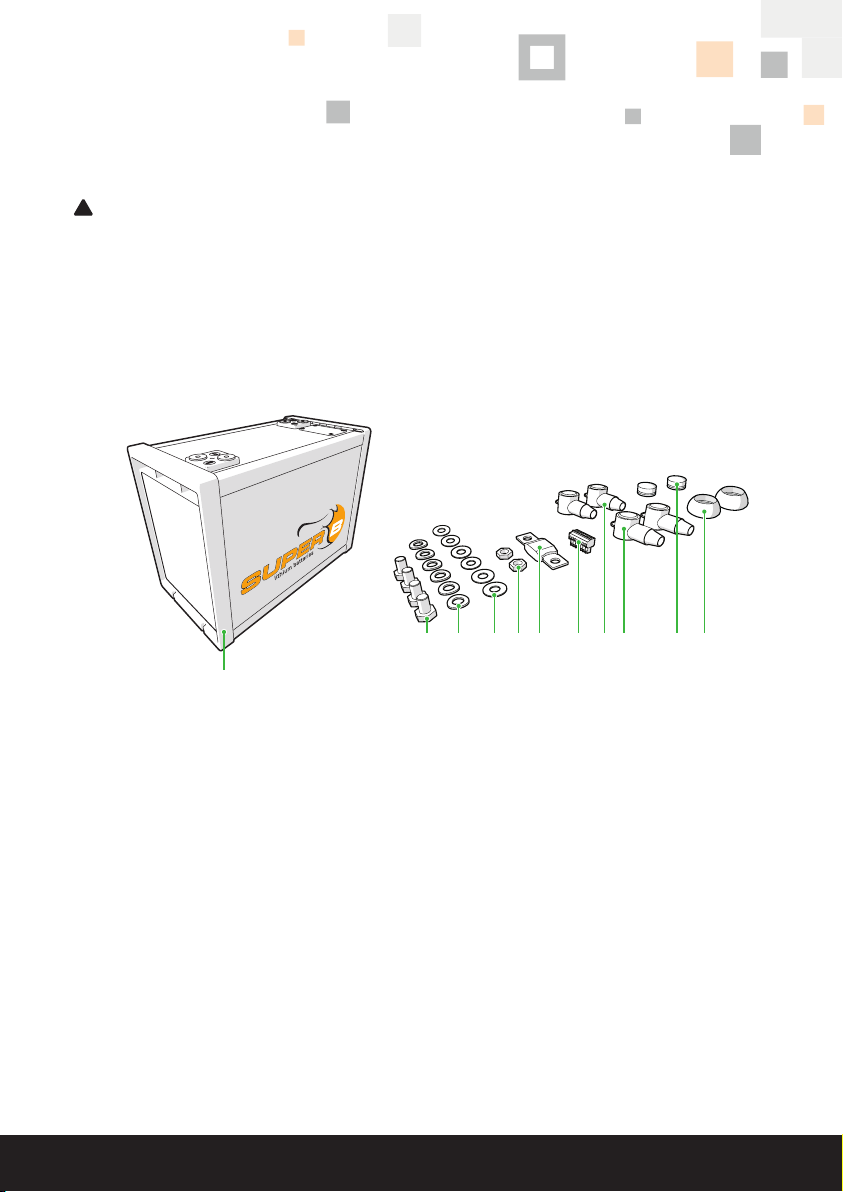

Figure 1. Scope of delivery.
1. (1x) Nomia 12V100Ah lithium battery
2. (4x) M8 Bolt
3. (6x) M8 Spring washer
4. (6x) M8 Plain washer
5. (2x) M8 Nut
6. (1x) Fuse 32V/500A
7. (1x) Phoenix plug 7
8. (2x) Terminal cover, Red
9. (2x) Terminal cover, Black
10. (2x) Terminal protection cap, Red
11. (2x) Terminal protection cap, Black

10
3.5. Connections, indicators and battery controls
1 2 3 4 5 6 7
1 2 3 4
1
2
3
64 5
7
8
Figure 2. Connections, indicators and battery controls
1. Con 1 (Output for Bistable Relay; Phoenix FRONT-MC 1,5/4-STF-3,81 1850877)
2. Con 2 (I/O Connection 7; Phoenix FRONT-MC 1,5/7-STF-3,81 1850903)
3. Con 3 (CANopen; 5-pin “micro” style connector)
4. Terminal - (2x M8)
5. Fuse cover
6. Terminal + (2x M8)
7. Reset button
8. Fuse connections
3.5.1. Con 1 (Output for bistable relay)
PIN # Output range (12V dc) Function
12.7A (continuous)
15A (100ms pulse) +, OFF
22.7A (continuous)
15A (100ms pulse) -, ON
32.7A (continuous)
15A (100ms pulse) -, OFF
42.7A (continuous)
15A (100ms pulse) +, ON
Table 8. Con1 (Output for bistable relay)

11
Be in charge. Super B.
3.5.2. Con 2 (I/O connection 7)
PIN # Range Function
1 max 30 V dc + (Plus)
2 0-10 V dc AN_SOC (Analogue state of charge)
3 NA Nc (Not connected)
45A max
48V dc max Rc, (Relay common contact)
5Rnc, (Relay normaly close contact)
6 Rno, (Relay normaly open contact)
7GND, (Ground)
Table 9. Con 2 (I/O connection 7)
3.5.3. Con 3 (CANopen; 5-pin “micro” style connector)
PIN # Signal Description
1 CAN_SHLD Optional CAN Shield
2 CAN_V+
Optional CAN external positive supply
(dedicated for supply of transceiver and
optocouplers. if galvanic isolation of the bus
node applies)
3 CAN_GND Ground / 0V
4 CAN_H CAN_H bus line (dominant high)
5 CAN_L CAN_L bus line ( dominant low)
Table 10. Con 3 (CANopen; 5-pin “micro” style connector)
3.6. Peripheral equipment
3.6.1. Obligatory
In order for the Li-ion battery to be used safely, an external disconnect device must be
installed. This should either be a relay or latching relay (bistable) controlled by the battery’s
BMS or a relay or latching relay controlled by a remote switch (CAN controlled). If an
external disconnect device is not installed the warranty of the Li-ion battery will be void. It
will lead to serious damage to the Li-ion battery and can lead to high risks for safety and
environment.

12
3.6.2. Optional Components
The Li-ion battery can be used in combination with a number of (Super B) products:
Description Article name EAN code
SB-LIR250 (relay) SB-LIR250 (relay) 8718531361126
Bistable relay SB-V23130C2021A412-TE (latching relay) 8718531361010
Terminator Resistor Female SB CAN Terminator Resistor Female 8718531360808
Terminator Resistor Male SB CAN Terminator Resistor Male 8718531360815
CAN Male-female Cable 0.6m SB CAN Male-female Cable 0.6m 8718531360716
CAN Male-female Cable 1m SB CAN Male-female Cable 1m 8718531360723
CAN Male-female Cable 2m SB CAN Male-female Cable 2m 8718531360730
CAN Male-female Cable 5m SB CAN Male-female Cable 5m 8718531360747
CAN Male-female Cable 10m SB CAN Male-female Cable 10m 8718531360754
T-splitter SB CAN T-splitter 8718531360761
Battery Interface Box SB BIB LV48V350A 8718531360914
Battery Interface Box SB BIB LV48V600A 8718531360921
USB to CAN CAN Compact to USB 8718531361201
Battery monitor SB Monitor Software
Mounting bracket ZC casing SB Battery Bracket for Nomia 12V100Ah,
12V100Ah and 12V100Ah 8718531360693
Battery Communication
Interface SB BCI-C1 8718531360884
Touch Display Touch Display 8718531361447
Touch Display + Cable Touch Display + Cable 8718531361447
BM01 Battery monitor SB BM01 12-24V 8718531361041
BM01 Battery monitor cable SB BM 01 Cable 2.5m 12-24V only 8718531361225
BM01 Battery monitor cable SB BM 01 Cable 5m 12-24V only 8718531361232
BM01 Battery monitor cable SB BM01 Cable 10m 12-24V only 8718531361249
Table 11. Optional components that can be used with the Li-ion battery

13
Be in charge. Super B.
4. Installation
4.1. General information
!
Warning! Never install or use a damaged Li-ion battery.
!
Caution! Do not reverse connect the Li-ion battery (polarity).
When connecting several batteries in series or parallel, always use batteries of the same
brand, type, age, capacity and state of charge.
4.2. Unpacking
Check the Li-ion battery for damage after unpacking. If the Li-ion battery is damaged, contact
your reseller or Super B. Do not install or use the Li-ion battery if it is damaged!
4.3. Preparing the battery for use
!
Caution! Do not operate the Li-ion battery beyond published maximum specications.
!
Caution! Charging at deep discharge conditions can lead to venting, excessive heat or
thermal runaway of the cells.
!
Caution! This Li-ion battery stores fault conditions internally, like excessive charge current or
deep discharge situations. Super B uses this information in the warranty process.
!
Warning! Do not overcharge the Li-ion battery.
4.3.1. Placement of the battery
Before it is used, the Li-ion battery must be positioned in such a way that it will not move
around in its compartment during use. The Li-on battery may be placed on its side, but not
upside down. If necessary, the Li-ion battery may be xed in place by means of Super B
mounting brackets. The brackets can be screwed in place by means of bolts or screws (see
gure 3).

14
Figure 3. Installing the Li-ion battery using the Super B mounting brackets
4.3.2. Placement and removal of a fuse
Before the Li-ion battery can be used, the internal fuse needs to be installed. The 32V/500A
fuse is supplied with the Li-ion battery.
Use the following steps to (re)place the fuse in the Li-ion battery (see gure 4):
1. Disconnect the negative wire from the - pole of the Li-ion battery (see paragraph 4.5. for the details).
2. Disconnect the positive wire from the + pole of the Li-ion battery.
3. Unscrew the fuse cover using the TORX key.
4. Unscrew the fuse contacts using a 13mm wrench.
!
Warning! Short circuit danger! Avoid making a short circuit with the wrench
5. Place the (new) fuse between the contacts, place washers and spring washers and tighten the fuse
contact points to 13Nm.
6. Fasten the fuse cover.
7. Proceed to paragraph 4.5 to read the instructions on installing the Li-ion battery in an electrical circuit.

15
Be in charge. Super B.
13 Nm
Figure 4. Install a fuse
4.4. Connection wires
Use appropriate wire for the connection wires to prevent overheating and unnecessary
losses. Use appropriate fuses matching the wires and load. Super B suggests to use a
95mm2 connection wires. Connection wires with smaller diameters can cause overheating or
unnecessary losses.
4.5. Installing the mandatory external disconnect device
!
Warning! Always connect the relay between the + or - terminal of the battery and the load.
!
Warning! Never use the Li-ion battery without a properly installed external disconnect device (relay
or bistable relay).
Protecting the Li-ion battery is possible by one of the following ways:
1. Connect a bistable relay to the Li-ion battery’s Con1 output.
2. Connect a normal relay to the Li-ion battery’s Con2 (I/O connection 7) output.
3. By using the SB BIB (Battery Interface Box).
4. By using the SB BCI-C1 (Battery Communication Interface) and a normal relay.
4.5.1. Connecting a bistable relay to the Li-ion battery
1. When using a bistable relay connect it to Con1 output as displayed in gure 5.
The Con1 output controls both the ON coil and the OFF coil of the bistable relay. The output of
Con1 can be found in table 8.

16
Load/Charger
Bistable Relay

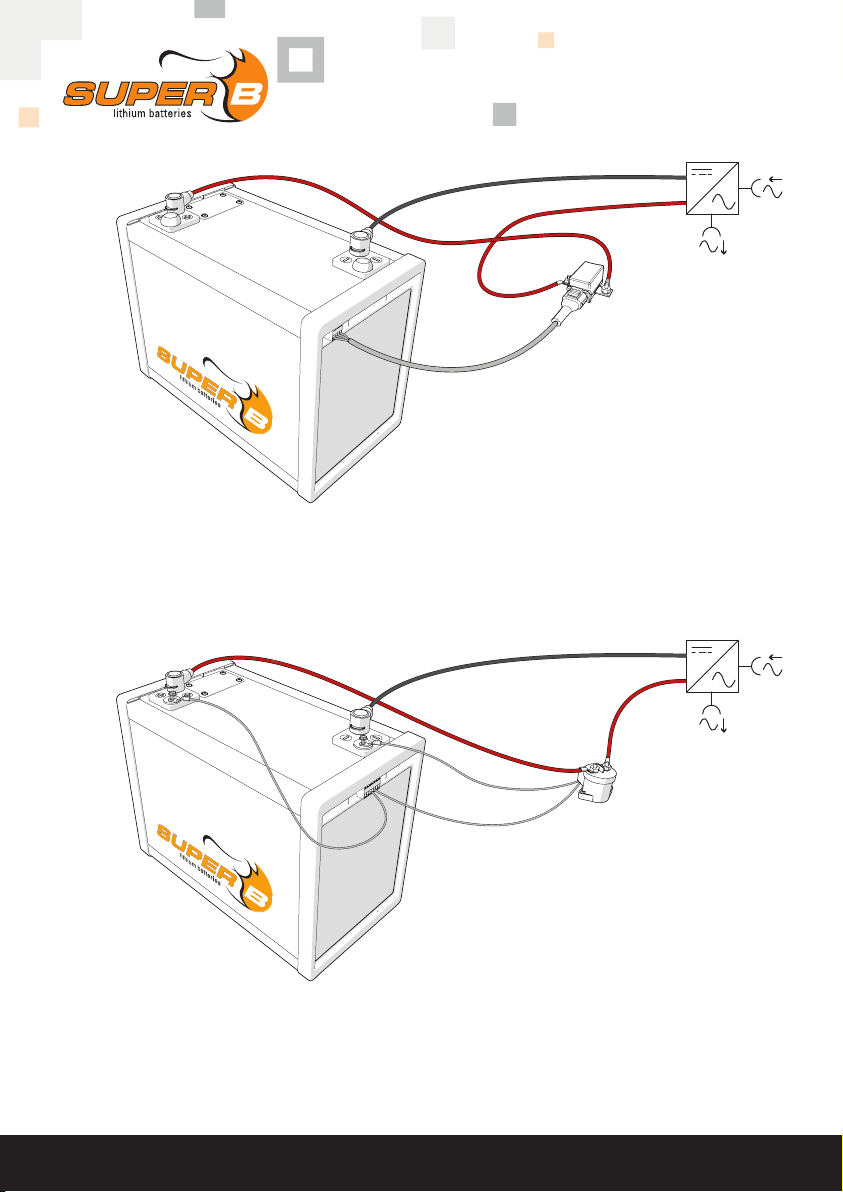

Figure 5. Connect a bistable relay as an external disconnect device
4.5.2. Connecting a normal relay as an external disconnect device
1. When using a normal relay, connect it to Con 2 (I/O Connection 7), Pin 4 (Rc) and Pin 5 (Rnc)
as displayed in gure 6.
Normal relay
Load/Charger
Figure 6. Connect a normal relay as an external disconnect device.

17
Be in charge. Super B.
4.5.3. Using the SB BIB (Battery Interface Box)

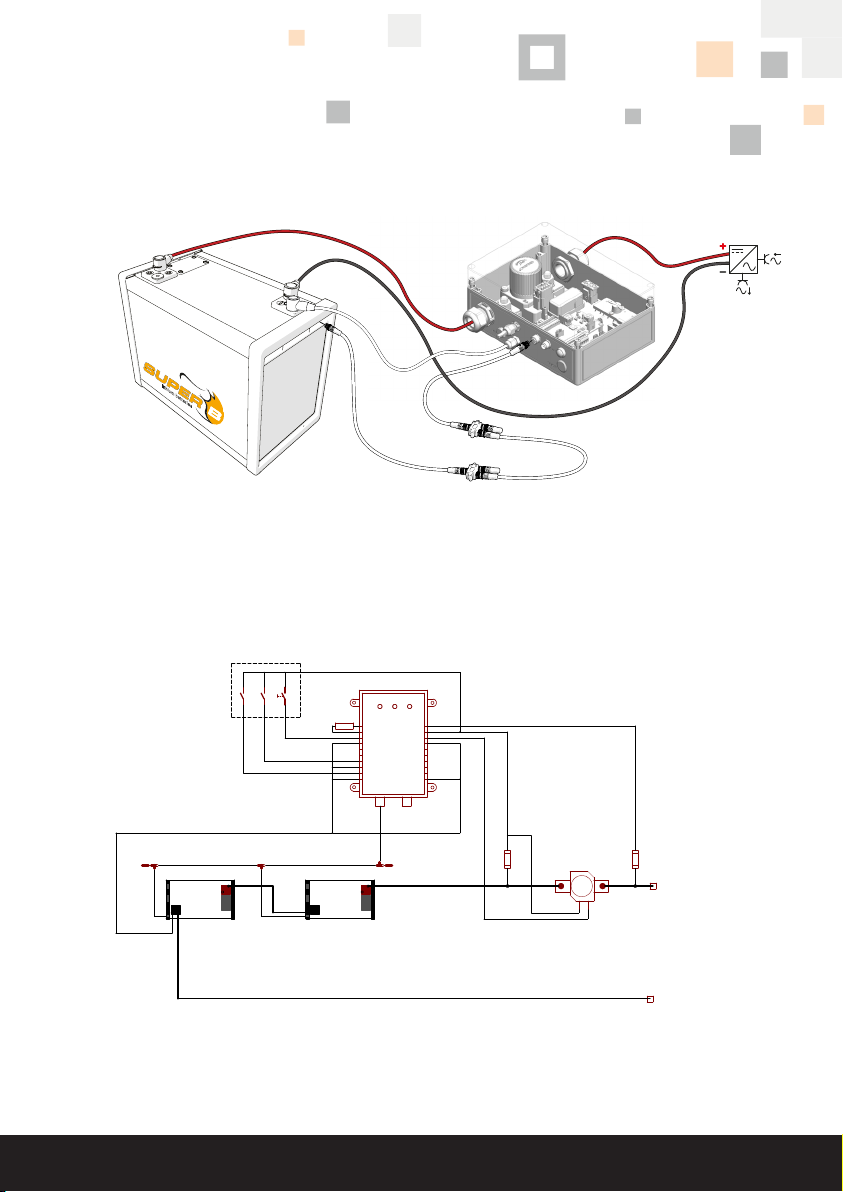

Figure 7. Connecting a Li-ion battery to the SB BIB
Consult with Super B for the SB BIB installation instructions.
4.5.4. Using the SB BCI-C1 (Battery Communication Interface) with a normal relay
15/03/2018 14:00 C:\Users\ipapa\Creative Cloud Files\Super-B manuals\160E\20180216 1907 Super-B - 160E manual\schematics\24V1P_BCI.sch (Sheet: 1/1)
CAN_Term_FemaleCAN_Term_Male
J2_IO
J3_CAN
J1_BREL
J2_IO
J3_CAN
J1_BREL
01 2 345678 9
A
B
C
D
Version Date Name
Title:
Sheet:
15/03/2018 14:0024V1P_BCI
1/1
FUSE
S1 S2
FUSE
J1 J2
J3 J4
S3
X1
X2
BT 11
X1
X2
BT12 X1(+) X2(-)
K2
22Ω 50W
Minus (-)
0.1 2014 DEC 09 R. Pot
Plus (+)
Manual Control
5A
5A
BCI
1. RECOVER RELAYCOM
2. RECOVER RELAYNO
3. RESET IN +
4. RESET IN -
5. PRECHARGE IN +
6. PRECHARGE IN -
7. OFF IN +
8. OFF IN -
9. ON IN +
10. ON IN -
10. LOAD +
9. BATTERY+
8. MAIN RELAYHIGH SIDE COM
7. MAIN RELAYHIGH SIDE NO
6. MAIN RELAYLOW SIDE COM
5. MAIN RELAYLOW SIDE NO
4. PRECHARGE RELAYCOM
3. PRECHARGE RELAY NO
2. IO1
1. GND
CAN MASTER CAN SLAVE
D1
ORANGE
D2
GREEN
D3
RED
+
+
_
_
Fuse
+
+
_
_
Fuse
A2 A1
Figure 8. Connecting a Li-ion battery to the SB BCI-C1
Consult with Super B for the SB BCI-C1 installation instructions.

18
4.6. Connecting the Li-ion battery to the load/charger
4.6.1. Connecting a single Li-ion battery to the load/charger with a bistable relay
!
Warning! Ensure you have completed all the previous steps described in chapter 4.5 before
connecting the battery to the load/charger.
1. Slide the terminal covers over the connection wires.
2. Connect the + terminal of the battery to the - or B terminal of the relay (see gure 9).
3. Connect the load or charger to the + or A terminal of the relay.
4. Connect the - terminal of the battery. Do not connect the - terminal rst as this may lead to short circuits
(Figure 10).
5. Ensure both contacts are tightened to 20 Nm. The contacts of the bistable relay must be tightened to
max 13 Nm.
6. Place the terminal covers over the terminals (see gure 10).
7. Press the reset button for 10-15 seconds after connecting the bistable relay to Con1 output.(the reset
button is located under the fuse cover). The bistable relay contacts will be turned off and on, this is to
make sure that the bistable relay is ON
Load/Charger
Bistable Relay

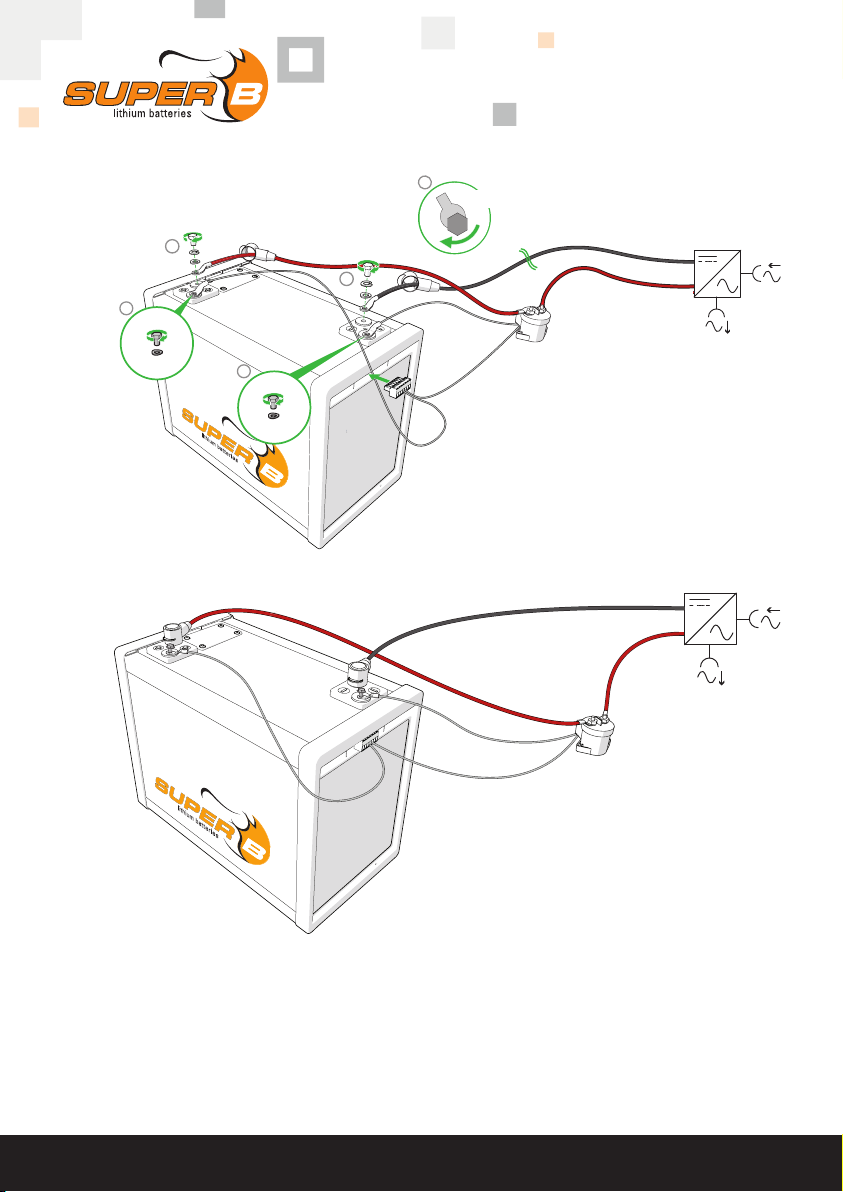

Figure 9. Connecting the battery to the load

19
Be in charge. Super B.
2
1
Bistable Relay
4
3
5
20 Nm
13 Nm
Figure 10. Securing the terminal covers
4.6.2. Connecting a single Li-ion battery to the load/charger with a normal relay
!
Warning! Ensure you have completed all the previous steps described in chapter 4.5 before
connecting the battery to the load/charger.
1. Slide the terminal covers over the connection wires.
2. Connect the terminal of the battery to the terminal of the relay (see gure 11):
• TE EV250: Connect the (+) terminal of the battery to the (+) terminal of the relay.
• GIGAVac GX14 / GX16 series: Connect the (+) terminal of the battery to the A2 terminal of the relay.
3. Connect the load / charger to the terminal of the relay:
• TE EV250: Connect the load or charger to the A- terminal of the relay.
• GIGAVac GX14 / GX16 series: Connect the load or charger to the A1 terminal of the relay.
4. Connect the - terminal of the battery. Do not connect the - terminal rst as this may lead to short
circuits (see gure 12).
5. Ensure both contacts are tightened to 20Nm and the contacts for the normal relay:
• TE EV250: 8,8 to 11 Nm
• GIGAVac GX14: 14 to 20 Nm
• GIGAVac GX16: 23 to 34 Nm
6. Place the terminal covers over the terminals (see gure 12).

20
2
1
Normal relay
4
3
5
20 Nm
Figure 11. Connecting the battery to the load.
Normal relay
Load/Charger
Figure 12. Securing the terminal covers.
4.7. Disconnecting the Li-ion battery
1. Turn off any device or charger the Li-ion battery is connected to.
2. Disconnect the negative wire from the - terminal of the Li-ion battery.
3. Disconnect the positive wire from the + terminal of the Li-ion battery.
