SuperCloset SuperNova User manual

INSTRUCTION MANUAL
SUPERNOVA
SMART GROW CABINET
LED

WELCOME TO THE FAMILY
GERMINATION KIT
CARBON AIR FILTERS
GROW LIGHT
HYGROMETER
INTERNAL
CIRCULATION
FAN
T5 SIDE LIGHTS
GROWING
SYSTEM
(HYDROPONIC OR SOIL)
SUPERCLONER
Congratulations, and thank you for choosing SuperCloset.
You now have the world's best grow cabinet.
These instructions will guide you through the process of
setting up your SuperNova. Please read through the entire
instruction manual before you begin, including any and all
instructions that come with the individual components.
Lets take a look at the layout and components of your SuperCloset.

COMPONENTS
CARBON AIR FILTER KIND LED LIGHT POWER STRIP AIR PUMP WATER PUMP
INTERNAL CIRCULATION FAN SUPERPONICS XL12 SOIL POTS SOIL POT TRAYS 1/4” AIR TUBE HOSE
AIR STONES 3.75” & 2” NET CUPS LOTUS NUTRIENTS SAMPLES Ph TESTING KIT SHOT MEASURING GLASS
GFCI THERMOMETER/
HYGROMETER TDS METER NET TRELLIS, HOOKS, TIES 3-1 ADAPTER
T5 LIGHT
3” ELBOWS
2” ELBOWS
TOTAL GERMINATION
KIT
CLAY ROCKS 1” GROW PLUGS SUPERCLONER 50 SMART PLUG
OR
X2 X2
X4X2
X2X4
X2
X6X12X8

GETTING READY
1
2
3
Carefully unbox your SuperCloset and remove all
contents from inside the cabinet.
Unpack the contents of the cabinet, as well as any
components packaged inside the cabinet reservoir.
Reference your Quality Assurance Checklist and
verify that you have all of the needed components
for your system.
Let’s start with unpacking the SuperCloset...
Prior to setup, make sure you have all of the necessary components by cross
referencing with the QAC (Quality Assurance Checklist). Take this time to
familiarize yourself with each of the components.

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Make sure the cabinet is in its final location, as it will be more difficult to move
when fully assembled. Do not plug in any of the components just yet. Let’s get
everything in place first.

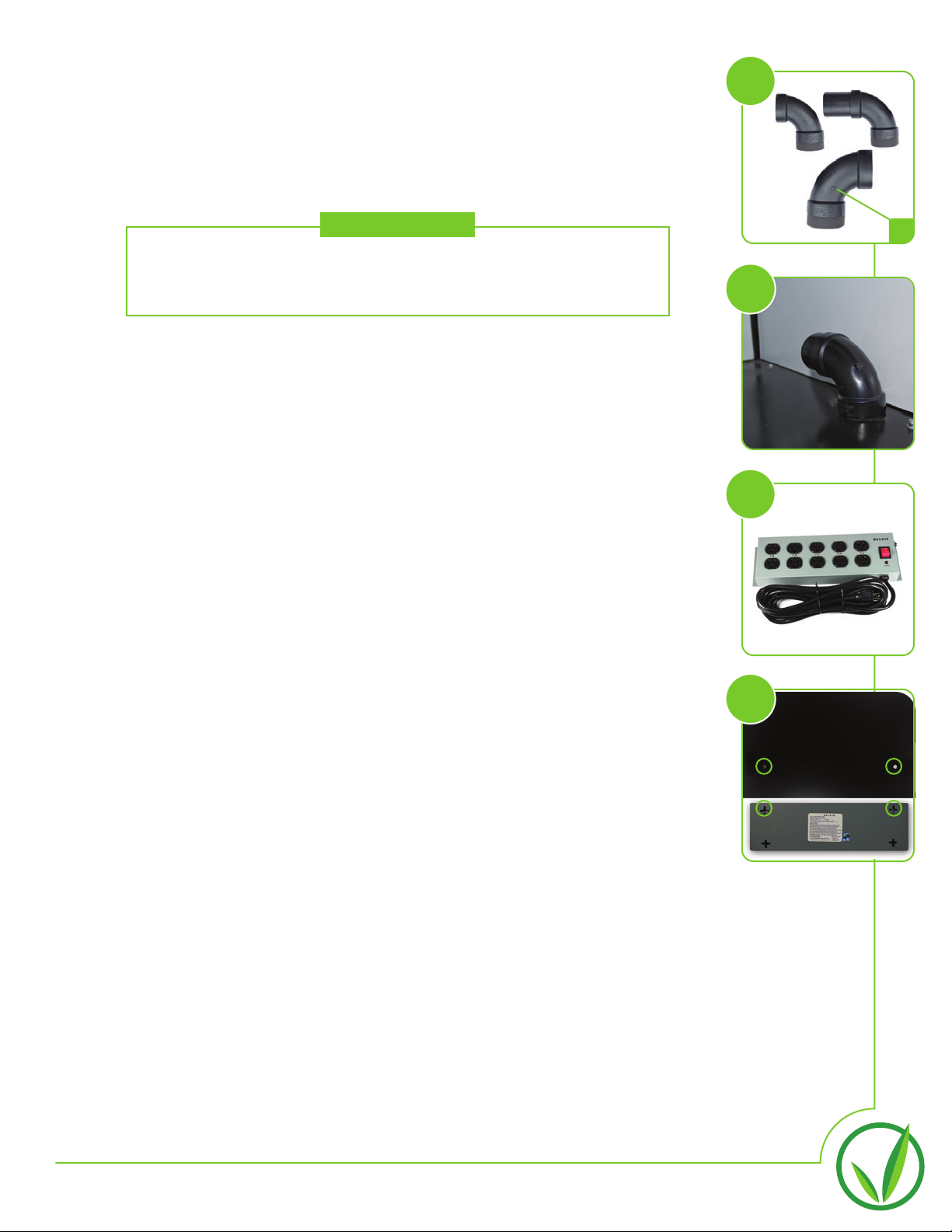

2. The cabinet comes with 4 Black Plastic Elbows (image a). Two 3” Elbows with
foam tape and two 2” Elbows with Foam Tape. One 2” Elbow will have an
extension.
3. The exterior Elbows will allow you to run the cords out of the cabinet with
minimal light leaks and allow for fresh air flow into the cabinet. The interior
Elbow will facilitate airflow between the Cloning Chamber and the
Veggie/Flower Chamber (image b).
4. Locate the Power Strip (image c). Locate the two screws on the center rear of
the cabinet. The power strip has holes on it that fit on these screws for
mounting (image d).
a. Insert the foam side of the two 3” Elbows into large holes
located in rear of the cabinet.
b. Insert the foam side of one 2” Elbow into the hole located
near the top in rear of the cabinet.
c. Detach the Coupling from the remaining 2” Elbow. Insert this
Elbow into the topside of the hole located in the interior shelf
of your cabinet. Reattach the Coupling to the Elbow from the
underside of this shelf (image b).
We are now ready to set up the SuperCloset
Use masking tape and a marker to label each component’s
power cord at the plug to help identify the components later in
the assembly.
SUPER GROW TIP:
a
b
c
d
X2

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787

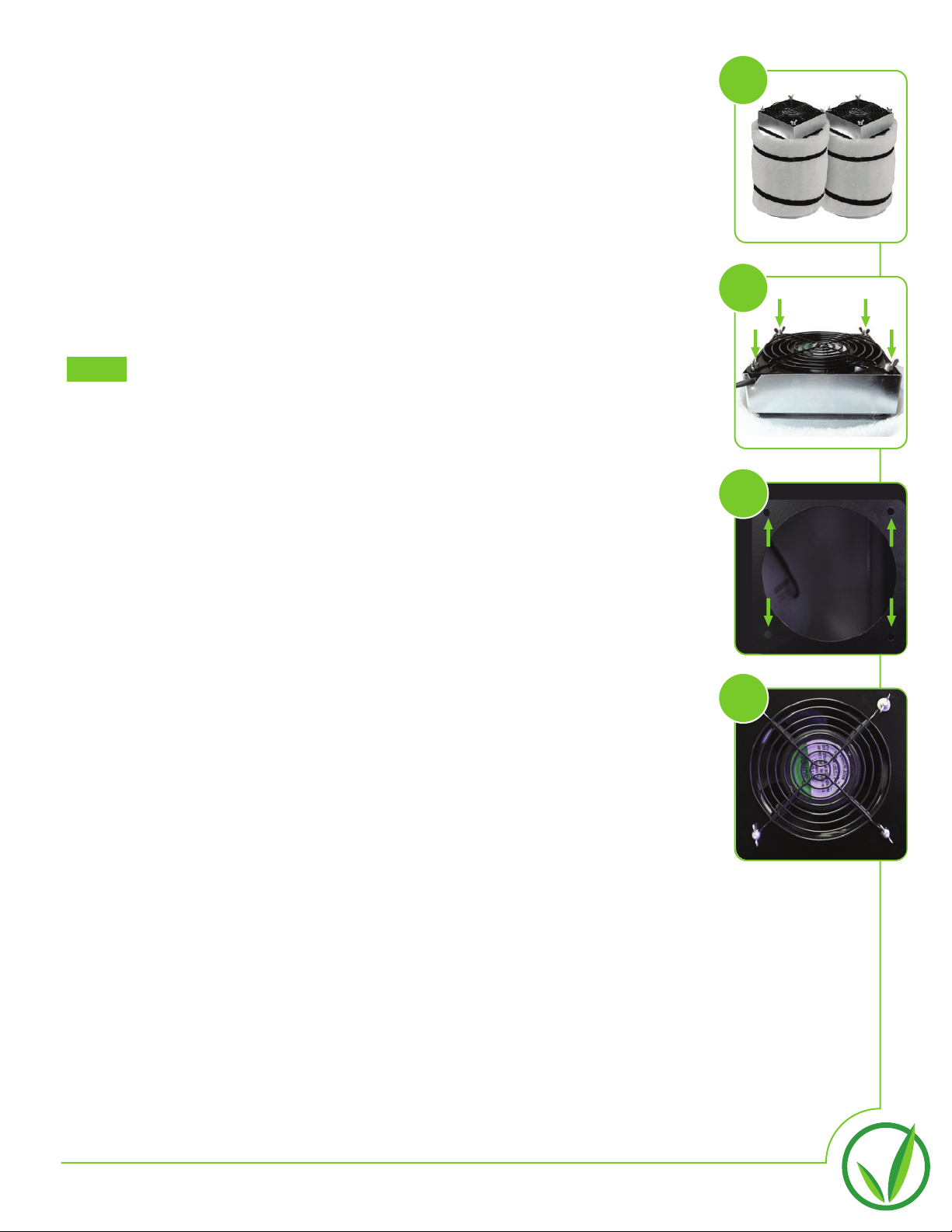

1. Locate and unpack the Custom Carbon Filters (image a).
2. Remove the four wing nuts on the back side of the fan (image b), then
remove the fan grill from the fan.
3. Locate the two large openings near the top of the back of the cabinet with the
four small surrounding holes (image C). With the help of a partner hold the
Carbon Filter and fan flush to the INSIDE back of the cabinet. Make sure to
place the four bolts through the four provided holes.
4. Have a partner place the fan grill on the outside of the cabinet on the four
filter fan bolts. Place a washer on each bolt, then secure with wing nuts
(image d). Repeat steps 1-4 for the second Carbon Filter/Fan.
5. Run the power cords for the Carbon Filter Fans through the nearest Elbow to
the back of the cabinet.
Installing your Custom Carbon Filters
NOTE: THE CARBON FILTER POWER CORD REMAINS INSIDE THE
CABINET, NOT THROUGH THE FAN HOLE OPENING.
a
b
c
d

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Unpack KIND LED Grow Light (image a).
2. Locate the Hanging Hardware Kit (image b).
3. Using the four (4) shorter lengths of cable and the (4) small carabiners,
(image c) connect one cable assembly to each of the brass hangers on the
light (image d).
We have set the light on a convenient Yo-Yo system so the height can be
adjusted as your plants grow. To lower the light, simply press the button
located on the side of the Yo-Yo and adjust to the desired height. To raise
the light pull upward on the end of the Yo-Yo cord.
4. Place the Kind LED Light in the bottom of the flower chamber in the
cabinet. Lower the Yo-Yo system until you can connect the other ends of
the cable assemblies to the Yo-Yo carabiners (image e). Raise the light to
the desired height.
5. Run the power cord from the LED light through the nearest Elbow opening
to the back of the cabinet.
Hanging your LED Light
1. Locate and unpack two T5 Light Strips in your package. Attach the power
cord and affix one T5 to each side of your cabinet, via the magnetic
backing, in the main growing chamber (image f). Run cords through the
nearest Elbow opening.
Installing your T5 Side Lights
a
b
c
d
e
f

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Locate and unpack two of the bubble wrapped T5 Light Strips located in your
package (image a). Use the short “daisy chain” connector found inside the
light packaging to connect the two T5 lights to one another (image b). Then
attach one power cord to the end of one of the T5 lights.
2. The T5s comes equipped with magnetic backing and is mounted to the
underside ceiling of the cloning chamber (lower chamber) in this manner
(image c).
3. Locate the Internal Circulation Fan (image d). Note the “S” hook connected
to the base of the Fan. This hook will fit into the notches located on the
backside of the inner door frame (image e). Mount the Fan on one of the
lower notches. As your plants grow taller, move the Fan to the upper
notches. Ideally the Fan will blow air across the top of the plants. Thread
cord through the nearest Elbow opening.
4. Locate the Thermometer/Hygrometer (image f). Remove the battery cover
and remove the plastic safety blocker from the battery terminal. Use the
included Velcro Strips to affix your Thermometer/Hydrometer to the inside of
your cabinet. The best placement for this is towards the top of the cabinet,
either on the side or back wall.
5. Run the external probe to the outside of the cabinet, through the nearest
Elbow. Make sure the probe is not touching any surface on the out side of
the cabinet as this will provide false readings.
Setting up the SuperCloset a
f
b
c
d
e
X4

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787

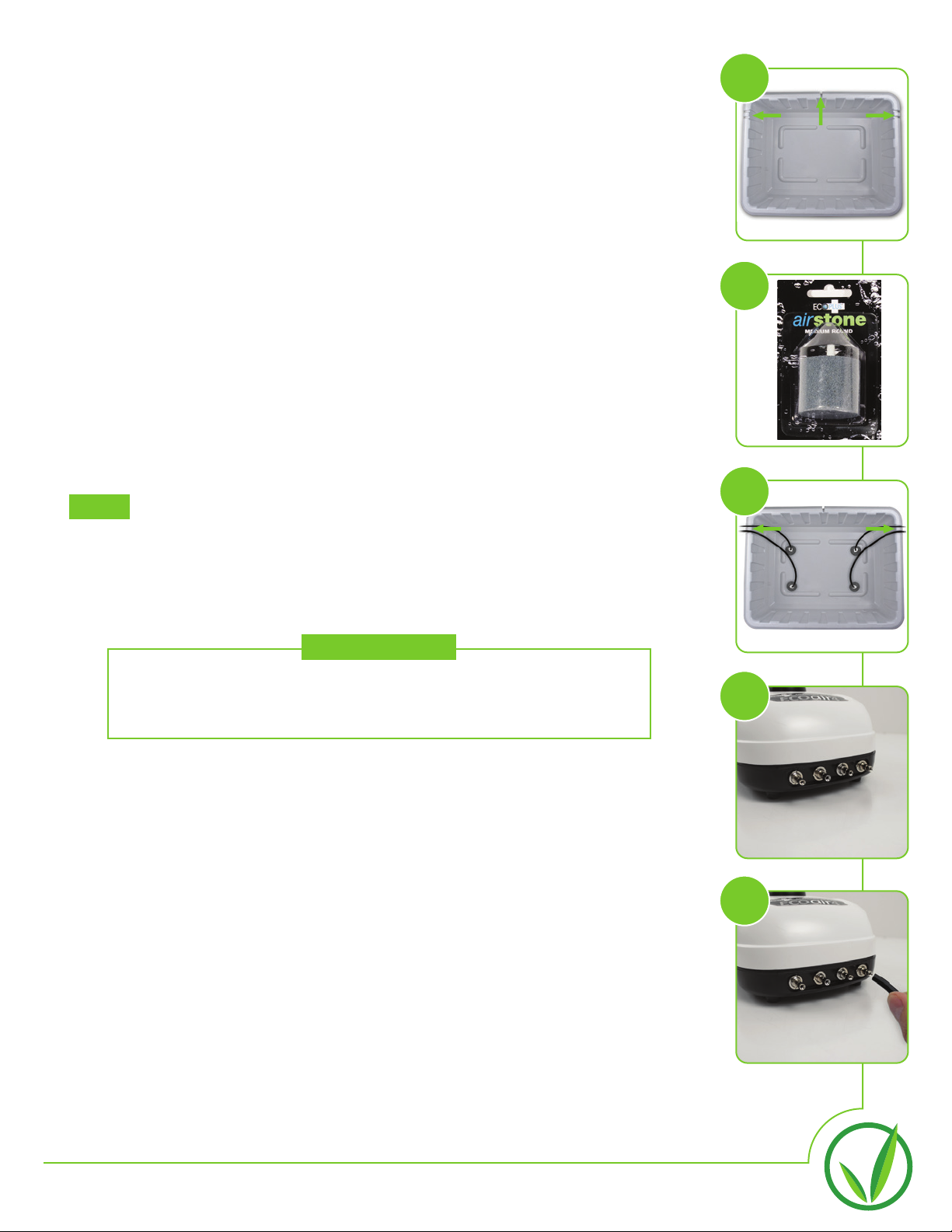

1. Locate the SuperCloner 50 (image a). Remove lid, and set aside. Remove
all contents, including the Air Pump, blue 12” Air Stones, and fifty Net
Cups.
2. Unwrap the Air Stones and lay them down inside of the SuperCloner
(image b).
3. Locate the Air Pump (image c) and place it next to the SuperCloner.
THIS PUMP SHOULD NEVER BE PLACED IN WATER!
4. Locate and attach the two black tubes (image d) to the metal nodes on the
front of the Air Pump. Run the other end of the black tubing through the
channels located on the rim of the reservoir (image e).
5. Connect the other end of the black tubing to the Air Stones. Once these
are connected, ensure the Air Stones remain flat on the floor of the
reservoir.
6. Turn the black dial on top of your Air Pump clockwise until it stops.
Replace the lid of the SuperCloner and insert the 2” net cups.
7. Position the SuperCloner 50 in the Cloning Chamber along with the Air
Pump. Run the Air Pump Power Cord out of the cabinet through the same
Elbow as the T5 Light Strip Power Cord. Do not plug in the Air Pump yet.
SuperCloner 50 Assembly
1. If using the supplied germination kit, it will be placed in the Cloning
Chamber next to the SuperCloner 50 (image f).
Total Germination Kit
NOTE:
f
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Remove the lid from the SuperPonic XL12 system and set it aside for now.
Notice the channels located on the rim of the reservoir (image a). These
channels will be for the placement of the Air Pump Tubing and Water
Pump power cord.
AIR PUMP AND AIR STONES
2. Locate the four gray Air Stones included in the shipment (image b). Place
the Air Stones at the bottom of the SuperPonics reservoir. Note: The Air
Stones have a male end that will fit in the black Air Pump tubing.
3. Locate the black Air Pump tubing for the Air Stones connect the tubing to
the end of each airstone. Arrange the tubing into the channels located on
rim of the reservoir (image c).
4. Locate the Air Pump included in your shipment (image d).
THIS PUMP SHOULD NEVER BE PLACED IN WATER
5. Connect the open end of the Air Pump tubing to the metallic outputs
located on the Air Pump (image e).
SuperPonics XL12 System Assembly
Your plant roots need and love oxygen! It is extremely important
to the health of the plants that you keep your Air Pump and Air
Stones running at all times when the system is in use.
SUPER GROW TIP:
NOTE:
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787

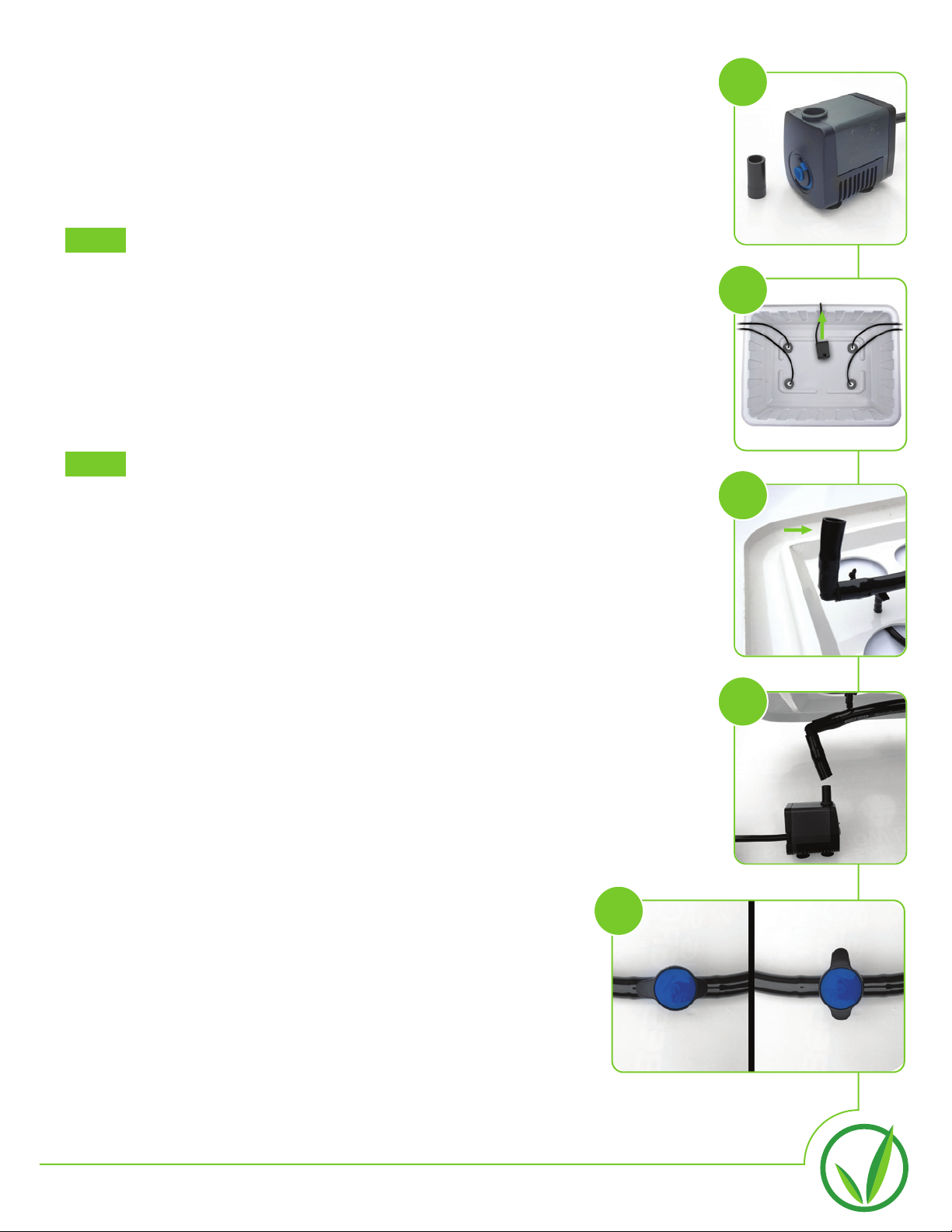

6. Locate the Water Pump (image a) and attach the supplied 1/2” fitting to the
top of the water pump. Place the Water Pump in the SuperPonics
reservoir near end with the channel. Arrange the power cord of the Water
Pump into the middle channel located on the rim of the reservoir (image b).
7. Locate the reservoir lid. On the under side of the lid, locate the open end
of the black tubing (image c). Attach the open end of the tubing to the
open connector on the top of the Water Pump (image d). Return the lid to
the reservoir.
8. Insert the Net Cups into the openings of the top of the reservoir. Once in
place, arrange the top feed hoses to the center of the net cups
9. Place the SuperPonics system and Air Pump inside the flower chamber of
the cabinet. Run the Water Pump and Air Pump power cords through the
lower opening in the back of the cabinet.
Read the instructions for the water pump, as they
contain valuable information on how to maintain this
component. THIS PUMP SHOULD NEVER RUN WHEN
NOT FULLY SUBMERGED IN WATER.
SuperPonic XL12 System Assembly
NOTE:
The SuperPonics XL12 includes an automatic drainage
tube to empty the reservoir. This tube stays in the
reservoir until you need to drain. To drain the reservoir
place the open end of the tube in a receptacle and open
the valve by turning it parallel to the drainage tube
(image e). Finally turn on the water pump on to drain the
reservoir.
The valve should ALWAYS be in the closed position
unless draining the reservoir.
NOTE:
OPEN CLOSED
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787

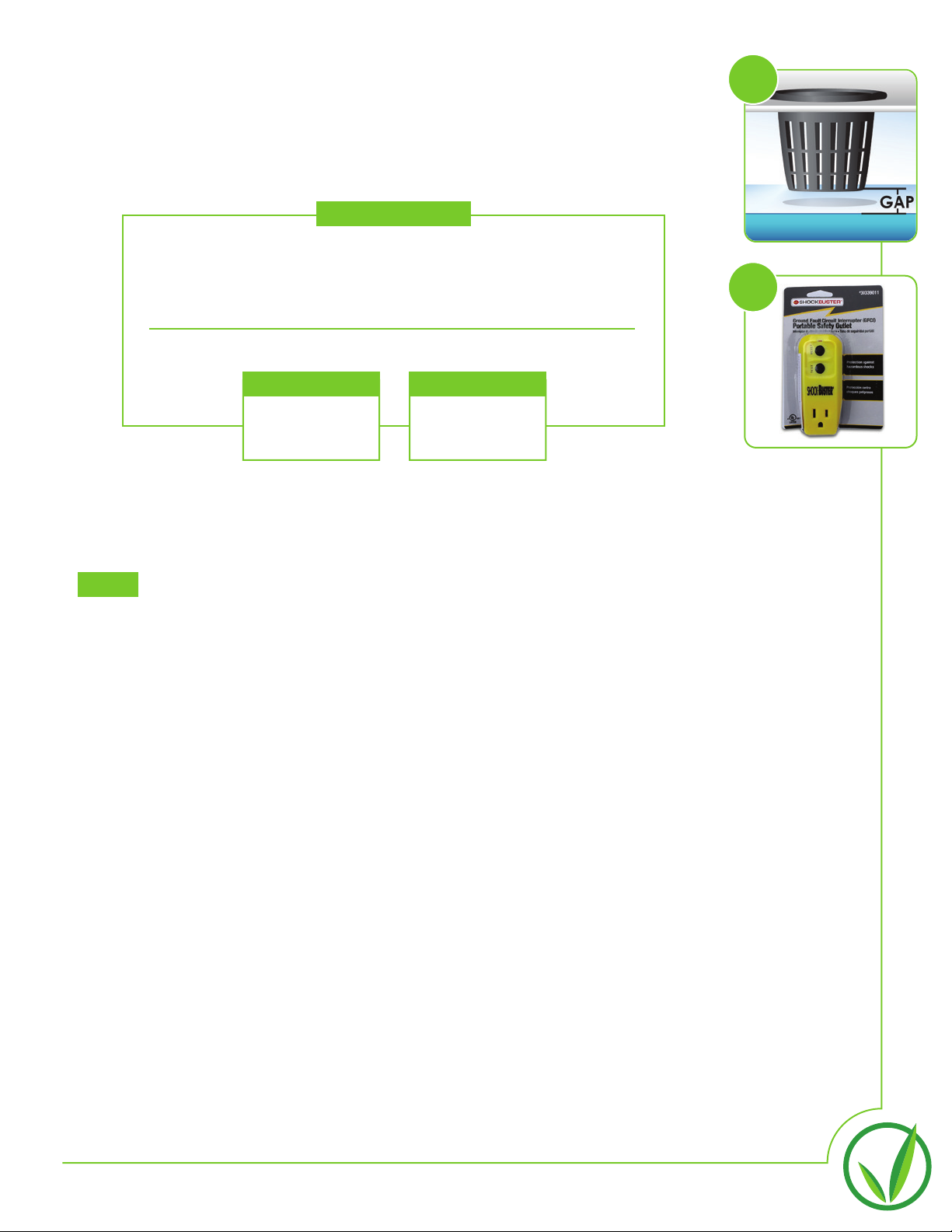

1. Locate the power strip (image a), the GFCI Protector (image b), the two
Smart Plugs (image c), and the 3-IN-1 adapters (image d).
DO NOT PLUG IN THE POWER STRIP YET.
2. Plug in the following from left to right
TOP ROW
1) Smart Plug #1
Once the Smart Plug is plugged in, plug in the 3-in-1
Adapter with the following.
- T5 Side Light #1
- T5 Side Light #2
- Kind LED Grow Light
2) Internal Circulation Fan
3) T5 Clone Chamber
4) Smart Plug #2
Once this Smart Plug is plugged in, the Water Pump can
now be plugged in.
BOTTOM ROW
5) Air Pump #1
6) Air Pump #2
7) Carbon Filter Fan #1
8) Carbon Filter Fan #2
Final Assembly
T5 SIDE LIGHTS KIND LED LIGHT T5 CLONE CHAMBER
CARBON
FILTER FAN #2
AIR PUMP
#1
WATER PUMP
INTERNAL
CIRCULATION FAN
AIR PUMP
#2
CARBON
FILTER FAN #1
Properly configured Power Strip Should look like this
a
b
c
d
X2

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
3. At this time, add water to the reservoirs. When filled to the appropriate
levels, the SuperCloner 50 reservoir will hold about 7 gallons of water. The
SuperPonic XL12 reservoir will hold about 25 gallons.
Almost Done
4. Plug the GFCI Protector (image b) into any 110v wall socket. With the power
strip turned OFF, plug the power strip into the GFCI Protector.
DO NOT POWER UP YOUR CABINET YET!
5. Now that everything is plugged into the power strip, lets verify some
important steps:
6. After verifying all of the above, it’s time to turn on your SuperCloset. Turn the
power strip switch to the ON position, and the system should spring to life
before your very eyes!
1) LED Light is properly hung.
2) Watering System tubes are securely fastened to the top of the Water Pump.
3) Both Reservoirs are filled with water and Water Pump is fully submerged.
4) Air Pumps are next to (NOT IN!) the reservoir.
5) Light Power Cord and T5 Power Cords are plugged into Smart Plug#1.
6) Water Pump Power Cords are plugged into Smart Plug #2.
7) Power Strip is off and plugged into the GFCI Protector.
Your reservoir should always be filled at least halfway. In the
beginning stages, we recommend maintaining a water level
extremely close (½” - 1”) from the bottom of the net cups, but not
touching (image a). The water should remain at this level until an
evident root structure begins to develop.
SUPER GROW TIP:
NOTE:
EARLY STAGE
MATURE STAGEEARLY STAGE
EVERY 6 HOURS
MIN.
15
EVERY 3-4 HOURS
MIN.
15
WATER PUMP TIMER SUGGESTED SETTINGS
a
b
