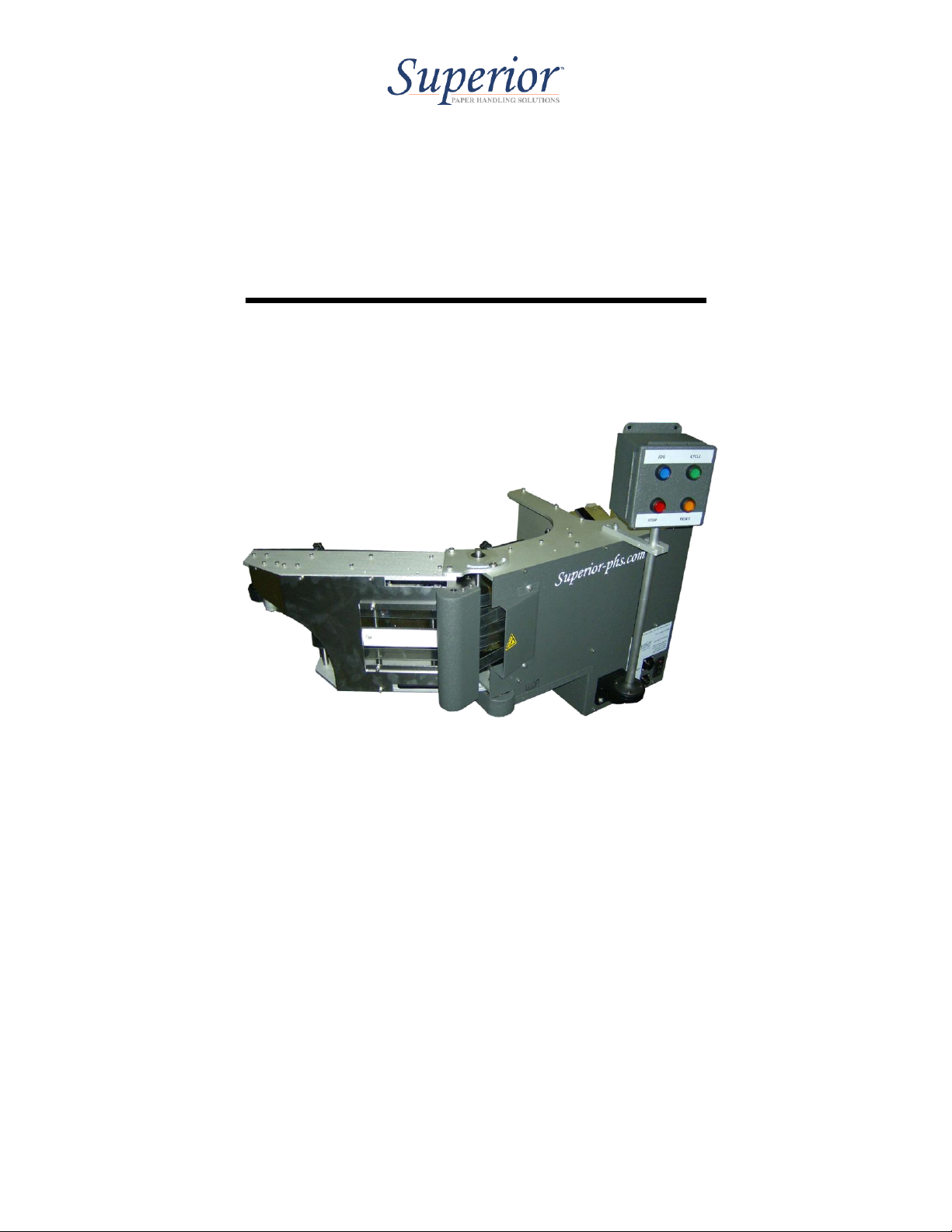

Superior 73015295 User manual

On Edge –Label Dispenser 1
Product Guide
On Edge Label Dispenser
Revised 010/10/16 (Serial Numbers 73015295-73015XXX))

On Edge –Label Dispenser 2
1. Index (page 2)
2. Machine Overview (page 3 )
3. Set-up / Operation (page 4)
4. Parts Detail
Back Slide Rest Assembly (page 8)
Angled Loading Tray Assembly (page 8)
Separator Assembly (page 10)
Feed Carriage Assembly (page 12)
2nd Stage Carriage Assembly (page 13)
3rd Stage Carriage Assembly (page 14)
Electrical / Mechanical Components (page 16)
Back Wrap Timing Pulley Assembly
5. Maintenance (page 20)
6. Electrical Schematic (page 21)
7. Warranty (page 22)

On Edge –Label Dispenser 3

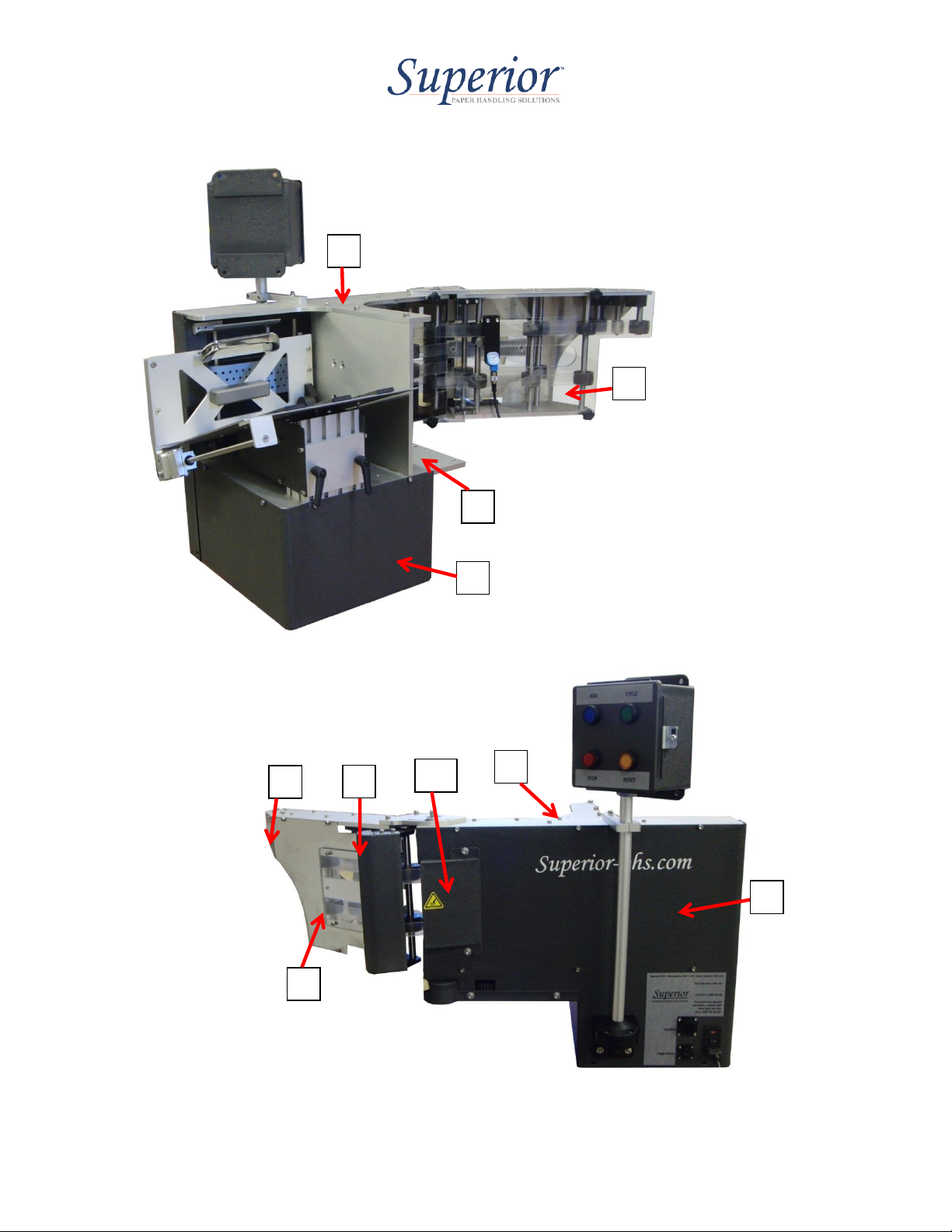

2. Machine Overview
Jog Pushbutton
Manual Cycle
Pushbutton
Stop Pushbutton
Reset Pushbutton
Product Stack
Pressure Plate
Angled
Loading Tray
2nd Stage Discharge
3rd Stage Discharge
Label Detect Sensor
Separator Assembly

On Edge –Label Dispenser 4
3. Set-Up / Operation
STEP 1
With the rear slide assembly out of the way, insert one-piece of product between the separating rollers
and feed belt.
Adjust the tray height so that the product is centered to the feed belt by loosening the adjustable levers,
sliding up or down, and tighten the levers.
STEP 2
To proceed with setting the separator, first loosen the lock knob.
Turn the Separator adjust knob until there is a slight resistance on the product (gently slide the product
in and out while adjusting the knob) Clockwise to lower = more resistance, Counter-clockwise to raise =
less resistance.
When complete, retighten the lock knob.
Lock Knob
Adjust Knob

On Edge –Label Dispenser 5

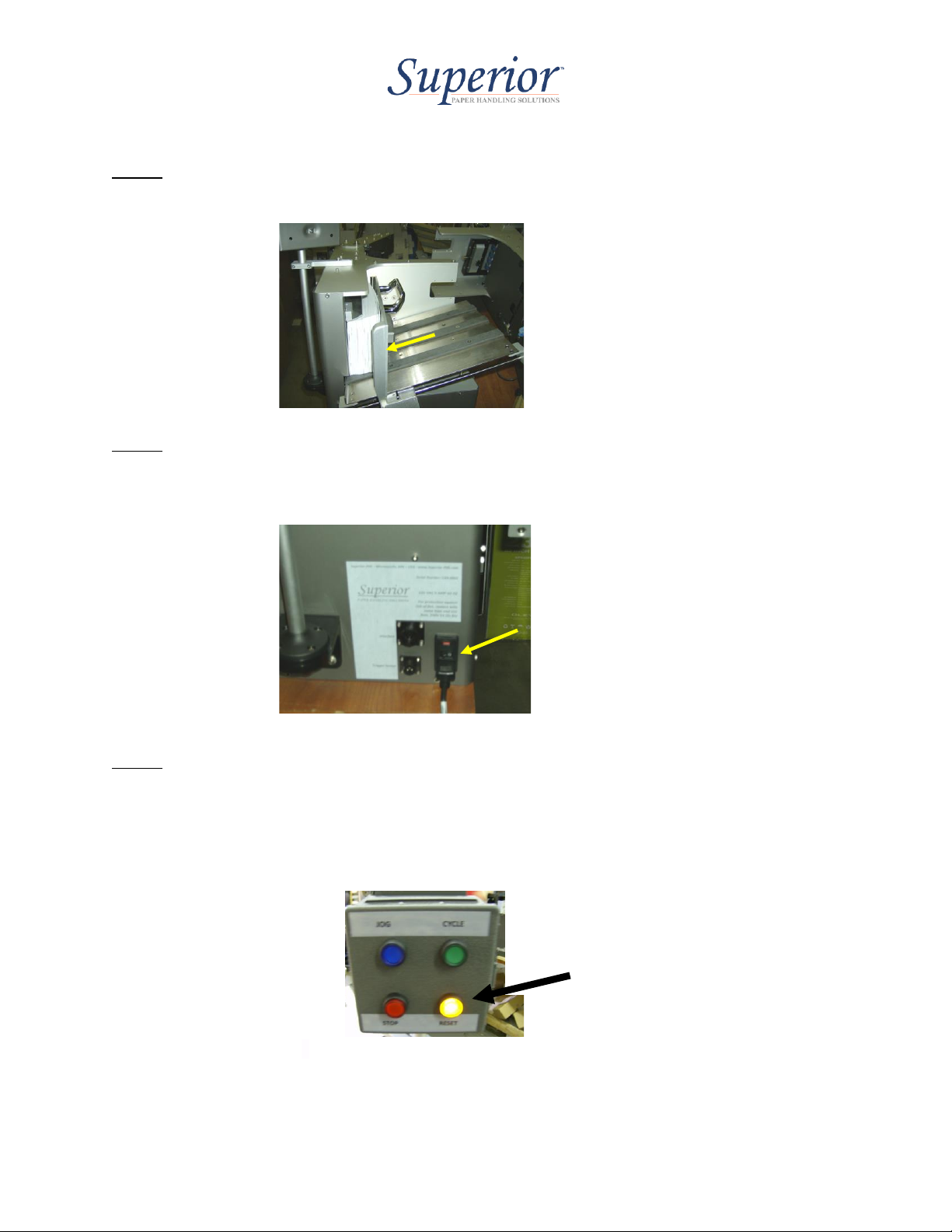

STEP 3
Load additional product onto the hopper plate and position rear slide assembly onto product.
STEP 4
Switch power to “ON” position ( I )
Note: there is a 2-second initialization period.
STEP 5
After initialization, the operator panel will illuminate the Reset push-button.
NOTE—only the illuminated buttons are active. In the picture below, only the RESET button is
active.

On Edge –Label Dispenser 6

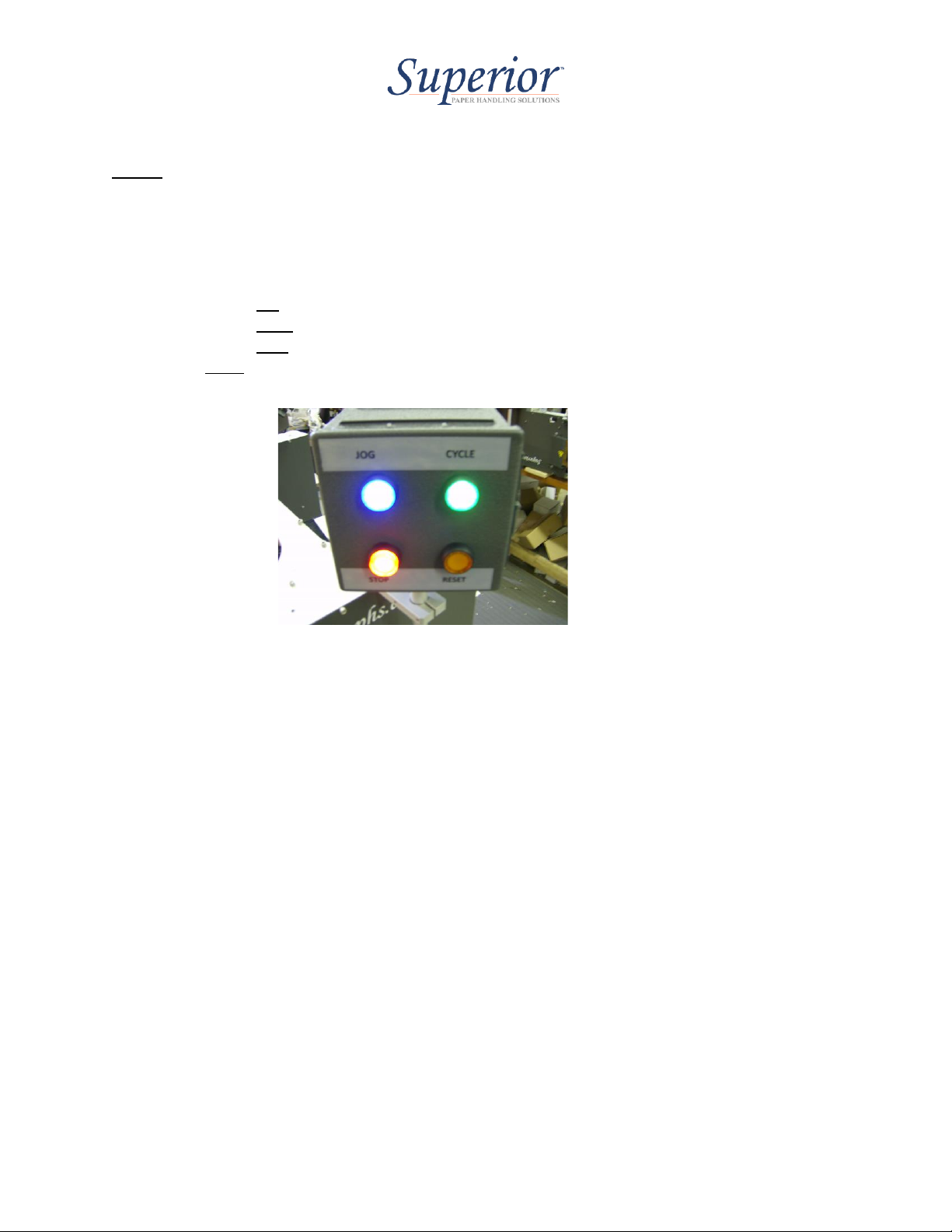

STEP 6
Push the Reset push-button to bring the feeder into “Ready” mode. Ready mode will be
indicated by illuminated Jog, Cycle, and Stop buttons.
In Ready mode, the feeder can be “Jogged”, “Cycled”, or “Stopped” simply by pressing the
corresponding push-button.
-Pressing the Jog button will advance the machine until the button is released.
-Pressing the Cycle button will begin a complete manual feed cycle of the machine and stop
-Pressing the Stop button will instantly stop the machine and take the feeder out of Ready mode.
-Push Reset button to return to Ready mode.
**NOTE**
If an I/O cable is being used and connected to the labeler, reference the Electrical Schematic on
page 21 for external commands that can be remotely used.

On Edge –Label Dispenser 7
STEP 7
Set the Product Detect sensor based on the length of the label. A good starting reference is the
set so that the label is flush to the end of the feeder discharge. Then adjust from there
This sensor triggers from the trailing edge of the label. When changing label sizes, the position of where
the label needs to feed to will change and will require adjustment of the stopping position, via the
product detect sensor.

On Edge –Label Dispenser 8
4. Parts Detail
Back Slide Rest & Angled Tray Assembly

On Edge –Label Dispenser 9
Back Slide Rest & Angled Tray Assembly
Item
Part Number
Description
Qty
1
302021
Angled Loading Tray (C-
9000226)
1
2
302000
Main Base Plate (C-9000253)
1
3
302033
Wedge support cross bar (C-
9000317)
2
4
302022
Shaft support bracket (C-
9000231)
2
5
302023
Slide shaft (C-9000244)
1
6
350028
Linear bearing (112002)
2
7
302034
Bottom upright (C-9000318)
1
8
302035
Top upright (C-9000319)
1
9
302025
Tray Pad (C-9000249)
3
10
302036
Rest Plate (C-9000232)
1
11
302037
Weight (C-9000286)
1
12
302038
Mount Block, roller (C-9000235)
1
13
302039
Roller (C-9000241)
1
14
350029
Handle (112016)
1
15
350032
push rod, Collar( 92510A644
6432K16)
2
1
16
302040
Push rod (C-9000285)
1
22
302041
Inside Wedge (C-9000314)
1
23
302042
Outside Wedge (C-9000315)
1
24
302043
Adjust Rail (C-9000316)
1
28
350031
¼-20 ¾ Adjustable Handle
2
29
Obsolete
Shaft, roller (C-9000246B).
Order 302039 Only.
X

On Edge –Label Dispenser 10

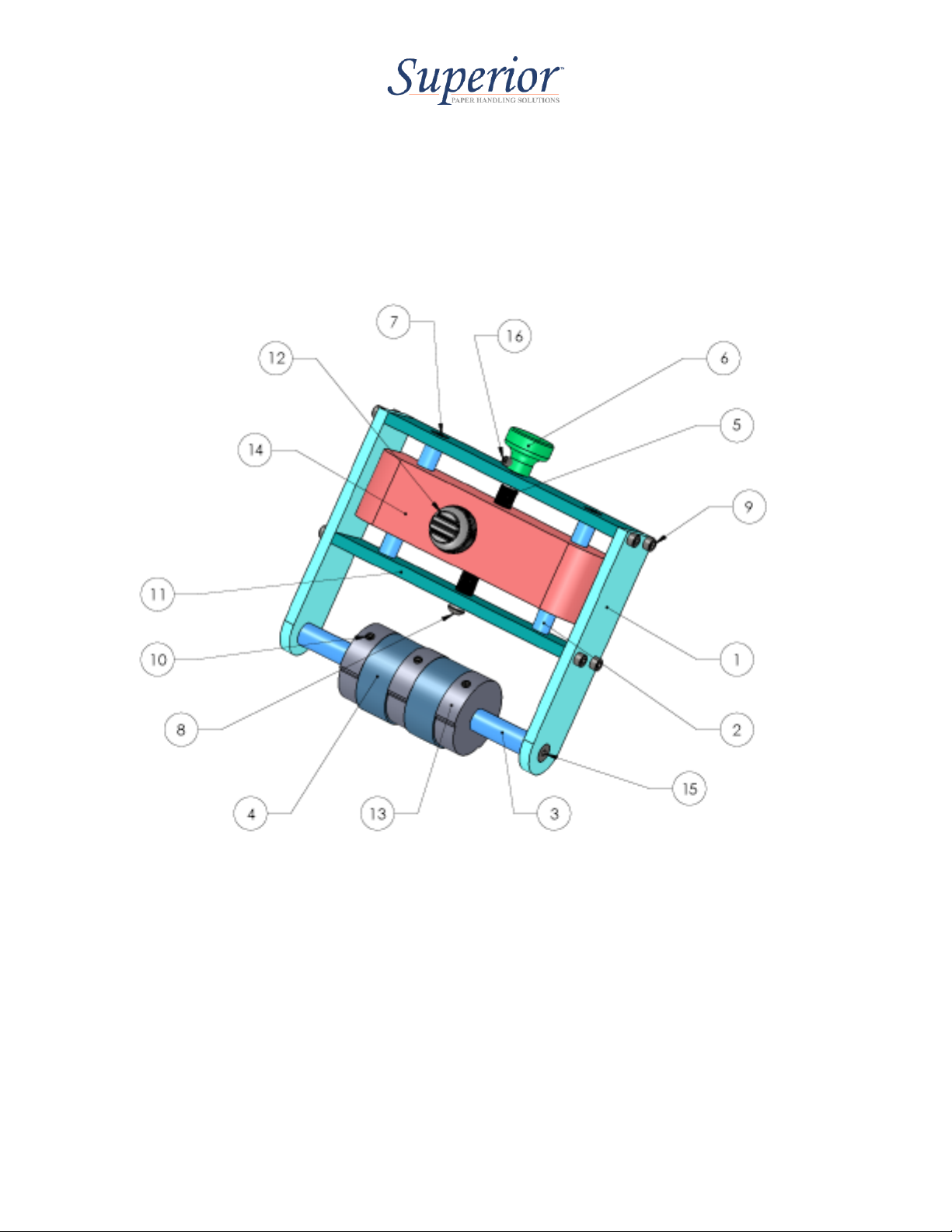

Separator Assembly

On Edge –Label Dispenser 11
Separator Assembly
Item
Part
Number
Description
Qty
1
302044
Separator Side support plate (C-
9000260)
2
2
302045
Slide Shaft (C-9000261)
2
3
302046
Separator Wheel Mounting
Shaft (C-9000262)
1
4
100172D
Blue Separator Wheel w/
Bearing (200155)
2
5
302407
Threaded Rod Adjustment. (C-
9000273)
1
6
350035
Knob 60205K54. (C-9000281)
1
7
SCHCSREW 0.19-
32X0.5X50.5-HS-C
4
8
SBHCSCREW 0.19-32X0.5-HX-
N
1
9
SBHCSCREW 0.19-32X0.5-HX-
N
8
10
SSCUPSKT 0.19-32X0.375-HX-
N, brass tip
3
11
302048
Separator Shaft Support Plate
(C-9000258)
2
12
350037
¼-20 x 1” Long Knob or
Adjustable Handle (5993K87)
1
13
302049
Notched Separator Spacer
Roller. (C-9000304)
3
14
302050
Main Threaded Adjustment
Block (C-9000251)
1
15
10-32 x ¾” FHCS
2
16
10-32 x 3/8” set screw w nylon
tip
1

On Edge –Label Dispenser 12

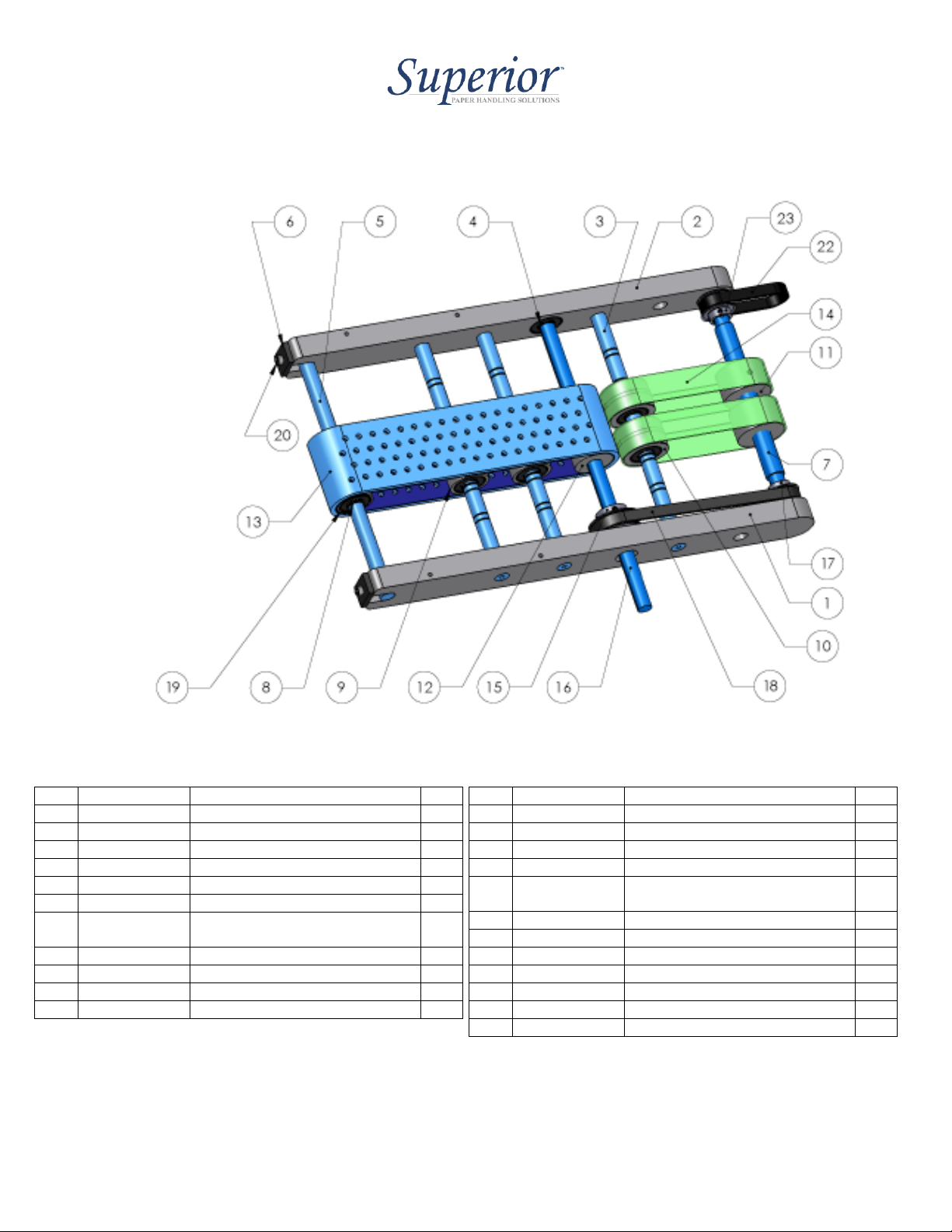

Feed Carriage Assembly
2nd Stage Carriage Assembly
Item
Part Number
Description
Qty
1
400053
RH Carriage holder (100137B)
1
2
400066
LH Carriage holder (100136B)
1
3
302027
Idler shaft (C-9000263)
3
4
100141
R8 Bearing
14
5
302028
Idler take up shaft (100142C)
1
6
100161
Tension plate
2
7
302024
Discharge drive shaft
(C-9000265B)
1
8
½” Retaining Ring SST
14
9
100146
Long idler pulley
2
10
100154/100141
Crowned Idler Short Pulley
2
11
100152A
Flat Drive Short Pulley
2
Item
Part Number
Description
Qty
12
100151
Flat Drive Long Pulley
1
13
100157
Feed Belt
1
14
100159
Discharge belt
2
15
100195
24XL037 Timing Pulley
1
16
302026
Main carriage drive shaft (C-
9000266)
1
17
100543
15XL037 Timing Pulley
1
18
100196
160XL037 Timing Belt
1
19
100149
Rear Idler Pulley Long
1
20
10-32 x 1 SHCS
2
21
10-32 x 3/8 SHCS
6
22
112009
70XL037 Timing Belt
1
23
100194
16XL037 Timing Pulley
1

On Edge –Label Dispenser 13
2nd Stage Carriage Holder
Item
Part Number
Description
Qty
1
302030
Carriage Holder 2nd stage
(C-9000227)
2
2
100141
R8 Bearing
16
3
302031
Drive shaft 2nd stage (C-9000267)
1
4
100152
Flat Drive Short Pulley
7
5
100154
Crown Idler Short Pulley
6
6
302032
Drive Shaft extended (C-9000268)
1
7
112001
Urethane Belt
2
8
10-32 x 3/8 Set Screw
14
9
100543
Timing pulley 15XL037
1
10
302027
Idler Shaft (C-9000263)
3
11
½” retaining ring
16

On Edge –Label Dispenser 14

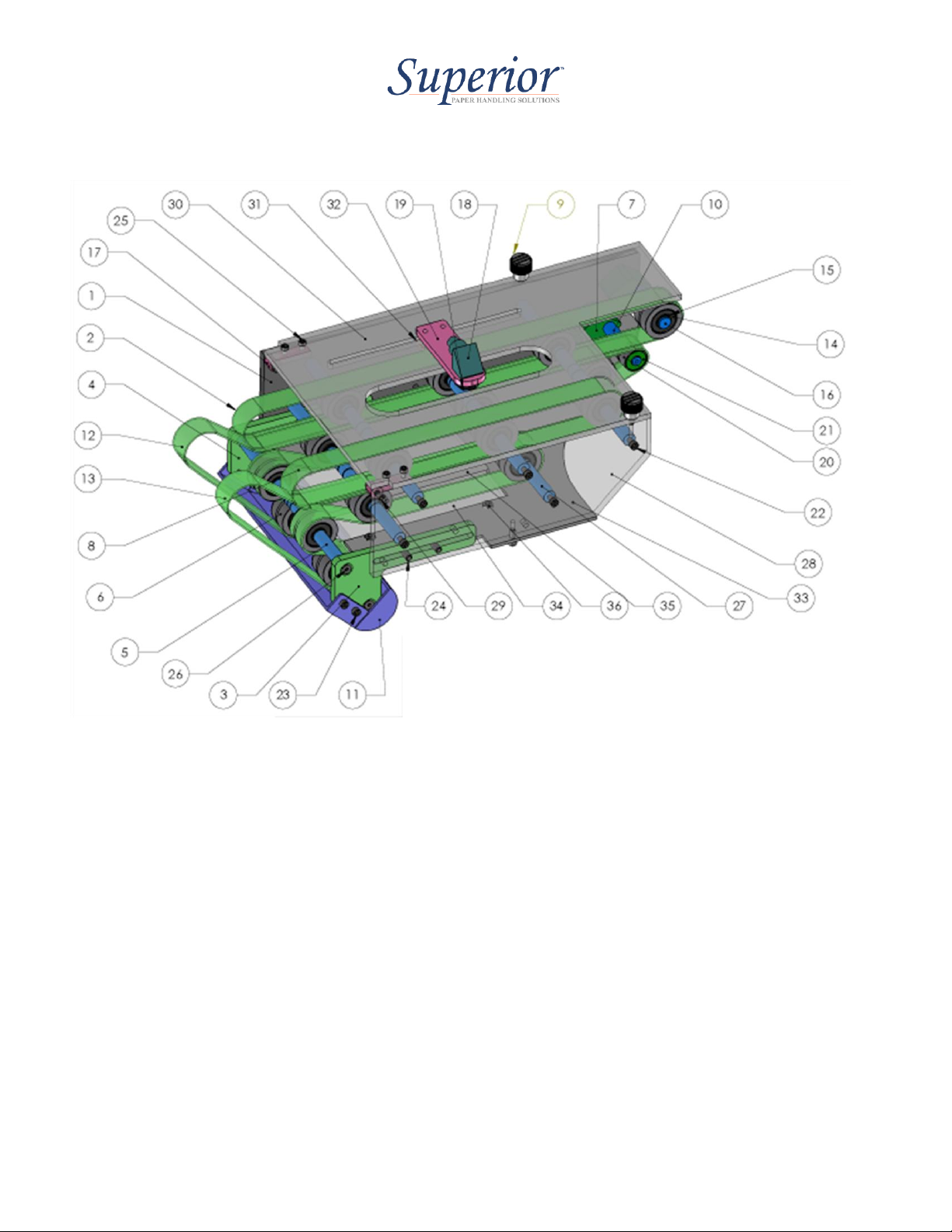

3rd Stage Carriage Assembly

On Edge –Label Dispenser 15
3rd Stage Carriage Assembly
Item
Part
Number
Description
Qty
1
302003
Top Pivot extension belt plate (C-
9000259)
1
2
112005
Long inside urethane belt
1
3
302006
Bottom take up bracket (C-9000256)
1
4
302005
Top take up bracket (C-9000255)
1
5
302018
Idler shaft tensioning (C-9000269)
2
6
100154
Crowned idler short pulley
15
7
302010
Support block (C-9000240)
3
8
112006
Short inside urethane belt
1
9
390097
Lobed knob (100391)
2
10
302020
.375, Cantilever shaft (C-9000270)
1
11
302012
Wrap cover (C-9000275)
1
12
112003
Long outside urethane belt
1
13
112004
Short outside urethane belt
1
14
100141
R8 Bearing
30
15
½” retaining ring
30
16
302019
.500 cantilever shaft (C-9000271)
1
17
302011
Hinge bracket (C-9000247)
2
18
112013
Photo sensor
1
19
NA
Nut, photo sensor. Comes with Sensor.
1
20
302052
Discharge tip idler pulley (C-9000272)
1
21
100135
R6 bearing
2
22
10-32 x 1 SHCS
16
23
10-32 x ½ SHCS
11
24
¼-20 x ¾ SHCS
4
25
8-32 x ½ SHCS
6
26
10-32 x ¾ SHCS
4
27
302027
Idler Shaft (C-9000263)
5
28
302014
Bottom Belt Plate (C-9000239)
1
29
Shoulder bolt .250 dia x .500 –10/24
2
30
302057
Top Cover Guard (C-9000230)
1
31
302058
Photo sensor slider nut (C-9000257)
1
32
302059
Photo sensor mount (C-9000246)
1
33
400302
Back cover (C-9000228)
1
34
Obsolete. All Stainless. (C-9000313)
Order 400302.
1
35
112014
Reflector
1
36
KEPS Hex nut 10/32
4

On Edge –Label Dispenser 16
Electrical
Item
Description
Part Number
Qty
1
Stepper Motor (100236)
350670
1
NS
Drive motor pulley 20T - HTD
300119
1
NS
Drive shaft pulley 30T - HTD (112027-32T)
350021
1
NS
Drive belt 415-5M-15
112008
1
2
3
4
5
all
Blue Push button
Blue LED
Green Push button
Green LED
Yellow Push button
Yellow LED
Red Push button
Red LED
N.O. Contact Block w/ mount
112051
112055
112052
112056
112053
112057
112050
112054
112058
1
1
1
1
1
1
1
1
4
6
Stepper Drive Board
112077
1
7
Stepper Pulse Board
112011
1
8
Power Supply
112012
1
NS
Sensor, Label Detect, Sheet
112013
1
NS
Sensor, Trigger
112013
1
9
Allen Bradley PLC (112049)
400596
1
2
5
4
3
1
9
8
7
6

On Edge –Label Dispenser 17
Back Wrap Timing Pulley Assembly
Item No.
Description
Part Number
Qty.
1
Main Base Plate (C-9000253)
302000
1
2
20-5M-15AL Timing Pulley W .5in Bore
350119
2
3
Angle Coupling Plate (C-9000225)
302002
1
4
R8 Bearing
100141
6
5
Back Wrap Idler Pulley Mount Shaft (C-9000243)
302017
2
6
Back Wrap Idler Pulley (C-9000242)
302029
2
7
Back Wrap Timing Belt D450-5M-15
112007
1
8
Wrap Belt Tension Arm (C-9000288)
302064
1
9
Wrap Belt Tension Arm Stub Shaft (C-9000287)
302063
1
10
SCHCSCREW 0.25-20x1x1-HX-N (Not Shown)
1/4-20 X3/4 FHCS
1
11
HX-SHCS 0.19-32x1.5x1.125-N
10-32 X1-1/2 SHCS
1
12
Wrap Belt Tension Arm Pulley Shaft (C-9000289)
302065
1
13
Back Wrap Tension Arm Pulley (C-9000324)
302066
1
14
1/2" Stainless Retaining Ring
100190
2
15
2nd Stage Drive Shaft (C-9000267)
302031
1
16
2nd Stage Drive Shaft W/ Top Extension (C-9000268)
302032
1
2
13
9
14
12
11
8
1
16
15
5
7
6
4
3

On Edge –Label Dispenser 18
Mechanical
3
9
8
7
11
6
4
5
1
6

On Edge –Label Dispenser 19
Mechanical Continued…
Item
Description
Part Number
Qty
1
Stage 3, Inside Cover, Plexiglas (C-9000230)
302057
1
2
Bottom belt cover (C-9000234)
302007
1
3
Bottom cover, Metal, Stage 1 & 2 (C-9000238)
302004
1
4
Bottom hood (C-9000245)
302008
1
5
Main base plate (C-9000253)
302000
1
6
Main top plate (C-9000254)
302001
1
7
Wrap Cover (C-9000275)
302012
1
8
Stage 3, Front Side Cover, Stainless (C-9000228)
400302
2
9
Stage 3, Window Guard, Plexiglas (C-9000313)
Obsolete. Order
400302
1
10
Stage 2, Inside Cover, Plexiglas (C-9000237)
302009
1
11
Stage 2, Bottom Cover, Metal (C-9000303)
302078
1
Notes:
1
5
2
10
6

On Edge –Label Dispenser 20
5. Maintenance
Please remember that all maintenance and service to the OnEdge-1 Versatile Feeding Solution should
only be performed by qualified technicians. Always disconnect power before attempting any
maintenance or service procedure.
Belts
Over time, you will notice “build-up” on the feed and discharge belts and the separator
rollers. This is normal and is usually from the dust, finish, or coating normally on the
products fed. Regular cleaning of the belts and rollers will extend their life.
Belts, pulleys, and rollers should only be cleaned with Isopropyl Alcohol.
A good practice is to clean the belts and rollers weekly. If running UV or Aqueous
coated materials, daily cleanings are recommended.
Sensors
Wipe sensors with a clean lint free cloth to clear any dust build up. Recheck the
adjustment of the sensors if they were moved during cleaning and reset.
Machine
It is always best to keep machines clean. Keep them dusted and free of spills.
Always inspect your machine for loose or damaged items and replace them
immediately.
Table of contents
