Superior MNF24INM User manual

Installation and Operation Instructions
Models
PFS
®
US
Report No. 10-87
P/N 900463-01 Rev. A 01/2016
Superior®Unvented (Vent-Free) Gas Log Heater
MNF24INM MNF30INM MNF24INV MNF30INV
MNF24IPM MNF30IPM MNF24IPV MNF30IPV
P900463-01
For use with log sets
LMF24GTA/B
LMF30GTA/B
LMF36GTA/B
LMF24MOA/B
LMF30MOA/B
LMF36MOA/B
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appli-
ance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not
prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built
fireplace or in a listed ventless firebox enclosure. It is design-certified for these installations in accordance
with ANSI Z21.11.2. Exception: DO NOT install this appliance in a factory-built fireplace that includes
instructions stating it has not been tested or should not be used with unvented gas logs.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation
section on Page 6 of this manual.

SuperiorFireplaces.us.com 900463-01A
2
SAFETY
WARNING: Improper
installation, adjustment,
alteration, service or main-
tenancecancauseinjuryor
property damage. Refer to
this manual for correct in-
stallation and operational
procedures. For assis-
tance or additional infor-
mation consult a qualified
installer, service agency or
the gas supplier.
WARNING: This ap-
pliance is for installation
onlyinasolid-fuel-burning
masonryorUL127factory-
built fireplace or in a listed
ventlessfireboxenclosure.
It is design-certified for
theseinstallationsinaccor-
dance with ANSI Z21.11.2.
Exception: DO NOT install
this appliance in a factory-
builtfireplacethatincludes
instructions stating it has
not been tested or should
not be used with unvented
gas logs.
WARNING: This is an
unvented gas-fired appli-
ance. It uses air (oxygen)
from the room in which
it is installed. Provisions
for adequate combustion
and ventilation air must
be provided. Refer to Air
for Combustion and Ven-
tilation section on Page 6
of this manual.
This appliance may be in-
stalledinan aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identification........................................... 5
Local Codes......................................................... 5
Optional Remote Control Accessories................. 5
Unpacking............................................................ 5
Product Features................................................. 6
Air For Combustion and Ventilation..................... 6
Installation ........................................................... 8
Operation........................................................... 23
Inspecting Burners............................................. 29
Cleaning and Maintenance................................ 30
Specifications .................................................... 31
Wiring Diagram.................................................. 31
Troubleshooting................................................. 32
Parts.................................................................. 36
Replacement Parts............................................ 40
Service Hints ..................................................... 40
Technical Service............................................... 40
Accessories....................................................... 41
Warranty............................................................ 43

SuperiorFireplaces.us.com
900463-01A 3
WARNING: Do not allow fans
to blow directly into the appliance.
Avoid any drafts that alter burner
flame patterns. Ceiling fans can
createdrafts thatalterburner flame
patterns. Altered burner patterns
can cause sooting.
Due to high temperatures, the ap-
pliance should be located out of
traffic and away from furniture and
draperies.
Do not place clothing or other
flammable material on or near the
appliance. Never place any objects
on the appliance.
Appliancebaseassemblybecomes
very hot when running appliance.
Keepchildrenandadultsawayfrom
hot surface to avoid burns or cloth-
ing ignition. Appliance will remain
hotfora timeaftershutdown.Allow
surface to cool before touching.
Carefully supervise young children
when they are in the room with appli-
ance. When using the hand-held re-
moteaccessory,keepselectorswitch
intheOFFpositiontopreventchildren
from turning on burners with remote.
You must operate this appliance
with the fireplace screen and hood
inplace.Makesurefireplacescreen
andhoodareinplacebeforerunning
appliance.Thefireplacescreenshall
have openings for introduction of
combustion air.
Keep the appliance area clear and
free from combustible materials,
gasoline and other flammable va-
pors and liquids.
WARNING:Thisproductcon-
tainsand/orgenerateschemicals
known to the state of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manualcarefullyandcompletely
beforetryingtoassemble,oper-
ate or service this appliance.
Improper use of this appliance
can cause serious injury or
death from burns, fire, explo-
sion,electricalshockandcarbon
monoxide poisoning.
DANGER:Carbonmonoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the flu,
with headaches, dizziness or nausea. If you
have these signs, the fireplace may not be
working properly. Get fresh air at once! Have
fireplace serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart
or lung disease or anemia, those under the
influence of alcohol and those at high altitudes.
NaturalandPropane/LP gasesareodorless.An
odor-making agent is added to these gases.
The odor helps you detect a gas leak. How-
ever, the odor added to the gas can fade. Gas
may be present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this fireplace.
WARNING: Any change to
thisapplianceoritscontrolscan
be dangerous.
WARNING:Donotuseablower
insert, heat exchanger insert or
otheraccessorynotapprovedfor
use with this appliance.
SAFETY
Continued

SuperiorFireplaces.us.com 900463-01A4
SAFETY
Continued
1. This appliance is only for use with the type
ofgasindicatedontheratingplate.Thisap-
pliance is not convertible for use with other
gases.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/LP
supply tank(s) outdoors (propane/LP units
only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from a
neighbor’sphone.Followthegassupplier’s
instructions
• if you cannot reach your gas supplier, call
the fire department
4. This appliance shall not be installed in a
bedroom or bathroom, unless installed as
a vented appliance. See Installing Damper
Clamp Accessory for Vented Operation,
Page 12. This gas log set may not be in-
stalled as a vented appliance in a bedroom
or bathroom in the Commonwealth of Mas-
sachusetts.
5. Before installing in a solid fuel-burning fire-
place, the chimney flue and firebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualified chimney cleaner.
Creosote will ignite if highly heated. A dirty
chimneyflue maycreate anddistribute soot
within the house. Inspect chimney flue for
damage.Ifdamaged,repairflueandfirebox
before operating appliance.
6. Donot burn solid-fuel inafireplacein which
a vent-free room appliance is installed.
7. If fireplace has glass doors, never operate
this appliance with glass doors closed.Any
glass doors shall be fully opened when the
appliance is in operation. If you operate
appliance with doors closed, heat buildup
inside fireplace will cause glass to burst.
Makesuretherearenoobstructionsacross
openings of fireplace.
8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
Page 30.
9. Before using furniture polish, wax, carpet
cleaner or similar products, turn appliance
off. If heated, the vapors from these prod-
ucts may create a white powder residue
within burner box or on adjacent walls and
furniture.
10. This appliance needs fresh, outside air
ventilation to run properly. This appliance
has an Oxygen Depletion Sensing (ODS)
safetyshutoffsystem.TheODSshutsdown
theapplianceifenoughfreshairisnotavail-
able.SeeAirforCombustionandVentilation,
Page 6. If appliance keeps shutting off, see
Troubleshooting, Page 32.
11. Do not run appliance
• where flammable liquids or vapors are
used or stored
• under dusty conditions
12. Do not use this appliance to cook food or
burn paper or other objects.
13. Do not use appliance if any part has been
exposedtoor underwater. Immediatelycall
a qualified service technician to inspect the
room appliance and to replace any part of
thecontrolsystemandanygascontrolwhich
has been under water.
14. Donotoperateapplianceifanylogisbroken.
Do not operate appliance if a log is chipped
(dime-sized or larger).
15. Turn appliance off and let cool before ser-
vicing, installing or repairing. Make sure the
selector switch is in the OFF position. Only
a qualified service person should install,
service or repair appliance.
16. Make sure the selector switch is in the OFF
position when you are away from home for
long periods of time.
17. Remote-readyappliancesmustnotbecon-
nected to any external electrical source.
18. Operating appliance above elevations of
4,500 feet may cause pilot outage.
19. To prevent performance problems, do not
usepropane/LPfueltankoflessthan100 lb.
capacity (propane/LP units only).
20. Provide adequate clearances around air
openings.
Young children should be carefully supervised when they are in the same room as
the appliance. Toddlers, young children and others may be susceptible to accidental
burns.A physical barrier is recommended if there are at-risk individuals in the house.
To restrict access to a fireplace or stove, install an adjustable safety gate to keep
toddlers, young children and other at-risk individuals out of the room and away from
hot surfaces.

SuperiorFireplaces.us.com
900463-01A 5
PRODUCT IDENTIFICATION
Figure 1 - Product Identification
LOCAL CODES
Glowing
Embers
Chassis Control
Knob
Flame
Adjustment Knob
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-firedsupplementalroomheatersshall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
OPTIONAL REMOTE
CONTROL ACCESSORIES
There are five optional remote controls that
can be purchased separately for Remote-
Ready Models Only:
• wall switch
• hand-held ON/OFF remote
• wall thermostat
• hand-held thermostat remote
• TSRC hand-held remote
See Accessories, Page 41.
The wall thermostat or hand-held thermostat
may not be used where vented decorative list-
ing is required.
Variable remote control models include a ther-
mostat remote control.
UNPACKING
CAUTION:Donotremovethe
data plates from the grate as-
sembly. The data plates contain
important warranty and safety
information.
1. Removelogsand appliance base assem-
bly from carton(s).
NOTE: Do not pick up appliance base
assemblyby burners. Thiscoulddamage
appliance.Always handle base assembly
by grate.
2. Remove all protective packaging applied
to logs and appliance for shipment.
3. Check appliance for any shipping dam-
age. If appliance is damaged, promptly
inform dealer where you purchased the
appliance.
Install and use appliance with care. Follow all
localcodes.Inthe absence oflocalcodes,use
the latest edition of The National Fuel Gas
Code, ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
25 West 43rd Street, 4th floor
New York, NY 10036
National Fire Protection Association, Inc.
1 Batterymarch Park
Quincy, MA 02169-7471
Left
Side
Right
Side
Front

SuperiorFireplaces.us.com 900463-01A6
OPERATION
This appliance is clean burning. It requires
no outside venting. There is no heat loss out
a vent or up a chimney. Heat is generated by
both realistic flames and glowing coals. This
appliance is designed for vent-free operation
with flue damper closed. It has been tested
and approved to the ANSI Z21.11.2 standard
forunventedappliances.Stateandlocalcodes
in some areas prohibit the use of vent-free ap-
pliances.Thisappliancemayalsobeoperated
as a venteddecorative (ANSIZ21.60) product
by opening the flue damper.
PRODUCT FEATURES
SAFETY DEVICE
This appliance has a pilot with an Oxygen
Depletion Sensing (ODS) safety shutoff
system. The ODS/pilot is a required feature
for vent-free room appliances. The ODS/pilot
shuts off the appliance if there is not enough
fresh air.
ELECTRONIC IGNITION SYSTEM
Thisappliancehasanelectronicignitertolight
appliance fuel supply.
AIR FOR COMBUSTION AND VENTILATION
Today’s homes are built more energy efficient
thanever.Newmaterials,increasedinsulation
and new construction methods help reduce
heat loss in homes. Homeowners apply
weather strip and caulk around windows and
doors to keepthe cold air out andthe warm air
in. During heating months, homeowners want
their homes as airtight as possible.
While it is good to make your home energy
efficient, your home needs to breathe. Fresh
air must enter your home.All fuel-burning ap-
pliancesneedfreshairforpropercombustion
and ventilation.
Exhaust fans, some fireplaces, clothes dryers
and some fuel-burning appliances draw air
from the house to operate. You must provide
adequate fresh air for these appliances. That
willensureproperventingofventedfuel-burning
appliances.
PROVIDING ADEQUATE
VENTILATION
ThefollowingareexcerptsfromNationalFuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on Pages 6 through 8 will
help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
Unusually tight construction is defined as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of
one perm (6 x 10-11 kg per pa-sec-m2) or
less with openings gasketed or sealed
and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to
areas such as joints around window
and door frames, between sole plates
and floors, between wall-ceiling joints,
between wall panels, at penetrations
for plumbing, electrical and gas lines
and at other openings.
If your home meets all three criteria above,
you must provide additional fresh air. See
Ventilation Air From Outdoors, Page 8.
If your home does not meet all three criteria
above,proceedtoDetermining Fresh-Air Flow
For Heater Location, Page 7.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA54 allows two methods for determining
WARNING: This heater shall not
be installed in a room or space un-
less the required volume of indoor
combustion air is provided by the
method described in the National
Fuel Gas Code, ANSI Z223.1/NFPA
54, the International Fuel Gas Code,
or applicable local codes. Read the
following instructions to ensure
properfreshair for this and other fuel-
burning appliances in your home.

SuperiorFireplaces.us.com
900463-01A 7
AIR FOR COMBUSTION AND VENTILATION
Continued
Vent-free fireplace __________Btu/Hr
Gas water heater* __________Btu/Hr
Gas furnace __________Btu/Hr
Vented gas heater __________Btu/Hr
Gas fireplace logs __________Btu/Hr
Other gas appliances* + _________ Btu/Hr
Total =_________Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater __________Btu/Hr
Vent-free fireplace + _________Btu/Hr
Total =_________Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/
Hr used.
______Btu/Hr (maximum the space can
support)
______Btu/Hr (actual amount used)
Example: 51,200 Btu/Hr (maximum the
space can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a confined
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air. Your
options are as follows:
A. Rework worksheet, adding the space of an
adjoining room. If the extra space provides
anunconfined space,removedoor toadjoin-
ing room or add ventilation grills between
rooms. See Ventilation Air From Inside
Building, Page 8.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, Page 8.
C. InstallalowerBtu/Hr appliance, if lower Btu/
Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
anunconfinedspace.Youwillneed no additional
fresh air ventilation.
40,000
33,000
73,000
whetherthespacein which theheaterisbeing
installedisconfinedorunconfined space.The
standardmethoddefinesaconfinedspaceas
a space whose volume is less than 50 cubic
feetper1,000Btu/hr(4.8m
3
perkw)oftheag-
gregateinput rating of all appliances installed
in that space and an unconfined space as
a space whose volume is not less than 50
cubic feet per 1,000 Btu/hr (4.8 m
3
per kw) of
the aggregate input rating of all appliances
installedinthatspace. Rooms communicating
directlywiththespacein which the appliances
areinstalled*,throughopeningsnotfurnished
with doors, are considered a part of the un-
confined space.
Where the air infiltration rate of a structure is
known,theKnownAirInfiltrationRateMethod
may be used. Follow The National Fuel Gas
Code, ANSI Z223.1/NFPA 54 to use this
method to determine if the space is confined
or unconfined.
* Adjoining rooms are communicating only if
therearedoorlesspassageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space Using the Standard
Method
Use this work sheet to determine if you have
a confined or unconfined space.
Space: Includesthe roominwhich youwill install
fireplace plus any adjoining rooms with door-
less passageways or ventilation grills between
the rooms.
1. Determine the volume of the space (length
x width x height).
Lengthx Width xHeight =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can sup-
port)
3. Add the Btu/Hr of all fuel-burning appliances
in the space.
WARNING: If the area in which
the appliance may be operated does
not meet the required volume for
indoor combustion air, combustion
and ventilation air shall be provided
by one of the methods described in
the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, the International
Fuel Gas Code, or applicable local
codes.

SuperiorFireplaces.us.com 900463-01A8
AIR FOR COMBUSTION AND VENTILATION
Continued
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
andone within 12" ofthefloor. Connectthese
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.

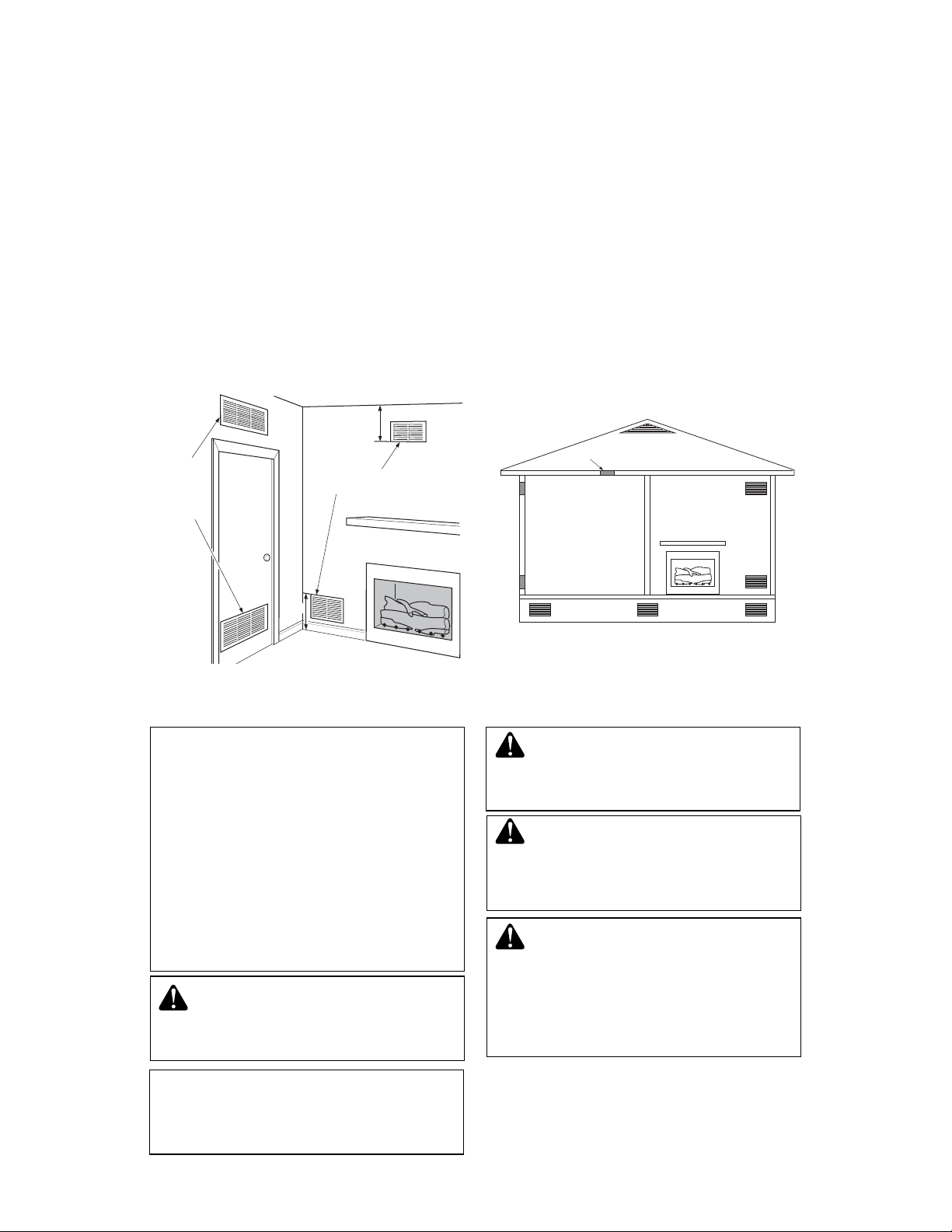

Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
INSTALLATION
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoiningunconfinedspace,youmust provide
twopermanentopenings:onewithin 12" of the
ceiling and one within 12" of the floor on the
wall connecting the two spaces (see options
1and 2, Figure 2).You can alsoremovedoor
into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
Figure 2 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
NOTICE: This appliance is intended
for use as supplemental heat. Use
thisappliancealongwithyourprimary
heatingsystem.Donotinstallthisap-
pliance as your primary heat source.
If you have a central heating system,
you may run system’s circulating
blowerwhileusingappliance.Thiswill
helpcirculatetheheatthroughoutthe
house.Intheeventofapoweroutage,
you can use this appliance as your
primary heat source.
WARNING: A qualified service
personmustinstallappliance.Follow
all local codes.
NOTICE: State or local codes may
onlyallowoperationofthis appliance
inaventedconfiguration.Checkyour
state or local codes.
WARNING:Makesuretheselector
switch is in the OFF position before
installing appliance.
WARNING: Any outside air ducts
and/or ash dumps in the fireplace
shall be permanently closed at time
of appliance installation.
WARNING:Sealanyfreshairvents
orashclean-outdoorslocatedonfloor
orwalloffireplace.Ifnot,draftingmay
cause pilot outage or sooting. Use a
heat-resistant sealant. Do not seal
chimney flue damper.

SuperiorFireplaces.us.com
900463-01A 9
*Also approved foruse inVEGA42 andVALIANT42
Series fireplaces.
WARNING:Before installing
inasolidfuel-burningfireplace,
the chimney flue and firebox
must be cleaned of soot, creo-
sote, ashes and loose paint by
a qualified chimney cleaner.
Creosote will ignite if highly
heated.Adirtychimneyfluemay
createanddistributesootwithin
thehouse.Inspectchimneyand
firebox flue for damage. If dam-
aged, repair flue and firebox
before operating appliance.
WARNING: Never install the
appliance
• in a bedroom or bathroom
unless installed as a vented
appliance, see Page 12
• in a recreational vehicle
•
where curtains, furniture, cloth-
ing or other flammable objects
are less than 36" from front, 42"
from top of appliance; for side
clearancesseeFigure4,Page10
• in high traffic areas
• in windy or drafty areas
CAUTION: This appliance
creates warm air currents. These
currentsmoveheattowallsurfaces
next to appliance. Installing ap-
pliance next to vinyl or cloth wall
coverings or operating appliance
where impurities (such as, but
not limited to, tobacco smoke,
aromatic candles, cleaning fluids,
oil or kerosene lamps, etc.) in the
air exist, may discolor walls or
cause odors.
IMPORTANT:Vent-free appliances add
moisture to the air.Although this is beneficial,
installing appliance in rooms without enough
ventilationair may cause mildewtoform from
too much moisture. See Air for Combustion
and Ventilation, Page 6.
CHECK GAS TYPE
Use the correct type of gas (natural or propane/
LP). If your gas supply is not the correct gas
type, donot installappliance. Call dealerwhere
youboughtapplianceforpropertypeappliance.
WARNING:Thisapplianceis
equipped for either natural gas
or propane/LP gas but not both.
Gas type is indicated on the rat-
ingplate.Fieldconversionisnot
permitted.
INSTALLATION AND CLEARANCES
FOR VENT-FREE OPERATION
WARNING: Maintain the
minimumclearances.Ifyou can,
provide greater clearances from
floor, ceiling and adjoining wall.
MINIMUM FIREPLACE CLEARANCE TO
COMBUSTIBLE MATERIALS
Side Wall 16", Ceiling 42"
Floor 5", Front: 36"
Carefully follow the instructions below. This
will ensure safe installation into a masonry,
UL127-listed manufactured fireplaceor listed
vent-free firebox.
Minimum Clearances For Side Combustible
Material, Side Wall and Ceiling
A. Clearances from the side of the fireplace
cabinet to any combustible material and
wall should follow diagram in Figure 4,
Page 10.
Example:Thefaceofamantel,bookshelf,
etc. is made of combustible material
and protrudes 3-1/2" from the wall. This
combustible material must be 4" from the
side of the fireplace cabinet (see Figure
4, Page 10).
INSTALLATION
Continued
LOG SIZING REQUIREMENTS
Log
Size
Minimum Firebox Size
Height Depth Front
Width Rear* Width
LMF24GTA/B
LMF24MOA/B 29" 15.5" 32.5" 22.75"
LMF30GTA/B
LMF30MOA/B 29" 15.5" 39" 26.75"
LMF36GTA/B
LMF36MOA/B 29'' 20'' 47'' 33''

SuperiorFireplaces.us.com 900463-01A10
INSTALLATION
Continued
NOTE: When installing your gas logs into
a manufactured firebox, follow firebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B. Clearances from the top of the fireplace
opening to the ceiling should not be less
than 42".
NOTICE: Manual control appli-
ances may be used as a vented
product. If so, you must always
run appliance with chimney
flue damper open. If running
appliance with damper open,
noncombustible material above
fireplace opening is not needed.
Go to Installing Damper Clamp
AccessoryforVentedOperation,
Page 12.
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
Noncombustible
Material Distance
(A)
Requirements for
Safe Installation
1 2" or more Noncombustible mate-
rial OK.
Between 8" and 12" Install fireplace hood ac-
cessory (GA6050 - see
Accessories, Page 41).
Less than 8"
Noncombustible mate-
rial must be extended
to at least 8". See
Between 8" and 12",
above. If you cannot
extend material, you
must operate appliance
with flue damper open.
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
Example
Minimum Noncombustible Material
Clearances
If Not Using Mantel
NOTE: If using a mantel proceed to If Using
Mantel. If not using a mantel, follow these
instructions.
You must have noncombustible material(s)
above the fireplace opening. Noncombustible
materials(suchasslate,marble,tile, etc.)must
be at least 1/2" thick. With sheet metal, you
must have noncombustible material behind
it. Noncombustible material must extend at
least 8" up (for all models). If noncombustible
material is less than 12", you must install the
fireplacehoodaccessory(24"and30"Models
Only).See Figure 5 for minimum clearances.
If Using Mantel
You must have noncombustible material(s)
above the fireplace opening. Noncombus-
tible materials (such as slate, marble, tile,
etc.) must be at least 1/2" thick. With sheet
metal, you must have noncombustible ma-
terial behind it. Noncombustible material
must extend at least 8" up (for all models). If
noncombustiblematerial is less than12",you
mustinstall the fireplace hood accessory(24"
and30"ModelsOnly).Even if noncombustible
material is more than 12", you may need the
hood accessory to deflect heat away from
your mantel shelf. See Figure 5 and Figures
6 and 7, Page 11, for minimum clearances.
IMPORTANT:If you cannot meet these
minimum clearances, you must operate ap-
pliance with chimney flue damper open. Go
to Installing Damper Clamp Accessory for
Vented Operation, Page 12.
Heat Resistant
Material
(A)

SuperiorFireplaces.us.com
900463-01A 11
INSTALLATION
Continued
MANTEL CLEARANCES
In addition to meeting noncombustible mate-
rial clearances, you must also meet required
clearances between fireplace opening and
mantelshelf.If you donotmeettheclearances
listed below, you will need a hood.
Determining Minimum Mantel Clearance
If you meet minimum clearance between
mantel shelf and top of fireplace opening, a
hood is not required (see Figure 6).
Figure 6 - Minimum Mantel Clearances
Without Using Hood
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 7 - Minimum Mantel Clearances
When Using Hood
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
12"
(A)
18" 20" 22" 24"
All minimum
distances are
in inches
2
1/2
"
6"
8"
10"
Mantel Shelf
Minimum
Noncombustible
Material 8"
Min.
12" 15" 18" 20"
2
1/2
"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood (GA6050
or GA6053)
Top of
Fireplace
Opening
Underside
of Mantel
Shelf
Mantel Shelf
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
NOTICE: Surface temperatures
ofadjacentwallsandmantelsbe-
comehotduringoperation.Walls
and mantels above the firebox
may become hot to the touch.
If installed properly, these tem-
peratures meet the requirement
ofthenationalproductstandard.
Follow all minimum clearances
shown in this manual.
NOTICE:Ifyourinstallationdoes
not meet the minimum clear-
ances shown, you must do one
of the following:
• operate the logs only with the
flue damper open
• raise the mantel to an accept-
able height
• remove the mantel
FLOOR CLEARANCES
A. If installing appliance on the floor level,
you must maintain the minimum distance
of 14" to combustibles (see Figure 8).
B. If combustible materials are less than
14" to the fireplace, you must install ap-
pliance at least 5" above the top surface
of combustible flooring including tile and
carpet (see Figure 9).
Determining Minimum Mantel Clearance
When Using a Hood
If minimum clearances in Figure 6, are not
met, you must have a hood. When using a
hood there are still certain minimum mantel
clearances required. Follow minimum clear-
ances shown in Figure 7, when using hood.
14"
Min.
Combustible
Material
Noncombustible Material
Hearth
5"
Min.
Combustible
Material
Minimum clearance requirements include any projections such
as shelves, window sills, mantels, etc. above the appliance.

SuperiorFireplaces.us.com 900463-01A12
INSTALLATION
Continued

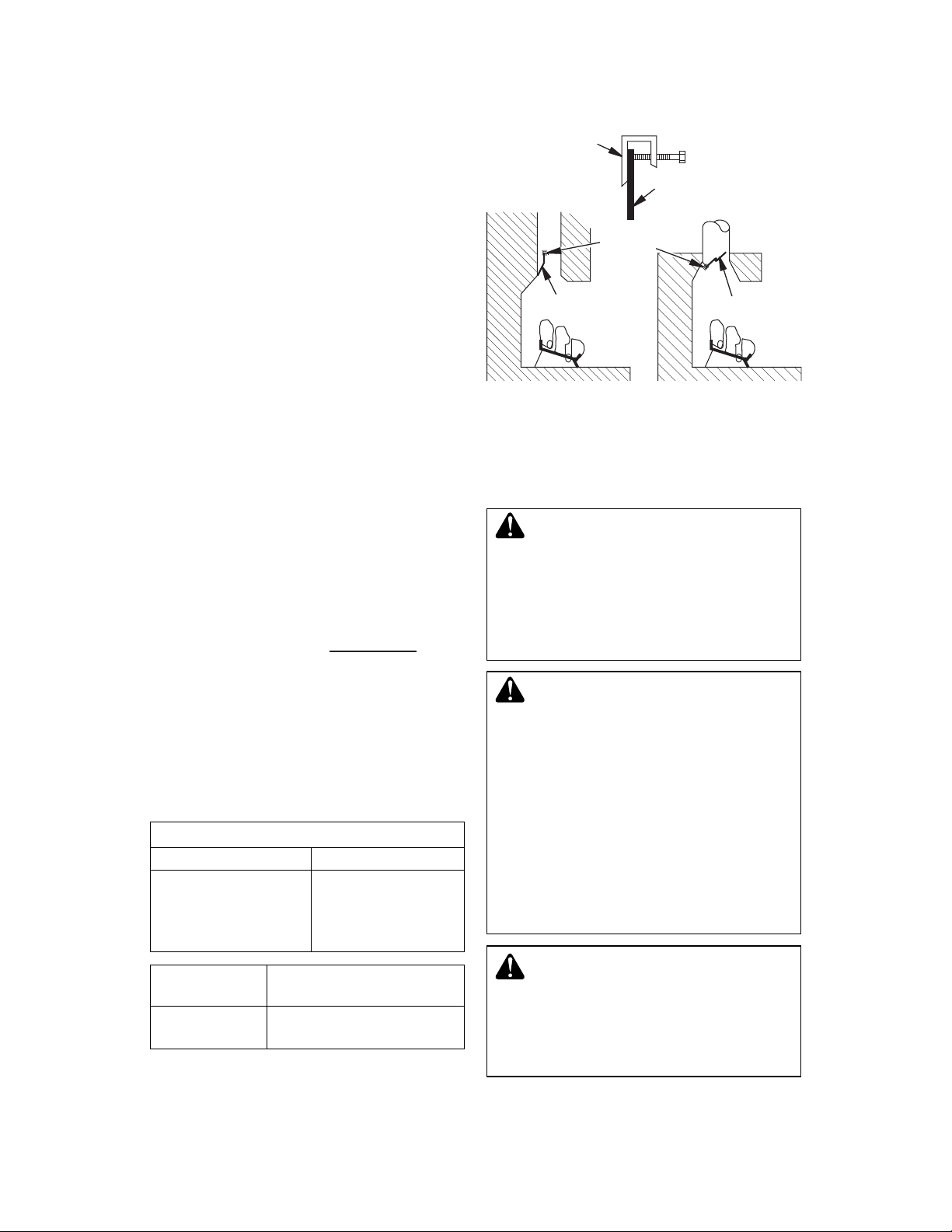

INSTALLING DAMPER CLAMP
ACCESSORY FOR VENTED
OPERATION
NOTE: When used as a vented appliance,
appliance must be installed only in a solid-
fuel-burning fireplace with a working flue and
constructed of noncombustible material.
For Massachusetts Residents Only: Instal-
lationofthisgaslog set as a vented appliance
in the Commonwealth of Massachusetts re-
quires the damper be permanently removed
or welded in the fully open position.
If your appliance is a manually-controlled
model, you may use this appliance as a
vented product. There are three reasons for
operatingyour appliance in theventedmode.
1. Thefireplacedoesnotmeettheclearance
to combustibles requirements for vent-
free operation.
2. State or local codes do not permit vent-
free operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you,
you must permanently open chimney flue
damper. You must install the damper clamp
accessory (to order, see Accessories, Page
41). This will ensure vented operation (see
Figure 10). The damper clamp will keep
damper open. Installation instructions are
included with clamp accessory.
See chart below for minimum permanent flue
opening you must provide. Attach damper
clamp so the minimum permanent flue open-
ing will be maintained at all times.
Area of Various Standard Round Flues
Diameter Area
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
Chimney Minimum Permanent
Height Flue Opening
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
Damper
Damper
Clamp
Damper
Damper
Clamp
Damper
Figure 10 - Attaching Damper Clamp
Manufactured Fireplace
Masonry Fireplace
INSTALLING APPLIANCE BASE
ASSEMBLY
WARNING:You mustsecure
this appliance to fireplace floor.
Ifnot,appliancewill movewhen
you adjust controls. Moving ap-
pliance may cause a gas leak or
log misplacement.
WARNING: If installing in a
sunken fireplace, special care
is needed. You must raise the
fireplace floor to allow access
to appliance control panel. This
will ensure adequate air flow
and guard against sooting and
controls being damaged. Raise
fireplace floor with noncombus-
tiblematerial.Make surematerial
is secure.
CAUTION: Do not pick up
appliance base assembly by
burners. This could damage
appliance. Only handle base
assembly by grates.
IMPORTANT: Make sure the appliance burn-
ers are level.

SuperiorFireplaces.us.com
900463-01A 13
INSTALLATION
Continued
Installation Items Needed
• hardware package (provided with appli-
ance)
• approved flexible gas hose and fittings
provided (if allowed by local codes)
• sealant (resistant to propane/LP gas, not
provided)
• electric drill with 3/16” masonry drill bit
NOTE: Install optional MRC Series receiver
and hand-held remote control kit (see Ac-
cessories, Page 41) before installing gas
log appliance. See installation instructions
included with the kit.
1. Apply pipe joint sealant lightly to male
threads of the 1/2 NPT side of gas fitting
elbow (provided) and connect to inlet
side of gas control. Remove gas fitting
from flexible gas hose (provided) before
connecting to elbow (see Figure 11).
2. Position appliance base assembly in
fireplace.
3. Mark screw locations through holes in
front panel of base (see Figure 12). If
installingina brick-bottom fireplace, mark
screw locations in mortar joint of bricks.
4. Remove appliance base from fireplace.
5. Drillholesatmarkedlocations using 3/16"
drill bit.
6. Attachbase,throughholesinbacksidepan-
elsofbase,tofireplacefloorusingmasonry
screwsprovidedinhardwarepackage(see
Figure 12).
7. Connect to gas supply. See Connecting
To Gas Supply.
Figure 11 - Attaching Flexible Gas Hose
to Appliance Gas Regulator
Gas Control
Flexible Gas Hose
(Provided with VGC
Series Models Only)
(Install if allowed
by local codes)
Figure 12 - Attaching Base to Fireplace
Floor
Masonry Screw
CONNECTING TO GAS SUPPLY
WARNING: This appliance
requires a 3/8" NPT (National
PipeThread)inletconnectionto
the pressure regulator.
WARNING: A qualified ser-
vice person must connect ap-
pliancetogassupply.Followall
local codes.
CAUTION: Never connect
propane/LP appliance directly
to the propane/LP supply. This
appliance requires an external
regulator (not supplied). Install
the external regulator between
the appliance and propane/LP
supply.
WARNING: Never connect
naturalgasappliancetoprivate
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
Elbow, 1/2 NPT x
3/8 Flare

SuperiorFireplaces.us.com 900463-01A14
Pipe Cap Tee
Nipple Joint
Installation Items Needed
Before installing appliance, make sure you
have the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approvedflexiblegaslinewithgasconnec-
tor(ifallowedbylocalcodes)(notprovided)
* An equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge
connection.Purchasethe optional equipment
shutoff valve from your dealer.
For propane/LP units, the installer must
supply an external regulator. The external
regulator will reduce incoming gas pressure.
You must reduce incoming gas pressure to
between 11" and 14" of water. If you do not
reduce incoming gas pressure, appliance
regulator damage could occur. Install exter-
nal regulator with the vent pointing down as
shown in Figure 13. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
black iron or steel pipe. In-
ternally-tinned copper tubing
may be used in certain areas.
Check your local codes. Use
pipe of 1/2" diameter or greater
to allow proper gas volume to
appliance. If pipe is too small,
unduelossofvolumewilloccur.
Installationmustincludeanequipmentshutoff
valve,unionandplugged 1/8"NPTtap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from appliance
(see Figure 14).
IMPORTANT:Install equipment shutoff valve
in an accessible location. The equipment
shutoff valve is for turning on or shutting off
the gas to the appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to appliances.
Propane/LP
Supply Tank External
Regulator
with Vent
Pointing
Down

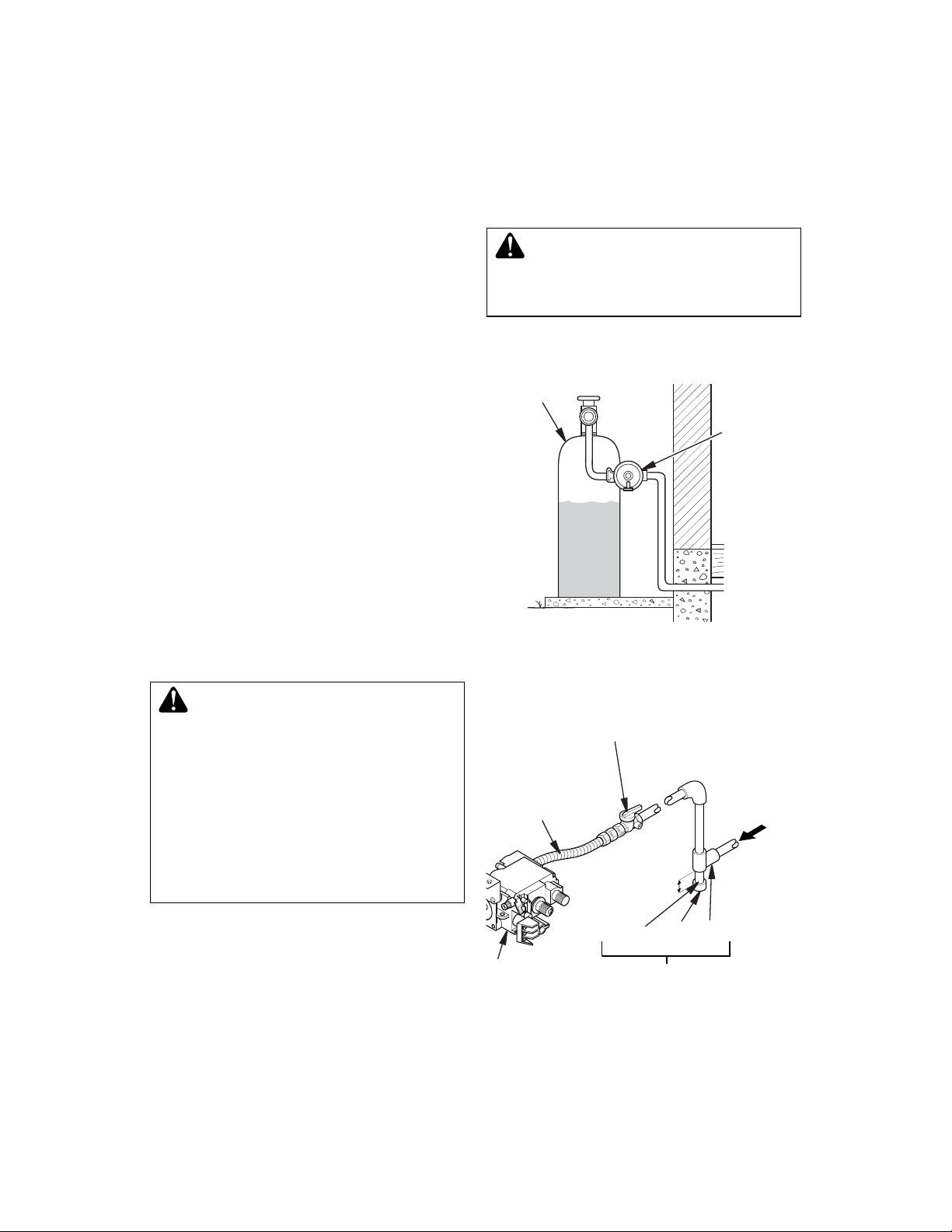

Figure 13 - External Regulator With Vent
Pointing Down
INSTALLATION
Continued
Apply pipe joint sealant lightly to male NPT
threads.This will preventexcess sealantfrom
going into pipe. Excess sealant in pipe could
result in clogged appliance valves.
WARNING: Use pipe joint
sealantthatisresistanttoliquid
petroleum (LP) gas.
* Purchase the optional equipment shutoff
valve from your dealer.
** Minimuminletpressureforpurposeofinput
adjustment.
Figure 14 - Gas Connection (Remote-
Ready Models Only)
Gas
Control
3" Minimum
Sediment Trap
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible
Gas Hose (if
allowed by local
codes)
PROPANE/LP
From External
Regulator
(11" W.C.**
to 14" W.C.
Pressure)
NATURAL
From Gas
Meter
(5" W.C.**
to 10.5"
W.C.
Pressure)

SuperiorFireplaces.us.com
900463-01A 15
INSTALLATION
Continued
We recommend that you install a sediment
trap in supply line as shown in Figure 14,
Page 14. Locate sediment trap where it is
within reach for cleaning. Install in piping
system between fuel supply and appliance.
Locate sediment trap where trapped matter
is not likely to freeze. A sediment trap traps
moisture and contaminants. This keeps them
fromgoingintoappliancecontrols.Ifsediment
trap is not installed or is installed wrong, ap-
pliance may not run properly.
CAUTION: Avoid damage to
gas control. Hold gas control
with wrench when connecting
it to gas piping and/or fittings.
CHECKING GAS CONNECTIONS
WARNING:Testallgaspiping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Applyanoncorrosiveleakdetec-
tion fluid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply
and appliance. See guidelines
under Connecting to Gas Sup-
ply, Page 13.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect appliance with its appliance
main gas valve (control valve) and equip-
mentshutoffvalvefromgassupply piping
system. Pressures in excess of 1/2 psig
(3.5kPa)willdamageapplianceregulator.
2. Capoffopen end ofgaspipewhereequip-
ment shutoff valve was connected.
3. Pressurizesupplypipingsystem by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
4. Checkalljointsofgassupplypipingsystem.
Apply noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect appliance and equipment
shutoff valve to gas supply. Check recon-
nected fittings for leaks.
Test Pressures Equal To or Less Than 1/2
PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig-
ure 15).
2. Pressurizesupplypipingsystem by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
3. Check all joints from gas meter to equip-
ment shutoff valve for natural gas or
propane/LP supply to equipment shutoff
valve for propane/LP (see Figure 16 or
Figure 17, Page 16). Apply noncorrosive
leak detection fluid to all joints. Bubbles
forming show a leak.
4. Correct all leaks at once.
Figure 15 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
Figure 16 - Checking Gas Joints
(Propane/LP Only)
Control Valve
Location
Propane/LP
Supply Tank Equipment
Shutoff Valve

SuperiorFireplaces.us.com 900463-01A16
PRESSURE TESTING APPLIANCE GAS
CONNECTIONS
1.
Open equipment shutoff valve (see Figure
15, Page 15).
2. Open main gas valve located on or near
gas meter for natural gas or open pro-
pane/LP supply tank valve.
3. Make sure control knob of appliance is in
the OFF position.
4. Check all joints from gas meter to equip-
ment shutoff valve for natural gas or pro-
pane/LPsupplyto equipmentshutoffvalve
forpropane/LP(seeFigure16,Page 15 or
Figure 17, Page 16). Apply noncorrosive
leak detection fluid to all joints. Bubbles
forming show a leak.
5. Correct all leaks at once.
6. Lightappliance(seeOperation,Page 23).
Check all other internal joints for leaks.
7.
Turn off appliance (see To Turn Off Gas
to Appliance, Page 25 for Remote Ready
models or Page 27 for Variable Remote
Models.
INSTALLING SWITCH (REMOTE
READY MODELS)
The AUTO/OFF/ON switch for this log set is
installedinto the small singlelogaccompany-
ing this log set. This switch needs to be used
onlyifremote or wall switch isnotbeingused.
Gas Meter
Figure 17 - Checking Gas Joints (Natural
Gas Only)
Control Valve
Location
Equipment Shutoff Valve
INSTALLATION
Continued

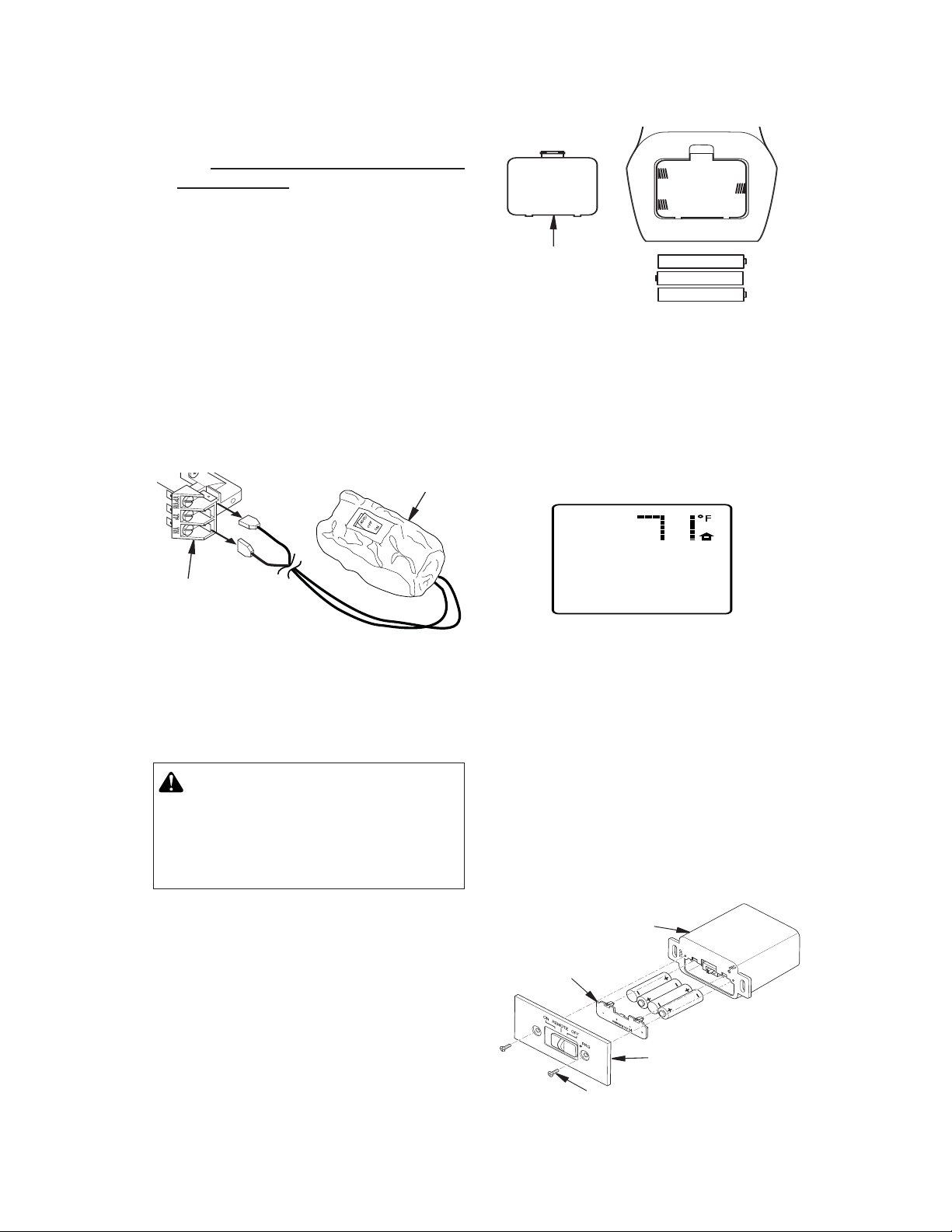

Connectthewirestothevalvefrom the switch
assembly as shown in Figure 18.
INSTALLING OPTIONAL REMOTE
ACCESSORIES (REMOTE READY
MODELS)
Installing Remote Receiver
Remote control accessories are available
separately(seeAccessories,Page 41).Read
instructionsshippedwithremotecontrolalong
with instructions below before attempting
installation.
1. If unit is already installed in fireplace, con-
tinuewiththeseinstructions.If unit has not
beeninstalledin fireplace,gotostep6 and
continue installation of remote accessory.
WARNING:Turnoffappliance
andletcoolbeforehandlingany
partofappliance.Makesuregas
is turned of to unit.
2. Carefully remove logs and set aside.
3. Locatemountingscrewsonsidesofappli-
ancebaseassembly and remove screws.
Set screws aside for reinstallation.
4. Disconnect gas line from appliance base
as shown in Figure 11, Page 13.
WARNING: A qualified ser-
vice person must connect and
disconnect gas to appliance.
Follow all local codes.
5. Remove appliance base from fireplace.
6. If installed, disconnect AUTO/OFF/ON
switch wire from control valve at TPTH
and TH locations (see Figure 19).
7. Connect wires from hardware pack (with
remote receiver bracket) to control valve
at the TPTH and TH locations as shown
inFigure 19.Connectother ends of these
wires to remote receiver wires.
NOTE: Make sure excess wire does not
interfere with burner or pilot.
8.
If appliance was removed from fireplace
before installation of remote accessory, see
InstallingApplianceBaseAssemblyonPage
12 to reinstall appliance into fireplace. Test
gasconnectionforleaks(seeCheckingGas
Connections, Page 15).
Figure 18 - Connecting Wires
Control Valve
To AUTO
Terminal
on Switch
To OFF
Terminal on
Switch

SuperiorFireplaces.us.com
900463-01A 17
INSTALLATION
Continued
9. If logs were removed from appliance for
install remote accessory, replace logs
(seeInstallingLogs,EmbersandVolcanic
Stone, Page 18).
10. Place remote receiver on fireplace floor
nextto controlvalve.Make suretheremote
receiver and wires are not on or touching
either gas burner on the log set.
Installing Batteries for Remote Receiver
and Hand Held Remote Control
Two 9-volt alkaline batteries (not included) are
requiredtooperatethisappliancewiththewire-
less hand-heldremote controlset. One battery
must be installed in the receiver and one in the
hand-held remote control unit.
NOTE: Only use alkaline batteries.
Figure 19- Disconnecting Switch from Control
Valve (Remote Ready Models Only)
Switch
Control
Valve
INSTALLING BATTERIES IN
REMOTE CONTROL AND RECEIVER
(VARIABLE REMOTE MODELS)
WARNING: Make sure your
selector switch is in OFF posi-
tion before installing or chang-
ing batteries in your hand-held
remote or receiver.
Hand-Held Remote Control
The hand-held remote control uses 3 AAA
batteries (not included).
To install batteries:
1. Removebattery housing coverfromback
of hand-held remote (see Figure 20).
2. Install or replace batteries.
3. Replace battery housing cover.
Whenbatteriesare installed, the "littlehouse"
icon with current room temperature will be
displayed (see Figure 21). This icon will
always show in the control window as long
as the batteries have power.
Figure 21 - Remote Display
+
+
-
+
-
-
AAA
AAA
AAA
Figure 20 - Battery Install Hand-Held Remote
Control
Battery Housing
Cover
Figure 22 - Battery Install Remote
Control Receiver
Battery Housing
Cover
Cover Plate
Screws
Receiver
Remote Receiver
The remote receiver uses 4AAbatteries (not
included). To install or replace batteries:
1. Open lower louver to gain access to re-
ceiver.
2. Remove screws from cover place.
3. Remove battery housing cover.
4. Install or replace batteries.
5. Replace battery housing cover.
6. Replace cover plate.

SuperiorFireplaces.us.com 900463-01A18
INSTALLATION
Continued
CAUTION: After installa-
tion and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With appliance set to Hi, check
to see if flames contact any log.
If so, reposition logs according
tologinstallationinstructionsin
this manual. Flames contacting
logs will create soot.
LOG PLACEMENT
Itisveryimportant to install these logs exactly
as instructed. Do not modify logs. Only use
logs, as identified for use with the appliance
as shown in Figure 23.
NOTE: Each log includes an identifying num-
ber cast in the log. Look at each log when
placing them on the burner system to be
certain it is correct.
1. Find the right front log (LMF24GTA/B
or LMF24MOA/B models: D-061,
LMF30GTA/B or LMF30MOA/B models:
D-019, LMF36GTA/B or LMF36MOA/B
Figure 23 - Log Compatibility Chart
INSTALLING LOGS, EMBERS AND
VOLCANIC STONE
WARNING:Failuretoposition
thepartsinaccordancewiththese
diagrams or failure to use only
parts specifically approved with
thisappliancemayresultinprop-
erty damage or personal injury.
Magniflame SERIES BURNER
SYSTEM-LOG COMPATIBILITY CHART models: D-027). See Figures 24, 24A, 24B, and 24C for reference. The log has
arectangularshapeonthebottomthatfits
againstthelipon the blackmetalbase,the
square grate, and the round tube burner.
Slidetheloginplaceas shown in Figures.
2. Find the back left log (LMF24GTA/B
or LMF24MOA/B models: D-060,
LMF30GTA/B or LMF30MOA/B models:
D-018, LMF36GTA/B or LMF36MOA/B
models: D-026). See Figures 25, 25A,
Figure 24 - Installing Right Front Log
Figure 24A - Installing Right Front Log,
Top View
Burner
Tube
Grate Finger
Right Front Log
(D061, D-019 or D027)
Round Tube
Burner
Grate Finger
Figure 24B - Installing Right Front Log,
Top View
Burner Tube Square Grate
Burner System Model
Refractory Concrete
LogsForUseWithThis
Burner System
MFN24INM, 24INV,
24IPM, 24IPV
LMF24GTA/B
LMF30GTA/B
LMF24MOA/B
LMF30MOA/B
MFN30INM, 30INV,
30IPM, 30IPV LMF36GTA/B LMF36MOA/B

SuperiorFireplaces.us.com
900463-01A 19
INSTALLATION
Continued
and 25B. Figure 25A shows how the
log must fit against the end of the burner.
Figure 25B shows how the notch in log
fits against the vertical portion of the
burner tube. Place this log on the base
assembly by inserting it from the left side
as shown in Figure 25. You will need to
twist the log slightly to get it to fit against
the burners properly. It will rest even with
the back edge of the pan.
3. Find the front left log (LMF24GTA/B
or LMF24MOA/B models: D-059,
LMF30GTA/B or LMF30MOA/B models:
D-017, LMF36GTA/B or LMF36MOA/B
models: D-025). See Figures 26, 26A,
Figure 24C - Installing Right Front Log,
Side View
Figure 25 - Installing Back Left Log
Back Left Log (D-060,
D-018 or D026) Flat Part of Log
Log Notch Burner Tube
Figure 25A - Installing Back Left Log
Figure 25B - Installing Back Left Log
(D-018) Rear View
Burner
Tube
Log
Notch
Vertical Portion of Burner Tube
and 26B.The loghasarectangularstand
off on the bottom that fits against the lip
on the black metal base as shown in
Figure 26A. The bottom of this log has a
slot that fits over the second bar on the
grate as shown in Figure 26B, Page 20.
Place the log on the base assembly as
shown in figures.
4. Findthecharredlog(D-020).SeeFigures
27,27A,and27B.Theloghas a slotinthe
bottom that fits over the square grate and
rests against the burner tube as shown in
Figure 26 - Installing Front Left Log
Front Left Log (D-059,
D-017 or D025)
Figure 26A - Installing Front Left Log
Side View
Grate Fingers

SuperiorFireplaces.us.com 900463-01A20
INSTALLATION
Continued
Figure 27. Place this log on the base as
shown in figures.
5. Find the middle split log (LMF24GTA/B
or LMF24MOA/B models: D-063,
LMF30GTA/B or LMF30MOA/B models:
D-021, LMF36GTA/B or LMF36MOA/B
models: D-028). See Figures 28 and 28A.
Thesplitsideofthelogfacesforward.The
loghas a notch thatfitsaroundtheburner
Figure 26B - Installing Front Left Log
Grate Finger Log Slot
Charred
Log
Log Notch
Right Front Log
Figure 27 - Installing Charred Log
Figure 27A - Installing Charred Log Top
View
Figure 27B - Installing Charred Log Top
Side View
Square Grate Log Notch
tube on the right side. The left side of the
burner tube fits into the notch on the back
side of this log. The log is placed properly
whenitsitsparallel tothetubeburnerand
thesquare peg is pointing up.Seefigures
for reference.
6. Find the right split crossover log (D-022)
The bottom of the log has a rectangular
stand off that fits in the slots on the right
sideofthefrontrightlogandthemiddlesplit
log. Place this log as shown in Figure 29.
7. For GTA/GTB logs, find the front top log
Figure 28 - Installing Middle Split Log
(D-021)
Middle Split Log (D-063,
D-021 or D028)
Square Peg
Figure 28A - Installing Middle Split Log
Rear Top Side View
Log Notch
Burner Tube
D020
