Superior MHW36R User manual

SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and manintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour
consultation ultérieure.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard.
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a
permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
Installation and Operation Instructions
Superior™ Clean-Face Round Back Fireplace with
Bi-Fold Doors and Combustion Air Kit
PFS
®
USC
P127312-01
P/N 127312-01 Rev. B 08/2014 Models
MHW36R
Before you start your rst re, read this manual care-
fully to be sure you understand your replace system
completely. Failure to follow these suggestions could
result in hazardous operation or replace malfunction,
creating a serious potential for personal injury and/
or property damage.
If you have any questions regarding the safe use or
operation of your replace, contact your local distribu-
tor or your contractor/builder.
Most chimney systems will require on site completion
after placement of the manufactured home.
The information contained in this manual apply
to the model(s) replace identied on this page.
This information will help you obtain safe and
dependable service from your replace system.
Keep this document in a safe place for future
reference.

SuperiorFireplaces.US.com 127312-01B2
TABLE OF CONTENTS
Safety .................................................................. 2
Specications ...................................................... 3
Fireplace Installation............................................ 3
Venting Installation .............................................. 6
Optional Gas Line Installation............................ 13
Finishing Fireplace ............................................ 15
Operation and Maintenance Guidelines ............ 15

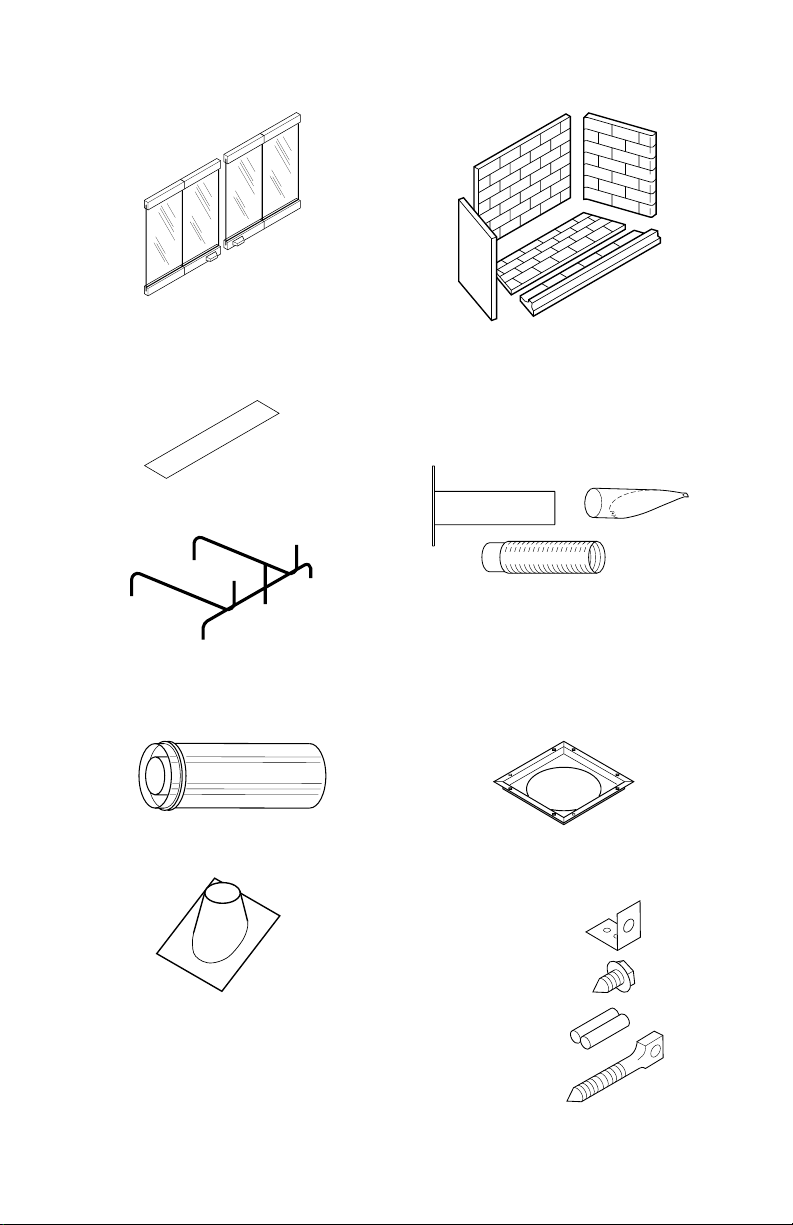

Replacement Parts ............................................ 17
Technical Service............................................... 17
Parts .................................................................. 17
Accessories ....................................................... 18
Important Notices .............................................. 21
SAFETY
as to the particular requirements concerned
with the installation of all factory built replaces.
CAUTION: The structural
integrity of the mobile home
    

WARNING: Do not install a

the manufacturer's instructions



FOR YOUR SAFETY
 



 
   
     

 


    -



-


   
-
-


-
  
   


-
   

IMPORTANT: Check HUD re-
quirements before installing this

These units are intended for installation in
manufactured (mobile) homes. These units
may also be installed in buildings of conven-
tional construction including modular housing,
providing all instructions provided herein are
strictly adhered to. These replaces include a
combustion air kit and bi-fold doors.
Before beginning the installation of the
fireplace, read these instructions through
completely.
• This INNOVATIVE HEARTH PRODUCTS
replace and its components are safe
when installed according to this instal-
lation manual. Unless you use INNOVA-
TIVE HEARTH PRODUCTS approved
components, which have been designed
and tested for the replace system, you
may cause a re hazard.
• The INNOVATIVE HEARTH PRODUCTS
warranty will be voided by and INNOVA-
TIVE HEARTH PRODUCTS disclaims
any responsibility for the following actions.
a. Modification of the fireplace, com-
ponents, doors, air inlet system and
damper control.
b. Use of any component part not manu-
factured or approved by INNOVATIVE
HEARTH PRODUCTS in combination
with an INNOVATIVE HEARTH PROD-
UCTS replace system.
Proper installation is the most important step
in ensuring safe and continuous operation of
the replace. Consult the local building codes

SuperiorFireplaces.US.com
127312-01B 3
SPECIFICATIONS
42"
361/4"221/8"
63/4"
73/4"
93/8"
3"
36"
41"
1"
J-Box
Access
RH SIDE VIEW
LH SIDE VIEW
Gas Line Conduit
Sleeve (Both Sides)
1/2" Air Space
Back and Sides
0" To Top
Spacer
Round Top Te rmination
Storm Collar
Flashing
Firestop
1" Airspace
To Combustible
Materials
Combustible
Wall Board
No Combustible
Material On Face
Not Less Than 14"
To Perpendicular
Sidewall
Hearth Extension
52" x 16"
0" To
Bottom
8" Each
Side
221/16"
5/8"
13"
Rear View
of Fireplace Opening for
Outside Air
Firestop
Thimble
91/2"
14"
14"
FIREPLACE INSTALLATION

To determine the safest and most efcient
location for the replace, you must take into
consideration the following guidelines:
1. The location must allow for proper clear-
ances (see Figures 1 and 2, page 4).
2. Consider a location where the heat output
will not be affected by drafts, air condition-
ing ducts, windows or doors.
3. A location that avoids the cutting of
joists or roof rafters will make installation
easier.
4. An outside air kit is included with this re-
place (see Outside Air Kit on page 6).
WARNING: Do not install this


SuperiorFireplaces.US.com 127312-01B4


Back and sides of replace 1/2" minimum*
Floor under replace** 0" minimum
Wall to front of replace 36" minimum
Perpendicular wall to opening 14" minimum
Top spacers 0" minimum
Mantel clearances see Mantels,
page 15
Chimney outer pipe surfaces 1" minimum
* Not required at nailing anges
** See step 2 of Framing, page 5
-



Minimum height e chimney, measured from
base of replace to ue gas outlet of termina-
tion, is 14 feet* for straight ue or a ue with
one elbow set. Maximum distance between
elbows is 2 feet.
13" Min.
Maintain 1/2" Air Space
Between Framing
and Fireplace 43 5/8"
Min.
41 3/4" Min.
61 11/16"Min.
Figure 2 - Corner Installation
FIREPLACE INSTALLATION
Continued
Maximum height of any system is 40 feet.*
This measurement includes replace, chim-
ney sections and height of termination assem-
bly at level of ue gas outlet (see Figure 3).
Figure 3 - Standard and Alternate
Venting Installation
Effective Height of
Termination Cap
Effective Height of
Termination Cap
Effective Height of
Termination Cap
RT-8DM RT-8DM
RT-8DM
14' Min.
Height
Standard Installation Alternate Installation
2' Max
Pipe Length
30E-8DM
11' for
Manufactured
Home
Application
14' Min.
Height
11' for
Manufactured
Home
Application
40' Max.
Height
20' for
Manufactured
Home
Application
Effective Height of
Termination Cap
Effective Height of
Termination Cap
Effective Height of
Termination Cap
RT-8DM RT-8DM
RT-8DM
14' Min.
Height
Standard Installation Alternate Installation
2' Max
Pipe Length
30E-8DM
11' for
Manufactured
Home
Application
14' Min.
Height
11' for
Manufactured
Home
Application
40' Max.
Height
20' for
Manufactured
Home
Application
Standard
Installation
Alternate
Installation
Alternate
Installation
42 1/4"
41 3/4"
22 5/8"
10"
Figure 1 - Framing Dimensions
-


*For manufactured home application, minimum
height is 11' for straight ue or ue with one elbow
set. Maximum height of any system is 20'.

SuperiorFireplaces.US.com
127312-01B 5
Figure 4 - Nailing Flanges
Screw
or Nail
Nailing
Flange
FIREPLACE INSTALLATION
Continued
Figure 5 - Hearth Extension
Seal Gap
Fireplace
Front
Ember
Protector
Ember
Protector
Seal Gap Hearth
Extension
FRAMING
1. Frame opening for replace using dimen-
sions shown in Figures 1 and 2.
2. The replace may not be installed on
carpeting, tile (other than ceramic) or any
combustible material other than wood
ooring, replace must be installed on a
metal or wood panel extending full width
and depth of replace. (It is acceptable to
cover two outside ends or columns of top
louver panel leaving four center columns
open).
3. Set replace directly in front of this open-
ing and slide unit back until nailing anges
touch side framing.
4. Check level of replace and shim with
sheet metal if necessary.
5. Before securing replace to prepared fram-
ing, metal ember protector (provided) must
be placed between hearth extension (not
supplied) and under bottom front edge of
replace to protect against glowing embers
falling through. If replace is to be installed
on a raised platform, a Z-type ember pro-
tector (not supplied) must be fabricated to
t your required platform height. Ember
protector should extend under replace
a minimum of 1 1/2". The ember protector
should be made of metal material.
6. Using screws or nails, secure replace to
framing through anges located on sides
of replace (see Figure 4).
HEARTH ExTENSION
A hearth extension projecting a minimum of
16" in front of and a minimum of 8" beyond
each side of the replace opening is required
to protect combustible oor construction in
front of the replace. Use an equal material
which meets the following specications: a
layer of noncombustible, inorganic material
having a thermal conductivity of k = .84 BTU
IN/FT2 HR °F (or less) at 1" thick. For example,
if the material selected has a k factor of 0.25,
such as glass ber, the following formula
would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be
obtained from the manufacturer or supplier of
the noncombustible material. If the hearth ex-
tension is to be covered, use noncombustible
material such as tile, slate, brick, concrete,
metal, glass, marble, stone, etc. Provide
a means to prevent hearth extension from
shifting and seal gap between replace frame
and hearth extension with a noncombustible
material (see Figure 5).



Fireplace Front
Elevated

SuperiorFireplaces.US.com 127312-01B6

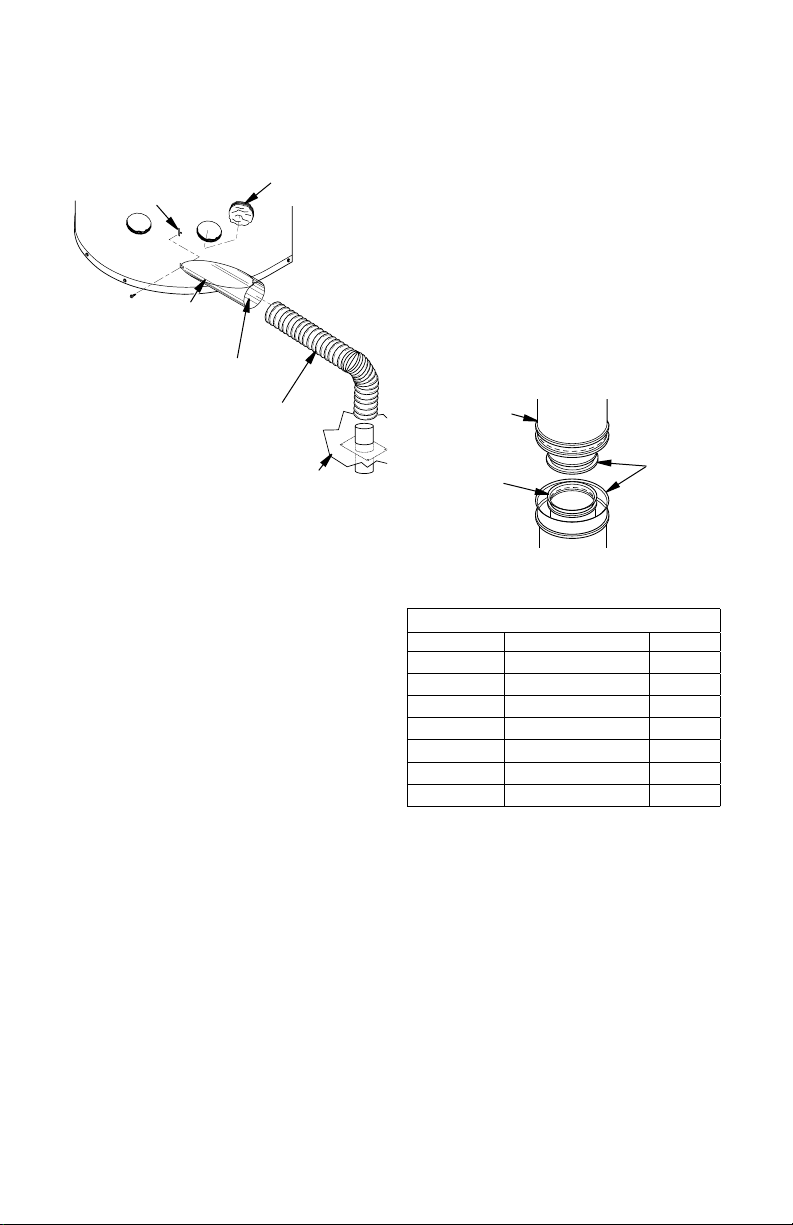

Figure 6 - Outside Air Kit AK6-WE Installation
Outside
Air Vent
Termination
Insulation Air Vent Location
Must Allow
for Bushes,
Snow and
Other Possible
Obstructions
Secure to Collar with
Metal Tape, Screws or
Tie Straps
Left Side
Mounting
Shown
Insert Inner Tab of
Inlet Tube into Slot
on Outer Surround
VENTING INSTALLATION
OUTSIDE AIR KIT
Installation of an outside air kit should be
completed during the rough framing of
replace due to nature of its location. The
supplied ex duct measures approximately
10" compressed and up to approximately 36"
extended. Outside combustion air is accessed
through mobile home oor using air kit model
AK6E, included with the replace, or a side
wall using optional air kit model AK6-WE (see
Accessories on page 18).
Installer may choose either left or right side
mounting to allow for proper wall/rafter
clearances.
For AK6-WE Only: Construct a 4.5" x 4.5"
framing or opening on exterior wall (see
Figure 6, page 6).
For AK6E Only: The outside air vent is in-
stalled through a ventilated crawl space (see
Figure 7, page 7).

SuperiorFireplaces.US.com
127312-01B 7
Figure 7 - Outside Air Kit AK6E
Installation
Floor
Flex Duct
Extends
Up to 36"
Insulation
Secure to Collar with
Metal Tape, Screws or
Tie Straps
Left Side
Mounting
Shown
Insert Inner Tab of
Inlet Tube into Slot
on Outer Surround
VENTING INSTALLATION
Continued
1. Locate and remove air inlet cover plate on
replace‘s outer surround. Save screws.
2. Cut out any visible insulation that may
obstruct airow.
3. Extend ex duct to attach air inlet tube.
4. Insert inner tab of inlet tube into mating
slot next to opening.
5. Place outer tab of inlet tube over mating
hole next to opening and secure with
screws removed from cover plate in
step 1.
6. Install outside air vent termination in a
location that will not be obstructed by
bushes, snow, etc. Locate vent near the
replace to make ex duct installation
easier.
CHIMNEY PIPE
The chimney system approved for this
replace consists of 12", 18", 24", 36" and
48" snap-lock, double-wall pipe segments,
planned for maximum adaptability to individual
site requirements. Actual lengths gained after
tting overlaps must be taken into consider-
ation (lineal gain) and are given in the lineal
gain chart (see Figure 8). Lineal Gain is the
actual measurable length of a part after two
or more parts are connected.
Figure 8 - Lineal Gain
Hemmed
End
8"
Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe

 DESCRIPTION GAIN
MHW36R Fireplace 42 "
12-8DM Pipe Section 10 5/8 "
18-8DM Pipe Section 16 5/8 "
24-8DM Pipe Section 23 5/8 "
36-8DM Pipe Section 34 5/8 "
48-8DM Pipe Section 46 5/8 "
RTL-8DM Round Termination 7 3/4 "
*
* The lineal gain for the terminations is mea-
sured to the ue gas outlet height.

SuperiorFireplaces.US.com 127312-01B8
There are three vent kits available which have
been specially designed for common installa-
tions in manufactured (mobile) homes: MW8K
(8' vent kit) and MW9K (9' vent kit). Contents
of these kits are listed under Accessories on
page 18. IMPORTANT: If height of chimney
assembly exceeds requirements for transpor-
tation of home, chimney installation may be
completed after home is sited.
Note: Termination must always be installed
after the home is sited.


Each double wall chimney section consists of
a galvanized outer pipe, a stainless steel inner
ue pipe and a wire spacer. Pipe sections must
be assembled independently as chimney is
installed. When connecting chimney directly
to replace, inner ue pipe section must be
installed rst with lanced side up. Outer pipe
section can then be installed over ue pipe
section with hemmed end up. Press down on
each pipe section until lances securely engage
hem on replace starter. The wire spacer will
assure proper spacing between inner and outer
pipe sections.

     
      
-

Continue to assemble chimney sections as
outlined above, making sure that both inner
and outer pipe sections are locked together.
When installing double wall snap-lock chimney
together, it is important to assure that the joint
between chimney sections is locked. Check by
pulling chimney upward after locking. Chimney
will not come apart if properly locked. It is not
necessary to add screws to keep chimney
together (exception, see Figure 14, page 11).

(FST-A)
Adjustable Firestop Thimble Assembly (FST-A)
is used to provide necessary air space and
clearance between chimney pipe and insula-
tion in attic space of a manufactured home.
To install thimble assembly, determine dis-
tance between ceiling joist and roof framing.
Attach adjustable thimble to restop spacer
so that assembly will cover distance. Adjust-
able thimble should be even with or above
rooine. Sheet metal screws or staples may
be used to attach thimble to restop spacer.
An opening large enough to allow insertion
of restop thimble assembly will be required
in ceiling. Attach restop/thimble assembly to
ceiling/ceiling joist using screws or staples as
shown in Figure 9. A minimum of 8 screws or
staples should be used.
Firestop thimble assembly should also be
used where there is a cathedral ceiling, in-
sulation barrier and roof, all in one assembly
in a manufactured home (see Figure 9). The
FST-A thimble can be used in any one of
three common ceiling pitches; at, 1.5"/12'
and 2.5"/12'.
An opening big enough to allow insertion of
restop thimble assembly will be required.
This opening depends on the pitch of your
ceiling. If your ceiling is a at or 1.5"/12'
pitch, you must use adapter plate provided to
seal unwanted openings. For 2.5"/12" pitch,
discard adaptor.
Thimble Extension
(If Needed)
Roof Line
Adjustable Thimble
Existing
Ceiling Frame
Firestop Spacer
Screws or Staples
(Min. of 8)
Figure 9 - Attaching Firestop/Thimble
Assembly to Ceiling
VENTING INSTALLATION
Continued

SuperiorFireplaces.US.com
127312-01B 9
VENTING INSTALLATION
Continued
If adapter is needed, secure it onto restop
using holes provided (see Figure 10). The
row of holes on sides of thimble is provided
to allow for pitch variances. Position restop
(top and bottom side) and thimble to desired
angle and secure with screws provided.
Insert thimble and firestop into prepared
opening and secure to ceiling by nailing
through firestop flanges. Thimble should
be even with or above roofline. Thimble
extensions are available (as an option) when
required. See Accessories on page 18.
Note: If there is a second story in the home,
restop spacer 3600FS-8DM will be required.
See Firestop Spacers, page 11.
PENETRATING ROOF
To maintain a 1" clearance to pipe on a roof
with a pitch, a rectangular opening must be
cut.
1. Determine center point through which pipe
will penetrate the roof.
2. Determine center point of the roof. Pitch
is the distance the roof drops over a given
span, usually 12". A 6/12 pitch means that
the roof drops 6" for each 12" measured
horizontally down from roof rafters.
3. Use roof opening chart (Figure 11) to
determine correct opening length and
ashing required.
4. Remove shingles around opening mea-
sured. Cut out this section.
5. Add next sections of pipe until end pen-
etrates roof line. Check to see that proper
clearances are maintained. Extend chim-
ney by adding sections of double wall
pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination
and chimney must extend a minimum of
36" above highest point where it passes
through roof.
Thimble (Open End)
12"
Min.
Thimble
(Closed End)
Firestop
Adapter Plate (If Needed)
Insulation
Barrier
Screw Holes
Provided
for Thimble
Firestop
Figure 10 - Use a Firestop Thimble
Assembly for Cathedral Ceiling,
Insulation Barrier and Roof
1.5”/12’ Pitch
2.5”/12’ Pitch
12"
12”
1.5"
2.5"
Thimble
Adapter Plate
(For Flat and
1.5"/12' Pitch
Ceilings Only)
Firestop
Use for 1.5"/12'
Pitch Ceiling
Use for Flat
Pitch Ceiling
14
3
/
8
"
(36.5 cm)
30"
(76.2 cm)
1"
(2.5
cm)
1"
(2.5
cm)
Minimum Measurements
1"
(2.5 cm)
Opening "A"
PITCH 
OPENING



Flat 0° 15" 6F-8
0-6/12 26.6° 16 1/8 " 6F-8
6/12 -
12/12 45° 20 3/8" 12F-8
Figure 11 - Determine Roof Opening

SuperiorFireplaces.US.com 127312-01B10
VENTING INSTALLATION
Continued

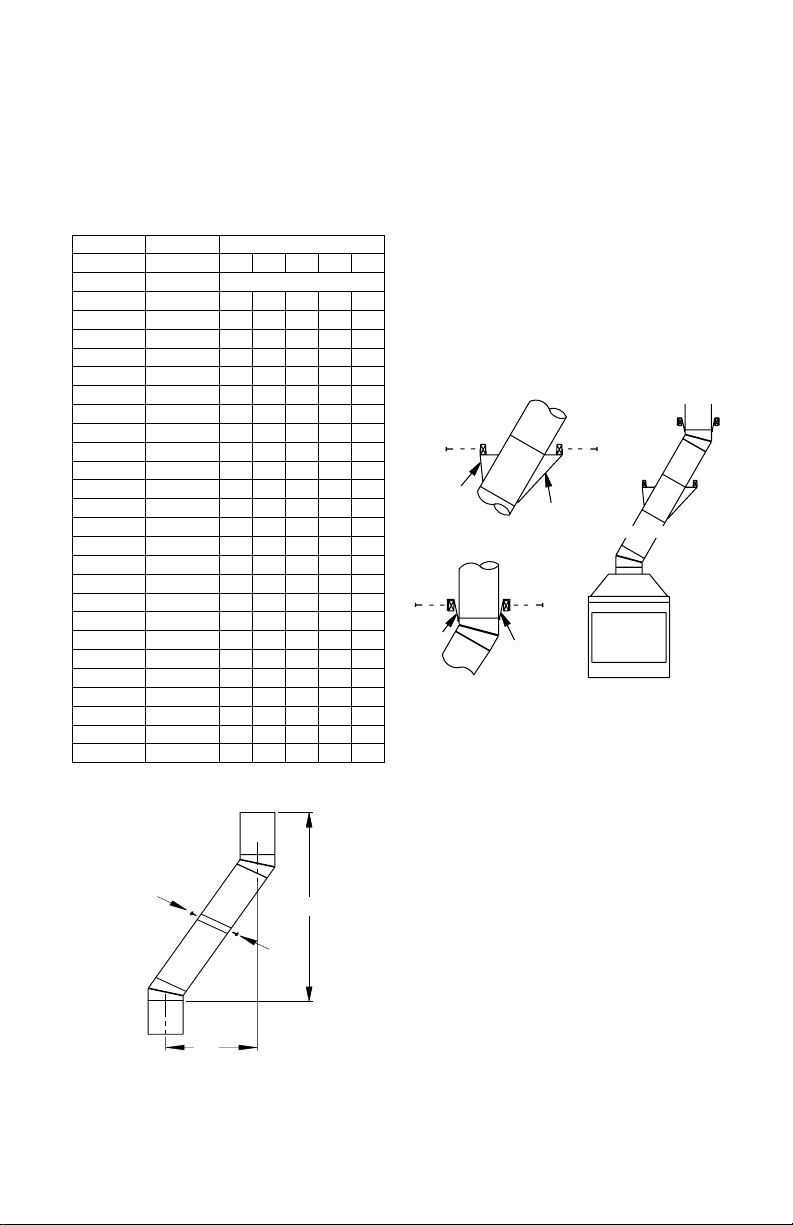

OFFSET RISE 
A     
4 3/8"16 3/8" ELBOW SET ONLY
9 3/4"25 1/2"1
12 3/4"30 3/4"1
15" 34 3/4"1
18" 40" 1 1
21 1/4" 46 1/4"1
23 3/4" 49 1/4"1 1
27 3/4"56 3/4"1
30" 60 3/4"1 1
33" 66" 1 1
36" 71" 1 1
38 1/4" 75" 2
41 1/4"80 1/4"1 1 1
45" 86 3/4"2
46 3/4" 89 1/2"1 1 1
51" 97" 1 1
53 1/4" 101" 1 2
56 1/4"106 1/4"2
59 1/4"111 1/2"1 1 1
61 3/4"115 1/2"1 2
64 3/4"120 3/4"1 2
68 1/4" 127" 2 1
70" 130" 1 1 2
74 1/4"137 1/2"1 2 1
76 3/4" 141 1/2"1 2 1
79 3/4" 146 3/4" 4

1. To achieve desired offset, you may install
combinations of 12", 18", 24", 36" and 48"
length of double wall pipe (see offset chart
and Figure 12).
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
Figure 13 - Ceiling Support Pipe
12S-8DM
Straps
Straps
Straps
Straps
Detail A
Return Elbow
Detail B
Angle Firestop
See
Detail A
See Detail B
Figure 12 - Elbow Offset
B
A
Screws
2. Chimney weight above offset rests on
return elbow. Straps must be securely
nailed to rafters or joists (see Figure 13,
details A and B).
3. Maximum length of pipe between supports
(return elbow or 12S-8DM) is 6' of angle
run. Maximum of two 6' angle run sections
per chimney system (see Figure 12).
4. All pipe connections between offset and
return must be secured with two screws
on outer pipe only (see Figure 14). Do not
penetrate inner stainless.

SuperiorFireplaces.US.com
127312-01B 11
Figure 14 - Typical Offset Terminations (For Systems with 2 Elbow Sets, Maximum
Height is 20')
Return
Elbow
Offset
Elbow
Return
Elbow
Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
AC
Offset
Elbow
Ceiling
Support Pipe
12S-8DM
Return
Elbow
VENTING INSTALLATION
Continued

Firestop spacers are required at each point
where the chimney penetrates a oor space.
Their purpose is to establish and maintain
the required clearance between the chimney
and the combustible materials. When the pipe
passes through a framed opening into a living
space above, the restop must be placed onto
the ceiling from below as shown in Figure 15.
Figure 15 - Firestop Spacer with Living
Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)



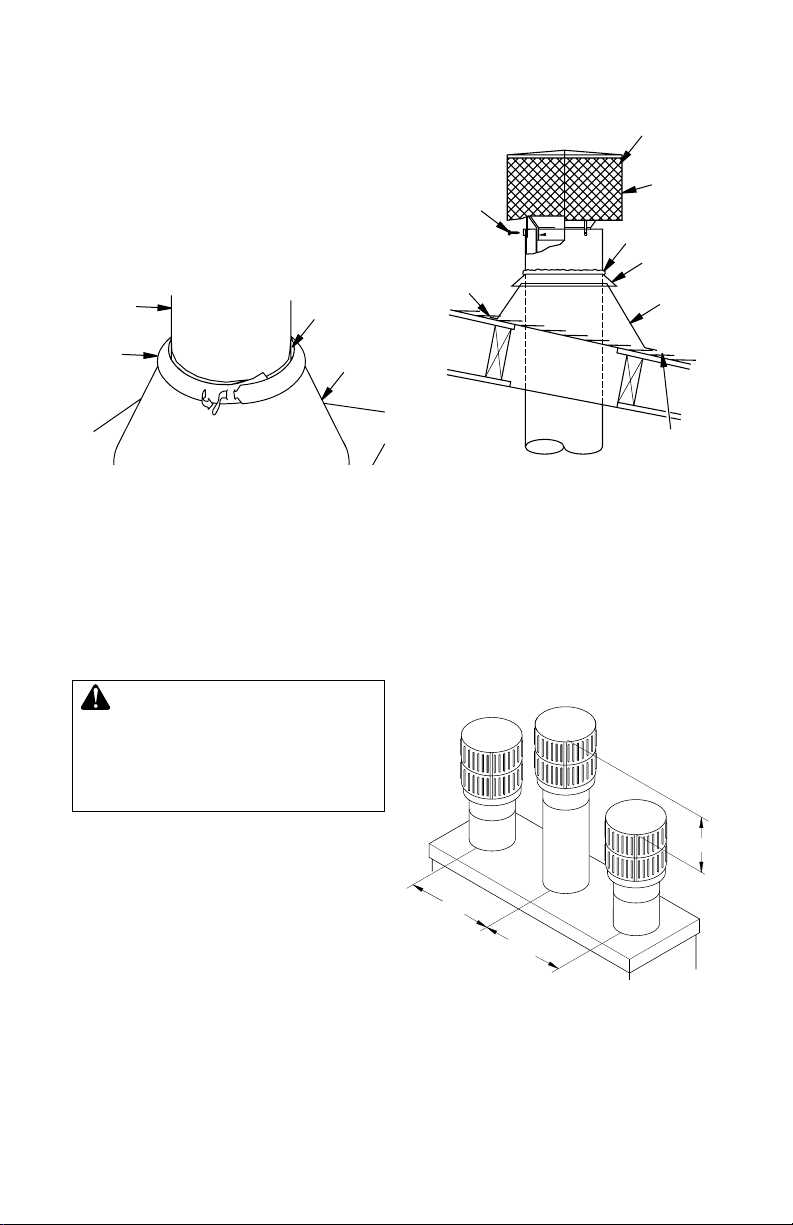

Determine the ashing to be used with the roof
opening chart. Slide ashing over pipe until
base is at against roof. Replace as many
shingles as needed to cover exposed area
and ashing base. Secure in position by nail-
ing through shingles (see Figure 16). DO NOT
NAIL THROUGH FLASHING CONE.
Nail Only
Outer
Perimeter
of Flashing
Storm Collar
Flashing
Cone
Underlap Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 16 - Flashing Installation
Installing Flashing on a Metal Roof
When installing ashing on a metal roof, it
is required that putty tape be used between
ashing and roof. Flashing must be secured
to roof using #8 x 3/4" screws and then sealed
with roof coating to prevent leakage through
screw holes. A roof coating must also be
applied around the perimeter of ashing to
provide a proper seal.

SuperiorFireplaces.US.com 127312-01B12
VENTING INSTALLATION
Continued

Place storm collar over pipe and slide down
until it is snug against the open edge of ash-
ing (see Figure 17). Use SC1 for all round
terminations.
Note: Storm collar is required but can be
installed after the home is sited.

Overlap
Shingles Top
and Sides
RTL-8DM
Level of
Flue Gas
Outlet
Attach
Bracket Tabs
to Outer Pipe
(3 Places)
Secure with
Screws
Caulk
Storm
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 18 - Termination

Instructions for chase installations are includ-
ed with chase style termination chosen. In a
multiple chase installation, be sure to provide
adequate distance between terminations to
prevent smoke spillage from one termination
to another. We suggest that terminations be
separated at least 24", center to center and
stacked at a vertical height difference of 18"
(see Figure 19).
24" Min.
24" Min.
18"
Min.
Typ.
Figure 19 - Multiple Chase Installation
Figure 17 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
Fireplace system must be terminated with
listed round top termination. In any case, refer
to installation instructions supplied with termi-
nation. Terminations approved for this replace
are RT-8DM and RTL-8DM. Figure 18 shows
an RTL-8DM round top termination.
IMPORTANT: Terminations are required but
can be installed once the manufactured house
is sited.
-
-
low the installation instructions
   

Terminations with 16" slip pipe sections are
available. The RTT-8DM and RTTL-8DM
are approved for ashing installations. When
needed, these adjustable terminations may be
used in combination with the pipe assembly to
achieve correct chimney height.
Note: In the rare instance there is a problem
with side driven rain or wind, or the chimney is
not drafting properly, an ADS-8DM Anti Draft
Shield can be used with round terminations.

SuperiorFireplaces.US.com
127312-01B 13
VENTING INSTALLATION
Continued

All ue gas outlet chimney terminations must
extend a minimum of 3 feet in height above the
highest point where it passes through the roof
and must be at least 2 feet above the high-
est point of the roof that is within a horizontal
distance of 10 feet (see Figure 20).
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 20 - 10 Foot Rule


If exposed portion of chimney is greater than
ve feet above rooine, support wires are
recommended to keep chimney secured.
Support wires must be attached to chimney
support brackets. Chimney support brackets
must be attached to outer pipe of chimney
with self-drilling screws provided in kit (screws Figure 21 - Support Wires
OPTIONAL GAS LINE INSTALLATION
Chimney
Support
Bracket
Support
Wire
Cable
Ferrule
Eye
Bolt
Angle of Support
Wire Should Not
Be More Than 45°
From Horizontal
120°
120°
120° Top
View of
Chimney
Self Drilling
Screws
18"

Gas line hook up should be done by your
supplier or a qualied service person.
Note: Before you proceed, make sure your
gas supply is turned off.
A gas line may be installed for the purpose
of installing a vented or vent free appliance
available through your local distributor. Use
only a 1/2" black iron pipe and appropriate
ttings. When installing a gas line, a shutoff
valve designed for installation outside appli-
ance is recommended.
1. Remove knockout indentation on refrac-
tory or rebrick wall located above the re-
fractory hearth oor. Knockout indentation
must be rmly tapped with any solid object
such as a 1/2" dowel until it is released.
Remove fragmented portions of refractory
(see Figure 22).
2. Remove gas line cover plate located on
either side of replace and pull out insu-
lation from gas line conduit sleeve. Save
insulation for reuse. Replace screws.
Figure 22 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Knockout
must not penetrate inner ue pipe). The angle
of support wires should not be more than 45°
from horizontal when fastened to roof. Place
chimney support brackets approximately 18"
below replace termination and space brack-
ets approximately 120° apart (see Figure 21)
Follow instructions included in kit.

SuperiorFireplaces.US.com 127312-01B14
VENTING INSTALLATION
Continued
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough Threaded
End for Fitting Connection
Figure 23 - Gas Line Installation
3. Run a 1/2" black iron gas line into replace
through rear at gas line conduit sleeve
(if using a raised platform, add height).
Provide sufcient gas line into replace
chamber for tting connection (see Figure
23, page 14).
Note: Secure incoming gas line to wood
framing to provide rigidity for threaded end.
4. Repack insulation around gas line and into
sleeve opening. Seal any gaps between
gas line and refractory knockout hole with
refractory cement or commercial furnace
cement, Install gas appliance or cap off
gas line if desired.
    

for leaks after the installation
   

     

    

    
TESTING AND DO NOT OPER-


-

Note: Secure incoming gas line to wood fram-
ing to provide rigidity for threaded end.
If you wish to install an unvented (vent-
free) gas log set, ONLY UNVENTED GAS
LOG SETS WHICH HAVE BEEN FOUND
TO COMPLY WITH THE STANDARD FOR
UNVENTED ROOM HEATERS, ANSI
Z21.11.2, ARE TO BE INSTALLED IN THIS
FIREPLACE.
A vent-free log may be installed in an aftermar-
ket,* permanently located, manufactured (mo-
bile) home, where not prohibited by locator.
*Aftermarket: Completion of sale, not for pur-
pose of resale, from the manufacturer.
Note: A hood must be installed when using
an vent-free gas log set (see Accessories,
page 18).

-

If you install a decorative gas appliance
(vented gas log), the decorative gas appliance
must comply with the Standard for Decora-
tive Gas Appliance for Installation in Solid
Fuel Burning Fireplaces, ANSI Z21.60/CSA
2.26 or Z21.84 and shall also be installed
in accordance with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 National Fuel
Gas Codes (USA) and CAN/CGA-B149.1
National Gas And Propane Installation Code
(Canada) - latest edition.
    


    
    
    

WARNING: When using a
  
    

    



SuperiorFireplaces.US.com
127312-01B 15
FINISHING FIREPLACE
12 1/4" Ref.
6"
Ref.
12"
Min.
9" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace
Opening
Upper
Section of
Fireplace
Figure 24 - Mantel Clearances to
Combustible Material
OPERATION AND MAINTENANCE GUIDELINES
Figure 25 - Bi-Fold Glass Doors
Doors Fully Closed

Doors
Fully Opened

Combustible materials, such as wallboard,
gypsum board, sheet rock, drywall, plywood,
etc. may make direct contact with sides and
top around the replace face. It is important that
combustible materials do not overlap the face
itself. Brick, glass, tile or other noncombustible
materials may overlap the front face provided
they do not obstruct essential openings like lou-
vered slots or any other opening. When overlap-
ping with a noncombustible facing material, use
only noncombustible mortar or adhesive.

A mantel may be installed if desired (see
Figure 24). Woodwork such as wood trims,
mantels or any other combustible material
projecting from the front face must not be
placed within 9" of the replace opening. Com-
bustible materials above 9" and projecting
more than 1-1/2" from the replace must not
be placed less than 12" from the top opening
of the replace (NFPA 211, Section - Clear-
ance from Combustible Material).

Glass doors are standard with fireplace.
When replace is in operation, doors must
be FULLY OPENED or FULLY CLOSED
position only or a re hazard may be created
(see Figure 25).
A replace equipped glass doors operates
much differently than a replace with an open
front. A replace with glass doors has a limited
amount of air for combustion. Excessive heat
within replace can result if too large a re is
built or if combustion air gate is not completely
open. The following tips should be followed
to assure that both replace and glass door
retain their beauty and function properly.
Both ue damper and glass doors must be
fully opened before starting the re. This will
provide sufcient combustion air and maintain
safe temperatures in rebox.
IMPORTANT: Glass must be allowed to
warm slowly and evenly. Tempered glass will
withstand a gradual temperature rise to 550°
Fahrenheit, which is more than a normal re
will generate.
Such materials as pitch/wax laden logs, very
dry mill end lumber, and large amounts of pa-
per or cardboard boxes can create an exces-
sively hot re and should not be burned in this
replace. Always keep re back from doors
and never allow ames to contact glass.
  
   
    
    


   

Note: HUD requirements may supersede
these minimum dimensions.

SuperiorFireplaces.US.com 127312-01B16

1. Fold doors (fully open) and press up on
upper door spring clip until top pin is free
of the spring clip (see Figure 26). Tip door
toward middle of replace opening and lift
door out of the lower pivot hole.
2. Repeat step 1 for remaining door.
OPERATION AND MAINTENANCE GUIDELINES
Continued

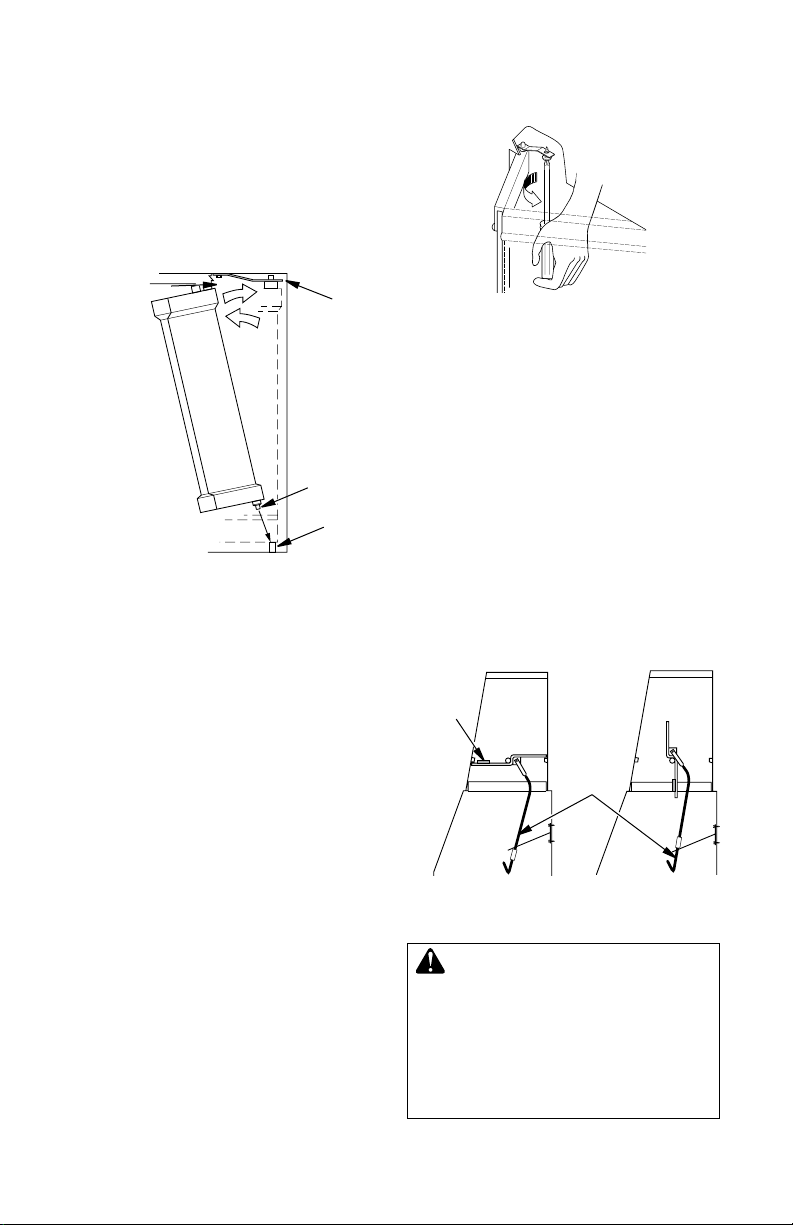

Figure 26 - Removing/Installing Bi-Fold
Doors
Spring
Clip
Insert Pin
into Spring
Clip
Pivot
Hole
Insert
Bottom
Pivot Pin
into Hole
Fold Door
and Slide
Top Pins
Into Track
Installing Glass Doors
1. With bi-fold doors completely folded, insert
bottom pivot pin into pivot hole located
near bottom corner of front face opening
and swing door to vertical position making
sure top pins slide into door track. Door is
installed when top door pin snaps into spring
clip (see Figure 26).
2. Repeat step 1 for remaining door.
If you nd the doors do not close properly or
do not appear level or straight, proceed with
section on door adjustment.

Remove doors and slightly loosen lower pivot
clips and upper spring clips. Replace doors
and fully close them. Use 1/8" shims (any
material) to level doors. Once proper setting
is achieved, carefully open doors enough so
that you can access spring clips with a phillips
screwdriver. Tighten screws. See Figure 27.
Figure 27 - Adjusting Bi-Fold Doors

Clean the glass with any commercial glass
cleaner or soap and water. Do not use any
abrasive material to clean glass. Do not clean
glass with any cool water if glass is still hot
from re and smoke.
DAMPER OPERATION
The damper handle, which opens and closes
damper blade, is located inside rebox at cen-
ter towards back wall. Pushing handle back
in keyway slot will free damper blade to au-
tomatically open. To close, reach in and push
handle back into keyhole slot then pull down
and forward to lock it in place (see Figure 28).
Damper is not designed to be airtight. A small
gap around damper blade is normal.
Figure 28 - Damper Operation
Damper
Weight
Damper
Handle
Open Damper
Closed Damper
WARNING: Risk of fire!
    -
   
    




SuperiorFireplaces.US.com
127312-01B 17
TECHNICAL SERVICE
You may have further questions about instal-
lation, operation, or troubleshooting. If so,
visit .
Have your model and serial numbers of your
replace ready.
Model and serial number information are in
the replace's rating plate located under-
neath the front brick liner.
You can also visit INNOVATIVE HEARTH
PRODUCTS's web site at .
REPLACEMENT PARTS
If this product is missing a part or has a bro-
ken component, please do not return it to the
store. Visit  for more information.
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
When contacting IHP, please have your model
and serial numbers of your replace ready.
Model and serial number information are in the
replace's rating plate located on the smoke
shelf on the top right side of the replace
opening.
OPERATION AND MAINTENANCE GUIDELINES
Continued


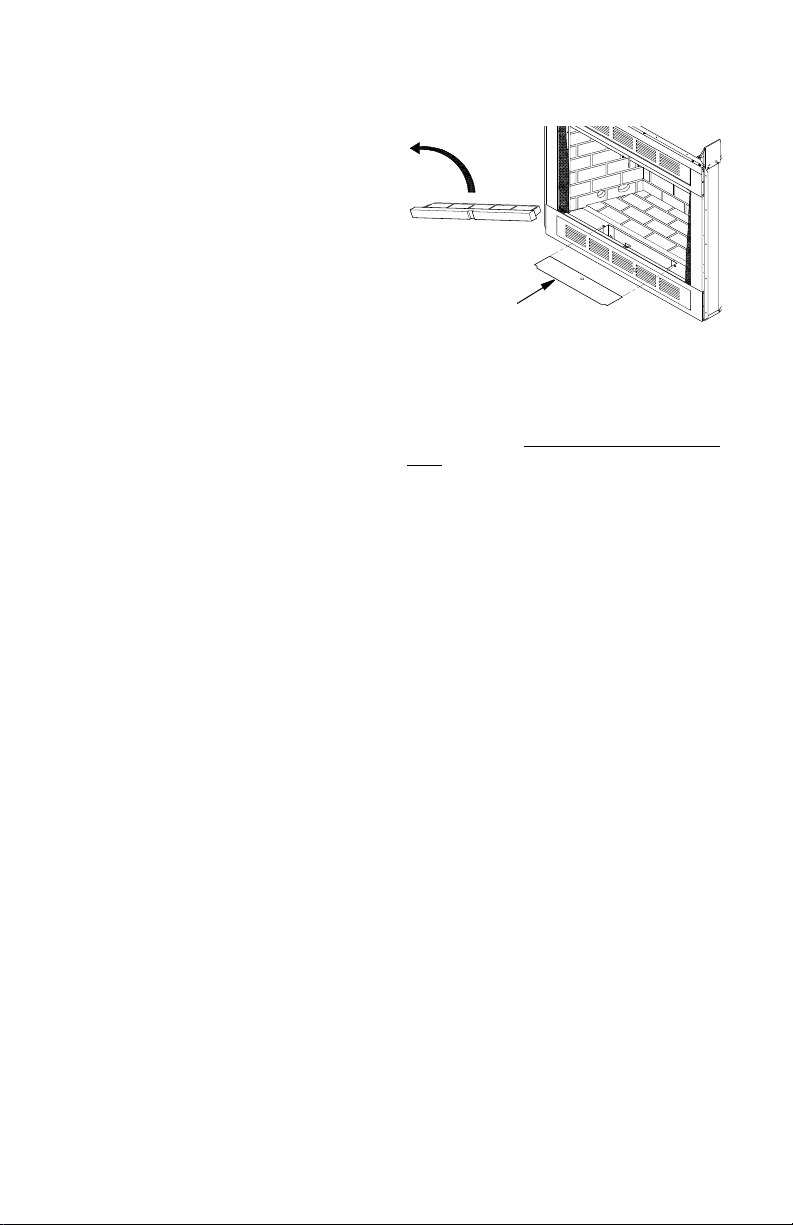

Sheet metal cover plates located underneath
front hearth refractory may have shifted or moved
out of place while replace was in transit. These
cover plates must be kept in the proper location
prior to using the replace (See Figure 29).
For further operating guidelines, instructions
and warranty information, please refer to your
homeowner's guide or contact your authorized
dealer.
Figure 29 - Locating Access Cover Plate
Access
Panel

SuperiorFireplaces.US.com 127312-01B18

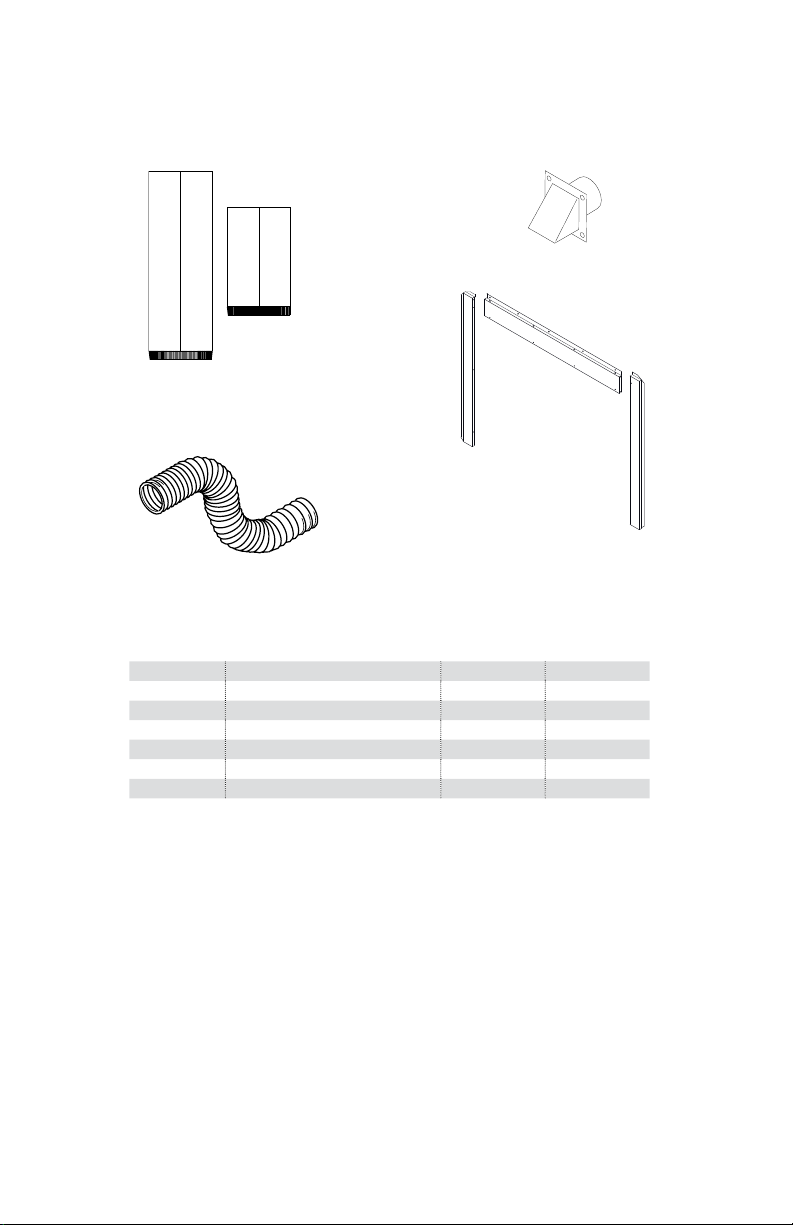

ACCESSORIES








Self Drilling Screws
Cable Ferrule





DP36E - Platinum Finish













SuperiorFireplaces.US.com
127312-01B 19








This hood is required when installing a vent-
free gas log heater in this rebox.


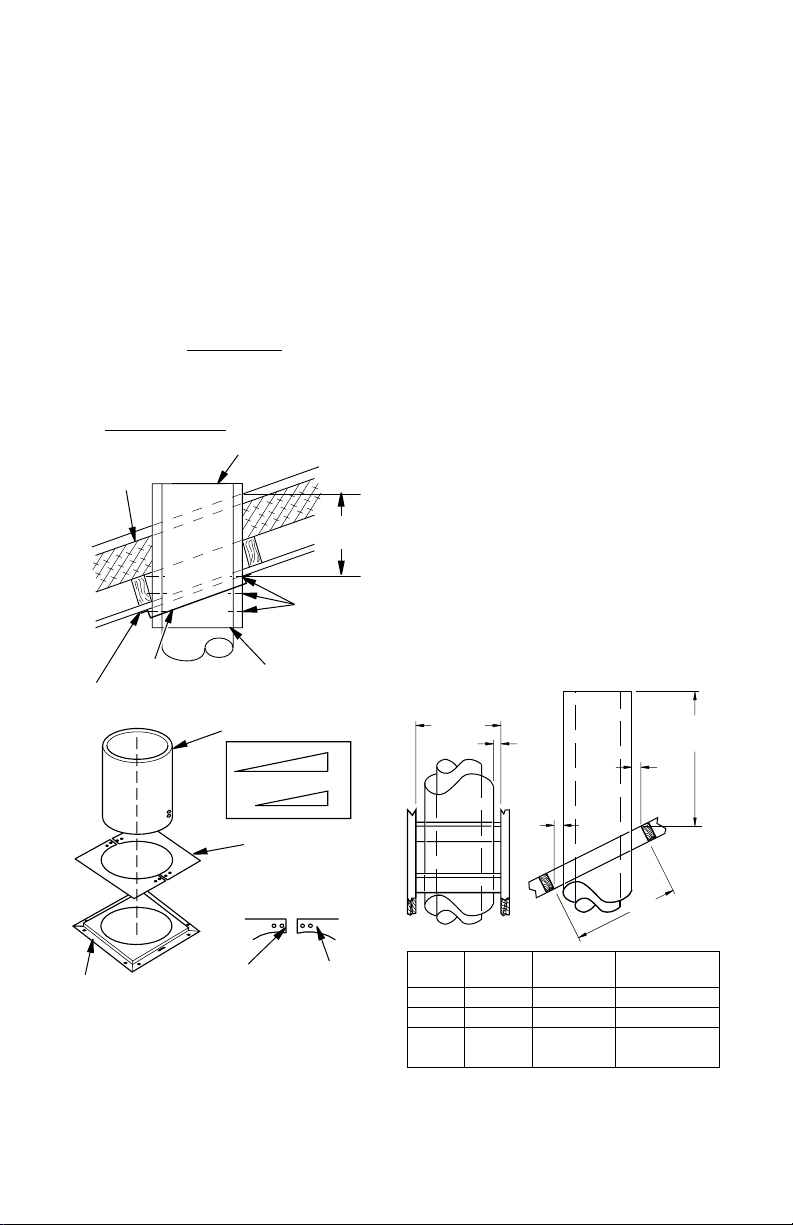

FST-A






1.5”/12’ Pitch
2.5”/12’ Pitch
12"
12”
1.5"
2.5"


ACCESSORIES
Continued


HEARTH ExTENSION - HE-36


SuperiorFireplaces.US.com 127312-01B20



 DESCRIPTION




36-8DM 36" Double Wall Pipe 2 2
24-8DM 24" Double Wall Pipe 1 0
18-8DM 18" Double Wall Pipe 0 2
FST-A Adjustable Firestop Thimble 1 1
V6F-8DM Roof Flashing 1 1
SC1-1 Storm Collar 1 1
RTL-8DM Round Cap Termination 1 1
*Use for Most Common Manufactured (Mobile) Home Installations
FACE ExTENSION - FE-36R
Front face extension would add 6” to the width
and 6” to the height of the replace face.


ACCESSORIES
Continued
