Supermicro SuperChassis CSE-946ED-R2KJBOD User manual

Confidential
© Supermicro 2015Confidential
CSE-946ED-R2KJBOD Pre-defined
zoning configuration
11/10/2015

Confidential
Introduction
CSE-946ED-R2KJBOD supports flexible HDD zoning up to 4 host. User
can assign any amount of disk to each zone using the Flexible Zoning
Utility. User can also setup zoning with pre-defined configuration
discussed in following pages.
Please refer to CSE-946ED Flexible Zoning SOP 11092015.pdf for
operating instruction for the Flexible Zoning Utility.

Confidential
Front of Chassis
HDD 1
HDD 15
HDD 76
HDD 90
2 Zones configuration
Zone #1 Zone #2
Zones assigned
to external ports
Zone #1 = 45 Disks Zone #2 = 45 Disks

Confidential
Front of Chassis
HDD 1
HDD 15
HDD 76
HDD 90

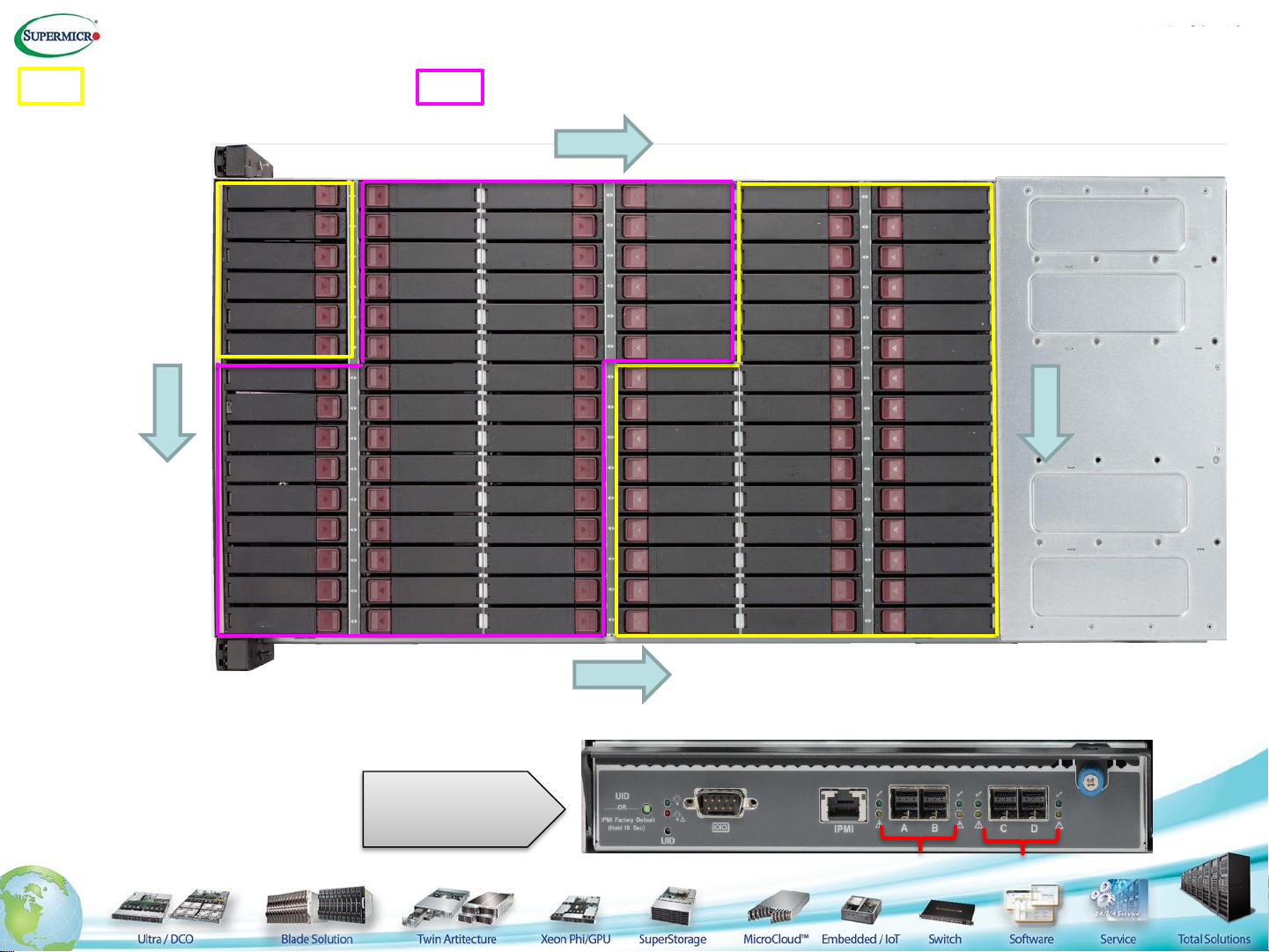

3 Zones configuration
Zone #1 = 30 Disks Zone #2 = 30 Disks
Zone #1 Zone #2
Zones assigned
to external ports
Zone #3 = 30 Disks
Zone #3 Zone #1, 2, 3

Confidential
Front of Chassis
HDD 1
HDD 15
HDD 76
HDD 90

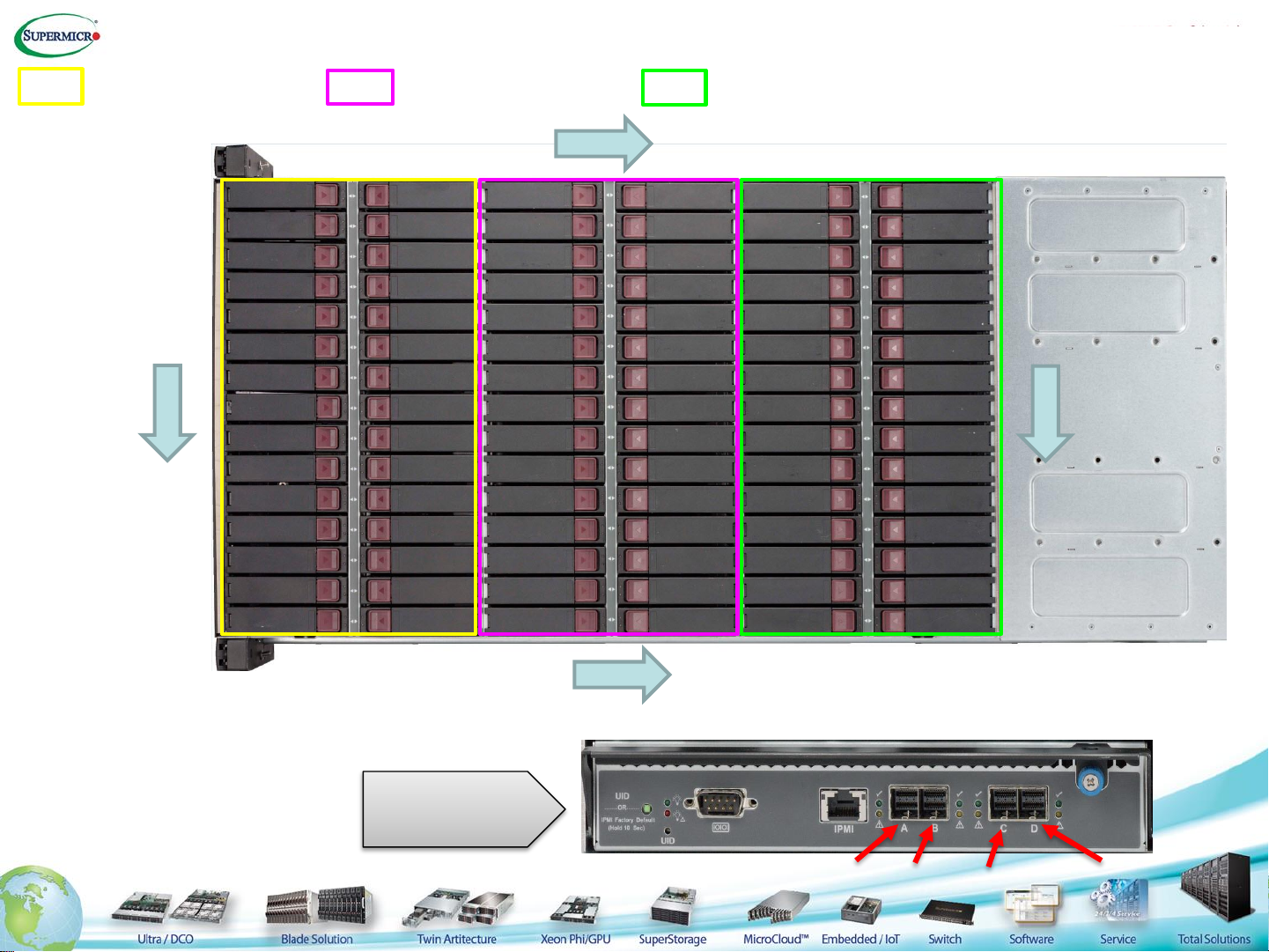

4 Zones configuration
Zone #1 = 22 Disks Zone #2 = 22 Disks
Zone #1 Zone #2
Zones assigned
to external ports
Zone #3 = 23 Disks Zone #4 = 23 Disks
Zone #3 Zone #4
