SuperSail Marine Alarm User manual

Installation Manual
Page 1of 8
Installation Manual
SuperSail
Marine Alarm Wireless

Installation Manual
Page 2of 8
Table of Contents
1CONTENTS OF THE PACKAGE ...............................................................................................3
2INSTALLATION ...........................................................................................................................4
2.1 LOCATION OF THE ANTENNAS...................................................................................................4
2.2 ENERGY CONSUMPTION ............................................................................................................4
2.3 12/24V CONNECTION ................................................................................................................4
2.4 WIRES IN THE CONNECTION BOX ..............................................................................................5
2.5 OUTBOARD ENGINE ALARM......................................................................................................5
2.6 WIRELESS WATER SENSOR .......................................................................................................5
2.7 WIRELESS MOTION SENSOR ......................................................................................................6
2.8 WIRELESS DOOR SENSOR..........................................................................................................6
2.9 WIRELESS REMOTE CONTROL...................................................................................................6
2.10 WIRELESS TEMPERATURE SENSOR............................................................................................6
2.11 WIRELESS SHORE POWER SENSOR ............................................................................................6
2.12 MAINTENANCE..........................................................................................................................6
2.13 TECHNICAL SPECIFICATIONS .....................................................................................................7
2.14 SAFE DISPOSAL .........................................................................................................................7
3SERVICE ........................................................................................................................................8

Installation Manual
Page 3of 8
1 Contents of the package
The Supersail Marine Alarm basic package consists of the following:
- SuperSail Marine Alarm base (note the serial number of the unit)
- GPS antenna
- Mobile (GSM) antenna
- Siren
- Alarm connection box for cable connection of 12/24V and external units. Contains also
fuse for protection.
- Eventually Wireless Motion Sensor and Remote Controls
- Installation Guide
Add-ons:
- Wireless water sensor
- Wireless motion sensor
- Wireless door sensor
- Wireless remote control
- Wireless temperature sensor
- Wireless shore power sensor

Installation Manual
Page 4of 8
2 Installation
SuperSail Marine Alarm is delivered in a box containing the Alarm unit with associated
antennas, connection box, siren and cables.
The Alarm unit must be connected to 12/24V external power supply and additional different
alarm sensors can be connected.
Keep the packaging in case the Alarm unit has to be sent.
2.1 Location of the Antennas
The Alarm unit is placed indoor in the boat as high above water level as possible, to get the
optimal signal for the GSM antenna to and from the mobile transmitter mast ashore.
The Alarm unit is installed vertical with the GSM antenna pointing upwards.
The GPS antenna is placed horizontal with the black top pointing upwards to be able to
receive the optimal signal from the GPS satellites.
None of the antennas must be placed under metal surface, since this will reduce the signal
strength significantly. Wood, plastic, glass, glass fiber and similar non-conducting materials
does not have any significant influence on the signals.
The antennas must be placed with a mutual distance of minimum 20 cm.
The GPS antenna is magnetic and can with advantage be placed on top of a metal plate or be
glued underneath another surface.
If the GPS antenna is not placed correct there will be a risk that it can receive reflected
signals from the satellites from time to time and report a false alarm.

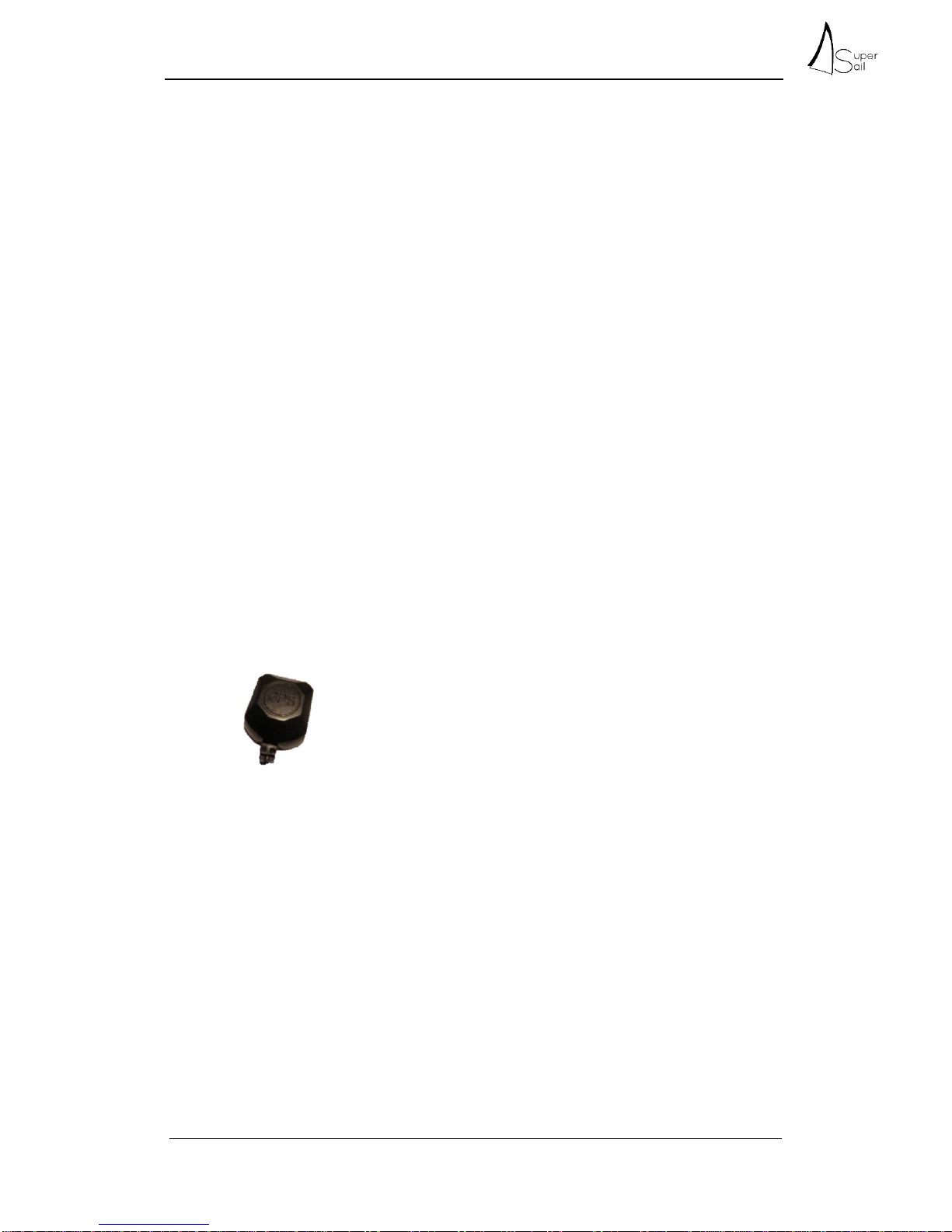

The GPS antenna is mounted with the black side (refer to the picture below) turning upwards
towards the satellites.
2.2 Energy Consumption
In energy mode the Alarm unit uses: 0.6 mA
During operation the Alarm unit uses: 75 mA
During charging the Alarm unit uses: 500mA
The energy consumption during charging is limited in the unit and will never exceed the
specified, but can be lower than specified, since the charging circuit is intelligent and fit the
charging as required.
The charging stops automatically if the temperature of the Alarm unit exceeds 50 degrees
Celsius.
2.3 12/24V Connection
The Alarm unit is connected to 12V or 24V power supply on the primary side of the boats
main switch, to ensure that there is always power to the Alarm unit, when the main switch in
the boat is turned off.

Installation Manual
Page 5of 8
This is a precondition for the Alarm unit to function as secure monitoring of the boat.
Note that the siren must be either a 12V version or a 24V version, depending on the external
supply level.
2.4 Wires in the Connection Box
In the below table the use of the different cables from the Alarm unit is shown.
In the Connection Box, the wires are connected with pull relief to ensure that the movements
of the boat over time do not make the wires lose their connection.
A 2,5A fuse is installed between the external power supply and the Alarm unit, to protect both
in case of a short circuit.
Cable color
Connects to
Grey
Future use
Orange
Future use
Yellow
Future use
Red
Power +12V
Black
Power GND
Green
Activation signal from Input #1 (+12/24V)
Purple
Activation signal from Input #2 (+12/24V) –
Option
Light blue
Output #1 activation (+12/24V)
Blue
Output #2 activation (+12/24V) –Option
White
Output/Input GND
Refer to Installation Manual for Connection Box, found here: www.super-sail.dk/app-support
2.5 Outboard Engine Alarm
If monitoring of an outboard engine is required a ground wire can be drawn from the engine
through the wire bundle from the engine. If the wire bundle is cut in connection with theft, the
alarm will register this and the alarm unit sends an alarm message and will turn on the siren.
Since the input of the alarm detects alarms when detecting +12/24V at the input, a 1KOhm
pull-up resistor should be installed between the input and +12/24V. The ground wire from the
outboard engine connects to the input of the alarm and pulls down the input level to 0V. As
long as the ground wire from the outboard engine is intact, 0V will be registered on the input
to the alarm, but if ground wire is removed the pull-up resistor will cause +12/24V to be
detected at the input and thus an alarm is activated.
Correct connection of the 1KOhm pull-up resistor is shown in the Installation Manual for the
Connection box, found here: www.super-sail.dk/app-support.
2.6 Wireless Water Sensor
Refer to Installation manual Wireless Water Sensor, found here: www.super-sail.dk/app-
support

Installation Manual
Page 6of 8
2.7 Wireless Motion Sensor
Refer to Installation manual Wireless Motion Sensor, found here: www.super-sail.dk/app-
support
2.8 Wireless Door Sensor
Refer to Installation manual Wireless Door Sensor, found here: www.super-sail.dk/app-
support
2.9 Wireless Remote Control
Refer to Installation manual Wireless Remote Control, found here: www.super-sail.dk/app-
support
2.10 Wireless Temperature Sensor
Refer to Installation manual Wireless Temperature Sensor, found here: www.super-
sail.dk/app-support
2.11 Wireless Shore Power Sensor
Refer to Installation manual Wireless Shore Power Sensor, found here: www.super-
sail.dk/app-support
2.12 Maintenance
The SuperSail Marine Alarm system is maintenance free. Repairs should be carried out at an
authorized service center.
Cleaning can be carried out with a soft cloth wrenched in lukewarm water
Cleaning detergent containing solvent can harm the unit.

Installation Manual
Page 7of 8
2.13 Technical Specifications
Power supply 12V or 24V DC
Internal backup battery 1000 mAh Lithium
Power use during operation 75 mA ex. possible use from external units connected to
digital outputs
Power use in energy mode 0.6 mA
Power use while charging 500 mA
Digital outputs +12V or +24V depending on external power level,
max. 750 mA
Digital inputs +12V or +24V depending on external power level
Operational temperature -25 to +55 degrees Celsius
Charging temperature -10 to +45 degrees Celsius (protection of battery)
Humidity 5-90% non-condensing
Weight 250 g
Protection IP66
Size 92 x 30 x 58 mm (BxHxD)
Approvals EN-61000-6-3;2001 Emission
EN-61000-6-2;2001 Immunity
Changes may apply.
2.14 Safe Disposal
Should not be disposed as domestic waste.
Electronic equipment should be disposed according to the local regulations
for electronic and electronically equipment.

Installation Manual
Page 8of 8
3 Service
The SuperSail Marine Alarm system is on the front equipped with 3 LED.
LED 1 and LED 2 is solely for service purpose and is used in connection with troubleshooting
on the unit.
LED 3 can with advantage be used to verify the GPS signal after installation.
LED 1:
Pattern
Description
Fastest flash - green
The unit is initializing during startup
Fast flash –green or yellow
The unit is stopped
500 ms on / 500 ms off green or yellow
The unit is running normally
1,5 s on / 0,5 s off green or yellow
The unit is running normally and the battery
is charging
Fast flash red or yellow
The unit is stopped because of an error
Changing fast/slow red or yellow
The unit has lost its firmware
75 ms on / 925 ms off
The unit is running with decreased speed
LED 2:
Pattern
Description
Off
The GSM communication is off
600 ms on / 600 ms off
Initializing the GSM connection
75 ms on / 3 s off
Connected to the GSM no activity
75 ms on / 75 ms off
GPRS session on-going
Fast flash
GPRS data transfer on-going
10 ms on / 8 s off
The unit is in energy saving mode
LED 3:
Pattern
Description
Green
The GPS signal is ok. The GPS is only ON
when the unit is active
Red
The GPS signal is missing or low receiver
quality
