Surgex Rp-ip User manual

RP-IP RP-IP-GNS

User Manual

I. HARDWARE 3

1. RP-IP 3

2. RP-IP-GNS 3

II. SETUP AND CONFIGURATION 4

3. IP SETTINGS AND CONFIGURATION 4

4. LAN OPERATION AND CONFIGURATION 4

5. WAN CONFIGURATION 9

III. OPERATION 9

1. STANDOARD 9

2. JAVA APPLET 10

3. SNMP 10

4. COM PORT REDIRECTION 10

IV. ADVANCED CONFIGURATION 7

V. FIRMWARE UPGRADE 8

V. SPECIFICATIONS 8

User Manual

I. HARDWARE:

1. RP-IP

a. LAN: Connect to local network using Cat5e patch cable

b. XG / EV Data Port: Connect to XG or EV product using 6p6c

RJ25 patch cable with Standard pin out

c. Power: Input power connection. USB Mini B, 5VDC, 500mA

minimum

d. LEDs:

LED State

Meaning

EV, XG Toggle

Establishing network connectivity

EV solid, XG off

enVision operating mode

XG solid, EV off

Next Gen operating mode

e. Buttons:

Button

Action

Reset

Press and hold for 5 seconds, then release to reset the unit to factory defaults. Will reset IP

settings to factory default.

Mode

Press and hold for 5 seconds, then release to toggle between EV and XG operating modes

2. RP-IP-GNS

a. LAN: Connect to local network using Cat5e patch cable

b. XG / EV Data Port: Connect to XG or EV product using

6p6c RJ25 patch cable with Standard pin out

c. Power: Input power connection. Barrel, 12VDC, 1A

minimum

d. LEDs:

LED State

Meaning

EV, XG Toggle

Establishing network connectivity

EV solid, XG off

enVision operating mode

XG solid, EV off

Next Gen operating mode

Switch Status

Link/Activity LEDs for each switch

port

Power

RP-IP-GNS Power Indicator

e. Buttons:

Button

Action

Reset

Press and hold for 5 seconds, then release to reset the unit to factory defaults. Will reset IP

settings to factory default.

Mode

Press and hold for 5 seconds, then release to toggle between EV and XG operating modes

User Manual

II. SETUP AND CONFIGURATION:

1. IP Settings and Configuration

a. Factory Default: Acquires IP address automatically via DHCP

b. Determine assigned IP address by one of the following methods:

iAccess router table

ii Download and run ESP RP-IP Discover Utility available on the Downloads tab here:

http://espsurgex.com/product/remote-portal/

iii Download and install Lantronix DeviceInstaller:

http://www.lantronix.com/device-networking/utilities-tools/device-installer.html

2. LAN Operation and Configuration

a. Using a web browser with JavaScript enabled, navigate to http://IPAddress/config where the

IPAddress is the IP Address of the RP-IP.

iWhen prompted for a User Name and Password, leave both fields blank and press

ii Important: For any changes to be applied, press the OK button at the bottom of the

section, then press Apply Settings in the left hand menu, and finally wait for the

RP-IP to reboot with new settings in place.

iii Home Page: View firmware and configuration information currently in use.

User Manual

b. Network Settings: View and change IP Configuration.

i. Select Obtain IP address automatically to automatically receive an IP address

1) BOOTP: Select Enable to permit the Bootstrap Protocol (BOOTP) server to assign the IP

address from a pool of addresses automatically. Enable is the default.

2) DHCP: Select Enable to permit the Dynamic Host Configuration Protocol (DHCP)

to assign a leased IP address to the RP-IP automatically. Enable is the default.

3) AutoIP: Select Enable to permit the RP-IP to generate an IP in the 169.254.x.x address range

with a Class B subnet. Enable is the default.

4) DHCP Host Name: Enter the desired host name for the RP-IP.

User Manual

ii. Select Use the following IP configuration to manually specify the IP address.

1) IP Address: If DHCP is not used to assign IP addresses, enter it manually in decimal-dot

notation. The IP address must be set to a unique value in the network.

2) Subnet Mask: A subnet mask defines the number of bits taken from the IP

address that are assigned for the host part.

3) Default Gateway: The gateway address, or router, allows communication to other LAN

segments. The gateway address should be the IP address of the router connected to the same

LAN segment as the unit. The gateway address must be within the local network.

4) DNS Server: The DNS server allows the name of a remote machine to be resolved

automatically. Enter the IP address of the DNS server. If the device is DHCP enabled, the

DHCP server provides the DNS server IP address, which will override this configured value.

Note: This setting is applicable only in Manual Connection mode.

iii. SNMP

1) Select Enable or Disable to enable or disable the SNMP protocol.

2) SNMP Manager: Specify the IP address of the SNMP manager.

3) The SNMP MIB may be downloaded on the Downloads tab on this page:

http://espsurgex.com/product/remote-portal/

iv. Ethernet Configuration

1) Auto Negotiate: With this option, the Ethernet port auto-negotiates the speed and duplex with

the hardware endpoint to which it is connected. This is the default.

2) Speed: The speed of data transmission. The default is 100 Mbps. This option is only available

when Auto Negotiate is not enabled.

3) Duplex: The direction of data transmission. The default is Full. This option is only available

when Auto Negotiate is not enabled.

User Manual

c. Server: View and change the embedded Server settings.

i. PCS Communication

1) Mode: Select enVision (EV) or NextGen (XG) operational mode.

2) TCP Server Port: Specify the local port for serial data.

3) TCP Remote Port: Specify the Remote Host port for serial data.

4) Auto Transmit: Enable/Disable the Auto Transmit feature. When enabled, enVision or NextGen

will automatically transmit data to the IP address specified in Remote Host. Contact

ESP/SurgeX for more details.

5) Active Connect: Specify how the RP should initiate an active connection to a Remote Host. None:

do not actively connect; With Auto Transmit: connect when auto transmit data segment received

from EV or XG; Auto Start: connect after booting up.

User Manual

6) Remote Host: Specify the IP Address of the Remote Host.

ii. Server Configuration

1) Enhanced Password: Selecting this option enables advanced password creation, allowing you

to create passwords up to 16 bytes in length. Disabling this option disables advanced

password creation, allowing you to create basic passwords up to 4 bytes in length.

2) Telnet/Web Manager Password: Enter the password required for Telnet configuration

and Web Manager access.

iii. Advanced

1) ARP Cache Timeout: When the unit communicates with another device on the network, it

adds an entry into its ARP table. ARP Cache timeout defines the number of seconds (1-

600) before it refreshes this table.

2) TCP Keepalive: TCP Keepalive time defines how many seconds the unit waits during an

inactive connection before checking its status. If the unit does not receive a response, it

drops that connection. Enter a value between 0 and 60 seconds. 0 disables keepalive. The

default setting is 45.

3) Monitor Mode @ Bootup: Select Disable to disable entry into the monitor mode using the 'yyy'

or 'xx1' key sequence at startup. This field prevents the unit from entering monitor mode by

interpreting the stream of characters that are received during the device server's initialization

at startup.

4) CPU Performance Mode: Do not adjust. Default is Regular.

5) HTTP Server Port: This option allows the configuration of the web server port number. The

valid range is 1-65535. The default port is 80.

6) Config Server Port: Not applicable.

7) MTU Size: The Maximum Transmission Unit (MTU) is the largest physical packet size a network

can transmit for TCP and UDP. Enter between 512 and 1400 bytes. The default is 1400 bytes.

8) TCP Re-transmission timeout: The desired TCP re-transmission timeout value. If the ACK is not

received for a packet sent from the RP-IP device, then the unit will retransmit the data. The

valid range is 500-4000 msec. The default is 500 msec.

d. Apply Settings: Applies the currently specified settings.

e. Apply Defaults: Reset the unit to factory defaults. Will not modify IP settings.

User Manual

3. WAN Configuration

a. To access the RP-IP Java applet from outside of the local network, the following 2 ports must be

forwarded through the firewall to the internal IP address of the RP-IP:

i. HTTP Server Port (Default 80)

ii. TCP Server Port (Default 10001)

b. To access the RP-IP standard pages from outside of the local network, the following port must be

forwarded through the firewall to the internal IP address of the RP-IP:

i. HTTP Server Port (Default 80)

III. OPERATION:

1. S t a n d a r d

a. The standard pages may be utilized on desktop and mobile browsers, and require that

JavaScript be enabled.

b. Using a web browser, navigate to the IP address of the RP-IP. Include the HTTP Server Port if set to a value

other than 80 in this format: http://IP:PORT

c. Refer to the enVision Software User Manual for information regarding software operation:

http://espsurgex.com/product/envision/

enVision PCS Mode Next Gen PCS Mode

User Manual

Next Gen PCS Mode

enVision PCS Mode

2. Java Applet

a. Download and install the current JRE from: www.java.com

Java applet operation requires a computer with an operating system which supports the installation of a

Java Runtime Environment (JRE), including MS Windows, Apple OSX, and various Linux distributions.

b. Using a web browser, navigate to the IP address of the RP-IP and click the “Java Applet” link at the bottom

of the Standard pages. Include the HTTP Server Port if set to a value other than 80 in this format:

http://IP:PORT

enVision PCS Mode Next Gen PCS Mode

c. Refer to the enVision Software User Manual for information regarding software operation:

http://espsurgex.com/product/envision/

3. SNMP

a. The RP-IP and RP-IP-GNS provide monitoring and control via SNMP. The SNMP MIB may be downloaded

here: http://espsurgex.com/product/remote-portal/

4. COM Port Redirection

a. The RP-IP and RP-IP-GNS may also be used with COM Port Redirection software and the standard Next

Gen PCS and enVision PCS desktop software applications. Refer to the COM Port Redirect Application

Note here: http://espsurgex.com/product/remote-portal/

User Manual

IV. ADVANCED CONFIGURATION:

1. Advanced settings may be adjusted via Telnet on port 9999.

a. Upon establishing a connection, the following information is displayed:

*** ESP PCS ***

MAC address 0080A39C878F

Software version V6.9.0.3 (140902) CPK6903_XPT05

Press Enter for Setup Mode

b. To enter Setup Mode, press Enter within 5 seconds. The configuration settings display, followed by the

Change Setup menu:

enVision (EV) Mode

*** basic parameters

Hardware: Ethernet TPI

IP addr - 0.0.0.0/DHCP/BOOTP/AutoIP, no gateway

SNMP Manager not set

DHCP device name : not set

*** Security

SNMP is enabled

SNMP Community Name: public

Telnet Setup is enabled

TFTP Download is enabled

Port 77FEh is enabled

Web Server is enabled

Web Setup is enabled

ECHO is disabled

Enhanced Password is disabled

***************** Channel 1 *****************

Connect Mode : C0

Source Port : 10001

Destination Port : 00000

Destination IP : 0.0.0.0

CPU performance : Standard

Change Setup:

0 Server configuration

1 Channel 1 configuration

5 Debug

6 Security

7 factory defaults

8 exit without save

9 save and exit Your choice ?

c. Select an option on the menu by entering the number of the option in the Your choice ? field and pressing

Enter.

d. To enter a value for a parameter, type the value and press Enter, or to confirm a current value, just

press Enter.

e. Important: When you are finished, save the new configuration (option 9). The unit reboots.

User Manual

f. Server configuration: Allows for the configuration of the following parameters:

IP Address

Gateway IP Address

Netmask

SNMP Manager IP Address

Telnet configuration password

DHCP device name

DHCP FQDN option

g. Channel 1 configuration: Allows for the configuration of the following parameters:

Connect Mode (Do not modify. Default is C0.)

Source Port

Destination Port (Currently Unused)

Destination IP (Currently Unused)

Enable Pack Control (Do not modify. Default is No.)

Disconnect Time

h. Debug: Not intended for general use. Enables EV/XG data communication debug.

i. Security: Allows for the configuration of the following parameters:

Disable SNMP

SNMP Community Name

Disable Telnet Setup

Disable TFTP Firmware Update

Disable Port 77FEh (configuration port)

Disable Web Server

Disable Web Setup

Disable ECHO ports

Enable Enhanced Password

Use Encryption (Currently Unused)

j. Factory defaults: Reset the unit to factory defaults. Will not modify IP settings.

k. Exit without save: Exits and terminates telnet session without modifying parameters.

l. Save and exit: Stores parameters and reboots with new parameters in place.

User Manual

V. FIRMWARE UPGRADE:

1. Download and install the Lantronix Device Installer: http://www.lantronix.com/device-networking/utilities-

tools/device-installer.html

2. Download the Remote Portal firmware file (*.lxi format): http://espsurgex.com/product/remote-portal/

3. Start the Lantronix Device Installer. The RP should be automatically detected, and listed on the right side with a

name of “XPort-05”

4. Select the unit by clicking on its name, and then press the “Upgrade” button now available on the top menu bar

5. A Device Upgrade Wizard window will open

Select “Use a specific installation file…” and

then click the “Browse” button

6. Navigate to the firmware file (*.lxi), select

it, and press the “Open” button

User Manual

7. Click the “Next” button on the wizard to

begin the upgrade process

8. Close the Device Upgrade Wizard when the upload

process is complete, and then close the

Device Installer Utility

VI. SPECIFICATIONS:

Parameter

Specification

Power Requirement

RP-IP

RP-IP-GNS

5VDC, 2W

12VDC, 2W

Network Interface

RJ45 Ethernet 10BASE-T or 100BASE-TX (auto-sensing)

Protocols Supported

ARP, TCP/IP, Telnet, SNMP, DHCP, BOOTP, TFTP, Auto IP,

and HTTP

LEDs

10BASE-T & 100BASE-TX Link Activity, Full/half duplex.

EV/XG mode indicators.

Dimensions

RP-IP

RP-IP-GNS

3.38”W x 2.2” D x 0.9” H

6.5”W x 2.75” D x 1” H

Weight

RP-IP

RP-IP-GNS

0.2 lbs.

0.5 lbs.

Temperature Range

5C to 40C

Humidity Range

5% to 95% R.H. Non-condensing

Agency Listings

RP-IP

RP-IP-GNS

ETL Certified to UL 60950-1

This manual suits for next models

Table of contents

Popular Diagnostic Equipment manuals by other brands

Hella Gutmann

Hella Gutmann Mega macs X quick start guide

Foxwell

Foxwell I80TS manual

Xtool

Xtool IP819TP user manual

Hella Gutmann

Hella Gutmann mega macs 56 Bike quick start guide

Delphi

Delphi DS150E quick start guide

Velleman

Velleman VTLLAMP5WN user manual

Filtrine

Filtrine QCP Installation, operation and maintenance instructions

Launch

Launch X-431 HD Module quick start guide

Launch

Launch M-Diag Lite user guide

SinoCastel

SinoCastel IDD-213E user manual

Autel

Autel MaxiPRO MP808BT Quick reference guide

Sealey

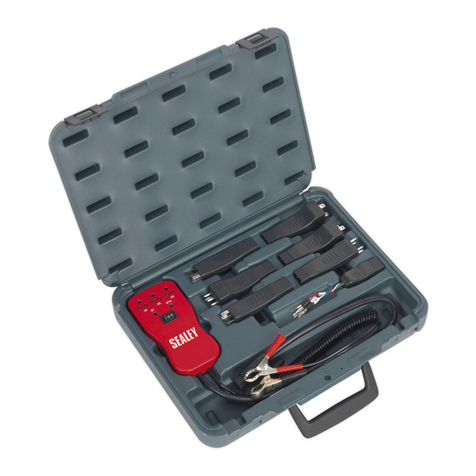

Sealey TA130 instruction manual

Siemens

Siemens Intelli-Arc instruction sheet

PCE Instruments

PCE Instruments PCE-VE 100N4 user manual

Path medical

Path medical SENTIERO HANDHELD quick start guide

Rac

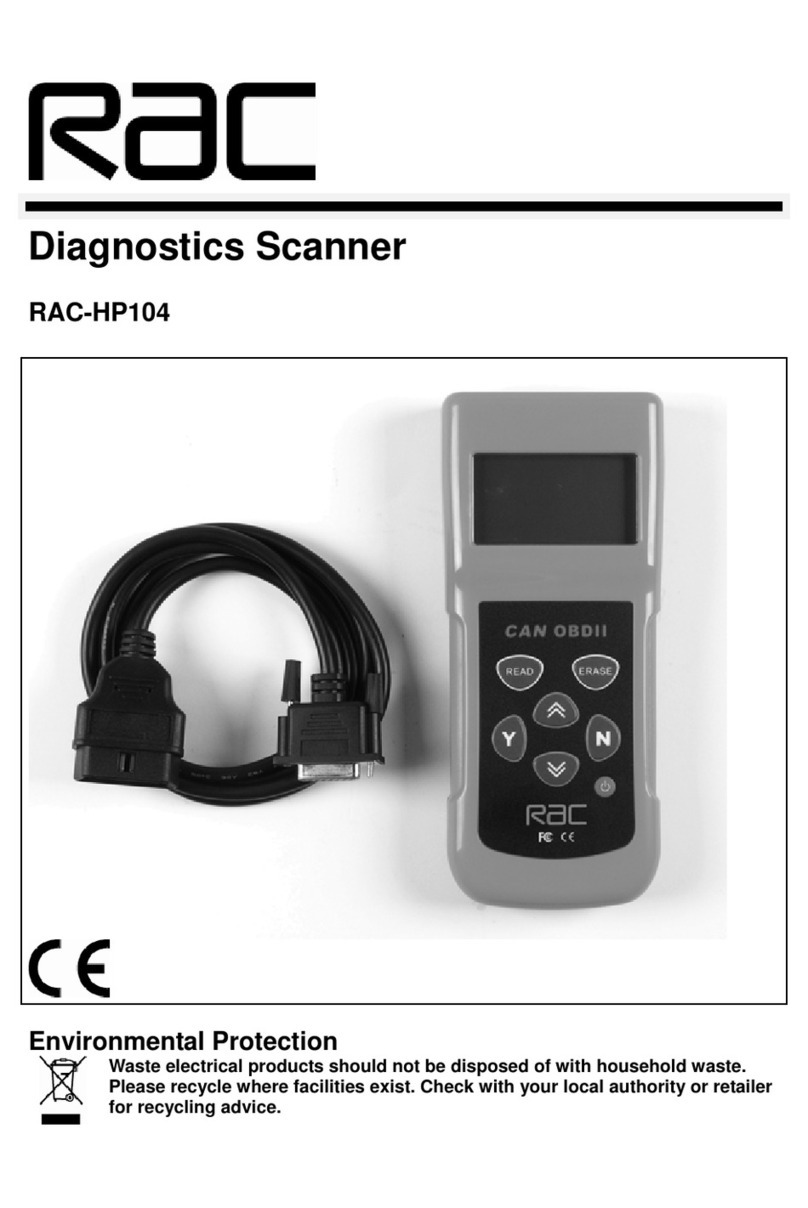

Rac RAC-HP104 manual

iCarsoft

iCarsoft CR MAX manual

Foxwell

Foxwell T2000 manual

SurgeX RP-IP User manual

Popular Diagnostic Equipment manuals by other brands
