SURJUNY W01 User manual

INSTRUCTION MANUAL
INFRARED HEATER
MODEL: W01

Installation

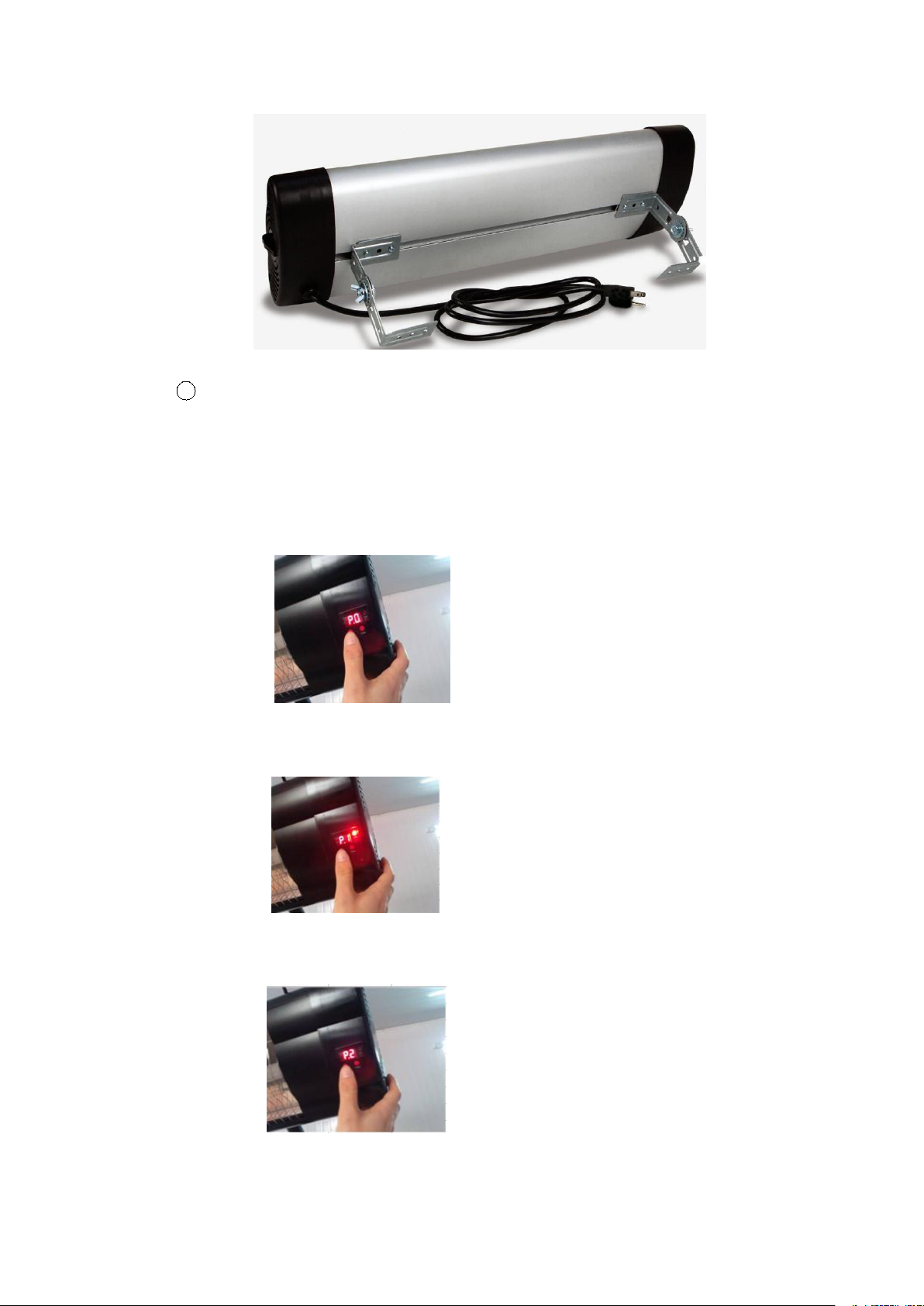

1There are 4 brackets and fasteners used with the heater. Furthermore, in the
canal of back side of the heater there are 4 square fastener washers 25×25mm.
Relieve square washers(Figure 7.1)and fasten 2 brackets to the
canal of the backside of the heater by the help of screws(Figure 7.2.)
2Fasten the brackets at the appropriate distance of each other(45-55cm)
(Figure 8).
3Two other brackets are fastened by the help of fasteners at the appropriate
distance on the wall parallel to the floor (At least 1.8 m from the floor and at least 0.5
m from the ceiling)
4Join the brackets on the heater with the brackets, fastened on the wall, with
help of figured screw-nuts.Install the heater under necessary
angle(in the direction to the area being heated).

5Electric wiring for the heater has to be done by the qualified specialist.
Operation

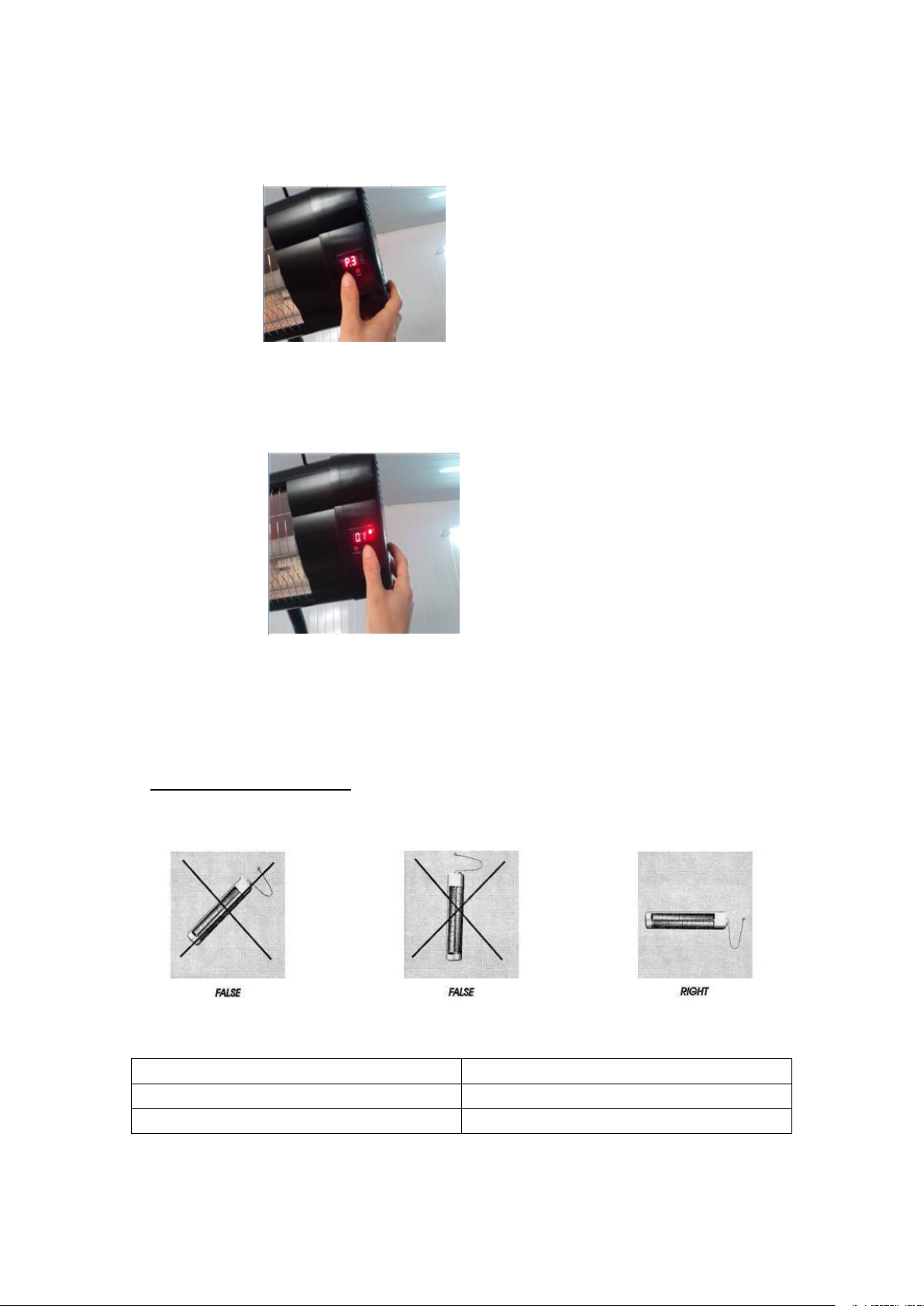

Step 1：Connect the power line and the power strip
Step 2：Press Open/Close once, the digital screen shows P.0
Step 3：Press Open/Close second, the digital screen shows P.1, the function of a file
connected
Step 4：Press Open/Close third, the digital screen shows P.2, the function of two file
connected

Step 5：Press Open/Close forth，the digital screen shows P.3, the function of three file
connected
Step 6 ：After the function is on, 1-24 hours timing shutdown can be adjusted
arbitrarily, the digital screen showing 0.1 indicates timing one hour, showing 0.2
indicates timing two hour
Application Fields
Voltage
AC110V-120V~
Frequency
50-60Hz
Electric power(W)
1500W
Remote Control
Install the heater strict in horizontal position i.e.
PARALLEL TO FLOOR
Specification

The functions of the heater may be controlled via the buttons on your remote control
and LED screen. You may also control some of the functions of your heater through
the buttons on the front side of the heater.
Operation of the Remote Control
1. Turn on the power, the buzzer on the products will beep once, the digital screen and
the indicator is no show. At this time, press On / Off button to make it in stand by
mode.
2. Press the function button to choose the power level. P0 indicator appears on the
screen, and the indicator flashes three times, indicating that the appliance is in stand
by mode. P1 indicator appears on the screen, and the indicator flashes three times,
indicating that the appliance is in low-grade mode. Press the function button again to
mid-grade, the buzzer will beep once, P2 indicator appears on the screen, and the
indicator flashes three times, indicating that the appliance is in mid-grade mode. Press
the function button again to high-grade, the beeper will beep once, P3 indicator
appears on the screen, and the indicator flashes three times, indicating that the
appliance is in high-grade mode. Press the function button again, you can choose low,
medium and high gear, P0 indicator appears on the screen, and the indicator flashes
three times, indicating that the appliance is in stand by mode. Continuously press the
function button, “P0 - P1 - P2 - P3 - P0” appears on the digital tube as a circulation ,
corresponding to the appliance mode is “Stand-by --- Low-grade--- Mid-grade---
High-grade--- Stand-by”.
3. In stand by mode, press the timer button, the appliance can set time from 1 to 24
hours. After set the time, the indicator next to the digital tube will light up, it means
that the appliance has been selected timer function. "0" indicates time not set.
4. When the appliance is on working, the digital screen always shows the power state
(P1-P2-P3). The timer setting, when the indicator lights up, it means that the machine
has been set a timer function from 1 to 24 hours. To view the regular time, press the
timer button, the appearing time is the present setting time, at this time the indicator
also flashes three times continuously, indicating that the appliance enters into the
timer setting state.
Maintenance

1- Check the filthiness of the Reflector and IR-Filament at least once a month. If
necessary, apply cleaning and maintenance instructions.
2- The number of checks may be increased considering the amount of the dust in the
environment.
3- Check the deformation of the Reflector, Wire and Frame visually while cleaning
the appliance. In case of any deformation, consult to your technical service.
4- Check the power cord and plug visually while cleaning the appliance. In case of
any deformation, consult to your technical services.
5- It is recommended to change the reflector every 2 years for the purpose of more
efficient operation of you appliance.
1- Unplug your power cord for your safety before cleaning your appliance.
2- Take out the front grid wire through the inlets on the frame using a slotted
screwdriver.
3- Make sure that the power is off for your safety. Power cord plug must be
unplugged.
4- The reflector and filament must be cleaned with a soft cloth, a smooth brush or
cool or dry air. The cloth may be damp but never too wet and the cleaner should
not include any chemical.
5- Refrain from using cleaning material likely to damage the reflector (cleanser etc.).
6- Insert the wire grid using a slotted screwdriver.
This symbol on the product or its packaging indicates that the appliance
cannot be treated as normal domestic trash, but must be handed in at a
collection point for recycling electric and electronic appliances.
Your contribution to the correct disposal to the product protects the
environment and the health of your fellow men. Health and the environment are
endangered by incorrect disposal. Further information about recycling of this product
can be obtained from your local town hall, your refuse collection service, or in the
store at which you bought the product.
Any questions, please contact us through Amazon message or send us an email to
[email protected]. We will reply as soon as we can and solve your
concerns. Enjoy the heater! Thanks.
