ENGINE MECHANICAL (K9K ENGINE) 6A2-5
4) Install special tools (Oil pressure gauge) to vacated threaded
hole.
Special tool
(A): 09915-77311
(B): 09915-77420
(C): 09915-77430
5) Start engine and warm it up to normal operating tempera-
ture.
6) After warming up, measure oil pressure.
Oil pressure specification:
100 – 140 kPa (1.0 – 1.4 kg/cm2, 14.2 – 20.0 psi) at idle
speed
330 – 370 kPa (3.3 – 3.7 kg/cm2, 46.9 – 52.5 psi) at 3,000 r/
min
7) Stop engine and remove oil pressure gauge and attachment.
8) Reinstall oil pressure switch (1), and tighten switch to speci-
fied torque.
Tightening torque
Oil pressure switch (a): 35 N·m (3.5 kg-m, 25.5 lb-ft)
9) Connect oil pressure switch coupler (2).
10) Install degassing tank to its bracket.
11) Start engine and check oil pressure switch for oil leakage.
If oil leakage is found, repair it.
CAUTION:
Be careful not to make special tool touch exhaust mani-
fold when installing because exhaust manifold becomes
very hot.
(A)
(B)
(C)
NOTE:
Be sure to place transmission gear shift lever in “Neu-
tral” and set parking brake and block drive wheels.
1, (a) 2

6A2-6 ENGINE MECHANICAL (K9K ENGINE)
Valve Lash (Clearance)
Measurement of valve lash (clearance)
1) Disconnect negative (–) cable at battery.
2) Remove cylinder head cover referring to “Cylinder Head
Cover Removal and Installation” in this section.
3) Turn crankshaft pulley clockwise until cam lobes become
perpendicular to tappet faces at valves “1” and “6” as shown
in figure.

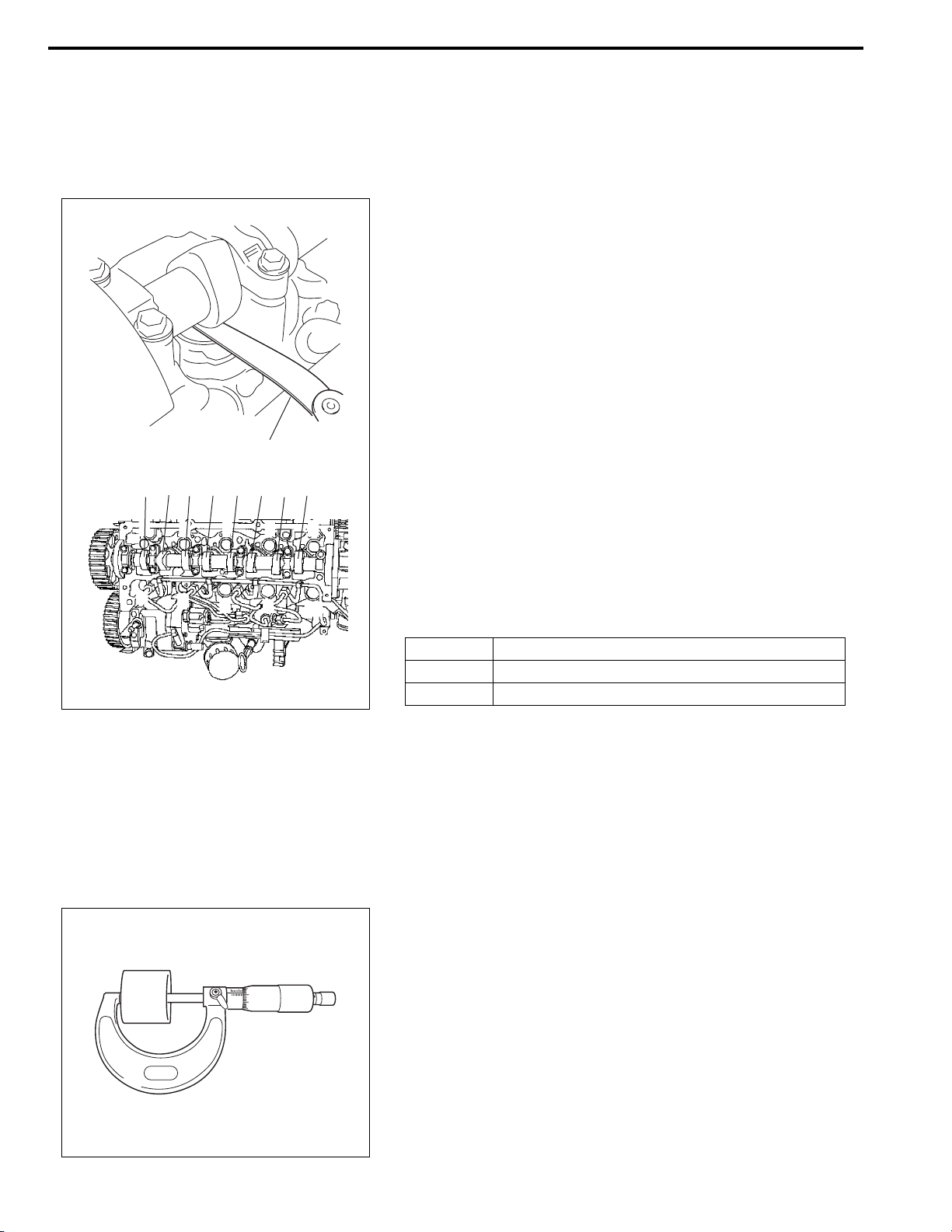

4) Measure valve lashes with thickness gauge (1) according to
the following procedure.
a) Check valve lashes at valves “1” and “6”.
b) Turn camshaft by 90°(by turning crankshaft with wrench).
c) Make sure that cam lobes are perpendicular to tappet faces
at valves to be checked (in this case, “5” and “8”), if not,
adjust it by turning crankshaft. Check valve lashes.
d) In the same manner as b) – c), check valve lashes at valves
“4” and “7”.
e) In the same manner as b) – c), check valve lashes at valves
“2” and “3”.
If valve lash (clearance) is out of specification, record valve lash
(clearance) and adjust it to specification by replacing tappet.
Refer to “Replacement of tappet” under “Valve Lash (Clearance)”
in this section.
Valve lash (clearance) specification
Replacement of tappet
1) Measure valve lashes referring to “Measurement of Valve
Lash (Clearance)” under “Valve Lash (Clearance)” in this
section.
2) Remove tappet referring to “Camshaft and Tappet” in this
section.
3) Using micrometer, measure the thickness of the removed
tappet, and determine replacement tappet by calculating the
thickness of new tappet with the following formula and table.
Intake side
A = B + C – 0.1875 mm (0.007382 in.)
Exhaust side
A = B + C – 0.3875 mm (0.015256 in.)
A: Thickness of new tappet
B: Thickness of removed tappet
C: Measured valve lash (clearance)
When cold
Intake 0.125 – 0.250 mm (0.00493 – 0.00984 in.)
Exhaust 0.325 – 0.450 mm (0.01280 – 0.01771 in.)
1
"1" "2" "3" "4" "5" "6" "7" "8"

ENGINE MECHANICAL (K9K ENGINE) 6A2-7
Example of intake side:
When thickness of removed tappet is 7.8875 mm (0.310531 in.),
and measured valve lash (clearance) is 0.200 mm (0.00787 in.).
A = 7.8875 mm (0.310531 in.) + 0.200 mm (0.00787 in.) –0.1875
mm (0.007382 in.) = 7.900 mm (0.31102 in.)
Calculated thickness of new tappet = 7.900 mm (0.31102 in.)

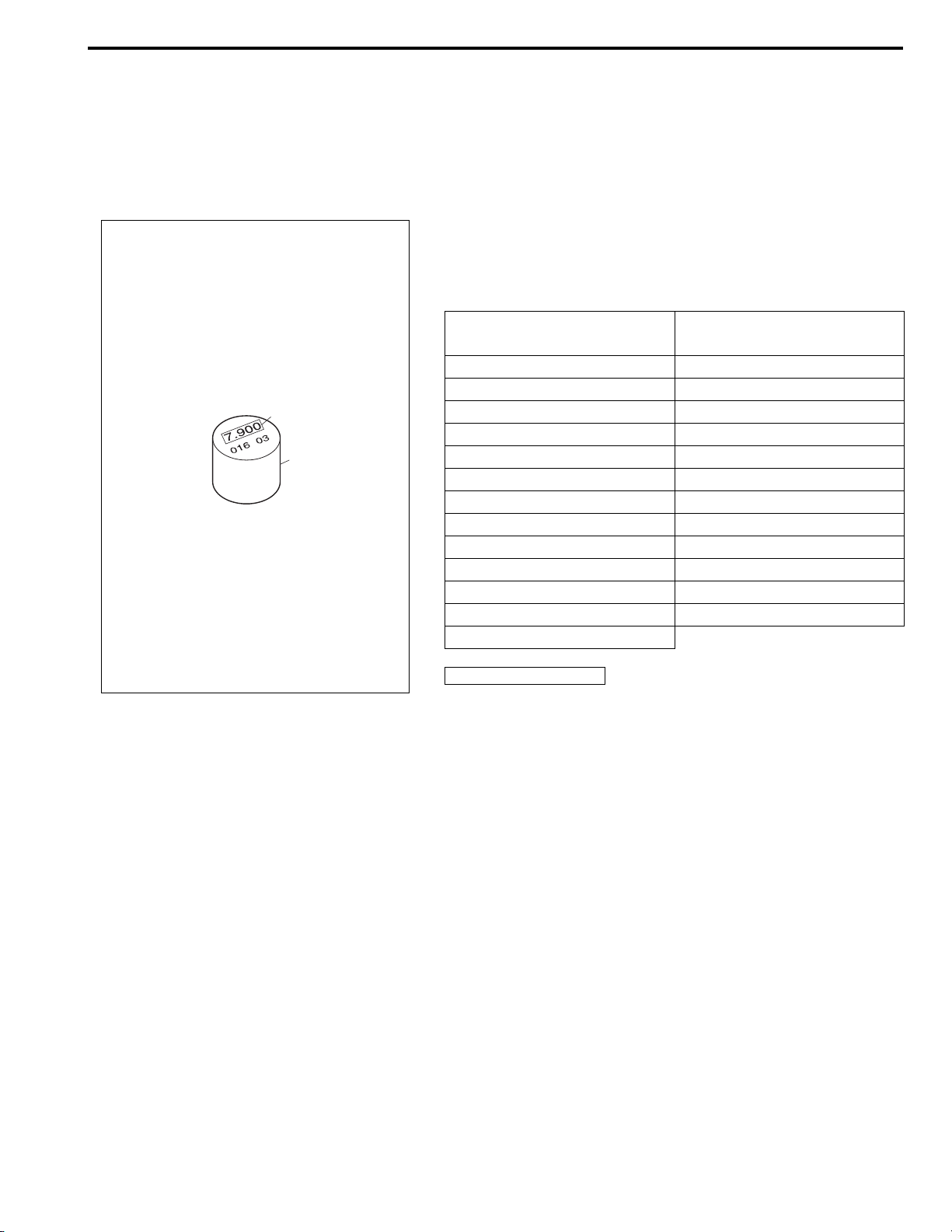

4) Select new tappet (1) with a thickness as close as possible
to calculated value.
Available new tappets
5) Install new tappet and camshaft referring to “Camshaft and
Tappet Removal and Installation” in this section.
6) Measure valve lashes again referring to “Measurement of
Valve Lash (Clearance)” under “Valve Lash (Clearance)” in
this section.
7) Install cylinder head cover referring to “Cylinder Head Cover
Removal and Installation” in this section.
Thickness
mm (in.) Thickness mm (in.)
7.550 mm (0.29724 in.) 7.875 mm (0.31004 in.)
7.575 mm (0.29823 in.) 7.900 mm (0.31102 in.)
7.600 mm (0.29921 in.) 7.925 mm (0.31201 in.)
7.625 mm (0.30020 in.) 7.950 mm (0.31299 in.)
7.650 mm (0.30118 in.) 7.975 mm (0.31398 in.)
7.675 mm (0.30217 in.) 8.000 mm (0.31496 in.)
7.700 mm (0.30315 in.) 8.025 mm (0.31595 in.)
7.725 mm (0.30413 in.) 8.050 mm (0.31693 in.)
7.750 mm (0.30512 in.) 8.075 mm (0.31791 in.)
7.775 mm (0.30610 in.) 8.100 mm (0.31890 in.)
7.800 mm (0.30709 in.) 8.125 mm (0.31988 in.)
7.825 mm (0.30807 in.) 8.150 mm (0.32087 in.)
7.850 mm (0.30906 in.)
2. Tappet thickness
2
1

6A2-8 ENGINE MECHANICAL (K9K ENGINE)
Repair Instructions
Air Cleaner Filter Removal and Installation
Removal

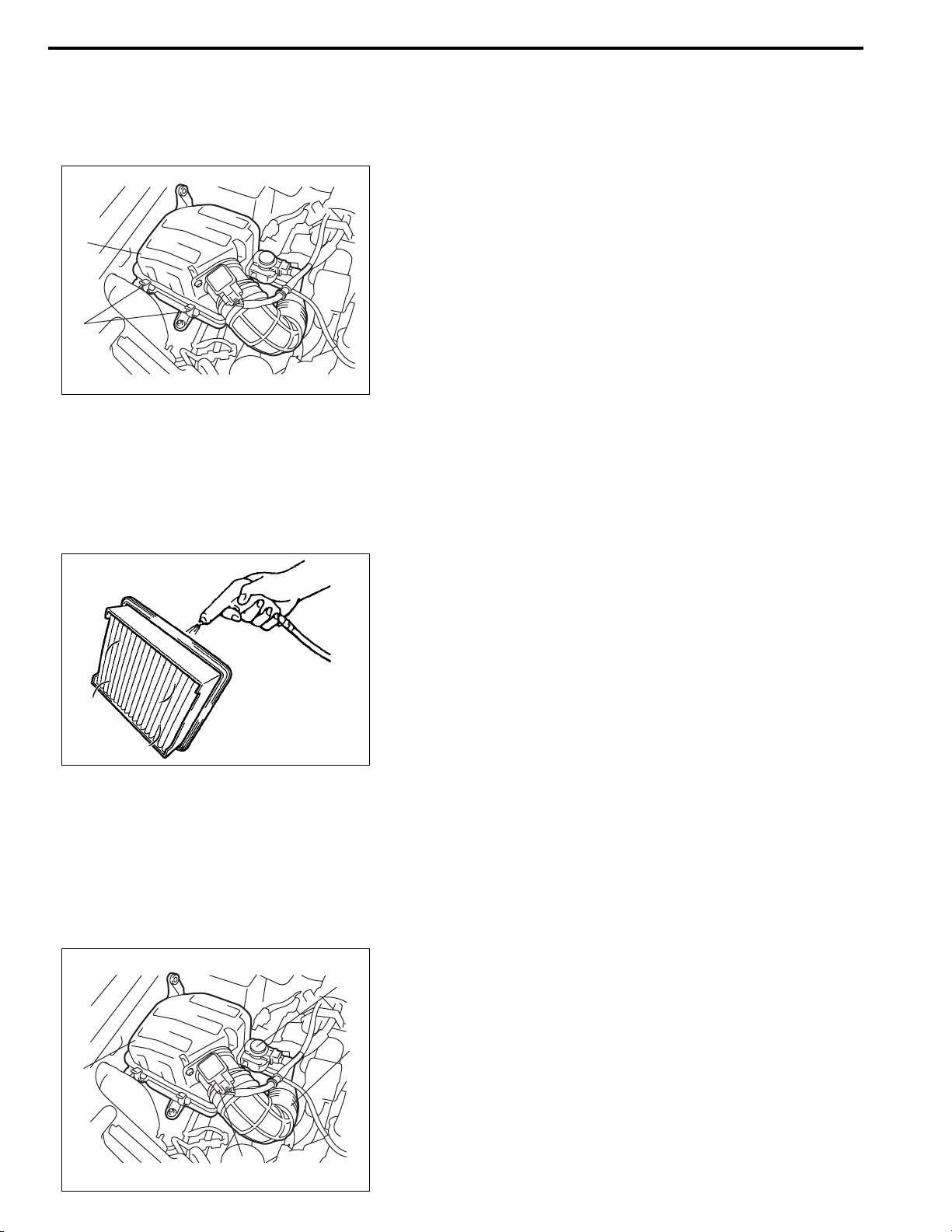

1) Open air cleaner case (2) unhooking its clamps (1).
2) Remove air cleaner filter from case.
Installation
Reverse removal procedure for installation.
Air Cleaner Filter Inspection and Cleaning
Inspection
Check filter for dirt. Replace if excessively dirty filter.
Cleaning
When cleaning filter, blow off dust by compressed air from air out-
let side of filter. (i.e., the side facing up when installed in air
cleaner case.)
Air Cleaner Assembly Removal and Installa-
tion
Removal
1) Disconnect negative (–) cable at battery.
2) Remove boost pressure control solenoid valve (4) from air
cleaner assembly.
3) Disconnect MAF and IAT sensor connector (1).
4) Disconnect air cleaner outlet hose (2) from air cleaner
assembly (3).
5) Remove air cleaner assembly from vehicle.
2
1
3
1
2
4

ENGINE MECHANICAL (K9K ENGINE) 6A2-9
Installation
Reverse removal procedure for installation noting the following.
• Tighten air cleaner outlet hose clamp (1) to specified torque.
Tightening torque
Air cleaner outlet hose clamp (a):
2.5 N·m (0.25 kg-m, 2.0 lb-ft)

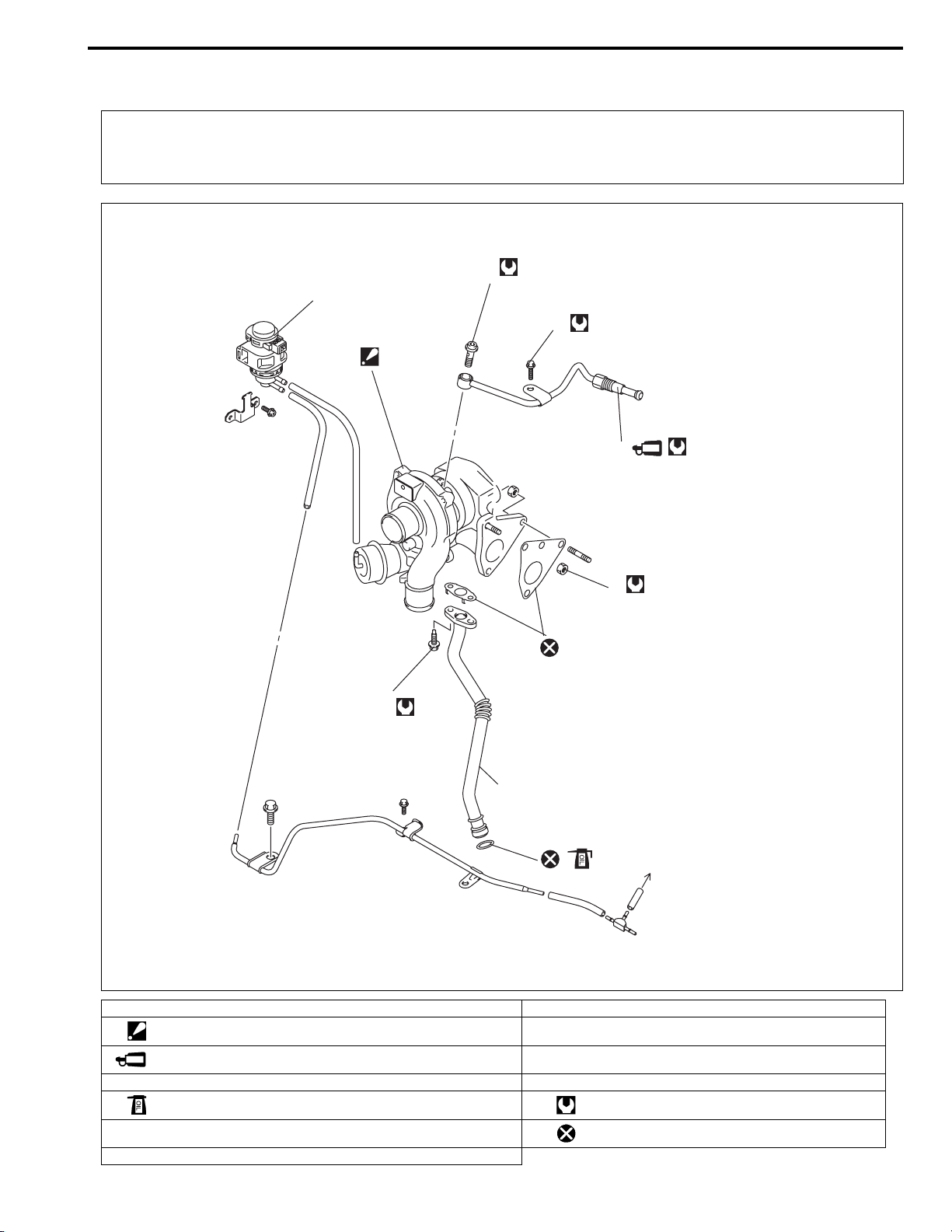

Intercooler Components
1, (a)
1. Intercooler 8. Intercooler bracket bolt
2. Intercooler bracket 9. Intercooler hose clamp No.1
3. Intercooler hose clamp 10. Intercooler hose clamp No.2
4. Intercooler outlet hose No.1 11. Intercooler outlet pipe bolt
5. Intercooler inlet hose Tightening torque
6. Intercooler outlet pipe
7. Intercooler outlet hose No.2
7
6
10
5
9
3
4
1
2
8
8
11
25 N·m (2.5 kg-m)
28 N·m (2.8 kg-m)
25 N·m (2.5 kg-m)
4 N·m (0.4 kg-m)
5 N·m (0.5 kg-m)
4 N·m (0.4 kg-m)
9

6A2-10 ENGINE MECHANICAL (K9K ENGINE)
Intercooler Removal and Installation
Removal
1) Remove front bumper.
2) Remove intercooler inlet hose (1) and outlet hose (2) from
intercooler.
3) Remove intercooler (3) and its bracket (4).
Installation
Reverse removal procedure for installation noting the following.

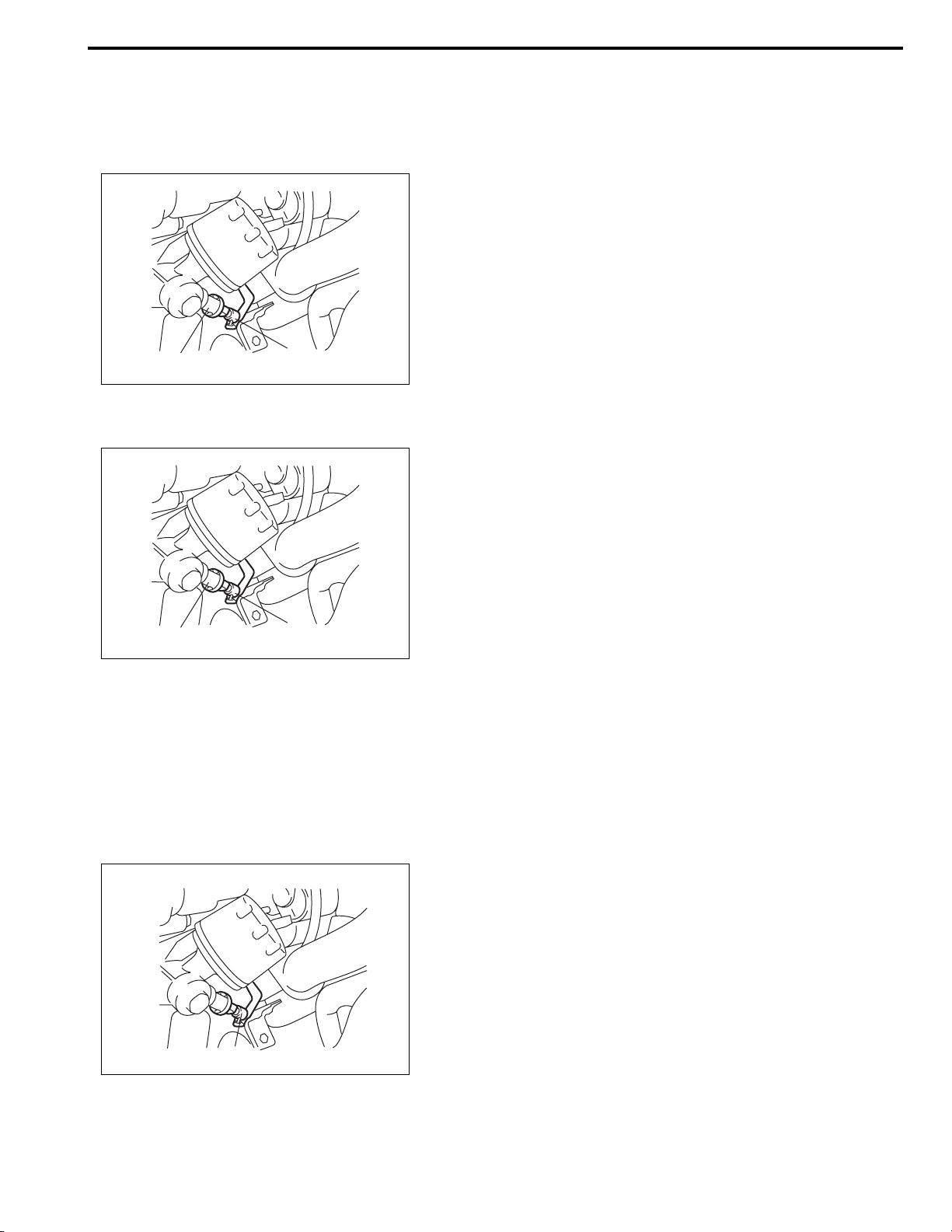

• Install intercooler hose clamp (1) in specified direction as
shown in figure.
• Tighten intercooler bracket bolts and intercooler hose
clamps (1) to specified torque.
Tightening torque
Intercooler bracket bolt: 25 N·m (2.5 kg-m, 18.0 lb-ft)
Intercooler hose clamp No.1 (a): 4 N·m (0.4 kg-m, 3.0 lb-ft)
• Install front bumper.
2
1
3
4
[A]: Upper side
1, (a)

ENGINE MECHANICAL (K9K ENGINE) 6A2-11

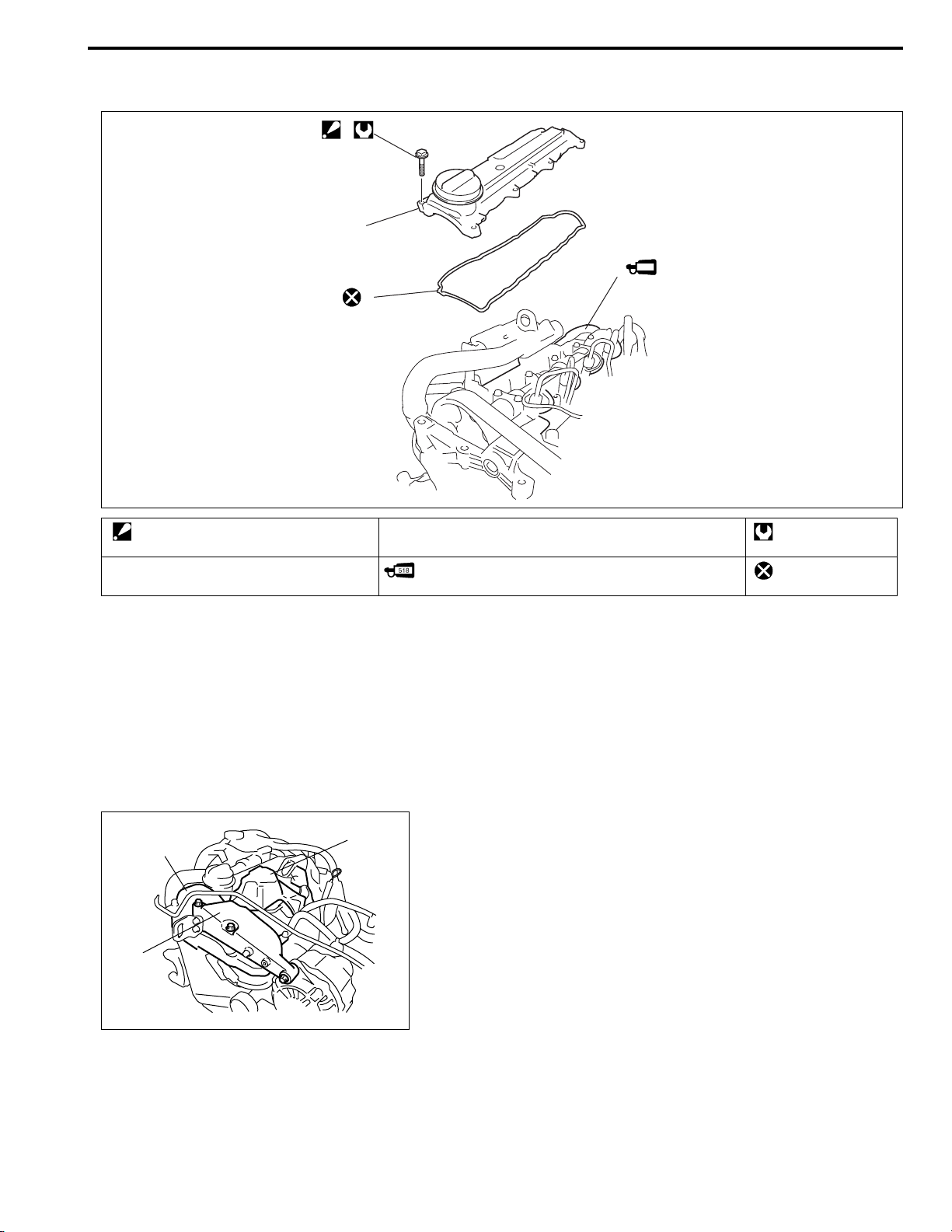

Cylinder Head Cover Components
Cylinder Head Cover Removal and Installa-
tion
Removal
1) Disconnect negative (–) cable at battery.
2) Remove drive belt referring to “Generator Drive Belt
Removal and Installation” in Section 6H2.
3) Remove injector cover (1), generator upper bracket (2), tim-
ing belt upper cover (3) and injector return hose cover .
4) Disconnect breather hose from cylinder head cover.
1. Cylinder head cover bolt
: Tighten 12 N·m (1.2 kg-m, 9.0 lb-ft) by
the specified procedure.
3. Cylinder head cover gasket Tightening torque
2. Cylinder head cover 4. Cylinder head
: Apply Loctite 518® referring to “Installation” under “Cylin-
der Head Cover Removal and Installation”. Do not reuse.
1
2
3
4518
1
2
3

6A2-12 ENGINE MECHANICAL (K9K ENGINE)
5) Loosen cylinder head cover bolts in such order (“1” to “8”) as
shown in the figure and remove them.
6) Remove cylinder head cover (1).
Installation
1) Remove oil, old sealant and dust from sealing surfaces. After
cleaning, apply sealant “A” to cylinder head sealing surface
area as shown in the figure.
“A”: Loctite 518®
2) Install cylinder head cover to cylinder head as follows.
a) Fit cylinder head cover to cylinder head with new gasket.
b) Tighten cylinder head cover bolts temporarily by hand.
c) Tighten cylinder head cover bolts specified torque by
numerical order as shown in figure.
Tightening torque
Cylinder head cover bolt (a):
Tighten 12 N·m (1.2 kg-m, 9.0 lb-ft) by the specified proce-
dure
3) Connect breather hose to cylinder head cover.
4) Install injector return hose cover, timing belt upper cover (1),
generator upper bracket (2) and injector cover (3).
Tightening torque
Generator upper bracket bolt (a):
40 N·m (4.0 kg-m, 29.0 lb-ft)
5) Install drive belt referring to “Generator Drive Belt Removal
and Installation” in Section 6H2.
6) Connect negative (–) cable at battery.
“1” “5”
“8” “4”
“2” “6”
“7” “3”
1
“a”: 2 mm (0.08 in.)
“A”
“A”
“A” “a”
“1”, (a) “5”, (a)
“8”, (a) “4”, (a) “2”, (a) “6”, (a)
“7”, (a) “3”, (a)
3
2
1
(a)

ENGINE MECHANICAL (K9K ENGINE) 6A2-13
Oil Pressure Switch Removal and Installation
Removal
1) Disconnect negative (–) cable at battery.
2) Detach degassing tank from its bracket.
3) Disconnect oil pressure switch connector (1).
4) Remove oil pressure switch (2).
Installation
1) Install oil pressure switch (1) with new gasket.
2) Tighten oil pressure switch (1) to specified torque.
Tightening torque
Oil pressure switch (a): 35 N·m (3.5 kg-m, 25.5 lb-ft)
3) Connect oil pressure switch connector (2).
4) Install degassing tank to its bracket.
5) Start engine and check for oil leakage.
Heat Exchanger Removal and Installation
Removal

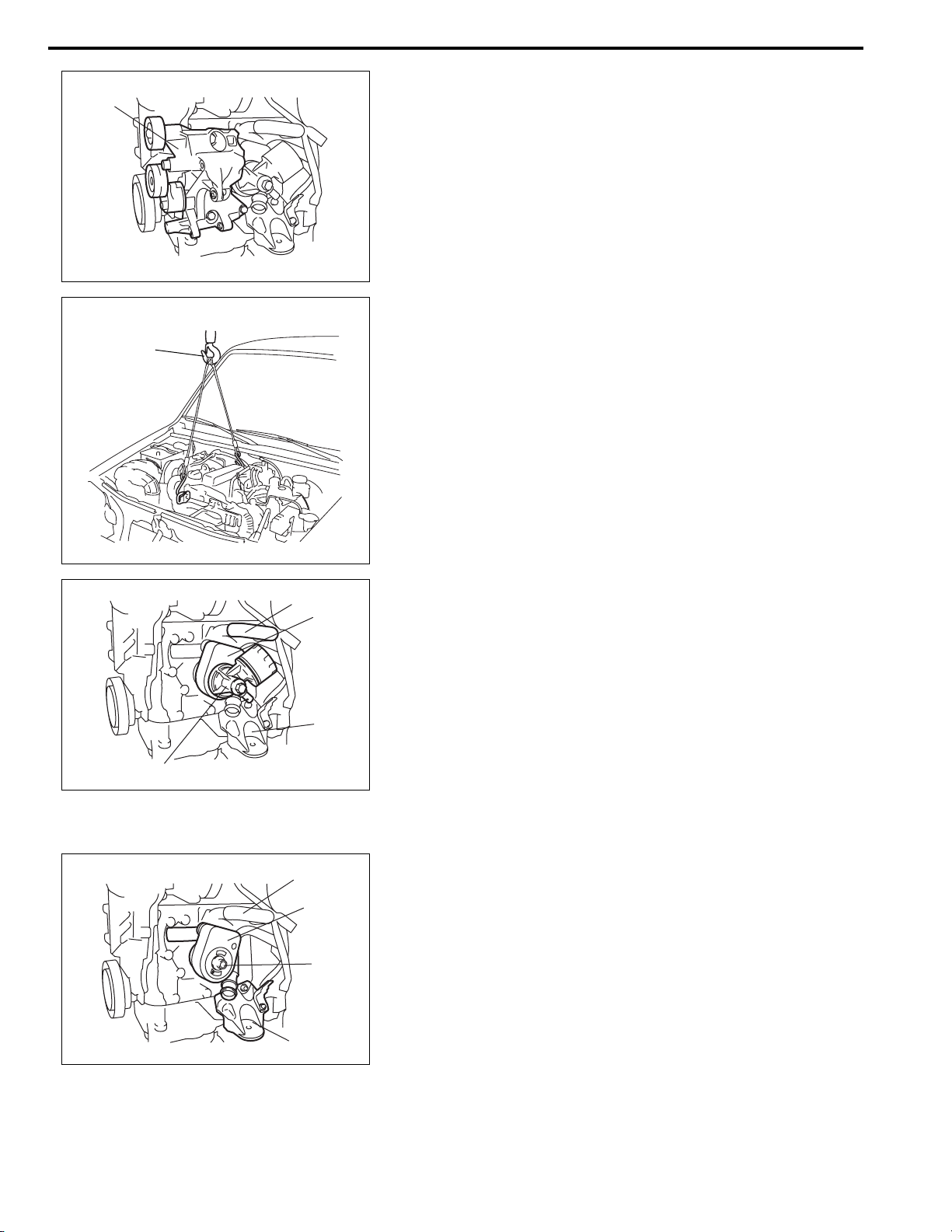

1) Disconnect negative (–) cable at battery.
2) Drain engine coolant referring to “Coolant Replacement” in
Section 6B2.
3) Detach degassing tank from its bracket.
4) Disconnect oil pressure switch connector (1).
5) Remove generator referring to “Generator Dismounting and
Remounting” in Section 6H2.
6) Remove compressor referring to “Compressor” in Section
1B.
7) Remove radiator outlet hose.
21
1, (a) 2
1

6A2-14 ENGINE MECHANICAL (K9K ENGINE)
8) Remove compressor bracket (1).
9) Install lifting device (1).
10) Remove oil filter unit bracket (1).
11) Disconnect heat exchanger hose (4).
12) Remove engine left mounting bracket (2), and then remove
heat exchanger (3).
Installation
1) Install heat exchanger (1) with new gasket.
Tightening torque
Heat exchanger bolt (a): 45 N·m (4.5 kg-m, 32.5 lb-ft)
2) Install engine left mounting bracket (2) referring to “Main
Bearings, Crankshaft and Cylinder Block Removal and
installation” in this section.
3) Connect heat exchanger hose (3).
1
1
43
2
1
3
1
(a)
2

ENGINE MECHANICAL (K9K ENGINE) 6A2-15
4) Install oil filter unit bracket (1) as shown in figure.
Tightening torque
Oil filter unit bracket bolt (a): 45 N·m (4.5 kg-m, 32.5 lb-ft)
5) Install generator and compressor bracket (1) referring to
“Generator Drive Belt Tensioner Components” in section
6H2.
6) Install compressor referring to “Compressor” in Section 1B.
7) Install generator referring to “Generator Dismounting and
Remounting” in Section 6H2.
8) Connect oil pressure switch connector (1).
9) Install degassing tank to its bracket.
10) Refill engine coolant referring to “Coolant Replacement” in
section 6B2.
11) Check engine oil level referring to “Engine Oil and Filter” in
Section 0B.
12) Check to make sure that there is no oil leakage and coolant
leakage at each connection.
NOTE:
Be sure to align lug (2) of oil filter unit bracket (1) with
hole (3) of heat exchanger (4).
1
(a)
23
4
1
1
1

6A2-16 ENGINE MECHANICAL (K9K ENGINE)

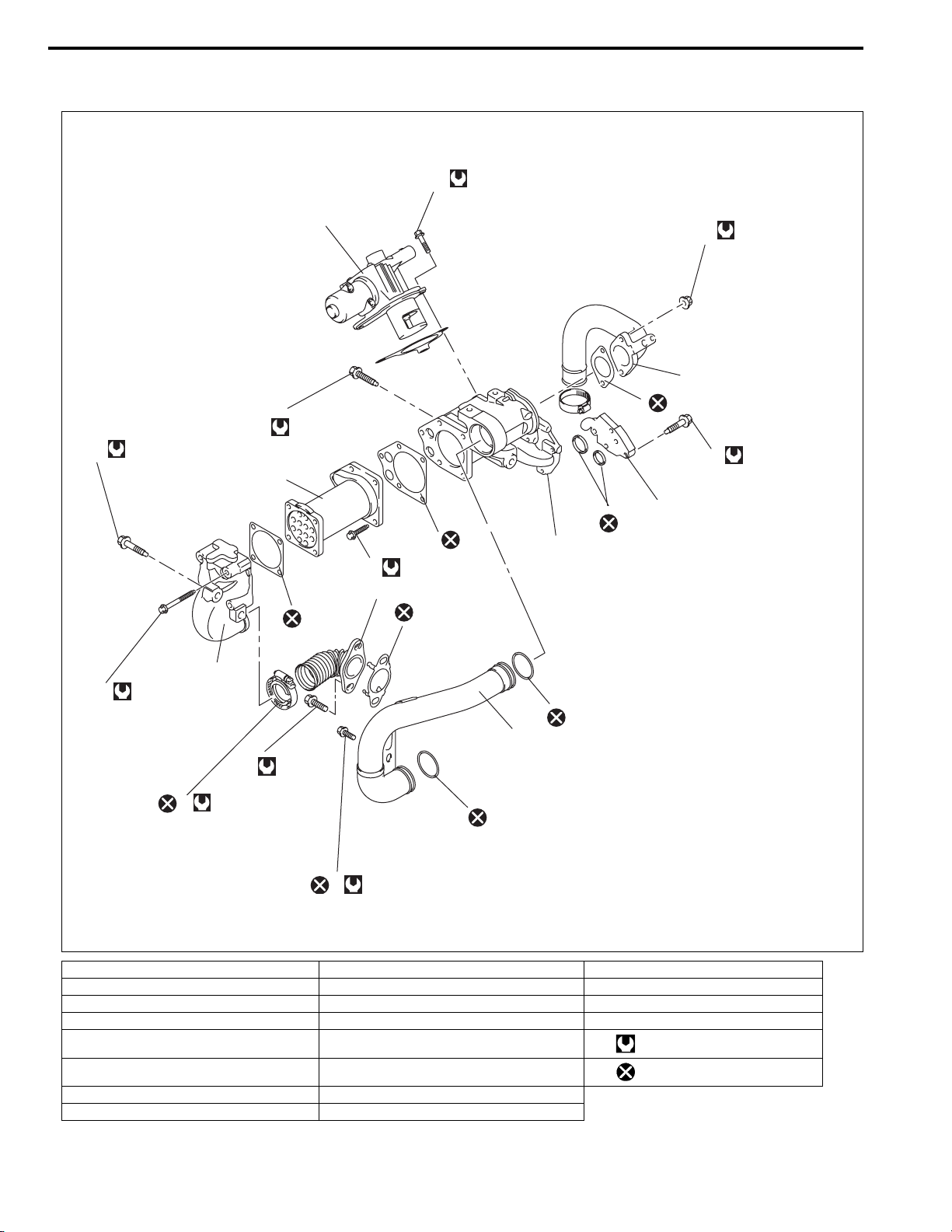

EGR Valve and Intake Pipe Components
1. EGR pipe 9. EGR pipe clamp 17. EGR valve body bolt
2. EGR cooler pipe 10. Gasket 18. Intake pipe No.1
3. EGR cooler 11. EGR cooler pipe bolt 19. Intake No.1 nut
4. Intake pipe No.2 12. EGR cooler bolt 20. O-ring
5. EGR valve body 13. Intake pipe No.2 bolt Tightening torque
6. EGR cooler water pipe 14. EGR valve bolt Do not reuse.
7. EGR valve 15. EGR cooler water pipe bolt
8. EGR pipe bolt 16. EGR cooler pipe bolt
7
14 12 N·m (1.2 kg-m)
21 N·m (2.1 kg-m)
21 N·m (2.1 kg-m)
16
17
19 11 N·m (1.1 kg-m)
18
15 12 N·m (1.2 kg-m)
6
20
5
3
11 12 N·m (1.2 kg-m)
2
1
842 N·m
(4.2 kg-m)
95 N·m (0.5 kg-m)
13 10N·m (1.0 kg-m)
20
420
12 12 N·m (1.2 kg-m)
10
10
10
10

ENGINE MECHANICAL (K9K ENGINE) 6A2-17
EGR Valve and Intake Pipe Removal and
Installation
Removal
1) Disconnect negative (–) cable at battery.

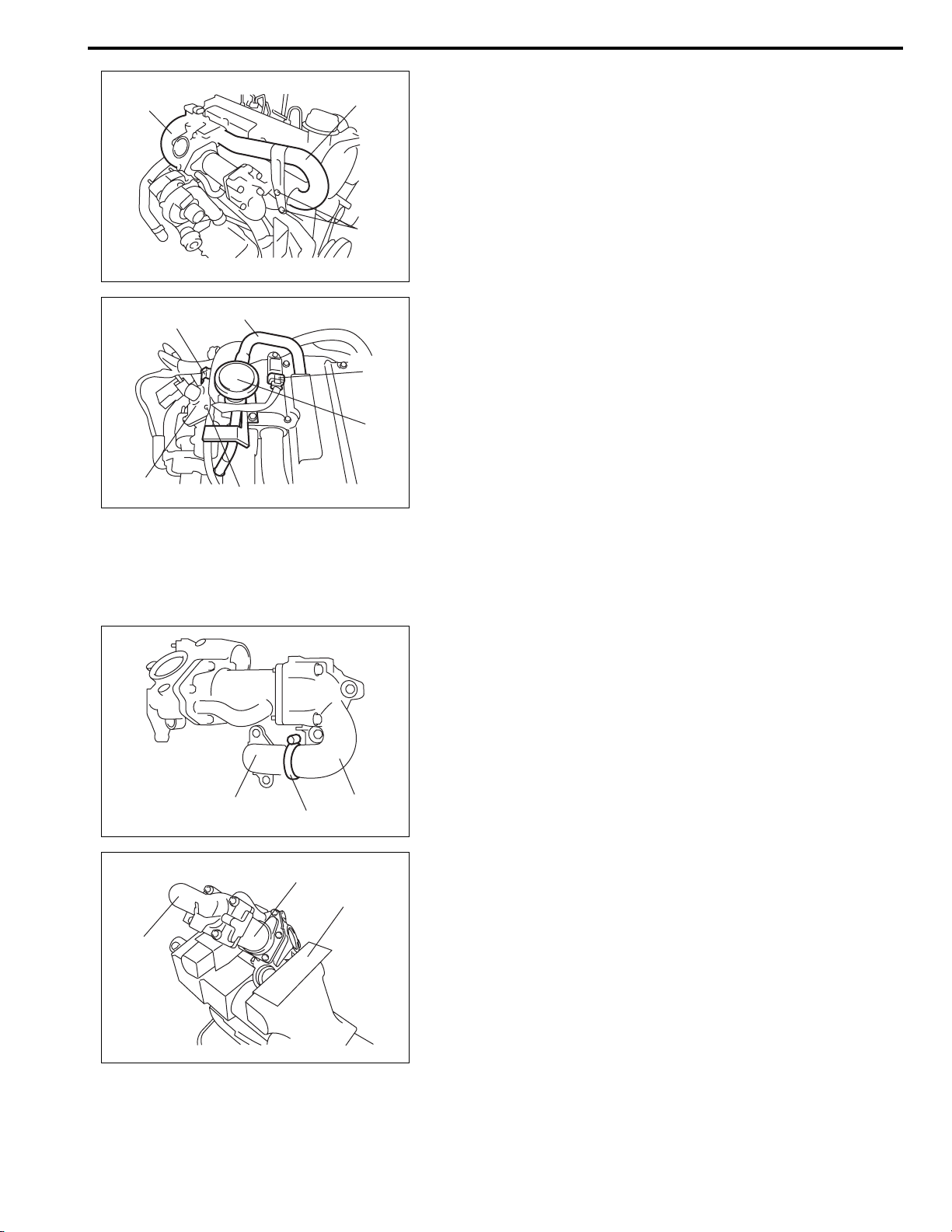

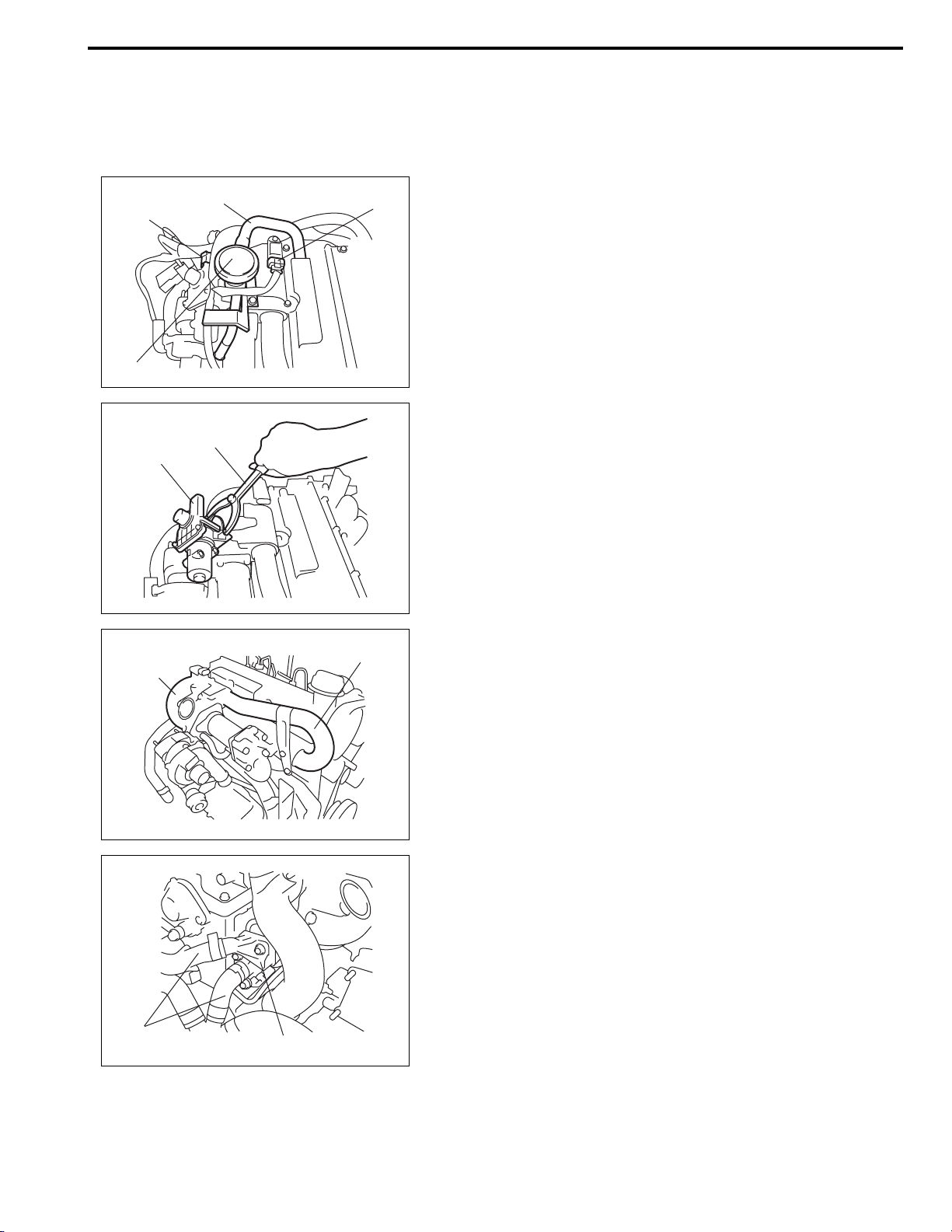

2) Disconnect EGR valve connector (1) and boost pressure
sensor connector (2).
3) Disconnect hose (3) from oil vapor recirculation valve (4),
and then remove oil vapor recirculation valve.
4) Remove EGR valve (1) with gasket using special tool.
Special tool
(A): 09916-48130
5) Remove intake pipe No.1 (1) and No.2 (2).
6) Disconnect hoses (2) from EGR cooler water pipe (1), and
then remove EGR cooler water pipe.
132
4
1
(A)
12
21

6A2-18 ENGINE MECHANICAL (K9K ENGINE)

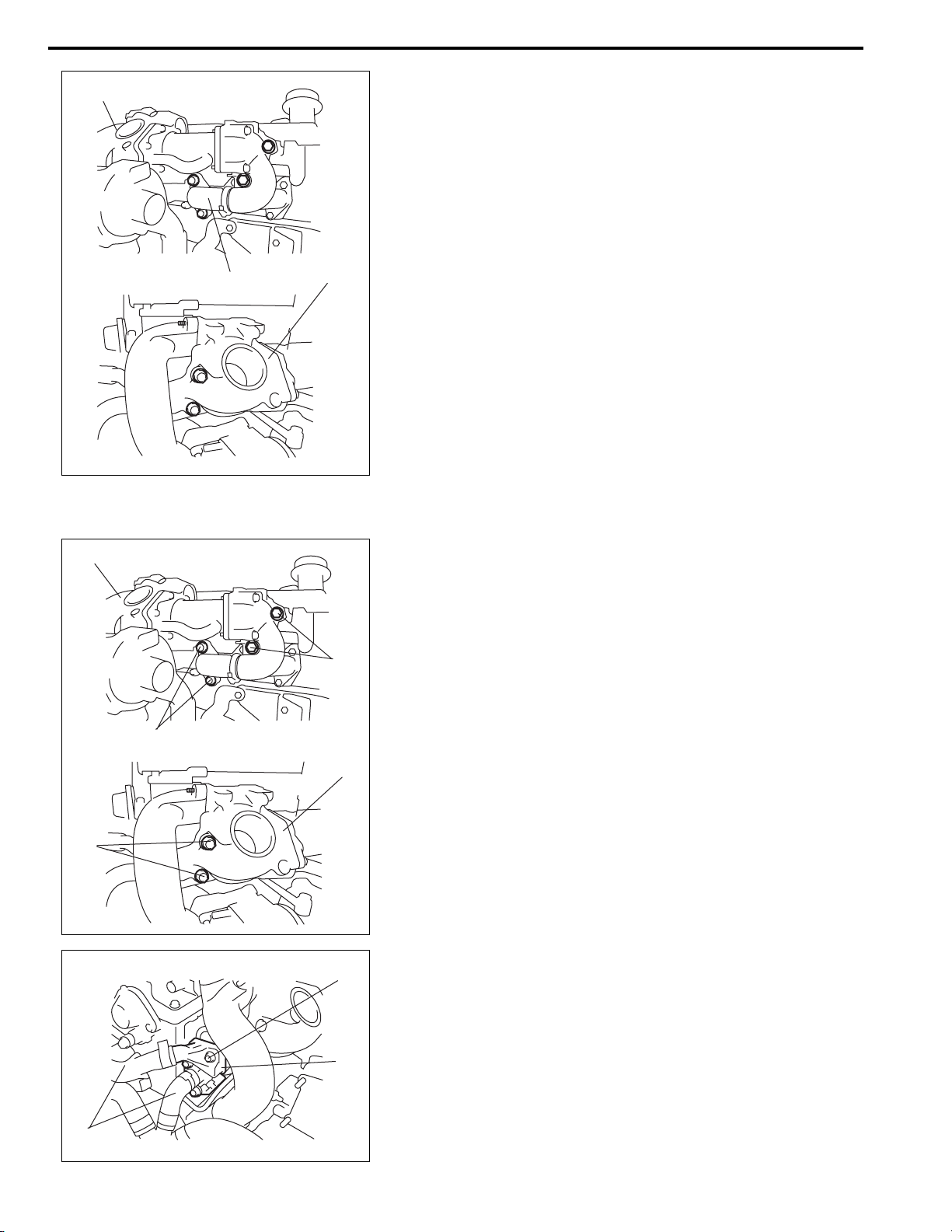

7) Remove EGR valve body (1) with EGR pipe (2).
Installation
1) Install EGR valve body assembly (1) with new gasket and
EGR pipe bolt.
Tightening torque
EGR pipe bolt (a): 42 N·m (4.2 kg-m, 30.5 lb-ft)
EGR cooler pipe bolt (b): 21 N·m (2.1 kg-m, 15.5 lb-ft)
EGR valve body bolt (c): 21 N·m (2.1 kg-m, 15.5 lb-ft)
2) Install EGR cooler water pipe assembly (1), and then con-
nect hoses (2) to EGR cooler water pipe assembly.
Tightening torque
EGR cooler water pipe assembly bolt (a):
12 N·m (1.2 kg-m, 9.0 lb-ft)
1
21
1
(b)
(a)
(c)
1
(a)
1
2

ENGINE MECHANICAL (K9K ENGINE) 6A2-19
3) Install intake pipe No.1 with new gasket.
Tightening torque
Intake pipe No.1 nut: 11 N·m (1.1 kg-m, 8.0 lb-ft)
4) Apply engine oil to new O-ring, and install intake pipe No.2
(2) with new O-ring.
Tightening torque
Intake pipe No.2 bolt (a): 10 N·m (1.0 kg-m, 7.5 lb-ft)
5) Install EGR valve (1) with new gasket.
Tightening torque
EGR valve bolt (a): 12 N·m (1.2 kg-m, 9.0 lb-ft)
6) Install oil vapor recirculation valve (5), and then connect
hose (2) to oil vapor recirculation valve.
7) Connect EGR valve connector (3) and boost pressure sen-
sor connector (4).
8) Connect negative (–) cable at battery.
EGR Valve Disassembly and Reassembly
Disassembly
1) Remove clamp (1) and EGR pipe (2) from exhaust gas
cooler pipe (3).
2) Hold EGR valve body with soft jawed vise (1), and remove
exhaust gas cooler (2) with gasket.
3) Remove EGR cooler (3) with gasket.
2
(a)
1
2
3
4
5
(a)
1
213
2
3
1

6A2-20 ENGINE MECHANICAL (K9K ENGINE)
Reassembly
1) Hold EGR valve body with soft jawed vise (1), and install
EGR cooler (3) with new gasket.
2) Install EGR cooler pipe (2) with new gasket.
Tightening torque
EGR cooler bolt (a): 12 N·m (1.2 kg-m, 9.0 lb-ft)
EGR cooler pipe bolt (b): 12 N·m (1.2 kg-m, 9.0 lb-ft)
3) Install EGR pipe (1) to EGR cooler pipe (2), and then install
EGR pipe clamp (3).
Tightening torque
EGR pipe clamp (a): 5 N·m (0.5 kg-m, 4.0 lb-ft)
EGR Valve and Intake Pipe Inspection
EGR valve body
Check inside (1) of EGR valve body (2) for wear or damaged.
EGR valve
Refer to “EGR Valve Inspection” in Section 6E2.
2
(b)
(a)
31
13, (a) 2
1
2

ENGINE MECHANICAL (K9K ENGINE) 6A2-21
Turbocharger Components
WARNING:
To avoid danger of being burned, do not service exhaust system while it is still hot. Service should be
performed after system cools down.
1. Turbocharger oil return pipe 8. Turbocharger nut
2. Turbocharger
Do not disassemble. 9. Turbocharger oil return bolt
3. Lubrication pipe
: Apply thread lock LOCTITE FRENETANCH® to thread part. 10. Boost pressure control solenoid valve
4. Gasket 11. To vacuum pump
5. O-ring
: Apply engine oil. Tightening torque
6. Lubrication pipe union bolt Do not reuse.
7. Lubrication pipe clamp bolt
10
2
6
7
825 N·m (2.5 kg-m)
4
5
1
912 N·m
(1.2 kg-m)
23 N·m (2.3 kg-m)
12 N·m (1.2 kg-m)
323 N·m (2.3 kg-m)
11
