Sveaverken Intelligent Technology SSHL175s User manual

User Manual for Sveaverken Intelligent
Heat Lamp SSHL175s
Sveaverken Intelligent Technology (Shenzhen)
Co., Ltd.

User Manual for Sveaverken Intelligent Heat Lamp
Table of Contents
I. Safety Precautions........................................................................................................................... 1
II. Product Introductions...................................................................................................................... 2
III. Specifications.................................................................................................................................2
IV. Device Installation.......................................................................................................................... 3
1. Device Composition .............................................................................................................. 3
2. System Architecture .............................................................................................................. 4
3. Assembly Steps..................................................................................................................... 4
V. APP Instructions.............................................................................................................................. 5
1. Homepage............................................................................................................................. 6
2. Language Setting.................................................................................................................. 6
3. Device Adding ....................................................................................................................... 8
4. Device Deletion..................................................................................................................... 9
5. Device Management ........................................................................................................... 10
6. Information Management.................................................................................................... 12

User Manual for Sveaverken Intelligent Heat Lamp
1
I. Safety Precautions
Note
 Please read this manual before installing, adjusting, inspecting, and maintaining the Intelligent Heat
Lamp. Improper installation and operation may cause serious injury, for which the manufacturer will
assume no responsibility!
 Please carefully read this manual to install and use the Sveaverken Intelligent Heat Lamp.
 This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
 This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions,may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
 Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
WARNING
 The AC power supply should comply with the product specifications!
 Do not touch the hot lamp shade with your hands!
 The circuit, ammeter, and air switch should comply with the load requirements of the product!
 Wear PPEs during the installation, adjustment, inspection, and maintenance of the intelligent heat
lamp!
 The bulb has a service life of 8000 H. At the end the life, please contact Sveaverken to purchase a

User Manual for Sveaverken Intelligent Heat Lamp
2
replacement to avoid affecting the lamp effect in use!
 It is quite essential to inspect and maintain the device regularly for its proper operation!
 The device which is damaged must be replaced by the manufacturer, its service agent or similar
qualified team to avoid danger!
DANGER
 The bulb which is fragile must not be squeezed or hit!
 The lamp shade which is easy to deform must not be stacked or squeezed to avoid affecting the
effect in use.
II. Product Introductions
Temperature Control lamps are often required for poultry or livestock breeding and greenhouses.
However, the traditional lamps with only two levels of brightness control may affect the growth of poultry
and livestock at high or low temperature.Sveaverken Intelligent Heat Lamp is capable of adjusting the
brightness based on the preset target temperature to keep the breeding sheds and greenhouses at
constant temperature to avoid repeated manual adjustments, thus reducing contact between humans
and animals and minimizing power consumption.
Heat lamps are particularly important for pig breeding.
Due to the high demand for temperature of piglets, the ambient temperature has an important effect on
the growth and survival of piglets.The suitable temperature for piglets is 32~34 ℃at birth, 30~32 ℃
during the first three days, 28~32 ℃during the next four days, 26~28 ℃within 2 weeks postpartum,
24~26 ℃within 3 weeks postpartum, 24 °C after weaning, and gradually drops to the same level as the
ambient environment.Traditionally, the manual adjustment of the lamp height and the repeated
adjustment of brightness at the different growth stages of piglets result in huge labor costs.
The Sveaverken Intelligent Heat Lamp is capable of accurately controlling its luminous power through
intelligent algorithm based on the ambient temperature in real time, saving electric energy, reducing
labor costs, and improving the survival of piglets and the welfare of human and livestock.
Tests show that a 175W traditional heat lamp consumes about 1,500 watts a year, while the Sveaverken
Intelligent Heat Lamp consumes only 1,000 watts a year, saving 1/3 of the cost.
Executive standard:
Model
Executive standard
SSHL175s
GBT/23140-2009
III. Specifications
Specifications of Sveaverken Intelligent Heat Lamp

User Manual for Sveaverken Intelligent Heat Lamp
3
Model
SSHL175s/SSHL175
Power supply voltage
AC220V~AC240V
Rated power
175 W
Hanging chain
2 m stainless steel
Type of light source
Infrared bulb
Wire length
1.5 m/1.75 m/2 m/2.5 m
Wire specification
0.75 cm2
Plug type
National/American standard triangle
plug/customized
Dimensions
300*φ330 mm
Control mode
IOT
Bulb life
>5000 h
Certification
CE/FCC
Package
10 pcs/box
Remark
Lamp shades and bulbs packaged separately
IV. Device Installation
1. Device composition
1.1 Anti-rust iron chain, 2 m long, lamp height adjustable as required.
4
5
1
2
3
7
6

User Manual for Sveaverken Intelligent Heat Lamp
4
1.2 Heat-resistant lamp holder, with good flame retardance and heat dissipation effect.
1.3 Aluminum alloy lamp shade, with heat-resistant coating to prevent oxidation.
1.4 Manual switch, convenient and efficient.
1.5 Intelligent control box, more intelligent and energy-saving.
1.6 Temperature probe, with high accuracy and large range.
1.7 Protective net, scald prevention, easy to disassemble, maintain and clean.
2. System architecture
3. Assembly steps
1. Align the fixing screws of the
lamp holder with the fixing
holes at the top of the lamp
shade, and assemble the
two components;
2. After fixing the lamp holder
and the lamp shade, tighten
the screws with a cross
screwdriver
4. Remove the lamp protective
net, and install it into the
mounting groove, with one
end through the net limit
hole on one side of the lamp
shade;
5. The installation of the
protective net is completed;
6. Connect one end of the
Intelligent
Heat Lamp
Intelligent
Heat Lamp
Intelligent
Heat Lamp
Wireless
network
Ethernet
Server

User Manual for Sveaverken Intelligent Heat Lamp
5
3. After aligning the lamp
thread with the lamp base,
turn the bulb clockwise, and
tighten and fix it to the lamp
base;
hanging iron chain to the
lamp holder, and fix the
other end to the hanging
position;
7. The assembly of the heat
lamp is completed;
8. Note that the temperature
probe shall be installed 4 cm
below the edge of the lamp
shade.
V. APP Instructions
The APP which is mainly designed for front-line team enables users to manage all lamps with one click
via Pad. In addition to remote device management, it also supports the backup of the Pad local data to
the cloud via the Internet.ThisAPP greatly improves the management efficiency of heat lamps.

6
1. Homepage
1.1 Ready-to-use in local mode without login;
1.2 Icon-based display that delivers the real-time status of devices;
1.3 Top search box where you can enter keywords to quickly select devices;
1.4. Clicking the ON/OFF icon enables you to quickly turn on/off the bulbs;
1.5 Clicking the “+” on the right of the search bar enables you to scan and add nearby devices.
2. Language Setting
2.1 Click the navigation bar at the top of the homepage,
2.2 Go to the Setting interface
2.3 Set the language
Intelligent Heat Lamp Control Pad
Input Device Location to Search
Manual
All
Block up
Maintenance
Exception
Auto
Auto mode
Pigsty 01 Shed 001
Manual mode
Auto mode
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Pigsty 01 Shed 001
Auto mode
Exception
Mode
Stop Mode
Maintenance
Mode
None
None
None
None
None
None

7
Intelligent Heat Lamp Control Pad
Input Device Location to Search
Manual
Block up
Maintenance
Exception
Auto
Auto mode
Device
Manual mode
Auto mode
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Pigsty 01 Shed 001
Auto mode
Exception
Mode
Stop Mode
Maintenance
Mode
None
None
None
None
None
None
Record
Setting
Setting
Intelligent Heat Lamp Control Pad
Pad Name Intelligent Heat Lamp Control Pad of Miaohong Farm BuildingA1
Language SettingSystem Language

8
3. Device Adding
3.1 Click “+” to display a list of nearby connectable devices
3.2 Click the device icon to complete the device information.
Language Setting
Intelligent Heat Lamp Control Pad
System Language
Simplified Chinese
Add Device
Intelligent Heat Lamp Control Pad
List of Connectable Devices
Intelligent Heat
Lamp A01
Intelligent Heat
Lamp A01
Intelligent Heat
Lamp A01
Intelligent Heat
Lamp A01
Intelligent Heat
Lamp A01

9
4. Device Deletion

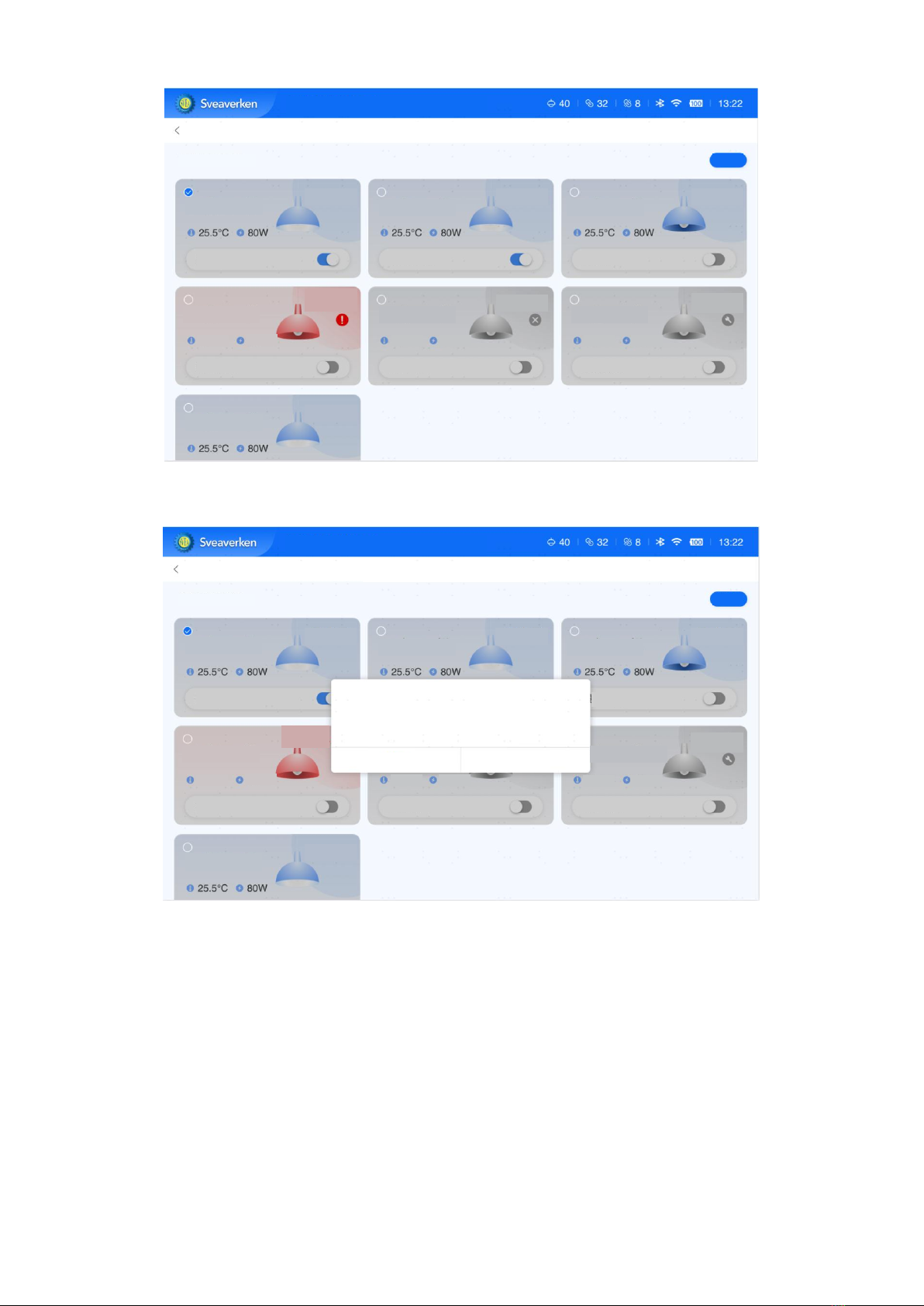

4.1 Press and hold the icon on the homepage to go to the Delete interface
4.2 Select the device to be deleted in the dialog box and click Delete
Complete Device Information
Intelligent Heat Lamp Control Pad
Device Name Intelligent Heat Lamp SN12345676
Installation Location For example Pigsty 01 Shed 001
Remarks Input Remarks
Add
Cancel
Complete Device Information
Intelligent Heat Lamp Control Pad
The device is added successfully!
After clicking Save or Add, a pop-up window will
appear and go to the device management interface

10
5. Device Management

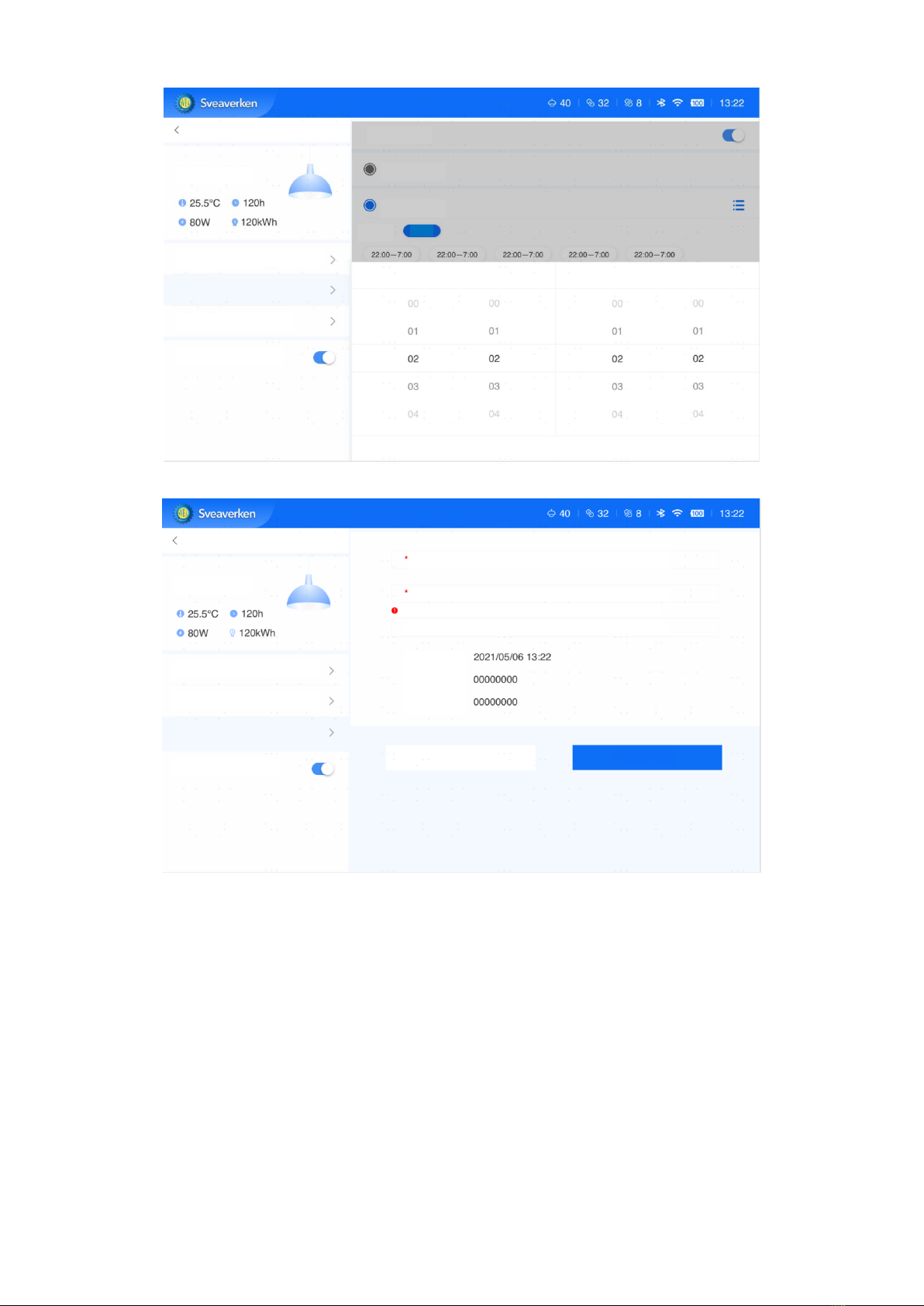

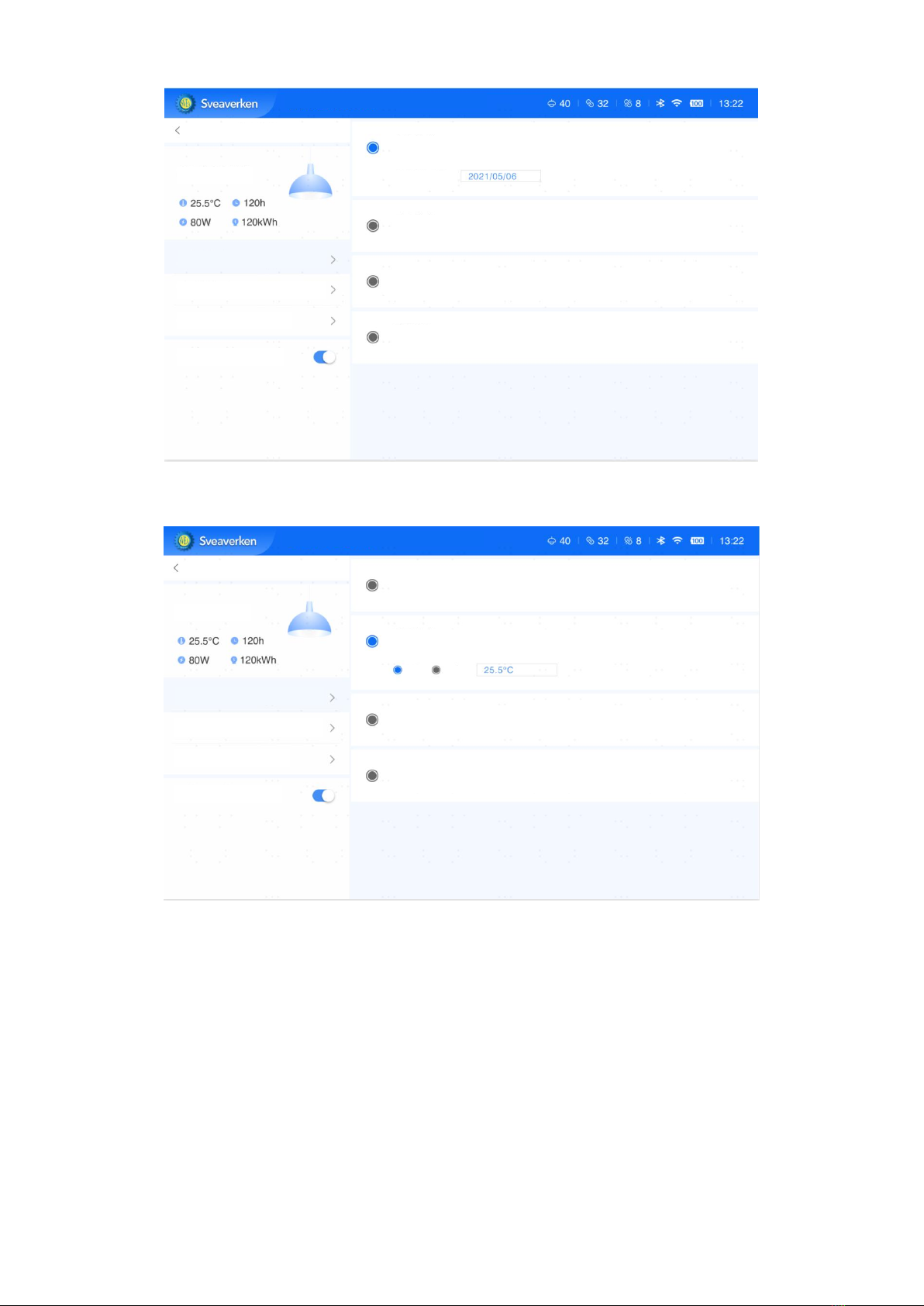

5.1 Click the icon on the homepage to go to the device detail interface
5.2 Edit the device work mode, setting time, device information, and device switch
Are you sure you want to delete the
device?
Intelligent Heat Lamp Control Pad
Delete Device
1 device selected
Delete
Auto mode
Pigsty 01 Shed 001
Manual mode
Auto mode
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Pigsty 01 Shed 001
Auto mode
Exception
Mode
Stop Mode
Maintenance
Mode
None
None
None
None
None
None
Intelligent Heat Lamp Control Pad
Delete Device
1 device selected
Delete
Auto mode
Pigsty 01 Shed 001
Manual mode
Auto mode
Pigsty 01 Shed 001
OK
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Pigsty 01 Shed 001
Device Switch
Device Switch
Device Switch
Device Switch
Device Switch
Pigsty 01 Shed 001
Auto mode
Exception
Mode
Cancel
Maintenance
Mode
None
None
None
None
None
None

11
Device Management
Intelligent Heat Lamp Control Pad
Pigsty 01 Shed 001
Work Mode Auto mode
Setting Time Open
Device Information
Device Switch
Auto mode
Monitor the ambient temperature and automatically adjust the light intensity based
on the set birthday of pigs.
Brthday of pigs
Manual mode
Keep the light intensity constant based on the set temperature or power.
Device Stop
Device off-line in stop mode.
Device Maintenance
Device off-line in maintenance mode.
Device Management
Intelligent Heat Lamp Control Pad
Pigsty 01 Shed 001
Work Mode Auto mode
Setting Time Open
Device Information
Device Switch
Auto mode
Monitor the ambient temperature and automatically adjust the light intensity based
on the set birthday of pigs.
Temperature
Manual mode
Keep the light intensity constant based on the set temperature or power.
Device Stop
Device off-line in stop mode.
Device Maintenance
Device off-line in maintenance mode.
Power

12
6. Information Management
Device Management
Intelligent Heat Lamp Control Pad
Pigsty 01 Shed 001
Work Mode Auto mode
Setting Time Open
Device Information
Device Switch
Start time 2:02
Set Time
Day Repeat
Week Repeat
Monday
Add
End time 2:02
Confirm
Device Management
Intelligent Heat Lamp Control Pad
Pigsty 01 Shed 001
Work Mode Auto mode
Setting Time Open
Device Information
Device Switch
Device Name Intelligent Heat Lamp SN12345676
Save
Cancel
Installation Location Pigsty 01 Shed 001
Installation location not null
Remarks Input Remarks
MAC Address
Setting Time
Device SN

13
Pad Name
Intelligent Heat Lamp Control Pad
Cancel
Complete Device Information
Intelligent Heat Lamp Control Pad
The device is added successfully!
After clicking Save, a pop-up window will appear
and go to the homepage
Intelligent Heat Lamp Control Pad of Miaohong Farm BuildingA1
OK
Search
