5.1 Active Home Theater
Speaker System with Bluetooth
ENG
2
Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eorts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................................... 2
2. PACKAGE CONTENTS............................................................................... 3
3. SAFETY PRECAUTIONS ............................................................................ 3
4. TECHNICAL DESCRIPTION ........................................................................ 3
5. PREPARATION AND OPERATION ................................................................. 6
6. TROUBLESHOOTING................................................................................ 11
7. TECHNICAL SPECIFICATIONS ..................................................................... 12
1. BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the rm which carried out
the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods number
corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of
numbers you forfeit the right for warranty repairs.
•Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
• Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.
Technical support is on www.sven..

ENG
Operation Manual HT-202
3
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 5 pcs
• Remote control (RC) – 1 pc
• RC batteries (ААА type) – 2 pcs
• FM antenna – 1 pc
• 2RCA to mini-jack (Ø 3.5 mm) signal cables – 3 pcs
• Operation manual – 1 pc
•Warranty card – 1 pc
3. SAFETY PRECAUTIONS
Caution! High voltage inside! To avoid the risk of electric shock
do not open or touch elements inside.
• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualied specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi.
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplier or the ground, for it causes damage to the power amplier output stage.
• Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
• Do not place any open ame sources on or close to MSS.
• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When operating
the MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it from
cooling.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
HT-202 5.1 Home Theater Speaker System (HTSS) is designed for creating a home theater. The
multichannel 5.1 amplier built into the subwoofer enables to connect the HTSS to virtually any
audio source.
Special features
• Wireless signal transmission via Bluetooth
• Built-in FM radio
• Built-in audio les player from USB ash and SD card storage devices
• Possibility to transform stereo signal to 5.1
• Digital LED display
• Remote Control

5.1 Active Home Theater
Speaker System with Bluetooth
ENG
4
HTSS design
aLED display
bVolume level control
cMODE: input switch, Bluetooth/DVD/AUX/FM/USB/SD
(pressed short);
ST-BY mode (pressed long)
d: next track (pressed short in the Player or Bluetooth
mode);
next station (pressed short in the Radio mode)
e : Play/Pause (pressed short in the Player or Bluetooth
mode);
start/stop auto scan (pressed long in the Radio mode)
f: previous track (pressed short in the Player or Bluetooth
mode);
previous station (pressed short in the Radio mode)
g USB: slot for a USB ash device* containing МР3 audio les
h SD/MMC: slot for SD/MMC cards* containing МР3 audio
les
iFM ANT: FM antenna input jack
j AUX AUDIO INPUT: line input jacks
k DVD AUDIO INPUT: DVD input jacks
l AUDIO OUTPUT: satellite output jacks
m ON/OFF: power switch
nPower cord
* The storage device must be formatted as FAT, FAT32. Memory
cards SDHC class 10 or less can be used. Connecting devices
other than USB flash drive is not recommended. Connection of
HDDs and other devices can cause damage to the HTSS.
MODE
Fig. 1. Control panel
úOPMsLRMe ò
lk
lc c
Fig. 2. Subwoofer rear panel

ENG
Operation Manual HT-202
5
Remote control
a STBY: ON/OFF power switch button (ST-BY Mode)
b MUTE: sound on/of
c PRO-LOGIC: on/o button of the conversion mode
of a stereo signal to 5.1
dRESET: return to default settings
e SAVE /DEL: memorize selected frequency button
(pressed short in the Radio mode);
deleting a memorized station (pressed long)
fFM: input selection FM
g DVD/BT: input selection DVD/Bluetooth
h AUX : input selection AUX
i USB/SD: input selection USB / SD (in Player mode)
jSURR: volume up/down
kSUB: subwoofer volume up/down
l CEN: center channel volume up/down
m VOL+/-: volume up/down button
n, : previous track/next track (in the Player mode and
Bluetooth);
previous station/next station* (in Radio mode);
o, SCAN: Play/Pause button (in Player and Bluetooth
mode);
Start/Stop auto scan (pressed long in Radio mode)
pFRONT: front channel volume up/down
q TUN +/-: manual band scanning buttons (in the Radio
mode)
r0-9: numeric pad (select track number in the Player mode
or track number FM Radio)
* The frequencies are switched if there are stations preset in
the memory.
Installing RC batteries
•Open the battery compartment on the back of the remote
control.
•Insert the included AAA batteries.
•Close the battery compartment
Notes:
• Use the RC at an angle no more than 30° at a distance of no more than 7 meters.
• Direct the remote control at the LED display on the subwoofer.
• If the remote control is inoperative, check the availability of batteries or change them.
• Remove the batteries from the RC if you don’t intend to use it for a long time (more than
a week).
Fig. 3. Remote control

5.1 Active Home Theater
Speaker System with Bluetooth
ENG
6
5. PREPARATION AND OPERATION
Speaker placement
• To achieve optimum sound, it’s recommended that you place the speakers according to Fig. 4. The
center and front speakers should be located along an imaginary circle with the distance between the
listener and the center channel speaker as a radius, and the listener’s head as the center. Each of the
three speakers should be placed at equal distance from the listener. The front speakers and the listener
make up an equilateral triangle. The rear speakers are placed at the same distance from the listener (on
the imaginary circle, too) at an angle of nearly 110° to the Listener – Display axis.
• Avoid placing your speakers in the corners and close to walls, as this can lead to unwanted
resonance and distortions. If possible, place them at least 20 cm away from walls.
• Do not locate the speakers in niches. Such placement can aect the sound badly, especially in the
lows.
• The subwoofer emits non-directional sound, therefore it can be located in any place of the room
where it sounds the best.
• Connect the speakers to the subwoofer AUDIO OUTPUT l.
Fig. 4. Speaker placement
A
A A
A
A
A
30° 30°
110° ± 10° 110° ± 10°
Rear left
speaker
Subwoofer
Front left
speaker
Center
speaker Front right
speaker
Rear right
speaker
0° ± 1

ENG
Operation Manual HT-202
7
Installing and connecting the FM antenna
• Insert the included indoor FM antenna into the FM ANT i jack on the subwoofer rear panel, as
shown in Fig. 5. Install the FM antenna in such a way that reception quality is satisfactory, and then
x the position of the antenna.
Note. In buildings with weak FM signal use an outdoor FM antenna.

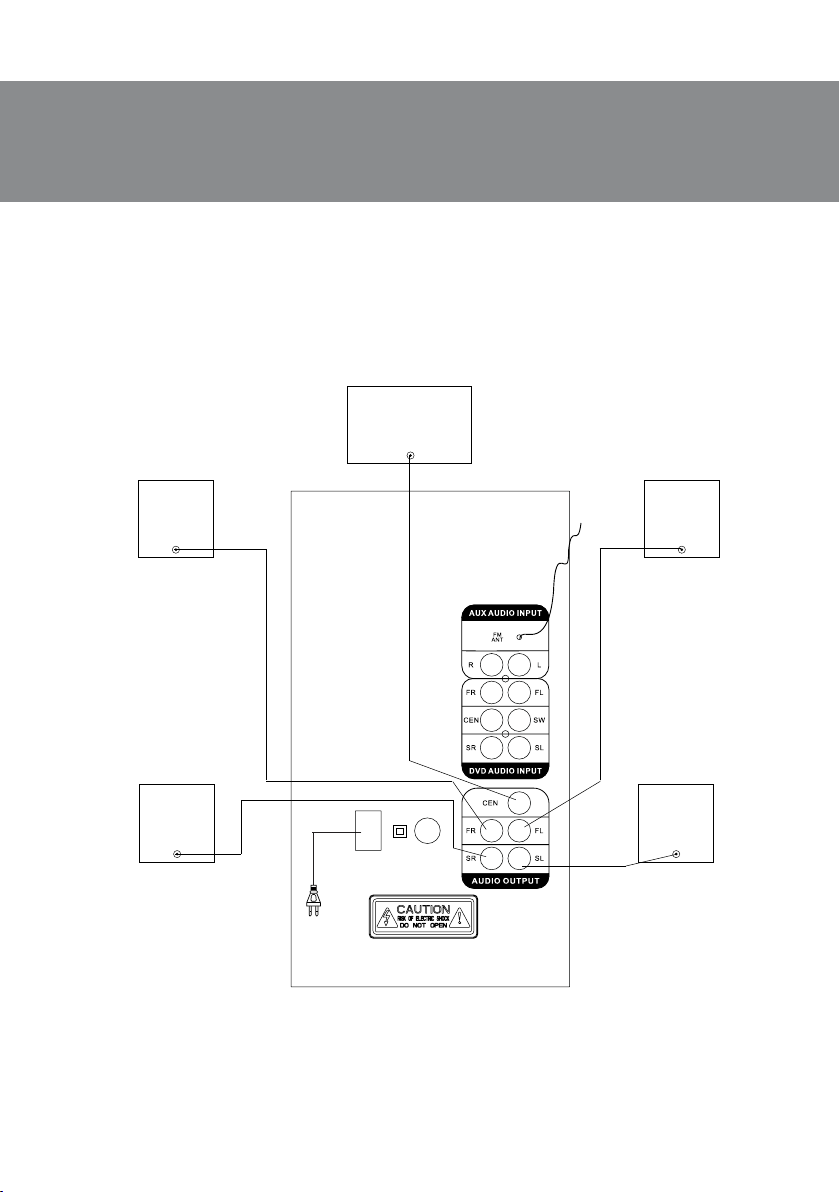

Fig. 5. Speaker connection diagram
úOPMsLRMeò
lk
lc c
Rear right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Rear left
speaker
FM-antenna

5.1 Active Home Theater
Speaker System with Bluetooth
ENG
8
Preparations
HT-202 speaker system can be connected to virtually any audio source: DVD/CD/MP3 player, PC
sound card, etc. (see connection diagram, Fig. 6).
Caution! Before making any connections, make sure the MSS is off and unplugged.
• To connect the HTSS to PC sound cards, МР3/CD players, use the 2RCA to mini-jack signal cables
from the package. Connect the RCA jacks and mini-jacks, as shown in Fig. 6.
• To connect the speakers to a CD/DVD/AUX player or TV use the included 2RCA to 2RCA stereo
signal cables (not included).
Fig. 6. Connection to audio sources
SD/MMC
SD
USB
2RCA to mini-jack
signal cables
2RCA to mini-jack
signal cables
Sound card,
CD player,
MP3 player
5.1-channel
sound card USB/SD-card
connection

ENG
Operation Manual HT-202
9
Switching on
• Сonnect the power cord nto the mains outlet.
• Switch on the HTSS power supply with the POWER ON/OFF switch (m, ON position) on the
subwoofer rear panel. Press abutton on the RC or MODE c button on the subwoofer control panel,
and the LED display (a, Fig. 1) will illuminate. The system is ready for operation.
Selecting audio source
• The HTSS has one stereo audio input (AUX) and DVD 5.1-input on the subwoofer rear panel, as
well as two ports (SD and USB) on its top panel. The system will automatically enter the Player mode,
when one of devices (USB ash or SD/ММС card) is connected to the corresponding jacks g, h
(Fig. 1). Select the audio source with the MODE c button on the control panel or with buttons USB/
SD i, AUX h, FM f, DVD/BT gon the RC (Fig. 3). The subwoofer LED display awill show the
corresponding title.
Master volume control
• Adjust the desired master volume level with regulator bon the control panel or use buttons
VOL+/- mon the RC.
Subwoofer and satellite speaker volume control
• The front, rear and center speaker volume can be adjusted with FRONT/SURR/CEN buttons on the
RC. The SUB kbutton on the RC are used for adjusting the subwoofer volume control.
AUX/DVD Modes
• To select any of AUX or DVD modes use the MODE c button on the front panel or AUX hand DVD
gbuttons on the RC (Fig. 3). The corresponding title will be displayed on the subwoofer.
2.1/5.1 Mode
• For 5.1 mode emulation from 2.1 mode use the PRO-LOGIC cbutton on the RC.
Player Mode
•To enter the Player mode press the MODE c or USB/SD i button on the RC, when the HTSS is
on. The Plaer mode will start automatically.
• To select a track, you can enter directly its sequence number on the remote control or select it
using buttons or on the front panel or on the RC.
Radio Mode
• To switch to the FM radio mode, use the MODE cbutton on the subwoofer front panel or the FM
fbuttons on the remote control.
• To auto scan and memorize the found stations, press long the button on the front panel or the
SCAN obutton on the remote control. The frequency being scanned is displayed on the front panel
and when the station is being memorized its assigned sequence number is displayed for a short
moment.
•For manual scanning use buttons TUN +/- on the RC. To save the selected station, press the SAVE
e button, and then with the buttons , assign the station its number and press the SAVE button
again.
• If preset stations are available in the memory, you can switch from one to another by short pressing
buttons f, don the front panel or buttons , non the remote control. The station frequency
can also be entered with the numeric pad buttons. The radio will tune to the set frequency within
2-3 seconds.

5.1 Active Home Theater
Speaker System with Bluetooth
ENG
ST-BY Mode
• To enter/exit this mode, press and hold down button MODE con the front panel or button aon
the RC.
Bluetooth Mode
• In order to transmit signal in this mode it is necessary by rst to connect the device with a signal
source. For this purpose select the Bluetooth mode using MODE button con the front panel of the
subwoofer or DVD/BT button gon the remote control. After 2-3 seconds the speaker system will
enter the search mode, «BT» mode is shown on the display a.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone,
notebook, smartphone, etc.). «HT-202», message will be displayed on the screen which it should be
connected with*.
• The «BT» indicator lights continuously when connection is successful. If there is no any connection,
the lighting of the «BT» indicator is intermittent. In this case the system should be switch over to the
search mode once again (to turn o and turn on a new)**.
• It is possible to control the player of a signal source from the remote control or using the button on
the front panel of the subwoofer when connecting to a signal source.
* You might have to enter “0000” code to connect some models of devices via Bluetooth.
** If an item has been already registered in the device list of a source, then the second search mode
activation is not obligatory. Choose only the item name and the “connect” command on the source.
Audio setting reset
•Press the button RESET don the remote control to reset audio settings.
Notes:
• If the MSS is left unused for a long period of time, mind to switch it off with the POWER
switch (m, OFF position) and unplug the power cord nfrom the mains socket.
• To improve the sound quality, use the Line-Out port of your sound card.
10

ENG
Operation Manual HT-202
11
If none of the above methods can solve the problem, please seek professional advice at your nearest
service center. Never attempt to repair the product yourself.
6. TROUBLESHOOTING
Problem Cause Solution
The HTSS does
not turn on.
The HTSS isn’t connected to a
mains outlet. Check the connection.
The power switch is off. Turn on the switch.
No sound.
Volume level is set at minimum
value. Adjust the volume control knob.
Improperly connected audio
source. Connect audio sources correctly.
There is too quiet
sound of speakers.
Volume level is set at its minimum
value. Adjust the volume control knob.
Distortion of
sound. Large amplitude of the input
signal.
Turn down the source volume
and the HTSS volume.
The remote control
is not working.
The batteries are discharged. Replace batteries with new ones.
There is direct sunlight. Change the subwoofer or remote
control location.
Obstacle between the remote
control and the subwoofer
receiver.
Change the subwoofer or remote
control location.
The FM tuner is not
working.
The FM tuner is not connected. Connect the FM antenna.
Poor reception of the antenna. Connect an outdoor FM antenna.

5.1 Active Home Theater
Speaker System with Bluetooth
ENG
12
7. TECHNICAL SPECIFICATIONS
Parameter, measurement unit Value
Output power (RMS), W:
subwoofer
satellites
100 (20 + 5 × 16)
20
5 × 16
Frequency response, Hz:
subwoofer
satellites
40 – 125
125 – 22 000
Speaker diameters, mm:
subwoofer
satellites
Ø 128
full-range Ø 77
Power supply, V/Hz ~230/50
Dimensions (W × H × D), mm:
subwoofer
satellites
175 × 272 × 305
105 × 170 × 110
Weight, kg 6.30
Notes:
• Technical specications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specications and package contents are subject to change without notice due
to the improvement of SVEN production.

5.1 Active Home Theater
Speaker System with Bluetooth
HT-202
Model: HT-202
Импортер в России: OOO «РЕГАРД», 105082, РФ,
г. Москва, ул. Фридриха Энгельса, д.75, стр. 5.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите в га-
рантийном талоне или на сайте www.sven..
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат
Роуд, № 02-02, Сингапур, 427447. Произведено под
контролем «Свен Скандинавия Лимитед», 48310, Фин-
ляндия, Котка, Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-
02, Singapore, 427447. Produced under the control of Oy
Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
