2.1 Multimedia Speaker System

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION ..........................................
......................
6. TROUBLESHOOTING.................................
...............................................
7. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
3
5
6
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty
card has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-311
MS-311 GLAMOUR

2. PACKAGE CONTENTS
• Subwoofer — 1 pc
• Satellites — 2 pcs
• Mini-jack Ø 3,5 mm to mini-jack Ø 3,5 mm signal cable — 1 pc
• Mini-jack Ø 3,5 mm to 2RCA adapter — 1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Disconnect the MSS from the mains system during a fuse replacement. Use fuses of the same
type and rated value. Do not use hand-made fuses.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When
operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-
venting it from cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-311/MS-311 Glamour 2.1 Multimedia Speaker Systems (MSS) are designed to play music and
sound games, movies, etc. The MSS has a built-in power amplifier, audio cables built into the
satellites enabling to connect it to virtually any audio source (CD/DVD player, TV, PC, etc.) without
using an additional power amplifier.
Special features
•Bult-in power amplifier
•Volume, bass and treble control
• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound sources
• Two-way satellites
•Slotted bass reflex ports, stylish control panel illumination
•Magnetic shielding
•Wall-mountable satellites
•MDF subwoofer and satellites cabinets
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
ENG
2
2.1 Multimedia Speaker System

d
e
a
b
c
f
g
h
i
VOLUME
INPUT
LEFT
RIGHT
POWER
BASS
TREBLE
OUTPUT
~220V/50Hz
Fig. 1. Subwoofer front panel* Fig. 2. Subwoofer rear panel
fINPUT: audio source input
gLEFT: left satellite output
hRIGHT: right satellite output
iPower cord
Front and rear subwoofer panels
aPOWER: power switch
bBASS: bass control knob
cTREBLE: treble control knob
dVOLUME: volume control knob
eControl panel illumination
* MS-311 Glamour is singled out by its bright design of the front panel.
5. PREPARATION AND OPERATION
Speaker placement
•Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any place of the roomwhere it sounds the best.
•Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible.
MSS сonnecting and control
MS-311 and MS-311 Glamour Multimedia Speaker Systems can be connected to virtually any audio
source: DVD/CD, PC sound card, etc. (see connection diagram in Fig. 3).
• Before making any connections, make sure that the MSS is switched off. Then connect the audio
cables built into the speakers to the OUTPUT jack of the subwoofer: the left speaker to the LEFT
output g, the right speaker to RIGHT output h(see connection diagram in Fig. 3).
• Insert the mini-jack (Ø 3.5 mm) of the signal cable (included) into the INPUT jack of the
subwoofer f, then connect it to the LINE OUT port of your PC sound card or to the output jack of
your МР3/CD player (see connection diagram above).
ENG
3
Operation Manual MS-311
MS-311 GLAMOUR

Power
cord
Right speaker
INPUT
LEFT
RIGHT
OUTPUT
~220V/50Hz
Audio cable
Left speaker
CD
PC
DVD
Player
RCA to mini-jack
adapter
Mini-jack to mini-jack
signal cable
Mini-jack to mini-jack
signal cable
Notes:
• Sound quality is directly affected by correctness and reliability of the connection of
cables. We recommend that you use the cables included in the package contents of the
MSS. Usually, the right channel is marked in red, and the left channel is marked in white.
• To connect the MSS to a CD/DVD player or TV, use the mini-jack to mini-jack signal cable
with the RCA to mini-jack adapter (included).
• Adjust the VOLUME knob don the subwoofer to its minimum, then connect the subwoofer to
a mains outlet via the built-in power cord i.
• Switch on the subwoofer with the POWER switch a. Then turn on your audio source and adjust
the subwoofer volume level with the VOLUME knob d, the bass and treble levels with BASS band
TREBLE cknobs respectively.
• After using the MSS, mind to shift the POWER switch ainto the OFF position, and unplug the power
cord.

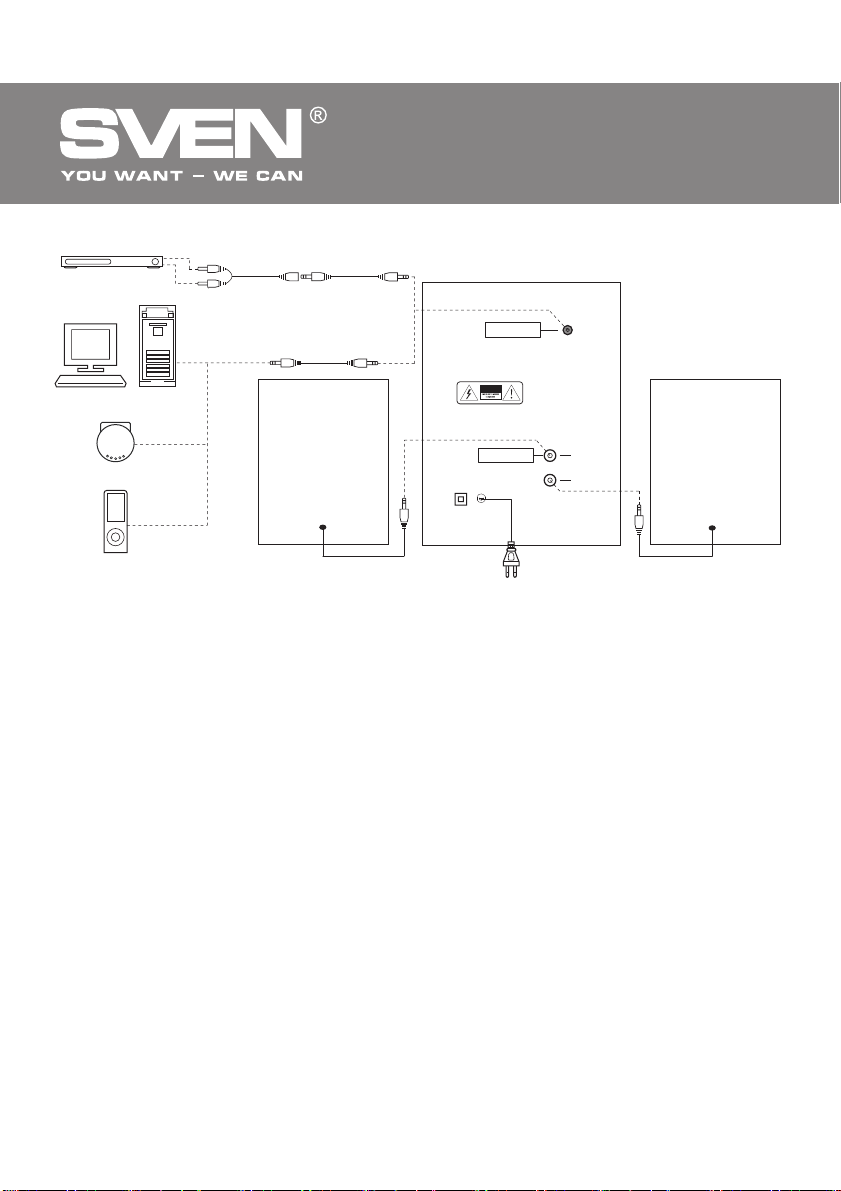

Fig. 3. Connection diagram
ENG
4
2.1 Multimedia Speaker System

If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
Cause
The MSS isn’t connected to a mains outlet.
The power switch is off.
The volume level is set at minimum value.
The audio source is improperly connected.
The volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume
and MSS volume.
6. TROUBLESHOOTING
ENG
5
Operation Manual MS-311
MS-311 GLAMOUR
7. TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency range, Hz
S/N ratio, dB
Speaker diameter, mm
subwoofer
satellites (tweeter + midrange)
Power supply, V/Hz
Dimensions (W × H × D), mm
subwoofer
satellites (one satellite)
Weight, kg
Value
36 (22 + 2 × 7)
22
2 × 7
30 – 20 000
≥65
Ø 125
Ø 38 + Ø 75
~220/50
167 × 233 × 302
94 × 148 × 110
4.8
Notes:
•Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
•Technical specifications and package contents are subject to change without notice due
to the improvement of SVEN production.
