Sven MS-90 User manual

www.sven.fi
OPERATION
MANUAL
2.1 Multimedia Speaker System
MS-90

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS.............................................................
............
3. SAFETY PRECAUTIONS ..................................................
...................
4. TECHNICAL DESCRIPTION ....................................................
................
5. PREPARATION AND OPERATION ..........................................
......................
6. TROUBLESHOOTING.................................
...............................................
7. TECHNICAL SPECIFICATIONS ....................................................
...........
1
2
2
2
3
5
6
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty
card has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-90

ENG
2
2.1 Multimedia Speaker System
2. PACKAGE CONTENTS
•Subwooofer – 1 pc
•Satellites – 2 pcs
•Signal cable – 1 pc
•Operation manual – 1 pc
•Warranty card – 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi.
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Disconnect the MSS from the mains system during a fuse replacement. Use fuses of the same
type and rated value. Do not use hand-made fuses.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When
operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-
venting it from cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-90 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS has a built-in power amplifier and audio cables built into the speakers
enabling to connetc it to virtually any audio source (CD/DVD player, TV, PC, etc.) without using
a separate power amplifier.
Special features
•Built-in stabilized (switch-mode) power supply unit
•Speaker system is compatible with PCs, DVD/Media-players, mobile devices
and other sound sources
•Master volume control and bass control
•Elegant black surface
•MDF subwoofer cabinet
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.

Fig. 2. Subwoofer rear panel
gh
i
j
Subwoofer front and rear panels
aSubwoofer
bPower LED
cVOLUME: volume control knob
dBASS: bass control knob
eBass reflex port
fSpeakers
gPOWER ON/OFF: power switch
hOUTPUT: Ø 3.5 mm speaker output
iINPUT: Ø 3.5 mm subwoofer output
jPower cord
Fig. 1. Front view
a
b
f
VOLUME
BASS
c d e
POWER OUTPUT
INPUT
AC POWER
220V/50HZ
OFF
ON
5. PREPARATION AND OPERATION
Speaker placement
•Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any convenient place where it sounds the best.
•Since the speaker system has side-mounted bass reflex port e, place the speaker system 20-30
cm away from a wall or any other obstacle.
•Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible.
MSS сonnecting and control
MS-90 Multimedia Speaker System can be connected to virtually any audio source: DVD / CD, PC
sound card, etc. (see connection diagram in Fig. 3).
•Before making any connections, make sure that the MSS is switched off. Connect the audio cable
built into the speakers into OUTPUT hon the subwoofer (see Fig. 3)
•Connect one mini-jack of the stereo signal cable to INPUT ijack on the subwoofer and the other
mini-jack to your PC or МР3/CD player.
ENG
3
Operation Manual MS-90

•Adjust the master volume level to the minimum by turning VOLUME control knob ccounter-
clockwise until it stops. Then connect the subwoofer to the mains outlet using the built-in power
cord j.
•Turn on the subwoofer power using POWER switch g(ON position), power LED bwill light.
Then turn on the sound source and adjust the master volume with VOLUME knob c, and the bass
level – with BASS knob d.
Notes:
• If the MSS is left unused for a long period of time, please mind to switch it off on the
subwoofer rear panel (OFF position) and pull out its plug from the socket.
Right
speaker
Left
speaker
POWER OUTPUT
INPUT
AC POWER
220V/50HZ
OFF
ON
CD

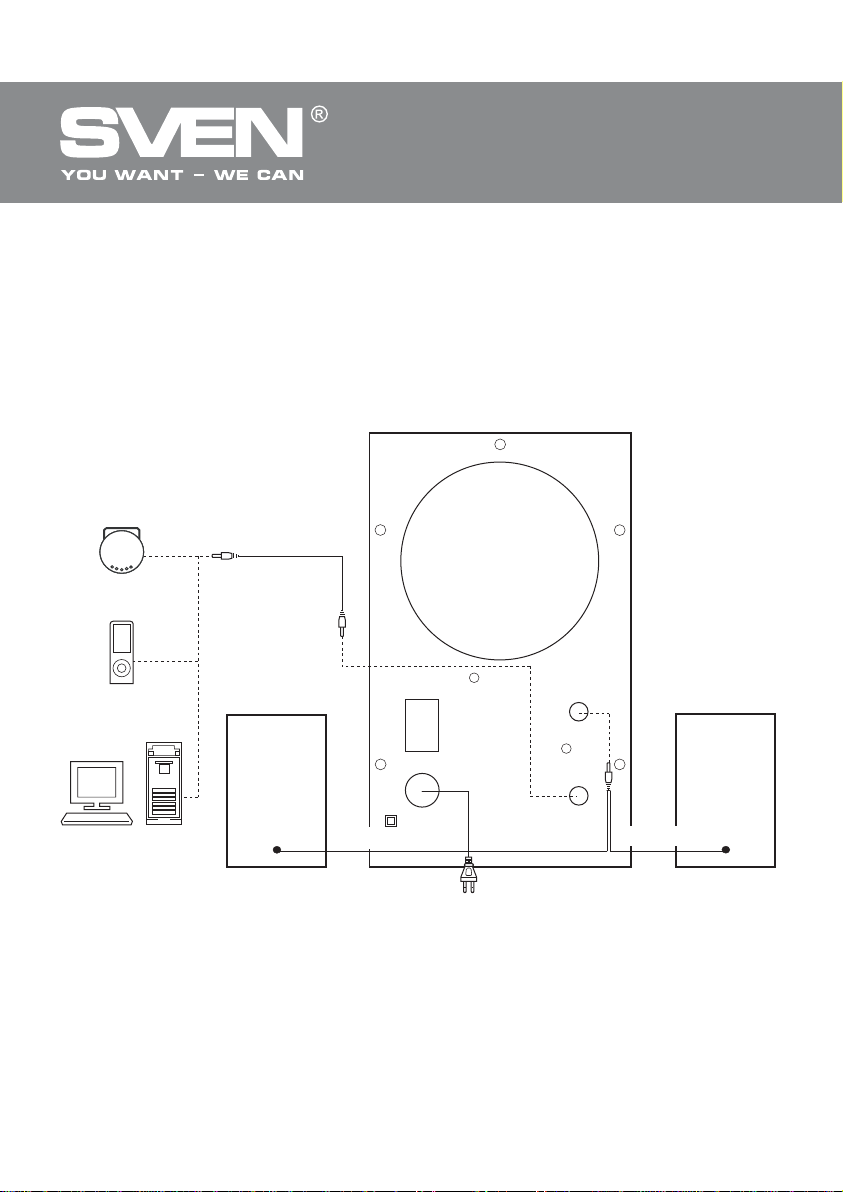

Fig. 3. Connection diagram
Audio cable Audio cable
Power
cord
Мini-jack to mini-jack
signal cable
Player
PC
ENG
4
2.1 Multimedia Speaker System

6. TROUBLESHOOTING
If none of the above mentioned solutions removes the problem, please address your nearest
authorized service centre. Never try to repair the device on your own.
Problem
The MSS does not
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of sound.
Cause
The MSS is not connected to a mains outlet.
The power switch is off.
The volume level is set at minimum value.
Improperly connected audio source.
The volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources
correctly.
Adjust the volume control knob.
Turn down the source
and MSS volume.
ENG
5
Operation Manual MS-90

7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due
to the improvement of SVEN production.
Value
10 (5 + 2 × 2.5)
5
2 × 2.5
60 – 250
250 – 20,000
Ø 75
Ø 60
~220/50
109 × 178 × 145
88 × 128 × 79
1.28
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency range, Hz
subwoofer
satellites
Speaker diameter, mm
subwoofer
satellites
Power supply, V / Hz
Dimensions (W × H × D), mm
subwoofer
satellites (one speaker)
Weight, kg
ENG
6
2.1 Multimedia Speaker System

2.0 Multimedia Speaker System
Automatic Voltage Regulator
Стабилизатор напряженияСтабилизатор напряжения
Automatic Voltage Regulator
2.0 Multimedia Speaker System2.0 Multimedia Speaker System
SPS-619
MS-90
2.1 Multimedia Speaker System
Модель: MS-90
Импортер вРоссии: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
вгарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес. Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат
Роуд, №02-02, Сингапур, 427447. Произведено под
контролем «Свен Скандинавия Лимитед»,
48310, Финляндия, Котка, Котолахдентие, 15.
Сделано вКитае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
