Swann SD90020N User manual

Digital Air Fryer
Model: SD90020N
Help line: 01733 404703 v1.1
SD90020N_IM.indd 1 30/11/2016 09:35

2
When using any electrical appliance, basic safety
precautions should always be followed including the
following:
• Always ensure that the voltage on the rating label
corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the
appliance and cause injury to the user.
• This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and
user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8
years. Check the power cord and plug regularly for any
damage. If the cord or the plug is damaged, it must be
replaced by the manufacturer or qualified person in order
to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or
damaged in any way. In case of damage, take the unit in
for examination and/or repair by an authorised service
agent.
• Never immerse the unit in water or any other liquid for
cleaning purposes.
• Remove the plug from the socket by gripping the plug.
Do not pull on the cord to disconnect the appliance from
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SD90020N_IM.indd 2 30/11/2016 09:35

3
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
the mains. Always unplug the unit when not in use, before
cleaning or when adding or removing parts.
• The use of accessory attachments that are not
recommended or supplied by the manufacturer may
result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or
counter. Ensure that the cord is not in a position where it
can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not
place on or near a hot gas or electric burner or in a
heated oven.
• Do not use the appliance on a gas or electric cooking top
or over or near an open flame.
• Use of an extension cord with this appliance is not
recommended. However, if it is necessary to use an
extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of
extension cord, appliance or plug point. Do not place the
extension cord in a position where it can be pulled on by
children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use
the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always
unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable
surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
SD90020N_IM.indd 3 30/11/2016 09:35

4
• The manufacturer does not accept responsibility for any
damage or injury caused by improper or incorrect use, or
for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and
do not attempt to repair it yourself. Return the appliance to
an authorised service facility for examination, adjustment
or repair. Always insist on the use of original spare parts.
Failure to comply with the above mentioned precautions
and instructions, could affect the safe operation of this
product.
• Your appliance must never be switched on through an
external timer or any kind of separate remote control
system
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
CAUTION: SURFACES BECOME HOT DURING USE.
ALWAYS USE TONGS WHENEVER POSSIBLE
CAUTION: PLEASE ENSURE YOUR WORK TOP IS
ABLE TO WITHSTAND A TEMPERATURE OF AT
LEAST 60 DEGREES CENTIGRADE FOR EXTENDED
PERIODS. IF IN DOUBT, MOUNT THE PRODUCT ON
A SUITABLE WOODEN PLINTH.
Description: Air Fryer
Model: SD90020N
Input Voltage: 220-240V
Frequency: 50/60Hz
Power consumption: 1350 Watts
TECHNICAL DATA
SD90020N_IM.indd 4 30/11/2016 09:35

5
PARTS
Before first use, carefully remove all packaging and familiarise yourself with the
various parts of your product
1. Basket
2. Pan - caution, it gets hot!
3. Basket release button
4. Basket handle
5. Power on/pause
6. LCD touch screen
7. Cancel (on LCD display)
8. Timer control
9. Temperature control
10. Menu for presets
11. Air inlet (don’t block)
12. Air outlet (don’t block)
13. Power cord
PARTS - REFER TO PANEL 1 ABOVE
SD90020N_IM.indd 5 30/11/2016 09:35

6

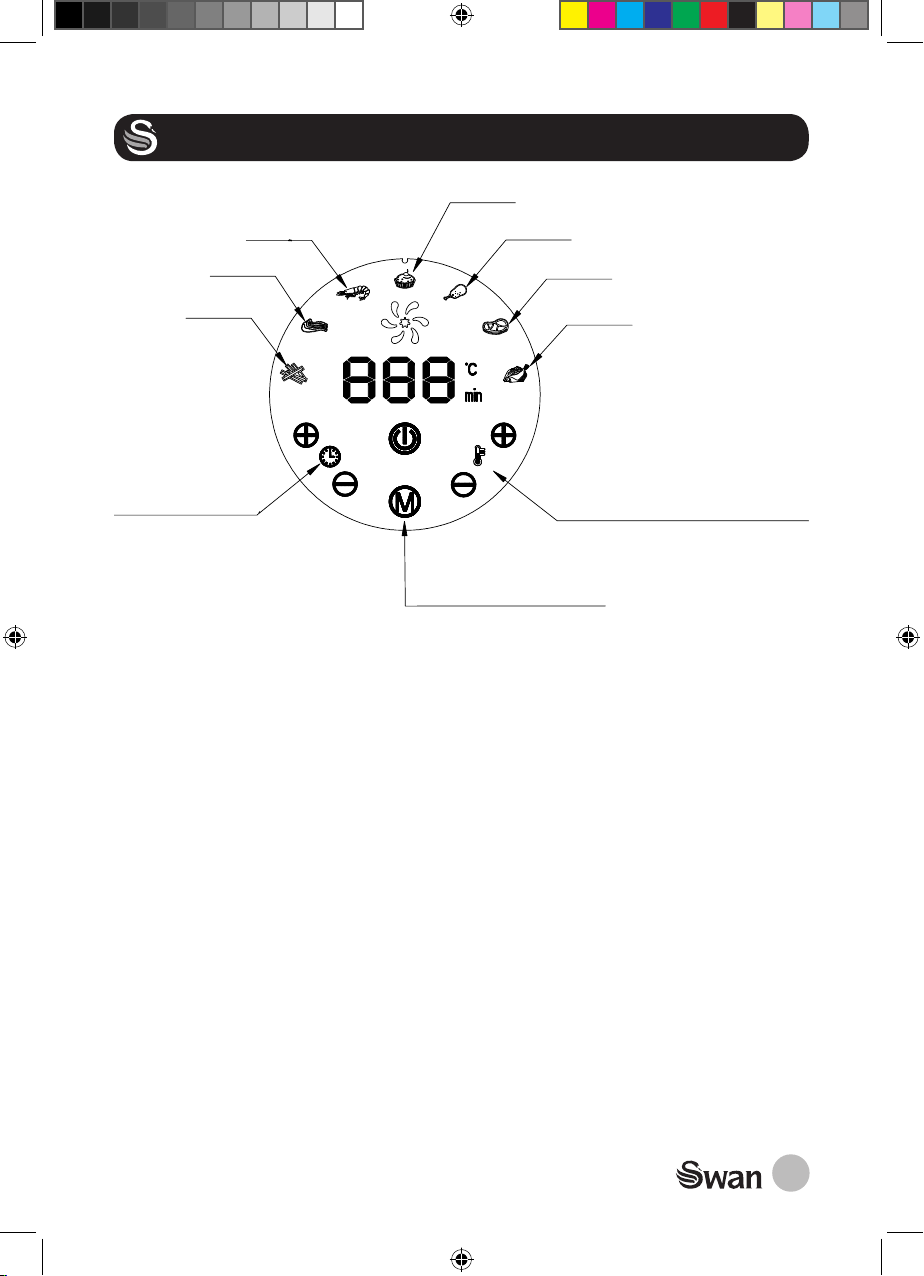

DISPLAY & FUNCTIONS
Press the M button to cycle through
the preset cooking programmes
TIMER: Press +/- buttons
to set up to 30 minutes
TEMPERATURE: Press +/- buttons to
set temperature from 80-200 Centigrade
Chips
Pork
Shrimp
Cake
Chicken
Steak
Fish
Feel free to connect the appliance to the mains supply and try the various functions
to become more familiar with them.
AUTO OPERATION
Presets: Pressing the Mbutton will cycle through the various presets. These set
a pre-determinted time and temperature. The unit will start automatically a few
seconds after the preset is selected.
To cancel the programme, press the ON/OFF button in the centre. Note: after can-
celling or at the end of the preset programme, the fan will still operate for a time.
This is to prevent condensation gathering on the food, thereby helping it to stay nice
and crisp. Presets are a guide only! Much depends on the size of the item(s) being
cooked. Always ensure food is piping hot throughout.
MANUAL OPERATION
Simply select the temperature then select the time using the +/- buttons. You can
cancel at any time by pressing the ON/OFF button in the centre of the display. Note:
after cancelling or at the end of the preset programme, the fan will still operate for
a time. This is to prevent condensation gathering on the food, thereby helping it to
stay nice and crisp.
SD90020N_IM.indd 6 30/11/2016 09:35

7
HOW TO USE
This product uses air flow in conjunction with a high power element to cook food
quickly and efficiently. Some of the many benefits are:
• Reduced cooking times
• Little or no pre-heating needed
• Even cooking with little or no fat required
• Compact, space-saving design
Please ensure all food is piping hot throughout before consuming.
• Before using for the first time, remove the basket and wash in warm. soapy
water. Rinse and dry thoroughly before putting back into the Air Fryer.
• Ensure the Air Fryer is on a stable, even surface.
• DO NOT put any oil into the basket or pan
• Do not use the Air Fryer without the pan and basket fitted
HOT AIR FRYING
1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the Air Fryer (fig.4)
3. Place the ingredients in the basket. Note: Do not exceed the MAX indication (see
section ‘settings’), as it may effect the quality of the food.
4. Slide the pan back into the Air Fryer (fig.5). Never use the pan without the basket
in it. Caution: Do not touch the pan during or shortly after use, as it gets very hot.
Only hold the pan by the handle.
5. Select either manual time and temperature or select one of the presets. Refer
to “Settings” section to determine typical cooking times.
6. TIP: Preheat time is usually not required but if used in a cold room, pre-heating
for 2 minutes might give better results. Set temp at 200. Set time to 2 mins and
allow to run.
• The timer starts counting down the set cooking time.
• During the hot air frying process, the fan indicator will change colour and return
to blue once the process is complete
• Excess oil and fat from the food is collected on the bottom of the pan. It’s better
there than on your waistline!
• Some foods may require shaking halfway during the preparation time (see
section ‘Settings’ in this chapter). To do this, pull the pan out of the appliance by
the handle and shake it. Then slide the pan back into the Air Fryer
• Caution: Do not press the button of the handle during shaking.
SD90020N_IM.indd 7 30/11/2016 09:35

8
HOW TO USE
When you hear the beeps, the set cooking time has elapsed. Pull the pan out of the
appliance and place it on a heat-resistant surface.
Check if the food is ready.
If the ingredients are not ready yet, simply slide the pan back into the appliance and
set the timer/temperature to a few extra minutes. Always ensure food is piping hot
throughout before consuming
To remove small ingredients (e.g. fries), press the basket release button and lift
the basket out of the pan . You will notice that excess fat from the food has collected
in the bottom of the pan.
The pan and the ingredients are hot after hot air frying. Depending on the type
of the ingredients in the in fryer, steam may escape from the pan. Take care with
hot temperatures
Empty the basket into a bowl or onto a plate.
Tip: To remove large or fragile ingredients, lift the ingredients out of the basket using
a pair of tongs.
When a batch of food is ready, the Air Fryer can be used again immediately
SD90020N_IM.indd 8 30/11/2016 09:35

9
SETTINGS
This table below will help you to select the basic settings for the ingredients.
Note: Keep in mind that these settings are indications. As ingredients differ in
origin, size, shape and brand, we cannot guarantee the best setting for your ingredi-
ents.
Because the Rapid Air technology reheats the air inside the appliance instantly,
pulling the pan briefly out of the appliance during hot air frying (to check progress)
barely disturbs the cooking process.
Tips
• Smaller ingredients usually require a slightly shorter preparation time than
larger ingredients.
• A larger volume of ingredients only requires a slightly longer preparation time, a
smaller volume of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway during the preparation time optimises the
end result and can help prevent unevenly fried ingredients - just as it does in a
regular fryer
• Spray some oil on to fresh potatoes for a crispy result. Fry your ingredients in
the air fryer within a few minutes after adding the oil.
• You can also use the AIR FRYER to reheat ingredients. To reheat ingredients,
set the temperature to 150C for up to 10 minutes.
Temp (C) Food Amount Time (mins)
200 Frozen chips thin 100-400g 9
200 Frozen chips thick 100-400g 11-18
180 Fresh chips/
wedges
100-400 15-22 (spray with
oil first)
180 Pork chop up to 500g 10-15
180 Burger uo to 500g 7-14
180 Chicken breast up to 500g 10-15
200 Chicken nuggets Up tp 400g 6-10
180 Sausage frozen Up to 400g 20
180 Sausage fresh Up to 400g 15
180 Pasties/pastry
top
Up to 500g 8-12 mins
SD90020N_IM.indd 9 30/11/2016 09:35

10
CLEANING & MAINTENANCE
1. Remove the mains plug from the wall socket and allow the appliance to cool
downNote: Remove the pan to let the AIR FRYER cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth & dry with kitchen towel.
3. Clean the pan and basket AFTER EVERY USE with hot water, some washing-up
liquid and a non-abrasive sponge.
Note: The pan and basket are dishwasher-proof.
Tips: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water
with some washing-up liquid. Put the basket in the pan and let the pan and the
basket soak for about 10 minutes. Clean the inside of the appliance with hot water
and non-abrasive sponge.
Do not use abrasive cleaners (eg metal scouring pads), or strong chemical cleaners
NEVER immerse the main unit is water or run it under the tap.
SD90020N_IM.indd 10 30/11/2016 09:35

11
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
BS PLUG
WARRANTY
This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty
materials of workmanship the faulty products must be returned to the place of purchase. Refunds or
replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.
DISPOSAL OF UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You
are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information
about the recycling of electrical items. Please visit www.weeeireland.ie for access to information
about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in
August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
SD90020N_IM.indd 11 30/11/2016 09:35

www.swan-brand.co.uk
Copyright © Swan Products Ltd.
PO Box 3117, Stoke-on-Trent ST4 9GD
Est.1931
We love
what we do
s
2year
GUARANTEE
we’re proud
of our quality
Scan this QR code
to hear about
our story
Find us on Facebook
*
* on selected products
SD90020N_IM.indd 12 30/11/2016 09:35
