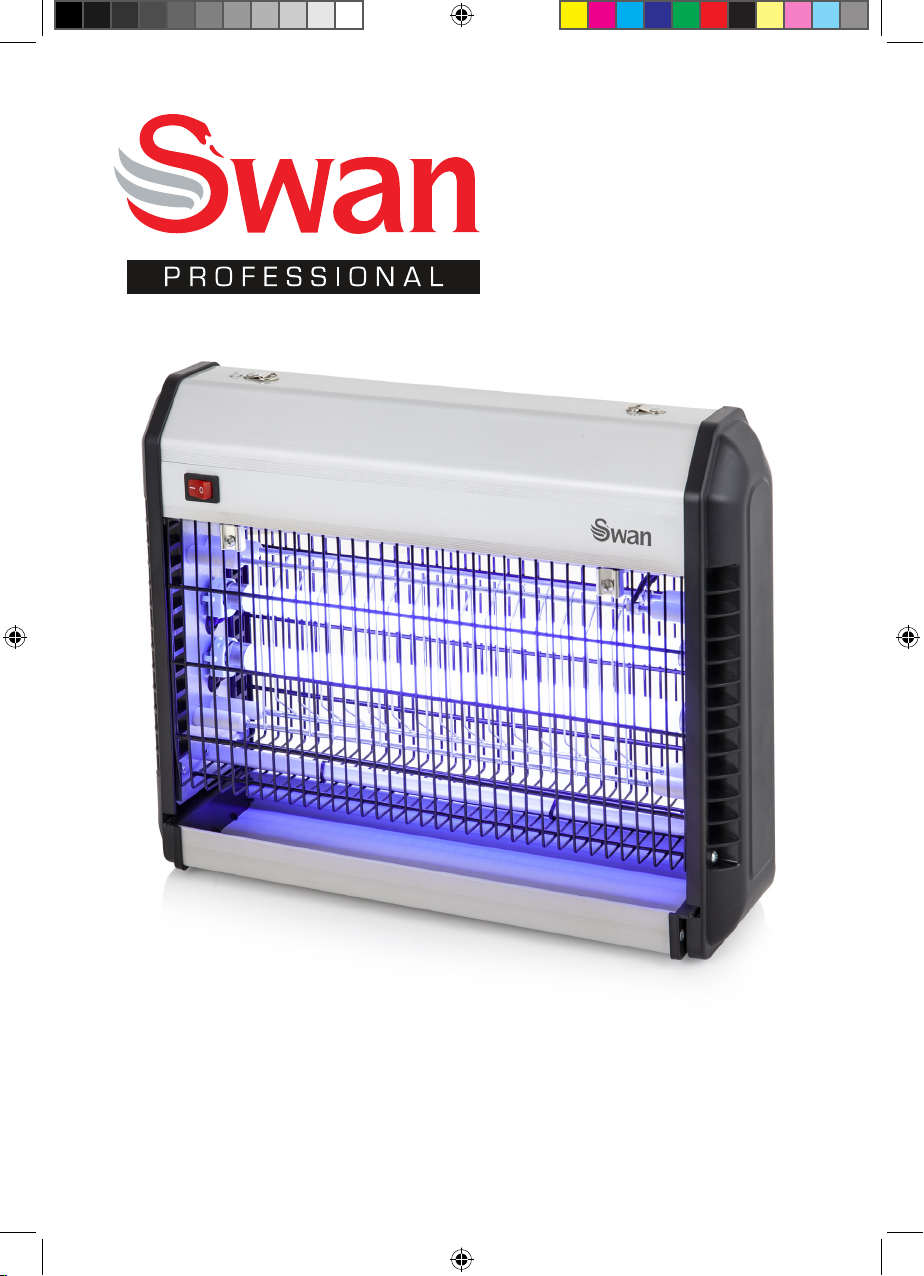

Swann SK90 User manual

Insect Killer
Model: SK90
Help line
01384 573999 v1.0
SK90_IM.indd 1 26/06/2019 08:15

2
When using any electrical appliance, basic safety
precautions should always be followed including the
following:
• Always ensure that the voltage on the rating label
corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the
appliance and cause injury to the user.
• This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and
user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8
years. Check the power cord and plug regularly for any
damage. If the cord or the plug is damaged, it must be
replaced by the manufacturer or qualified person in order
to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or
damaged in any way. In case of damage, take the unit in
for examination and/or repair by an authorised service
agent.
• Never immerse the unit in water or any other liquid for
cleaning purposes.
• Remove the plug from the socket by gripping the plug.
Do not pull on the cord to disconnect the appliance from
the mains. Always unplug the unit when not in use, before
cleaning or when adding or removing parts.
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SK90_IM.indd 2 26/06/2019 08:15

3
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
• The use of accessory attachments that are not
recommended or supplied by the manufacturer may
result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or
counter. Ensure that the cord is not in a position where it
can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not
place on or near a hot gas or electric burner or in a
heated oven.
• Do not use the appliance on a gas or electric cooking top
or over or near an open flame.
• Use of an extension cord with this appliance is not
recommended. However, if it is necessary to use an
extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of
extension cord, appliance or plug point. Do not place the
extension cord in a position where it can be pulled on by
children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use
the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always
unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable
surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any
damage or injury caused by improper or incorrect use, or
for repairs carried out by unauthorised personnel.
SK90_IM.indd 3 26/06/2019 08:15

4
Model: SK90
220-240V ~ 50Hz
19 Watts
TECHNICAL DATA
CAUTION: Surfaces become hot during use
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
• In case of technical problems, switch off the product and
do not attempt to repair it yourself. Return the appliance to
an authorised service facility for examination, adjustment
or repair. Always insist on the use of original spare parts.
Failure to comply with the above mentions precautions
and instructions, could affect the safe operation of this
product.
• Your appliance must never be switched on through an
external timer or any kind of separate remote control
system
• When choosing a location for the insect killer please
site the product out of the reach of children and keep
away from flammable materials. DO NOT PUT METAL
OBJECTS BETWEEN THE BARS
SK90_IM.indd 4 26/06/2019 08:15

5
HOW TO USE
It is important to ensure the correct plug adaptor is used when
operating in a country not using the UK 13 Amp socket system. If in
doubt, consult a qualified electrician.
When choosing a location for the insect killer please site the product
out of the reach of children and keep away from flammable materials.
DO NOT PUT METAL OBJECTS BETWEEN THE BARS
This electronic insect killer uses “black light” (ultra violet) light of a
wavelength that is proven to be most attractive to flying inects such as
houseflies, moths, mosquitos etc. The insects are electrocuted by the
electrically charged metal grids. There are no chemicals, no sprays, no
pollution and no mess.
The insect killer is ideal for use in food outlets, cold rooms, hospitals
and domestic locations but is NOT suitable for use in garbage or food
waste stores or similar locations
CLEANING
Always unplug the unit and allow it to cool (if necessary) before cleaning.
Clean the collection tray regularly.
Never immerse the unit in water or run under the tap
SK90_IM.indd 5 26/06/2019 08:15

6
TECHNICAL INFO
220-240V~50Hz
Ballast
Switch
Left-side board
Left-inner side board
Insulator
Lamp holder
High-voltage grid
Supporter
Mesh Collection tray
Right lid
Right-inner side board
Lamp
Right-side board
Slot pannel
High-voltage transformer
Starter holder
Starter
PCB Fixed support
Exploded diagram
Circuit diagram
SK90_IM.indd 6 26/06/2019 08:15

7
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
BS PLUG
WARRANTY
This product is guaranteed for ONE YEAR from the date of original purchase. If any defect arises due to
faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or
replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.
DISPOSAL OF UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You
are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information
about the recycling of electrical items. Please visit www.weeeireland.ie for access to information
about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in
August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
