Swegon REACT P-Xa User manual

REACT P-Xa
Instructions for Use 20200910
Art. 1546083
The document was originally written in Swedish
Symbol key
Symbols on the machine.
This product complies with applicable EU directives
Symbols in this user manual
Warning/Caution!
Risk of crushing
Application area

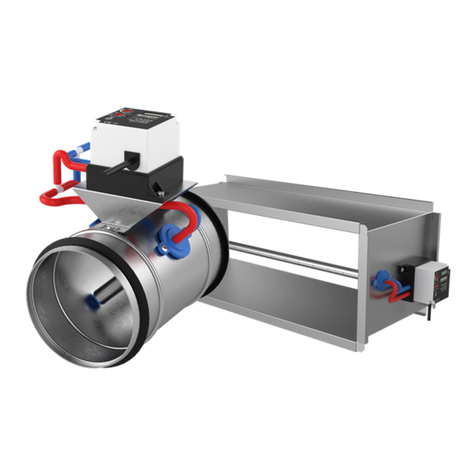

The product is a pressure regulating damper designed for
comfort ventilation indoors. The product is used to regulate the
supply air or exhaust air pressure in ventilation ducts.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use before you
install/use the product and save the instructions for future
reference. It is not permissible to make changes or modify
this product other than those specified in this document.
The packaging contains the following
items:
1 x REACT P-X
1 x Instructions for use
Protective equipment
Always use appropriate personal protective equipment
for the work in question, in the form of gloves, respirators
and protective glasses during handling, installation,
cleaning and service/maintenance.
Electrical safety
Permitted voltage, see “Electrical data”. It is not permissible
to insert foreign objects into the product’s contactor
connections or the electronics's ventilation openings; risk
for short circuiting.
24 V isolation transformer to be connected should comply with
the provisions of IEC 61558-1.
Cable sizing must be carried out for cabling between the product
and the power supply source.
Disconnect the power supply when working on products that
are not required to run in production.
Always follow the local/national rules for who shall be permitted
to carry out this type of electrical installation.
Other risk
When the product is voltage fed, the damper will be
either open or close and there can be a certain risk
for pinch injuries, for example, on the fingers if these
are placed between the damper blade and ventilation
duct when the damper blade rotates. The product’s
actuator is equipped with a release button that permits
manual control of the damper blade, always ensure this
is activated before working on the internal parts of the
damper.
If the product is equipped with a spring return actuator there is
no release button, manual control is performed using the sup-
plied hex key where the damper blade is cranked to the required
position and then locked. Do not forget to disable the lock after
working on it.
Handling
• Always use appropriate transport and lifting devices when the
product is to be handled to reduce ergonomic loads.
• The product must be handled with care.
Installation
• Moist, cold and aggressive environments must be avoided.
• Avoid installing the product near a heat source.
• Assemble the product according to applicable industry
regulations.
• Install the product so that it is not accessible by unauthorized
persons, for example above a suspended ceiling.
• Install the product for easy access during service/maintenance.
• Supplement the duct system with a cleaning hatch in the
vicinity of the product to facilitate cleaning.
• If the product is mounted above a fixed ceiling, the inspection
hatch must be located so that the product is accessible for
inspection.
• If the product is mounted so that it is possible to gain access
to the inside of the product, it must be supplemented with
appropriate protection, for example, a ventilation unit.
• If the product is mounted in cold areas, the whole product
must be insulated on the outside against condensation.
• For installation, the accessory FSR is recommended.
• The product can be installed position-independent.
• It is recommended to mount the product so that the
product’s display is visible.
• The product must be laid down prior to installation so that it
cannot fall over.
• Check to make sure that the product does not have any
visible defects.
• Check that the product is properly secured after it has been
installed.
• Use the product’s eyes to secure the cables with cable ties.
• Check that all cables are properly secured in place after
installation.
• Check that the actuator/controller is properly mounted in
place.

REACT P-X
2Swegon reserves the right to alter specications. 20200910
Installation, torque, dimensions and weights
Figure 3. Dimensions (mm), REACT P-X circular and REACT P-X
circular with spring return. The damper can be installed at an
optional angle.
Installation – all designs
• The product’s pressure measurement requires spacing
as per the installation figures.
• In unfavourable conditions before or with disruption,
the product’s tolerances cannot be guaranteed.
• Instructions for Use are supplied with the product on
delivery, but can also be downloaded from www.
swegon.com.
Installation – circular version
• Installation is position dependent.
• Can be installed horizontally or vertically.
Figure 1. Installation in the duct system. The ducts must be firmly
fixed to the frame of the building on each side of REACT P-X.
1.
E
1. REACT P-X
2. FSR Clamp
C
Ød
AB
FF
G
3
6
0
°
Circular design
Size ØD (mm)
A (mm) C (mm)
E (mm)
F (mm)
Normal motor Spring return
B (mm)
G (mm)
Torque ( Nm)
Weight (kg)
B (mm)
G (mm)
Torque ( Nm)
Weight (kg)
100 210 190 220 50 27 80 10 1.4 45 70 51.9
125 210 220 220 50 27 80 10 1.5 45 70 5 2
160 210 260 220 50 27 80 10 1.6 45 70 52.1
200 210 300 220 50 27 80 10 1.9 45 70 52.4
250 210 355 220 50 27 80 10 2.1 45 70 52.6
315 210 415 220 50 27 80 10 2.6 70 95 10 3.1
400 255 505 265 50 580 10 3.6 70 95 10 4.1
500 255 605 275 50 580 10 5.1 70 95 10 5.6
630 255 735 275 50 580 15 6.7 70 95 20 7. 2
mm
Spacing at least 5 Ø
Damper
Signal cable Module
Controller
2.
Spacing at least 5 Ø
Signal cable
Damper
Module
Controller
3.
Damper
Signal cable
Module
Controller
S
p
a
c
i
n
g
a
t
l
e
a
s
t
5
Ø
Figure 2. Spacing requirements, circular ducts, quantity Ø before
and after the product:
1. At least 5 x Ø after the damper (supply air).
2. At least 5 x Ø before the damper (extract air).
3. Examples of how spacing can be measured.
4. Controller installation.
4.

3
20200910 Swegon reserves the right to alter specications.
REACT P-X
Rectangular design
Size WXH (mm)
Normal motor Spring return
Torque (Nm)
Weight (kg)
Torque (Nm)
Weight (kg)
200 x 200 10 7.2 58.0
300 x 200 10 8.4 59.2
400 x 200 10 9.9 510.7
500 x 200 10 11. 4 512.2
600 x 200 10 12.9 513.7
700 x 200 10 14.4 515.2
800 x 200 10 15.4 516.2
1000 x 200 10 18.4 10 19.9
300 x 300 10 10.9 511.3
400 x 300 10 12.4 512.9
500 x 300 10 13.9 514.4
600 x 300 10 15.4 515.9
700 x 300 10 16.8 10 17.8
800 x 300 10 18.4 10 19.4
1000 x 300 10 21.4 10 22.4
400 x 400 10 14.0 514.5
500 x 400 10 16.0 10 18.0
600 x 400 10 17. 4 10 18.5
700 x 400 10 19.6 10 20.6
800 x 400 10 21.1 10 22.2
1000 x 400 10 24.2 10 25.2
1200 x 400 15 27. 2 20 29.2
1400 x 400 15 30.3 20 32.2
1600 x 400 15 33.3 20 35.3
500 x 500 10 18.5 10 19.5
600 x 500 10 20.5 10 21.6
700 x 500 10 22.6 10 23.6
800 x 500 10 24.6 10 25.6
1000 x 500 15 28.6 20 30.6
1200 x 500 15 32.7 20 34.6
1400 x 500 15 36.8 20 38.7
1600 x 500 15 40.8 20 42.8
600 x 600 10 22.7 10 23.7
700 x 600 10 24.8 10 25.8
800 x 600 15 26.8 20 27.8
1000 x 600 15 30.9 20 32.9
1200 x 600 15 35.0 20 37.0
1400 x 600 15 39.2 20 41.1
1600 x 600 15 43.3 20 45.2
700 x 700 15 27.6 20 29.5
800 x 700 15 30.3 20 32.2
1000 x 700 15 34.9 20 36.8
1200 x 700 15 40.6 20 42.6
1400 x 700 15 45.7 20 47.7
B104
20
220
H
20
20
Figure 6. Dimensions (mm), REACT P-X rectangular, REACT P-X
rectangular with spring return.
Installation – rectangular design
Dimension B in the figure and table below is found in the
table “Rectangular design” to the left.
NOTE! Damper spindles must be installed horizontally.
Straight duct section before REACT P-X in rectangular
ducts
Type of disruption E
One 90° bend E = 2 x B
T piece E = 2 x B
Figure 4. Straight section requirements and spacing, rectangular
ducts.
Figure 5. Straight duct section and spacing requirements, rectan-
gular REACT P-X and sound attenuator with baffle. Installation
with a straight duct section applies to both the supply air and the
extract air.
Straight duct section before/after REACT P-X –
sound attenuator with baffle
1
32
1. = Rectangular REACT P-X.
2. = Straight duct ≥2xB.
3. = Sound attenuator with baffle.
1. Controller/Actuator always on the side of the rectangular damper.
E = Straight section.
W = Width, duct.
H = Height, duct.
1
Spacing at least 5xW
Spacing at least 5xW
Spacing at least 5xW
Straight duct section
at least 2xW

REACT P-X
4Swegon reserves the right to alter specications. 20200910
Figure 7. Wiring diagram, normal and spring return.
1-2 – Supply voltage 24 V AC/DC
1-3 – Control signal (Y) 0..10 / ( 2..10 ) V
1-4 – Actual value signal (U) 0..10 / ( 2..10 ) V
A-B – Modbus
For further calculations of Y and U see the formulas page 8.
Load on output 4: max. 0.5 mA
LN
24 V AC/DC
AB 0..10 V DC
(2..10 V DC)
a. b. c. d. e.
0..10 V DC
(2..10 V DC)
Y U
1 2 3 4
-+
AAB
Modbus
-+
GUAC
CA CB
-+
NOTE! Electrical connection of the motor from the factory is not
complete.
Connections
Length of cable
Max cable length between controller and actuator.
Cable area Max. cable length
0.75 mm 2 20 m
1.0 mm 2 30 m
1.5 mm245 m
2.5 mm 2 75 m
Figure 9. Tube couplings controller.
Pressure tube
Regulation and forced control via analogue
control signal
See connection in the wiring diagram, figure 7.
a. Open the damper: 24 VAC (L) via diode/rectifier
(positive half-wave)
b. Regulate to set max. value: 24 VAC/DC (L)
c. Regulate to set min. value: Mode = 0 – 10 V, no control
signal
d. Close the damper: 24 VAC/DC (N)
• Mode = 0 – 10 V, min. value = 0
• Mode = 2 – 10 V
e. Regulate according to control signal 0-10 V / 2-10 V
• Mode = 0 – 10 V
0 V = min. value
10 V = max. value
• Mode = 2 – 10 V
0 V = close damper
2 V = min. value
10 V = max. value
Pressure tube for extract air
installation
Pressure tube for supply air
installation
Signal cable connection
A signal cable is connected between the actuator and
controller’s connection cables as per the numbers/colour
coding.
For example, 1 to 1, or black to black.
Connection points and signal cable not included.
Module Controller
Fixed connection cable,
1000 mm with cable size. 4 x 0.75 mm 2
See figure 8 below
Actuator
Fixed connection cable,
1000 mm with cable size. 4 x 0.75 mm 2
See figure 8 below
BK RD WHOG
1234
Figure 8. Connection cable controller and actuator.

5
20200910 Swegon reserves the right to alter specications.
REACT P-X
Handling
Menus
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10-3
x
Pres/Unit
• Switch between Pa and inH
2
O×10
-3
via the edit
wheel.
• A “Lit” square on the display indicates the
selected unit.
Figure 10. REACT interface.
1 – Select the required function by turning the “Function wheel”.
2 – Set the value or select submenus by turning the “Edit” wheel.
3 – The value flashes twice when a new value is accepted.
Edit
Edit
10°
10°
Pnom
Pnom
Pres / Unit
Pres / Unit
Pmin
Pmin
Pmax
Pmax
Test
Test
Mode
Mode
Adr
Adr
Do not
Do not
open
open
Pa
Pa
Test
Test
inH
inH
2
2
O 10
O 10
3
3
x
24 VAC/DC • 50/60 Hz
24 VAC/DC • 50/60 Hz
0...+50°C • IP 42
0...+50°C • IP 42
+32...+122°F • NEMA 2
+32...+122°F • NEMA 2
class 2 supply onl
class 2 supply onl
y
Made in Germany
Made in Germany
1
23
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
Pmin
• Select new value for Pmin via the edit wheel.
• Pmin must be less than Pmax.
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
Pmax
• Select new value for Pmax via the edit wheel.
• Pmax must be greater than Pmin.
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Test
• Disconnects automatically after 10 hours.
• Turn the edit wheel to choose between the
following modes:
oFF – Test mode switched off, the controller regulates
normally
on – Test mode is on, the damper is locked in its
position
oP –Opens the damper fully
cL – Closes the damper completely
Lo –The damper is regulated to selected Pmin
Hi – The damper is regulated to selected Pmax
123 – Shows the current software version
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Mode
• Shows selected control and feedback signal.
• Switch between 0-10 and 2-10 V via the edit
wheel.
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Addr
• Used for Modbus. for particulars on how to use
Modbus, see next page.
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x
Pnom
• Not used.
Pnom
Pnom
Pres/Unit
Pres/Unit
Pmin
Pmin
Pmax
Pmax
T
T
est
est
Mode
Mode
Adr
Adr
Pa
Test
inHO 10-3
x
PnomPnom Pres/UnitPres/Unit
PminPmin
PmaxPmax
TTestest
ModeMode
AdrAdr
Pa
Test
inHO 10
-3
x

REACT P-X
6Swegon reserves the right to alter specications. 20200910
Function Description
Addr
Enables you to set the actuator's Modbus address, by turning the "edit wheel". It
is possible to set the address from 1 till 247. If you turn the value selector to end
stop "+", the display will show a "2". This makes it possible to select the second
level. If you select the second level, this is indicated in the display by a small
circle.
The following functions are available at the second level:
Pres/Unit Return to previous level
Pmin Not used.
Pmax Not used.
Test Not used.
Mode Shows the angle of the rotation (0…255 digital 0....100%)
Addr. Used for selecting communication settings for Modbus. See table below.
Pnom
Used for setting response delay for the Modbus communication (see separate
documents)
How to use Modbus
Modbus tables are available in a separate document (REACT-Modbus-m)
Display number EEPROM value Communication rate Parity Stop bits
1301200 None 2
2311200 Even 1
3321200 Odd 1
4 3 2400 None 2
5 4 2400 Even 1
6 5 2400 Odd 1
7 6 4800 None 2
8 7 4800 Even 1
9 8 4800 Odd 1
10 99600 None 2
11 10 9600 Even 1
12 11 9600 Odd 1
13 12 19200 None 2
14413 19200 Even 1
15 14 19200 Odd 1
16 15 38400 None 2
17 16 38400 Even 1
18 17 38400 Odd 1
19318 1200 None 1
20 19 2400 None 1
21 20 4800 None 1
22 21 9600 None 1
23 22 19200 None 1
24 23 38400 None 1
3Limited data length per reading of max. 8 addresses
4Default setting

7
20200910 Swegon reserves the right to alter specications.
REACT P-X
Cleaning
Ideally, the product should be cleaned in connection with
the cleaning of the rest of the ventilation system.
Cleaning of electrical components
• If needed, use a dry cloth to clean the components.
• Never use water, detergent and cleaning solvent or a
vacuum cleaner.
External cleaning
• If necessary use tepid water and a well-wrung cloth.
• Never use detergent and cleaning solvent or a vacuum
cleaner.
Internal cleaning
• When cleaning the ventilation system, the product
must be dismantled if there are no cleaning hatches
close to the product.
• Cleaning equipment such as whisks and the like must
not be fed through the product.
• If necessary remove dust and other particles that can
be present in the product.
• Never use detergent and cleaning solvent or a vacuum
cleaner.
Service/maintenance
• The product does not require any maintenance, except
for any cleaning when necessary.
• In connection with a service, mandatory ventilation
inspection or cleaning of the ventilation system, check
that the general condition of the product appears to be
good. Pay particular attention to the suspension, cables
and that they sit firmly in place.
• It is not permissible to open or repair electrical
components.
• If you suspect that the product or a component is
defective, please contact Swegon.
• A defective product or component must be replaced by
an original spare part from Swegon.
Materials and surface treatment
All sheet-metal parts are galvanized sheet steel (Z275).
Disposal
Waste must be handled according to local regulations.
Product warranty
The product warranty or service agreement will not be
valid/will not be extended if: (1) the product is repaired,
modified or changed, unless such repair, modification
or change has been approved by Swegon AB; or (2) the
serial number on the product has been made illegible or
is missing.
Trouble shooting
The product does not communicate over Modbus
• Make sure that the product is energized.
• Check the product's Modbus connection.
• Check the product's communication settings.
• Check that the product has the right and unique
Modbus address.
The product shows the incorrect/no air pressure
• Make sure that the product is energized.
• Check that the product’s set size corresponds with the
physical size.
• Make sure that the product is installed according to the
recommended distance to disruptions, see “Installation”.
• Check that there is an air flow.
• Make sure that the product is correctly oriented in
terms of air direction. The air flow must follow the
instructions on the product.
• Check that the measuring tube is mounted correctly,
plus for supply air function or minus for extract air
function.
• Check that the measuring tubes are undamaged and
not creased.
• Check the pressure in the measuring tube. Check the
pressure in the measuring nipple.
The product does not regulate the air pressure
• Make sure that the product is energized.
• Check that the damper motor has not become
detached from the damper spindle.
• Check that the damper motor works by pressing in
the motor’s release button, turn the damper spindle,
release the release knob and then see whether the
damper motor starts to move.
• Check that the product is connected correctly.
• Check that the product is not force controlled.

REACT P-X
8Swegon reserves the right to alter specications. 20200910
4,00 V
V DC
U
1 2 4
CA CB
AB
3
Y
Figure 11. Shows how to connect a voltmeter for checking the
actual value.
Formulas for calculating air pressure
The following applies for analogue control.
Control signal 0..10 V DC give the following formulas:
• Calculation of the current pressure (Pact) when you know the
value of the control signal (Y):
Y
10 V DC
Pact = Pmin + (Pmax – Pmin)
Pact
300
U = 10 V DC
Y – 2 V DC
8 V DC
Pact = Pmin + (Pmax – Pmin)
Control signal 2..10 V DC gives the following formulas:
• Calculation of the current pressure (Pact) when you know the
value of the control signal (Y):
Pact
300
U = 2 V DC + 8 V DC
• Calculation of the current actual value (U) when you know
the value of the current pressure (Pact):
• Calculation of the current actual value (U) when you know
the value of the current pressure (Pact):
Key to formulas opposite:
Y = control signal in [V] DC
U = actual value signal in [V] DC
Pact = current air pressure in [Pa,
inH
2
O×10
-3
]
Pmin = set min. pressure in [Pa, inH
2
O×10
-3
]
Pmax = set max. pressure in [Pa, inH
2
O×10
-3
]
Performance checks.

9
20200910 Swegon reserves the right to alter specications.
REACT P-X
Replacing the damper motor
Figure 14. Damper open. Jumper to the left.Figure 13. Recess in the damper spindle indicates the position
of the damper.
Figure 12. Dismantling the damper motor.
1.Disconnect the cable.
2.Disconnect the measuring tubes.
3.Set damper motor to the open position.
4.Loosen the nuts on the spindle clamp (nuts: 8mm).
5.Dismantle 2 screws for the locking strip (screws: TX20).
6.Lift off the damper motor and spindle adapter
(The rectangular design has a round damper spindle and no spindle adapter).
7.Reassemble in the reverse order.
NOTE!
Normal motor
Positioning of damper blade and locking strip, see figures 13 and 14.

REACT P-X
10 Swegon reserves the right to alter specications. 20200910
Technical data
IP class: IP42
Corrosivity class: C3
Pressure class: A
Leakage classes according to SS-EN 1751
- Leakage class, casing: C
- Leakage class circular damper, closed: 4
- Leakage class rectangular damper,
closed:
3
Running times open/close (90°):
10 / 15 Nm: 150 s
Spring return actuator, running time electricity (90°):
5 Nm: 100 s
10 / 20 Nm: 150 s
Return time spring: max. 20 s (90°)
Ambient temperature
Operation: 0 – +50 °C
Storage: -20 – +50°C
RH: 10 - 95%
(non-condensing)
CE marking: 2006/42/EC (MD)
2014/30/ EU (EMC)
2011/65/EU (RoHS2)
Electrical data
Normal
Power supply: 24 V AC/DC ±20% 50 - 60 Hz
Connection to screw
terminals:
6 x 0.5-2.5 mm 2
Power consumption, for transformer rating:
REACT P-X 10 Nm 2.6 W 4.8 VA
REACT P-X 15 Nm 2.6 W 4.8 VA
Spring return
Power supply: 24 V AC/DC ±20% 50 - 60 Hz
Connection to screw
terminals:
6 x 0.5-2.5 mm 2
Power consumption, for transformer rating:
REACT P-X-SR 5 Nm 7.1 W 8.8 VA
REACT P-X-SR 10 Nm 5.6 W 9.3 VA
REACT P-X-SR 20 Nm 8.6 W 9.3 VA
Signal cable connection
Module Controller
Fixed connection cable,
1000 mm with cable size. 4 x 0.75 mm 2
Actuator
Fixed connection cable,
1000 mm with cable size. 4 x 0.75 mm 2

11
20200910 Swegon reserves the right to alter specications.
REACT P-X
Declaration of Conformity
Swegon AB hereby affirms that:
REACT P-X complies with the essential characteristic
demands and relevant regulations specified in the directives,
2006/42/EC (MD), 2014/30/EU (EMC) and 2011/65/EU
(RoHS2):
The following standards have been observed:
EN ISO 12100:2010 Safety of machinery - General principles for
design - Risk assessment and risk mitigation
EN 60204-1:2006 Safety of machinery - Electrical equipment of
machines - Part 1: Generic standards
EN 60730-1:2011 Automatic electrical controls for household
and similar use - Part 1 Generic standards
EN 61000-6-2:2007 Electromagnetic compatibility (EMC). Generic
standards. Immunity for industrial environments
EN 61000-6-3:2007
Electromagnetic compatibility (EMC). Generic
standards. Emission standard for residential,
commercial and light-industrial environments
Person responsible for this declaration:
Name: Freddie Hansson, R&D Manager Tomelilla
Address: Industrigatan 5, 273 21 Tomelilla, Sweden
Date: 200601
This declaration is applicable only if the product has been
installed according to the instructions in this document
and if no modifications or changes have been made on
this product.
References
www.swegon.com
Building Materials Declaration
REACT P-X Product data sheet
REACT Function Guide
REACT Modbus

REACT P-X
