Swema SwemaMan 7 User manual

SwemaMan 7
Operating instructions
vers 1.13 MB_CW20180425
SWEMA AB
Pepparv. 27
123 56 FARSTA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web page: www.swema.com
Contents:
1. Introduction......................... 1
2. Technical data....................... 2
3. Start of instrument............... 2
4. Unit..................................... 3
5. Mode................................... 5
6. Settings (Set)....................... 9
7. Notebook............................ 10
WARNING! Before start measuring please read chapter ”6. Set-
tings (Set)”. At delivery k2-factor is turned on.

1.

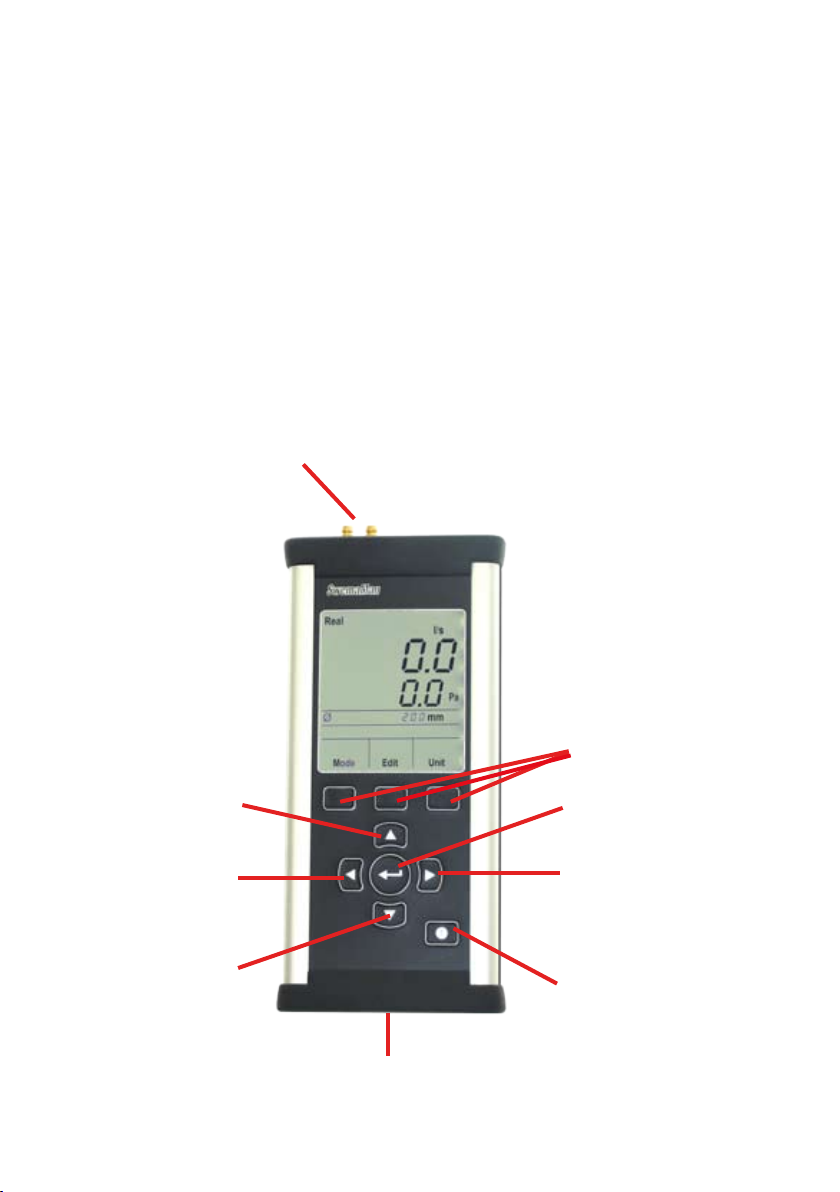

Differential pressure
Function keys
ON / OFF
Display light
USB connector
Batteries
Key Right
Zeroing
Enter
Key Left
Average
Key Up
Max
Key Down
Min
1. Introduction
SwemaMan 7 is a micro manometer for differential pressure, air ow
and air velocity. Differential pressure is measured in Pa, airow in l/s,
m3/h or CFM and air velocity in m/s or fpm. It’s possible to set baro-
metric pressure and temperature to compensate for correct air density.
Measure airow either with k-factor or with area in duct. The area is
entered into the instrument directly, as diameter or as height x width.
SwemaMan 7 can calculate minimum, maximum and average value.
Saved measurements are easily transferred to a PC.
SwemaMan 7 has display light, usb connector and are delivered with
two easily replaceable AA batteries.

Differential pressure: -1000... 9999 Pa
Air velocity: 2... 130 m/s
Measurement uncertainty at 23°C:
±1% read value, min ±0.5Pa
95% coverage probability in non condensing, non moist air, <80%RH, non aggressive
gases.
Ambient temperature: 0... 50°C
Memory: 300 Notes
PC-communication: USB
Battery: 2x 1,5V AA (Standard or rechargeable)
Battery operating time: Up to 150h (24h with display light turned
on)
Size: 180x82X36mm
Weight: 390g
IP50 (dust)
2. Start of instrument
When starting the instrument (ON/OFF-button), the display shows
the battery voltage, rmware version and calibration date. After a
couple of seconds it’s in measuring mode. SwemaMan 7 will start in
the same measuring mode it was set to when turned off.
Display light: The display light can be turned On and Off by pressing
the ON/OFF-button (when instrument is turned on).
Turn Off: To turn off the instrument press and hold down the ON/
OFF-button for about 2 seconds until the text ”OFF” is shown on the
display.
2. Technical data
2.
Zeroing: To reset the pressure sensor to zero
press Key Right. When the pressure sensor
is zeroing the text ”Zero” and the digit ”0” will
be shown on the display (see picture to the
right).
Note! Disconnect pressure from the pressure
connectors before zeroing.

4. Unit
Press Unit to alternate between the different units. The units Swema-
Man 7 can display are:
• Pa
• m/s & Pa (fpm & Pa if US-unit is selected)
• l/s & Pa (cfm & Pa if US-unit is selected)
• m
3
/h & Pa (cfm & Pa if US-unit is selected)
• hPa & °C (inHg & °F if US-unit is selected)
Measurement: When in measuring mode press
Enter to store a value in the volatile memory.
The number of measuring points stored in the
volatile memory is shown on the display directly
under the measured values, ”2P” (see picture to
the right) means the two measuring points has
been stored. When Enter is pressed an average
of the measuring points is shown for a short
while before the measured values is shown in
real time again.
Average, Max & Min: To check the average, max or min value of
the stored measurement points press Key Left (Average), Key Up
(Max) or Key Down (Min), as long as the button is hold down the
corresponding value will be shown on the display.
Save a measurement: After a measuring point has been stored it’s
possible to save the measurement into SwemaMan 7:s Notebook by
pressing Save. The display will show which note number the meas-
urement is saved as (example n3 = note 3). To instead erase the
measurement from the volatile memory press Clear.
Differential Pressure (Pa): Press Unit until
SwemaMan 7 shows the unit Pa. A measurement
with average, max and min and also saving of
the measurement is possible. If pressure is big-
ger than 10.000 Pa or lower than -1000 Pa (out
of range) the digit will ash.
Air Velocity (m/s & Pa): It’s possible to meas-
ure air velocity with SwemaMan 7 by connecting
a pito static tube. Press UNIT until SwemaMan
7 shows the units m/s and Pa. A measurement
with average, max and min and also saving of
the measurement is possible. Air velocity lower
than 0.7 m/s will be shown as zero.
Differential pressure meas-
urement
Air velocity measurement
3.

Air velocity is calculated according to the formula:
∆P = dynamic pressure (= total pressure - static pressure (Pa))
ρ = density of air =
B = barometric pressure (can be set to a value manually. If set to
standard 1013 hPa is used)
t = air temperature (can be set to a value manually. If set to
standard 20ºC is used)
Air Flow (l/s & Pa or m
3
/h & Pa): It’s possible with SwemaMan 7
to do a couple of different air ow measurements. The air ow meas-
urements possible are:
• Measurement in circular duct (set Diameter)
• Measurement in rectangular duct (set Height x Width)
• Measurement in duct (set Area)
• Flow factor measurement
• K-factor measurement
If SwemaMan 7 is set to air velocity measurement press Unit and air
ow measurement in l/s will be displayed, press Unit once more for
air ow in m
3
/h.
Air ow measurement with k-factor in l/s and m
3
/h
1.2038 • (kg/m
3
)
B • 293.15
1013 • (273.15 + t)
4.
The kind of air ow meas-
urement that will be dis-
played is what SwemaMan
7 was set to measure last
time (k-factor measure-
ment is set as standard).
See chapter ”5. Mode” for
more information about the
different air ow measure-
ments and how to change
settings.

Barometric pressure & Temperature (hPa &
°C): Press Unit until hPa & °C is displayed. The
barometric pressure and temperature shown on
the display will be the values SwemaMan 7 uses
to compensate for the density of air (air density
compensation is used at air velocity and air ow
measurements).
As standard SwemaMan 7 will be set to use a
barometric pressure and temperature set to
1013hPa and 20°C.
When a measurement is using air density com-
pensating SwemaMan 7 show this with the text
”Std” or with a ”*” in the top left corner of the
display.
Std = Standard density (1013 hPa & 20°C)
*= Both barometric pressure and temperature set manually
See chapter ”6. Settings (Set)” for more information how to change
between Std and *.
5. Mode
When SwemaMan 7 is in measuring mode (all measuring modes) it’s
possible to press Mode. In Mode it’s possible with the Arrow Keys to
change type of air ow measurements,
go to settings for SwemaMan 7 or to Notebook
(saved measurements), conrm with Enter or
abort with Esc.
Ø = Measurement in circular duct (set
Diameter)
= Measurement in rectangular duct (set
Height x Width)
= Measurement in duct (set Area)
F = Flow factor measurement
K = K-factor measurement
Set = Settings
Notebook = Saved measurements
5.

Ø Air ow measurement in circular duct:
Go to Ø and press Enter for measuring air ow
in circular duct by setting a diameter.
The diameter SwemaMan 7 is set to measure
with is displayed direct under measured pres-
sure. SwemaMan 7 has 13 preset diameters
between 80 - 1250mm (standard diameters for
circular ducts) that can be changed by Up &
Down Keys. Please note! It’s not possible to
change diameter until a started measurement
has been saved or erased from the volatile
memory.
To set a diameter manually press Edit, use the
Arrow keys to change the diameter and press
Esc or Enter to return to measuring mode.
Use Unit to change between l/s and m
3
/h.
SwemaMan 7 is as standard set to compensate
for the k
2
-factor (reduces the area of a duct).
When the k
2
-factor is turned on the symbol k
2
will be shown above the measured air ow, see
chapter ”6. Settings (Set)” for more information
about the k
2
-factor and how to turn it On/Off.
Editing of duct diameter.
Air ow measuring mode with
set diameter.
Air ow measurement in rectangular
duct: Go to and press Enter for measuring
air ow in rectangular duct by setting Height x
Width. The Height x Width SwemaMan 7 is set to
measure with is displayed direct under measured
pressure (the display toggles between showing
set height and width).
Air ow measuring mode with
set Height x Width.
6.

To change height or width press Edit. Use Arrow
keys to set the height and press Enter to set
the width, when nished press Enter again and
SwemaMan 7 returns to measuring mode.
Use Unit to change between l/s and m
3
/h.
SwemaMan 7 is as standard set to compensate
for the k
2
-factor (reduces the area of a duct).
When the k
2
-factor is turned on the symbol k
2
will be shown above the measured air ow, see
chapter ”6. Settings (Set)” for more information
about the k
2
-factor and how to turn it On/Off.
Editing of width
Editing of height
Air ow measurement with setting of
Area directly: Go to and press Enter for
measuring air ow with an area set manually.
The area SwemaMan 7 is set to measure with is
displayed direct under measured pressure
Use Unit to change between l/s and m
3
/h.
To change the area press Edit, use the Arrow
buttons to change it (0.001... 9.999 m
2
) and
press Esc or Enter to return to measuring
mode.
Air ow measuring mode with
a set area
Editing of area
F Flow Factor measuring:
Go to F and press Enter for Flow factor measur-
ing. In this measuring mode it’s possible to set
an air ow in l/s, SwemaMan 7 calculates what
k-factor that correspond to this air ow depend-
ing on the measured differential pressure.
The k-factor is calculated by:
F
k = √(∆P)
k = k-factor
F = Flow Factor (Air Flow in l/s)
∆P = Differential pressure
F l o w Fa c t o r m e a s u r i n g
mode.
7.

The Flow factor SwemaMan 7 is set to measure
with is displayed direct under measured pres-
sure.
To change the Flow Factor press Edit, use the
Arrow buttons to change it (0.001... 9999 l/s)
and press Esc or Enter to return to measuring
mode.
Editing of Flow Factor
k-factor measuring:
Go to K and press Enter for k-factor measuring.
The air ow is calculated by:
q = k x √(∆P)
q = Air Flow
k = k-factor
∆P = Differential pressure
The k-factor SwemaMan 7 is set to measure with
is displayed direct under measured pressure.
Use Unit to change between l/s and m
3
/h.
Please note! The calculated air ow is based
on a k-factor corresponding to l/s.
SwemaMan 7 can store 10 preset k-factors that
can be toggled by Up & Down Keys.
Please note! It’s not possible to change diameter
until a started measurement has been saved or
erased from the volatile memory.
To change a k-factor (choose between K0-K9, the
digit is only shown for about a second after
Air ow measuring mode with
k-factor
Up/Down Key has been pressed) press Edit. Use the Arrow keys
to change the diameter and press Esc or Enter to return to measur-
ing mode.
Editing of k-factor number 4
8.

6. Settings (Set)
For settings press Mode, go to ”Set” and press Enter. Use Key Left/
Right to see the different settings, to change a setting press Edit or
use Key Up/Down. When changes are done press Esc or Enter and
SwemaMan 7 will go back to measuring mode. Following settings are
available:
Unit syst: Set units to SI- or US-unit system.
SI-unit: Pa, m/s, l/s, m
3
/h, hPa & °C
US-unit: Pa, fpm, cfm, inHg & °F
Density: Set how SwemaMan 7 should calculate and compensate air
density depending on barometric pressure and air temperature (air
density is used at air velocity and air ow measurements). The differ-
ent settings possible:
Std: Barometric pressure is set to 1013hPa & temperature is set to
20°C
*: Barometric pressure and temperature can both be set manually
(as default they are set to 1013hPa and 20°C).
Duration: Set how long the averaging of the displayed values should
be. Possible settings are 0.5, 1, 2, & 10 seconds. Higher averaging
time will give a slower change of the displayed measured values. As
default the averaging time is set to 2 seconds.
k
2
-factor (K
2
): Turn the k
2
-factor On or Off. If the k
2
-factor is turned
”On” SwemaMan 7 reduces the area of the duct depending on the duct
dimensions when calculating the air ow. Calculation of air ow:
k
2
-factor Off: q = area x air velocity
k
2
-factor On: q = k
2
x area x air velocity
Below is the k
2
-factor values SwemaMan 7 uses:
Circular ducts:
Ø ≤ 160 mm » k2 = 0.89
160 < Ø ≤ 400 mm » k2 = 0.95
400 < Ø ≤ 1250 mm » k2 = 0.98
9.

Rectangular ducts:
Height>Width » k2 = 0.94
Height<Width » k2 = 0.98
Height=Width » k2 = 0.96
Source: ”Metoder för mätning av luftöden in ventilationsinstallationer (T09)” with cor-
rection from NBI:s rapport nordtest Prosj. 1463-99 rev. 23-05-01.
Display light (Bac. light): On or Off.
The display light can also be turned On and Off by pressing the ON/
OFF-button.
7. Notebook
In Notebook it’s possible to see and print stored measurements. For
Notebook press Mode, go to ”Notebook” and press Enter.
Use Left/Right Key to choose which saved
note to display, the note number for the stored
measurement (n1, n2, n3 etc.) is displayed
direct under the stored measured value.
The saved value displayed in Notebook is the
average of the measurement. To see maximum
and minimum value of the measurement use
the Up & Down Key. If Enter is pressed Swe-
maMan 7 will display some more information of
the saved measurement. The extra information
displayed is the barometric pressure and tem-
perature used. If an air ow measurement has
been saved the k-factor or duct dimension used
will also be shown here.
With Erase it’s possible to erase all stored measurements. If pressed
the text ”Erase?” will be displayed, to erase the stored measurements
press All to abort press Esc.
Instead of erasing all stored measurements it’s
possible to erase the last saved note. In notebook
go to the last saved note, when it’s displayed
press Erase. Now two options will be available,
press Note to erase the last saved note or press
All to erase all stored measurements.
Stored measurement in note-
book with note number 2
(n2).
Erase the last saved note
or all the stored measure-
ments?
10.

11.
