SWF AQUAFLOW AQF5500 User manual

Solar Pumping Inverter
User’s Manual

Preface
Thank you very much for using AQUAFLOW Series Solar Pumping Inverter.
In order to give full play to the product performance and guarantee the safety of
user and equipment, before installation and use, please carefully read the manual.
In order to facilitate daily inspection and maintenance of inverter and understand
abnormal reason and solutions, please keep the instruction properly.
If you have any questions or special requirements during use, please contact
with our company’s product dealer or directly contact with our company’s technical
service center.
If the manual contents change, we may not offer notice.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Precautions
I
Contents
Precautions ................................................................................................................................ II
Chapter I Product Introduction ............................................................................................1
1.1 Introduction to Solar Pumping System................................................................................ 1
1.2 Product Characteristics ........................................................................................................ 2
1.3 Inverter Specification .......................................................................................................... 3
Chapter II Installation and Wiring .......................................................................................... 7
2.1 Procurement Inspection .......................................................................................................7
2.2 Dimension and Weight ........................................................................................................ 7
2.3 Installation Diagram ............................................................................................................9
2.4 Wiring Diagram ................................................................................................................. 12
2.5 Assemble DC Connector ................................................................................................... 21
2.6 Introduction to the Wiring of Water Level Sensor........................................................... 242
Chapter III Operation Control...............................................................................................23
3.1 Panel Layout and Introduction .......................................................................................... 25
3.2 Panel Operation Method....................................................................................................24
3.3 Work Mode ........................................................................................................................26
3.4 Introduction to the Procedure of Wiring and Debugging ..................................................28
Chapter IV: Failure Diagnosis ................................................................................................35
4.1 Explanation and Solution for Fault Code ..........................................................................35
Chapter V Maintenance ..........................................................................................................37
5.1 Daily Inspection and Maintenance ....................................................................................37
5.2 Inspection and Replacement of Quick-wear Parts............................................................. 38
5.3 Storage and Maintenance................................................................................................... 38
Quality Assurance .................................................................................................................... 39
Warranty Card.........................................................................................................................42

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Precautions
II
Precautions
The safe operation of the product is subject to correct transportation, installation, operation,
and maintenance. Before conducting these tasks, please pay attention to relevant safety instructions.
The warnings related to safety in the manual are listed as follows:
Grounding Wire of Equipment
AC Value
DC Value
Phase
Before operating inverter, please read the instruction.
5minutes
In order to avoid electric shock, breack off machine with PV terminal and
AC terminal for at least 5 minutes, then contact the wire of machine output
terminal and input terminal
Warning: when machine works, the temperature of metal shell may be
very high.
u Procurement Inspection
Warning
1. If the inverter is found to suffer damage or lack in component and part, do not
install it, or else it may cause accident!
u Installation
Warning
1. In order to guarantee good effect of convection cooling, the inverter shall be
installed vertically. Keep at least 10cm space between upward side and downward
side.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Precautions
III
2. Try to install it in the indoor place with ventilation opening or air interchanger. It is
forbidden to install it directly under sunshine.
3. During installation, do not discard residue of drill hole into inverter cooling find or
fan, which may affect heat dissipation.
u Wiring
Danger
1. The wiring shall be conducted by qualified electric technician, or it may cause
electric shock or fire disaster.
2. Before wiring, please confirm that the input power has been cut off, or else it may
cause electric shock or fire disaster.
3. The grounding terminal must be grounded reliably, or else the inverter shell may
have electricity.
4. The solar array, motor load, and inverter model selection shall be reasonable, or
else it may damage equipment.
Warning
1. Please use specified moment of force to tighten terminal, or else it may cause fire
disaster.
2. Do not connect capacitance or phase advance LC/RC noise filter in the output end
of inverter. When the distance between inverter and motor load is over 100m, it is
advised to use output reactor.
u Operation
Danger
1. Power on after confirming that the wiring is correct, or it may damage inverter or
fire disaster.
2. During electricity, do not change wiring, or else it may cause electric shock.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Precautions
IV
Warning
1. Before the first operation, please adjust some control parameters according to
operation instruction. Do not alter the control parameters of inverter at random, or
else it may damage the equipment.
2. During operation, the temperature of radiator is very high. Do not touch the
radiator, or else it may scald you.
3. When height above sea level exceeds 1000m, the inverter shall be used under rated
power. If the height increases by 1500m, the output current shall decreases by 10%.
u Miscellaneous
Danger
1. Assign qualified electric technician for maintenance and inspection.
2. During power-up state, do not remove the inverter. After outage, wait for 5 minutes
at least, then conduct maintenance and inspection, so as to avoid that the residual
voltage on electrolytic capacitor of major loop may cause damage to people.
3. It is forbidden to transform the inverter without authorization, or else it may
damage personnel or equipment.
4. When handling scrapped inverter, please dispose the inverter as industrial waste.
The inner electrolytic capacitor may explode during burning. Some components and
parts may generate hazardous and harmful gas during combustion.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
1
Chapter I Product Introduction
1.1 Introduction to Solar Pumping System
Solar Pumping System is widely applied in domestic water, agricultural irrigation, forestry
watering, desert control, grassland animal husbandry, island water supply, water treatment project,
etc. During recent years with the enhancement of new energy utilization, solar pumping system is
widely applied in the landscape and water spray system of municipal works, urban square, garden
sightseeing, tourist resort, hotel, and residential community. The system consists of solar cell array,
pumping inverter, and water pump(figure 1-1). Based on the design philosophy of saving water first,
the system omits energy storing device such as accumulator.

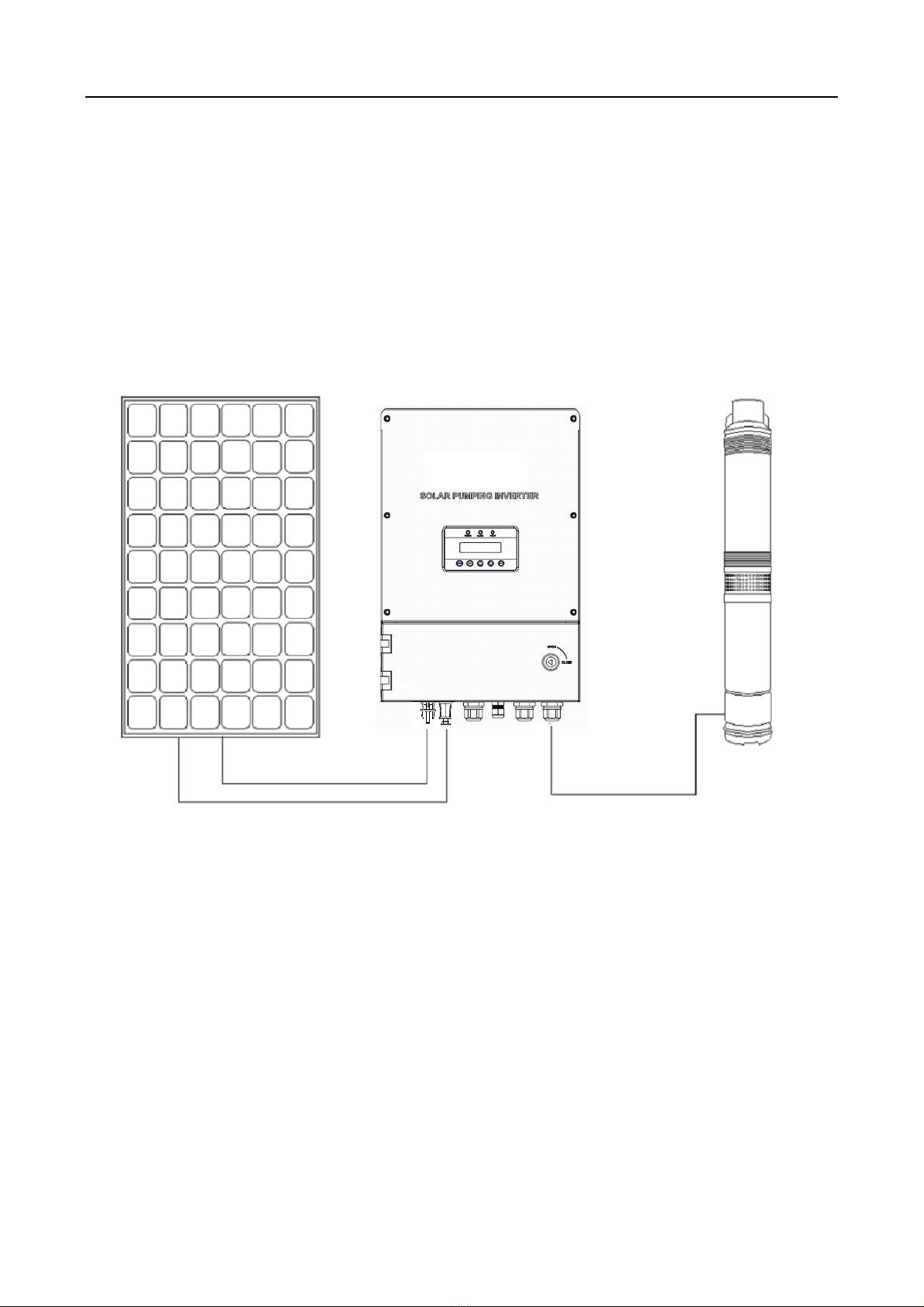

Figure 1-1 Structure of Solar Pumping System
The solar cell array is made from the series connection and parallel connection of several solar
cell modules, which absorb solar radiation energy and transform it into electric energy, so as to
supply electric power for the whole system. The pumping inverter controls and regulates the
operation of the system, transforms the direct current of solar cell array into alternating current to
drive water pump. In addition, according to the change of sunlight intensity, regulate output
frequency timely, to realize MPPT (Maximum Power Point Tracking). The water pump is driven by
three-phase AC motor. It pumps water from deep well, river, and lake, then inject water into water
storage tank/pool, or directly connect with irrigation system or fountain system, etc. According to
actual requirements of system and installation, different types of water pumps such as centrifugal
pump, axial flow pump, mixed-flow pump, or deep-well pump can be used.
DC Voltage
Three-Phase AC Voltage

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
2
1.2 Product Characteristics
On the basis of many-year research, development, and experiment, the pumping inverter
(Figure 1-2) independently developed and produced by our company has the following advantages:
u Use independently-developed dynamic VI MPPT (Maximum Power Point Tracking)
control method. The response speed is fast. Operation is stable and reliable. It solves the
following problems: tracking effect is poor when sunlight intensity rapidly; operation is not
stable; water hammer damage.
u All digital control. It has complete automatic operation, data storage, and complete
protection functions.
u AQUAFLOW Solar Pumping Inverter is specially designed for solar water pump. The
inner structure is more reasonable and professional.
u All key parts used in AQUAFLOW solar pumping inverter are made by international
famous brands. The quality is reliable, service life is long, and quality assurance period is
long.
Component and
Part
Manufacturer
Country
IGBT Module
Infineon
Germany
Electrolytic
Capacitor
NCC
Japan
EMI Filter
VA C
Germany
DSP Control
Chip
TI
America
PV Fuse
BUSSMAN
America
u The shell of AQUAFLOW solar pumping inverter is thick. The design process is improved
through abrasive tool test for many times. The appearance is elegant and exquisite, model
is compact, and weight is proper.
u AQUAFLOW solar pumping inverter integrates combiner box. It includes DC switch,
lightning arrester, fuse, and optional components. It greatly simplifies and facilitates
equipment installation and maintenance, but also effectively protects the equipment.
u Multiple communication interfaces such as RS485/CAN/GPRS(optional), etc. User can
check or control the running status and running mode of the system in a remote place.
u The design of AQUAFLOW solar pumping inverter selects electric supply or diesel
generator as standby inverter power supply, so as to meet the comprehensive requirements
of water supply.
u AQUAFLOW solar pumping inverter has complete operation protection mechanisms,
including output short circuit protection, IGBT module overcurrent protection,
acceleration/deceleration/constant speed overcurrent protection,
acceleration/deceleration/constant speed overvoltage protection, input

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
3
overvoltage/undervoltage protection, motor overload protection, inverter overload
protection, output side phase loss protection, inverter module overheat protection,
grounding short circuit protection, and underload (anti-dry pumping) protection.
u The main circuit uses power module (PIM), and the reliability is higher.
u The small-power model uses completely-new aluminum shell, LCD display operation
panel, and directly-insert connection terminal. The appearance is beautiful. The heat
dissipation effect and protective properties are good.
u Upper and lower water level detection and control circuit are optional.
u Protection grade IP65 (rated power is less than 22kW); temperature of service environment:
-20 ~ +60˚C.
Figure 1-2 AQUAFLOW Series Pumping Inverter
1.3 Inverter Specification
1.3.1 Introduction to Nameplate and Model
The product nameplate is located at the right lower part of inverter. The nameplate includes
important information such as product series, voltage, power grade, software version, and hardware
version. Such information provides important basis for product application, maintenance, and
after-sales service.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
4
Figure 1-3 Introduction to Product Nameplate and Model
Identification
Introduction
1
Product Series
2
Rated Power (W) of Motor
3
Output Voltage (L: 220V None:380V)
4
A: with electric supply function None: without electric supply
function
Warning: do not rip out product nameplate label.
1.3.2 Product Specification and Technical Index

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
5
Model
Max.
DC input
voltage
(Vdc)
Recommen
ded MPP
voltage
(Vdc)
Start
voltage
(Vdc)
Rated
output
powerW
Max.AC
output
currentA
Output
frequency
Hz)
Rated output
voltageVac
AQUAFLOW
550-L
450
100-400
80
550
3
0-50/60
3PH 220V
AQUAFLOW
750-L
450
150-400
120
750
5
0-50/60
3PH 220V
AQUAFLOW
1100-L
450
150-400
120
1100
6
0-50/60
3PH 220V
AQUAFLOW
1500-L
450
200-400
120
1500
7
0-50/60
3PH 220V
AQUAFLOW
2200-L
450
280-400
200
2200
11
0-50/60
3PH 220V
AQUAFLOW
550-LA
450
100-400
80
550
3
0-50/60
3PH 220V
AQUAFLOW
750-LA
450
150-400
120
750
5
0-50/60
3PH 220V
AQUAFLOW
1100-LA
450
150-400
120
1100
6
0-50/60
3PH 220V
AQUAFLOW
1500-LA
450
200-400
120
1500
7
0-50/60
3PH 220V
AQUAFLOW
2200-LA
450
280-400
200
2200
11
0-50/60
3PH 220V
AQUAFLOW
3000
900
500-680
250
3000
8
0-50/60
3PH 380V

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
6
AQUAFLOW
4000
900
500-680
250
4000
10
0-50/60
3PH 380V
AQUAFLOW
5500
900
500-680
250
5500
13
0-50/60
3PH 380V
AQUAFLOW
7500
900
500-680
250
7500
18
0-50/60
3PH 380V
AQUAFLOW
9200
900
500-680
250
9200
21
0-50/60
3PH 380V
AQUAFLOW 11K
900
500-680
250
11000
24
0-50/60
3PH 380V
AQUAFLOW 13K
900
500-680
250
13000
28
0-50/60
3PH 380V
AQUAFLOW 15K
900
500-680
250
15000
30
0-50/60
3PH 380V
AQUAFLOW
18K5
900
500-680
250
18500
39
0-50/60
3PH 380V
AQUAFLOW 22K
900
500-680
250
22000
45
0-50/60
3PH 380V
AQUAFLOW
3000-A
900
500-680
250
3000
8
0-50/60
3PH 380V
AQUAFLOW
4000-A
900
500-680
250
4000
10
0-50/60
3PH 380V
AQUAFLOW
5500-A
900
500-680
250
5500
13
0-50/60
3PH 380V
AQUAFLOW
7500-A
900
500-680
250
7500
18
0-50/60
3PH 380V
AQUAFLOW
9200-A
900
500-680
250
9200
21
0-50/60
3PH 380V
AQUAFLOW
900
500-680
250
11000
24
0-50/60
3PH 380V

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Product Introduction
7
11K-A
AQUAFLOW
13K-A
900
500-680
250
13000
28
0-50/60
3PH 380V
AQUAFLOW
15K-A
900
500-680
250
15000
30
0-50/60
3PH 380V
AQUAFLOW
18K5-A
900
500-680
250
18500
39
0-50/60
3PH 380V
AQUAFLOW
22K-A
900
500-680
250
22000
45
0-50/60
3PH 380V
Warning: please select appropriate model according to solar cell array and motor load.
Warning: The input power in the above table refers to multi-channel total input power. The
maximum input DC current of each group shall not exceed 15A.

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
8
Chapter II Installation and Wiring
2.1 Procurement Inspection
Our company has strict quality assurance system in aspects of product manufacturing,
packaging, etc. In case of abnormal condition, please contact with our company’s product dealer, or
contact with our company’s technical service center. We will provide you with solution as soon as
possible. When you get the products, please confirm the following items:
Inspection Item
Inspection Method
Whether it accords with ordered products
Inspect nameplate of product
Whether it is damaged or falls off
Check the overall appearance
Whether host computer and parts are complete
Inspect according to product checklist
Whether tightening parts such as bolt are loosened
When necessary, use screwdriver for inspection
2.2 Dimension and Weight

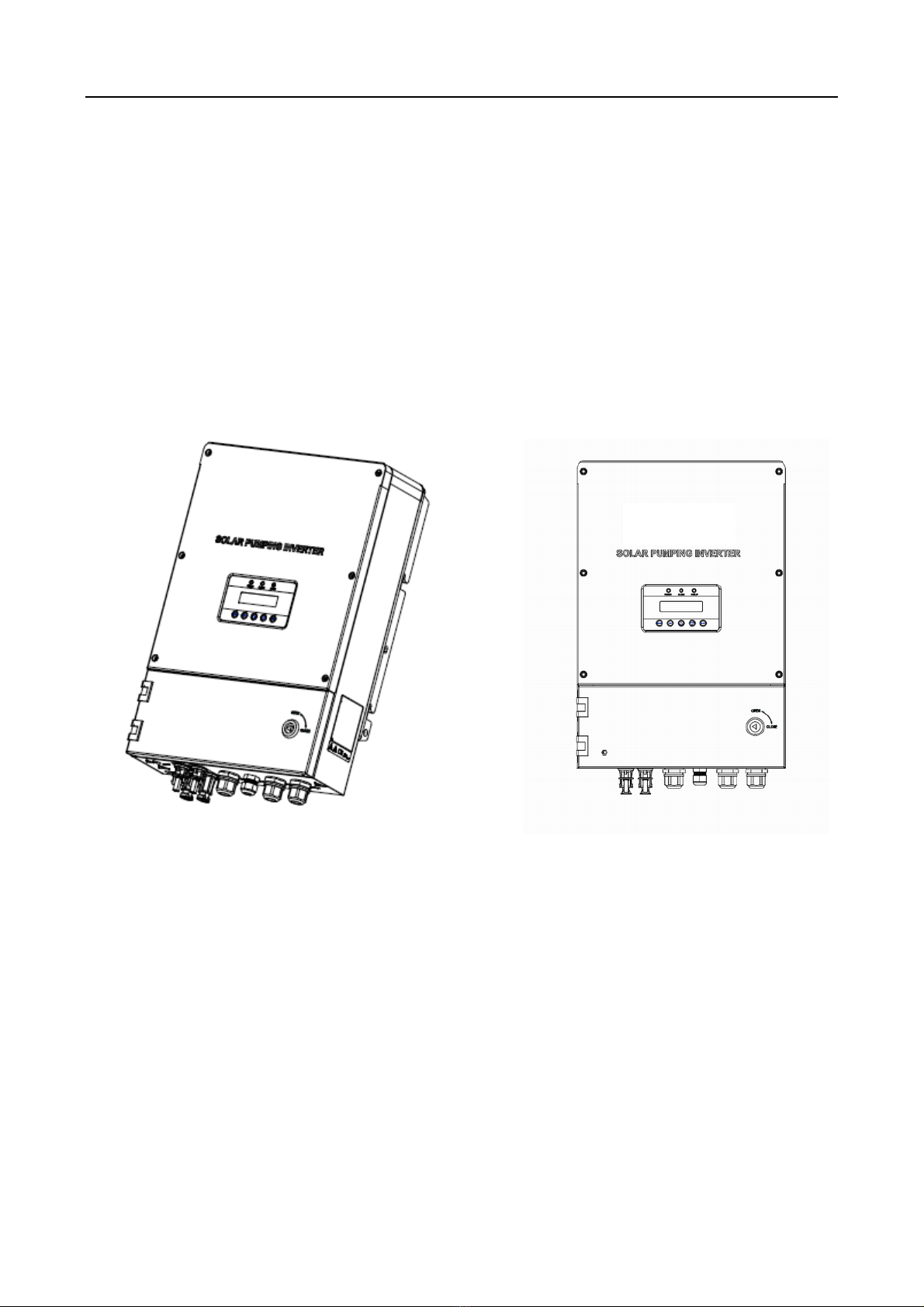

Figure 2-1 Product Appearance and Installation Dimension

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
9
Product Specification Parameter:
Model
WeightKg
Appearance and installation dimension (mm)
L
W
H
AQUAFLOW 550-L
5
405
297
147
AQUAFLOW 750-L
8
405
297
147
AQUAFLOW 1100-L
8
405
297
147
AQUAFLOW 1500-L
10
405
297
147
AQUAFLOW 2200-L
10
405
297
147
AQUAFLOW 550-LA
5
405
297
147
AQUAFLOW 750-LA
8
405
297
147
AQUAFLOW 1100-LA
8
405
297
147
AQUAFLOW 1500-LA
10
405
297
147
AQUAFLOW 2200-LA
10
405
297
147
AQUAFLOW 3000
14
478
325
155
AQUAFLOW 4000
14
478
325
155
AQUAFLOW 5500
15
478
325
155
AQUAFLOW 7500
15
563
346
148
AQUAFLOW 9200
15
563
346
148
AQUAFLOW 11K
15
563
346
148
AQUAFLOW 13K
16
533
405
190
AQUAFLOW 15K
16
533
405
190
AQUAFLOW 18K5
22
533
405
190
AQUAFLOW 22K
22
533
405
190
AQUAFLOW 3000-A
14
478
325
155
AQUAFLOW 4000-A
14
478
325
155
AQUAFLOW 5500-A
15
478
325
155
AQUAFLOW 7500-A
15
563
346
148
AQUAFLOW 9200-A
15
563
346
148
AQUAFLOW 11K-A
15
563
346
148
AQUAFLOW 13K-A
16
533
405
190
AQUAFLOW 15K-A
16
533
405
190
AQUAFLOW 18K5-A
22
533
405
190
AQUAFLOW 22K-A
22
533
405
190

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
10
Warning: most models of AQUAFLOW series are hanging installation. Guarantee that the
installation backboard can bear the weight of inverter.
2.3 Installation Diagram

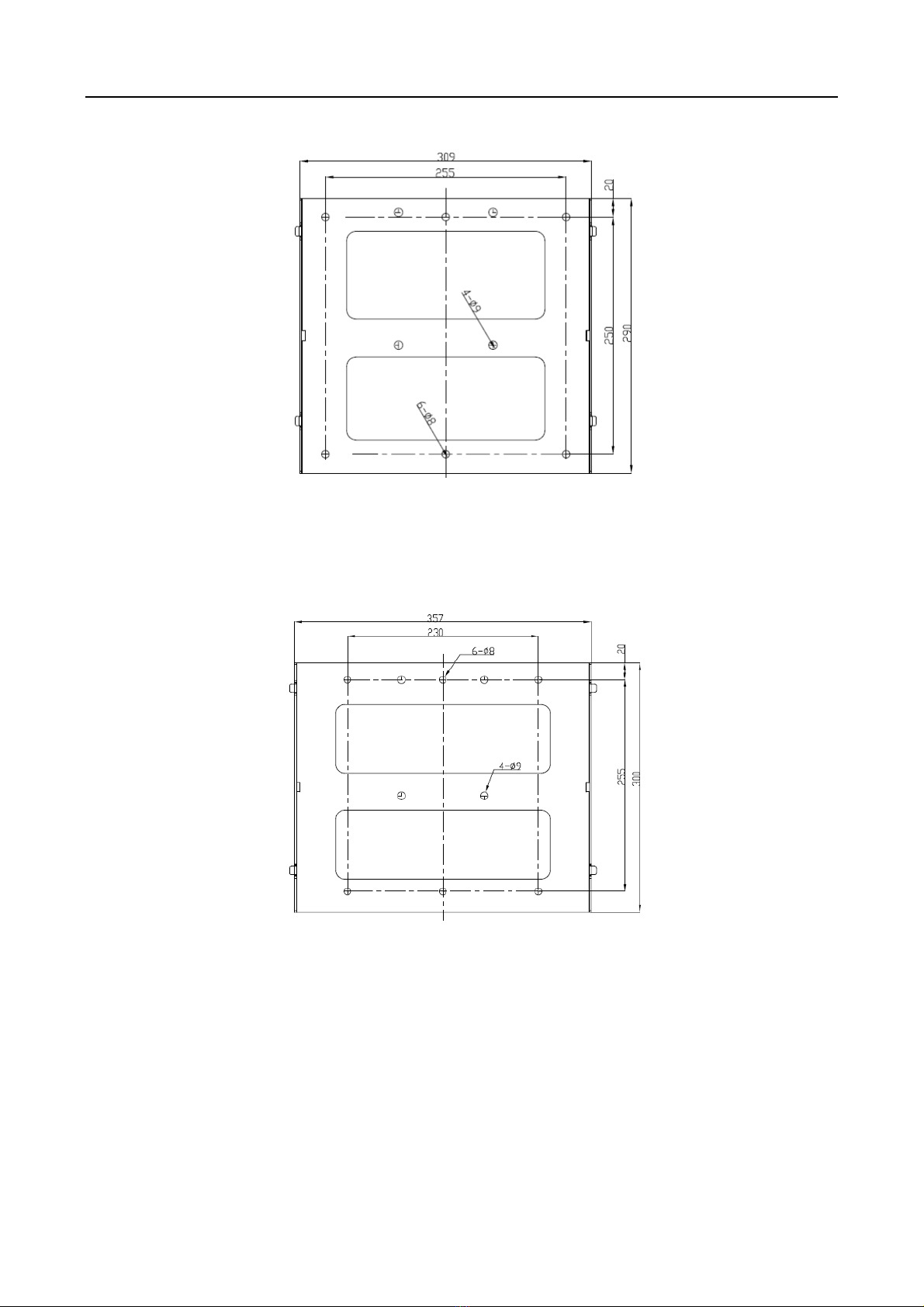

Figure 2-2 Installation Dimension Diagram of AQUAFLOW 550 to 2200

Figure 2-3 Installation Dimension Diagram of AQUAFLOW 3000 to 5500



Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
11



Figure 2-4 Installation Dimension Diagram of AQUAFLOW 7500 to 13K


Figure 2-5 Installation Dimension Diagram of AQUAFLOW 15K to 22K

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
12

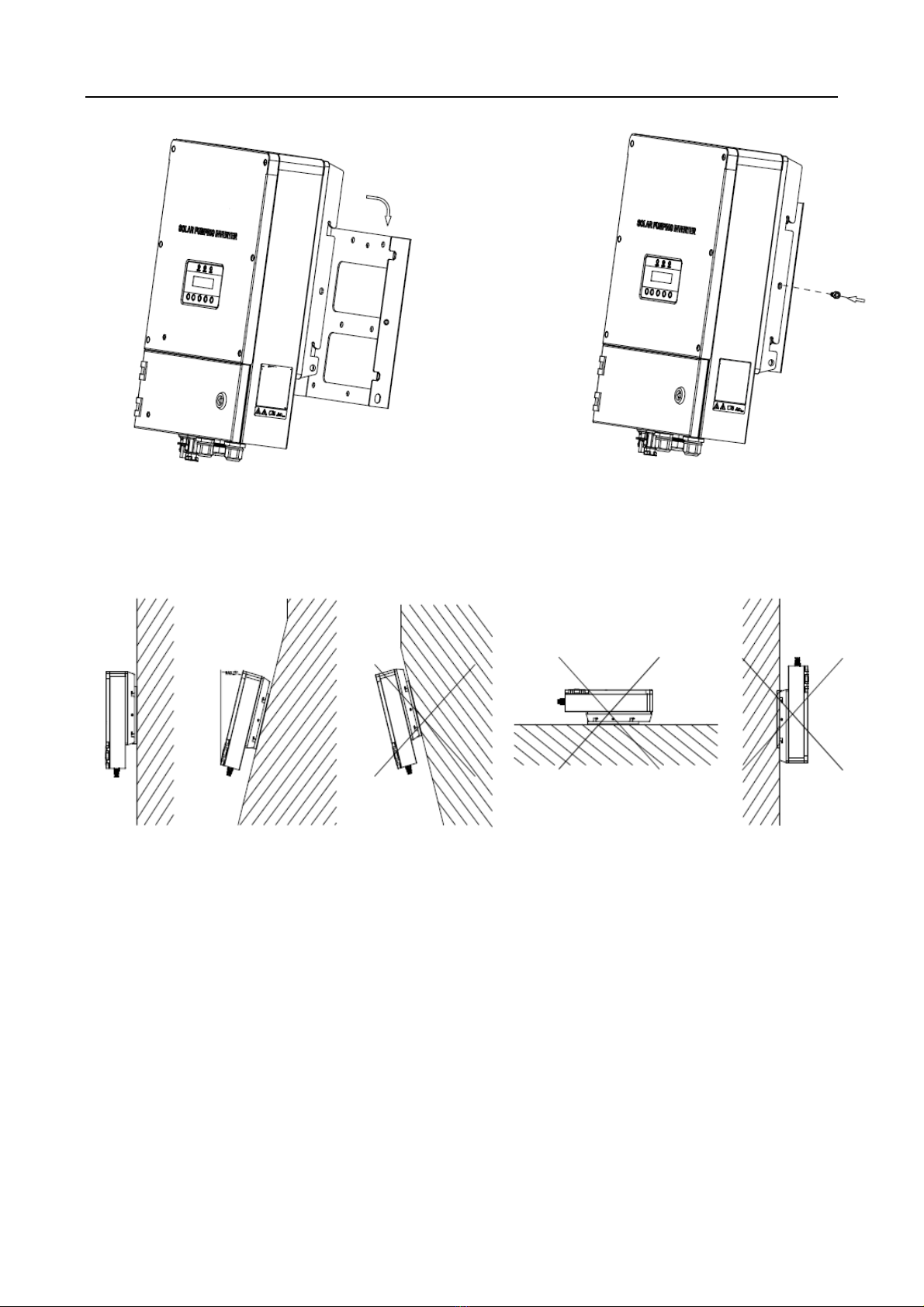

Figure 2-6 Install Safety Nut
Figure 2-7 Correct Arrangement Diagram of Inverter

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
13
2.4 Wiring Diagram
2.4.1 Wiring Diagram of AQUAFLOW 550-2200

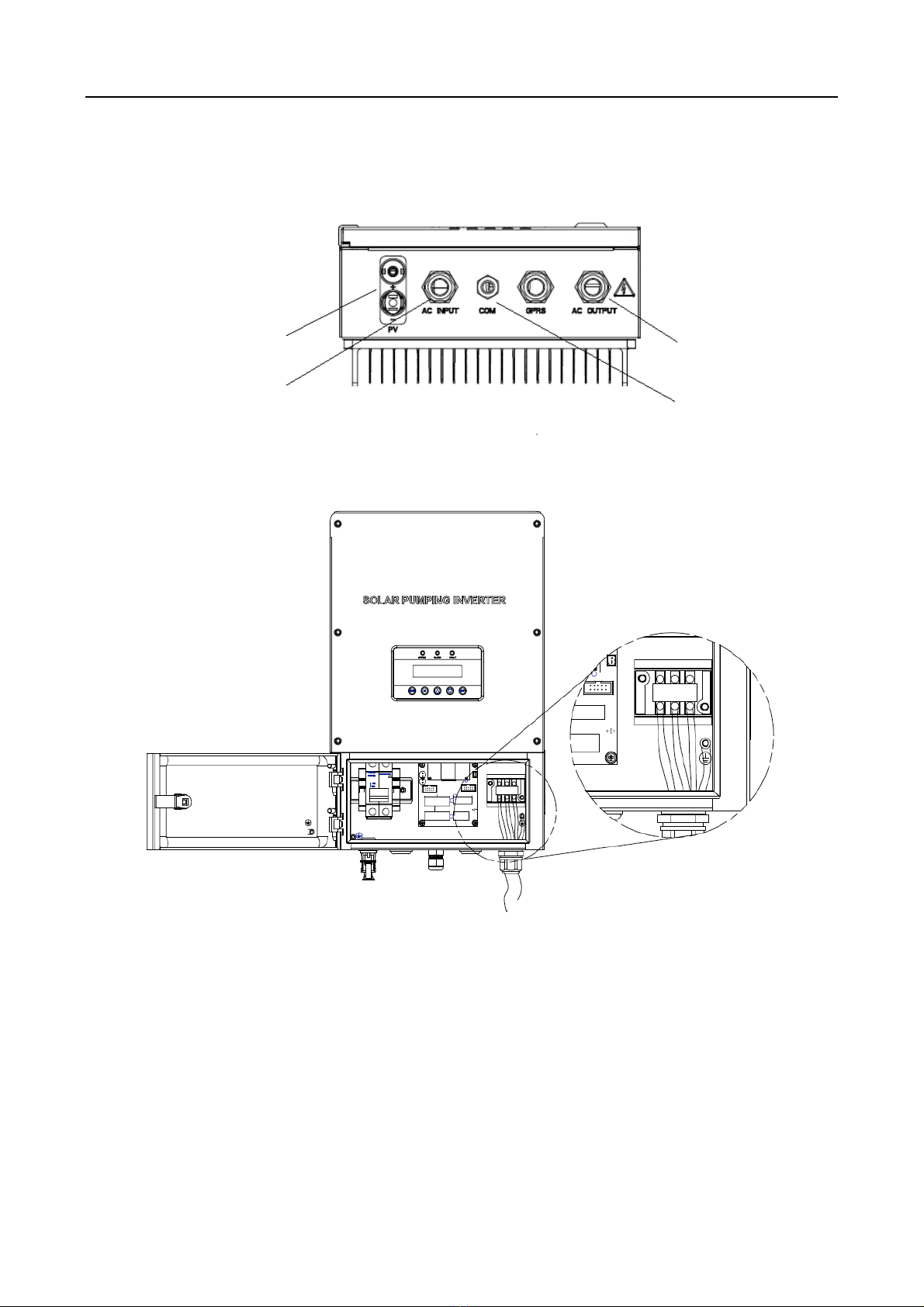

Figure 2-8 Wiring Terminal
Figure 2-9 AQUAFLOW 550-L to 2200-L Wiring Diagram
PV Input Terminal
AC Input Terminal
AC Output Terminal
Water Level Terminal

Operation Instruction of AQUAFLOW Series Solar Pumping Inverter Installation and Wiring
14

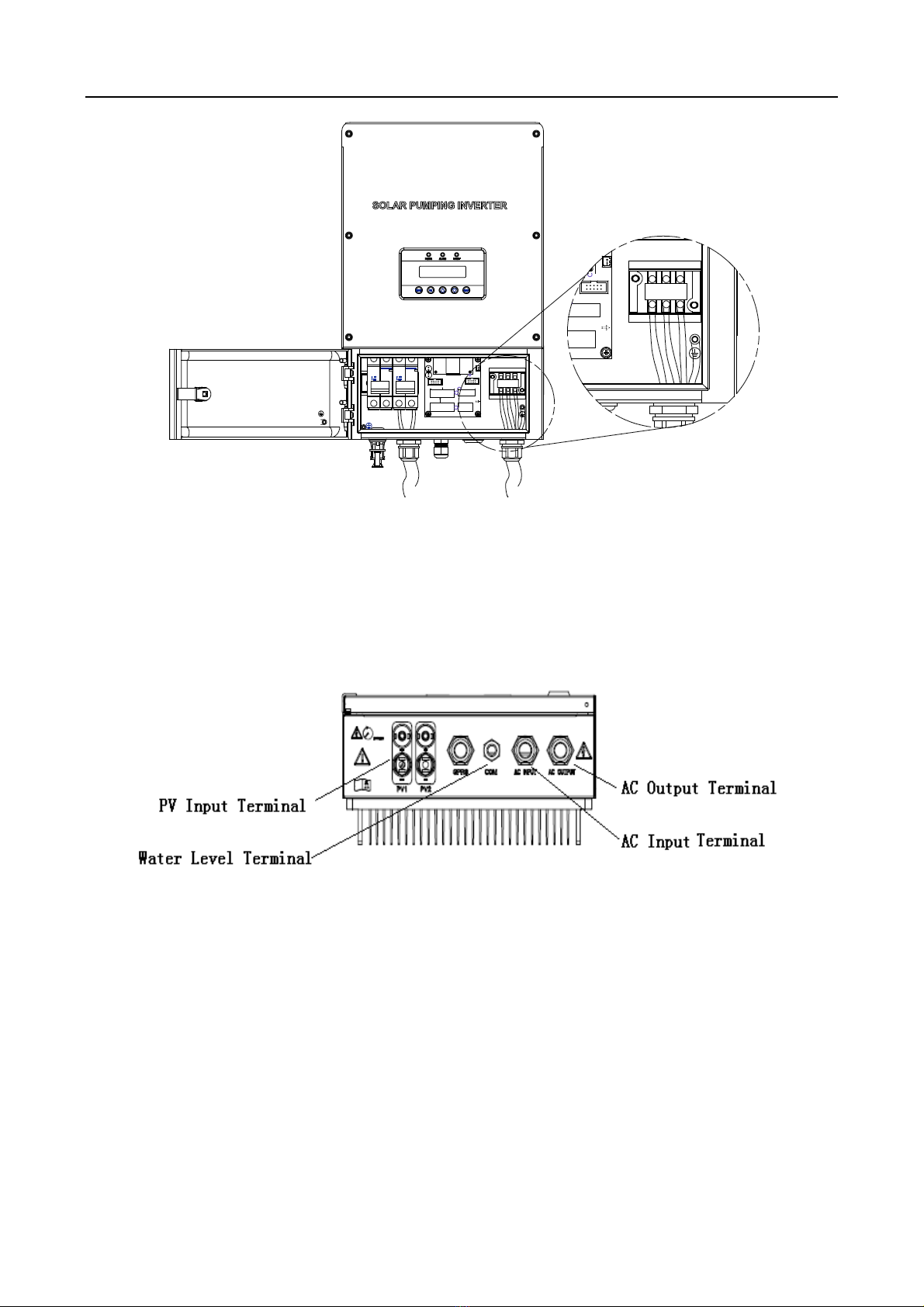

Figure 2-10 AQUAFLOW 550-LA to 2200-LA Wiring Diagram
2.4.2 Wiring Diagram of AQUAFLOW 3000 to 5500
!
Figure 2-11 AQUAFLOW 3000 to 5500 Wiring Terminal
