Swingline Stack-and-Shred 250X User manual

TM/MC
Instruction Manual 3
Manuel d’utilisation 10
Manual de instrucciones 17
To register this product go to www.swingline.com
Pour enregistrer ce produit allez sur www.swingline.com
Para registrar este producto vaís en www.swingline.com

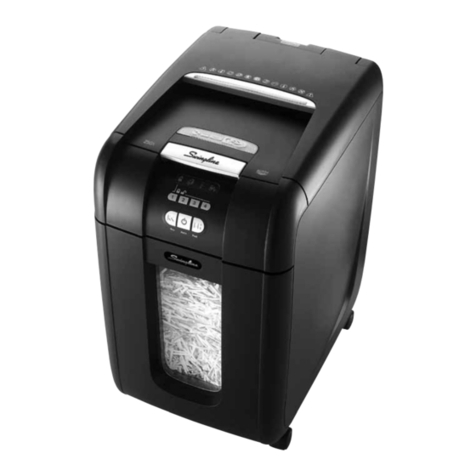

Stack-and-Shred™250X™
Hands Free Cross-Cut Shredder
Mains de Coupe en travers Moulinette Libre
Manos de Corte enfadado Desfibradora Libre

U
N
U
O
U
P
U
R
U
S
U
A
U
F
U
H
U
I
U
J
U
D
U
Q
U
R
U
E
U
C
U
G
U
K
U
L
U
L
U
B
U
M
2
1 2 3
5 6
4
8
7
TM/MC

UON/OFF switch (at rear of machine)
UImportant safety symbols
(see safety symbols below)
UJam free indicator
UPaper loading door handle
UPaper loading door
UDoor for bin
UContinuous jam boost button
UAuto button
UReverse button
UPaper loading door locking mechanism –
PIN password buttons
UIndicator panel
UCasters
UManual feed entry slot
UCredit card entry slot
UCD entry slot
UCD bin ‘in use’ location
UPaper stack viewing window
UPull out bin with viewing window
UCD bin in storage location
Description of product parts
A
B
C
D
E
F
G
H
I
J
K
N
Q
L
O
R
M
P
S
3
Introduction
Thank you for choosing this shredder from Swingline. Please review
these instructions to ensure you are operating the shredder correctly.
Safety First
To guard against injury, the following basic safety precautions must be
observed in the set-up of this product.
• Ensure the machine is plugged into an easily accessible power outlet,
and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualied personnel will invalidate
the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an
extended period of time.
• Do NOT operate with a damaged power supply cord or plug, after it
malfunctions, or after it has been damaged in any manner.
• Do NOT overload electrical outlets beyond capacity as this can result
in re or electrical shock. The socket-outlet should be installed near
the equipment and shall be easily accessible.
• Do NOT alter the attachment plug. The plug is congured for the
appropriate electrical supply.
• Do NOT use near water.
• Do NOT use aerosol dusters or cleaners.
• Do NOT spray anything into the shredder.
• Do NOT load the auto-feed chamber with unopened junk mail,
magazines, bound documents etc.
Although this shredder has been designed to comply with UL 60950
safety standards including the “probe accessibility tests”, do not operate
the shredder near children or pets.
Specifications
Sheet Capacity
Manual Feed Slot
Sheet Capacity
Auto-feed Chamber
Duty Cycle
Run Time from Cold
Volts / Hz
Amperage
Motor Watts
Swingline Stack and Shred 250X
8 sheets (80gsm)
250 sheets (80gsm)
12 min ON / 40 min OFF
16 minutes
120V / 60Hz
2.0 Amps
460 Watts
Safety First
This means you should be careful
because long hair can become
entangled in the cutters.
This means be careful of ties and other
loose clothing which could become
entangled in the cutters.
This means be careful of loose jewelry
which could become entangeld in the
cutters.
This means no aerosols.
This means don’t reach into the feed
opening of the cutters.
This means keep children away from
shredder.
This means no oil lubricant (oil sheets
only).
Sheet capacity of manual feed slot.
Reverse
Continuous
Jam Boost
Auto
Control Panel and Indicators
Power On indicator – This means the machine is turned on.
Cool Down indicator – This means the machine is cooling
down.
Bin full/loading door open indicator – This means either:
• Paper loading door is open
• Bin is open
• Bin is full
Paper jam indicator – This means there is a paper jam in the
auto feed chamber.
Lock – This means the paper loading door is locked (during
shredding).
Paper loading Door Locking Mechanism – PIN Password
Buttons Enter a four digit code, to lock the loading door during
shredding.
1
3
2
4
This means do not insert CDs into the
manual feed slot.
This means the shredder can accept
small staples.
This means the shredder can accept
small paperclips.
Use internal credit card position.
Jam Free Indicator – This alerts the user when too much
paper is fed into the manual feed slot (see section on Jam Free
Technology).
U
C

Indicators
Lock Bin Full/ Cool down Paper Jam Auto Jam Free
Door Open Indicator
Color of symbol Green Red Red Red Red Blue Green Red
Power ON/OFF switch OFF
Sleep mode
Power ON/OFF switch ON
Stand by
Auto mode light light
Continuous jam boost mode light light
Reverse mode light light light
Paper loading door open light light light
Bin full/bin open light light light
Motor is cooling down flashing light light
Paper jam light light light
Too many sheets are being fed into manual feed slot light light
Cutters are self-cleaning flashing light light
Entering PIN password flashing
Paper loading door is locked light
Incorrect PIN password has been entered flash x3
Correct PIN password re-entered flashing x3
Autofeed Operation light flashing
TM/MC
Illuminated Icons Explained
4
Stack and Shred 250X Shredding Capability
Stack and Shred
250X CAN shred the
following though the
auto-feed bin:
Stack and Shred 250X
CANNOT shred the
following through the
auto-feed bin:
Although the Stack
and Shred 250X will
accept fastened sheets,
Swingline recommends
that staples and paper
clips are removed and
folded paper is unfolded
prior to shredding to
extend the life of the
product.
• Stapled paper 1 inch/25mm
within the corner
• 26/6 and 24/6 or smaller
staples
• Small sized paper loaded
centrally
• 250 sheets color printed paper
• Paper clip paper 1 inch/25mm
within the corner
• Capable of shredding small/
medium (max wire thickness =
1/3 inch, 0.9 mm) paper clips
• 250 sheets plain paper
• >100gsm paper (through
manual feed slot ONLY)
• 11x17 folded in half max.
2 sheets
• 250 sheets single sided
printed paper
• 80 gsm paper
- Letter - 8.5x 11
- Legal - single sheet folded in
half max. 2 sheets
• Heavy Duty Staples. Check the
staple leg length is not greater
than 6mm.
• A document with more than
25 sheets held together by a
staple or clip.
• Bound documents • Bulldog clips
• Large clips. Check the length
of the paperclip is not longer
than 32mm.
• Multiple folded sheets* (e.g.
more than two legal sized
sheets folded in half)
• Magazines or other documents
bound by multiple staples
or clips
• Unopened mail e.g. junk mail.
Open mail and place in
auto-feed or through manual
feed slot.*
*We recommend you feed these types of documents through the manual feed slot. The Stack and
Shred 250X can automatically shred folded and crumpled sheets if attened out prior to loading.
• Plastic sheets, laminated
documents, plastic folders, glossy
paper or a sheet covered with
print on both sides.
• Thick paper or card • Crumpled sheets*
Standard
Staples
Standard
Staples Standard
Paper Clips
Standard
Paper Clips Single Folded
Sheet
Single Folded
Sheet
Heavy Duty
Staples
Heavy Duty
Staples > 25 Sheets> 25 Sheets
Large ClipsLarge Clips Multiple Folded
Sheets
Multiple Folded
Sheets MagazinesMagazines Unopened Mail
Unopened
Mail
Plastic SheetsPlastic Sheets
• Adhesive labels

5
Reverse Function
1If you want to reverse paper out while shredding, use the reverse
button ( ).
2 Reverse the paper out then turn the machine off using the ON/
OFF switch at the rear of the shredder. Remove the paper from the
manual feed slot (if being used) or open the loading door,
remove the remaining stack of paper, then pull the jammed paper
free of the cutting mechanism.
3To resume shredding return the slide switch to the auto position
( ) and turn on the shredder by using the ON/OFF switch at the
rear of the shredder.
Operation
1 Unpack the product.
2Plug the shredder in to a working outlet.
3 Ensure the ON/OFF switch on the back of the shredder is in the
“ON” position, which will illuminate the LED bulb shown by the
standby symbol ( ).
4 To start shredding, move the slide switch to the Auto position
(), which places the shredder into auto mode. You are now
ready to shred.
5 To load the shredder, simply lift the loading door handle (see g
1) to open the loading door and insert documents. You can open the
door further to 90 degrees for easier access if required. Load up to
250 sheets at a time into the feed chamber. Do not ll above the
250 MAX level, this could damage the shredder (see g 2).
6 The shredder will start the shredding cycle automatically ONLY after
closing the loading door.
Attention: If required you can now lock the loading door by entering
a 4 digit code (see below).
7If you only have up to 8 sheets to shred, you can use the manual
feed slot, provided the auto feed chamber is empty (see g 3).
8Insert paper to be shredded into the feed area. The shredder will
detect the paper and start automatically. If there is still paper in
the Autofeed tray after rst attempt, open and re-close feed door a
second time.
9If the shredder is left in auto mode for more than 2 minutes without
being used, the shredder will automatically turn back to Sleep mode
in order to save power.
JThe shredder will automatically ‘wake up’ from sleep mode when
paper is inserted into the shred mouth or you open the loading door.
There is no need to press the Auto button ( ).
Jam Free Technology in manual
feed slot
Sensors in the paper feed area measure the thickness of paper about
to be shredded. The ability to shred or not is communicated through red
and green lighting. Green means that the stack of paper is within the
shredders sheet capacity and OK to shred. Red means that you have too
much paper, remove some sheets in order to shred.
Since the shredder is unable to shred more sheets of paper than it is
capable of shredding, paper jams are prevented.
Rare Occasions of Jamming
In the unlikely event of the shredder jamming, the Stack and Shred 250X
will stop shredding. Check that the bin is not full then try clearing the
jam using the reverse ( ) and continuous jam boost ( ) buttons
then return to Auto mode ( ). If this is unsuccessful follow the reverse
function instructions.
Locking the Paper Loading Door
For additional security the paper loading door can be locked during the
shredding of condential material.
To lock shredder:
1
Place documents in tray. Close paper loading door (see g 1).
2
Press any 4 digits. REMEMBER YOUR CODE!
Shredder unlocks automatically when:
• 4 digit code is re-entered.
• Shredding is complete.
• Shredder is inactive for 30 minutes (but documents remain in tray)
Bin or Loading Door Open Safety
Function
As a safety precaution, if the bin or loading door is opened during
shredding, the shredder will stop and the Bin Full indicator will illuminate.
Over Heating
If the Stack and Shred 250X is used continuously for over 16 minutes
the shredder may overheat and the cool down indicator will illuminate
red ( ). Please allow the shredder to cool down. When the shredder is
ready to be used the thermometer symbol will no longer illuminate. If the
shredder needs to cool down while shredding, no action is needed. The
shredder will automatically restart shredding paper once it has cooled
down after periods of continuous use. All you need to do is ensure paper
is loaded into the chamber and the bin is empty when the machine is
cooling down.
Auto-feed Technology
The Stack and Shred 250X has been designed to automatically shred up
to 250 sheets from the auto-feed chamber and up to 8 sheets through
the manual feed slot. The auto-feed mechanism has been designed to
handle paper fastened with staples and paper clips and to only pull a
few sheets of paper into the cutting mechanism to minimize the risk of
paper jams.
Bin Full
The shredder will not function when the bin is full and the bin full
symbol ( ) is illuminated. You should empty the bin.
• Pull open the bin slowly to empty.
• Push the empty bin back into place and press the auto button to
resume shredding.

6
Maintenance
The rollers on the auto-feed mechanism may become dirty over time,
please wipe clean with a dry cloth to maintain maximum product
performance (see g 7).
The auto-start infra-red sensor, located in the paper feed entry-slot, can
occasionally become covered in paper-dust causing the shredder to
run despite no paper being fed into the machine. Switch the shredder
off at the rear of the machine and carefully clean the sensor using a
cotton-swab (see g 8).
Self-cleaning Cutters
After emptying and replacing a full bin, the shredder will run in reverse
for 4 seconds, stop for 2 seconds and then forward for 4 seconds to
clear away any remaining paper from the cutter mechanism. This unique
‘self-cleaning’ mechanism is additional jam prevention technology from
Swingline.
Credit Card Shredding
1 Lift up the paper loading door (see g 4).
2 Insert the credit card into the roller as shown (see g 6). Only shred
one credit card at a time.
3Close the paper loading door.
Swingline encourages customers to recycle shredded paper.
Please note that shredded paper cannot be recycled if mixed with
credit card and CD shards. If recycling, please separate shredded
paper and credit card/CD shards.
Shredder Accessories
We recommend that a paper waste for recycling shredded paper is used
on all models.
Accessory Part Number
Recycling Waste Bag 1765028
CD Shredding
A separate CD tray is provided to collect the shredded CD shards,
ensure that this is correctly mounted onto the bin before shredding.
1 Lift up the paper loading door (see g 4).
2 Always insert CDs in the CD slot (see g 5). Only shred one CD at a
time.
3Close the paper loading door.
4 Empty the CD bin after 8 CDs to avoid waste spilling over into the
paper waste bin.
5 Remove the CD tray before resuming paper shredding. Lubrication of the Shredder
Only use oil sheets to lubricate. ACCO Brands accepts no
liability for product performance or safety when other types of
lubricants are used on any part(s) of this machine. Swingline
recommends using an oil sheet after the bin has been emptied
three times (and for each ongoing three bin cycle thereafter).
Insert the oil sheet into the manual feed slot and NOT in
the auto-feed chamber. Using an oil sheet in the auto-feed
chamber will contaminate the feed rollers preventing the
auto-feed mechanism shredding. Follow the maintenance
instructions if the rollers become contaminated.

7
APPLICABLE MACHINES
QUESTION ANSWER 60X 80X 100X 250X 500X
1The shredder will not
start.
aCheck power switch on the back of the machine is turned on. ( )YYYYY
bCheck that the Auto button ( ) has been pressed or the switch
is in the Auto position and the power switch on the back has been
turned on.
Note: The Auto button light turns off after 2 mins of non-use.
The shredder wakes up automatically if paper is in the autofeed
chamber or fed into the manual feed slot
YYY
cIs the “bin door/ loading door open” indicator light red
()? Make sure both the loading door and the bin door are
closed.
YYYY
2There are documents in
the autofeed chamber
but the shredder has
stopped running.
aIs the cool-down indicator light red ( )? If so, allow the shredder
to cool down. Shredding will resume automatically after the
shredder has cooled down.
YYYY
bIf the “bin door/ loading door open/bin full” indicator light is red
(), empty the bin. Also check to see if the loading door and
bin doors are closed. Shredding will resume automatically.
YYYY
cIs the jam indicator light red ( )? If so, the shredder was unable
to clear a jam even after the automatic jam clearance cycle. Use the
manual reverse button ( ) to back out paper from the cutters.
Open the lid and remove the offending papers.
YYYY
dIf there are crumpled sheets in the stack, they may not feed
properly. It is recommended that you feed them through the manual
feed slot.
YYYYY
eIf there are multiple folded sheets in the stack, unfold the sheets
before placing them back in the stack or feed through the manual
feed slot.
YYYYY
fIf there are unopened envelopes in the stack, remove them, open
the envelopes and lay the contents at into the autofeed chamber,
unfolding any folded sheets. Envelopes can be shredded through
the manual feed slot.
YYYYY
gExamine the rollers, if they are covered with paper dust, clean them
with a dry cloth. YYYYY
FOR ADDITIONAL INFORMATION ON WHAT TO SHRED THROUGH AUTO FEED AND WHAT TO SHRED
VIA MANUAL FEED SLOT, PLEASE SEE SECTION IN THE MANUAL ON ‘SHREDDING CAPABILITY’
Troubleshooting Guide for Stack-and-ShredTM 250XTM
Tel. [phone]
www.acco.com/service
www.swingline.com/shredders 10

8
TM/MC
APPLICABLE MACHINES
QUESTION ANSWER 60X 80X 100X 250X 500X
3There isn’t any paper
in the shredder but it
won’t stop running.
aThe auto-start infra-red sensor, located in the paper feed entry-
slot, can occasionally become covered in paper-dust causing the
shredder to run despite no paper being fed into the machine. Switch
the shredder off at the rear of the machine and carefully clean the
sensor using a cotton-swab (see g 10).
YYYYY
bIf the shredder still does not stop running, call ACCO at: 800-541-
0094 YYYYY
4Every time I shut the
bin, the shredder turns
itself on automatically
for a few seconds.
aAfter the bin is removed and replaced, the shredder will run for
approximately 8 seconds to clear away any remaining paper from
the cutter mechanism. YYYY
5I have to feed the paper
quite a long way into
the manual feed slot
before it engages with
the cutting mechanism
aUnlike conventional shredders, the paper needs to pass through the
autofeed chamber before the paper meets
the cutting mechanism. For this reason, the manual feed slot has
been designed to be extremely easy to slide paper into.
YYYYY
6I have locked the
shredder but there is
a paper jam and my
sensitive documents
are still in the machine
aEnter your PIN to unlock the loading door and clear the jam. If you
have forgotten the code or you have left the shredder to continue
your working day, the machine will open automatically after 30
minutes of inactivity. After clearing the jam, reload the shredder
before locking the loading door again.
Y Y
Do I need to enter the
same four digits, as a
locking PIN, each time I
use the shredder?
aNo. The shredder will register the four digit PIN code each time so
you could change your PIN number every time you use the shredder. Y Y
I have just realised that
I have some documents
in the autofeed
chamber that I don’t
want to shred but the
loading door is locked.
aRe-entering your four digit PIN code unlocks the paper loading door.
Y Y
What happens if
someone tries to
guess my PIN code
to get access to my
documents?
aAfter 3 incorrect attempts to enter the code the locking mechanism
will not accept any more entries. The loading door will remain
locked until the shredding is complete. Y Y
7How should I maintain
my shredder?
aUse Swingline oil sheets to lubricate the cutting head, do not use
other types/brands of oil YYYY
bClean the auto-start infra red sensor on a regular basis (see point
3a). YYYYY
cClean rollers free of any paper dust with a dry cloth YYYYY

9
U
N
U
O
U
P
U
R
U
S
U
A
U
F
U
H
U
I
U
J
U
D
U
Q
U
R
U
E
U
C
U
G
U
K
U
L
U
L
U
B
U
M
1 2 3
5 6
4
8
7

UCommutateur Marche/Arrêt (ON/OFF ) (à l’arrière de
l’appareil)
USymboles de sécurité importants (voir ci-après le panneau
de commande de la déchiqueteuse)
UIndicateur anti-bourrage
UPoignée du couvercle du compartiment de chargement du papier
UCouvercle du compartiment de chargement du papier
UCouvercle de corbeille
UBouton de marche avant en continu
UBouton Automatique
UBouton Marche arrière
UBouton du mécanisme de verrouillage du couvercle du
compartiment de chargement du papier – Mot de passe de NIP
UPanneau des indicateurs
URoulettes
UFente d’alimentation manuelle
UFente d’insertion des cartes de crédit
UFente d’insertion des CD
UEmplacement « en cours » de la corbeille des CD
UFenêtre de contrôle de la liasse de papier
UCorbeille amovible avec fenêtre de contrôle du niveau de remplissage
UCorbeille à CD dans l’emplacement de rangement
Description du produit
A
B
C
D
E
F
G
I
J
K
N
Q
L
O
R
M
P
S
10
Introduction
Merci d’avoir choisi cette déchiqueteuse Swingline. Veuillez lire
ces instructions pour vous assurer d’utiliser correctement cette
déchiqueteuse.
Consignes de sécurité
An d’éviter toute blessure, suivez les précautions de sécurité de base
suivantes durant l’installation de ce produit.
• Branchez la déchiqueteuse dans une prise de courant facile d’accès
en veillant à ce que personne ne puisse trébucher sur le cordon
d’alimentation.
• La garantie sera annulée en cas de tentative de réparation par
un personnel non qualié. Veuillez plutôt retourner l’appareil au
fournisseur.
• Débranchez votre déchiqueteuse avant de la déplacer ou lorsqu’elle
est inutilisée pendant une longue période de temps.
• N’UTILISEZ PAS l’appareil avec une prise ou un cordon d’alimentation
endommagé, après un mauvais fonctionnement ou en présence d’un
dommage quelconque.
• NE SURCHARGEZ PAS les prises de courant au-delà de leur capacité
car vous pourriez causer un incendie ou subir un choc électrique.
La prise d’alimentation doit être installée à proximité de l’appareil et
être facilement accessible.
• NE MODIFIEZ PAS la che de raccordement de l’appareil. Elle est
conçue pour recevoir l’alimentation électrique adéquate.
• N’UTILISEZ PAS l’appareil près de l’eau.
• N’UTILISEZ PAS de dépoussiéreurs ou nettoyants en aérosol.
• Ne vaporisez AUCUN produit dans la déchiqueteuse.
• NE CHARGEZ PAS du courrier-déchet non ouvert, des magazines,
des documents reliés, etc. dans le compartiment d’alimentation
automatique.
Bien que cette déchiqueteuse soit conforme aux normes de sécurité
UL 60950, y compris les « essais d’accessibilité », ne la faites pas
fonctionner à proximité d’enfants ou d’animaux.
Spécifications
Capacité de coupe
Fente d’alimentation manuelle
Capacité de coupe
Compartiment d’alimentation
automatique
Cycle d’utilisation
Délai de réchauffement
Volts / Hz
Intensité de courant
Nombre de watts du moteur
Swingline Stack and Shred 250X
8 feuilles (80 g/m²)
250 feuilles (80 g/m²)
12 minutes Marche (ON) / 40
minutes Arrêt (OFF)
16 minutes
120 V / 60 Hz
2.0 Amps
460 watts
Reverse
Continuous
Jam Boost
Auto
Panneau de commande et indicateurs
Indicateur de fonctionnement – Signie que l’appareil
est sous tension
Indicateur de refroidissement – Signie que l’appareil est en
train de refroidir
Indicateur de corbeille pleine / couvercle du
compartiment de chargement ouvert – Signie:
• Soit que le couvercle du compartiment de chargement du
papier est ouvert
• Soit que la corbeille est ouverte
• La corbeille est pleine
Indicateur de bourrage –Signie qu’il y a un bourrage de papier
Verrouillage – Signie que le couvercle du compartiment de
chargement du papier est verrouillé (pendant le déchiquetage)
Boutons du mécanisme de verrouillage du couvercle
du compartiment de chargement du papier – Mot de
passe de NIP Entrez un code à quatre chiffres pour verrouiller
le couvercle du compartiment de chargement durant le
déchiquetage.
1
3
2
4
Consignes de sécurité
Ce symbole vous avertit de faire attention
aux cheveux longs car ils risquent de
s’enchevêtrer dans les couteaux.
Ce symbole signie qu’il faut garder à distance
les cravates ou tout vêtement ample qui
pourraient se coincer dans les couteaux.
Ce symbole signie qu’il faut garder
à distance les bijoux pendants car ils
pourraient se coincer dans les couteaux.
Ce symbole signie que vous ne devez
pas utiliser de produits en aérosol.
Ce symbole signie qu’il faut éviter
d’approcher les mains de l’ouverture
d’insertion des couteaux.
Ce symbole signie qu’il faut garder
cette déchiqueteuse hors de la portée
des enfants.
Ce symbole signie qu’il ne faut pas
utiliser d’huile lubriante (utiliser
uniquement des feuilles lubriantes).
Ce symbole signie qu’il ne faut pas
insérer de CD dans la fente d’alimentation
manuelle.
Ce symbole signie que la déchiqueteuse
peut accepter de petites agrafes.
Ce symbole signie que la déchiqueteuse
peut accepter de petits trombones.
Ce symbole signie que la déchiqueteuse
peut détruire des cartes de crédit.
Ce symbole signie qu’il ne faut pas
insérer de cartes de crédit dans la
fente d’alimentation manuelle.
Capacité de coupe de la fente
d’alimentation manuelle
Indicateur anti-bourrage – Cet indicateur avertit l’utilisateur
lorsqu’il y a trop de papier inséré dans la fente d’alimentation
manuelle (voir la section sur la Technologie anti-bourrage Jam Free)
U
C
TM/MC
H
