Swisher T1360T User manual

60” FINISH CUT
TRAILMOWER
OWNER’S
MANUAL
P.O. BOX 67, WARRENSBURG, MISSOURI 64093 PHONE [phone] FAX [phone]
MODEL NO.
T1360B1
T1360T
T1360H
T1360K
T13560
RK1360
T14560
T17560
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
Rev: 05-007
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
www.swisherinc.com
ONT602
STARTING SERIAL #
L101-344001

LIMITED WARRANTY
The manufacturer s warranty to the original consumer purchaser is: This product
is free from defects in materials and workmanship for a period of one (1) year
from the date of purchase by the original consumer purchaser. We will repair or
replace, at our discretion, parts found to be defective due to materials or
workmanship. This warranty is subject to the following limitations and
exclusions:
1) Engine Warranty All engines utilized on our products have a separate
warranty extended to them by the individual engine
manufacturer. Any engine service difficulty is the
responsibility of the engine manufacturer and in no
way is Swisher Mower Co., Inc. or its agents
responsible for the engine warranty. The Briggs &
Stratton Engine Service Hot-Line is 1-800-233-
3723. The Tecumseh Engine Service Hot-Line is 1-
800-558-5402.
2) Commercial Use The warranty period for this product used for
commercial or rental is limited to ninety (90) days
from the date of original purchase.
3) Limitations This warranty applies only to products which have
been properly assembled, adjusted, and operated in
accordance with the instructions contained within
this manual. This warranty does not apply to any
product of Swisher Mower Co., Inc., that has been
subject to alteration, misuse, abuse, improper
assembly or installation, shipping damage, or to
normal wear of the product.
4) Exclusions Excluded from this warranty are normal wear,
normal adjustments, and normal maintenance.
In the event you have a claim under this warranty, you must return the product to
an authorized service dealer. All transportation charges, damage, or loss incurred
during transportation of parts submitted for replacement or repair under this
warranty shall be borne by the purchaser. Should you have any questions
concerning this warranty, please contact us toll-free at 1-800-222-8183. The
model number, serial number, date of purchase, and the name of the authorized
Swisher dealer from whom you purchased the mower will be needed before any
warranty claim can be processed.
2

SAFETY PRECAUTIONS
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot contact
the spark plug, to prevent accidental starting the engine when setting up,
transporting, adjusting or making repairs.
• Keep all shields and guards in place.
• Understand the speed, steering and stability of this machine. Know the positions
and operations of all controls before you operate this machine. Check all of the
controls in a safe area before starting to work with this machine.
• Allow only responsible adults who are familiar with these instructions to operate
this machine. Never allow children to operate this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.
• Be sure the area is clear of other people before mowing. Be aware of the mower
discharge direction and do not point at anyone. Stop the machine if anyone enters
the mowing area. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
Keep children under the watchful care of another responsible adult.
• No riders!
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
• Do not mow in reverse. Always look down and behind before and while backing.
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands, feet, and throw
objects. Failure to observe the following safety instructions could result in serious
injury or death.
3

•
Turn off the blades when not mowing. Before leaving the machine, turn off the blades and
stop the engine.
• Watch for traffic when operating near or crossing roadways.
• Do not operate the mower if it has been dropped or damaged in any manner or if the mower
vibrates excessively. Excessive vibration is an indication of damage. Repair mower as
necessary.
• Dress properly. Do not operate the mower when barefoot or wearing open sandals. Wear
only solid shoes with good traction when mowing.
• Do not operate the machine while under the influence of alcohol or drugs.
• Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.
• Mower blades are sharp and can cut. Wrap the blades or wear gloves, and use extra caution
when servicing them.
4
SINCE
SINCESINCE
SINCE

5
SAFETY DECALS
Replace decals immediately if damaged.Order by part number from Swisher Mowers
OD45- Warning Decal
OD11- No step Decal
OD55- Triangle Danger Decal
OD33- Speed Decal
OD29- Danger Decal
OD43- Flying Debris Decal

REQUIRED ASSEMBLY
FRONT WHEEL CASTER ASSEMBLY
1. Remove single nut and washers from caster shaft.
2. Place one washer on the shaft of the caster/wheel sub-assembly.
3. Slide same shaft through the bearing/frame with wheel towards the ground.
4. Place the other washer on the shaft; it should be resting on the top bearing.
5. Thread nyloc jam nut onto shaft.
6. Tighten nut snuggly, making sure shaft threads enter the nyloc of the nut. Over-
tightening of this nut will bind caster.
7. Repeat process for other front side.
REAR WHEEL ASSEMBLY
1. Remove cotter pin from axle.
2. Slide washer [ NB149 ] if necessary and wheel[ valve stem out] onto axle and replace
cotter pin.
3. Bend cotter pin so it will not fall out.
4. Repeat process for other wheel.
OFFSET & CENTER TOW HITCH BAR ASSEMBLY
1. Lay out parts according to the diagram.
2. Insert part 661A into part 662 and pin with the hitch pin (H11).
3. Insert part 661 into part 661A. Choose from the 3 holes to set the desired hitch length.
Pin with a hitch pin.
4. Part 662 slides into the front tube o
f the frame. Again, choose from the 3 holes to arrange
desired offset. Pin with a hitch pin (H11).
5. Eliminate step 3 for hitching from the center bracket. Only one method can be used at a
time.
6
CENTER TOWING
POSITION
OFFSET TOWING
POSITION
Bent Pin, Hair Pin
and Receiver
supplied by others.
Existing Rear Hitch.
ATV or Utility
Vehicle Attachment
Instructions
661
661A
662
H11

OPERATING YOUR TRAILMOWER
INTENDED USE
This TrailMower is designed to produce a quality finish cut on lawns, golf courses, etc.
It is not designed to clear brush or cut saplings. Your TrailMower should be towed
behind an ATV, a golf cart, lawn tractor, or similar approved vehicle. It is not meant for
speeds exceeding 5 MPH.
ATTACHING TRAILMOWER TO TOW VEHICLE
• Place mower behind vehicle and back vehicle up to desired attaching position.
• When offsetting TrailMower do so to side opposite the discharge of the tow
vehicle.
• Bolt swivel hitch (H10) to vehicle tow receiver.
• Attach tow hitch (661) to the swivel hitch with hitch pin (H11). Make certain
hitch pin goes completely through each piece and is clipped to prevent accidental
separation.
• Attach red safety tether (H9C) to both the towing vehicle and to the TrailMower

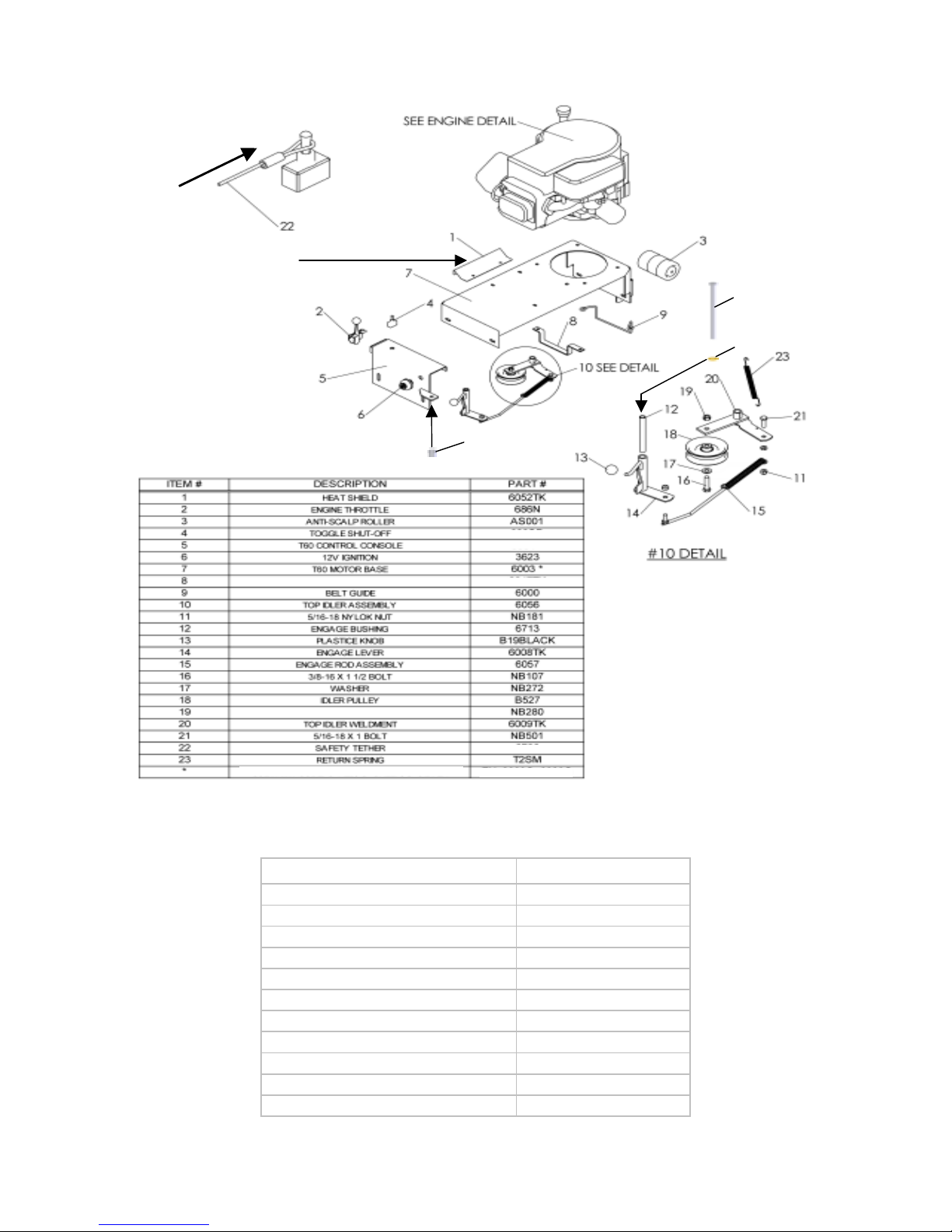

toggle switch (685SP), located on the throttle housing (6013). Its purpose is to
manually stop mower engine or to stop mower engine in case the two machines
become separated. (See Motor Base Detail #22).
• It is extremely important the safety tether is secured properly to both the
toggle switch and the towing vehicle.
STARTING THE ENGINE
See engine manufacturer s instructions for the type and amount of oil and fuel used.
TrailMowers with electric start engines will need a battery (sold separately). Swisher
recommends using a standard “U 1 R” lawn & garden battery.
• Engine must be level to accurately check and fill oil. Do not overfill.
The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before staring any cutting machine and
while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the
human ear. Ear protection is recommended.
CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
7

•
Make sure the tow vehicle parking brake is set, mower is level, and blades are
disengaged.
• Check spark plug wire, oil, and fuel.
• Check all electrical connections (See Schematics).
• Make sure toggle switch is turned “ON” and the red tether is properly attached.
• Set engine idle to “CHOKE” position.
• With feet clear of mower deck, turn key switch to the “START” position; [ if unit is
equipped with 12 volt system ] release when engine begins to run.
• For units NOT equipped with electric start turn key to “ON” position and pull starter
Rope until engine starts.
• Set engine idle at desired RPM.
BREAKING IN YOUR MOWER
• Set vehicle parking brake or chock wheels to prevent accidental rolling.
• Start engine properly.
• Slowly, engage blade control.
• In a safe environment, i.e. no children, allow blades to rotate and engine to idle for 5
minutes. This breaks in the belts and the engine.
• Stop mower properly.
MOWER HEIGHT ADJUSTMENT
• Adjust while mower is not running.
• The cutting range is approximately 1.5” to 4.5”. The height has been measured from the
ground to the blade tip without the engine running.
• Rotate height adjust crank handles (H7N) in a clockwise direction to lift the mower deck.
A counter-clockwise direction is used to lower the mower deck.
• Make sure the height adjustment is the same at side crank handles. For best results, see
“SUGGESTED PRACTICE” section. Graduated scales are for reference only, not the
actual cutter height.
• Place crank handle in a retracted position to maintain height adjustment.
STARTING TO MOW
• Adjust the cutting height.
• Double check vehicle to mower attachment.
• Start mower engine properly.
• Slowly, activate the blade engage lever (6008) by rotating it forward and left until the
lever locks into place.
• Carefully mount tow vehicle and start mowing slowly.
CAUTION!
SHUT OFF MOWER ENGINE AND REMOVE SPARK PLUG WIRE FROM
SPARK PLUG BEFORE MAKING ANY ADJUSTMENTS TO THE MOWER.

ALTERNATIVE STOPPING METHOD
• Bring vehicle to complete stop, shut off engine, and set parking brake.
• Disengage blade engage lever (6008).
• Manually shut toggle and key switches to their “OFF” positions.
• Always remember to remove keys to avoid irresponsible usage.
TRANSPORTING MOWER
• Stop mower properly.
• Place mower deck in its highest position.
• If transporting unattached from tow vehicle, then remove spark plug wire and
place where it cannot contact the spark plug.
SUGGESTED MOWING PRACTICES
• Operate mower engine at full throttle to assure the best cutting performance and
maximum material discharge.
• Allow wet grass to dry. Clumps of wet grass will collect under the mowing deck.
• Mowing should be started with tow vehicle in low gear and increased only as safe
mowing conditions permit. This speed should not exceed 5 MPH.
• The average lawn should be cut to approximately 2.5” during the cool season and
to over 3” during the hot months.
• For a healthier lawn and better aesthetics, your lawn should be mowed often and
after moderate growth.
• When cutting high or dense grass areas go slowly. Some areas may need to be
mowed twice. The second cut should be at 90 degrees to the first, if possible.
• Mowing thick or high grass. Raise rear height crank handles to .5”-.75” above
the other two handles.
• Creating a manicured lawn. Lower rear height crank handle to .25”-.5” below
front of deck. This allows grass blades to be cut twice. It also continually cuts
clippings to produce a mulching effect.
GENERAL TROUBLE SHOOTING
• The mower is not cutting level.
o Level deck, making sure the side crank-handles are equal.
o Check air pressure of all tires; make sure they are equal (about 15-18 psi).
o Examine blades for damage, while mower engine is not running.
• The engine will not start.
o Disengage blades, turn toggle switch to “ON” position, check battery and
all other electrical connections, and inspect spark plug and wire.
o Check for fuel in the engine.
• Engine runs poorly.
o See engine manual.
o Check throttle adjuster.
o Replace fuel, clean fuel filter and fuel line.
IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE THE
MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT YOU ARE
NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER PROBLEMS.
9

MOWER MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty on this Trailmower does not cover items that have been subjected to operator abuse or negligence.
To receive full value from the warranty, operator must maintain unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
All adjustments in this manual should be checked at least once each season.
BEFORE EACH USE
• Check engine oil level on a level surface. (Check twice to insure an accurate reading.)
• Check condition of air filter; clean and replace as necessary.
• Check blade operation; keep blades in good condition.
• Check for loose fasteners and tighten them as needed.
AFTER EACH USE
• Keep blades sharp.
• Remove fresh grass clippings with garden hose.
• Grass clippings can harden to the underside should be scraped out with a putty knife.
• Keep fluids at proper levels.
• Cover unit to prevent rain or other debris build-up. Definitely cover the engine.
BEFORE AND/OR AFTER EACH SEASON
• Replace the spark plug.
• Clean or replace the air filter.
• A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and
last longer.
• Check blades and belts for wear. Replace as necessary.
STORAGE RECOMMENDATIONS
CAUTION! Do not store engine indoors or other poorly ventilated area. Keep engine away from gas
appliances where fumes could contact open flame, pilot lights, or sparks.
If engine is to be stored for 30 or more days, prepare unit as follows:
• Drain fuel outside into an approved container.
• Start engine properly and run until unit is out of fuel.
• Let engine cool.
• Remove remaining gasoline from carburetor and fuel tank to prevent gum deposits from forming
within the engine. Gum deposits can cause malfunction in the engine.
• Store mower with blades disengaged to prevent belts from being permanently stretched.
BLADE CARE AND SERVICE
For best results cutter blades must be kept sharp. The blades can be sharpened with a few strokes of a file or
grinding wheel. Do not attempt to sharpen blades while they are on the cutter. Disconnect spark plug wire
before servicing unit.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure nuts are tight.
Only a qualified mechanic should be used for any
adjustments, disassembly or other kind of repairs.
10

FRAME DETAIL
11
19
Center Blade
Driver
Configuration
Outer Blade
Driver
Configuration
19
Blade Driver Assy.
9058- 5.75” (Center Shaft)
9018- 4.25” (Outer Shafts)
Item No. Description Part #
1 Center Shaft 9054
2 Blade Bearing B98
3 Bearing Housing 9057TK
4 Pulle Spacer 6065PM
5 Blade Mount Plate 9008
6 20 1/2 ''Blade 9004
7 Blade Pulle - 5.5" 6114
8 Blade Pulle - 5.5" 6114
9 SP Washer Bellvl. PLN .413 X .945 X .118 NB-607
10 3/4 ID X 1 1/4 OD 18 GA Washer NB-179
11 3/4-16 Jam Nut NB-175
12 3/8-24 X 1 1/4 HCC GR5 ZP NB-238
13 3/8-24 X 1 Engine Bolt Locktite NB-238N
14 1/4-20 X 1''- Bolt NB-250
15 1/4-20 Serr.Flange Bolt NB-524
16 3/8-24 2-Wa Lock Nut NB-216
17 Housing Blade Bearing Short B99EC
18 Blade Shaft 4.25"- Short Shoulder 9076
19 Belleville Washer AS155
1
2
3
4
56
7
8
9
10
10
2
11
12
13
12
14
16
15
18
7
17
NB149 - WASHER
IF NECESSARY
665TC
NB177
E : 6014TC,6014TK
USE PAINT CODE: TC=RED, TK=BLACK

6044TK
MOWER DECK DETAIL
6046
(Short)
5058 (Long)
BELT CONFIG RATION
12
GAS TANK ASSEMBLY
POL14560B
POL14560C
RK1360
T13560
T13560B1
T1360T
T17560
T1360B1
TANK ASSEMBLY / UNIT MODEL
PART #
#6059
#6059H T1360H
#60 0 T1360K
TZ2S
6027*
Not shown
WASHER
[ NB 170]
USE PAINT CODE: TC=RED, TK = BLACK E : 6060TC, 6060TK

Slide plastic tube snug
against toggle switch.
MOTOR BASE DETAIL
13
Description Part #
WIRING HARNESS [BRIGGS] WHN60B2
WIRING HARNESS [TECUMSEH] WH60T01
BATTERY [ U 1 R ] SOLD SEPARATELY
BATTERY CABLE- RED BCSR
BATTERY CABLE- BLACK BCLB
SOLENOID 9043
BATTERY STRAP BHOLD
KEYS KSK
BATTERY CABLE BOOTS BCBT
WIRING HARNESS [HONDA] WHN60H2
WIRING HARNESS [KOHLER] WHN60K2
PARTS NOT SHOWN
NB199
NB196
NB207
685SP
6013*
BELT GUIDE 6066
H9C
3/8-16 TWO WAY LOCK NOT
HEAT SHIELD 6052TK
NOT USED ON HONDA
UNITS
USE PAINT CODE: TC=RED, TK=BLACK E : 6003TC, 6003TK

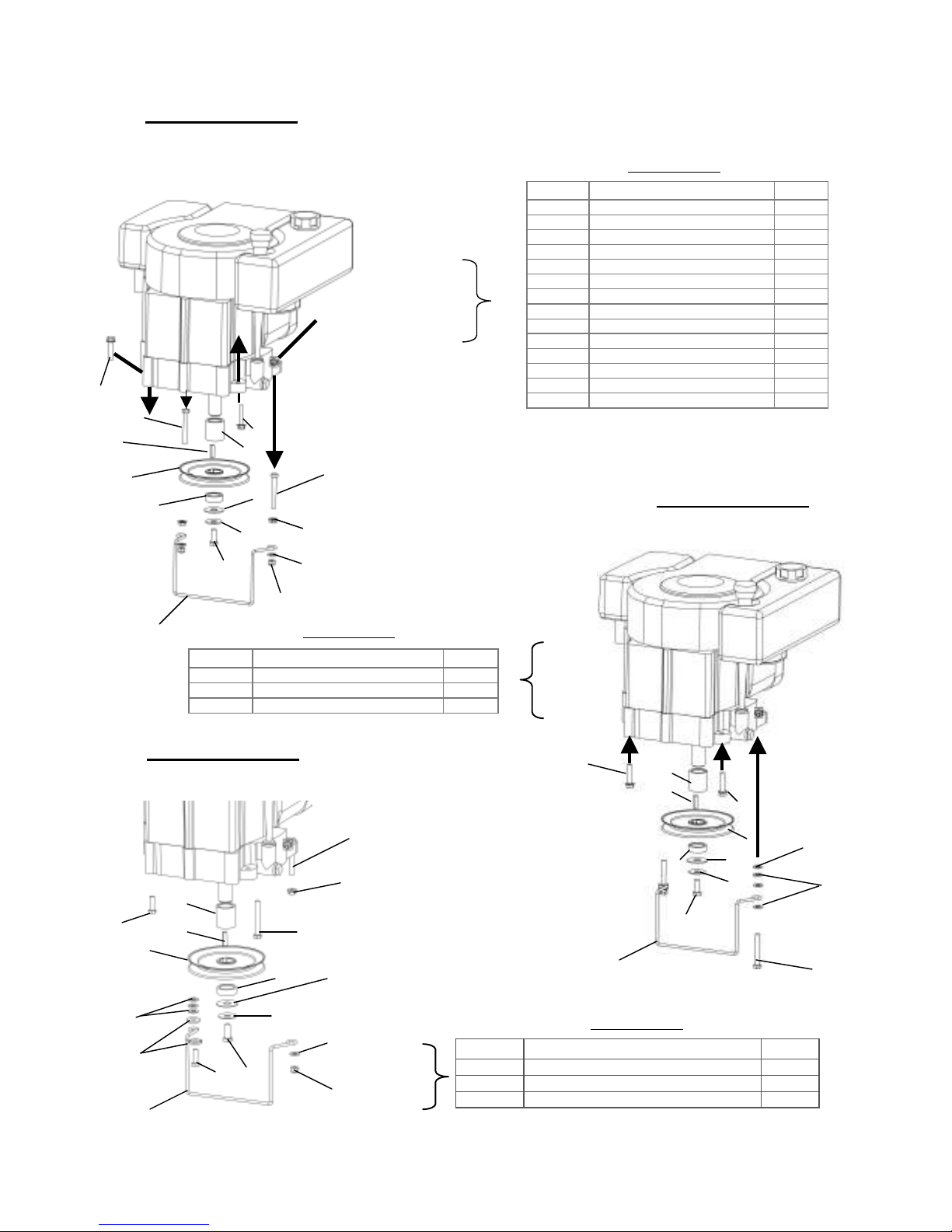

ENGINE DETAIL
14
BRIGGS / TECUMSEH > DETAIL - 1
ENGINE DETAIL
Item No. Description Part #
1 UPPER SPACER 689L
2 5-1/2'' ENGINE PULLY 688
3 1/4/ X 1'' KEY STOCK 9031
4 LOWER SPACER 689S
5 3/8 BELLEVILLE WASHER 699
6 FLAT WASHER TR150W
7 3/8-24 X 1BOLT [BRIGGS ] NB452N
7/16-20 X 1 BLOT [TECUMSEH ] NB238N
8 5/16-18 X 1-3/4 BOLT NB515
9 5/16 USS WASHER NB275
10 5/16-18 Flge NUT NB170
11 BELT GUIDE 6000
12 5/16-18 X 1 1/4 FLG.BOLT NB253
13 5/16-18 NYLOCK NUT NB181
Item No. Description Part #
14 SP WASHER BELLVL. PLN. NB607
15 M8-1.25 X 25 FLG BOLT NB728
16 M8-1.25 X 55 ZP. BOLT NB721
Item No. Description Part #
17 5/16-24 X 1'' BOLT NB451
18 5/16-18 NYLOCK NUT NB181
19 5/16-24 x 1-1/2'' BOLT NB233
DETAIL - 1
KOHLER > DETAIL - 2
DETAIL - 2
ENGINE DETAIL
HONDA > DETAIL - 3
DETAIL - 3
1
2
3
46
5
7
11
12
8
8
8
10
9
13
14
9
16
7
6
5
1
3
2
4
15
15
11
17
8
10
1
3
2
4 6
5
7
19
11
18
9
14
9
8

WIRING SCHEMATICS
15
HONDA ENGINES
BATTERY
IGNITION SWITCH
KOHLER ENGINES
POSITIVE
CABLE

OWNER’S
MANUAL
MODEL NO.
T1360B1
T1360T
T1360H
T1360K
T13560
RK1360
T14560
T17560
HOW TO ORDER
REPAIR PARTS:
60” FINISH CUT
TRAILMOWER
Each mower has its own model number. Each engine has its
own model number. The model number for the mower will be
found on the right hand side of the frame at the wheel bracket.
The model number for the engine will be found on the top of
the blower fan housing.
All mower parts listed herein may be ordered directly from
Swisher Mower & Machine Co. Inc. or your nearest Swisher
dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower
.
Color cannot be guaranteed on service parts.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT – T-60 TRAILMOWER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE
WARRENSBURG, MO 64093
SWISHER MOWER & MACHINE CO. INC.
www.swisherinc.com
