Swisher FC-10 DUMP CART User manual

Owner’s
Manual
FC-10
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
efore Operating this
Equipment.
Made In CHINA
1602 CORPORATE DRIVE PO OX 67 WARRENS URG, MISSOURI 64093
PH 660. 747. 8183 FAX [phone]
swisherinc.com
MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
11765 REV. 05-339
10 Cubic Foot
Dump Cart

LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free
from defects in materials and workmanship for a period of One (1) year from the date of
purchase by the original consumer purchaser. We will repair or replace at our discretion
parts found to be defective due to materials or workmanship. This warranty is subject to the
following limitations and exclusions:
In the event you have a claim under this warranty you must return the product to an
authorized service dealer. All transportation charges damage or loss incurred during
transportation of parts submitted for replacement or repair under this warranty shall be borne
by the purchaser. Should you have any questions concerning this warranty please contact
us toll-free at 1-800-222-8183. The model number serial number date of purchase and the
name of the authorized Swisher dealer from whom you purchased the mower will be needed
before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty
may last so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights and you may have other rights which vary from state-to-state. This is
a limited warranty as defined by the Magnuson-Moss Act of 1975.
1) Commercial Use This product is not intended or commercial use and
carries no commercial warranty.
2) Limitation This warranty applies only to products which have been
properly assembled adjusted and operated in accordance
with the instructions contained within this manual. This
warranty does not apply to any product of Swisher Mower
Co. Inc. that has been subject to alteration misuse abuse
improper assembly or installation shipping damage or to
normal wear of the product.
3) Exclusions Excluded from this warranty are normal wear normal
adjustments and normal maintenance.
2
2

Pre-Assembly Instructions
For easy assembly follow all directions step by step.
Open all boxes before beginning to assemble. Approximate assembly time is: 1.5 to 3 hours
Helpful TIP: Read all instructions before starting to assemble cart.
Check Parts and Hardware:
Group together and check that all hardware and parts are include
d. Refer to listing and illustration below. If
you are missing parts please call Swisher Customer Service 1-800-222-8183 for assistance.
Tools Required:
Tape Measure
Flat Head Screwdriver (large size)
Standard Pliers
Two 10mm combination or ratchet style wrenches
Two 13 mm combination or ratchet style wrenches
Part Number Listing
Re # Part # Description Qty
1 12166 Bottom Panel 2
2 12167 Front Cross Brace 1
3 12168 Tongue Support 1
4 12169 Wheel Axle Support 2
5 12170 Axle 1
6 12171 Wheel / Tire Assembly 2
7 12172 Latch Spring 1
8 12173 Latch Spacer 2
9 12174 Tongue Latch 1
10 12175 Hitch Tongue 1
11 12176 Hitch Pin Bracket 1
12 12177 Rear Cross Brace 1
13 12178 Rear Corner Bracket 2
14 12179 Side Panel 2
15 12180 Rear Corner Brace 2
16 12181 Front Panel 1
17 12182 Front Corner Brace 2
18 12183 Tailgate Latch 2
19 12184 Tailgate Pin 2
20 12185 Tailgate 1
Hardware
21 12186 M8 X 16 Truss Head Bolt 60
22 12187 M8 X 20 Truss Head Bolt 2
23 NB275 8mm Lock Washer 72
24 NB718 8mm Hex Nut 72
25 NB719 M8 X 20 Hex Head Bolt 10
26 NB195 20mm Flat Washer 2
27 NB603 3mm Cotter Pin 3
28 12188 12.5 X 64 Hitch Pin 1
29 12189 M6 X 90 Hex Head Bolt 1
30 12190 6mm Nylon Nut 1
31 NB600 6mm Hex Nut 2
32 NB274 Flat Washer 2
Page 3

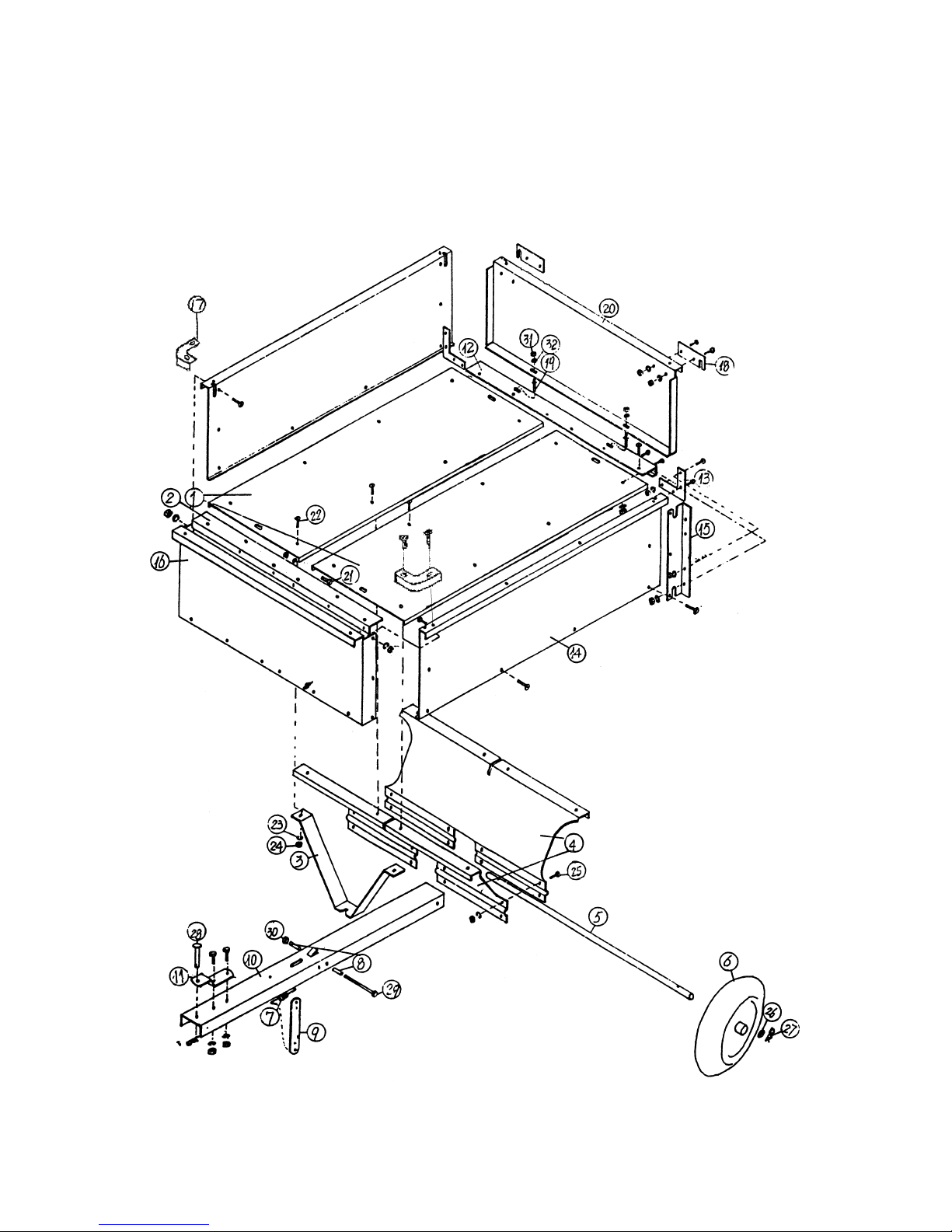

Complete Parts Illustration
or
Trailer Cart
Page 4

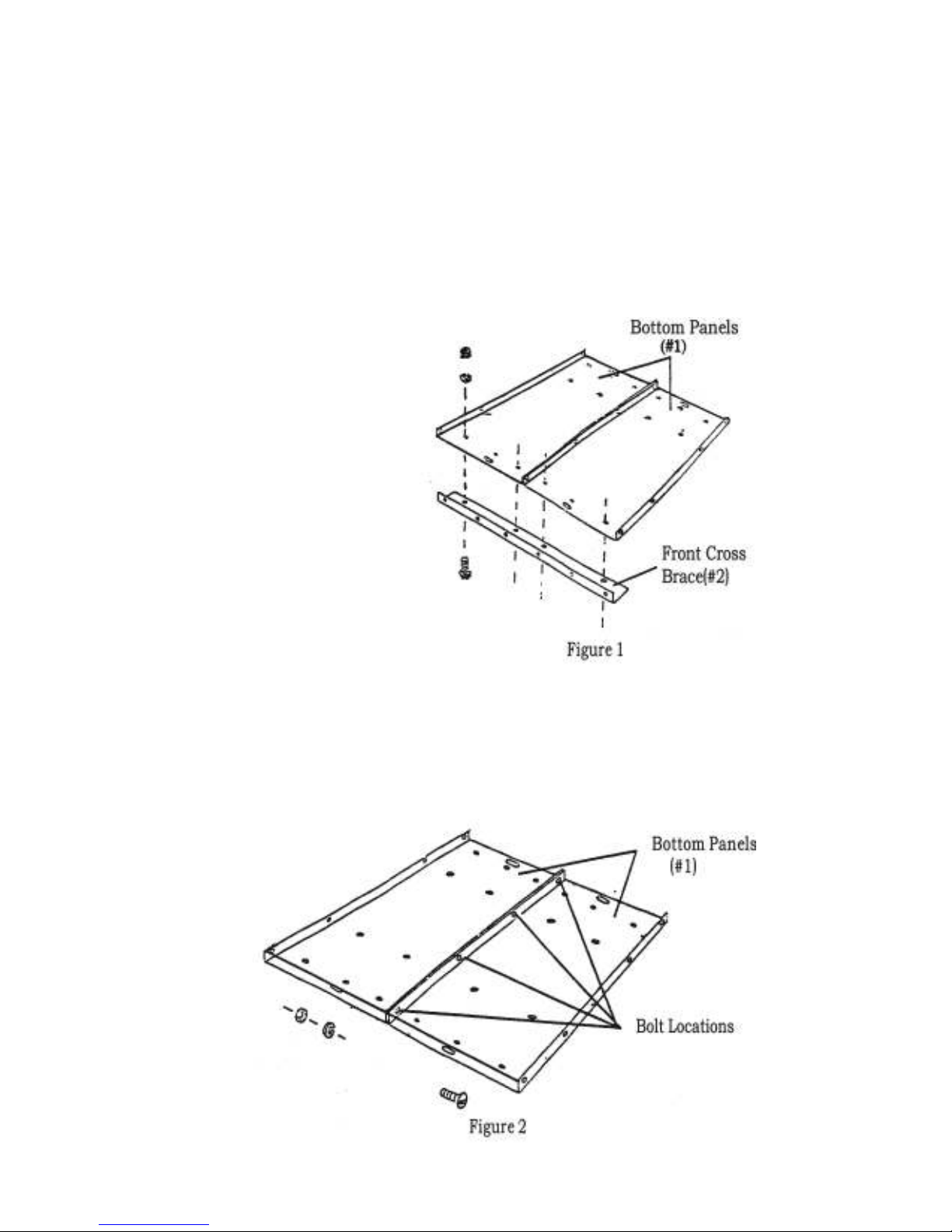

Step 1: Attaching Front Cross Brace
Position the two Bottom Panels(#1) as shown in Figure 1 below.
Attach the Front Cross Brace(#2) to the Bottom Panels using 4 (#
21)
Bolts 4 (#23) Washers and 4 (#24) Nuts.
Hardware Needed for Step 1:
1 (#2) Cross Brace
4 (#21) Bolts
4 (#23) Washers
4 (#24) Nuts
2 (#1) Bottom Panels
Step 2: Connecting Bottom Panels
Attach Bottom Panels(#1) as shown in Figure 2 using 2 (#21) Bol
ts
2(#23) Washers and 2 (#24) Nuts. SKIP the two middle bolt
connections until Step #5 when attaching the Wheel Axle Support.
Hardware Needed for Step 2:
2 (#1) Bottom Panels
2 (#21) Bolts
2 (#23) Washers
2 (#24) Nuts
Page 5

Step 3: Attaching the Tongue Support
Attach the Tongue Support(#3) to the Bottom Panels as shown in F
igure 3 using 2
(#22) Bolts 2 (#23) Washers and 2 (#24) Nuts.
Hardware Needed for Step 3:
2 (#22) Bolts
2 (#24) Nuts 2 (#23) Washers
2 (#23) Washers
Step 4: Assemble Wheel Axle Supports
As shown in Figure 4 below connect together the 2 Wheel Axle
Supports (#4) using 8 (#25) Bolts 8 (#23) Washers and 8 (#24) Nuts.
DO NOT TIGHTEN BOLTS—leave bolts very loose for inserting axle
and tongue in Step #6.
Hardware Needed for Step 4:
2 (#4) Wheel Axle Supports
8 (#25) Bolts
8 (#23) Washers
8 (#24) Nuts
Page 6

Step 6: Attaching Wheel Axle and Tires
Set Hitch Tongue(#10) in place as shown below before inserting
Wheel Axle(#5) through Wheel Axle Support(#4). Next insert the
Wheel Axle (#5) into the Wheel Axle Support(#4) and through the
holes in the Tongue(#10) as shown in Figure 6. Be sure equal
amounts of axle extend from each side of Wheel Support.
TIGHTEN BOLTS ON WHEEL AXLE
SUPPORT.
Next install each Tire Assembly (#6) onto
Wheel Axle followed by a Washer(#26)
and a Cotter Pin(#27)
Hardware Needed for Step 6:
1 (#10) Hitch Tongue
1 (#5) Wheel Axle
2 (#6) Wheel Assemblies (Tires)
2 (#26) Washers
2 (#27) Cotter Pins
Step 7: Assembling Tongue Latch
Insert the Tongue Latch(#9) up through the opening in
the Hitch Tongue(#10). Place one Latch Spacer(#8)
on each side of the Tongue Latch(#9) the insert
Bolt(#29) to connect Hitch Tongue(#10) and Latch
Spacers(#8) and Tongue Latch(#9). Only Hand
Tighten (#29) Bolt to (#30) Nut. See Figure 7.
Next attach one end of Latch Spring(#7) to Hitch
Tongue(#10) and one end of Latch Spring(#7) to top
hole in Tongue Latch(#9). Note hole locations from
Figure 7. Now completely tighten (#29) Bolt and (#30)
Nut.
Hardware Needed for Step 7:
1 (#9) Tongue Latch
2 (#8) Latch Spacers
1 (#7) Latch Spring
1 (#29) Bolt
1 (#30) Nut
Page 7
Step 5: Attaching Wheel Axle Supports
To Bottom Panels
Attach Wheel Axle Supports (#4) to the Bottom Panels as
shown in Figure 5 to the right using 4 (#21) Bolts per side.
Next finish bolting together two middle connections of Bottom
Panels after Wheel Axle Support is in place. Using 2 (#21) Bolts
2 (#23) Washers and 2 (#24) Nuts.
Hardware Needed for Step 5:
2 (#4) Wheel Axle Supports (connected)
10 (#21) Bolts
10 (#23) Washers
10 (#24) Nuts

Step 8: Installing the Hitch Pin Bracket
Install the Hitch Pin Bracket(#11) in the back two holes of
the Hitch Tongue(#10) using 2 (#25) Bolts 2 (#23) Washers
and 2(#24) Nuts. Refer to Figure 8. Place Hitch
Pin(#28) in the front hole using Cotter Pin(#27) to hold in
place.
Hardware Needed for Step 8:
1 (#11) Hitch Pin Bracket
2 (#25) Bolts
2 (#23) Washers
2 (#24) Nuts
1 (#28) Hitch Pin
1 (#27) Cotter Pin
Step 9: Installing the Rear Cross Brace
Turn the Trailer Cart over onto its wheels. Attach the Rear
Corner Brackets(#13) and the Rear Cross Brace(#12) to the
back of the Bottom Panels as shown in Figure 9. Use 2 (#21)
Bolts 2 (#23)Washers and 2 (#24) Nuts for each side.
Hardware Needed for Step 9:
1 (#12) Rear Cross Brace
2 (#13) Corner Brackets
4 (#21) Bolts
4 (#23) Washers
4 (#24) Nuts
Step 10: Side Panel Installation
Attach the Left Side Panel(#14) to the Bottom Panels as
shown in Figure 10 using 2 (#21) Bolts 2 (#23) Washers and
2 (#24) Nuts. Note bolt locations.
Hardware Needed for Step 10:
1 (#14) Side Panel
2 (#21) Bolts
2 (#23) Washers
2 (#24) Nuts
Page 8

Step 11: Secure Rear Cross Brace
Bolt Rear Cross Brace(#12) to Bottom
Panels(#1) using 6 (#21) Bolts 6 (#23) Washers
and 6 (#24) Nuts.
See Figure 11 for bolt locations.
Hardware Needed for Step 11:
6 (#21) Bolts
6 (#23) Washers
6 (#24) Nuts
Step 12: Side Panel Installation
Attach the Right Side Panel(#14) to the Bottom Panels as
shown in Figure 12 using 2 (#21) Bolts 2 (#23) Washers and
2 (#24) Nuts. Note bolt locations for side panel.
Hardware Needed for Step 12:
1 (#14) Side Panel
2 (#21) Bolts
2 (#23) Washers
2 (#24) Nuts
Step 13: Secure Side Panels
Secure each side panel by bolting a Rear Corner Brace(#15)
to the outside of the Side Panel(#14) using 5 (#21) Bolts 5
(#23) Washers and 5 (#24) Nuts per side. Figure 13 shows
left Rear Corner Bracket being attached.
Attach right side the same way.
Hardware Needed for Step 13:
2 (#15) Rear Corner Braces
10 (#21) Bolts
10 (#23) Washers
10 (#24) Nuts
Page 9

Final Step: Attaching Tail Gate with Latches
First attach the two Tailgate Latches(#18) to the inside of the
Tailgate(#20) using 2 (#21) Bolts 2 (#23) Washers and 2
(#24) Nuts for each Tailgate Latch(#18). Next insert the
Tailgate Pins(#19) into the holes on the bottom part of the
Tailgate. See Figure 16 for Tailgate Pin locations. Secure
Tailgate Pin(#19) by adding a (#32) Washer and a (#31) Nut to
the Pin threads.
Next put Tailgate in place on the Trailer Cart. Position
Tailgate so the two Tailgate pins line up with the two holes on
the Rear Cross Brace(#12). The Tailgate latches can be
dropped over the open slots on the Side Panels that lock the
Tailgate into place. Assembly is complete.
Before using the cart
check that all hardware connections are tight.
Hardware Needed for Step 16:
1 (#20) Tailgate
2 (#18) Tailgate Latches
2 (#19) Tailgate Pins
2 (#32) Washers
2 (#31) Nuts
4 (#21) Bolts
4 (#23) Washers
4 (#24) Nuts Page 10

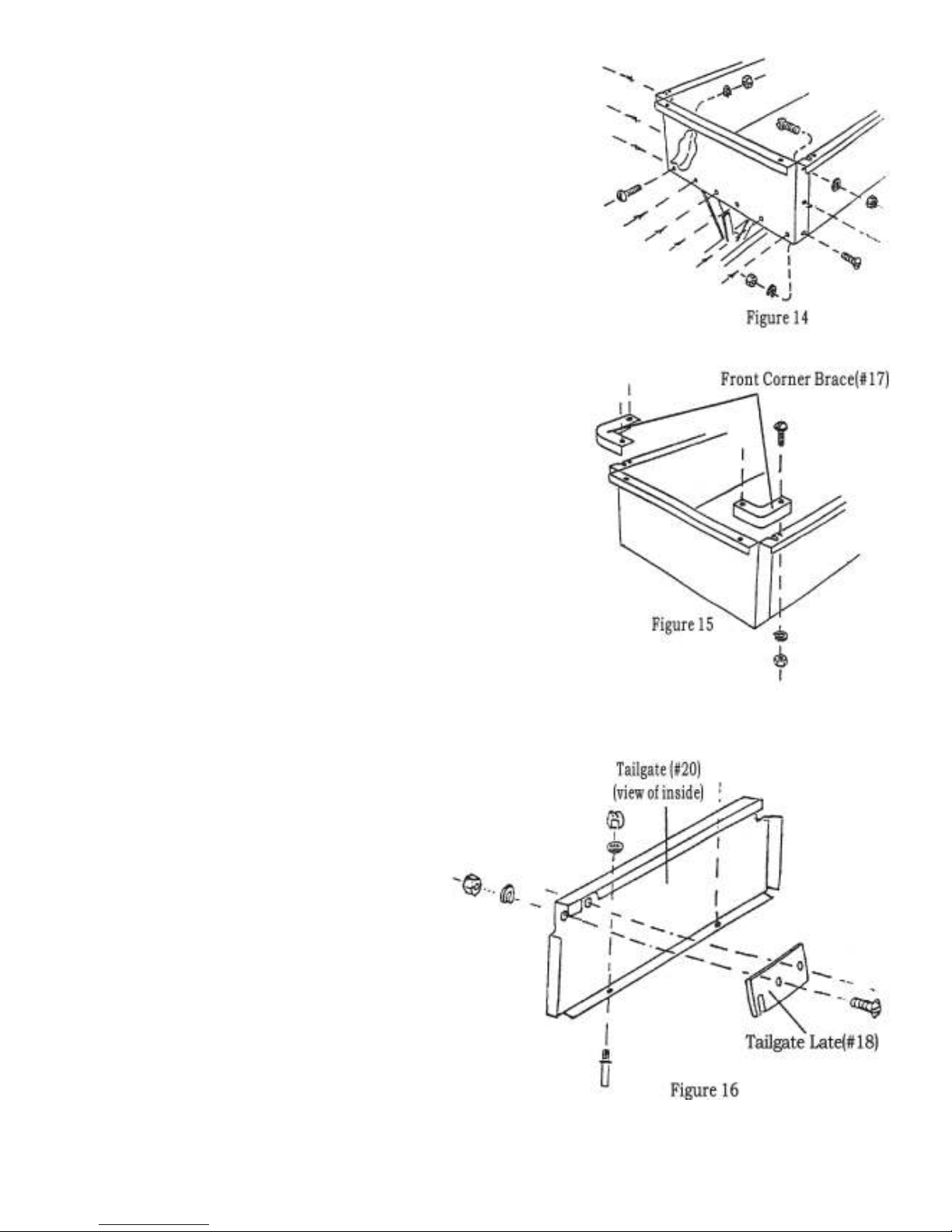

Step 14: Attach Front Panel
Attach the Front Panel(#16) to the Front Cross Brace(#2) and
to the two Side Panels(#14) using 12 (#21) Bolts 12 (#23)
Washers and 12 (#24) Nuts. See Figure 14 for bolt locations.
Hardware Needed for Step 14:
1 (#16) Front Panel
12 (#21) Bolts
12 (#23) Washers
12 (#24) Nuts
Step 15: Install Front Corner Braces
Install the Front Corner Braces(#17) to the corners of the Front
Panel(#16) and the Side Panels(#14) using 2 (#21) Bolts 2
(#23) Washers and 2 (#24) Nuts for each Front Corner Brace.
See Figure 15.
Hardware Needed for Step 15:
2 (#17) Front Corner Braces
4 (#21) Bolts
4 (#23) Washers
4 (#24) Nuts

Operation/Maintenance NOTES:
Operation notes-
A full capacity load is 500 pounds DO NOT exceed rated capacity.
Cart only to be used with lawn tractor or ATV.
Cart is not to for highway use.
Do not exceed 10mph when towing.
Maintenance notes-
On a regular basis check that tires are inflated properly. Pressure should be approx. 14psi.
NEVER over-inflate tires ALWAYS check pressure max. on the tire.
Grease axle and wheel bearing area regularly or when needed.
Dry off cart after using in wet conditions.

swisherinc.com
MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INORMATION AVAILA LE:
* PRODUCT – ________________
* SERIAL NUM ER - _______________
* MODEL NUM ER - _______________
TYPE - _______________
* PART NUM ER WITH PAINT CODE
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER MOWER & MACHINE CO. INC.
SWISHER MOWER & MACHINE CO. INC.SWISHER MOWER & MACHINE CO. INC.
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE
P.O. OX 67
WARRENS URG, MO 64093
ATV & LAWN ACCESSORIES
Owner’s
Manual
FC-10
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
efore Operating this
Equipment.
