The handset at a glance
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / SAG_covers_I-II.fm / 13.10.2003
The handset at a glance
ÐU
Internal 11
20.09.03 09:45
End call key, On/Off key
◆End call
◆Cancel function
◆Return to idle status
(hold down)
◆Handset on/off (in idle
status, hold down)
Message key
◆Access to calls list
◆Flashes: new calls
Handsfree key
◆Switch from "earpiece"
to handsfree mode
◆Lights up: Handsfree
is activated
◆Flashes: incoming call,
automatic last number
redial
Star key
◆Ringer on/off (press for
approx. 2 seconds)
◆Toggles between upper/
lower case and digits
Charge status
eflat ¤fully
charged
eflashes: battery is
almost flat or is charging
Control key
Opens the menu,
directory, internal list,
voice selection. Navigation
in the input field
Current functions and
display keys
The display keys give you
access to the functions
shown in the display.
Key 1
fixnetbox®
(hold down)
Microphone
Talk key
◆Answer a call
◆Initiate dialling
◆Switch from handsfree
to "earpiece" mode
Recall key
Initiate enquiry call
Reception strength
Swisscom key
for spec. directory
open: short press
Hash key
Keypad lock on/off
(hold down)

2
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / SX_150isdnIVZ.fm / 13.10.2003
The handset at a glance . . . . . . . . . . . . . . . . . . . . . . 1
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparing to use your phone . . . . . . . . . . . . . . . . . . 7
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the handset – and menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating the base – Getting started wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Making and ending external calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Making and ending internal calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Withholding Calling Line Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Handsfree talking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Picking up a call during ring delay (Call PickUp) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Reserving a line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Defining the outgoing MSN for the next call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Ringback when busy (CCBS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Identify caller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Functions during a call . . . . . . . . . . . . . . . . . . . . . . 26
Muting the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Making calls with multiple parties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Forwarding an incoming call – CD (Call Deflection) . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Transferring calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Working with call waiting for an external call – CW (Call Waiting) . . . . . . . . . . . . . . . 30
Call hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Parking/continuing a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using the directory and other lists . . . . . . . . . . . . 32
Directory and speed dial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Voice-activated dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Display available memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Last number redial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Opening lists with the Message key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Calls lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

3
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / SX_150isdnIVZ.fm / 13.10.2003
Making cost-effective calls . . . . . . . . . . . . . . . . . . 47
Displaying call charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Using several handsets . . . . . . . . . . . . . . . . . . . . . 49
Using a handset as a room monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting the Walk and Talk mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting the alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting appointments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Displaying missed appointments, and anniversaries . . . . . . . . . . . . . . . . . . . . . . . . . 57
Night service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Security settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing the System PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Defining authorisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Emergency numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Setting the system . . . . . . . . . . . . . . . . . . . . . . . . . 64
Changing the name for an internal party . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Setting up/deleting ISDN phone numbers (MSN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Assigning a phone number (MSN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Setting up the list of outgoing MSN for the next call . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting up a busy signal when the MSN is being used (Busy on Busy) . . . . . . . . . . . 68
Assigning an MSN a ringer melody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Setting up rejecting for the entire MSN group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Forwarding calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Pre-assigning the call deflection destination – CD (Call Deflection) . . . . . . . . . . . . . 73
Setting up automatic call forwarding when not reaching a handset . . . . . . . . . . . . . 74
Setting up an internal group call group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Setting up ring delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Activating/deactivating call waiting – CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Setting an external/internal enquiry call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Setting up the waiting melody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Changing the long distance prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Restoring the factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Checking the status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Checking the software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Registering/de-registering further handsets . . . . 81
Handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Deactivating/activating auto answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing the name of the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

4
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / SX_150isdnIVZ.fm / 13.10.2003
Adjusting the loudspeaker volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Changing the ringer tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Activating/deactivating advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Restoring the handset to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Operating with other devices . . . . . . . . . . . . . . . . 90
Data modules Gigaset M101 Data and M105 Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Gigaset repeater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Using with a PABX . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Access code (outside line code) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Dialling options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Guarantee/maintenance/repair/approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Character set chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Predictive text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Menu table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Submenu "Base Settings" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Directory key and speed dial list key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
ISDN glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

5
Safety precautions
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / sec_hints.fm / 13.10.2003
Safety precautions !
Only use the power supply unit supplied, as indicated on the underside of
the device.
Only insert the recommended, rechargeable batteries (page 97) of the
same type! Use no other types of batteries or non-rechargeable batteries, as
they could damage health and cause personal injury.
Ensure correct polarity when fitting rechargeable batteries, and use the
battery type according to these instructions (you will see polarity symbols in
the handset's
battery compartments) .
The operation of medical appliances may be affected. Be aware of the
technical conditions within the particular environment (e.g. doctor's practice).
The handset may cause an intrusive 'hum' in hearing aids.
Do not install the base in bathrooms or shower rooms (see page 7 and
page 94). The handset and base are not watertight.
Drivers must not use their phones while driving (Walk and Talk function).
Switch off your phone while on board an aircraft (Walk and Talk function).
Ensure that it cannot be switched on again accidentally.
Do not use the phone in environments subject to explosion hazard
(e.g. auto paint shops).
Ensure that your device is accompanied by these instructions when you give it
to others to use.
Dispose of the batteries and phone in accordance with environmental
regulations.
O
‹
Œ
ƒ

6
Safety precautions
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / sec_hints.fm / 13.10.2003
i
◆This product does not support SMS (Short Message Service).
◆Not all of the functions described in these instructions are available in
all countries.

7
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Preparing to use your phone
Package contents
The package contains:
◆one base station,
◆one handset,
◆one power supply unit with power cord,
◆one ISDN cable,
◆one battery compartment cover for the handset,
◆one belt clip for the handset,
◆two batteries,
◆operating instructions (in 3 languages: German, French, Italian).
Installing the base
Notes on installation
The base is designed to be used in enclosed, dry areas at temperatures ranging from
+5 °C to +45 °C. Install the base at a central location in your home, e.g. in the hall.
Range and reception strength
The base has a range of approx. 250 m outdoors and up to 40 m indoors. The reception
strength shows the quality of the radio contact between the base and handset:
W
◆Never expose the telephone to the following: heat sources, direct
sunlight, other electrical equipment.
◆Protect your Gigaset from moisture, dust, corrosive liquids and
vapours.
ÐReception strength 100 % iReception strength 75 %
ÑReception strength 50 % ÒLow reception strength
|No reception (flashes)

8
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Connecting the base
i
◆Keep the mains unit plugged in at all times to ensure your phone is
ready for use whenever you need it.
The base and the registered handset are not operational if there is
power failure. However, all settings and stored items (messages,
directory entries, etc.) are retained indefinitely.
Underside of
base (enlarged
view)
◆Plug in the small plug on the ISDN cable into the socket (it clips into place),
◆Place cable in the cable duct,
◆Insert second plug of the ISDN cable into the NTBA (ISDN connection)
.
◆Insert the small jack on the power cord into the socket on the underside of the
base,
◆Place cable in the cable duct,
2.
Socket
ISDN connection
(NTBA)
2.
Mains unit with
mains cable
Cable duct
Underside of
base (enlarged
view)
1.
1.
Telephone plug
with ISDN cable
Cable duct

9
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Operating the handset
Removing the protective film

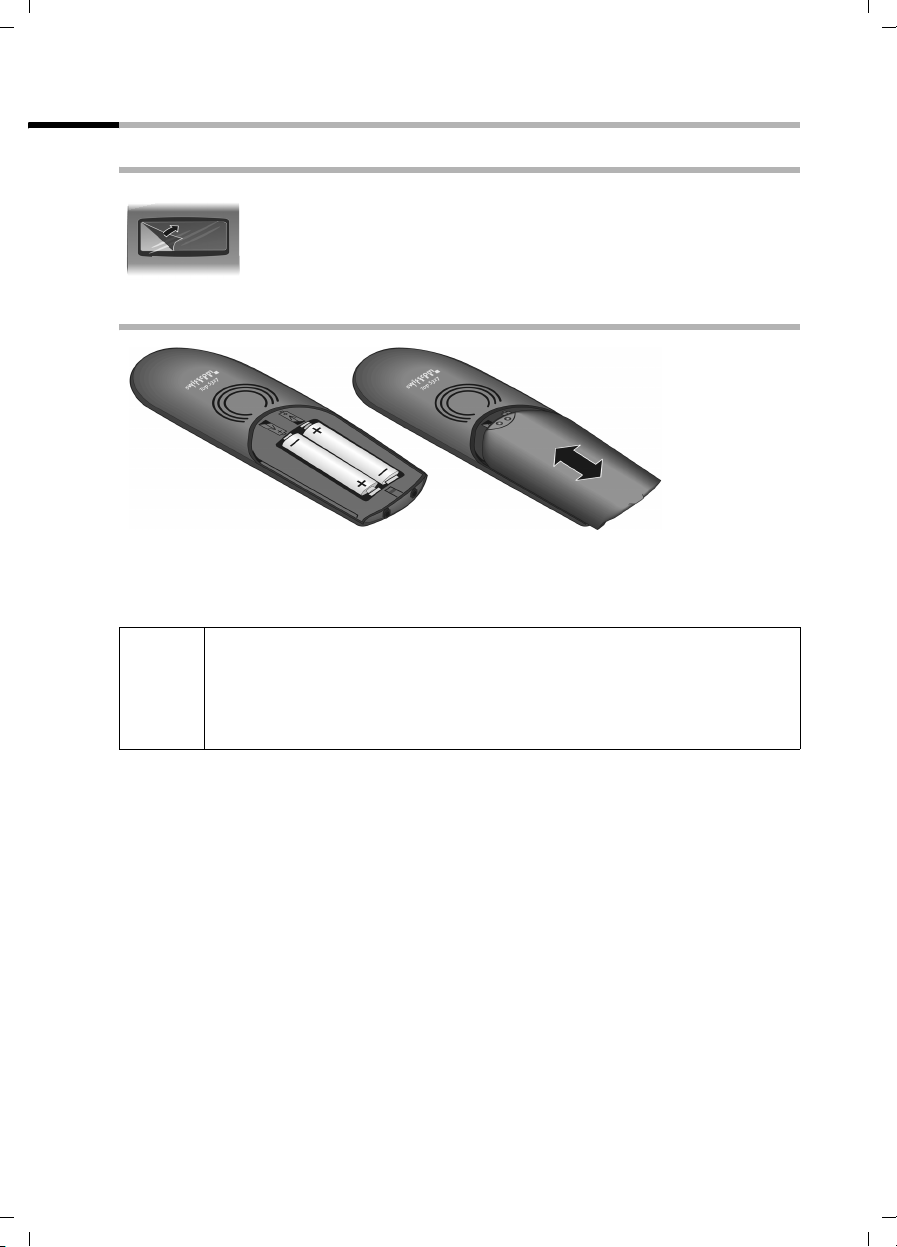

Inserting the batteries
◆Insert the batteries ensuring correct polarity (see figure on left).
◆Position the battery cover so that it is open by around 3 mm, then slide up until it
closes with a click.
Opening the battery compartment
Press on the grooved area of the cover and slide back.
The display is protected by a plastic film.
Please remove the protective film!
W
Use only the rechargeable batteries recommended on page 97! Never use
conventional batteries (non-rechargeable) or other battery types as this
may cause significant damage to health and property. For example, the
jacket of the battery could be destroyed (hazardous). The phone could
also malfunction or be damaged.

10
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Registering the handset and charging the batteries
When you place the handset into the base, it automatically registers. This can be done
as follows:
1. Place the handset turned off in the base with the display up.
2. Wait till the handset has automatically registered with the base (page 81): This takes
about one minute. You will now see "Time not activated" in the display. The
handset is assigned the internal number 11 (the first valid internal number for
handsets) and the internal name Internal 11 appears in the display. You can change
the handset name (page 64).
If automatic registration is interrupted, you must register the handset manually as
described starting on page 81. There is a table of the most important questions and
answers to help you (page 94).
Now leave the handset in the base for the batteries to charge – the batteries are supplied
uncharged. The charging is indicated in the upper right of the display where the
charging status Uflashes:
Note
Your telephone is now ready for use. To correctly record the time of calls you must now
set the date and time. Depending on the network provider, the date and time are
updated automatically by the telephone network with every outgoing call. All the
settings necessary for operating the telephone can be set up easily with the Getting
started wizard (page 14).

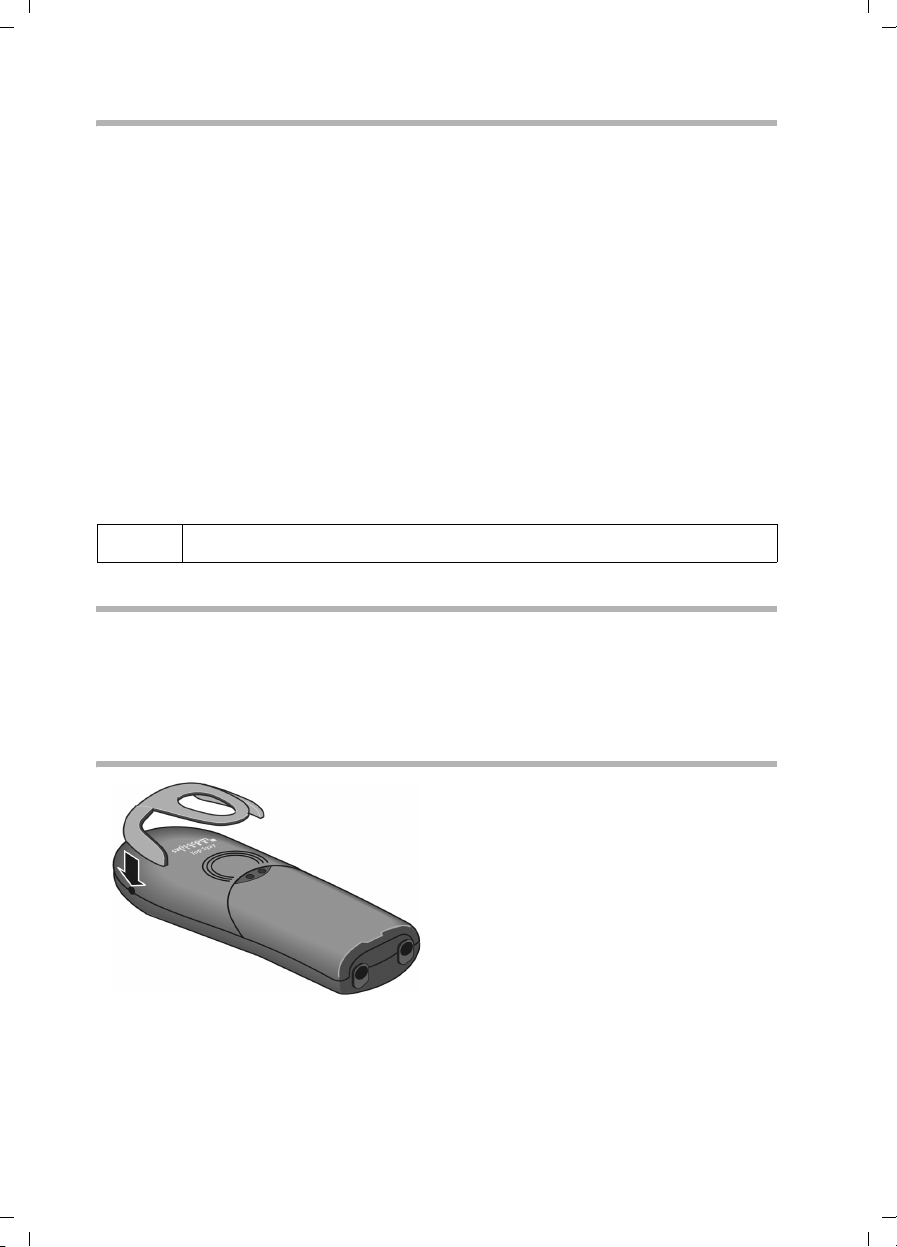

Attaching the belt clip
Push the belt clip onto the back of the handset until the lugs click into the recesses on
either side of the handset.
eThe batteries are (almost) flat UBatteries
2/3charged
VBatteries
1/3charged ¤Batt. fully charged
iIf you want to register further handsets, please turn to page 81.

11
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Activating/deactivating the handset
To activate the handset, press the end call key aand hold. You will hear a
confirmation tone (rising tone sequence).
To deactivate the handset while in the idle status, press the end call key aagain and
hold (confirmation tone).
Activating/deactivating the keypad lock
You can 'lock' the keys on your handset, e.g. when carrying the unit in your pocket or
bag. This protects the keypad against inadvertent activation.
Hold down the hash key R. You will hear a confirmation tone and the icon Ø
appears in the display.
To deactivate the keypad lock, press the hash key Ragain and hold (confirmation
tone).
iThe deactivated handset activates automatically when placed in the base
or charger.
i
◆The keypad lock deactivates automatically when you receive a call. It
re-activates when the call is finished.
◆When the keypad lock is active, you cannot even call emergency
numbers.
◆The keypad lock is still indicated if you have installed a logo as display
graphic (page 72).

12
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Using the handset – and menus
Special keys
Control key
The control key is the central operating element. It has four black arrows and the
corresponding icons. Pressing the various icons (up, down, right, or left) opens a
different function. The side you have to press is shown by a black triangle in the
operating instructions, e.g.: vkey for right = open menu.
Example:
Different functions of the control key:
Display keys
The display keys are the horizontal buttons just below the display. Their functions
depend on the operating situation. The current function is shown directly above the
button in the display.
Example:
Control key
In the idle status In lists and menus In an input field
tVoice-activated dialling
(hold key down)
Scroll up Move the cursor one line up
sOpen directory Scroll down Move the cursor one line
down
vOpen menu Confirm the selected entry
(same as )
Move the cursor to the right
uInitiate an internal call Go back one menu level, or
cancel
Move the cursor to the left
OK
Display keys
Functions of the display keys
(depending on the operating situation)

13
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
The various displays have the following meaning:
Correcting entries
After a correct entry you will hear a confirmation tone (rising tone sequence), an
incorrect entry is indicated by an error tone (falling tone sequence). You can repeat the
entry.
If you have entered the wrong character in the text, you can correct it as follows:
Deleting characters to the left of the cursor with .
To correct a phone number or text, move the cursor to the right of the incorrect
character with the control key. Then press the display key . This deletes the
character. Now enter the correct character.
Inserting characters to the left of the cursor
If you have left out a character, use the control key to move the cursor to where you
want to insert the character, and then enter it.
Overwriting characters
When entering Date/Time the number of digits is fixed and there is a default entry in the
field. Use the control key to move the cursor to the wrong digit and overwrite it.
Overwriting characters to the right of the cursor
When entering Cost per Unit: the number of digits is fixed and there is a default entry
in the field. Use the control key to move the cursor to the left of the wrong digit and
then overwrite it.
Idle status
Display in idle status (example)
Returning to idle status from anywhere in the menu:
◆Hold down the End call key afor about 1 second or
◆do not press any key: After about 2 minutes the display automatically returns to idle
status.
Display
icon
If you press the key
Last number redialkey: Open the list of the last 10 phone numbers you dialled.
OK key: Confirm menu function or confirm entry and save.
Menu key: Open the main menu when in idle status.
Opens context sensitive menu while making a call.
Menu+ key: Open submenu, e. g. in input fields.
Delete key: Delete input character by character from right to left.
Escape key: One menu level back (cancel).
Þ
OK
à
fC
Ý
fC
fC
(Date and time have already been set)
ÐU
Internal 11
20.09.03 09:45
•à
Two lines with context dependent
system information

14
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Changes you have not confirmed or saved by pressing , Yes, Save, Send or with Save
will be discarded.
Example of menu operation: "Setting Handsfree Volume"
Operating the base – Getting started wizard
A few settings are necessary before using your telephone. The Getting started wizard is
designed to help you with this. It can be opened anytime using your handset. The
following settings can be set one after the other.
◆Date and time
◆Find enter the MSN of your connection
◆Set the device type for the connected device
◆Set the incoming MSN
◆Set the outgoing MSN
◆Outside line code (when using a PABX)
What is an MSN?
MSN = Multiple Subscriber Number. Up to ten different phone numbers can be applied
for to utilise the ISDN multi-device connection (MultiLine). An MSN is one of the phone
numbers without the area code assigned by you.
Your telephone uses the MSN according to your preferences. There are two types:
◆Incoming MSN: phone numbers which can be used to call you. You can assign the
incoming MSN to specific internal parties (handsets). Incoming calls are only routed
to the handsets assigned the respective incoming MSN.
◆Outgoing MSN: phone numbers identified to the person called. The outgoing MSNs
are used for invoicing by the network provider. Each internal party can be assigned
a fixed outgoing MSN.
Potential internal parties are:
◆Handsets, which can be assigned the internal phone number 11 to 16.
◆Data modules (page 90), which can be assigned the internal phone numbers 41 to
46.
OK
OK
1. vPress right side of the control key. This opens the menu.
2. sKeep pressing the lower part of the control key until you see Audio
Settings marked in the display (by the frame).
3. vor Use the right side of the control key or the display key to
confirm.
4. vor Confirm the first display entry, Handset Volume, using the right
side of the control key or with the display key .
5. rPress the left or right side of the control key to select the required
volume (1–5).
6. [RRRRRRRRRRRRRRRRRRRRRRRRRR ]
Save Press the display key to save the setting.
7. aPress and hold the End call key to return to the idle status.
OK OK
OK
OK

15
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Examples for assigning MSNs:
You have ordered four MSNs, two for business use (MSN1, MSN2) and two for private
use (MSN3, MSN4). Four handsets are connected to one base. Two handsets (Int.11 and
12) are for business use, two handsets (Int.13 and 14) are for private use.
The following applies to Comfort handsets:
Because internal 11 and internal 12 handsets are assigned two (receiving) MSNs each,
they can use the MSN next call performance feature (page 75). They can change to
(sending) MSN2 during each outgoing external call. The internal 13 and 14 handsets
cannot do this.
Ring delay
When ring delay is active, the signal for an incoming call is delayed on the handset (e. g.
after 5 rings – the number can be set). Ring delay can be set individually for each
handset and for each incoming MSN (page 66).
As an example, an incoming call should be signalled to MSN1 Int.11 when Int.12 does
not answer the call. To do this, activate the ring delay for Int.11 and MSN1 (e.g., to
5 rings). The call is signalled directly to Int.12 , but Int.11 is signalled after the 5th ring.
Launching the Getting started wizard and setting the basic
Launching the Getting started wizard:
Internal parties Usage Incoming MSN Outgoing MSN
Handsets Int.11 , 12 Business MSN1, MSN2 MSN1
Handset Int.13 Private MSN3 MSN3
Handset Int.14 MSN4 MSN4
vOpen the menu.
sBase Settings Select the menu item and confirm.
sInstallation Select the menu item and confirm.
[RRRRRRRRRRRRRRRRRRRRRRRRRR ]
YES Press the display key to launch the Getting started
wizard.
If you already have set a system PIN (not 0000)
(page 61), you will be asked to enter it.
~If required, enter the system PIN and confirm.
OK
OK
OK
i
◆The Getting started wizard cannot be used simultaneously by multiple
handsets.
◆If there is already settings data (factory default or previous settings),
this data is shown at the appropriate positions in the display and can
be modified there.
◆To cancel the Getting started wizard, press the end call key and hold.
All changes you have already saved using Save entry §§OK§§ are
retained. The handset returns to idle status.
◆To skip a setting, press the display key §§NO§§.

16
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Setting the date and time:
Depending on the network provider, the date and time are adopted automatically from
the telephone network during the first outgoing call.
The display shows: Enter time?
If the time should be displayed in 12-hour mode, you can modify the setting later
(page 54).
Entering your phone numbers (MSNs) manually and entering names for the MSNs:
The display shows: Find own numbers (MSN)?
The MSNs entered will automatically be assigned to all handsets as incoming and
outgoing MSNs.
This sequence will then be repeated for MSN2 to MSN10.
[RRRRRRRRRRRRRRRRRRRRRRRRRRR]
YES Press the display key to set the date and time.
~Enter the date (6-digit) and time (4-digit in 24-hour
mode) in series, e.g. 200903 0945 for 9/29/03
9:45 a.m.
Press the display key to open the submenu.
sSave entry Select the menu item and confirm.
OK
[RRRRRRRRRRRRRRRRRRRRRRRRRRR]
YES Press the display key to confirm the prompt.
[RRRRRRRRRRRRRRRRRRRRRRRRRRR]
YES Press the display key to confirm the "MSN 1 MSN %f?"
prompt.
~Enter name. Entering a name for an MSN is optional.
s~ If necessary, scroll to the line <Nummer> and enter
the MSN.
Press the display key to open the submenu.
sSave entry Select the menu item and confirm.
OK

17
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Setting the incoming MSN
The display shows: Set incoming MSN?
The incoming MSN is used to answer incoming calls. The MSNs allocated to your ISDN
connection can be allocated to various end devices according to your preferences. You
can assign an end device multiple incoming MSNs.
This sequence is repeated for all handsets registered for your telephone.
Setting the outgoing MSN:
The display shows: Set outgoing MSN?
Each internal party can be assigned exactly one of the available outgoing MSNs. It is
identified to the person called and the network provider bills the call charges to this
MSN. Each end device can be assigned exactly one of the available outgoing MSNs.
This sequence will be repeated for all handsets registered for your telephone.
[RRRRRRRRRRRRRRRRRRRRRRRRRR ]
YES Press the display key to confirm the prompt.
[RRRRRRRRRRRRRRRRRRRRRRRRRR ]
YES Press the display key to confirm the "Set allocation
Internal 11 ?" prompt.
The list of entered MSNs is displayed.
sMSN 1:12345678 Select the MSN which should be assigned to this end
device, and confirm.
Repeat this sequence for all MSNs which should be
assigned to this end device as an incoming MSN.
Press the display key to end this assignment for this
end device.
OK
Ý
[RRRRRRRRRRRRRRRRRRRRRRRRRR ]
YES Press the display key to confirm the prompt.
[RRRRRRRRRRRRRRRRRRRRRRRRRR ]
YES Press the display key to confirm the "Set allocation
Internal 11 ?" prompt.
The list of entered MSNs is displayed.
sMSN 1:12345678 Select the MSN which should be assigned to this end
device, and confirm.
Press the display key to end this assignment for this
end device.
OK
Ý

18
Preparing to use your phone
Gigaset SX100isdn / englisch / A31008-X150-B102-1-7619 / starting.fm / 13.10.2003
Using with a PABX:
Only carry out the following steps if you want to connect your telephone to a private
PABX (not directly to a NTBA).
The display shows: Operate behind PABX?
The display shows "Installation completed". Press the end call key a, to return to the
idle status of the handset.
[RRRRRRRRRRRRRRRRRRRRRRRRRRR]
YES Press the display key to confirm the prompt.
[RRRRRRRRRRRRRRRRRRRRRRRRRRR]
YES Press the display key to confirm the "Set access
code?" prompt.
~Enter the access code (outside line code).
Press the display key to open the submenu.
sSave entry Select the menu item and confirm. The Getting
started wizard is closed.
OK
