1
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / cover.fm / 27.9.06
Aton CL700 IP
User guide

2
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / cover.fm / 27.9.06

1

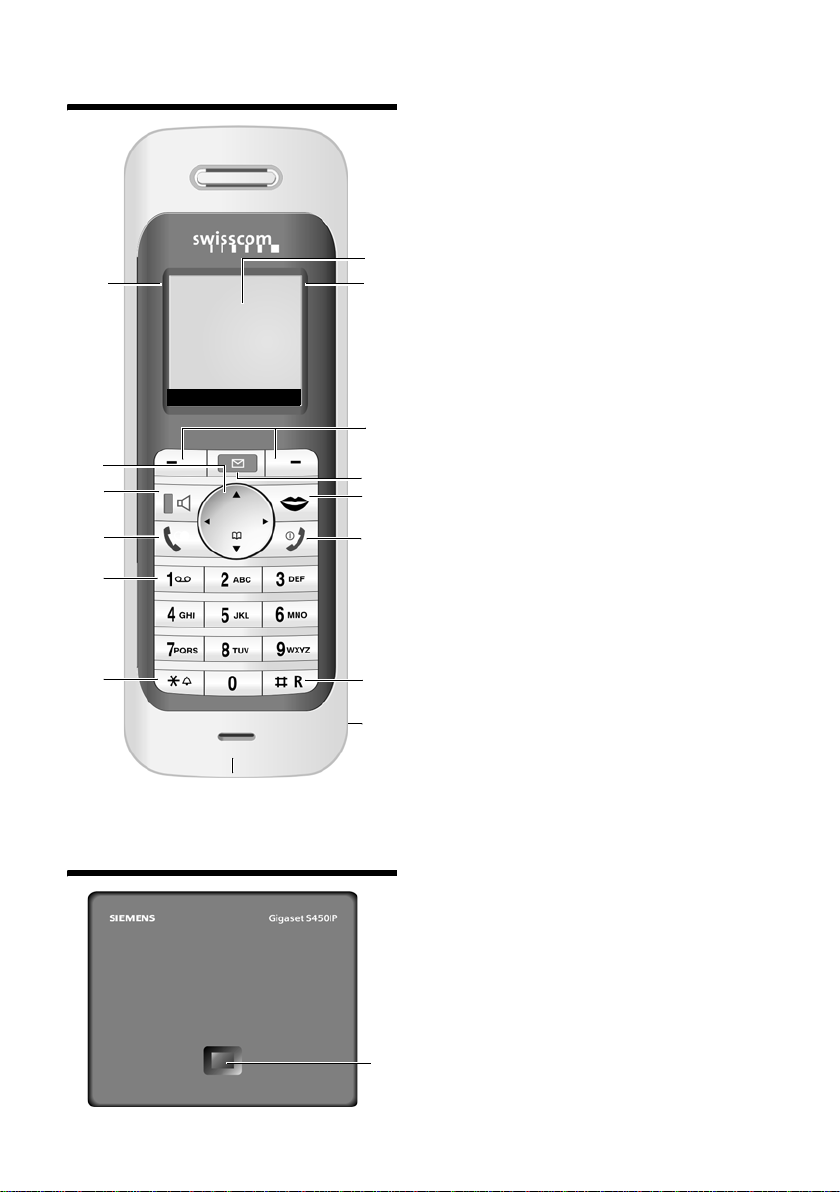

V2 handset at a glance
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-xx43 / overview.fm / 27.9.06
Version 4, 16.09.2005
V2 handset at a glance
Base station at a glance
V2 handset keys
1Display (screen) in idle status
2Charge status of the batteries
=eVU(flat to full)
= flashes: batteries almost flat
e V U flashes: batteries charging
3Display keys (page 19)
4Message key
Access to calls and message lists;
Flashes: new message or new call
5End call key, On/Off key
End call, cancel function, go back one menu
level (press briefly), back to idle status (press
and hold), activate/deactivate handset
(press and hold in idle status)
6Hash key
Recall (flash),
toggles between upper/lower case
and digits
7"Swisscom Voice Portal" key (page 19)
8Connection socket for headset
9Microphone
10 Star key
Ringtones on/off (press and hold),
Open special characters table
11 Key 1
Select network mailbox (press and hold)
12 Talk key
Accept a call, open last number redial list
(press briefly), start dialling (press and hold)
13 Handsfree key
Swap between earpiece/handsfree mode
Lights up: handsfree activated;
Flashes: incoming call
14 Control key (page 18)
15 Signal strength
Ð i Ñ Ò (high to low)
| flashes: no reception
Base station key
1Paging key
Lights up: LAN connection active (phone is
connected to router)
Flashes:
Data transfer to LAN connection
Press briefly: start paging
Press and hold:
set base station to registration mode
15
2
3
5
4
6
7
14
13
11
8
10
9
1
12
ÐV
INT 1
10.08.06 09:45
FixedLine IP
1

2
Contents
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / S450IP_KBA_laenderIVZ.fm / 27.9.06
Version 4, 16.09.2005
Contents
V2 handset at a glance . . . . . . . . . 1
Base station at a glance . . . . . . . . 1
Safety precautions . . . . . . . . . . . . 3
Aton CL700 IP –
More than just a telephone . . . . . 4
VoIP – Making calls via
the Internet . . . . . . . . . . . . . . . . . . 5
First Steps . . . . . . . . . . . . . . . . . . . . 5
Pack contents . . . . . . . . . . . . . . . . . . . . 5
Setting up the handset for use . . . . . . . 5
Installing the base station . . . . . . . . . . 7
Connecting the base station . . . . . . . . 8
Making settings for VoIP telephony . . 10
Menu tree . . . . . . . . . . . . . . . . . . 13
Making calls with VoIP and the
fixed network . . . . . . . . . . . . . . . 17
Making an external call . . . . . . . . . . . 17
Ending a call . . . . . . . . . . . . . . . . . . . . 17
Accepting a call . . . . . . . . . . . . . . . . . 18
Switching between earpiece and
handsfree mode . . . . . . . . . . . . . . . . . 18
Dialling emergency numbers . . . . . . . 18
Operating the handset . . . . . . . . 18
Activating/deactivating the handset . 18
Control key . . . . . . . . . . . . . . . . . . . . 18
Display keys . . . . . . . . . . . . . . . . . . . . 19
Reverting to idle status . . . . . . . . . . . . 19
Swisscom Voice Portal key . . . . . . . . . 19
Using the directory and lists . . . 20
Directory . . . . . . . . . . . . . . . . . . . . . . . 20
Last number redial list . . . . . . . . . . . . 20
Opening lists with the message key . 21
Dialling using the directory/list . . . . . 21
SMS (text messages) . . . . . . . . . . 22
Writing/sending/saving an SMS . . . . . 22
Receiving/reading an SMS . . . . . . . . . 24
Managing SMS lists . . . . . . . . . . . . . . 24
Notification by SMS . . . . . . . . . . . . . . 24
E-mail notifications . . . . . . . . . . 25
Entering access data to the
incoming e-mail server . . . . . . . . . . . . 25
Opening the incoming message list . . 25
Making settings on the handset/
base station . . . . . . . . . . . . . . . . 26
Changing the display keys
on the handset . . . . . . . . . . . . . . . . . . 26
Adjusting the loudspeaker volume . . . 26
Setting ringtones . . . . . . . . . . . . . . . . 26
Activating/deactivating advisory tones 27
Setting the alarm clock . . . . . . . . . . . . 27
Changing the system PIN for
the base station . . . . . . . . . . . . . . . . . 28
Setting the default connection . . . . . . 28
Checking the base station
MAC address . . . . . . . . . . . . . . . . . . . . 28
Activating/deactivating muting
for the first ringtone . . . . . . . . . . . . . . 28
Software updates . . . . . . . . . . . . . . . . 28
Appendix . . . . . . . . . . . . . . . . . . 29
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contact with liquid . . . . . . . . . . . . . . . 29
Faults and self-help with
troubleshooting . . . . . . . . . . . . . . . . . 29
Warranty/Maintenance/Repair/
Authorisation . . . . . . . . . . . . . . . . . . . 30
Repair/Maintenance . . . . . . . . . . . . . . 30
Specifications . . . . . . . . . . . . . . . . . . . 31
Aton CL700 IP – Free software . . . . . . 32
Accessories . . . . . . . . . . . . . . . . . 33

3
Safety precautions
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / security.fm / 27.9.06
Version 4, 16.09.2005
Safety precautions
Warning:
Read the safety precautions and the user guide before use.
Explain their contents and the potential hazards associated with using the telephone to your children.
Only use the mains adapter supplied, as indicated on the underside of the base station.
Fit only the recommended rechargeable batteries (page 31) of the same type! This
means that you must not use any other battery type or non-rechargeable batteries as this
could result in significant health risks and personal injury.
Insert rechargeable batteries with the correct polarity, and use them according to this user
guide (polarity symbols can be seen, for example, in the handset's battery compartment,
page 5).
The operation of medical appliances may be affected. Be aware of the technical conditions
in your particular environment, e.g. doctor's surgery.
Do not hold the rear of the handset to your ear when it is ringing or when the handsfree
function is activated. Otherwise you risk serious and permanent damage to your hearing.
The handset may cause an unpleasant humming noise in hearing aids.
Do not install the base station in bathrooms or shower rooms. The handset and base sta-
tion are not splashproof (page 29).
Do not use your phone in environments with a potential explosion hazard, e.g. paint
shops.
Ensure that your Aton CL700 IP is accompanied by this user guide when you give it to
others to use.
Information about disposal
At the end of its service life this product must not be disposed of among the normal house-
hold refuse. Instead, it must be handed in at a sales outlet or at a collection point for recy-
cling electrical and electronic devices in accordance with regulations governing the
return, taking back and disposal of electrical and electronic devices (ORDEA).
The materials can be recycled as indicated. By recycling materials and reusing or utilising
old appliances in any other way you are making an important contribution to the protec-
tion of the environment.
Note:
– When the keypad lock is active you cannot even call emergency numbers!
– Not all of the functions described in this user guide are available in all countries. CLIP (calling line
display), SMS (Short Message Services) and "Swisscom Voice Portal": the functions are dependent
on the network provider.
– EATONI predictive text: EATONI predictive text helps you when you are writing SMS messages.
It can be activated or deactivated (page 22).
– Instant messaging is not currently supported by the "Bluewin" service provider.
$
‹
Œ
ƒ

4
Aton CL700 IP – More than just a telephone
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Aton CL700 IP –
More than just a telephone
Your phone lets you make calls both via
the fixed network and (cost effectively) via
the Internet (VoIP) without using a PC.
And your phone can do much more
besides:
uPress a button each time you make a
call to indicate whether you want to
make a call via the fixed network or via
the Internet (page 17).
uRegister up to six handsets on your
base station. With your base station
you can make two simultaneous calls
via VoIP or one call over the fixed net-
work and one call via VoIP.
uConfigure the phone connection for
VoIP without a PC. Your phone's con-
nection assistant downloads preconfig-
ured data from Bluewin from the Inter-
net and guides you through entering
your personal data (VoIP/SIP account).
This makes it easy for you to start using
VoIP (page 10).
uAssign your own password (system
PIN) to protect your device from unau-
thorised access (page 28).
uSend and receive SMS messages via
the fixed network (page 22).
uArrange for your telephone to inform
you about new e-mail messages in
your mailbox without using a PC
(page 25).
uSave up to 150 numbers and names in
your handset (page 20).
uDownload your Outlook contacts from
your PC onto your handset. Or backup
the handset directory on your PC.
uProgramme the keys of your phone
with important phone numbers. The
phone number is then dialled by simply
pressing the respective key (page 20).
uKeep your hands free when making a
call. Use the handsfree function on
your handset or telephone at your con-
venience with the headset (accessory).
uKeep your phone right up to date.
Arrange to be informed about
firmware updates on the Internet and
download these onto your phone.
uUse your handset as an alarm clock
(page 27).
Have fun using your new telephone!
Note:
The Swisscom Aton CL700 IP telephone corre-
sponds to the Siemens Gigaset S450 IP model.
Aton CL700 IP works exclusively via the Swiss-
com "Bluewin" Internet provider.
Your Aton CL700 IP has a protected operating
system that offers increased security against
viruses from the Internet.

5
VoIP – Making calls via the Internet
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005

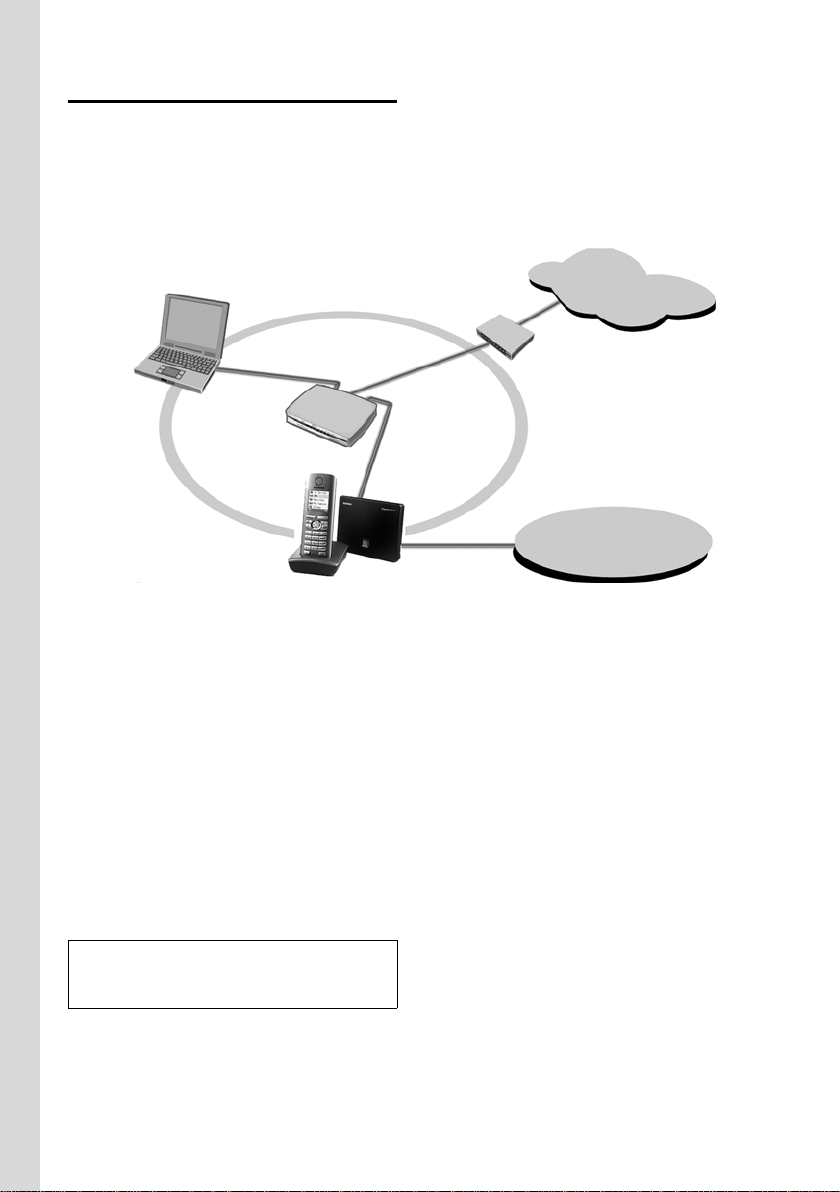

VoIP – Making calls via
the Internet
With VoIP (Voice over Internet Protocol),
your calls are not made via a fixed connec-
tion as in the telephone network, but
rather they are transmitted via the Inter-
net in the form of data packets.
You can take advantage of all the benefits
of VoIP with your phone:
uYou can make cost-effective calls with
high voice quality with subscribers on
the Internet, the fixed network or the
mobile phone network.
uYour "Bluewin" VoIP provider will give
you a personal number, with which you
can be reached from the Internet, the
fixed network and any mobile phone
network.
To be able to use VoIP, you need the fol-
lowing:
uA broadband Internet connection
(e.g. DSL).
uInternet access, i.e. you need a router
that will connect your phone to the
Internet.
First Steps
Pack contents
The pack contains:
uone Aton CL700 IP base station
uone Aton CL300 V2 handset
uone mains adapter for the base station
uone charging cradle inc. mains adapter
uone phone cord
uone Ethernet cable (LAN cable)
utwo batteries
uone battery cover
uone belt clip
uone quick guide
Documentation
You will find a full description of your
Aton CL700 IP on the Internet at:
www.siemens.com/gigaset
This complete description is in PDF format.
You will need Adobe® Reader® to view
these documents. Adobe® Reader® can be
found on the Internet at www.adobe.com.
Setting up the handset for use
The display is protected by a
plastic film. Please remove
the protective film!

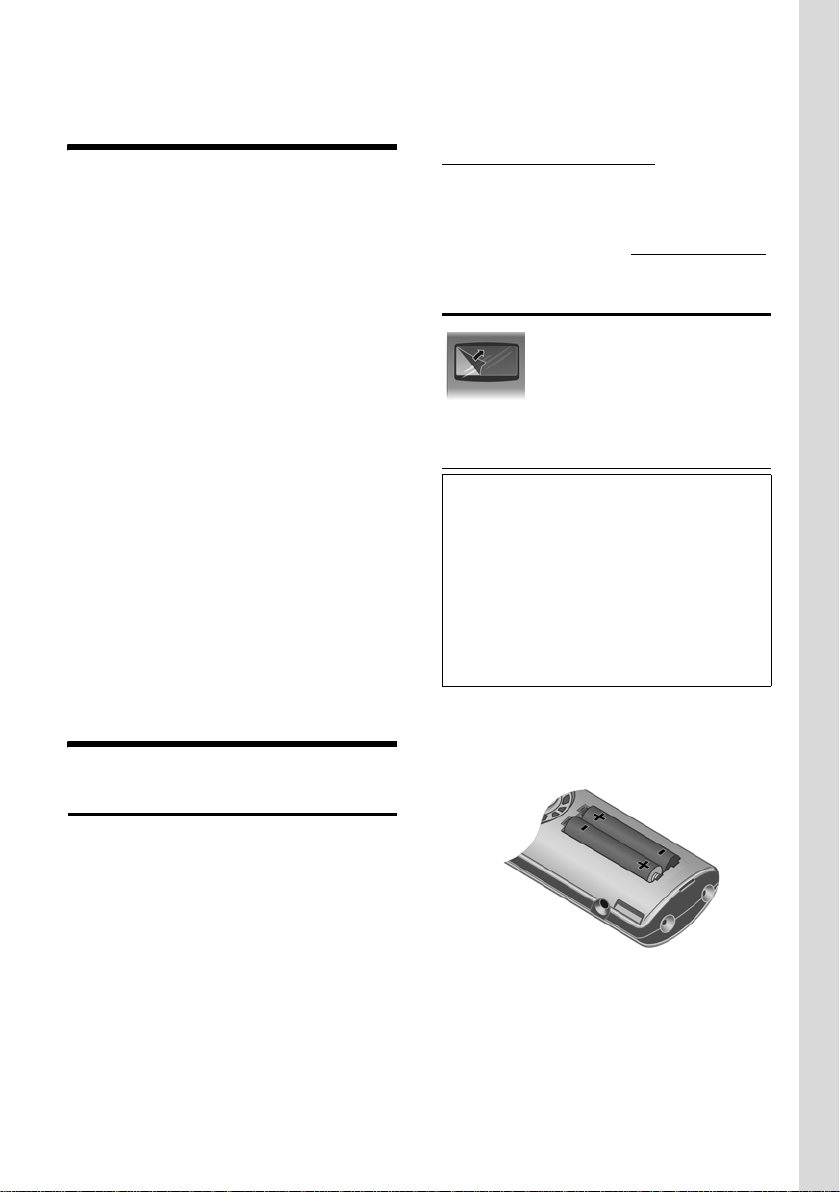

Inserting the batteries
¤Insert the batteries the right way round
(see figure).
The polarity is indicated in/on the battery
compartment.
The handset turns on automatically. You
will hear a confirmation tone.
Warning:
Use only the rechargeable batteries recom-
mended on page 31! This means that you
must never use conventional (non-rechargea-
ble) batteries or other battery types, otherwise
serious damage to health and property cannot
be ruled out, e.g. the outer casing of the bat-
teries could be destroyed or the batteries could
explode. The phone could also malfunction or
be damaged as a result of using batteries that
are not of the recommended type.

6
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Closing the battery cover
¤First, align the notches on the side of
the battery cover with the protrusions
on the inside of the housing.
¤Then press the cover until it clicks into
place.
Opening the battery cover
¤If fitted, remove the belt clip.
¤Place your finger in the headset socket
cavity and pull the battery cover
upwards.
Connecting the charging cradle
Connecting the charging cradle is
described at the end of this user guide.
¤To charge the batteries, leave the hand-
set in the charging cradle.
Initial charging and discharging of
batteries
Battery charging is indicated in the top
right of the display by a flashing battery
icon e, Vor U. During handset oper-
ation, the battery icon indicates the
charge status of the batteries (page 1).
The correct charge status can only be dis-
played when the batteries are first fully
charged and discharged through use.
¤To do this, leave the handset in the
charging cradle without interruption
until the battery icon stops flashing in
the display (approx. 13 hours).
¤Once the batteries are fully charged,
remove the handset from the charging
cradle and do not put it back again until
the batteries are fully discharged.
Please note:
uAlways repeat the charging and dis-
charging procedure if you remove the
batteries from the handset and reinsert
them.
uThe batteries may warm up as they are
charging. This is not dangerous.
uAfter a while the charge capacity of the
batteries will decrease for technical rea-
sons.
Notes:
– Only place the handset in the charging cra-
dle that is intended for it.
– If the handset has turned itself off because
the batteries are flat and if it is then placed
in the charging cradle, it will turn itself on
automatically.
Note:
After the first battery charge and discharge,
you may replace your handset in the charging
cradle after every call.
Note:
You will find explanations for the icons and
typographical conventions used in this user
guide in the detailed user guide for your
Aton CL700 IP (page 5).

7
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Setting the date and time
If the date and time have not yet been
set in the phone, the display key §Time§
is displayed. Later you can set the date
and time via the menu
vÐSettings ¢Date/Time.
¤Press §Time§ or open the menu.
¤Change multiple line input:
Date:
Enter day, month and year in 6-digit
format.
Time:
Enter hours and minutes as 4 digits
(e.g.Q M 1 5 for
07:15 a.m.
§Save§ Press the display key.
The date and time are shown in the hand-
set's idle display (page 1).
Registering the handset to the base
station
Your handset is registered to the base sta-
tion by default.
Instructions on how to register further
handsets to the base station and make
internal calls free of charge can be found
in the detailed user guide (page 5).
Installing the base station
The base station is designed for use in
closed, dry rooms with a temperature
range of +5 °C to +45 °C.
¤Place or hang the base station in a cen-
tral position in your flat or house.
Please note:
uNever expose the telephone to heat
sources, direct sunlight or other electri-
cal appliances.
uProtect your Aton CL700 IP against
moisture, dust, corrosive liquids and
vapours.
Wall-mounting the base station
Note:
Date/time are not automatically updated dur-
ing incoming calls.

8
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Connecting the base station
In order to be able to make calls with your
phone via the fixed network and via VoIP,
you must connect the base station to
the fixed network and the Internet, see
Figure 1.
1 Internet connection:
Router and modem (illustrated) or
Router with integrated modem
2 Aton CL700 IP base station
3 Aton CL300 V2 handset
4PCinLAN
Follow the steps in the order given
below:
1. Connect the base station to the fixed
network phone connection
2. Connect the base station with the
mains power supply
3. Connect the base station with the
router
Figure 1 Connecting the phone to the fixed network and the Internet
Internet
Fixed network
1
1
2
LAN
4
3
Important:
The connection sequence must be followed
exactly!

9
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Connecting the base station with the
fixed network and the mains power
supply
¤Please first connect the phone jack
and then the mains adapter, as shown
below.
1 Phone jack with phone cord
2 Underside of the base station
3 Mains adapter 230 V
Please note:
uKeep the mains adapter plugged in at
all times for operation, as the phone
does not work without mains connec-
tion.
uIf you buy a replacement phone cord
from a retailer, ensure that the phone
jack is connected correctly.
Youcannowuseyourphonetomakecalls
via the fixed network and can be reached
at your fixed network number!
Connecting the base station with the
router
For Internet access you need a router con-
nected to the Internet via a modem (this
may be integrated in the router).
1 Side view of the base station
2 Network plug (LAN) with network cable
3 Router network plug
As soon as the cable connecting the
phoneandrouterispluggedin,thepaging
key lights up on the front of the base
station (page 1).
Correct phone jack assignment
1unused
2unused
3a
4b
5unused
6unused
13
2
3
2
1
4
5
6
1
2
3
3

10
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Making settings for VoIP
telephony
Before you can use the Internet (VoIP) to
phone any other users on the Internet, the
fixed network or the mobile phone net-
work, you need the services of a VoIP pro-
vider who supports the VoIP SIP standard.
Precondition: You have registered with
Bluewin (e.g. via your PC) and set up at
least one VoIP account.
The following phone settings are neces-
sary in order for you to use VoIP. You will
receive all information from Bluewin.
uYour registration name
uYour password with the VoIP provider
The connection assistant will help you
with the settings.
Starting the connection assistant
Precondition: The base station is con-
nected to the mains power supply and a
router. Your router is connected to the
Internet (page 9).
Tip: If VoIP is activated as the default con-
nection for your phone (default setting,
page 28), the phone will attempt to make
a direct connection to the Bluewin server
after the connection assistant is closed.
If incorrect/incomplete information
means that the connection cannot be
established, messages will be displayed
(page 11).
As soon as the handset battery is suffi-
ciently charged, the message key fon
the handset will flash (around 20 minutes
after you have put the handset in the
charging cradle). Press the message key
fto start the connection assistant.
You will see the following display:
§Yes§ Press the display key to start
the connection assistant. The
settings are carried out in sev-
eral steps.
~Enter the system PIN (default
setting "0000").
Note:
The device only functions via "Bluewin"
(Swisscom VoIP provider).
All VoIP settings are preset at the factory.
You only need to enter the user ID and
password. These can be obtained from
"Bluewin".
Note:
Your phone is preconfigured for dynamic
assignment of the IP address. In order for your
router to "recognise" the phone, dynamic
IP address assignment must also be activated
on the router, i.e. the router's DHCP server is
activated.
Note:
The connection assistant will also start auto-
matically if you try to establish a connection
via the Internet, before you have made the
necessary settings.
You can also call up the connection assistant at
any time via the menu (page 13).
Connection Assist.
Start assistant
for entry of VoIP
connection data?
No Yes

11
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
Downloading VoIP provider data
The phone establishes a connection with
the Bluewin server on the Internet.
After a short while the following is dis-
played:
Acknowledge with §OK§. The Swisscom
"Bluewin" service provider is displayed.
Acknowledge with §OK§.
The necessary general Bluewin access
data is downloaded and saved on the
phone.
Enter the user data for your first VoIP
account.
Enter the VoIP user data for the VoIP
account. You can obtain this data from
your VoIP provider.
Authent. Name:
Enter the registration name
and press §OK§.
Authent. Password:
Enter password and press §OK§.
Completing the VoIP settings
Once you have made all the necessary
entries, the message "Connection data com-
plete" is shown in the display. The handset
returns to idle status.
If all the settings are correct and if the
phone can establish a connection to the
VoIP server, then the internal name of the
handset will be displayed (example):
Youcannowuseyourphonetomakecalls
via the fixed network and the Internet!
Callers can reach you on your fixed
network (fixed line) number and your
VoIP number!
No connection to the Internet/VoIP server
If one of the following messages is dis-
played instead of the internal name after
the connection assistant is closed, a fault
has occurred:
Server not accessible!
The phone has no connection to the Inter-
net.
¤Check the cable connection between
the base station and the router (the
LED on the base station must light up)
and the connection between the router
and the Internet connection.
Note:
Please note when making these entries that
the VoIP user data is case sensitive. For text
input the first letter is always a capital. If nec-
essary, press and hold the #key to switch
between upper and lower case and digits.
Select Country
Switzerland
ÝOK
Note:
To ensure that you can always be reached via
the Internet, the router must be permanently
connected to the Internet.
ÐV
INT 1
10.08.06 09:45
FixedLine IP

12
First Steps
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / starting.fm / 27.9.06
Version 4, 16.09.2005
¤Check whether the phone is connected
to the LAN. It may be that no IP address
could be assigned to the phone or the
permanently set IP address is already
assigned to another LAN subscriber.
¤Find the IP address using the hand-
set menu:
v¢ÐSettings ¢Base
¢Local Network
¤If no connection can be established,
change the settings on the router
(activate DHCP server) or the
phone's IP address.
Provider registration failed!
uYour personal data for registering with
the VoIP provider may have been
entered incompletely or incorrectly.
¤Check your entries for Authent. Name
and Authent. Password. In particular,
check your use of upper and lower
case.
To do this, open the following menu
on your handset:
v¢ÐSettings ¢Telephony
¢VoIP ¢SIP registration
uThe server address for the VoIP server
has not yet been entered, or has been
entered incorrectly.
Note:
If port forwarding is activated on your router
for the ports that have been registered as the
SIP port (Standard 5060) and the RTP port
(Standard 5004), then it makes sense to turn
off DHCP and assign the phone a static IP
address (otherwise you may not be able to
hear the other party during VoIP calls):
Via the handset menu:
v¢ÐSettings ¢Base ¢Local Network

13
Menu tree
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / menuetree.fm / 27.9.06
Version 4, 16.09.2005
Menu tree
Open the main menu for your phone by pressing on the right of the control key while the
handset is in idle status: v.
There are two ways to select a function:
Using number combinations ("shortcut")
¤Enter the number combination that is in front of the function in the menu tree.
Example: v541for "Set handset language".
Scrolling through the menus
¤Scroll to the function with the control key q(press the top/bottom) and press §OK§.
1î Messaging
1-1 SMS You have activated an SMS mailbox (general or private)
without a PIN
1-1-1 New SMS
1-1-2 Incoming (0)
1-1-3 Outgoing (0)
You have activated an SMS mailbox with a PIN or 2-3 mail-
boxes
1-1-1 Mailbox 1-1-1-1 New SMS
1-1-1-2 Incoming (0)
1-1-1-3 Outgoing (0)
1-1-2
to
1-1-4
Mailbox 1
Mailbox 2
Mailbox 3
1-1-2-1
to
1-1-4-1
New SMS
1-1-2-2
to
1-1-4-2
Incoming (0)
1-1-2-3
to
1-1-4-3
Outgoing (0)

14
Menu tree
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / menuetree.fm / 27.9.06
Version 4, 16.09.2005
1-1-6 Settings 1-1-6-1 Service Centres
1-1-6-2 SMS Mailboxes
1-1-6-3 Notify Number
1-1-6-4 Notify Type
1-1-6-5 Status Report1
1-1-6-6 Subscribe to SMS2
1-2 E-mail 1-2-1 Inbox (0)
1-2-2 Settings 1-2-2-1 Registration
1-2-2-2 Incoming (POP3)
2êSel. Services
2-1 VoIP 2-1-6 Call Divert
2-1-7 Call Waiting
2-2 Fixed Line 2-2-1 Withhold No.
2-2-6 Call Divert
Call Protection
2-3 Ringback Off
3ìAlarm Clock
4íAdd. Features
4-3 Room Monitor
1 Depends on provider. Not supported in the Swisscom network.
2 The first SMS you send automatically registers you with the Swisscom SMS server.

15
Menu tree
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / menuetree.fm / 27.9.06
Version 4, 16.09.2005
5ÐSettings
5-1 Date/Time
5-2 Audio Settings 5-2-1 Ringer Settings 5-2-1-1 Ext. Calls
5-2-1-2 Internal Calls
5-2-1-3 All
5-2-2 Advisory Tones
5-3 Display 5-3-1 Screen Picture
5-3-2 Colour Scheme
5-3-3 Contrast
5-3-4 Backlight
5-4 Handset 5-4-1 Language
5-4-2 Auto Answer
5-4-3 Register H/Set
5-4-4 Select Base
5-4-5 Reset Handset
5-5 Base 5-5-1 Calls List Type 5-5-1-1 Missed Calls
5-5-1-2 All Calls
5-5-2 Music on hold
5-5-3 System PIN
5-5-4 Base Reset
5-5-5 Add. Features 5-5-5-1 Repeater Mode
5-5-6 Local Network
5-5-8 Software Update
5-6 Voice Mail 5-6-1 Set Key 1 5-6-1-1 Network Mailb.

16
Menu tree
Aton CL700 IP / Swisscom EN / A31008-M1713-F161-1-2X43 / menuetree.fm / 27.9.06
Version 4, 16.09.2005
5-7 Telephony 5-7-1 Default Line 5-7-1-1 VoIP
5-7-1-2 Fixed Line
5-7-2 Connection Assist.
5-7-3 Emergency numbers
5-7-6 Fixed Line 5-7-6-1 Dialling Mode
5-7-6-2 Recall
5-7-7 VoIP 5-7-7-1 Show Stat. on HS
5-7-7-2 Select Provider
5-7-7-3 Provider Registr.
Notall menu itemsaredescribed in thisquickguide. Youwillfindthe full descriptioninthe
detailed user guide for your Aton CL700 IP on the Internet at www.siemens.com/gigaset.
