Features:

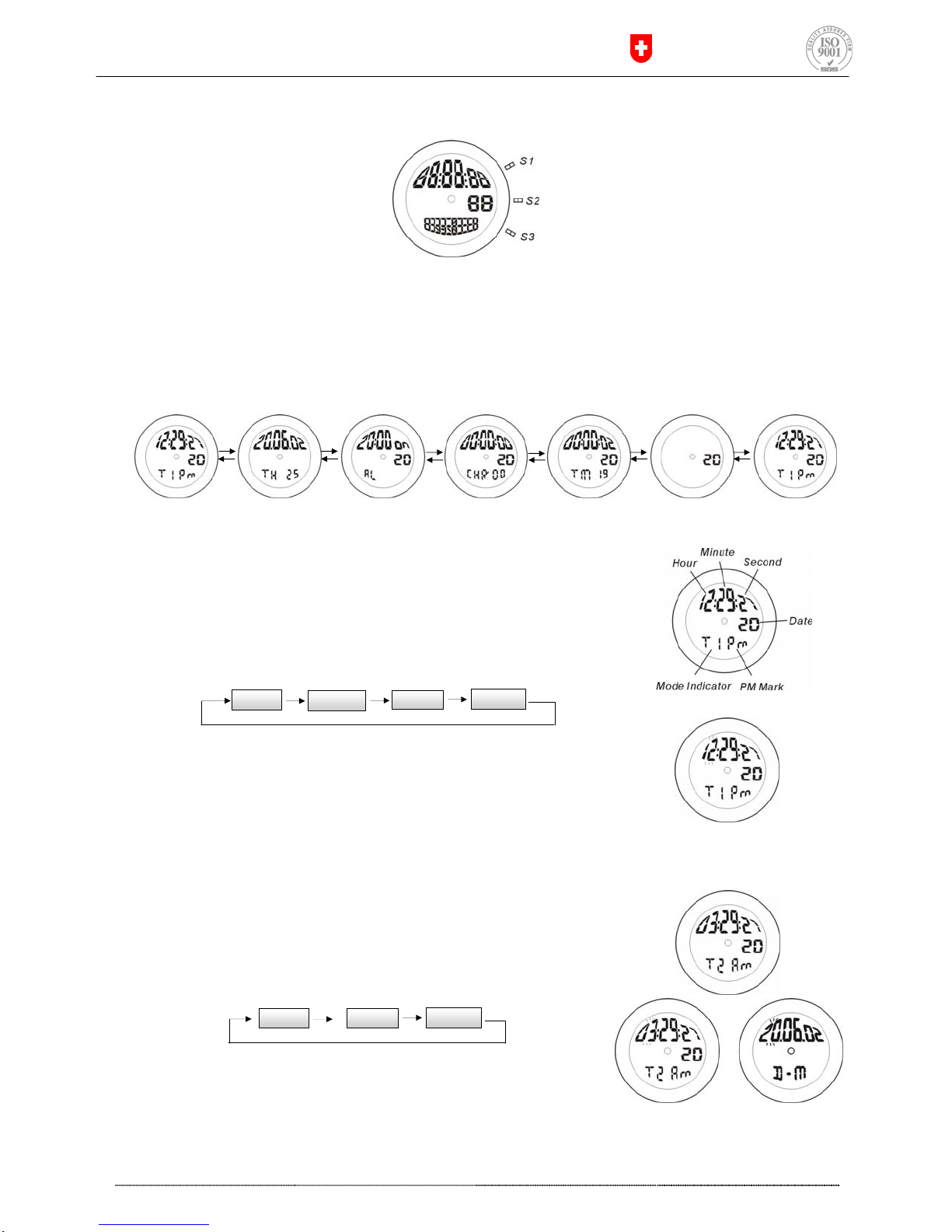

Mode Operation
Normal Time, Calendar, Alarm, Chronograph, Timer and Display ON/OFF.
Key Operation:
¾Rotate S2 to enter the Modes (→Up; ←Down)
1. NORMAL TIME
¾Press and hold S1 for 3 seconds to enter the setting mode and
Hour digits flash Rotate S2 up or down to increase or decrease the
digit.
¾Press S3 to jump from each of the setting items
¾Press S1 to exit the setting mode
For Analog Setting
Pull the crown out and turn the crown upward or downward to
adjust the hands at the desired time.
Remark:
Digital and analog setting procedures should be separated, e.g.
digital increase but the analog remain unchange.
For T2 Time:
In Normal Time Mode, press S3 to enter the T2 time mode, press S1
for 3sec. to enter the setting mode and the setting procedures are
shown as follows.
Remark:
1) In T2 Time mode the Analog will not change while setting in
digital. The date can only increase or decrease one day
2) The minute cannot be adjusted in T2
Set
Mode/Adjust
Time Setting Mode
Calendar Date
Normal Time Alarm Chronograph Timer Normal Time
HOUR MINUTE SECOND
S2 (adjust) S2 (adjust) S2 (adjust)
S3 S3
S3
12/24H
S3 S2 (select)
HOUR DATE
S2 (adjust) S2 (adjust)
S3
S3
12/24H
S3 S2 (select)
T2 Time Setting Mode
Shift

27.06.2004 Model: AD101-1 Page: 2/4 Edition: 3
SWISSEBAUCHES

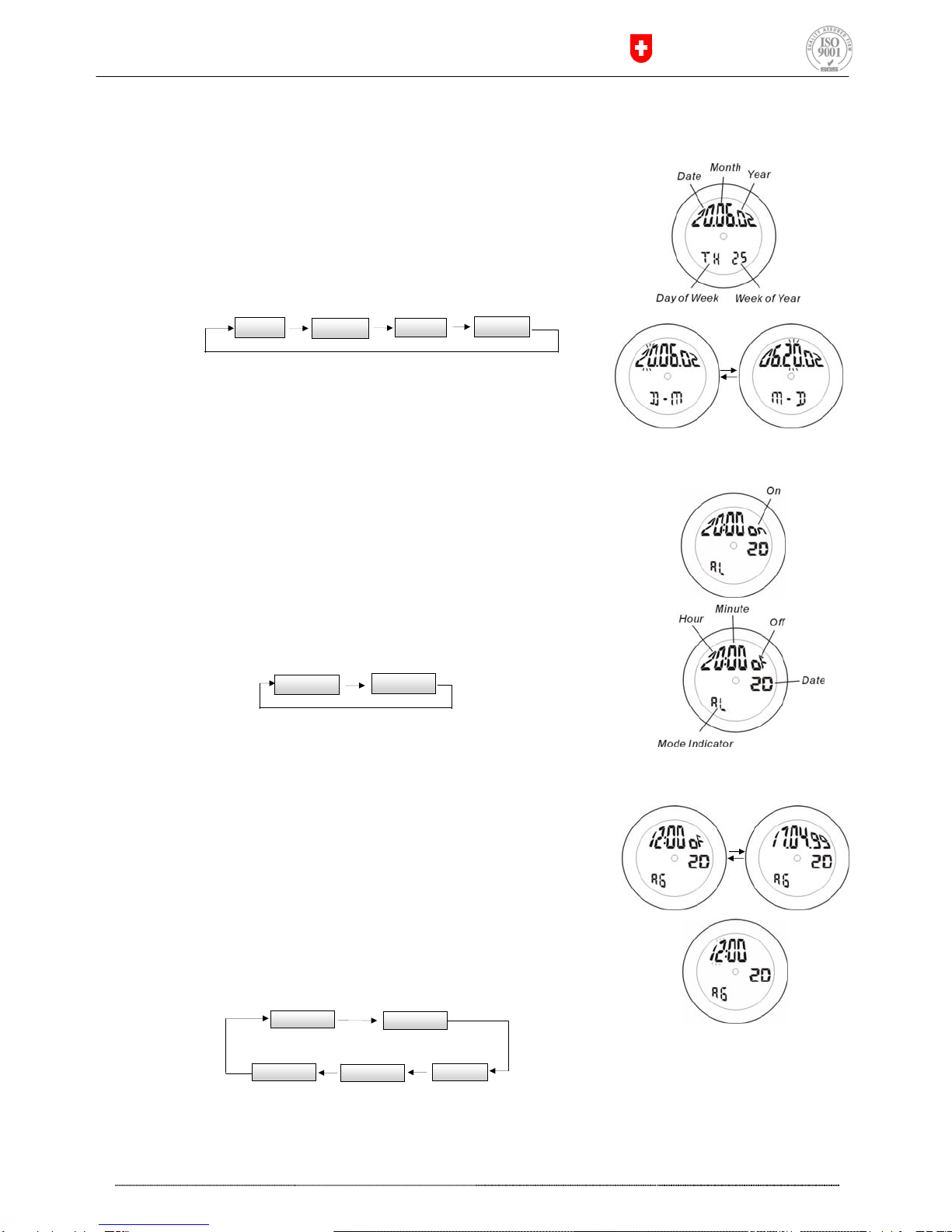

2. CALENDAR MODE
¾Turn S2 upwards to enter the Calendar Mode from Time Mode
¾Press S1 to activate the Alarm ON or OFF
¾Press and hold S1 for 3 seconds to enter the setting mode
¾Rotate S2 up or down to increase or decrease the digit
¾Press S3 to jump from each of the setting items
¾Press S1 to exit the setting mode
Remark:
1) Day of Week and Week of Year will change automatically after
setting.
2) Perpetual Calendar : 2000 ~ 2099
3) Press S1 to display or hide the Week of Year
4) Press S3 will display “No Function”
3. ALARM MODE
¾Turn S2 upwards to enter the Alarm Mode from Calendar Mode.
¾Press S1 to select Alarm On or Off
¾Press and hold S1 for 3 seconds to enter the setting mode
¾Rotate S2 the up or down to increase or decrease the digit
¾Press S3 to jump from each of the setting items
¾Press S1 to exit the setting mode
Remark:
Beep sound will be released for 60 seconds at preset Alarm and
press any key to stop it.
For Alarm Agenda:
¾In Alarm Mode, press S3 to enter Alarm Agenda Mode and once
again return to Alarm Mode
¾Press and hold S1 for 3 seconds to enter the setting mode
¾Rotate S2 up or down to increase or decrease the digit
¾Press S3 to jump from each of the setting items
¾Press S1 to exit the setting mode
¾Press S1 again to activate the AG alarm ON or OFF
Remark:
1) Hour-Minute or Date-Month-Year display will interchange continually when entering this mode.
2) If setting a past time, the mode will show OFF and pressing S1 will show “No Function”
3) Alarm will be released for 60 seconds at preset time and press any key to stop it.
HOUR MINUTE
S2 (adjust) S2 (adjust)
S3
S3
HOUR MINUTE
S2 (adjust) S2 (adjust)
S3 S3
YEAR MONTH DATE
S2 (adjust) S2 (adjust) S2 (adjust)
S3 S3
DATE MONTH YEAR
S2 (adjust) S2 (adjust) S2 (adjust)
S3 S3
S3
D-M / M-D
S3 S2 (select)
Agenda Setting

27.06.2004 Model: AD101-1 Page: 3/4 Edition: 3
SWISSEBAUCHES
4. CHRONOGRAPH
¾Turn S2 upwards to enter the Chronograph Mode from Alarm
Mode
¾Press S1 to start Chronograph
¾Press S1 to stop the timing and show the Add data or press S3 to
show Split data
¾When the timing stop, press S3 to reset to zero
Remark:
1) The Maximum range: 99 days 23 hrs 59 min. and 59 sec.
(Resolution: 1/100 sec. for the first 24 hrs or 1 sec. for the rest)
2) Add and Split function supported
5. COUNT-DOWN TIMER
¾Turn S2 upwards to enter the Timer Mode from Chronograph
Mode
¾Press and hold S1 for 3 seconds to enter the setting mode and the
setting procedure is shown as follows:
Remark:
1) Press S1 to start or stop and press S3 to reset to preset value
when the timer stop
2) During setting, press S3 to show “No Function”
3) The Maximum range: 99 days 23 hrs 59 min. and 59 sec.
4) Beep sound will be released for 60 seconds at 0 and press any
key to stop it
6. PERMANENT DATE
¾Turn S2 upwards to enter the Permanent Date Mode from Timer
Mode.
¾Press S1 to turn on or off the display.
Remark:
1) The date cannot be adjusted in this mode which shall be
changed in Calendar Mode
2) Press S3 it will show “No Function”
7. END OF LIFE indicated
¾When the voltage of the battery is below 1.4V, Permanent Date
Mode will appear the EOL character to indicate End Of Life, and
in other modes numerical display will blink.
General Feature:
Whatever mode the display is, it will automatically change to
corresponding mode when the Timer, Alarm or Alarm Agenda release
the alarm.
S2 S1
S3
S3
S1
S1
SPLIT
RESET
START
CHRONOGRAPH
ADD
(
STOP
)
DAY HOUR MINUTE
S2 (adjust) S2 (adjust) S2 (adjust)
S3 S3
S3
SECOND
S2 (adjust)
S3

27.06.2004 Model: AD101-1 Page: 4/4 Edition: 3
SWISSEBAUCHES
Specifications
¾Quality level : A
¾Module Size : φ28.00 mm
¾Module Thickness : 6.55 mm
¾Pusher Height : 2.70mm
¾Pusher Angle : 30º
¾perational Temperature Range : -10℃~ +50℃
¾Operating Voltage : 1.5V (T=25℃)
¾Accuracy : ±30 sec/month
¾Battery Code : SR916SW (2pcs)
¾Battery Size : φ9.5 x H1.6 mm
¾Current Consumption for Digits : ≤4.5µA
¾Current Consumption for Chronograph : ≤6.0µA
¾Current Consumption for Count-Down Timer : ≤5.5µA
¾Battery Life of Digital Function : 12 months Guaranty
