swissonic 497001 User manual

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 497001_15.02.2021
EN
Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advice and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include this
quick start guide.
HDMI-SDI 3G Converter Full-HD
For the transport and protective packaging, environmentally friendly materials
have been chosen that can be supplied to normal recycling. Ensure that plastic
bags, packaging, etc. are properly disposed of. Do not just dispose of these ma-
terials with your normal household waste, but make sure that they are collected
for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equip-
ment Directive (WEEE) in its currently valid version. Do not dispose of your old
device with your normal household waste. Dispose of this product through an
approved waste disposal rm or through your local waste facility. Comply with
the rules and regulations that apply in your country. If in doubt, consult your local
waste disposal facility.
Using the product
1. Connect the HDMI output of the desired device to the HDMI IN socket using a
suitable HDMI
2. Connect the input of a suitable SDI device to the SDI 1 output. If necessary,
proceed in the same way with output SDI 2.
3. Connect the device to a properly wired mains socket using the power supply
supplied. The device is immediately ready for use.

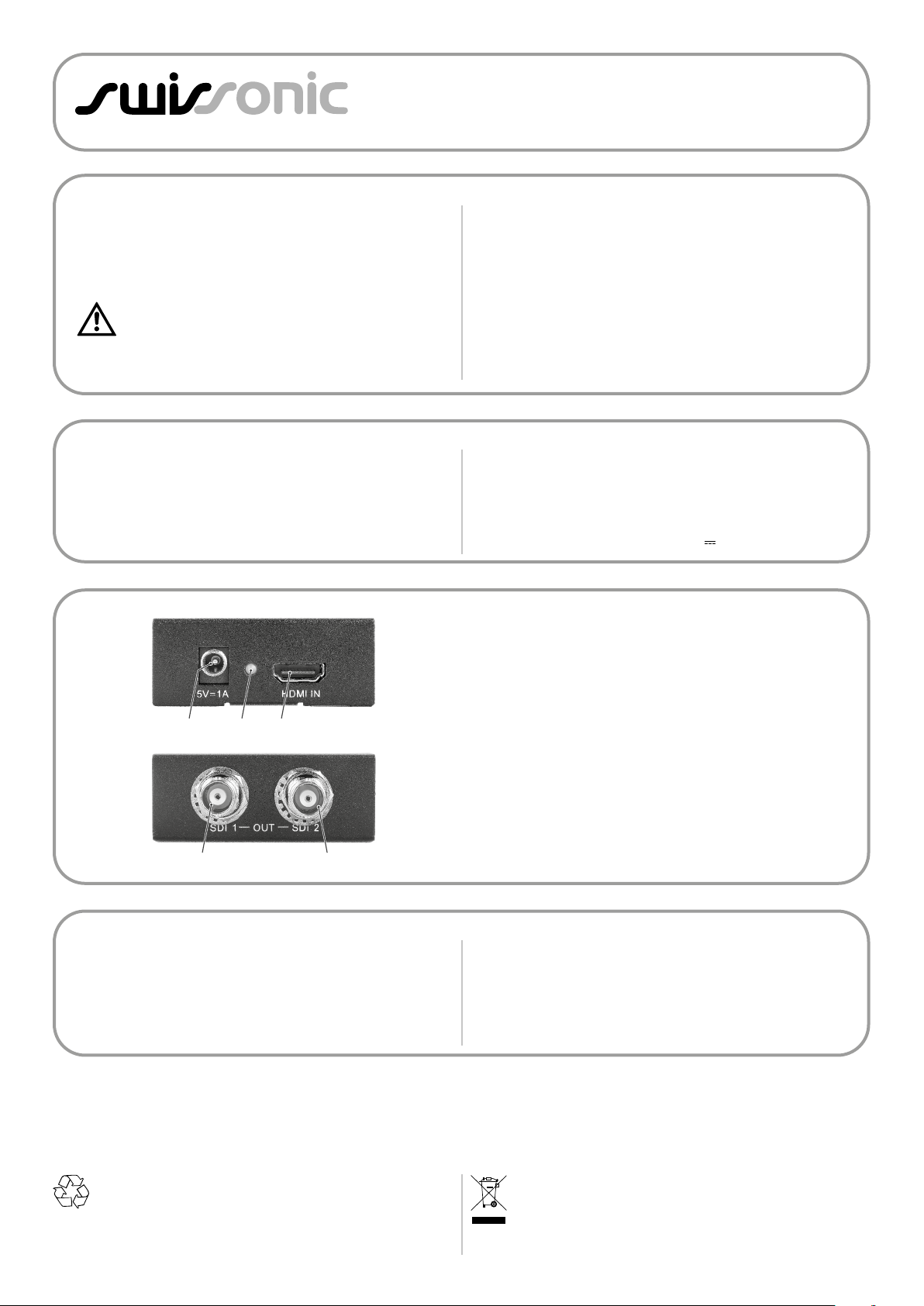

Operating elements
qConnection for power supply
wPilot light
eHDMI IN – HDMI input
rSDI OUT 1 – SDI output 1
tSDI OUT 2 – SDI output 2
Features
• Converter from HDMI to SDI signals with up to 1080p@60
• 3G-SDI connections
• Detects SD and HD formats automatically
• Connections: Input: HDMI type A
Output: 2 × SDI
• Impedance: 75 ohms
• SDI formats: SD-SDI, HD-SDI, 3G-SDI
• Supported input resolutions: 480i @ 60Hz, 576i @ 50Hz, 720p @ 50Hz,
720p @ 60Hz, 1080i @ 50Hz, 1080i @ 60Hz, 1080p @ 24Hz / @ 25Hz / @ 30Hz /
@ 50Hz /@ 60Hz
• Dimensions (W× H× D): 121 mm × 66 mm × 26 mm
• Weight: 0.25kg
• Temperature range: 0°C - 40 ° C, relative humidity 50 %, non-condensing
• Delivery including international power supply (5V )
Safety instructions
Intended use
This device is used to convert HDMI signals to SDI format. Any other use or use under
other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from
improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts from the product. They could
swallow the pieces and choke!
Where to use the product
Never use the product
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
• in locations where the unit can become wet
• in locations with high levels of electrostatic or magnetic radiation
General handling
• To prevent damage, never use force when handling the product.
• Never immerse the product in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or ammable cleaning agents.
4. If the device detects a supported HDMI format at the input, the power indicator
lights up blue, otherwise red.
5. If the resolution of the input signal matches one of the supported resolutions of
the SDI device connected to the output, the signal is output via the SDI 1 output
and can be split for simultaneous output to a device connected to the SDI 2
output.
6. When you have nished using the device, disconnect the power supply from the
wall outlet.
$#
&%
ö

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 497001_15.02.2021
EN
HDMI-SDI 3G Converter Full-HD
Technical specications
Resolutions input up to 1080p60
output up to 1080p60
Format change yes
Format HDMI 1.4
HDCP HDCP 1.4, SDI loop
Colour depth 12 bit
Audio formats DTS HD / Dolby TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Audio inputs ./.
Audio outputs ./.
Input connections 1×HDMI
Output connections 2×SDI
Signal looping 1×SDI
Power supply External power adapter, 100-240V~ 50/60Hz
Operating voltage 5V /1000mA, centre positive
Degree of protection IP20
Dimensions (W×H×D) 121 mm×66 mm×26mm
Weight 0.25kg
Ambient conditions Temperature range 0 °C…40°C
Relative humidity 50%, non-condensing
