SWP Stealth-G User manual

IMPORTANT NOTICE
Please read these instructions carefully before using this unit
Failure to comply with the instructions may void your warranty and adversely affect your
health and safety
Grinding Helmet and
PAPR System
Part No. 5044
OPERATORS’ MANUAL

1. INTRODUCTION
The Stealth-G is designed to provide protection when the wearer is working in a contaminated
environment. The system is designed to supply clean air via the blower filter through a breathing
tube to the welding faceshield, so that the user can continue working. It is a combined face and
powered air purifying respirator (PAPR) system for increased safety and comfort during welding.
Please read these instructions carefully before unpacking. For proper use, see User Instructions or
contact your supplier for help.
2. APPROVALS
The system complies with the requirements of PPE Regulation 2016/425 and European Standard
EN 12941: 1998+A2:2008 class TH3 P R S L. The PAPR is designed to provide a supply of filtered
air via a breathing tube to a welding headpiece. The equipment can be used in environments that
requires a class TH3P breathing protection device and protects against particulate contamination.
All components used in this respiratory system must be manufacturer approved parts and must be
used in accordance with the instructions in this manual.
Notified Body:Vyzkumny ustav bezpecnosti prace, v. v. i.,Jeruzalemska 9 ,116 52 PRAHA 1,Country :
Czech Republic (Notified body number 1024).
• The approval is not valid if the product is incorrectly used together with non-approved
parts or components.
• Only the particle filter and pre-filter can be used together with this system. Filters from
other manufacturers should under no circumstances be used.
3STEALTH-G GRINDING HELMET & PAPR SYSTEM

3. WARNINGS AND LIMITATIONS OF USE
Before each use, inspect the Stealth-G for damage and check it is fully operational and test the air
flow to verify it is providing an adequate volume of air.
Always wear the Stealth-G when working in a contaminated environment and do not remove the
head top or turn off the air filter unit until outside.
If you are not sure about the concentration of pollution, or about equipment performance, ask the
industrial safety engineer.
The manufacturer is not responsible for injury due to the following incorrect use or
incorrect choice of equipment.
WARNING:
This respiratory system should be used by experienced and qualified personnel only.
Before using, ensure you understand that at very high work rates the pressure in the system may
become negative at peak inhalation flow.
Before and during use, be aware of the possibility of looped hoses and/or cables becoming caught
up.
If the system is in the power-off state little or no respiratory protection is to be expected. Leave the
work place and remove the headgear when the system is in the power-off state – a rapid build-up
of carbon dioxide and depletion of oxygen within the hood may occur.
The filters shall only be fitted to the turbo unit and not directly to the helmet/hood.
The user should not confuse the markings on a filter relating to any standard other than EN 12941
with the classification of this device when used with this filter.
DO NOT use Stealth-G:
– With the blower unit switched off.
– In an atmosphere that is immediately hazardous to user hygiene or health and/or has oxygen
content of less than 19.5% or contains unknown substances.
– In an explosive atmosphere.
– In confined spaces or areas of poor ventilation.
– In high winds.
DO NOT:
– Alter or modify in any way.
– Touch any of the moving parts.
– Allow water or other liquids to enter the impeller chamber, the filter or battery compartment.
4STEALTH-G GRINDING HELMET & PAPR SYSTEM

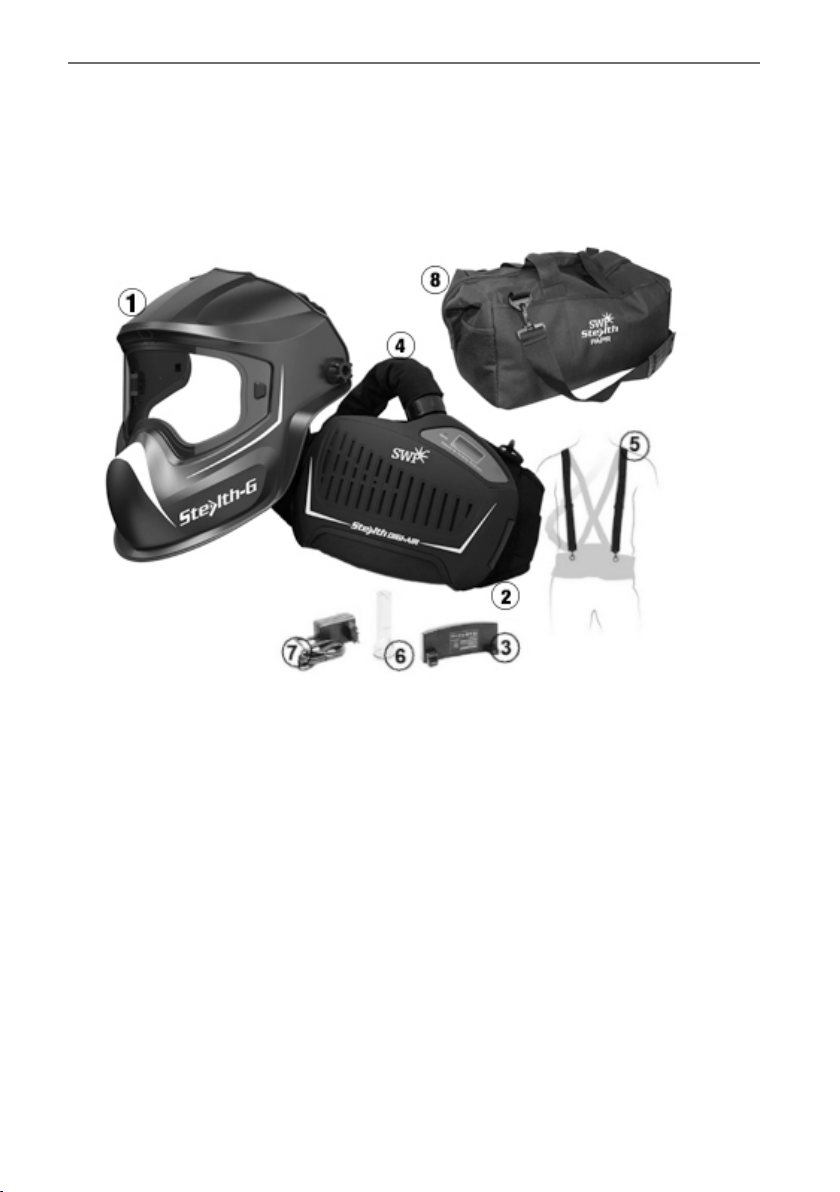

4. UNPACKING/ASSEMBLY
Check that correct number of components has been supplied as in FIGURE 1.
Check that the apparatus is complete, undamaged and correctly assembled.
Any damaged or defective parts must be replaced before use.
The package must include:
1. The air fed welding + welding hood
2. The respiratory protection system (turbo unit + filter + waist belt)
3. Lithium-ion battery
4. The tube, its anti-fire cloth and both end fittings
5. The shoulder harness
6. The air flow tester
7. The lithium-ion battery charger
8. The carrying bag
If any of the above components are not included in your kit, please contact the supplier
immediately.
FIGURE 1
5STEALTH-G GRINDING HELMET & PAPR SYSTEM

6STEALTH-G GRINDING HELMET & PAPR SYSTEM
4.1 Filter replacement
4.1.1 Remove the filter cover by pressing
in the latch of the filter cover.
4.1.2 The filter cover is released.
4.1.3 Remove the used filter by lifting it
out from the filter cover.
4.1.4 Remove the pre-filter. 4.1.5 Clean the spark arrestor if
necessary.
The pre-filter and filter expected lifetime is 12 months. When under intensive use,
check the filter cleanliness periodically and if needed, change them more often than
every 12 months.

7STEALTH-G GRINDING HELMET & PAPR SYSTEM

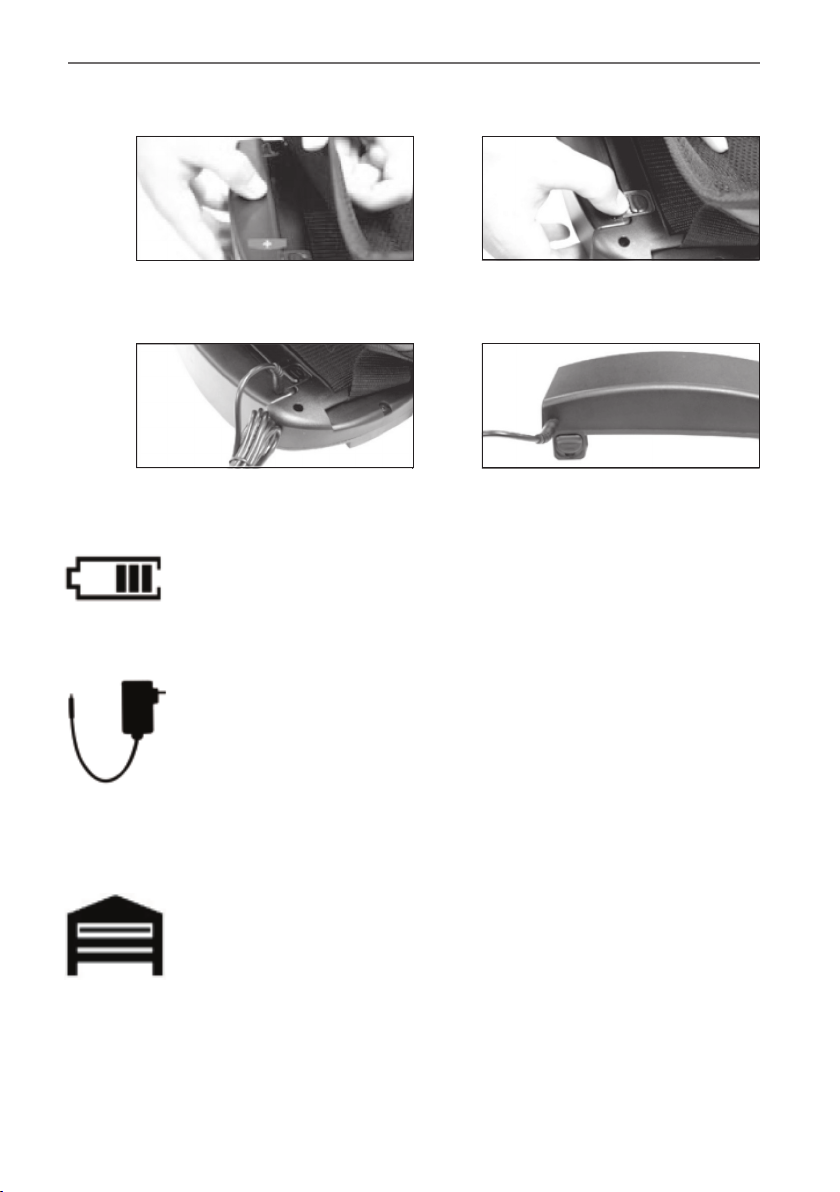

4.2 Installing the Battery/Charging
4.2.1 Slide the battery towards the back
of the filtration unit.
4.2.2 Make sure the battery is locked in
position.
4.2.3 The battery can be charged on the filtration unit or separately.
The battery is partially charged when delivered. It must be charged to 100% (4 bars)
before the first use.
It is recommended to charge the batteries to 100% before each use.
The charger must not be used for anything else than it was designed for.
Do not charge the battery in a potentially explosive area. The charger must only be
used indoors.
The charger regulates the charge automatically. Once the battery is fully charged, it
will maintain it at a 100% (floating charge).
The charge time is 3 to 4 hours.
The battery will discharge itself after long storage periods. Always charge the battery if
the device was stored for more than 15 days.
When the battery is new or has been stored for more than 3 months, charge it and
discharge it at least twice in a row to reach the nominal/rated charge capacity.

Battery charge:
1. Connect the battery to the charger. The connector is above the battery.
2. Connect the charger to the mains.
3. The state of charge is displayed via a red LED on the mains charger.
4. Once the charge is finished, the floating charge becomes active; the red LED switches
off and a green LED switches on.
5. Disconnect the charger from the mains (do not keep the charger plugged to the mains if
it is not in use).
8STEALTH-G GRINDING HELMET & PAPR SYSTEM

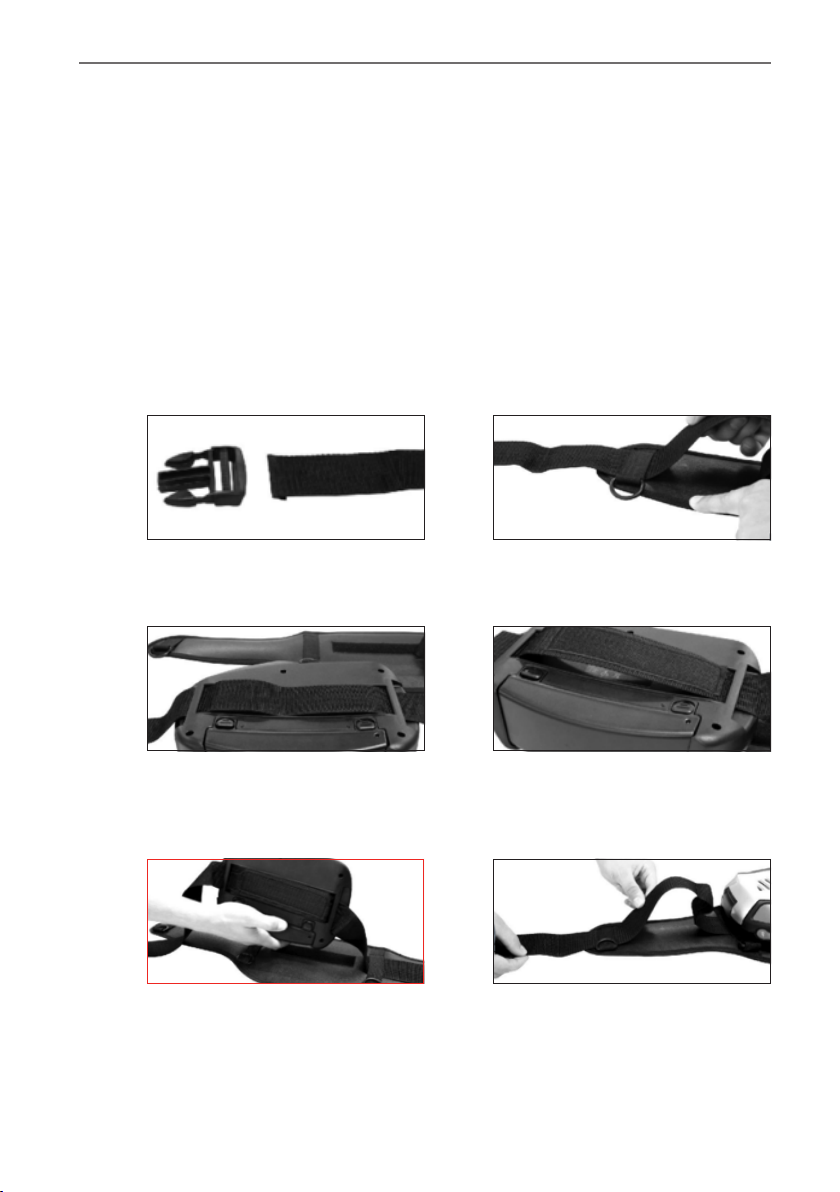

4.3 Installing the respiratory system on the belt
4.3.1 Remove the belt’s release buckle. 4.3.2 Remove the fastening belt from
the waist connector’s 2 belt loops.
4.3.3 Make the fastening belt pass
through the respiratory system’s
2 belt loops.
4.3.4 Position the Velcro®between the
2 loops.
4.3.5 Flip the filtration system and
attach the Velcro®on the belt.
4.3.6 Put the fastening belt back
through the 2 belt loops.

9STEALTH-G GRINDING HELMET & PAPR SYSTEM

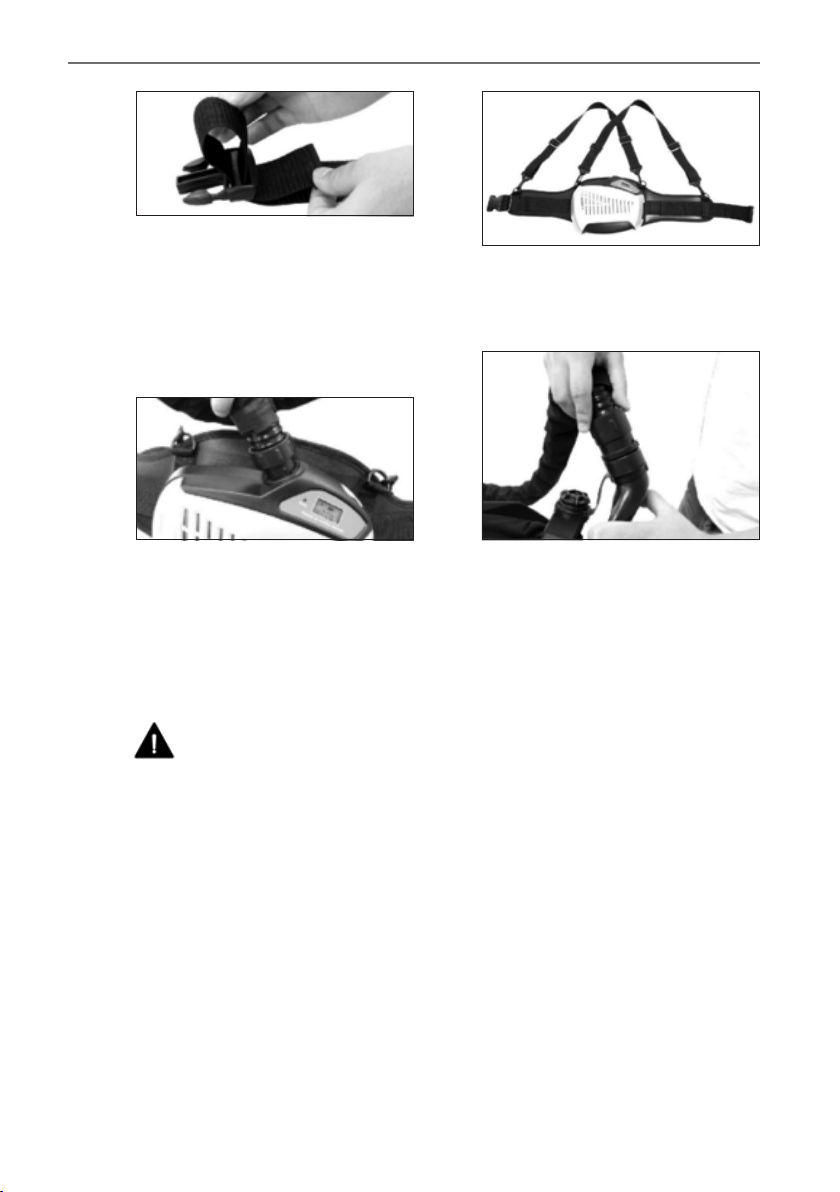

4.3.7 Put the buckle back.
4.3.8 Attach the harness to the belt’s 4
plastic rings.
4.4.1 Connect the air tube to the
respiratory system and twist it
clockwise to lock its position.
Make sure the belt is securely fastened.
4.4 Connecting the tube
4.4.2 Connect the other end of the tube
to the headgear in the same way.
Check that the respiratory tube is strongly connected. If the tube is damaged, replace it.
All components must be installed/used in accordance with this manual if the
equipment is to offer the specified protection. If any component is missing, or if
anything is not clear, contact the supplier.

10 STEALTH-G GRINDING HELMET & PAPR SYSTEM
5. BEFORE USE/ FITTING
5.1 Air flow test
5.1.1 Connect the breathing tube to the
turbo unit and twist it clockwise
to lock it.
5.1.2 Insert the flowmeter at the tip of
the tube
5.1.3 Press the ON button and maintain
the tube in a vertical position at
eyes’ height.
5.1.4 The air flow is sufficient if the
marble reaches the minimum flow
level O.
1. The airflow must be tested before use.
2. If the marble cannot reach the minimum flow level, don’t use the system.
Change the filter or the battery and retest the air flow.
5.2 Air flow alarm test
5.2.1 Remove the tube from the helmet
and press the ON button.
5.2.2 Cover the air output with your
hand and wait approximately 15
seconds.
If the alarm does not work, repair or change Respiratory System.

11STEALTH-G GRINDING HELMET & PAPR SYSTEM
5.3 Fitting
5.3.1 Adjust the tightness of the face
seal and put on the head top.
5.3.2 Adjust the headgear to suitable
tightness (push and turn left to
loosen, turn right to tighten)
Make sure the face seal is positioned
properly, otherwise you cannot
achieve sufficient sealing needed to
provide the correct protection factor.

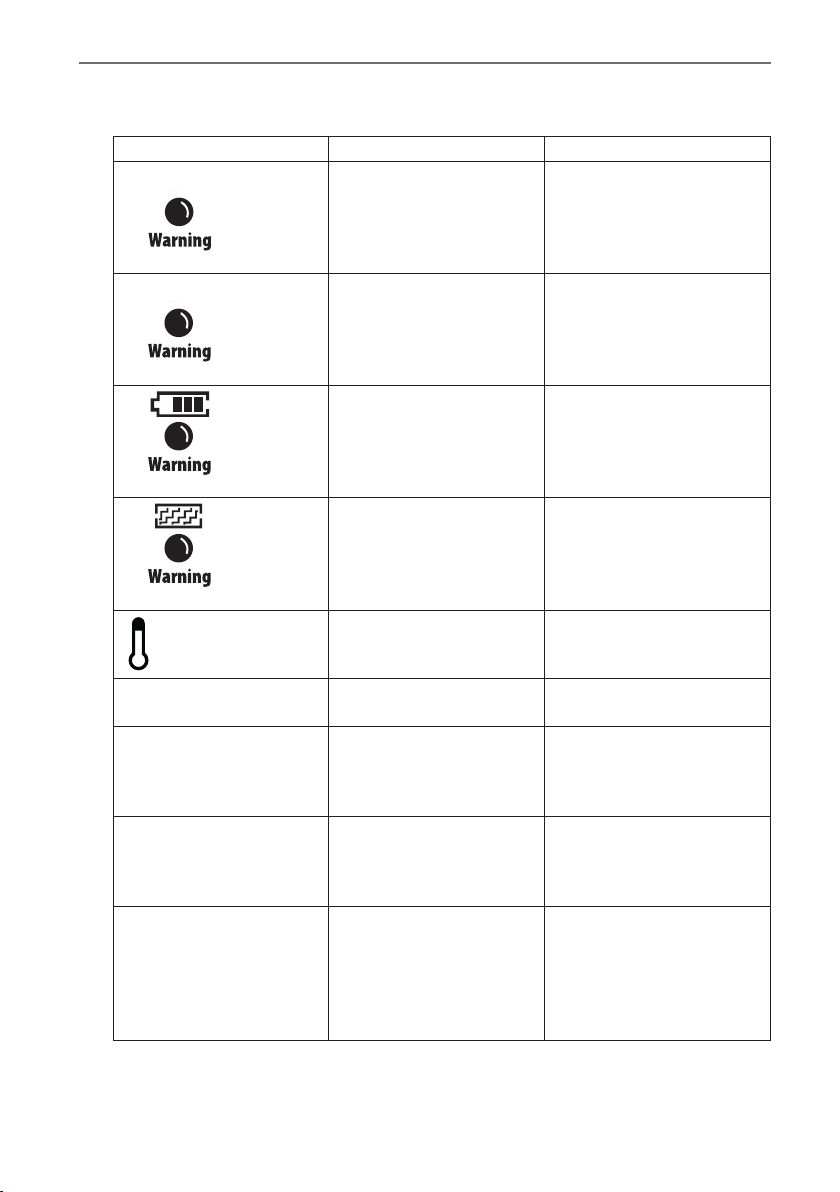

6. LCD AND OPERATION
6.1 LCD display screen
FIGURE 2
Part 1 displays the data of current air flow. Part 2 displays the level of the airflow.
Part 3 displays the filter condition. (If the icon is as above, it means filter is clean and no need
to replace. If the icon becomes 3, 2 or 1 it means the filter may need replacing)
Part 4 displays the battery.
Part 5 displays the temperature of the battery.
Any of them will flash if there are disfunctions.
There is a LCD display screen on the PAPR unit to display the air working condition (FIGURE 2).

12 STEALTH-G GRINDING HELMET & PAPR SYSTEM
6.2 Operation
Switch the device on by pressing the ON button once.
Press the ON button once again, the air flow is at level 1 (~170L/min).
Press the ON button once again, the air flow is at level 2 (~200L/min).
Press the ON button once again, the air flow is at level 3 (~230L/min).
Press the ON button once again, the air flow reverts to level 1 (~170L/min).
1. The system will turn off the turbo unit when the OFF button is pressed for more
than 3 seconds.
2. The system will cut off the entire circuit and switch to sleep mode if the turbo unit
is turned off for more than 30 minutes. Pressing the ON button can activate the
system.
3. The system must be operated in the temperature range of –5º to +55º and relative
humidity less than 90%RH.

Figure Part No. Description
15044HEAD Headtop only including face seal
26044SEAL Face Seal
33044BAND Airduct with Headgear
45024 Outer Protection Lens – Clear
5023 Outer Protection Lens – Shade 3
55024SEAL Outer lens sealing strip
65044COV Filter Cover
73044GAU Gauze Filter
83044PRE Pre-filter
93044P3 TH3P Filter
10 5044BLOW Turbo Unit with vibration
11 3044BLT Waist Belt
12 3044HARN Shoulder Harness
13 3044HOSE Breathing Hose
14 3044HCOV Breathing Hose Cover
15 3044BAT Rechargeable Battery
16 3044CHA Battery Charger
17 3044TEST Air Flow Tester
13STEALTH-G GRINDING HELMET & PAPR SYSTEM
7. PARTS LIST
185044BUCKLE Lens Buckles x 2

14 STEALTH-G GRINDING HELMET & PAPR SYSTEM
12
3
45
6
7
8
9
10
11
12
13
14
15
16
17
18
18

15STEALTH-G GRINDING HELMET & PAPR SYSTEM
8. MAINTENANCE & STORAGE
Inspect the equipment daily and regularly check for any sign of malfunction.
8.1 Maintenance
The blower unit must be checked regularly and must be changed if it is damaged.
Filters must be changed if damaged, or blocked and does provide sufficient airflow.
The breathing tube must be changed if it is broken or creased.
The battery must be charged when the low battery alarm sounds.
Use a soft cloth to wipe the external surfaces. Do not use water.
Wipe the equipment with a disinfectant such as Dettol. Dilute the disinfectant with water to a
ratio of 1:99 and wipe the surface of the equipment with a clean lint-free tissue and the
solution. Then wipe the surface of the equipment with another clean lint-free tissue or cloth
and water.
The filter should be replaced together with the pre-filter.
8.1 Storage
The respiratory system must be stored in a dry, clean area in the temperature range of –10º
to +55º and relative humidity less than 90%.
If the equipment is stored at temperature below 0º, the battery must be allowed to warm up
to achieve full battery capacity. The equipment must be protected from dust, particles and
other contamination.
If the equipment is not used for a long time, the battery should be fully charged, removed
from respiratory system and stored separately.
Transport the equipment with original packaging box and away from direct sunlight.

Problem Possible cause Action
Fault code «E01»
+ blinks
1. Motor is stuck
2. Motor is damaged
3. Blower structure failure
xircaused by outer force
4. Circuit failure
Check and remove physical
failure and restart the system.
Return to supplier if LCD still
shows E01
Fault code «E02»
+ blinks
1. Motor is damaged
2. Motor impeller rubs blower
xirshell
3. Circuit has excessive
xircurrent
Check and remove physical
failure and restart the system.
Return to dealer if LCD still
shows E02
+ blinks
+ ALARM sounds
Low battery Charge the battery
+ blinks
+ ALARM sounds
Filter blocked
Tube blocked
Remove obstruction
Change filter
Clean tube
blinks + ALARM sounds Battery high temperature Stop working and shut down
No air flow, no alarm 1. No power
2. Battery contact damaged
Charge the battery
Check battery contact
Battery run time is too short 1. Battery is not fully charged
2. Filter is blocked
3. Battery is damaged
Charge the battery
Remove obstruction, change
filter
Change battery
Air supply to hood smells
unusual
1. Filter broken
2. Tube broken
3. ADF helmet broken
Leave current area immediately
1. Change filter
2. Change tube
3. Change ADF helmet
Insufficient supply of air to
hood
1. Breathing tube broken off
2. Breathing tube broken
3. Filter is blocked
1. Check tube connection to
xirhood and Respiratory system
xirunit
2. Change breathing tube
3. Remove obstruction, change
xirfilter
16 STEALTH-G GRINDING HELMET & PAPR SYSTEM
9. TOUBLESHOOTING

10. SPECIFICATION
17STEALTH-G GRINDING HELMET & PAPR SYSTEM
Size (Blower Assembly) 9-2/5 x 6-1/2 x 2-3/4 in. (240 x 165 x 70 mm)
Weight 2.4kg
Particle Filter 1*TH3 P R SL
Air Flow Manufacturer minimum design flow rate: 165L/min
Nominal airflow :
Level 1: 170L/min
Level 2: 200L/min
Level 3: 230L/min
Noise Level Max 75dB
Operate Temperature 23º to 131ºF (–5º~55ºC)
Storage temperature 14ºF to 131ºF (–10ºC~55ºC)
Battery Type Rechargeable Li-ion 4400mAh
Expected Battery Operation Level 1>8h
Time Level 2>6h
Level 3>4h
Battery Charging Time 3.5 Hours
Battery Life 500 Charges
Run Time Dependent On Air Flow Rate and Filter Load
LCD Display Air flow level and data
Battery capacity
Filter status
Belt Size 35-2/5 x 51-2/5 in. (900 mm to 1300 mm)

11. MARKINGS EXPLANATION
Powered filtering device
• EN 12941:1998 Respiratory protective devices – Powered filtering devices incorporating a
helmet or hood – Requirements, testing, marking.
• TH3 P R (SL) classification of the unit. ‘TH3’ defines the level of protection, ‘P R’ indicates the
filter type (‘P’ = Particle filter, ‘R’ = Reusable type of particle filters) and ‘SL’ reflects the filter
has been tested against particles of liquid and solid matter.
Warning indication
This Stealth-G PAPR has sound and vibration alarm function.
Each square equals a period of 100ms. Grey is a beep sound and a blank square is a quiet period.
If several continued squares are in grey then there is a continuous beep sound.
Eg. When the current is overloaded, the system sounds like beep~beep~beep~~~~.
Install the battery
Turn on the system
Change the air flow speed
Turn off the system
Current overload
Air outlet jam
Over heating
Low battery
Filter jam
3 84 90 5 101
100ms per grid
62 7
= Read instructions before use
= CE mark followed by number of notified body who carried out module D
inspection.
0194
Symbols
18 STEALTH-G GRINDING HELMET & PAPR SYSTEM

12. WARRANTY
The Stealth-G Air Blower unit is guaranteed for a period of 12 months from date of purchase
against mechanical or electrical defects.
The Stealth-G battery is guaranteed for a period of 6 months from the date of purchase.
The company undertakes to exchange or repair without charge, any part found to be defective
within this period alternatively and at its discretion, may replace.
This guarantee is subject to:
– The Stealth-G system has been used solely for the purpose for which it is intended.
– The Stealth-G system has not been subject to misuse, accident, modification or repair.
– In the event of a claim, contact the retailer from which the Stealth-G system was purchased.
– The guarantee does not cover normal wear and tear.
= Read instructions before use
19STEALTH-G GRINDING HELMET & PAPR SYSTEM

Specialised Welding Products Ltd
Head Office
Unit 1, Farringdon Industrial Centre
Farringdon, Nr Alton
Hampshire GU34 3DD, UK
National Distribution Centre
Unit 1, Withins Road
Haydock Industrial Estate
Haydock WA11 9UD, UK
Customer Service
T+44 (0)1420 588180
F+44 (0)1420 588184
E[email protected]
www.specialisedwelding.co.uk
