Sybra BH-M97 User manual

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次（A/4）
- 1 -
Sybra® Bluetooth Headset BH-M97
User Manual

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次（A/4）
- 2 -
Contents:
1. Product Overview ------------------------------------------------------------------- 1
2. Basic Operation --------------------------------------------------------------------- 2
3. Bluetooth Pairing and Connection -------------------------------------------- 3
4. Connection with Two devices ----------------------------------------------------- 4
5. LED Indicator ----------------------------------------------------------------------- 5
6. Charging ------------------------------------------------------------------------------ 6
7. Product Specification ------------------------------------------------------------ 7
8. Attentions and Q & A --------------------------------------------------------------- 8

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
3
1. Product Overview:
Micro USB / LED Indicator/ Volume- / Volume+ / MFB (Multi Function
Button) / Charge Base Interface / MIC
Package Contents：
A. Bluetooth Headset BH-M97 x 1
B. Charge Base x 1
C. Micro USB charging cable x 1
D. User manual x 1

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
4
2. Basic Operation:
Button
Function
Operation Instruction
MFB
Power On
In off status，Long press 1-3 seconds MFB to power
on.
Power Off
In on status，Long press 5 seconds to power off.
Enter into Pairing
Mode
In off status，Long press 5-8 seconds to enter into
pairing mode. Or under unconnected standby mode,
double press the MFB to enter into pairing mode.
Play / Pause
Short press when play music.
Redial a call
Double press MFB to dial the last call.
Reconnect
When there is a pairing record, power on and enter
into reconnect state or short press MFB to reconnect
under pairing mode.
Voice Dialing
Long press 1 second MFB then release
Audio Switch
Long press 1 second MFB to switch the audio
between phone and Bluetooth headset.
Answer a call
Short press (when call coming)
Hang up a call
Short press ( during a call )
Reject a call
Long press 1 second (when call coming)
Volume +
Volume Up
Short press
Next Song
Long press for 1 seconds
Volume +
Volume Down
Short press
Previous Song
Long press for 1 seconds

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
5
3. Bluetooth Pairing and Connection:
A. In off status，Long press 5-8 seconds to enter into pairing mode with LED
Blue & Red flash alternately.
B. Search and click to connect “ BH-M97” on your phone Bluetooth lists, LED
change to LED Blue flash after connected, now you can play music from phone
to headphone.
C. You can press MFB/ volume+ / volume- on the Bluetooth headset to control
the answer/hang up a call and play/pause of the music, next and previous
songs, volume up and down.

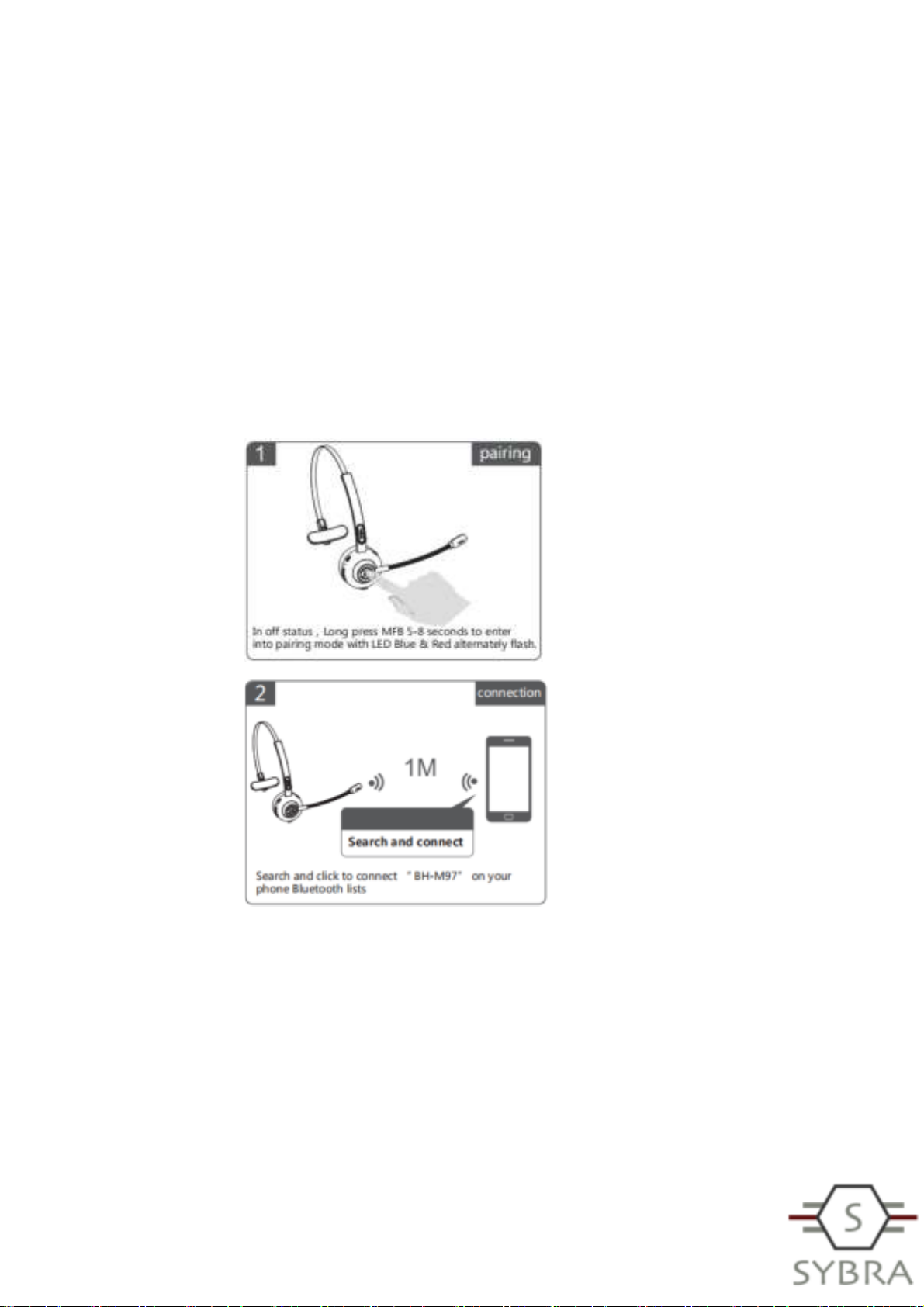

Pairing: In off status，Long press MFB 5-8 seconds to enter into pairing mode with LED
Blue & Red alternately flash.
Connection: Search and click to connect “ BH-M97” on your phone Bluetooth
lists

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
6
4. Connection with Two devices:
A. Follow part 3 to connect with first phone, then turn off the Bluetooth
function of first phone.
B. Double press MFB to pairing mode again with Red & Blue LED flash
alternately.
C. Search and click to connect “BH-M97” on your second phone Bluetooth
lists, LED change to Blue LED low flash after connected.
D. Turn on Bluetooth function of first phone, click to reconnect “BH-M97”on
Bluetooth lists. Headset connected with two phones now.
* Music only can be played from one phone under two connections,
when you want to play music from another phone, you need to pause or
close the music of the previous phone. The same operation during
talking status.

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
7
5. LED Indicator
Mode
LED Indicator
Power on
LED Blue flashes 1 second
Power off
LED Red flashes 1 second
Pairing mode
LED Red & Blue flashes alternately
Unconnected standby mode
LED Blue flashes once every 2 seconds
Connected standby mode
LED Blue flashes once every 5 seconds
Playing Music
LED Blue flashes once every 5 seconds。
Talking
LED Blue flashes once every 5 seconds
Delete paired record
Blue and Red LED flashes once at the same
time
Charging
Solid LED Red
Full charged
Solid LED Blue
Low battery
Red LED flash

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
8
6. Charging
Please charge the BH-M97 at once when the Red LED flash. Charging time
about 2 hours. Solid LED Red change to Solid LED Blue when full charged.
Charge Connections
Please connect to the BH-M97 charging port through the Micro USB charging
cable, the charger can be used as car charger, travel charger, computer USB,
etc.
Charging with Charger Charging with PC
Use of charge Base
Please place the BH-M97 on the charging base, then connect the charging
base to USB charger through the Micro USB port for charging .
Charging with Charger Charging with PC
Note:
1. Pls charge the BH-M97 at least one time every 2 moths when don’t use it.

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
9
7. Product Specification:
Bluetooth Version
Bluetooth V4.1
Bluetooth Chipset
CSR 8615
Operation Range
10M
Bluetooth Protocols
HSP HFP A2DP AVRCP
CODEC Code
SBC
Battery Capacity
180maH/3.7V
Charging Time
2H
Stand-by Time
200H
Working Time
About 17H (50% Volume)
Headset Net Weight
About 51g
Charge Base Net Weight
About 242g
Headset Dimension
163.21*142.27*48.5mm
Charge Base Dimension
79*73*31mm
*Actual use time will differ from environment and music
8. Attentions and Q & A :
A. How to reconnect and operation when failed to reconnect ?

SKY-DR-EB-M89A-8675-000-2018-A 半成品编号：EBM89Q0 制作日期：20170111 版本/版次
（A/4）
10
When BH-M97 connected with your mobile phone successfully at the first
time, it will search and reconnect the paired device automatically when power
on, If failed, please pair and connect again.
B. How to Delete paired records?
In Power on state, long press the volume+ and the volume- button for 5
seconds to clear the pairing record. The indicator Blue and Red LED flashes
once at the same time that means the pairing record has been cleared, and
the BH-M97 will not connect back to the connected device. When there are
various connection problem, try clearing the pairing record firstly.
C. What’s the password for pairing?
Some connection devices require password for pairing, pls try 0000 or 8888
or 1111 or 1234.
D. What devices could charge for the headphone?
Any car charger, power bank, PC etc which meet DC 5V , charging current
more than 500mA could be charge for this item.
E. Three-way calling function operation
Call coming during call, short press the MFB to answer the new call and hang
up the current call;
Call coming during the call, double press the MFB to answer the new call and
keep the current call;
Call with a new call coming, long press the MFB for 1 second rejecting a new
call.
When you are on a three-party call, double press the MFB to switch audio
between the current call and the keep call.
