Thank you for choosing our portable DVD player.
The unit applies the latest state of art electronics and is designed for use at
home, in hotels and in offices etc for relaxation. The compact size makes
carrying easier as well as installation. Please read the manual carefully prior
to use and keep it well for later consultation.

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
2

High brightness color 9” LCD screen
Built-in stereo speaker
Built-in rechargeable Lithium polymer battery
Support PAL or NTSC system
Support Multi-language OSD, speed forward/backward, repeat function
Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc.
Package
Main Features
1
1
1
1
3
DVD Player
AC power Wall adapter
User Manual
DC power car adapter

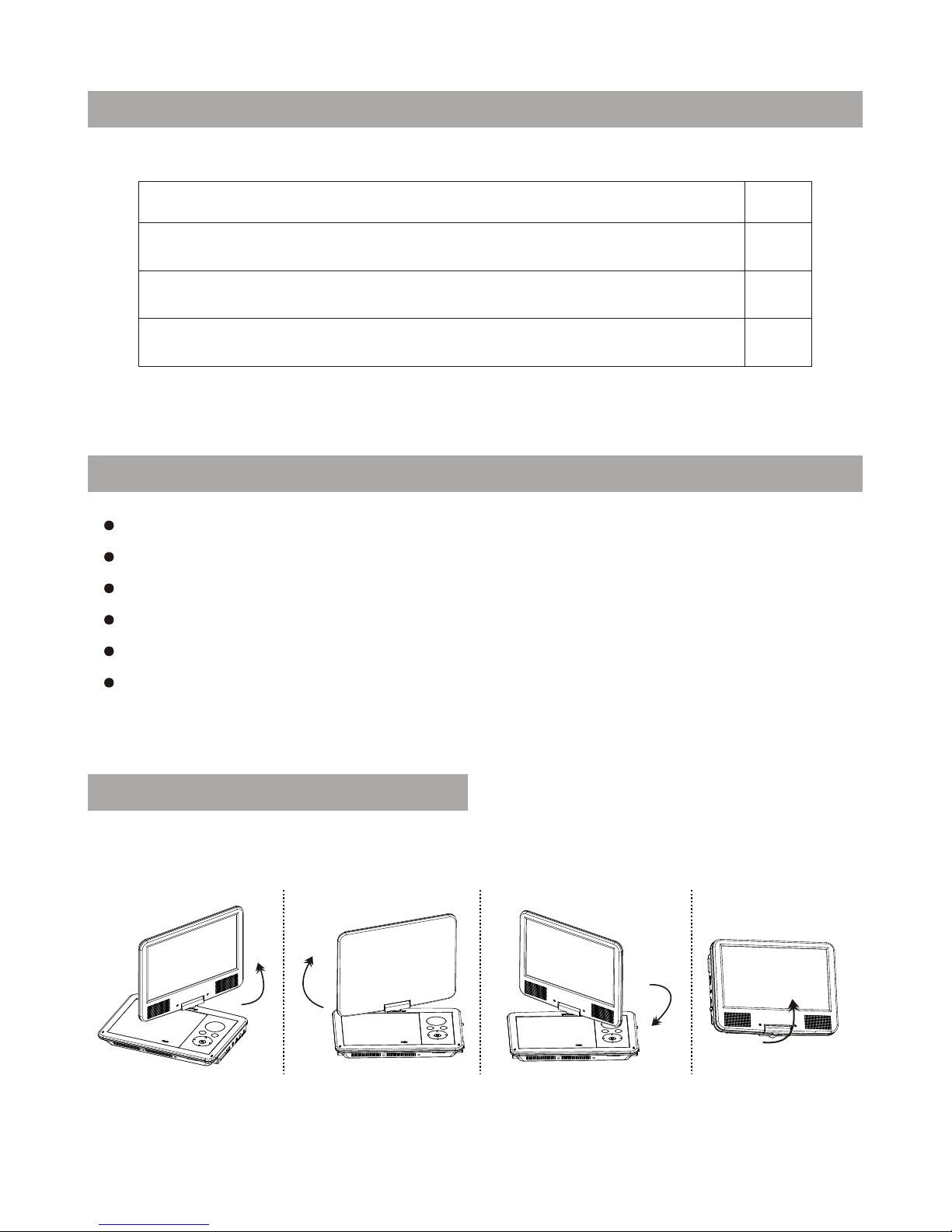

Swiveling LCD Screen
You can swivel the LCD screen of this player clockwise a maximum of 180
for use.
°
90° 180°
180°

4
Main Unit Controls
1
8. button
9. button
10. OK button
11. DC IN 9-12V
12. Power ON/OFF switch
13. AV OUT
14. Earphone jack
15. Open knob
16. Rating label position
1. USB Port
2. SETUP button
3. MENU button
4. FUNC. button
5. MODE button
-
6. STOP / VOL
( press shortly to stop, press
longly to reduce volume.)
7. Play/Pause / VOL+
( press shortly to play /pause,
press longly to add volume.)
/
/
2
3
4
5
6
7
8
9
10
15
11
12
13
14
16
1.when put in
USB flash,press "MODE" will switch
to USB status, if no USB ,will keep
DVD status unchanged. 2.Press this
button 4 times continuously to be
the password for children)

5
System Connection
Powering And Installation
Using USB
Upon using an USB, insert it into the USB slot directly.

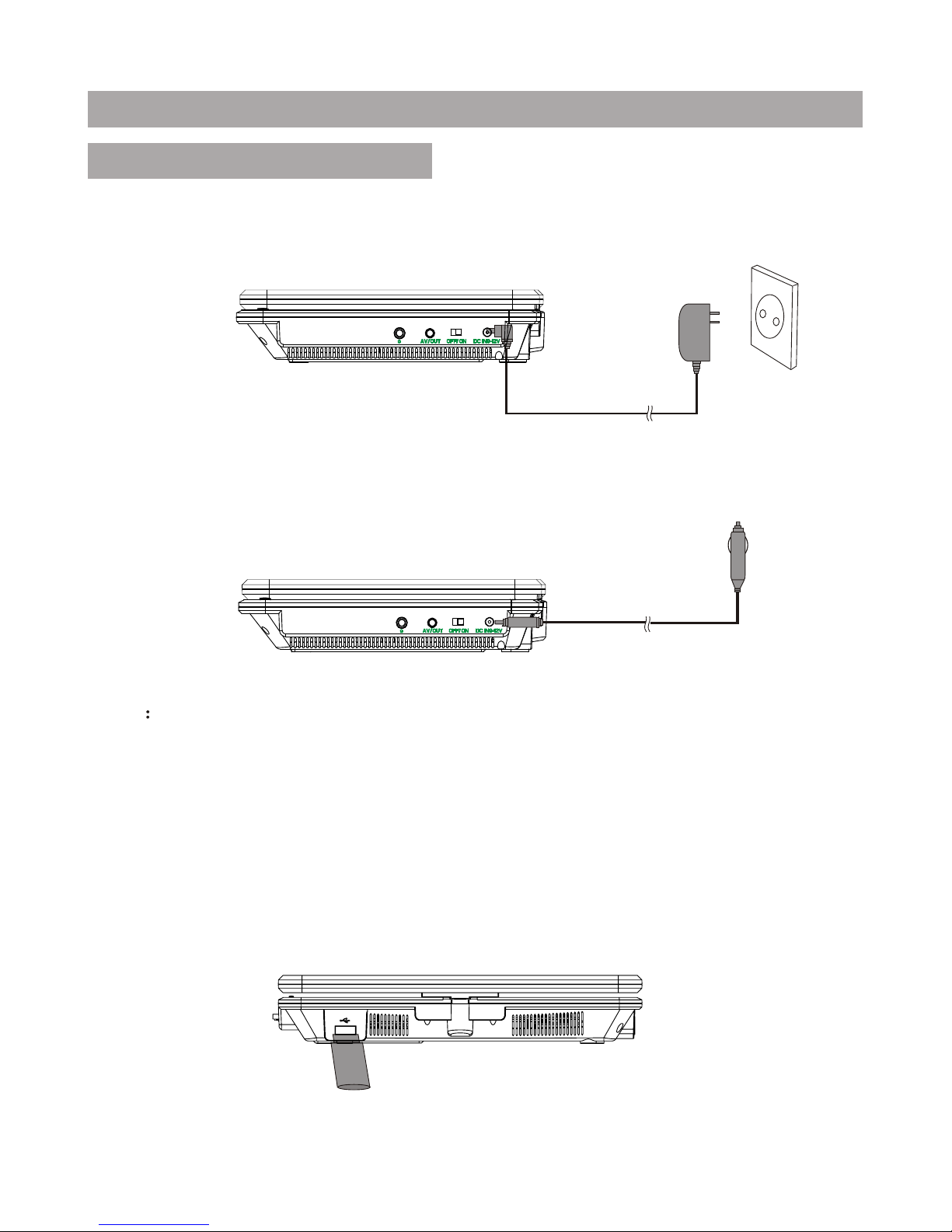

Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the
right of the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
If using DC power car adapter to connect to the power: Plug one end of
the DC power car adapter into the DC IN 9-12V jack on the unit, plug the
other end into the car cigarette lighter socket. See illustration below.
Note
1. DC power car adapter is available to use only when the car cigarette
lighter with DC 12V negative grounding.
2. The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.

Connecting With External Speaker
Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is
available to output audio in 5.1 channel.
AMPLIFIERTV
SUBWOOFER
Left front
speaker
Right front
speaker
Center speaker
Left rear speaker Right rear speaker
AUDIO INVIDEO IN
AV CABLE
Not supplied
The unit can be connected with external speaker. Please see the following
illustration.
6

7
Basic Operation
1. Connect the unit to the power;
2. Open the unit and adjust the monitor to the best position for viewing.
3. Turn on the unit by sliding the ON/OFF switch to ON.
4. Open the disc door and insert a disc into the door with the label side facing
up.
5. Close the disc door. The unit will load the disc and start playing.
6. During playback,press " " to pause; press it again to resume playback.
7. When playing disc of DVD, CD, Press " ", the unit will search forward.
Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed. press
" " , the unit will search backward. Press it repeatedly, the unit will play at
2, 4, 8, 16, 32 times of speed.
8. Press " " once to stop playback; then press " " to resume playback from
the point where you stopped; press " " twice to stop playback completely.
9. When the playing is finished, please turn off the power by sliding ON/OFF
switch to OFF.
10.Mode function: When press "MODE" button will auto swith to USB status
when put in USB flash disc card. Moreover, no matter put in disc or not,
will show DVD status.
Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, XVID.
DVD MPEG4 SVCD VCD CD MP3 XVID
Note:
Please do not disconnect USB devices while they are working with the unit.
Functional failure may occur in case of wrong operations.

8
Virtual Remote Operation
1. SRH (Search): Press the"SRH" key ,you can see the number bar below,
Use left/right key to move the cursor, press " " to confirm, when playing
DVD, you can change the chapter and the title, press the "T/C " icon
change the item you want to change. When playing CD, you can select the
track.
Note: To select the title, you need to enter two numbers.
2. M (Menu): to enter or exit menu root.
0 1 2 3 4 5 6 7 8 9 OK T/C
SRH
TT
OSD
ADO SUB
SLOW
ANGLE
M
ZOOM
SEARCH
Subtitle Off
Repeat Off Mute Off
Angle Mark Null
Virtual Remote Operation
1. Press "MODE" button when disc is playing, you will see a virtual
remote control as below, and the playback will be paused.
2. The virtual key is shown on the left of
the menu, and the current playback
status is displayed on the right.
3. Use the / / / button to choose
the icon, when the icon is selected,
you can see the description at the
bottom.
4. Press " " button, the selected virtual
key will be activated, " =Selected
function" icon will be shown at top left for 10 seconds, in these 10 seconds
you just need to press " " button to change the style of the function. If the
icon disappear, the " " key will not work. ( For Search, Return, Mute, the
icon won't be shown).
5. You can also press "MODE" button to close virtual remote menu. The
player will resume playing after the menu exit.
Note:
1. When the disc is in the submenu, press the function key can go back the
title menu.
2. Open or no disc state, the "MODE" is setup function.

9
9. Slow: You can press slow key to change the playing speed slowly during
playing DVD. Then press " " repeatedly to change the playback speed
according the following sequence: 1/2 1/4 1/8 1/16.
10. (Return): to return to the main menu.
11. (MUTE): to turn mute.
12. Angle: When playing a DVD disc with multi-angles, press "Angle" button
and " " button to change the display angle.
Note: The function is available only for disc with multi-angle.
3. ZOOM: When playing DVD discs, you can zoom in, press the "ZOOM"
button and " " button to change the image size according the following
sequence: x2 x3 x4, when playing JPEG file, you can zoom in and zoom
out, press the "ZOOM" button and " " button to change the image size
according the following sequence: 100% 125% 150% 200% 75% 50%.
4. TT (Title): to display title information.
5. ADO ( Audio): to select audio language.
6. SUB (Subtitle): to select subtitle language when playing DVD disc.
7. OSD: D
8. ( Repeat): When playing disc of DVD/CD/MP3, you can change the
repeat style by press repeat button. For different type of disc, it change
according different sequence.
isplay the disc information during playing DVD/CD. Such as
elapsed time and remaining time.
One Folder
Chapter Title All Repeat off
Track All
MP3:
CD:
DVD:
Playing JPEG File
1. Place a JPEG disc into the tray, the unit will start reading and playing.
2. Press " " and " " button to select a JPEG file from the menu.
3. Press " " to rotate the picture clockwise.
4. Press " " to reverse the picture horizontally and press " " to reverse the
picture vertically.

10
00 36 03 43
Dir 001
\Ctyy\
......
Mp3 TRACK01
Mp3 TRACK02
Mp3 TRACK03
Mp3 TRACK04
Mp3 TRACK05
Play MP3 File
Function operation:
1. Place a MP3 disc into the disc door.
2. Press " " to select the file; Press " " button to play the file selected.
Press "MODE" then you will see the toolbar as below:
Press the / to move the cursor to select functions,
Press the number key to select the track.
Press " " to select the function.
: MUTE, to turn mute.
: To select repeat one, repeat folder, repeat off.
Press "MODE" to exit the toolbar
0 1 2 3 4 5 6 7 8 9 OK
Press "MODE" key you will see the toolbar as below:
Press the / to move the cursor to select functions.
Press " " to select the function.
: Return, to return to the main menu.
: To repeat one, repeat all.
:To zoom in/out the image during playback.
Press "MODE" to exit the toolbar.
Function operation:

General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
English
French
German
Italian
:Move :Return :Entry
System Setup
Press button when no disk or CD door
open, the main menu will be displayed on the
screen.
In the General Setup Page, Press button
to highlight this item.
Press button to access.
Press button to select the setting.
Press button to confirm your selection.
Press MODE button to exit.
MODE
General Setup
Video Setup
Preference Setup
Setup Menu -- Main Page
General Setup Page
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
Normal/PS
Normal/LB
Wide
:Move :Return :Entry
TV display:
Enter this option, user can set screen display
format (Nomal/PS, Nomal/LB, Wide)
The default is "Wide".
Note:
The function depends on the display ratio
with which the DVD disc is recorded.
Please choose "Wide (16:9)" when using
a 16:9 wide screen TV set.
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting: ON, OFF.
The default is: ON.
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
On
Off
:Move :Return :Entry
OSD Language:
In the option user can set OSD menu
language (English, French, German, Italian).
The default: English.
11

Preference Setup
:Move :Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
On
Off
:Move :Return :Entry
General Setup
Screen Saver:
Enter this option to set whether to activate
the screen saver function.
The default is ON.
Video Setup Page
Video Setup
:Move :Return :Entry
Panel Quality
TV Type NTSC PAL
NTSC
Video Setup
:Move :Return :Entry
TV Type NTSC
Panel Quality
TV Type:
Enter this option to select TV type
(PAL, NTSC).
The default is NTSC.
Set the Video Quality of PANEL
12
Preference Page
Audio:
Enter this option,user can select preferred
audio language for DVDs.
The default is English.
Note
The audio language depend on the
material on each disc.
User can also change the audio language
durin g play back by pressing theAudio button.

Preference Setup
:Move :Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default Reset
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Move :Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Preference Setup
:Move :Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
Preference Setup
Preference Setup
:Move :Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
Off
Default:
Select this item and press " " button to reset.
all settings to the original factory settings.
Disc Menu:
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note: the disc menu languages depend on
the information available on the disc.
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG,PG 13,PGR, R, Nc17, ADULT.
Subtitle:
Select your preferred language to show the
subtitles on the screen.
The default is OFF.
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
13
The default of this option is ADULT.
Make continuously pressing "MODE"
button on the unit 4 times to be the password.

Specification
14
Compatible disc: DVD/VCD/CD/MP3/MPEG4
Signal system: PAL/NTSC
Panel size: 9 inch
Picture resolution: 640x234(RGB) or 640x220(RGB)
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
USB: support USB 1.1
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature:0~40°C
Weight: 0.85 kg
Dimensions (W x D x H): 233.5 175 43 mm
Battery Type: Li Polymer

Rechargeable Battery Use
The unit utilizes long-life Li polymer battery for portable power supply. The
battery has no Memory Effect and thus can be recharged safely regardless
of whether the battery is fully or partially discharged. It is enough to recharge
no longer than 4H each time. Fully recharged battery can last about 4 hours
with earphones on (earphone not included).
1. The normal working temperature is: 0 ~40 ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing, it's normal, while avoid long time playing
and unattended;
4. Avoid having the unit collide with any objects, and place away from all
possible heat sources or damp areas.
°C °C
Using And Maintaining Rechargeable Battery
Caution:
Danger of explosion if battery is incorrectly replaced.Replace only with the
same or equivalent type.
15
Precautions Related To Battery Recharge
The battery can be charing when using, The light is red when charging, and
the light turn yellow when it is fully charged.
a b
Removal Of Waste Battery
Before to discard EOL unit, please remove the waste battery by below steps:
a. Pull out the screws on the battery cover by the screwdriver to unpack the
unit.
b. Remove the battery socket from the board.

Troubleshooting
PROBLEM SOLUTION
No sound or
distorted sound
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
The icon
appears on
screen
Can't advance
through a movie
Picture is
distorted
No forward or
reverse scan
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1. The disc's software restricts it.
2. The disc's software doesn't support the
feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number
that is out of range.
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
The disc might be damaged. Try another disc;
It is normal for some distortion to appear during
forward or reverse scan.
Owing to continuous improvement, no prior notice will be given regarding changes on
above feature and spec.
lf at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority
or retailer for recycling advice. (Waste Electrical and Electronic equipment
Directive)
16
