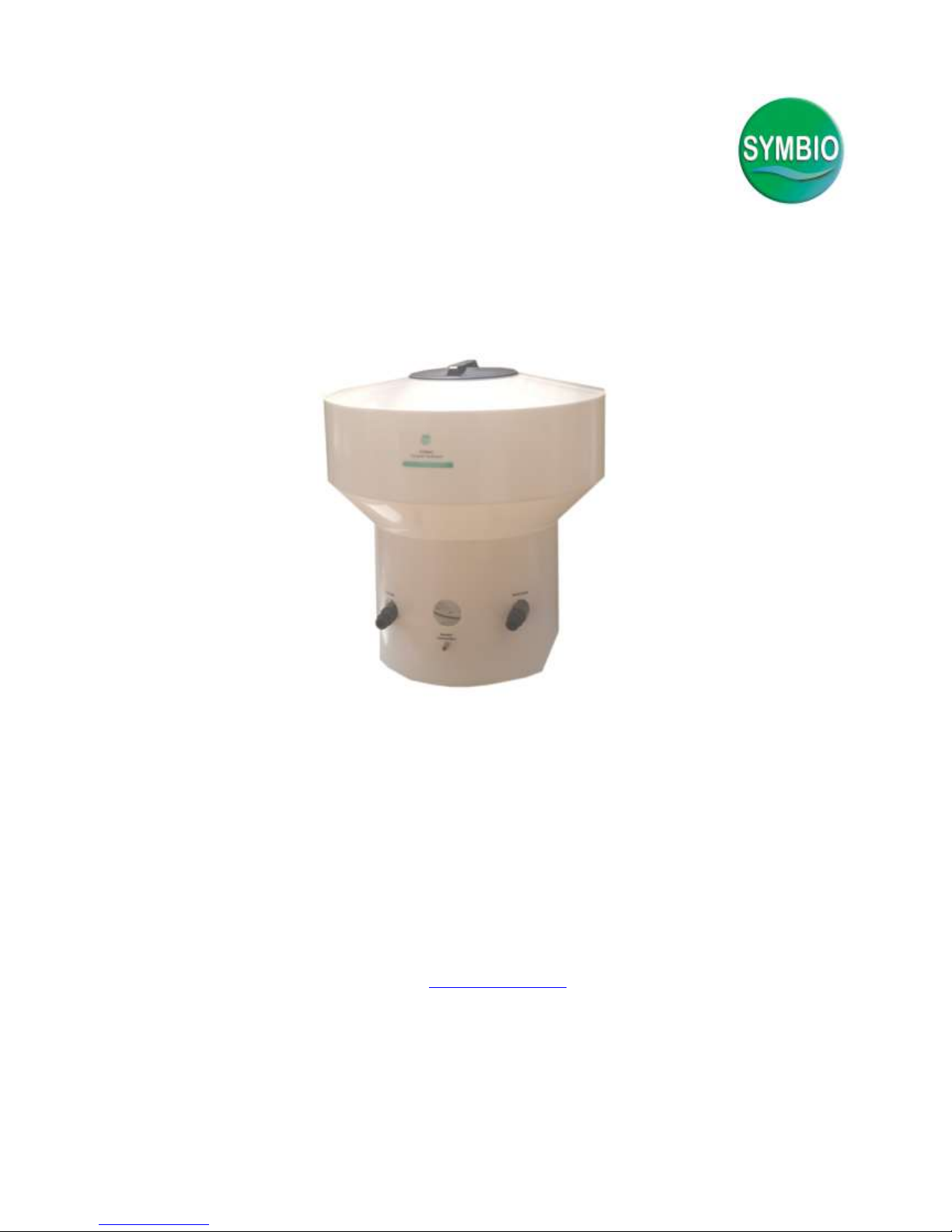

symbio Soil Life 620 User manual

Soil Life 620
Compost Tea Brewer
OPERATING MANUAL
Unit 8 Coopers Place
Combe lane
Wormley
Surrey GU8 5SZ
Tel: [phone]
Fax: [phone]
Email: [email protected]
Congratulations on buying a Symbio Soil Life 620 litre Bio Brewer, you now have the basic
equipment needed to reintroduce the life to your soil, rootzone or growing media to
improve the health of your plants and reduce inputs of inorganic fertilisers and pesticides.

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
2
COMPOST AND COMPOST TEA
The reduction in pesticides available to growers since the 1980’s coupled with increasing
cost of inorganic fertiliser has encouraged a movement to growing healthy plants in healthy
soil to increase yields and reduce reliance on inorganic fertilisers and pesticides. The
intervening years have seen rapid developments in the use of compost teas in all areas of
commercial and amenity plant production. These developments have been driven by
substantial research, aided by improved microscopy and other investigative techniques plus
the urgent need for solutions to the increasing problems of soil depletion and pest and
disease pressure caused by continued chemical inputs to the soil.
The philosophy is simple; you either get the soil to work for you and reap the benefits of
plant and soil evolution or use it as a receptacle for chemicals.
The use of compost and compost teas is the simplest way to develop healthy soil, maximise
yields and minimise chemical inputs.
What is Compost Tea?
Compost Tea is a microbial solution that adds beneficial organisms to the soil to improve
soil structure, sustain plants, build humus in the soil, and enhance nutrient uptake.
Aerated compost contains millions of beneficial organisms, but it is not always possible or
practical to obtain or apply it, while Compost Tea contains billions of beneficial organisms
and can be easily made and applied over large areas.
Compost Tea is not a quick fix, and not a stand-alone product. It builds soil health over time
- adding beneficial organisms that aid in plant health and growth. It is not an NPK fertiliser
or a pesticide
Compost tea is an extract of the microbial life in your compost. It can be either bacterial or
fungal dominated but in all cases a good compost tea will contain:
Enzymes and amino-acids
Bacteria, fungi, protozoa and beneficial nematodes
Water soluble nutrients and organically bound nutrients
Small quantities of NPK.
The quantity, diversity and quality of these micro-organisms depends on the quality of the
compost used for the extraction, the brewer used and micronutrients and starters added
for optimum organism growth.

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
3
Compost Tea is not a product but the watery means of transport for micro-organisms.
Compost tea is a temporary survival unit that allows living micro-organisms to be taken
from the compost, multiplied rapidly and introduced to the soil and leaf.
The extracted compost-tea is a mixture of organically produced enzymes, fungi, bacteria,
protozoa and beneficial nematodes with natural humic acids capable of enhancing your soil
structure and the uptake of nutrients by your crops or grass.
Compost-tea from the Symbio 620 brewer maximises the microbial activity in your soil.
These microbes will behave as catalysts in humus production in your soil and will make
minerals in the soil available to your grass or crops.
In addition to providing the bacteria, fungi, nematodes and protozoa your soil needs the
compost-tea from the Symbio 620 brewer also contains the necessary nutrients for these
organisms to flourish.
Why is compost-tea used?
Inorganic fertilisers are mineral salts which together with pesticides, compaction and water
logging deplete the soil and substantially reduce the activity of soil micro organisms.
Compost-tea can rebuild your natural soil fertility and disease resistance by bringing these
organisms back into your soil together with their supporting nutrients. Compost-tea is an
important management tool for building a healthy soil food web. Compost and good quality
aerobic compost-tea can restore a healthy soil food web in a relatively short period of time;
results will usually be seen in weeks.
Advantages of using compost-tea:
It adds and stimulates the organisms in your soil and on your plants, grass or crops to
provide a continuous flow of available nutrients matched to the plant’s needs.
It increases the speed of decomposition of dead plant material e.g. thatch and stubble
converting it to soil building humus.
The nutrition value of your crop will increase dramatically.
Your staff will be exposed to fewer toxic chemicals.
Your soil food web will be enhanced instead of being killed.
Seed germination and ripening of fruits is stimulated.
Growth processes and defence mechanisms against drought and disease in your plants
are stimulated.
As the soil biology develops natural disease suppression will return to your rootzone as
the compost-tea stimulates the soil organisms responsible for disease suppression.

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
4
2222

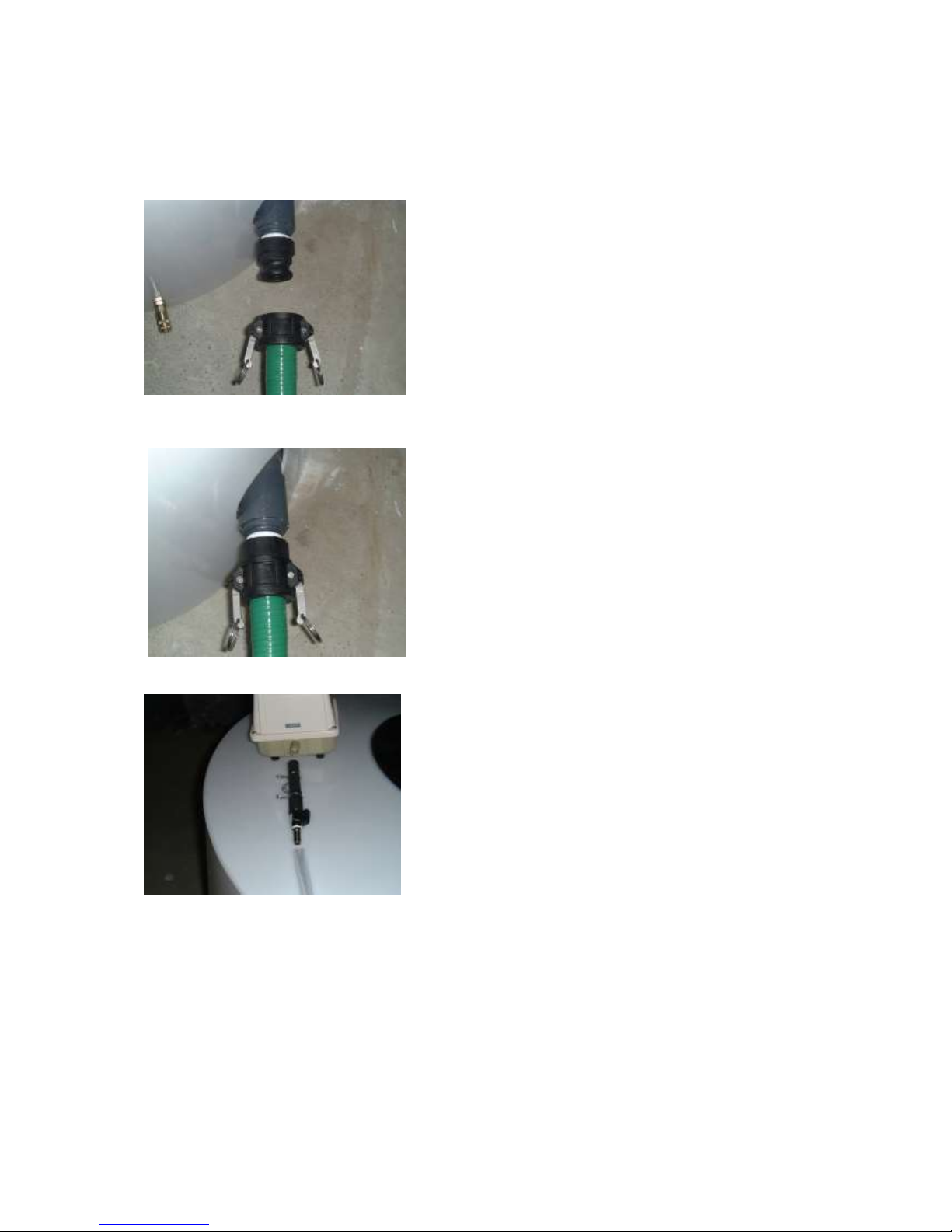

There are two drain holes in the Symbio 620. To
decant the finished compost tea connect the green
drainage hose to the top outlet. To remove the
residue before cleaning connect the drainage hose to
the bottom outlet.
Assembly Instructions for Soil Life 620 Brewer
Push the connector over the coupling on the 620
brewer and fix by pulling both levers parallel with the
hose.
The air pump must be kept above the level of the
water in the 620 brewer at all times. It should be
mounted on a stable platform away from water.
Electricity and water do not mix, you are advised to
install a contact breaker unit between the plug and
electricity supply.

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
5

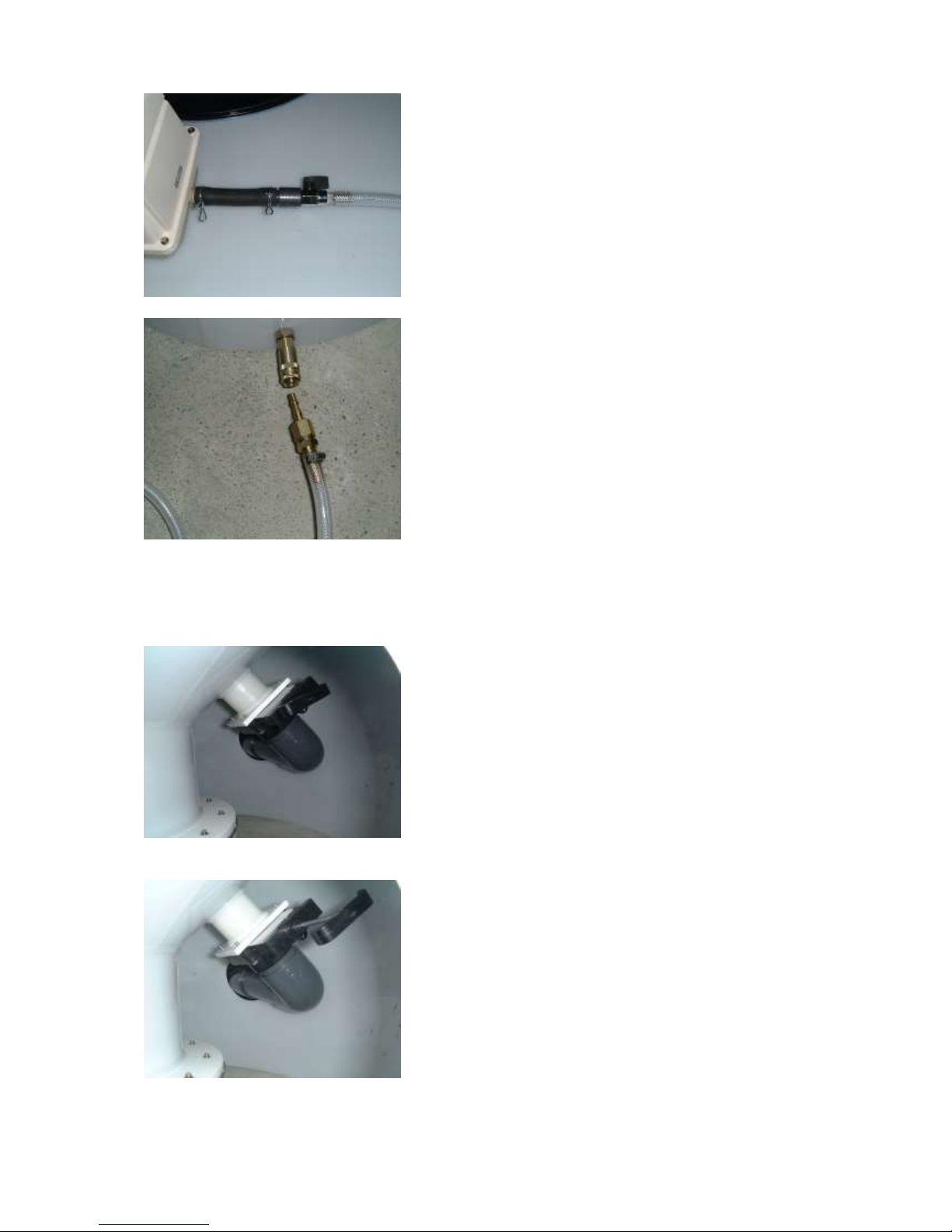

Connect the open end of the air hose to the valve and
the valve to the black rubber connecting tube, which
in turn is connected to the outlet of the air pump.
Connect the air hose to the 620 Brewer by
pushing the connection together and pulling the
coupling towards the air hose to complete an
airtight seal
There is a gate valve on each water outlet,
reached through hole in the outer wall of the
base of the 620 Brewer. Ensure both gate valves
are closed before filling with water
To empty the compost tea into your sprayer
attach the green hose to the upper drain. Open
the gate valve to the drain to be used by pulling
the handle towards you.
To clean the unit and remove debris close the
upper drain attach the green hose to the lower
drain and open the gate valve to the lower drain
and drain and flush the Bio Brewer with clean
water until all debris has been removed.

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
6
How Much Compost should I use?
The Symbio Compost Tea Packs contain all the pre tested compost and nutrients needed to
make a good compost tea.
The 100 litre pack is designed to be made with a minimum of 100 litres of water; there is no
maximum amount of water up to 600 litres.
Approximate coverage per pack
100 Litre Compost tea Pack covers
10,000 sq.m soil with low organic matter < 2% and peat growing media
10,000 –20,000 sq.m soil with average organic matter 2-4%
20,000 –40,000 sq.m soil with high organic matter > 4% and peat free growing media
For advice on quantities for specific soils contact your Symbio Advisor
Operating Instructions
1. Ensure both the gate valves are closed.
2. Fill the 620 Brewer with at least 100 litres of clean water for every hectare to be
treated. There is no maximum amount of water. You can use between 100 –700
litres of water per hectare
3. If the water is chlorinated fill up the day before use or aerate the water for at least
60 minutes until all odour of chlorine has gone.
4. Check all connections are closed tightly and not leaking.
5. The ingredients from the Symbio Compost Tea brewing kit may be added in one of
three ways
Option 1
Add the nutrients to the water then add the compost and switch on the aeration

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
7
Option 2
Use Compost Tea Bag when brewing in 100 to 500 litres of water
Option 3
For brewing 500 litres +
6. Remove the lid when brewing tea, it may damage the air pump. Only use the lid on
the 620 Brewer to protect it when not in use.
7. Open the air valve. Connect to the electrical supply via a contact breaker. Let the
Symbio 620 brewer brew for 18 –24 hours.
8. If the compost tea starts to foam add a cupful of vegetable oil.
Add the nutrients to the water.

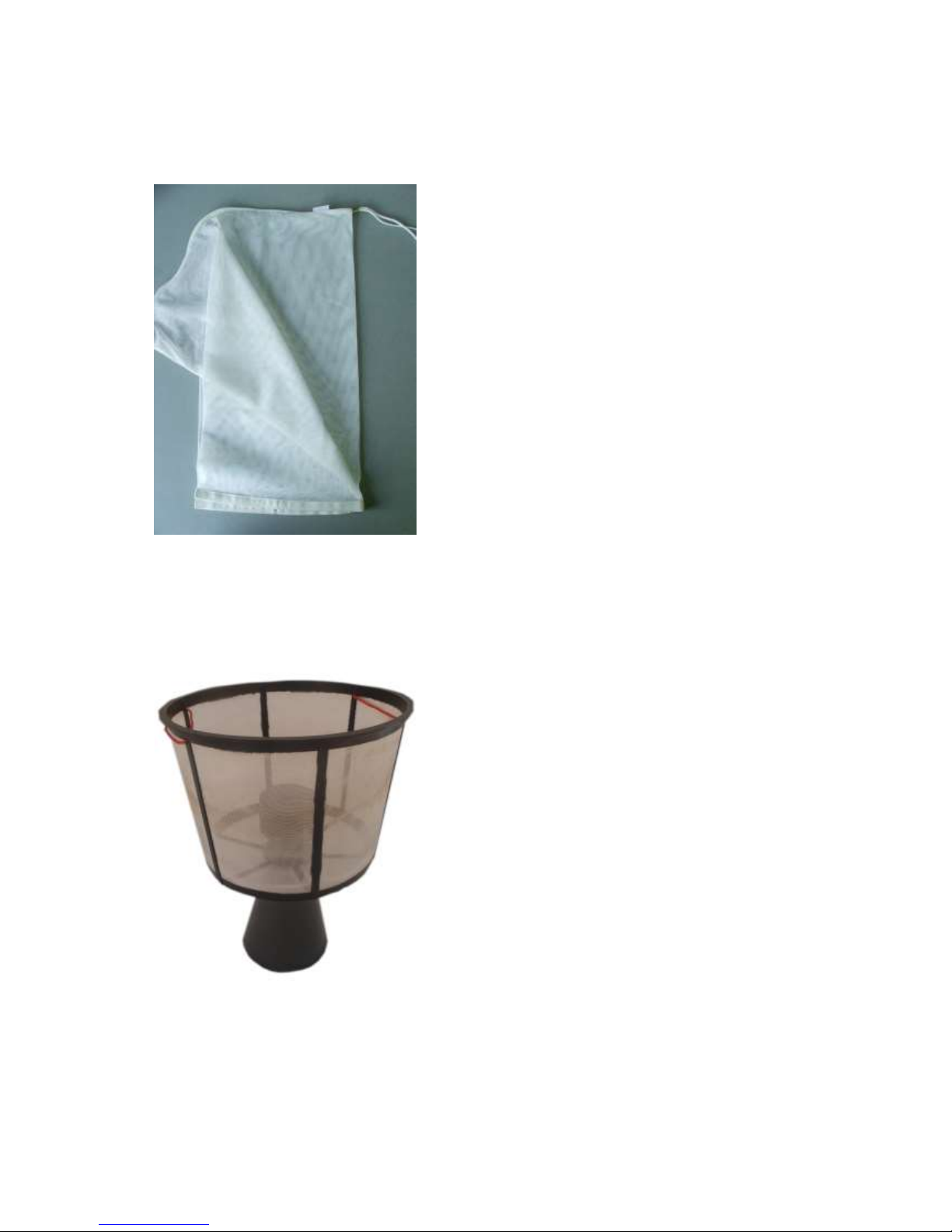

Put the compost into the tea bag and close the
Velcro tab tightly and tie the string to a bar laid
across the top of the brewer so that the tea bag is
completely covered by water and hangs directly over
the air diffuser.
When the compost tea is mature switch off the air
pump and remove the tea bag before decanting the
solution. Allow to settle for 20 minutes.
You should filter the compost tea before putting it
into the sprayer as small particles will escape from
the tea bag during the brewing process
Add the nutrients to the water.
Place the compost holder into the top of the brewer.
Add the required amount of compost to the compost
holder and switch on air pump
When the compost tea is mature switch off the air
pump and remove the tea bag before decanting the
solution. You should filter the compost tea before
putting it into the sprayer as small particles may
escape from the compost holder during the brewing
process

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
8
Brewing Times
All times below are based on an ambient air temperature of approx 15-20 degrees. Extend
the brewing time if it is colder
The quantity and type of microbe you grow is dependent upon the content and quality of
compost, the nutrients added and the length of time taken for the brewing process. The
following suggestions are for compost tea made with Symbio approved additives and
nutrients
Bacterial Dominant Tea
In general bacteria grow first and fastest and you should have a bacterial dominant tea if
brewed for 10-12 hours.
Uses –Foliar feeding, soil drench for annual plants, early spring start for annual grasses
Balanced Bacterial: Fungal Tea
Fungi feed on more complex nutrients like cellulose and lignin which are harder to degrade
so they take longer to grow. As a general rule brew your tea for 18-24 hours for a balanced
tea with nematodes and protozoa.
Uses –Use as a soil drench for most soils, amenity turf and crops
Fungal Dominant Tea
It is not so easy to make a fungal dominant tea. We recommend adding Symbio Fungal
additive for compost teas and brewing for 36-48 hours. Nematodes tend to reduce in
numbers after 18-24 hours.
Uses –Use as a soil drench for trees. On amenity turf systems apply where fairy rings and
fungal dry patch are a problem. In nursery and horticulture apply when soil borne fungal
diseases are present
Protozoan Dominant Tea
Protozoa eat bacteria so eventually protozoan numbers grow and the bacterial population
reduces. This usually takes 36-72 hours.
Uses –Where analysis shows protozoan numbers are low.
The above timings are an approximate guide only. We suggest you look at your tea under a
microscope or have it analysed. Contact your Symbio advisor to find out when Symbio is
running its next microscope class in your area

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
9
To decant the finished Compost Tea from the Symbio 620 Brewer.
DO NOT ATTEMPT TO TIP THE 620 BREWER WHEN FULL
1. When the compost tea is ready to use (see brewing times above).
2. Disconnect the electrical supply and close air hose valve.
3. Leave the tea to stand for 20 minutes to allow solid matter to settle out or float to
the surface.
4. Ensure the green hose is secured to the chosen outlet with the sieve provided (or
pair of wide mesh tights which many users find to be the best sieve available)
attached to the other end to filter debris before the liquid enters your spray tank.
Use as wide a mesh as possible because a fine mesh will filter out the larger micro-
organisms. It may be easier to decant the tea into a bucket before adding to the
spray tank.
5. Open the gate valve for the chosen outlet and decant the tea. If the 620 brewer is
full connect the green hose to the top exit and open the top valve to reduce the
water pressure.
6. Apply the tea as soon as possible ideally within four 4 hours of manufacture.
Compost-tea is full of living organisms and has a very short shelf-life.
7. If you cannot apply the compost tea within four 4 hours, leave it in the brewer
and aerate for 5-10 minutes every hour.
8. Clean the Symbio 620 brewer following the cleaning instructions.
Cleaning the Symbio 620 brewer.
N.B It is very important to clean the brewer thoroughly after each use to prevent anaerobic
bacteria and disease causing pathogens to grow on the nutrients left behind. The 620 Bio
Brewer is white for a purpose. You should not be able to see any brown staining in the brew
tank
Disconnect the electrical supply.
1. Detach the air hose from the bottom of the brewer
2. Open both gate valves
3. Tip the 620 brewer on its side using the straight edge at the bottom of the brewer
so that all remaining liquid is removed. (It may be easier to remove the green hose if
discharging directly to drain)
4. Wash all debris and bio film from the 620 brewer with a hose, drain so no water is
remaining in the 620 brewer and allow to dry
5. Clean the barrel once in every 4 weeks with Symbio Compost Tea Brewer Cleaning
Solution or hydrogen peroxide e.g. Napisan. Fill the brewer with clean water, add
the cleaning solution in accordance with instructions. Stand for an hour then run the
air pump for 20-30 minutes. Drain through both valves and allow to dry

Symbio
Symbio Soil Life 620 Bio Brewer User Manual
Phone Symbio 01428 685762 for advice on use and application
10
Compost Tea Application
Use the compost tea within 4 hours of switching off the aerator, otherwise the micro
organisms will use up all the oxygen and the brew will go anaerobic. If it is not possible to
apply the tea within 4 hours then run the aerator for 5 –10 minutes every hour and apply a
tablespoon of sugar, liquid seaweed or fish hydrolysate to feed the micro organisms.
Compost tea may be applied neat or diluted with clean chlorine free water. Ideally it should
be made and diluted with your irrigation water.
Soil Application –To develop the soil food web
Apply at least 100 litres of compost tea per hectare. Use wide nozzle or spray heads. Dilute
the tea with enough chlorine free water to match your usual spray settings. If you use tap
water fill up the tank a few hours before use to allow the chlorine to dissipate before
adding the compost tea.
You cannot overdose compost tea, for areas of poor quality soil, poor growth or suffering
high levels of wear the soil will benefit from several passes with the sprayer.
Foliar Application
You need at least 50 litres of compost tea per hectare, diluted no more than 1:1 unless
testing shows the tea to be very rich in bacteria and fungi
The micro-organisms are light sensitive so apply on cloudy days or in the evening if possible,
especially if you are applying as a foliar spray.
Compost tea has no direct pesticidal effect, any benefit is gained by beneficial bacteria
colonising any lesions in the plants surface, growing on the exudates preventing pathogens
from entering and attacking the plant. To have any effect at least 70% of the leaf surface
must be covered on the top and bottom of the leaf.
To ensure potential infection sites are covered before the pathogens can find them on the
leaf, or root, Compost tea is a pro-biotic, not an anti-biotic.
Commercial Sprayers
When using commercial sprayers, the compost tea may be mixed with as much water as is
required to get an even spray pattern. Use the widest nozzle setting possible - at least 1mm
and the lowest pressure possible, ideally no more than 2 bar.
Make sure there are no pesticide residues in the tank
If using mains water fill the tank a few hours before adding the compost tea to allow the
chlorine to dissipate.
Agitate the compost tea solution while in the tank.
